ZTJ-UH5WIRELESS MICROPHONE SYSTEM

PV1 UHF This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interfer- ence caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter.

1 2 34 ABCD 4 3 2 1 D CBA compressor mod deviation frequency modulation 32.768KHz pilotone signal Fosc=XT1*3 F=Fosc*12 filter amp DC IN POWER SUPPLY mic in amp ANT

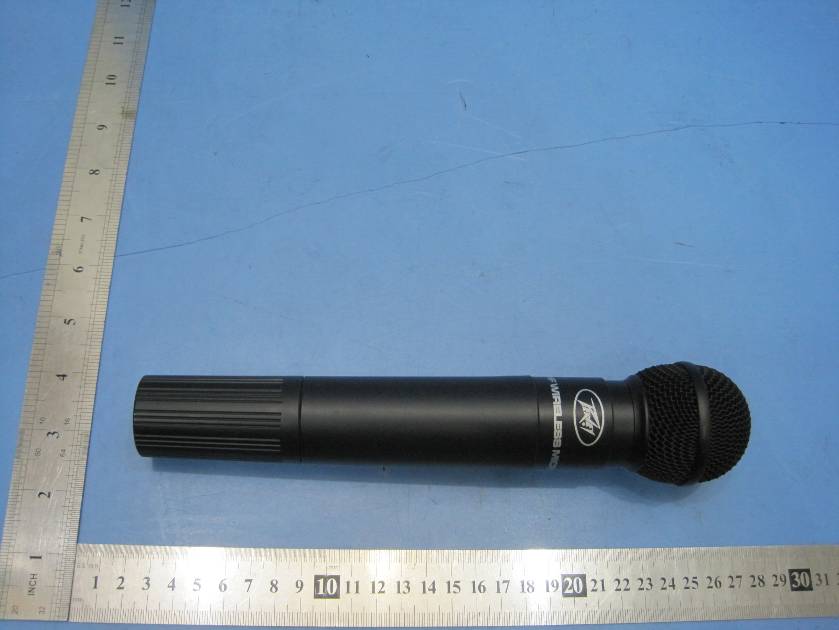

2.1 EUT – Front View 2.2 EUT – Back View

2 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID :ZTJ-UH5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Simple for Model : UH-5; PV-1 U1 HH(Transmitter) FCC ID :ZTJ-UH5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 PCB1 – Front View 2.3 PCB1 – Back View 2.4 PCB2 – Front View 2.5 PCB2 – Back View 2.6 PCB3 – Front View 2.7 PCB3 – Back View

Circuit Description: The amp amplify the audio signal from the MIC, and send it to the compressor. After compressing, the signal is modulated with the carrier wave which is decided by XT1 (25.167MHz ~ 25.778MHz). Then the frequency of carrier signal is doubled by 36 times and amplied. In the end, the signal is transmited over space via antenna.

T1 89 R9 2K2 Q6 1923 C17 47P C710P C37 33P C5 102 XT1 L1 C31 10UF C331UF C30 10UF C32 2.2UF L8 8.2NH L11 47NH L5 22NH L4 22NH VC110P Q1 3356 Q3 3838 C15 39P C135P C1622P C1112P C34 100P C39 102 R11 15K R10 47K R2 220 R12 100K R15 100K R14 470K R22 47K R7 3.3K Q5 1923 C12 102 T2 C6 150P C40 22P C19 102 C20 102 C4 2P C18 102 C31P R4 82K R1 47KR3 220K B1 9V C26 100UF LED1BATT R8 27K D1 ISV270 R18 10K R16 10K C21 10P C29 102 L9 100UH L10 100UH C14 3P T2 C35102 C28 102 Q4 1923 C24 22P R6 330K R5 2.2K C8 150P L2 5T C9 102 C23 102 Q2 3838 C21 150P C22 102 ANT C10 102 Vin 1 GND 2 Vout 3 TR1 78L05 R21 220 Q3 3904 C25 100uF FL1 5 6 7 IC1B 4558 C7 10UF/50V C13 2U2/50V C25 2U2/25V C142U2/50V C11 2U2/50V R1210K R10 2K2 R11 10KC17 104 R622K R7 15K R8 15K R510K M1 MIC 6.5V C4150P C16 47P C8102JC9103J C2 220P 3 2 1 IC1A 4558 6.5V C12 10UF/50V C6 1UF/50V C5 2U2/50V C10 2U2/50V R315K R21K R910K C3104 2 3 1 85 4 IC2 571 7 6 13 6.5V W2 10K R17 10K SW11/2 R410K C36 22P Q2 2sk208 R20 10K XT132.768KHzC18 10P C28 104 R18 100K R13 100K R171KR145K6 R152K2 R16220K C19 103 C20 102 Vin 1 GND 2 Vout 3 D2 8150 C25 100uF R19 100 L31UH GND GND SW1 1/2 Rev C26 2U2/50V C20 47U/16V R17 1K R16 75K C23 103 15 14 16 9 U2B 571 10 1112 U1B L1 1UH L2 1UH W1 5K

Page: 1 of 23 FCC TEST REPORT WALTEK SERVICES Reference No.: WT11073613-E-E-F FCC ID : ZTJ-UH5 Applicant : Shenzhen Uniwisdom Technologies Co., Ltd. Address : Bldg.91-94 3rd Industrial Zone, Lisonglang, Gongming Town, Bao’an District, Shenzhen, P.R.China Equipment Under Test (EUT) : Product Name : Wireless Microphone System Model No. : UH-5; PV-1 U1 HH(Transmitter) Standards : FCC Part 15 Subpart C:2009 Date of Test : July 18, 2011 ~ July 20, 2011 Date of Issue : July 26, 2011 Test Engineer : Hunk yan Reviewed By : Philo zhong Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 23 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID: ZTJ-UH5 WALTEK SERVICES Reference No.: WT11073613-E-E-F 2 Test Summary FCC Part 15 Subpart C Requirements Test Items Test Requirement Test Method Result Conducted Emission (150KHz to 30MHz) FCC Part 15.207 ANSI C63.4: 2003 N/A Radiated Emission (30MHz to 10GHz) FCC Part 15.209 ANSI C63.4: 2003 PASS 20dB Bandwidth FCC Part 15.249 ANSI C63.4: 2003 PASS Page:3 of 23 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID: ZTJ-UH5 WALTEK SERVICES Reference No.: WT11073613-E-E-F 3 Contents 1 COVER PAGE....................................................................................................................1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 4.3 DETAILS OF E.U.T................................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 6 ANTENNA REQUIREMENT ............................................................................................................................... 8 7 CONDUCTED EMISSION .................................................................................................................................... 8 8 RADIATION EMISSION DATA .......................................................................................................................... 8 8.1 TEST EQUIPMENT.................................................................................................................................................. 8 8.2 MEASUREMENT UNCERTAINTY............................................................................................................................. 8 8.3 EUT SETUP........................................................................................................................................................... 9 8.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 10 8.5 TEST PROCEDURE................................................................................................................................................ 10 8.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 11 8.7 RADIATED EMISSIONS LIMIT...............................................................................................................................11 8.8 TEST RESULTS..................................................................................................................................................... 12 8.9 PHOTOGRAPH – RADIATION EMISSION TEST SETUP............................................................................................ 16 9 20 DB BANDWIDTH ........................................................................................................................................... 17 9.1 TEST EQUIPMENT................................................................................................................................................ 17 9.2 TEST PROCEDURE................................................................................................................................................ 17 9.3 TEST RESULT...................................................................................................................................................... 17 10 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS...............…

Text truncated - open the document above for the full version.

2.1 Photograph – Radiation Emission Test Setup Below 1GHz Above 1GHz
