ZU3UNNECTOCURVEGSM MOBILE PHONE

0 USER MANUAL 1 Dear Sir/Madam Thank you for purchasing our company’s GSM/GPRS digital mobile phone. The product is designed for GSM/GPRS network environment. It supports Dual SIM Dual Standby. Besides the basic calling functions, it provides following functions: 64-chord incoming call ring, incoming call picture, camera, video recorder, music player, video player, FM radio, U disk, voice recorder, Bluetooth, calculator, timing power on/power off, WAP and multimedia message, MSN,yahoo,facebook,twitter , which enable the user t o enjoy and use in the daily work and life. You will know how to use the product after reading this manual. 2011-7-19 Table of Contents 1 Precautions....................................................................................................................1 2 About the Phone............................................................................................................4 2.1 Appearance ........................................................................................................4 2.2 Description of the Functions of Keys .................................................................4 2.3 Icons ..................................................................................................................4 2.4 Battery ...............................................................................................................6 2.5 Link to Network.................................................................................................7 2.6 Connect Phone with USB Data Line ..................................................................9 3 Quick Operating Guide .................................................................................................9 3.1 Particular Functions ...........................................................................................9 3.2 Make a Call......................................................................................................11 3.3 Emergency Call................................................................................................11 3.4 Answer a Call...................................................................................................11 3.5 End a Call ........................................................................................................11 3.6 Call Options........................................................................... 11 4 Menu Functions..........................................................................错误！未定义书签。 4.1 Messageing ...................................... ................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.2 Audio Player...........................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.3 Phonebook ....................................... ................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.4 Call center ........................................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.5 User Profiles ....................................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.6 Camera.............................................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.7 Settings ........................................ ....................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.8 Dual SIM settings ............................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.9 Services............................................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.10 Organizer ...................................... ...................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.11 File manager........................................................................... 31 4.12 Multimedia.......................................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.13 Bluetooth .........................................................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.14 Ebook reader...........................................错误 错误错误 错误！ ！！ ！未定义书签 未定义书签未定义书签 未定义书签。 。。 。 4.15 Games .......................................... ....................................................................30 4.16 Game Center ....................................................................................................30 4.17 MSN ................................................................................................................30 4.18 Yahoo ..............................................................................................................30 4.19 Facebook..........................................................................................................30 4.20 Twitter .............................................................................................................30 5 Input Method..............................................................................................................31 5.1 Capital/Lowercase Letter Input ........................................................................32 5.2 Numeric Input ..................................................................................................32 6 Trouble shooting.......................................................................................................321 1 1 Precautions Read these provisions carefully, violation of these provisions could cause danger or break law. Precautions are provided in these manual. Secure Power-on Don’t power on where mobile phone is forbidden, so as to avoid interference and danger. Traffic Safety According to recent research, it is danger to use phone during driving even though hands-free devices (vehicle hands-free device, earphone, and so on) are adopted. The electromagnetic wave radiating from th…

Text truncated - open the document above for the full version.

Ambitio LLC, The Owner of unnecto ™ FCC ID: ZU3UNNECTOCURVE POWER OF ATTORNEY January 16, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Ambitio LLC, The Owner of unnecto ™, hereby authorize Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on January 31, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Ambitio LLC, The Owner of unnecto ™ are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Daniel Moy Manager Ambitio LLC, The Owner of unnecto ™ January 16, 2012

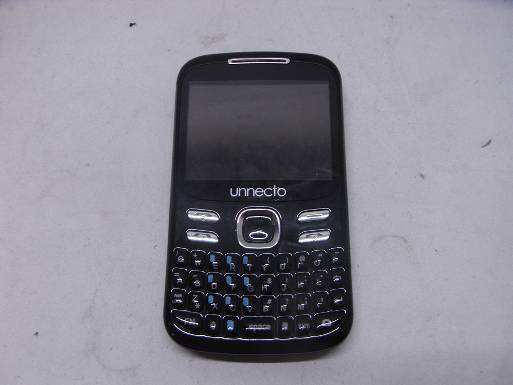

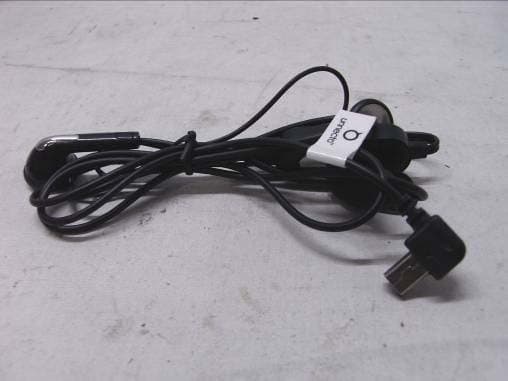

FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 35 of 45 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 36 of 45 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 37 of 45 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 38 of 45 PHOTO OF EARPHONE PHOTO OF USB CABLE FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 39 of 45 PHOTO OF POWER SUPPLY PHOTO OF BATTERY FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 40 of 45 PHOTO OF THE ENTIRE SAMPLE

FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 41 of 45 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 42 of 45 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE –4 FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 43 of 45 INTERNAL PHOTO OF SAMPLE –5 INTERNAL PHOTO OF SAMPLE –6 FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 44 of 45 INTERNAL PHOTO OF SAMPLE –7 INTERNAL PHOTO OF POWER SUPPLY-1 FCC ID: ZU3UNNECTOCURVE Report No.: STS111222F4 Page 45 of 45 INTERNAL PHOTO OF POWER SUPPLY-2 ------END OF REPORT------

1/2 Operation Description OPERATIONAL DESCRIPTION APPLICANT:Ambitio LLC, The Owner of unnecto ™ Manufacturer: QINGBANG ELEC(SZ)CO.,LTD. FCC ID: ZU3UNNECTOCURVE Instruction Book: Users Manual Frequency Range GSM Transmit Frequency Band: 824.2-848.8 MHz Receive Frequency Band: 849.2-893.8 MHz Transmit Frequency Band: 1850.2-1909.8 MHz Receive Frequency Band: 1930.2-1989.8 MHz Specific Operating Power Range: Power Class 1; Power Control Level 0 +30dBm +2.0dB/-2.0dB Power Control Level 1 +28dBm +3.0dB/-3.0dB Power Control Level 2 +26dBm +3.0dB/-3.0dB Power Control Level 3 +24dBm +3.0dB/-3.0dB Power Control Level 4 +22dBm +3.0dB/-3.0dB Power Control Level 5 +20dBm +3.0dB/-3.0dB Power Control Level 6 +18dBm +3.0dB/-3.0dB Power Control Level 7 +16dBm +3.0dB/-3.0dB Power Control Level 8 +14dBm +3.0dB/-3.0dB Power Control Level 9 +12dBm +4.0dB/-4.0dB Power Control Level 10 +10dBm +4.0dB/-4.0dB Power Control Level 11 +8dBm +4.0dB/-4.0dB Power Control Level 12 +6dBm +4.0dB/-4.0dB Power Control Level 13 +4dBm +4.0dB/-4.0dB Power Control Level 14 +2dBm +5.0dB/-5.0dB Power Control Level 15 +0dBm +5.0dB/-5.0dB Note; Effective radiation efficiency is –3.7dB DC Voltage and Current into the Final Amplifier Module: Supply Voltage = 5.0Vdc Supply Current = ~0.5Amp. Tune-up Procedure: Tune-up Procedure Equipment Identification: Equipment's Identification label and its intended Location are as shown in EXHIBIT Type “ID Label / Location Information” (FCC ID Nameplate), and in EXHIBIT Type “Internal Photo”(Photograph of inside) Photographs: A complete set of the Photographs showing External and Internal Views of Circuit Details and Construction are provided by from EXHIBIT Type “External Photos” and “Internal Photos”. Accessories: Accessories 2/2 Operation Description Figure 1.2: Terminal Components (Accessories) Technical Descriptions TX synthesizer uses an Offset-PLL circuit. The Offset-PLL circuit consists of PLL-IC and TX_VCO and loop filter. Reference frequency of the above synthesizers is 26MHz and generated by VCTCXO. Control signal is sent from Baseband section and keeps frequency stability. TX IQ signal is input from Baseband section to MT6253, The Bluetooth signal is input form MT6601 and FM signal is input form TLG1120 section to MT6253. TX IQ signal is applied to the quadrature up-converter, and the up-converter LO signal is generated from the transceiver VCO within MT6139B. This up-converter translates the GMSK-modulated signal to an intermediate frequency (IF) that forms one input to a frequency/phase detector circuit. This IF signal is the reference input to an Offset-PLL circuit. The feedback path of this Offset-PLL circuit includes a down-conversion from the RF output frequency range to the IF range. The two inputs to this down-conversion mixer are formed the TX_VCO output and the LO generation circuits. The mixer output is the offset feedback signal that forms the variable input to a frequency/phase detector circuit. The detector compares its variable input to its reference input and generates an error signal that is low-pass filtered by the loop filter and applied to TX_VCO to force the RF frequency in the direction that minimizes errors. The TX_VCO output passes PA, Antenna SW, Coaxial connector with switch and emitted from embedded antenna. Digital Modulation: Analog speech produced by a microphone is encoded to digital PCM samples using a CODEC. The PCM samples are passed to a Vocoder for AMR (Advanced Multi Rate) encoding, to compress the speech samples. The encoding rate is determined by the Vocoder which formats the speech samples as data packets. A new data packet with data rate information is read by the microprocessor every 20 ms. The speech CODEC becomes AMR, FR(Full Rate), EFR(Enhanced FR) and HR(Half Rate). The microprocessor then sends the data packet to the transmit subsystem, and passed DAC to covert analog signal. I/Q base band signal is filtered and is inputted into 6M4003 containing quadrature phase modulator. Battery AC Charger

1 10180016 H305-BB 屏蔽 盖 主料 H305-BB SHIELD COVER VSHO 1 2 10150021 齐纳二极管 主料 UDZS-6.2BB SOD-323 ON 0 D201, 6 10150044 二极管 主料 RB551V-30 TE-17 ROHM 1 D1, 8 10150020 ESD静电保护管 主料 DF2S6.8FS TOSHIBA 20 T47,T52,T5,T6,T7,T8,T9,T12,T17,T20,T21,T22,T31,T32,T33,T34,T35,T36,T46,T54, 11 10130039 贴片电容 主料 1.0pF ±0.25p 50V NPO 0402 EYANG 1 C83, 12 10130024 贴片电容 主料 1.5PF +-5% 50V NPO 0402 MURATA 4 C630,C633,C26,C27 13 10130035 贴片电容 主料 2.2PF ±5% 50V NPO 0402 EYANG 4 C628,C629,C24,C25 14 10130029 贴片电容 主料 5.6pF ±5% 50V NPO 0402 MURATA 1 C615, 15 10130002 贴片电容 主料 6pF ±0.25p 50V 0402 MURATA 1 C606 16 10130004 贴片电容 主料 18pF ±5% 50V NPO 0402 MURATA 1 C638, 17 10130005 贴片电容 主料 22pF ±5% 50V NPO 0402 MURATA 5 C607,C617,C209,C210,C87 18 10130006 贴片电容 主料 33pF ±5% 50V NPO 0402 MURATA 9 C2,C3,C32,C33,C308,C309,C313,C314, C315 19 10130007 贴片电容 主料 47pF +-5% 50V NP0 0402 MURATA 4 C618,C619,C623,C614, 20 10130011 贴片电容 主料 100pF ±5% 50V NPO 0402 MURATA 2 C312,C88, 21 10130013 贴片电容 主料 1nF ±10% 50V X7R 0402 MURATA 5 C637,C91,C31,C601,C611 22 10130014 贴片电容 主料 10nF ±10% 25V X7R 0402 MURATA 2 C345,C347, 23 10130017 贴片电容 主料 100nF ±10% 10V X5R 0402 MURATA 11 C303,C304,C608,C310,C311,C621,C624, C89,C7,C85,C86, 24 10130028 贴片电容 主料 1uF +20%,-80% 6.3V X5R 0402 MURATA 29 C101,C102,C201,C203,C204,C205,C206,C207,C208,C211,C212,C214,C216,C217,C218,C220,C221,C223,C224,C225,C226,C227,C348,C401,C616,C620,C12,C222, C19, 26 10130019 贴片电容 主料 2.2uF ±20% 10V X5R 0603 MURATA 2 C5,C14, 27 10130020 贴片电容 主料 4.7uF ±20% 6.3V X5R 0603 MURATA 0 C34,C202,C213,C215,C219, C93,C50,C90, 29 10130045 贴片电容 主料 1uF ±10% 25V Y5V 0603 EYANG 3 C1,C17,C228 30 10130021 贴片电容 主料 10uF ±20% 16V X5R 0603 MURATA 0 C16,C333 32 10130025 贴片电容 主料 22uF ±10% 50V Y5V 0805 MURATA 0 C10,C15,C609,C306,C307 34 10140015 铁粉磁珠 主料 0402 BLM15BB222PNI MURATA 0 L307,L314,L3,L4,L5, 36 10140009 铁粉磁珠 主料 0402 BLM15BB750PNI MURATA 0 L101,L102,L603,L302,L303,B303,B304 38 10140017 铁粉磁珠 主料 0603 BLM18PG181SN1 MURATA 0 L203,L204,B2 40 10140002 贴片电感 主料 3.9nH +-0.3nH 0402 MURATA 1 C631 41 10140014 贴片电感 主料 5.6nH +-5% 0402 MURATA 2 L11,L611 42 10140020 贴片电感 主料 6.8nH ±5% 0402 MURATA 1 L15, 43 10140012 贴片电感 主料 18nH ±5% 0402 MURATA 2 L609,L6 44 10140006 贴片电感 主料 100nH ±5% 0402 MURATA 1 L16, 45 10140008 贴片绕线电感 主料 Wire Inductor 4.7uH ±20% 300mA DC0.8R P/N LQH2MCN4R7M02 SIZE:2.0X1.2X0.9 MURATA 0 L202 47 10140018 贴片绕线电感 主料 10uH +-10% LQH2MCN100K02L 225mA MURATA 1 L9, 48 10120001 贴片电阻 主料 0R ±5% 1/16W 0402 YAGEO 12 R6,R208,L7, R203 (下.靠近L101) , R69,R70,R78,R74,R1,C84,R77,C48 49 10120002 贴片电阻 主料 0.2R ±1% 1/4W 0805 YAGEO 1 R202, 50 10120037 贴片电阻 主料 15R +-5% 1/16W 0402 YAGEO 1 R80, 51 10120038 贴片电阻 主料 68R +-5% 1/16W 0402 YAGEO 1 R52, 52 10120007 贴片电阻 主料 51R ±5% 1/16W 0402 YAGEO 1 R608, 53 10120009 贴片电阻 主料 100R ±5% 1/16W 0402 YAGEO 2 R304,R305 54 10120011 贴片电阻 主料 1kR ±5% 1/16W 0402 YAGEO 13 R5,R8,R9,R14,R20,R21,R204,R205,R301,R3 02,R306,R308,R41, 55 10120012 贴片电阻 主料 1.5KR ±5% 1/16W 0402 YAGEO 3 R307,R312,R313, 56 10120014 贴片电阻 主料 4.7KR ±5% 1/16W 0402 YAGEO 2 R18,R19, 57 10120015 贴片电阻 主料 5.1KR ±1% 1/16W 0402 YAGEO 2 R101,R207, 58 10120025 贴片电阻 主料 6.8KR ±5% 1/16W 0402 YAGEO 1 R206, 59 10120016 贴片电阻 主料 10KR ±5% 1/16W 0402 YAGEO 5 R15,R24,R603, R71,R72 60 10120027 贴片电阻 主料 75KR ±5% 1/16W 0402 YAGEO 2 R318,R319, 61 10120020 贴片电阻 主料 100KR ±5% 1/16W 0402 YAGEO 3 R34,R105,R79 62 10150059 基带处理器 主料 MT6253DV MTK 1 U1 63 10150031 记忆体 主料 MICRON_133MHZ_PSRAM/56,Numonyx ULPC 113MHz ADMUX NUMONYX 0 U401, 66 10150028 充电MOS管 主料 APL3206 PMOS ANPEC 0 U201, 69 10150032 26M 晶振 主料 26MHz 7.5pF 32×25mm 7M26000028 TXC 1 U602, 70 10150002 晶体 主料 32.768KHz ±20PPM 12.5PF SSP-T7-F SEIKO 1 X100 73 10150043B 音频放大器 主料 Audio Power Amplifier CP2216CS-A2 CLASS- D( 防破音 ） CHIPHOMER 1 U301 74 10150077 射频功放 主料 PA MODULE TQM6M4068 TriQuint 1 U600, 75 10150078 双滤波器 主料 SAWEN1G84CV0F00 1IN 4 OUT 1800M/1900M MURATA 1 Z2, 76 10150079 双滤波器 主料 SAWEN881MCX0F00 1IN 4 OUT 850M/900M MURATA 1 Z1, 77 10150061B FM+BT 主料 RDA5870P RDA 1 U6, 78 10150046 升压IC 主料 LC3300 SOT23-6 岭芯 0 U3, 81 10150022 场效应管 主料 FDY300NZ ON 0 Q4 83 10160041 BTB连接器 主料 BTB 22PIN AA03S022VA1 FEMALE JAE 1 CON4, 84 10160027 USB连接器 主料 USB 7PIN connector XYB-7P-01 H:2.45mm 显誉 0 J17, 87 10160001C 射频接头 主料 MM8430-2610B/RA1/RB3 MURATA 0 J1 89 10160042B 耳机插座 主料 Earphone JACK 3F37 D:3.5 日月 1 J4, 90 10160043 T卡座 主料 TFS22-8K72000,T-Flash Card Header SELF LOCK TYPE 星擎 1 CON2, 91 10110022 空白主板 主料 H305A V1.0 PCB main board 大昌 1

!"#$% &'% % ('$)*+*)%,'$-./*#0%123$-%4.#0$5% 6(789:%;.#<5% %%%%%%%%%%%%%%%123$-%=>.??%@A% %%%%%%%%%%%%%%%123$-%=2#/2->%B$C$>%9%%%%%%%%DEE<;F%D2.:<;HI2.:<;% 123$-%=2#/2->%B$C$>%J%%%%%%%%DE@<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%L%%%%%%%%DKM<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%8%%%%%%%%DKL<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%M%%%%%%%%DK9<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@:%%%%%%%DKE<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@@%%%%%%%DK@<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@K%%%%%%%D@M<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@E%%%%%%%D@L<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@N%%%%%%%D@9<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@9%%%%%%%D@E<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@J%%%%%%%D@@<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@L%%%%%%%DM<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@8%%%%%%%DL<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@M%%%%%%%D9<;F%DKG:<;HIKG:<;% 6(7@M::%;.#<5% 123$-%=>.??%@A% 123$-%=2#/-2>%B$C$>%:%%DE:<;F%DKG:<;HIKG:<;% 123$-%=2#/-2>%B$C$>%@%%DK8<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%K%%DKJ<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%E%%DKN<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%N%%DKK<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%9%%DK:<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%J%%D@8<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%L%%D@J<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%8%%D@N<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%M%%D@K<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@:%%D@:<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@@%%D8<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@K%%DJ<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@E%%DN<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@N%%DK<;F%D9G:<;HI9G:<;% 123$-%=2#/-2>%B$C$>%@9%%D:<;F%D9G:<;HI9G:<;% % O2/$A%P++$)/*C$%-.<*./*2#%$++*)*$#)Q%*?%REGL<;% 1 Adjustment of RF Output Power: (1) The equipment setup as shown in Figure 1. (2) Operation of PC adjusts equipment. (3) Use RF Engineering Tools at PC side. Select GSM850 Band: 1) Set GSM850 Band. 2) Set ARFCN: 190 3) TX ON. 4) Adjust the power to 32.4dBm (+1.0dB/-1.0dB, Power control level: PCL=5) by PA DAC value. 5) Repeat 4) for 15 times,and adjust the power level to 30.5, 28.8, 27, 25, 23, 21, 19, 17, 15, 13, 11, 9, 7, 5. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). PC RF Tester GPIB Cable UART Cable RF Cable Test sample Figure 1 7) Data of 5) and 6) is writen to flash memory. Select PCS1900 Band: 1) Set PCS Band. 2) Set ARFCN: 661. 3) TX ON. 4) Adjust the power to 29.0 dBm (+2.0dB/-2.0dB, Power control level: PCL=0) by PA DAC value. 5) Repeat 4) for 15 times,and adjust the power level to 27.5, 26, 24, 22, 20, 18, 16, 14, 12, 10, 8, 6, 4, 2, 0. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). 7) Data of 5) and 6) is writen to flash memory. 2 Adjustment of oscillation frequency of VCXO: (1) The equipment setup as shown in Figure 1. (2) Use Crystal AFC Control Tools to Set CapID and AFC DAC value. (3) Set Band=GSM850,Set ARFCN=190,Set PCL=12. 1) Set AFC DAC=4096,fixed.(Check that Vafc=1.4V). 2) Set CapID=0, and verify that frequency error >>10KHz. 3) Set CapID=63, and verify that frequency error <<-10KHz. 4) If the above 3 items are verified, then change CapID value to make frequency error be closed to 0 Hz as possible, record this CapID value. 5) Set CapID value got from step 4), then change AFC DAC value to make frequency error be closed to 0 Hz as possible, record this AFC DAC value. 6) Download the CapID value and AFC DAC value to flash memory. 3 Adjustment of RX Sensitivity: (1) Select GSM850 Band: 1) Set BCCH level:-85dBm;ARFCN:128. 2) Test sample make a call to connect RF Tester.. 3) Set TCH level:-106dBm. 4) Measure BER BER Select PCS Band: 1) Set BCCH level:-85dBm;ARFCN:512. 2) Test sample make a call to connect RF Tester.. 3) Set TCH level:-106dBm. 4) Measure BER BER 2 2.2 Product Information-BT Product GSM mobile phone Trade Name Plum Model Number C100 Series Number: N/A Description of Differences: N/A Power Supply DC 5V by AC/DC adapter 100-240V~50/60Hz DC 3.7V by battery Frequency Range 2402MHz -2480MHz Modulation Type FHSS Antenna Type: Internal Fixed Channel Spacing: 1MHz Channel Number 79(CH Low: 2402MHz, CH Mid: 2441MHz, CH High: 2480MHz) Temperature Range -20°C ~ 50°C

Compliance Certification Services Inc. Report No:KS111223A01-SF FCCID: ZU3UNNECTOCURVE Date Issue :January 13, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Page 1 of 36 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Product Name: GSM Mobile Phone Brand Name: unnecto ™ Model No.: U-370-2 Series Model: N/A Test Report Number: KS111223A01-SF Issued for Ambitio LLC, The Owner of unnecto ™ 1315 N.W 98th ct Suite 13 United States Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Compliance Certification Services Inc. Report No:KS111223A01-SF FCCID: ZU3UNNECTOCURVE Date Issue :January 13, 2012 Page 2 of 36 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)...........................................................3 2. EUT DESCRIPTION....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................5 4. TEST METHODOLOGY..............................................................................................................5 5. TEST CONFIGURATION...................................................................................................................5 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................5 6.1 MEASUREMENT SYSTEM DIAGRAM.......................................................................................................... 7 6.2 SYSTEM COMPONENTS.............................................................................................................................. 8 7. EVALUATION PROCEDURES.................................................................................................11 8. MEASUREMENT UNCERTAINTY............................................................................................14 9. EXPOSURE LIMIT....................................................................................................................15 10. EUT ARRANGEMENT..............................................................................................................16 10.1 ANTHROPOMORPHIC HEAD PHANTOM................................................................................................. 16 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION.................................................................................. 17 10.3 DEFINITION OF THE “TILTED” POSITION................................................................................................ 18 11. MEASUREMENT RESULTS.....................................................................................................19 11.1 TEST LIQUIDS CONFIRMATION............................................................................................................... 19 11.2 LIQUID MEASUREMENT RESULTS.......................................................................................................... 19 11.3 SYSTEM PERFORMANCE CHECK........................................................................................................... 20 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE................................................................................... 22 11.5 CONDUCTED OUTPUT POWER............................................................................................................... 22 11.6 SAR HANDSETS MULTI XMITER ASSESSMENT.................................................................................... 24 11.7 EUT SETUP PHOTOS................................................................................................................................25 11.8 SAR MEASUREMENT RESULTS.............................................................................................................. 26 12. EUT PHOTO..............................................................................................................................30 13. EQUIPMENT LIST & CALIBRATION STATUS.........................................................................34 14. FACILITIES...............................................................................................................................35 15. REFERENCES..........................................................................................................................35 16. ATTACHMENTS.......................................................................................................................36 Compliance Certification Services Inc. Report No:KS111223A01-SF FCCID: ZU3UNNECTOCURVE Date Issue :January 13, 2012 Page 3 of 36 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Product Name:GSM Mobile Phone Trade Name:unnecto ™ Model Name.:U-370-2 Series Model:N/A Applicant Discrepancy: Initial Devices supporting GPRS： Class B Description Test Modes(worst case ): SIM 1 and SIM2 is a chipset unit and tested as single chipset Device Category:PORTABLE DEVICES Exposure Category:GENERAL POPULATION/UNCONTROLLED EXPOSURE Date of Test:January 12, 2012 Applicant: Ambitio LLC, The Owner of unnecto ™ 1315…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Services Inc. System Performance Head Check-D850_2012.01.12 DUT: Dipole 850 MHz D835V2; Type: D835V2; SN:4d114 Communication System: CW; Frequency: 850 MHz Medium parameters used: f = 850 MHz; σ = 0.91 mho/m; ε r = 41.51; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(8.99, 8.99, 8.99); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.359mW/g System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.77 V/m; Power Drift = 0.00052 dB Peak SAR (extrapolated) = 3.524W/kg SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) =3.342 mW/g Test Laboratory: Compliance Certification Services Inc. System Performance Body Check-D850_2011.01.12 DUT: Dipole 850 MHz D835V2; Type: D835V2; SN:4d114 Communication System: CW; Frequency: 850 MHz Medium parameters used: f = 850 MHz; σ = 0.98 mho/m; ε r = 55.22; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.355mW/g System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.74 V/m; Power Drift = 0.0021 dB Peak SAR (extrapolated) = 3.714W/kg SAR(1 g) = 2.53 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 3.298mW/g Test Laboratory: Compliance Certification Services Inc. System Performance Head Check-D1900_2011.01.12 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d136 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 40.14; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(7.84, 7.84, 7.84); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 …
