ZU3UNNECTOSHELLGSM MOBILE PHONE

User Manual Thank you very much for your choice of this product designed by our company! Contents For your safety ..................................................................................................................................2 About Your Phone .............................................................................................................................3 Preparing Your Phone .......................................................................................................................5 Call functions ....................................................................................................................................6 Text entry ..........................................................................................................................................7 Menu operation .................................................................................................................................8 Function Menu ..................................................................................................................................8 1. Messaging .............................................................................................................................8 2. Phone Book .........................................................................................................................10 3. Call center ........................................................................................................................... 11 4. File manager........................................................................................................................12 5. User profiles ........................................................................................................................13 6. Chat .....................................................................................................................................13 7. Services ...............................................................................................................................13 8. Java .....................................................................................................................................14 9. Settings................................................................................................................................14 10. Fun & Games ....................................................................................................................16 11. Multimedia ........................................................................................................................16 12. Organizer...........................................................................................................................19 Accessories .....................................................................................................................................20 Maintenance and Care.....................................................................................................................20 Safety ..............................................................................................................................................21 Technical Specifications .................................................................................................................22 For your safety Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual. ROAD SAFETY Always keep your hands to operate the vehicle while driving. Park the vehicle before using your phone. SWITCH OFF IN AIRCRAFT Using of wireless telephones in aircraft may disrupt the operation of the aircraft. It is dangerous and illegal. Ensure switching off the phone before boarding an aircraft. SWITCH OFF IN HOSPITALS Follow any restrictions or rules. Switch off the phone near medical equipment. SWITCH OFF WHEN REFUELING Switch off the phone at a refueling point or any fuel or chemicals places. SWITCH OFF NEAR BLASTING POINT Don’t use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. INTERFERENCE All wireless phones may be susceptible to interference, which could affect the performance. USE NORMALLY Use in the normal position explained in the product documentation. Don't touch the antenna unnecessarily. ENHANCEMENTS AND BATTERIES Use only the approved enhancements and batteries. Do not connect incompatible products. EMERGENCY CALLS Ensure the phone is switched on and in service. Enter the emergency number, and then press the talk key. It will give your location. Do not end the call until the permission. About Your Phone 1. Glimpse of Your Phone 2. Knowing the Keys Key Description Left Soft Key Enter the main menu at standby mode, as confirm key under other interfaces Right Soft Key Enter the phone book at standby mode, as back key under other interfaces. SIM1/2 Call / Answer (Green) key Press After dialing to connect, press if there is an incoming call to answer, press from standby to go to SIM1/2 call records list End/ Power Key Long press to power phone ON/OFF; press to end; reject call; or to exit a menu. Navigator Keys Press up/down/left/right directions in menu to scroll, browse or in edit page to move cursor. Space Key Press the left soft key then space key to unlock the keypad at standby mode. aA Key Switch small letters and capital letters. Sym Key Press this key while editing to input punctuations and other symbols IME Key While editing to switch input method. Delete Key To delete characters. 3. Understanding Display Icons Icon Explanation Signal Strength of SIM1/SIM2 Shows the received signal strength. Fuller bar means stronger signal. Lock the keypad Unread SMS Bluetooth is on Missed calls Headset is on Battery Status Shows the charge level of phone battery. Fuller bar indicate more power left. When charging, the bar will scroll until the battery …

Text truncated - open the document above for the full version.

Ambitio LLC, The Owner of unnecto ™

FCC ID: ZU3UNNECTOSHELL POWER OF ATTORNEY August 26, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Ambitio LLC, The Owner of unnecto ™, hereby authorize Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on September 31, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Ambitio LLC, The Owner of unnecto ™ are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Daniel Moy Manager Ambitio LLC, The Owner of unnecto ™ August 26, 2011

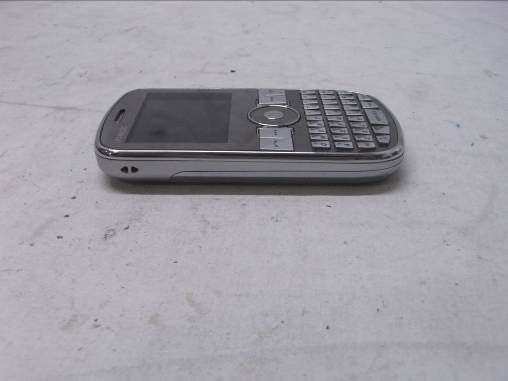

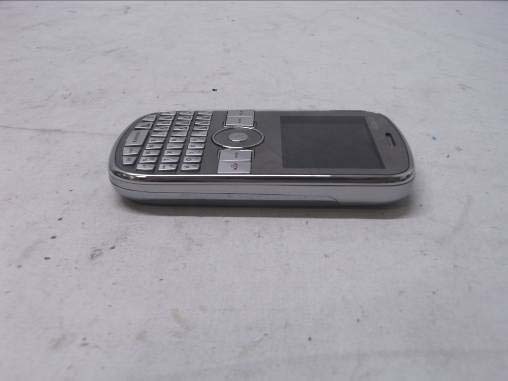

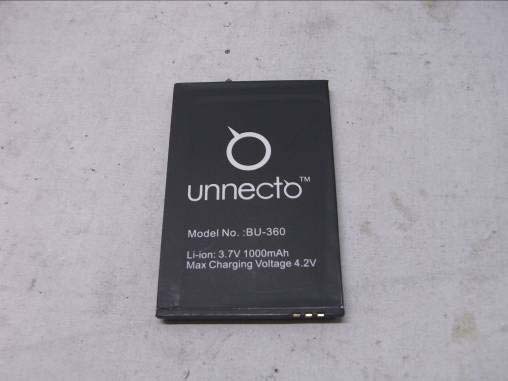

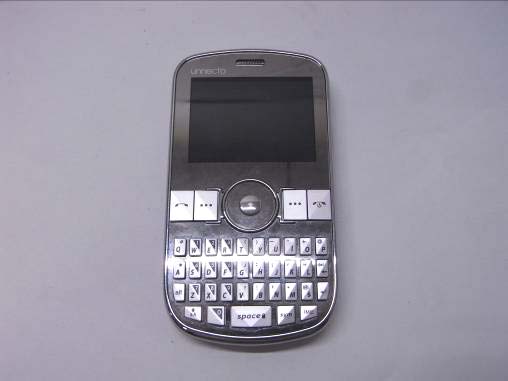

FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 35 of 42 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 36 of 42 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 37 of 42 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 38 of 42 PHOTO OF EARPHONE PHOTO OF USB CABLE FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 39 of 42 PHOTO OF POWER SUPPLY PHOTO OF BATTERY

FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 40 of 42 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 41 of 42 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE –3 FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 42 of 42 INTERNAL PHOTO OF POWER SUPPLY-1 INTERNAL PHOTO OF POWER SUPPLY-2 ------END OF REPORT------

1/2 Operation Description OPERATIONAL DESCRIPTION APPLICANT:Ambitio LLC, The Owner of unnecto ™ Manufacturer: ShenZhen DTFU Communications and Technology co., Ltd. FCC ID: ZU3UNNECTOSHELL Instruction Book: Users Manual Frequency Range GSM Transmit Frequency Band: 824.2-848.8 MHz Receive Frequency Band: 849.2-893.8 MHz Transmit Frequency Band: 1850.2-1909.8 MHz Receive Frequency Band: 1930.2-1989.8 MHz Specific Operating Power Range: Power Class 1; Power Control Level 0 +30dBm +2.0dB/-2.0dB Power Control Level 1 +28dBm +3.0dB/-3.0dB Power Control Level 2 +26dBm +3.0dB/-3.0dB Power Control Level 3 +24dBm +3.0dB/-3.0dB Power Control Level 4 +22dBm +3.0dB/-3.0dB Power Control Level 5 +20dBm +3.0dB/-3.0dB Power Control Level 6 +18dBm +3.0dB/-3.0dB Power Control Level 7 +16dBm +3.0dB/-3.0dB Power Control Level 8 +14dBm +3.0dB/-3.0dB Power Control Level 9 +12dBm +4.0dB/-4.0dB Power Control Level 10 +10dBm +4.0dB/-4.0dB Power Control Level 11 +8dBm +4.0dB/-4.0dB Power Control Level 12 +6dBm +4.0dB/-4.0dB Power Control Level 13 +4dBm +4.0dB/-4.0dB Power Control Level 14 +2dBm +5.0dB/-5.0dB Power Control Level 15 +0dBm +5.0dB/-5.0dB Note; Effective radiation efficiency is –3.7dB DC Voltage and Current into the Final Amplifier Module: Supply Voltage = 5.0Vdc Supply Current = ~0.5Amp. Tune-up Procedure: Tune-up Procedure Equipment Identification: Equipment's Identification label and its intended Location are as shown in EXHIBIT Type “ID Label / Location Information” (FCC ID Nameplate), and in EXHIBIT Type “Internal Photo”(Photograph of inside) Photographs: A complete set of the Photographs showing External and Internal Views of Circuit Details and Construction are provided by from EXHIBIT Type “External Photos” and “Internal Photos”. Accessories: Accessories 2/2 Operation Description Figure 1.2: Terminal Components (Accessories) Technical Descriptions TX synthesizer uses an Offset-PLL circuit. The Offset-PLL circuit consists of PLL-IC and TX_VCO and loop filter. Reference frequency of the above synthesizers is 26MHz and generated by VCTCXO. Control signal is sent from Baseband section and keeps frequency stability. TX IQ signal is input from Baseband section to MT6235, The Bluetooth signal is input form MT6601 and FM signal is input form TLG1120 section to MT6235. TX IQ signal is applied to the quadrature up-converter, and the up-converter LO signal is generated from the transceiver VCO within MT6139B. This up-converter translates the GMSK-modulated signal to an intermediate frequency (IF) that forms one input to a frequency/phase detector circuit. This IF signal is the reference input to an Offset-PLL circuit. The feedback path of this Offset-PLL circuit includes a down-conversion from the RF output frequency range to the IF range. The two inputs to this down-conversion mixer are formed the TX_VCO output and the LO generation circuits. The mixer output is the offset feedback signal that forms the variable input to a frequency/phase detector circuit. The detector compares its variable input to its reference input and generates an error signal that is low-pass filtered by the loop filter and applied to TX_VCO to force the RF frequency in the direction that minimizes errors. The TX_VCO output passes PA, Antenna SW, Coaxial connector with switch and emitted from embedded antenna. Digital Modulation: Analog speech produced by a microphone is encoded to digital PCM samples using a CODEC. The PCM samples are passed to a Vocoder for AMR (Advanced Multi Rate) encoding, to compress the speech samples. The encoding rate is determined by the Vocoder which formats the speech samples as data packets. A new data packet with data rate information is read by the microprocessor every 20 ms. The speech CODEC becomes AMR, FR(Full Rate), EFR(Enhanced FR) and HR(Half Rate). The microprocessor then sends the data packet to the transmit subsystem, and passed DAC to covert analog signal. I/Q base band signal is filtered and is inputted into 6M4003 containing quadrature phase modulator. Battery AC Charger

1010 99 88 77 66 55 44 33 22 11 H H G G F F E E D D C C B B A A USB_AVDD33PAD_VRTUSB_AVDD12 VM_SEL URXD1 [5] MCDA0 [4] MCCMD [4] MCDA1 [4] MCCK [4] MCDA2 [4] UTXD1 [5] MICP0 [3] MICN0 [3] MICN1 [3] MICP1 [3] FM_INR [7,9] FM_INL [7,9] MP3_OUTR [3] MP3_OUTL [3] AU_OUT0_P [3] AU_OUT0_N [3] CAMDAT5 [5,9] CAMDAT1 [5,9] CAMDAT3 [5,9] CAMDAT7 [5,9] CMMCLK [5] CMPCLK [5,9] CMHREF [5,9] CAMDAT0 [5,9] CAMDAT2 [5,9] CAMDAT4 [5,9] CAMDAT6 [5,9] CMVREF [5,9] CMRST [5,9] CMPDN_1 [5] GPIO74_BT_32k [7]GPIO15_BT_PCMCLK [7]GPIO16_BT_PCMOUT [7]GPIO17_BT_PCMIN [7] EINT3_BT [7] KCOL2 [8] KCOL1 [8] KCOL0 [8] KROW2 [8] KROW3 [8] KROW1 [8] KROW0 [8] RESETB [2,5] WATCHDOG [4] MCDA3 [4] GPIO45_LPCE0B_LCM [5]GPIO43_LRDB [5]GPIO41_LWRB [5]GPIO44_LRSTB [5]GPIO42_LPA0 [5] XP [5] XM [5] YP [5] YM [5] EINT_Headphone_Det [3] USB_DP [5] USB_DM [5] APC [6] ADC2_ACC [3] GPIO19_BT_PCMSYNC [7] GPIO24_TV_CM_FM_SCL [9] GPIO25_TV_CM_FM_SDA [9] GPIO18_BT_RESET [7] SRCLKENAI [7] GPIO72_BT_PWR_EN [7] KROW4 [8] GPIO20_BT_UTXD3 [7] GPIO21_BT_URXD3 [7] GPIO75_FM_32K [7,9] KCOL3 [8] GPIO76_OP_EN [3] MINS [4] VCORE_PMU [2] VUSB [2] MICBIAS [3] VIO [2,5,6,7,10] GPIO73_CAM_PDN [5] LoudSPKP0 [3] LoudSPKN0 [3] KROW5 [8] KCOL4 [8] KCOL5 [8] KCOL6 [8] GPIO22_FMARK [5] EINT_Wheel [10] GPIO0_FLASHLED [5] GPIO23_Wheel_SCL [10] GPIO62_SIM_SL2 [5] GPIO46_LSCE1B_1 [5] GPIO40_LSCK_1 [5] TitleSize Document Number Rev Date: Sheet of F01 V0.1 01 Baseband (MT6253) A2 110 Friday, February 11, 2011 TitleSize Document Number Rev Date: Sheet of F01 V0.1 01 Baseband (MT6253) A2 110 Friday, February 11, 2011 TitleSize Document Number Rev Date: Sheet of F01 V0.1 01 Baseband (MT6253) A2 110 Friday, February 11, 2011 Parallel LCM BASEBAND BASIC C1011uFC1011uF 21 R101 5.1K_1% R101 5.1K_1% 12 AudioUSB TOUCH PANELKEY MATRIX GPIO UART SYSTEM CONTROL SD I/F BT PCM LCM CONTROL CAMERAEXT INTADC INJTAG U101A MT6253 AudioUSB TOUCH PANELKEY MATRIX GPIO UART SYSTEM CONTROL SD I/F BT PCM LCM CONTROL CAMERAEXT INTADC INJTAG U101A MT6253 KCOL0 AA1 KCOL2 AA3 KCOL5 AB6 CMHREF AA31 CMMCLK AA29 CMDAT4 AA33 KROW4 AB2 KCOL1 AC5 KCOL3 AB4 CMDAT6 AB30 CMDAT1 AB32 CMDAT2 AB34 KROW3 AC3 KROW5 AD4 LRSTB AC29 LPCE0B AC31 CMDAT0 AC33 KROW1 AD2 KROW2 AD6 KROW0 AE3 LPA0 AD30 LPCE1B AD32 IRDA_PDN AE1 SECURITY_EN AE5 DAIPCMOUT AF4 LRDB AE33 SRCLKENAI AF2 DAIRST AF6 BT_POWEN AG5 LWRB AF34 DAICLK AG3 DAIPCMIN AH2 SD_PWREN AH4 DAISYNC AJ1 BT_32K AJ3 URXD3 AJ5 URXD1 AJ7 JTRST_B AL7 MCDA2 AN9 FM_32K AK2 URXD2 AL3 EINT3 AK6 JTDI AM6 MCCK AM10 UTXD3 AM2 JTDO AL5 JTCK AJ9 MCINS AN7 MCDA0 AP10 WATCHDOG AL21 UTXD2 AN3 UTXD1 AM4 JTMS AK8 MCWP AL9 MCDA1 AJ11 EINT2 AN5 MCDA3 AK10 JRTCK AP6 MCCM0 AL11 AU_IN1_P B2 YP B4 AU_IN1_N C1 AU_MOUTR C3 XM A5 XP B8 VM_SEL C15 AU_IN0_N D2 YM C5 APC E9 AU_IN0_P E3 AU_OUT0_P E5 AUX_IN2 F10 AUX_IN0 E11 AU_FMINR F4 AU_OUT0_N F6 AU_MOUTL F8 AUX_IN1 D10 AU_FMINL G5 SPK1_P J3 SPK1_N K4 AU_MICBIAS K6 PAD_VRT R3 EINT1 R33 URTS1_B T32 TEST_MODE U3 DP U5 EINT0 U31 CMRST U33 DM V6 UCTS1_B V30 CMDAT3 V32 CMVREF V34 CMPCLK W29 CMPDN W31 CMDAT7 W33 KCOL4 Y2 KCOL6 AA5 PWM Y6 CMDAT5 Y32 AVDD33 T4 AVDD12 T6 NLD8 AF30 SYSRST_B Y4 L101 0 L101 0 SC100 BB Shielding Case SC100 BB Shielding Case GND 1 C1021uFC1021uF 21 R105 100k R105 100k 12 L102 0 L102 0 L106 NC/600@100M L106 NC/600@100M L105 NC/600@100M L105 NC/600@100M R102 100k R102 100k 12 L104 NC/600@100M L104 NC/600@100M L103 NC/600@100M L103 NC/600@100M 11 22 33 44 55 66 77 88 99 1010 H H G G F F E E D D C C B B A A PWRKEY [5,8] RESETB [1,5] Keypad_LED [8] SIM1_RST [5] SIM1_CLK [5] SIM1_DATA [5] SIM2_RST [5] SIM2_CLK [5] SIM2_DATA [5] BAT_ON BAT_ON VCHG [5] VBAT [3,5,6,7,8,9,10] VCORE_PMU [1] VMC [4] VM [4] VA [6] VIO [1,5,6,7,10] VCHG [5] VCORE_PMU [1] MOTO SINK2 [5] SINK1 [5] VBOOST [5] VBAT [3,5,6,7,8,9,10] SINK3 [5] VBAT [3,5,6,7,8,9,10] VUSB [1] VMC [4] VM [4] VIO [1,5,6,7,10] VRF [6] VA [6] VTCXO [6] VSIM1 [5] VSIM2 [5] VCAMA [5] VCAMD [5] VCORE_PMU [1] MOTO VBAT [3,5,6,7,8,9,10] VCHG [5] VBAT [3,5,6,7,8,9,10] VBAT [3,5,6,7,8,9,10] SINK4 [5] TitleSize Document Number Rev Date: Sheet of F01 V0.1 02 Power A2 210 Friday, February 11, 2011 TitleSize Document Number Rev Date: Sheet of F01 V0.1 02 Power A2 210 Friday, February 11, 2011 TitleSize Document Number Rev Date: Sheet of F01 V0.1 02 Power A2 210 Friday, February 11, 2011 Buck Symbol VCOREVRFVTCXOVAVCAM_AVMVIOVSIMVUSBVBTVCAM_DVSIM2VIBRVBACKUP RF LDODigital LDOAnalog LDOVibrator RTC Boost Converter VBOOST1 Vout (V)1.22.82.82.81.5/1.8/2.5/2.81.8/2.82.81.8/3.03.31.3/1.5/1.8/2.5/2.8/3.0/3.31.3/1.5/1.8/2.5/2.8/3.0/3.31.3/1.5/1.8/2.5/2.8/3.0/3.31.8/3.02.83.4~5.5 Iout (mA) 200200201251502001001001001001001002002100 SettingVM_SEL Check,Trace 4mil is enough BASEBAND-POWER C208NC/1uFC208NC/1uF 21 R210 0R R210 0R 1 2 C2181uFC2181uF 21 R212 6R8 (0603) R212 6R8 (0603) R202 NC/0.2R (1% 0805 1/4W) R202 NC/0.2R (1% 0805 1/4W) R209 0R R209 0R 1 2 L202 4.7uH L202 4.7uH L201 NC/4.7uH L201 NC/4.7uH C2221uFC2221uF 21 C2161uFC2161uF 21 T201VCET201VCE . 1 . 2 R213 0.2R (1% 0805 1/4W) R213 0.2R (1% 0805 1/4W) C230 22uF C230 22uF 21 R205 1k R205 1k 12 D201PZ5D4V2HD201PZ5D4V2H AK R207 5.1K_1% R207 5.1K_1% 12 C2341uFC2341uF C209 22pF C209 22pF 21 BT201 BCON2 BT201 BCON2 GND 3 NTC 2 VBAT 1 NC0/vbatback 4 NC1 5 C2251uFC2251uF 21 C2201uFC2201uF 21 U201NC/APL3206U201NC/APL3206 ACIN 1 ACIN 2 OUT 7 OUT 8 GND 3 VBAT 4 GATDRV 5 CHRIN 6 GND 9 C2271uFC2271uF 21 U203SI5853DCU203SI5853DC A 1 A 2 K 7 K 8 S 3 G 4 D 5 D 6 L204 BLM18PG181SN1 L204 BLM18PG181SN1 R208 NCR208 NC 1 2 C2141uFC2141uF 21 R204 1k R204 1k 1 2 L203 BLM18PG181SN1 L203 BLM18PG181SN1 R211 NC/100kR211 NC/100k 1 2 C2024.7uFC2024.7uF 21 C211 1uF C211 1uF 21 -+ C23522uF -+ C23522uF 12 C210 22pF C210 22pF 21 C205100nFC205100nF 21 C206100nFC206100nF 21 C228NC/1uFC228NC/1uF 21 D202SEZ52C5V6D202SEZ52C5V6 AK C2294.7uFC2294.7uF 21 C231 NC/4.7uF C231 NC/4.7uF 21 C2194.7uFC2194.7uF 21 C2121uFC2121uF 21 C2261uFC2261uF 21 C200 1uF (0603) 16V C200 1uF (0603) 16V C2211uFC2211uF 21 C2231uFC2231uF 21 C203100nFC203100nF 21 X20132.768KHzX20132.768KHz 2 1 34 C2011uFC2…

Text truncated - open the document above for the full version.

CAM350 V 9.1 : Sat Jul 16 10:37:58 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:58 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:58 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:58 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:58 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn CAM350 V 9.1 : Sat Jul 16 10:37:59 2011 - F01-3大版拼版图-20101126.cam PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Ambitio LLC, The Owner of unnecto ™ Address: 1315 N.W 98th ct Suite 13 United States Product Name: GSM Mobile Phone Model Name: U-360-2 Brand Name: unnecto ™ FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F2 Date of Issue: August. 23, 2011 Issued by : Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 38 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F2 Page 2 of 38 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.......................................................................................... 3 2. GENERAL INFORMATION....................................................................................................... 4 2.1 Product Information ................................................................................................................ 4 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 5 2.4 Environmental Conditions....................................................................................................... 5 3. TEST FACILITY........................................................................................................................ 6 3.1TEST FACILITY....................................................................................................................... 6 3.2 GENERAL TEST PROCEDURES .......................................................................................... 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................... 7 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................. 8 4.1 SUPPORT EQUIPMENT ........................................................................................................ 8 4.2 TEST EQUIPMENT LIST........................................................................................................9 5. 47 CFR Part 15C 15.249 Requirements................................................................................. 10 5.1 Spurious Emission Test ........................................................................................................ 10 5.1.1 Requirement...................................................................................................................... 10 5.1.2 Test Description ..................................................................................................................11 5.1.3 Test Description ................................................................................................................. 12 5.1.4 Test Result......................................................................................................................... 13 5.2 Band Edge............................................................................................................................ 19 5.2.1 Requirement...................................................................................................................... 19 5.2.2 Test Description ................................................................................................................. 19 5.2.3Test Result.......................................................................................................................... 19 5.3 LINE CONDUCTED EMISSION TEST................................................................................. 24 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST........................................................... 24 5.3.2. BLOCK DIAGRAM OF TEST SETUP............................................................................... 24 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................... 25 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .................................... 25 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .............................................. 26 APPENDIX 1 .............................................................................................................................. 28 PHOTOGRAPHS OF TEST SETUP........................................................................................... 28 APPENDIX 2 .............................................................................................................................. 30 PHOTOGRAPHS OF EUT ......................................................................................................... 30 FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F2 Page 3 of 38 1. VERIFICATION OF CONFORMITY Equipment Under Test: GSM Mobile Phone Brand Name: unnecto ™ Model Number: U-360-2 FCC ID: ZU3UNNECTOSHELL Ambitio LLC, The Owner of unnecto ™ Applicant: 1315 N.W 98th ct Suite 13 United States ShenZhen DTFU Communications and Technology co., Ltd. Manufacturer: 11D,BLDG A, HongSong Mansion, TaiRan6th Road, CheGongMiao, FuTian District, ShenZhen City, China Technical Standards: 47 CFR Part 15 Subpart C File Number: STS110820F2 Date of test: August. 4 ~ August. 8, 2011 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by STS for compliance with the requirements set forth in FCC rules and the Technical Standards ment…

Text truncated - open the document above for the full version.

FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 32 of 43 CE TEST SETUP CONDUCTED TEST SETUP FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 33 of 43 RADIATED EMISSION TEST SETUP FCC ID: ZU3UNNECTOSHELL Report No.: STS110820F4 Page 34 of 43
