ZU3UNNECTOECOGSM MOBILE PHONE

USER MANUAL CONTENTS WELCOME ...................................................................................................................... 2 FOR YOUR SAFETY ...................................................................................................... 3 KNOW YOUR PHONE ................................................................................................... 9 INSTRUCTIONS ............................................................................................................ 11 GETTING STARTED .................................................................................................... 13 BASIC OPERATIONS .................................................................................................. 27 MESSAGING .................................................................................................................. 39 WRITE MESSAGE ........................................................................................................ 39 PHONEBOOK ................................................................................................................ 47 CALL LOG ..................................................................................................................... 50 SETTINGS ...................................................................................................................... 57 MULTIMEDIA ............................................................................................................... 66 GALLERY ...................................................................................................................... 74 ORGANIZER ................................................................................................................. 75 APPLICATIONS ............................................................................................................ 78 WEB ................................................................................................................................. 80 CARE AND MAINTENANCE ..................................................................................... 83 1 Welcome Congratulations on your purchase of the mobile phone. Your phone provides many functions which are practical for daily use, such as a hands-free loudspeaker, HD camera, MP3 player, video player, and more. You can read the manual for complete knowing the use of the M 228E mobile phone and experiencing the well-established functions and 2 simple operation method. Please use the original accessory in order to achieve the best use of effects, such as the use of non-original components of the damage caused by machinery, the phone shall not be responsible. 3 For Your Safety Please read the instructions given below carefully. It may be dangerous or illegal if you do not follow these instructions. This user manual includes detailed information about safety instructions. Switch on Phone Safely Please do not switch on your phone when it might have interference or danger by using phone or phone is forbidden in this area. Pay attention to the traffic safety 4 According to the recent research, it may have danger to use phone when you are driving even though you are using the hands-free device (such as hands-free device in auto, earphone, etc.). The driver is required not to use phone when they are driving. When phone is switched on, the electromagnetic wave from phone will interference the electronic system of auto, such as ABS anti-explosion brake system or SRS (supplemental restraint system). For safety, please follow below: Do not put the phone on car control panel or ballonet area in car. Confirm with the auto distributor or manufacturer to make sure that electronic system of automatics have good isolation. 5 Interference All kinds of phones may be interfered by environment, and then the performance of phones might be influenced. Phone may interfere with some electric appliance such as electronic TV, radiogram and so on. Turn off your cell phone in the site of medical and health care Please switch off your phone in the site of medical and health care except some designated area where phone can be used. Phone will interfere with the running of electronic equipment, electron device or radio frequency device near around, just like the other usual equipment. 6 Switch off on airplane Please follow the related regulations. Please switch your phone before boarding. Switch off in gas station Please switch off your phone when you are in gas station or any place where fuel and chemical have been placed. Using phone correctly Please use phone in normal position. Please do not touch antenna area if not necessary. SIM card can be taken out from phone. Please pay 7 attention to prevent children from swallow the small component like this. Do not let pregnant woman use phone for long time. Accessories and batteries Use only the approved accessories and batteries. Please do not connect with any product which doesn’t match with this phone. Please be sure the phone has been switched off before taking out battery. Please deal with the scrap batteries properly according to the local law. Waterproof 8 The phone doesn’t have performance of waterproof. Please do not expose your phone in inclement weather or environment (such as wet, raining, liquid leakage, seawater, mirage, and so on). Emergency calling Please be sure your phone is power on and in the service available area. According to demands, press Call end key repeatedly to clear the content in screen and go back to standby mode, or press number key directly, and then input emergency phone number. And then press answer key to describe where you are. 9 Know Your Phone 10 Positions of phone keys 1, Torch 10, Call End Key 2, Receiver 11, # key 3, Display 12, Earphone jack 4, SIM2 key 13, Camera 5, SIM1 key 14, Speaker 6, Number key 15, Battery Cover 7, * key 8, Charger jack 9, RSK 11 Instructions keypad function Keypad Function Left Keypad To run the f…

Text truncated - open the document above for the full version.

Ambitio LLC, The Owner of unnecto ™

FCC ID: ZU3UNNECTOECO POWER OF ATTORNEY August 18, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Ambitio LLC, The Owner of unnecto ™, hereby authorize Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on August 31, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Ambitio LLC, The Owner of unnecto ™ are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Daniel Moy Manager Ambitio LLC, The Owner of unnecto ™ August 18, 2011

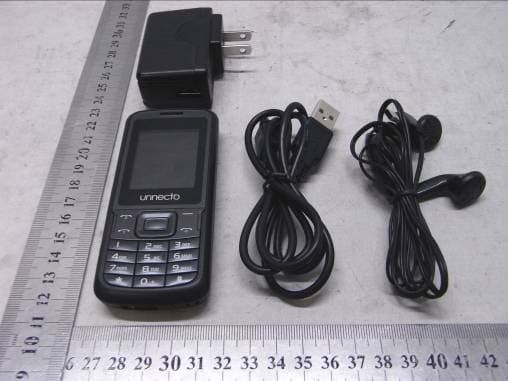

FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 PHOTO OF EARPHONE PHOTO OF USB CABLE FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 PHOTO OF POWER SUPPLY PHOTO OF BATTERY FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 PHOTO OF THE ENTIRE SAMPLE

FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF POWER SUPPLY-1 FCC ID: ZU3UNNECTOECO Report No.: STS110721F4 Page 50 of 50 INTERNAL PHOTO OF POWER SUPPLY-2

1/2 Operation Description OPERATIONAL DESCRIPTION APPLICANT:Ambitio LLC, The Owner of unnecto ™ Manufacturer: Shenzhen Xiangyue Perfect Digital Science & Technology Co., Ltd. FCC ID: ZU3UNNECTOECO Instruction Book: Users Manual Frequency Range GSM Transmit Frequency Band: 824.2-848.8 MHz Receive Frequency Band: 849.2-893.8 MHz Transmit Frequency Band: 1850.2-1909.8 MHz Receive Frequency Band: 1930.2-1989.8 MHz Specific Operating Power Range: Power Class 1; Power Control Level 0 +30dBm +2.0dB/-2.0dB Power Control Level 1 +28dBm +3.0dB/-3.0dB Power Control Level 2 +26dBm +3.0dB/-3.0dB Power Control Level 3 +24dBm +3.0dB/-3.0dB Power Control Level 4 +22dBm +3.0dB/-3.0dB Power Control Level 5 +20dBm +3.0dB/-3.0dB Power Control Level 6 +18dBm +3.0dB/-3.0dB Power Control Level 7 +16dBm +3.0dB/-3.0dB Power Control Level 8 +14dBm +3.0dB/-3.0dB Power Control Level 9 +12dBm +4.0dB/-4.0dB Power Control Level 10 +10dBm +4.0dB/-4.0dB Power Control Level 11 +8dBm +4.0dB/-4.0dB Power Control Level 12 +6dBm +4.0dB/-4.0dB Power Control Level 13 +4dBm +4.0dB/-4.0dB Power Control Level 14 +2dBm +5.0dB/-5.0dB Power Control Level 15 +0dBm +5.0dB/-5.0dB Note; Effective radiation efficiency is –3.7dB DC Voltage and Current into the Final Amplifier Module: Supply Voltage = 5.0Vdc Supply Current = ~0.5Amp. Tune-up Procedure: Tune-up Procedure Equipment Identification: Equipment's Identification label and its intended Location are as shown in EXHIBIT Type “ID Label / Location Information” (FCC ID Nameplate), and in EXHIBIT Type “Internal Photo”(Photograph of inside) Photographs: A complete set of the Photographs showing External and Internal Views of Circuit Details and Construction are provided by from EXHIBIT Type “External Photos” and “Internal Photos”. Accessories: Accessories 2/2 Operation Description Figure 1.2: Terminal Components (Accessories) Technical Descriptions TX synthesizer uses an Offset-PLL circuit. The Offset-PLL circuit consists of PLL-IC and TX_VCO and loop filter. Reference frequency of the above synthesizers is 26MHz and generated by VCTCXO. Control signal is sent from Baseband section and keeps frequency stability. TX IQ signal is input from Baseband section to MT6235, The Bluetooth signal is input form MT6601 and FM signal is input form TLG1120 section to MT6235. TX IQ signal is applied to the quadrature up-converter, and the up-converter LO signal is generated from the transceiver VCO within MT6139B. This up-converter translates the GMSK-modulated signal to an intermediate frequency (IF) that forms one input to a frequency/phase detector circuit. This IF signal is the reference input to an Offset-PLL circuit. The feedback path of this Offset-PLL circuit includes a down-conversion from the RF output frequency range to the IF range. The two inputs to this down-conversion mixer are formed the TX_VCO output and the LO generation circuits. The mixer output is the offset feedback signal that forms the variable input to a frequency/phase detector circuit. The detector compares its variable input to its reference input and generates an error signal that is low-pass filtered by the loop filter and applied to TX_VCO to force the RF frequency in the direction that minimizes errors. The TX_VCO output passes PA, Antenna SW, Coaxial connector with switch and emitted from embedded antenna. Digital Modulation: Analog speech produced by a microphone is encoded to digital PCM samples using a CODEC. The PCM samples are passed to a Vocoder for AMR (Advanced Multi Rate) encoding, to compress the speech samples. The encoding rate is determined by the Vocoder which formats the speech samples as data packets. A new data packet with data rate information is read by the microprocessor every 20 ms. The speech CODEC becomes AMR, FR(Full Rate), EFR(Enhanced FR) and HR(Half Rate). The microprocessor then sends the data packet to the transmit subsystem, and passed DAC to covert analog signal. I/Q base band signal is filtered and is inputted into 6M4003 containing quadrature phase modulator. Battery AC Charger

序号 物料名称 主板位置 用量 制造商 制造商产品编号 1 电容，6pF C706 1 Murata GRM1555C1H6R0C 2 电容，10pF CAP 0402 10p 50V ±0.25pF C741 C742 2 Murata GRM1555C1H100J 3 电容，18pF CAP 0402 18p 50V ±5% C101 C102 C738 C740 4 Murata GRM1555C1H180J 4 电容，22pF C705 C711 C707 C714 4 Murata GRM1555C1H220J 5 电容，33pF C224 C410 C411 C402 C414 C420 C421 C429C437 C438 C435 C436 C722 C622 14 Murata GRM1555C1H330J 6 电容，39pF CAP 0402 39p 50V ±5% C231 C235 C743 C720 4 Murata GRM1555C1H 390J 7 电容，47pF CAP 0402 47P 50V ±5% C715 1 Murata GRM1555C1H470J 8 电容，56pF C417 C418 C422 C423 C425 C426 C710 C734 8 Murata GRM1555C1 H560J 9 电容，82pF CAP 0402 56p 50V ±5% C723 C739 2 Murata GRM1555C1H820J 10 电容，150pF C504 1 Murata GRM1555C1H151J 11 电容，100pF C404 C406 C419 C424 C712 5 Murata GRM1555C1H101J 12 电容, 1nF C222 C601 C602 C701 C704 5 Murata GRM155R71H102K 13 电容, 33nF CAP 0402 33nF 50V ±5% C737 1 Murata GRM155R71H333K 14 电容，47nF CAP 0402 47nF 50V ±5% C227 1 Murata GRM155R71H473K 15 电容，0.1UF C201 C202 C203 C204 C205 C208 C209 C228C210 C218 C223 C301 C403 C407 C434 C416C432 C708 C719 C721 C724 C730 C731 C732C303 C427 T202 T210 C501 C503 C505 31 Murata GRM155F51C104Z 16 电容，0.22UF C725 1 Murata GRM155F51C224Z 17 电容，1UF C207 C213 C215 C217 C430 5 Murata GRM155R71A105K 18 电容，1UF C211 C232 C233 C234 C219 5 Murata GRM188F51A105Z 19 电容，2.2UF C229 C230 C433 3 Murata GRM188F51A225Z 20 电容，4.7UF C206 C212 C214 C216 C302 C405 C408 C415C401 C413 C431 C502 12 Murata GRM188R60J475K 21 电容，22UF C226 C709 2 Murata GRM21BR60J226ME39 22 钽电容,100UF C220 1 AVX TAJG107M006R** 23 电阻，0Ω R201 R202 R209 R212 R213 R215 R216 R409R702 R708 L408 R720 R222 R423 R425 R701L411 L412 R426 R429 R313 L302 R311 23 Rohm MCR01MZSJ000 24 电阻，0Ω F201 1 Rohm MCR03EZPJ000 25 电阻，0.2Ω R206 1 Rohm MCR10EZHFLR200 26 电阻，10Ω R217 R309 R711 R302 R315 R614 6 Rohm MCR01MZSJ100 27 电阻，27Ω R705 1 Rohm MCR10EZSJ270 28 电阻，56Ω R706 1 Rohm MCR01MZSJ560 29 电阻，100Ω R402 R406 R607 3 Rohm MCR01MZSJ101 30 电阻，1KΩ R204 R205 R401 R405 R611 R610 R707 R601R410 R416 R211 11 Rohm MCR01MZSJ102 31 电阻，1.5KΩ R403 R411 R414 3 Rohm MCR01MZSJ152 32 电阻，2.2KΩ R709 R710 R714 R715 4 Rohm MCR01MZSJ222 33 电阻，4.7KΩ R407 R408 2 Rohm MCR01MZPJ472 34 电阻，10KΩ R208 R210 R415 R703 4 Rohm MCR01MZSJ103 35 电阻，24KΩ RES,15KOHM 0402 ± 50V R207 1 Rohm MCR01MZPJ243 36 电阻，33KΩ R704 1 Rohm MCR01MZSJ333 37 电阻，39KΩ R413 1 Rohm MCR01MZPJ393 38 电阻，47KΩ R304 R305 R306 R307 R308 R310 6 Rohm MCR01MZSJ473 39 电阻，100KΩ RES,100KOHM 0402 ±5%, 50V R203 R303 R412 R602 R421 5 Rohm MCR01MZSJ104 40 电感，1.5nH L301 1 Taiyo Yuden HK10051N5J 41 电感，3.3nH C713 1 Taiyo Yuden HK10053N3J 42 电感，5.1nH IND，5.1nH±0.3nH 402 L703 1 Taiyo Yuden HK10055N1S CAP 0402 150p 50V ±5%CAP 0402 0.1uF 16V +/-20%IND, 1.5NH ±5% 0402 工程名称：M228E,主板版本V3.0, BOM版本：1.0 物料描述 CAP 0402 22p 50V ±5%CAP 0402 6p 50V ±0.25pFCAP 0402 33p 50V ±5%CAP 0402 56p 50V ±5%CAP 0402 1nF 50V ±5%CAP 0402 100p 50V ±5%RES,1KOHM 0402 ±5%, 50VRES,0 OHM 0603 ±5%, 50VRES,0 OHM 0402 ±5%, 50VRES,56 OHM 0402 ±5%, 50VRES,100 OHM 0402 ±5%, 50VCAP 3216 6.3V ±20%RES 0805RES,27OHM 0402 ±5%, 50VRES,10OHM 0402 ±5%, 50VCAP 0402 0.22uF 16V +/-20%CAP 0402 1u 6.3V ±10%RES,10KOHM 0402 ±5%, 50VCAP 0603 2.2u 6.3V +80/-20%CAP 0603 4.7u 6.3V ±10%CAP 0805 22UFRES,4.7KOHM 0402 ±5%, 50VRES,1.5KOHM 0402 ±5%, 50VRES,2.2KOHM 0402 ±5%, 50VCAP 0603 1u 80/-20% 10VRES,33KOHM 0402 ±5%, 50VRES,39KOHM 0402 ±5%, 50VIND, 3.3NH ±5% 0402RES,47KOHM 0402 ±5%, 50V 43 电感，18nH IND, 18NH ±5% 402 L702 1 Taiyo Yuden HK100518NJ 44 电感，56nH C750 1 Taiyo Yuden HK100556NJ 45 电感，100nH IND, 100NH ±5% 0402 L201 L202 L405 3 Taiyo Yuden HK1005R10J 46 电感 150nH L502 1 Taiyo Yuden HK1005R15J 47 磁珠 L401 L403 L404 L406 L407 L409 L410 L604L605 L606 10 Murata BLM15HD102SN1D 48 磁珠 L501 L601 2 Murata BLM18BD252SN1 49 压敏电阻 T612 T613 T614 T615 T616 T617 T618 T619T621 T630 T602 T603 T604 T605 T606 T607T608 T609 T611 T620 T201 T206 T300 T401T402 T300 T309 T310 T623 29 AMOTECH AVLC5S02100 50 压敏电阻 T601 1 AMOTECH AVL14K02200 51 TVS管 TVS201 TVS401 TVS402 TVS403 TVS404 5 WILL ESD9X5V 52 晶体 U703 1 TXC 7M26000018 53 晶体 X101 1 EPSON MC-146 54 CPU U202 1 MTK MT6223D 55 二合一Flash U301 1 EON EN71GL064B0 56 AOS AON4703 57 ONSEMI NTHD4P02FT1G 58 茂达 APM2805QAC 59 VISHAY SI5853DC-T1 60 FM芯片 U501 1 RDA RDA5802E 61 双卡芯片 模拟开关 U203 1 艾为 AW6302QNR 62 收发信芯片 U705 1 ADI AD6548 63 射频功率放大器 U702 1 SKYWORKS SKY77542 64 SAWFILTER U706 1 KYOCERA SF18-1842EAUBA1 65 音频放大器 U402 1 SI-EN SN4990D 66 电池连接器 CON201 1 深圳乾德电子 PAN25-03601-1500 67 T卡座 J301 1 深圳乾德电子 CAH11-08193-SF00 68 SIM卡座 J201 J202 2 龙友科技 LC10H-06MR1-15WN3 69 RF连接器 J701 1 MURUTA MM8430-2600B 70 USB连接器 CON601 1 深圳乾德电子 UAF05-12304-1501 71 发光二极管 LED602 LED603 LED604 LED605 LED606 LED607 6 EVERLIGHT 19-217BHC-ZL1M2RY 72 二极管 Swithcing DIODESOD-523 D201 D601 2 ROHM 1SS400TE61 73 射频屏蔽罩 1生益 74 基带屏蔽罩支架 1生益 75 基带屏蔽罩上盖 1生益 76 PCB 1 生益 M228-03 77 听筒 1 声光迅 103-1506-027034 78 喇叭 1联声 LSS2030H40-FP03B000-W15 79 MIC 新厚泰 HCM4015-BSC2L10-423-M4618 80 马达 1 杭州华创机电 V040834-133S 81 LCD 1信利 TFT1P5407-W-E 82 直充连接器 J604 1 龙梦 AJ11212311-R 83 天线(RF) 1天立 M228 天线 84 手电筒灯 LED302 LED301 2 EVERLIGHT 204-15/X2C2-1PSA 蓝色LED 0.4高度 0603封装ADI RF收发器MTK基带处理器26M CRYSTAL /10PPM/11PFP-Channel 1.8-V (G-S) MOSFET WithSchottky Diode 1 MOSFET管 5V(静电保护）64M FLASH+32M PSRAM32.768k (贴片）/12.5PF射频测试接口2500±25%OHM（100MHZ） 0603IND, 150NH ±5% 0402AB类桥梁式（高度2.0）普通掀盖式高度6.0mm900/1800MHZ(1.8x1.4) U201 四频天线，（850M+1900M）兼容（900M+1800M）焊线式128*160 1.77寸 15*6 弹片式20*30焊接式 焊线式 12PIN RF-PA白色LEDPCB3.014V1000±25%OHM（100MHZ） 0402IND, 56NH ±5% 04025V(静电保护）RF-SHIELD BOXBB shield box frameBB shield box coverNOKIA通用

Tune UP 1 Adjustment of RF Output Power: (1) The equipment setup as shown in Figure 1. (2) Operation of PC adjusts equipment. (3) Use RF Engineering Tools at PC side. Select GSM850 Band: 1) Set GSM850 Band. 2) Set ARFCN: 190 3) TX ON. 4) Adjust the power to 32.4dBm (Power control level: PCL=5) by PA DAC value. 5) Repeat 4) for 15 times,and adjust the power level to 30.5, 28.8, 27, 25, 23, 21, 19, 17, 15, 13, 11, 9, 7, 5. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). PC RF Tester GPIB Cable UART Cable RF Cable Test sample Figure 1 7) Data of 5) and 6) is writen to flash memory. Select PCS1900 Band: 1) Set PCS Band. 2) Set ARFCN: 661. 3) TX ON. 4) Adjust the power to 29.0 dBm (Power control level: PCL=0) by PA DAC value. 5) Repeat 4) for 15 times,and adjust the power level to 27.5, 26, 24, 22, 20, 18, 16, 14, 12, 10, 8, 6, 4, 2, 0. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). 7) Data of 5) and 6) is writen to flash memory. 2 Adjustment of oscillation frequency of VCXO: (1) The equipment setup as shown in Figure 1. (2) Use Crystal AFC Control Tools to Set CapID and AFC DAC value. (3) Set Band=GSM850,Set ARFCN=190,Set PCL=12. 1) Set AFC DAC=4096,fixed.(Check that Vafc=1.4V). 2) Set CapID=0, and verify that frequency error >>10KHz. 3) Set CapID=63, and verify that frequency error <<-10KHz. 4) If the above 3 items are verified, then change CapID value to make frequency error be closed to 0 Hz as possible, record this CapID value. 5) Set CapID value got from step 4), then change AFC DAC value to make frequency error be closed to 0 Hz as possible, record this AFC DAC value. 6) Download the CapID value and AFC DAC value to flash memory. 3 Adjustment of RX Sensitivity: (1) Select GSM850 Band: 1) Set BCCH level:-85dBm;ARFCN:128. 2) Test sample make a call to connect RF Tester.. 3) Set TCH level:-106dBm. 4) Measure BERII error at TCH ARFCN:128, 190，251. 5) Tuen up the RX matching cricuit to make sure BERII<2% at each ARFCN. (2) Select PCS Band: 1) Set BCCH level:-85dBm;ARFCN:512. 2) Test sample make a call to connect RF Tester.. 3) Set TCH level:-106dBm. 4) Measure BERII error at TCH ARFCN:512, 661, 810. 5) Tuen up the RX matching cricuit to make sure BERII<2% at each ARFCN.

!"#$% &'% % ('$)*+*)%,'$-./*#0%123$-%4.#0$5% 6(789:%;.#<5% %%%%%%%%%%%%%%%123$-%=>.??%@A% %%%%%%%%%%%%%%%123$-%=2#/2->%B$C$>%9%%%%%%%%DEE<;F%D:GE<;HI:GE<;% 123$-%=2#/2->%B$C$>%J%%%%%%%%DE@<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%L%%%%%%%%DKM<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%8%%%%%%%%DKL<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%M%%%%%%%%DK9<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@:%%%%%%%DKE<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@@%%%%%%%DK@<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@K%%%%%%%D@M<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@E%%%%%%%D@L<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@N%%%%%%%D@9<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@9%%%%%%%D@E<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@J%%%%%%%D@@<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@L%%%%%%%DM<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@8%%%%%%%DL<;F%DKG:<;HIKG:<;% 123$-%=2#/2->%B$C$>%@M%%%%%%%D9<;F%DKG:<;HIKG:<;% 6(7@M::%;.#<5% 123$-%=>.??%@A% 123$-%=2#/-2>%B$C$>%:%%DE:<;F%DKG:<;HIKG:<;% 123$-%=2#/-2>%B$C$>%@%%DK8<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%K%%DKJ<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%E%%DKN<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%N%%DKK<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%9%%DK:<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%J%%D@8<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%L%%D@J<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%8%%D@N<;F%DEG:<;HIEG:<;% 123$-%=2#/-2>%B$C$>%M%%D@K<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@:%%D@:<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@@%%D8<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@K%%DJ<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@E%%DN<;F%DNG:<;HING:<;% 123$-%=2#/-2>%B$C$>%@N%%DK<;F%D9G:<;HI9G:<;% 123$-%=2#/-2>%B$C$>%@9%%D:<;F%D9G:<;HI9G:<;% % O2/$A%P++$)/*C$%-.<*./*2#%$++*)*$#)Q%*?%REGL<;% 1 Adjustment of RF Output Power: (1) The equipment setup as shown in Figure 1. (2) Operation of PC adjusts equipment. (3) Use RF Engineering Tools at PC side. Select GSM850 Band: 1) Set GSM850 Band. 2) Set ARFCN: 190 3) TX ON. 4) Adjust the power to 32.4dBm (+1.0dB/-1.0dB, Power control level: PCL=5) by PA DAC value. 5) Repeat 4) for 15 times,and adjust the power level to 30.5, 28.8, 27, 25, 23, 21, 19, 17, 15, 13, 11, 9, 7, 5. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). PC RF Tester GPIB Cable UART Cable RF Cable Test sample Figure 1 7) Data of 5) and 6) is writen to flash memory. Select PCS1900 Band: 1) Set PCS Band. 2) Set ARFCN: 661. 3) TX ON. 4) Adjust the power to 29.0 dBm (+2.0dB/-2.0dB, Power control level: PCL=0) by PA DAC value. 5) Repeat 4) for 15 times,and adjust the power level to 27.5, 26, 24, 22, 20, 18, 16, 14, 12, 10, 8, 6, 4, 2, 0. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). 7) Data of 5) and 6) is writen to flash memory. 2 Adjustment of oscillation frequency of VCXO: (1) The equipment setup as shown in Figure 1. (2) Use Crystal AFC Control Tools to Set CapID and AFC DAC value. (3) Set Band=GSM850,Set ARFCN=190,Set PCL=12. 1) Set AFC DAC=4096,fixed.(Check that Vafc=1.4V). 2) Set CapID=0, and verify that frequency error >>10KHz. 3) Set CapID=63, and verify that frequency error <<-10KHz. 4) If the above 3 items are verified, then change CapID value to make frequency error be closed to 0 Hz as possible, record this CapID value. 5) Set CapID value got from step 4), then change AFC DAC value to make frequency error be closed to 0 Hz as possible, record this AFC DAC value. 6) Download the CapID value and AFC DAC value to flash memory. 3 Adjustment of RX Sensitivity: (1) Select GSM850 Band: 1) Set BCCH level:-85dBm;ARFCN:128. 2) Test sample make a call to connect RF Tester.. 3) Set TCH level:-106dBm. 4) Measure BER BER Select PCS Band: 1) Set BCCH level:-85dBm;ARFCN:512. 2) Test sample make a call to connect RF Tester.. 3) Set TCH level:-106dBm. 4) Measure BER BER !"#$%&&%'()$*'+,*-".( ( Frequency Range 2402 MHz -2480MHz Modulation Type FHSS Antenna Type: Internal Fixed Channel Number 79 Antenna Gain: 1.0dBi Temperature Range -20°C ~ 50°C ( ( /010()$*'+,*-".( Frequency Range: 2412MHz – 2462MHz Number of Channels: IEEE 802.11b/g mode: 11 Channels Transmit Power IEEE 802.11b mode: 17+/-1.5 dBm IEEE 802.11g mode: 13+/-1.5 dBm Modulation Technique: IEEE 802.11b mode: DSSS (1, 2, 5.5 and 11 Mpbs) IEEE 802.11g mode: OFDM (6, 9, 12, 18, 24, 36, 48 and 54 Mpbs) Antenna Gain: 1.0 dBi Temperature Range: -20°C ~ +50°C (

Compliance Certification Services Inc. Report No: KS110808A01-SF FCCID: ZU3UNNECTOECO Date Issue :August 11,2011 Page 1 of 37 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Product Name: GSM Mobile Phone Brand Name: unnecto ™ Model No.: U-100-2 Series Model: N/A Test Report Number: KS110808A01-SF Issued for Ambitio LLC, The Owner of unnecto ™ 1315 N.W 98th ct Suite 13 United States Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No: KS110808A01-SF FCCID: ZU3UNNECTOECO Date Issue :August 11,2011 Page 2 of 37 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 3 2. EUT DESCRIPTION....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............................... 5 4. TEST METHODOLOGY.............................................................................................................. 5 5. T EST CONFIGURATION................................................................................................................... 5 6. DOSIMETRIC ASSESSMENT SETUP ....................................................................................... 5 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................7 6.2 SYSTEM COMPONENTS ...............................................................................................................................8 7. EVALUATION PROCEDURES ................................................................................................. 11 8. MEASUREMENT UNCERTAINTY............................................................................................ 14 9. EXPOSURE LIMIT .................................................................................................................... 15 10. EUT ARRANGEMENT .............................................................................................................. 16 10.1 ANTHROPOMORPHIC HEAD PHANTOM..................................................................................................16 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................17 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................18 11. MEASUREMENT RESULTS..................................................................................................... 19 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................19 LIQUID MEASUREMENT RESULTS ..................................................................................................................19 11.2 SYSTEM PERFORMANCE CHECK............................................................................................................20 11.3 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................23 11.4 CONDUCTED OUTPUT POWER ...............................................................................................................23 11.5 SAR HANDSETS MULTI XMITER ASSESSMENT.....................................................................................24 11.6 EUT SETUP PHOTOS ................................................................................................................................26 11.7 SAR MEASUREMENT RESULTS ...............................................................................................................27 12. EUT PHOTO ............................................................................................................................. 31 13. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 35 14. REFERENCES.......................................................................................................................... 36 15. ATTACHMENTS ....................................................................................................................... 37 Compliance Certification Services Inc. Report No: KS110808A01-SF FCCID: ZU3UNNECTOECO Date Issue :August 11,2011 Page 3 of 37 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Product Name: GSM Mobile Phone Trade Name: unnecto ™ Model Name.: U-100-2 Series Model: N/A Applicant Discrepancy: Initial Devices supporting GPRS： Class B Description Test Modes(worst case ): The all Models EUT were pretested, the SIM1 was found to transmit the highest SAR value Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Date of Test: August 10, 2011 Applicant: Ambitio …
