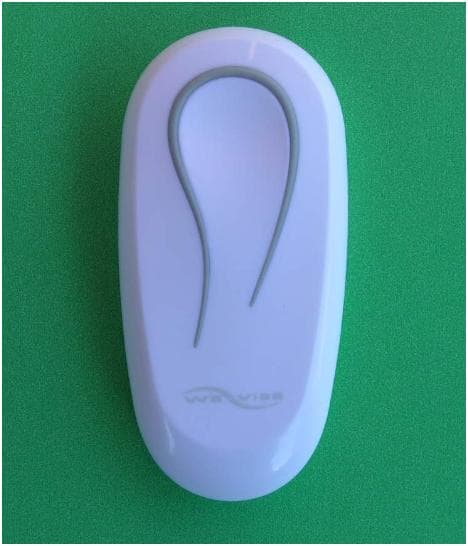

ZUE1500Personal Massager Remote Control

Report reference ID: 180612-1TRFWL Page 2 of 18 www.nemko.com Compliance test report ID 180612-1TRFWL Date of issue August 25, 11 FCC 47 CFR Part 15 Subpart C, §15.249 Operation in the 902–928 MHz, 2400–2483.5 MHz, 5725–5875 MHz and 24.0–24.25 GHz Applicant Standard Innovation Corporation Product Personal Massager Remote Control Model 1500 FCC ID ZUE1500 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation SCC Accredited LAB LAB Accrédité CCN TM Report reference ID: 180612-1TRFWL Page 2 of 18 Test location Nemko Canada Inc. 303 River Road Ottawa, ON, K1V 1H2 Canada Test site FCC ID: 176392 (3 m semi anechoic chamber) Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Tested by Kevin Rose, EMC/Wireless Specialist Reviewed by August 25, 2011 Andrey Adelberg, Senior Wireless/EMC Specialist Date Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 180612-1TRFWL Page 3 of 18 Table of contents Section 1: Report summary ......................................................................................................................................................... 4 Section 2: Summary of test results ............................................................................................................................................. 5 Section 3: Equipment under test (EUT) details .......................................................................................................................... 6 Section 4: Engineering considerations ....................................................................................................................................... 7 Section 5: Test conditions ........................................................................................................................................................... 8 Section 6: Measurement uncertainty .......................................................................................................................................... 9 Section 7: Test equipment ......................................................................................................................................................... 10 Section 8: Testing data ............................................................................................................................................................... 11 8.1 Clause 15.215(c) Emission bandwidth....................................................................................................................... 11 8.2 Clause 15.249(a) Field strength of radiated emissions not in restricted bands .......................................................... 13 8.3 Clause 15.249(d) Spurious emissions (except for harmonics) ................................................................................... 16 Section 9: Block diagrams of test set-ups ................................................................................................................................ 17 Section 1 Report summary Report reference ID: 180612-1TRFWL Page 4 of 18 Section 1: Report summary 1.1 Applicant Standard Innovation Corporation 1130 Morrison Drive, Suite 330 Ottawa, Ontario, Canada K2H 9N6 1.2 Manufacturer Standard Innovation Corporation 1130 Morrison Drive, Suite 330 Ottawa, Ontario, Canada K2H 9N6 1.3 Test specifications FCC 47 CFR Part 15 Subpart C, §15.249 Operation in the 902–928 MHz, 2400–2483.5 MHz, 5725–5875 MHz and 24.0–24.25 GHz 1.4 Statement of compliance In the configuration tested, the EUT was found compliant. Testing was completed against all relevant requirements of the test standard. Results obtained indicate that the product under test complies in full with the requirements tested. The test results relate only to the items tested. See “Summary of test results” for full details. 1.5 Exclusions None 1.6 Test report revision history Revision # Details of changes made to test report TRF Original report issued Section 2: Summary of test results Report reference ID: 180612-1TRFWL Page 5 of 18 Section 2: Summary of test results 2.1 FCC Part 15 general requirements’ test results Part Test description Verdict §15.207(a) Conducted limits NA 1 §15.215(c) 20 dB bandwidth Pass Notes: 1 the device is a DC powered Device 2.2 FCC Part 15 Subpart C, 15.249 test results Part Test description Verdict §15.249(a) Radiated emissions not in restricted bands Pass §15.249(d) Spurious emissions (except harmonics) Pass Section 3 Equipment under test (EUT) details Report reference ID: 180612-1TRFWL Page 6 of 18 Section 3: Equipment under test (EUT) details 3.1 Sample information Receipt date July 22, 2011 Nemko sample ID number 1 3.2 EUT information Product name Personal Massager Remote Control Model 1500 Serial number none FCC ID ZUE1500 3.3 Technical information Operating band 2.4–2.4835 GHz Operating frequency 2.404, 2.456 and 2.477 GHz Modulation type GFSK Occupied bandwidth 1.995 MHz Emission designator F1D Power requirements 3 Vdc (All tests we…

Text truncated - open the document above for the full version.

Setup photos Radiated emissions setup Radiated emissions setup
