ZUKWM605Bluetooth Wireless Optical Mouse

FCC ID: ZUKWM605 FCC information to the user Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

Open the battery compartment Insert the batteries as shown inside the battery compartment Replace the cover Noted: when your blue LED is shinning , double click your desktop ,you can see an icon of bluetooth following the prosecure done up.At last ,press “ok” The next time to use the bluetooth ,your computer systems will working for you auctomatacally 2.Turn on the switch toward “on” direction and press the key of “ ”till you see the blue light shining USB(just for the computer without bluetooth device,portable PC do not need this USB) 3.Click here change CPI:800/1000/1600(default state is 1000) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Noted:

Wintop Electronics Co., Ltd. Huaguan Industrial Park, Xinhe Road, Shangmugu Pinghu Town, Longgang District Shenzhen City, China Authorization Letter Number: CF101 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Wintop Electronics Co., Ltd. Addresss Huaguan Industrial Park, Xinhe Road, Shangmugu, Pinghu Town, Longgang District City Shenzhen City Country China declare that the following representative (agent): Name (person) Daniel Zhu Company name Anbotek Compliance Laboratory Limited Addresss 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Wireless Optical Mouse Type or Model(s) WM-605, WM-660 Tradename or Brand(s) N/A We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, The Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) SHENZHEN, CHINA 2011-7-22 Shirly Lee Sales

Wintop Electronics Co., Ltd. Huaguan Industrial Park, Xinhe Road, Shangmugu Pinghu Town, Longgang District Shenzhen City, China FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Wintop Electronics Co., Ltd. Addresss Huaguan Industrial Park, Xinhe Road, Shangmugu, Pinghu Town, Longgang District City Shenzhen City Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: ZUK WM605 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Schematics Diagrams (file: ZTNKSR315A_SchematicDiagram.pdf ; Shows components, their values and interconnections) √ Block Diagrams (file: ZTNKSR315A_BlockDiagram.pdf ; Shows the systematic building blocks of the EUT) √ Circuit Description (file: ZTNKSR315A_CircuitDescription.pdf; Explains the functioning of the block diagram / EUT) User Manual Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) SHENZHEN, CHINA 2011-7-22 Shirly Lee Sales

Page 16 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F Figure 1 The EUT-Front View Figure 2 The EUT-Back View Page 17 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F Figure 3 The EUT-Inside View

FCC ID Label Sample for FCC ID: ZUKWM605 FCC ID: ZUKWM605

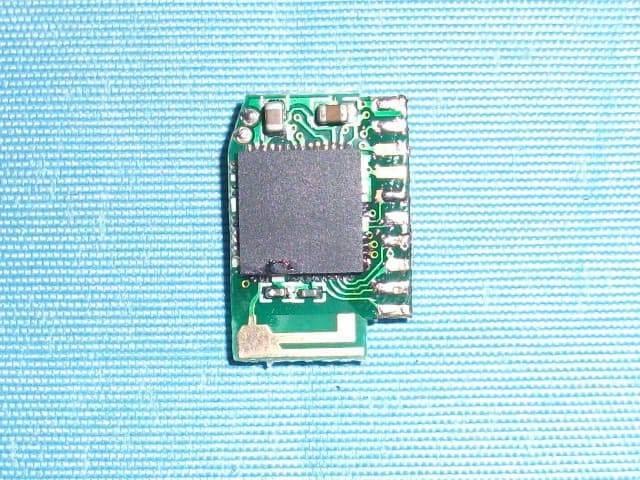

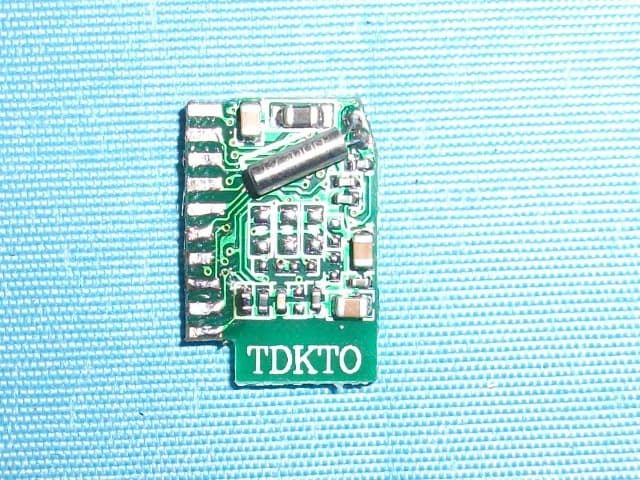

Page 18 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F Figure 4 PCB of the EUT-Front View Figure 5 PCB of the EUT-Back View Page 19 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F Figure 6 PCB of the EUT-Front View(BT Module) Figure 7 PCB of the EUT-Back View(BT Module)

Page 1 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F FCC TEST REPORT for Wintop Electronics Co., Ltd. Bluetooth Wireless Optical Mouse Model No.: WM-605, WM-660 Report Number : 201107726F Date of Test : Jul. 13~19, 2011 Date of Report : Jul. 22, 2011 Prepared for : Wintop Electronics Co., Ltd. Address : Huaguan Industrial Park, Xinhe Road, Shangmugu, Pinghu Town, Longgang District, Shenzhen City, China Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26014771 Fax: (86) 755-26014772 Page 2 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3.Measurement Uncertainty..........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 6 3. TEST PROCEDURE ....................................................................................................................... 7 4. RADIATION INTERFERENCE.................................................................................................... 8 4.1. Requirements (15.249, 15.209): ...............................................................................................................8 4.2 Test Procedure ...........................................................................................................................................8 4.3 Test Results................................................................................................................................................8 5. OCCUPIED BANDWIDTH..........................................................................................................12 5.1. Requirements (15.249): ..........................................................................................................................12 5.2. Test Procedure ........................................................................................................................................12 5.3. Test Configuration:.................................................................................................................................12 5.4. Test Results.............................................................................................................................................12 6. PHOTOGRAPH............................................................................................................................. 14 6.1. Photo of Radiation Emission Test ..........................................................................................................14 APPENDIX I (Photos of EUT) (4 Pages) Page 3 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F TEST REPORT Applicant : Wintop Electronics Co., Ltd. Manufacturer : Shenzhen Wintop Electronics Co., Ltd. EUT : Bluetooth Wireless Optical Mouse Model No. : WM-605, WM-660 Serial No. : N/A Rating : DC 3V Trade Mark : N.A. Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : Jul. 13~19, 2011 Prepared by : (Engineer / Rock Zeng) Reviewer : (Project Manager / Coco Xiang) Approved & Authorized Signer : (Manager / Henry Yang) Page 4 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Bluetooth Wireless Optical Mouse Model Number : WM-605, WM-660 (Note: The above samples are same except the model number & shape of appliances, so we prepare “WM-605” for FCC test only.) Test Power Supply : DC 3V via 2 Pcs new (full) AAA Battery Frequency : 2402~2480MHz Antenna gain : 0dBi Antenna type : PCB Antenna Applicant : Wintop Electronics Co., Ltd. Address : Huaguan Industrial Park, Xinhe Road, Shangmugu, Pinghu Town, Longgang District, Shenzhen City, China Manufacturer : Shenzhen Wintop Electronics Co., Ltd. Address : Huaguan Industrial Park, Xinhe Road, Shangmugu, Pinghu Town, Longgang District, Shenzhen City, China Date of receiver : Jul. 13, 2011 Date of Test : Jul. 13~19, 2011 Page 5 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F 1.2. Description of Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS - LAB Code: L3503 Anbotek Compliance Laboratory Limited., Laboratory has been assessed and in compliance with CNAS/CL01: 2006 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of Testing Laboratories. FCC-Registration No.: 752021 Anbotek Compliance Laboratory Limited, EMC Laboratory has been registed …

Text truncated - open the document above for the full version.

Page 14 of 19 FCC ID: ZUKWM605 Anbotek Compliance Laboratory Limited Report No.201107726F 6. PHOTOGRAPH 6.1. Photo of Radiation Emission Test
