ZWY3008XCar Kit Bluetooth Module

产品说明书 Product User Guide 1. 介绍Introduction 1.1简要Overview ★ BT-MQ38-JK1是一款基于QC C3008芯片的单模蓝牙模组。 BT-MQ38-JK1 is a single mode Bluetooth module based on QCC3008 chip.BT V5.0 BDR+EDR only ★ 本模组是由一单射频和基带芯片组成并应用于蓝牙2.4GHz系统。 The module is a single-chip radio and baseband IC for Bluetooth 2.4GHz s ystems. 1.2特征 Features ★ 支持蓝牙5.0版本。 Support Bluetooth v5.0 specification. ★ 支持立体声编解码和立体声线路输入。 Support stereo codec and line input. ★ 支持单mic cVc免提通话的消噪和回音消除。 Support 1-mic cVc hands-free NR/EC.. ★ 支持模块和手机端音频相互转换。 Support audio transfer between carkit and mobile phone. ★ 支持aptX、SBC、AAC音频编解码。 Support aptX,SBC,AAC audio codecs. ★ 蓝牙有效自由空间连接距离长达10米。 The wireless connection at distances up to 10 meters. ★ 模组尺寸26.8*16.8*3.2mm Module Size: 26.8*16.8*3.2mm. 1.3 应用 Applications ★ 车载免提 Hands-Free Car Kits ★ 无线立体声音箱。 Wired Stereo Speakers ★ 便携式媒体播放器 Portable media players 1 1.4框图Block Diagram 2. 规 格 Specification 2.1通用 规格General Specification 2.2温度和湿度规格Temperature and Humidity specification 1 产品名 称 Product Name蓝牙模组 Bluetooth Module 2 芯片类 型 Chip set QCC3008 QFN 3 功率等 级 Power class level Class 2 (-6dBm < P AV < 4d Bm) 5 额定电压 Rated Voltage3.3V DC（<50mVp-p纹波电压） 6 工作电压范围 Operation Voltage range2.8V～3.6V DC 7 工作距 离范围 Operation Distance Range 10 meters 7 尺寸 Dim ension26.8*16.8*3.2mm （L*W*H） 8 蓝牙标 准 Bluetooth Standard Bluetooth v5.0 工作温 度范围 Operation Temperature range -40～85°C 储存温 度范围 Storage Temperature range -40～90°C 储存湿度范围 Storage Humidity range10% ～90% 2 2.3射频发射规格TX Radio Specification 项目 Item s 最小 Min. 典型 Typ. 最大 Max. 单位 Unit 输出功率 Output transmit power -60 4 dBm 调制特性 Modulation characteristics f1 avg 140 - 175 kHz f2 max 115 - - kHz f2avg/f 1avg 80 - - % 初始载波频 率容限 Initial carrier-frequency tolerance -75- 75 kHz 载波频率漂 移 Carrier frequency drift DH1 -25- 25 kHz DH3 -40- 40 kHz DH5 -40- 40 kHz Drift rat e/50us -20- 20 kHz 2.4射频接收规格RX Radio Specification 项目 Item s 最小 Min. 最大 Max. 单位 Unit 单时隙灵敏 度 (P=-70dBm) Single sensitivity(P=-70dBm) <0.1 % 多时隙灵敏 度 (P=-70dBm) Multi sensitivity(P=-70dBm) <0.1 % 最大输入电平（ P=-20dBm） Maximum input Level(P=-20 dBm) <0.1 % 2.5蓝牙低功耗RF规格BLE RF Specification 项目 Item s 条件 Conditions 最小 Min. 典型 Typ. 最大 Max. 单位 Unit RX sensiti vity GFSK,0.1% BER,1Mbps - -96 - dBm TX powern/a - 9 - dBm Mod Char: F1 averagen/a 225 255 275 KHz Mod Char: F2 Max.n/a 99.9 - - % Mod Char: Ration/a 0.8 0.95 - % 3 2.5音频规格Audio Specification 项目 Items 条件 Conditions 最小 Min. 典型 Typ. 最大 Max. 单位 Unit 输出幅值(有 效值) Output Level(Vrms) 1kHz,0dB标准音源 0 0.3 0.4 V 频率响应 F requency Response 21Hz~17KHz标准音源 -30 3 dB 备注：音频 指标测试规格是采用A2DP方式，EQ使用默认值测量。 4 3. 设计应用 Design Application 3 .1 管脚配置 Pin Assignment 3.2 管脚描述 Pin Description No. Pin Nam e I/O Pad t ype Pin Description 1 GPIO_18 I/O Bi directional with weak pull-down Programmable input/output line18 2 GPIO_21 I/O Bi directional with weak pull-down Programmable input/output line21 3 AIO_0 I Bi directional Analog programmable input line 0 4 GPIO_16 I/O Bi directional with strong pull-up Programmable input/output line16 5 GPIO_17 I/O Bi directional with strong pull-down Programmable input/output line17 6 SP I_PCM#_SEL I Input with weak pulldown SPI/I²S select input: 0 = I²S/PIO interface 1 = SPI(for debugging) 7 GPIO_2/ SPI_MOSI I/O Bi directional with weak pull-down Programmable input/output line2 -SPI_MOSI: Debug SPI data input -I2S1_SD_IN: I²S1 synchronous data input 8 GPIO_3/ SPI_MISO I/O Bi directional with weak pull-down Programmable input/output line3 -SPI_MISO: Debug SPI data output -I2S1_SD_OUT: I²S1 synchronous data output 9 GPIO_4/ SPI_CSB I/O Bi directional with weak pull-down Programmable input/output line4 -SPI_CS#: chip select for Debug SPI, active low -I2S1_WS: I²S1 word select 10 GPIO_5/ SPI_CLK I/O Bi directional with weak pull-down Programmable input/output line5 -SPI_CLK: Debug SPI clock -I2S1_SCK: I²S1 synchronous data clock 5 11 GND - - Ground 12 LED0 O Open-drain output LED Driver 13 LED1 O Open-drain output LED Driver 14 LED2 O Open-drain output LED Driver 15 GND - - Ground 16 VREG_EN I Input with internal pull-down Regulator enable. A high input enables the on-chip regulators, which can then be latched on internally. 17 RESET# I Input with strong pull-up Reset if low. Pull low for minimum 5 ms to cause a reset 18 GND - - Ground 19 VDD_3V3 I VDD Positive supply for Module - Supply voltage : Typical 3.3V. 20 GND - - Ground 21 GPIO_1 I/O Bidirectional with strong pull-up Programmable input/output line1 22 GPIO_0 I/O Bidirectional with strong pull-up Programmable input/output line0 23 USB_DN I/O Bidirectional USB data minus 24 USB_DP I/O Bidirectional USB data plus with selectable internal 1.5K pull-up resistor 25 GND - - Ground 26 GPIO_9 I/O Bidirectional with strong pull-down Programmable input/output line9 27 GPIO_8 I/O Bidirectional with strong pull-up Programmable input/output line8 28 GPIO_7 I/O Bidirectional with strong pull-down Programmable input/output line7 29 GPIO_6 I/O Bidirectional with strong pull-down Programmable input/output line6 30 GND - - Ground 31 MIC_BIAS O Analog out Microphone bias 32 LINE_BN I Analog in Line input negative, channel B 33 LINE_BP I Analog in Line input positive, channel B 34 MIC_AN I Analog in Line or microphone input negative, channel A 35 MIC_AP I Analog in Line or microphone input positive, channel A 36 GND - - Ground 37 SPK_RN O Analog out Speaker output negative, right 38 SPK_RP O Analog out Speaker output positive, righ 39 SPK_LN O Analog out Speaker output negative, left 40 SPK_LP O Analog out Speaker output positive, left 6 3.3 模块外形Module Outline 3.4 模块尺寸 Module Dimension 模块尺寸26.8*16.8*3.5mm(长*宽*高) Module Size：26.8*16.8*3.5mm (L*W*H) FCC Statement FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 PCB antenna with antenna gain 0.49dBi This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes …

Text truncated - open the document above for the full version.

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction PCB antenna with antenna gain 0.49dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements. 4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and N/A Not applicable f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part of the information to the host product manufacturer. The antenna list shall also identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-directional antenna” is not considered to be a specif…

Text truncated - open the document above for the full version.

ProductName:CarKitBluetoothModule ModelNo.:BT-MQ38-JK1,BT-MQ38-1A,BT-MQ38-JK1A,BT-MQ38-JK1B BT-MQ38-JK1C FCCID:ZWY3008X Allmodelsareelectricallyidentical,onlymodelnoisdifferent <Signature> Name TitlePM CompanyShinwaindustries(China)ltd.

SingleModularapprovaldeclarationletter We,Shinwaindustries(China)ltd.applySinglemodularapprovalfor ProductName:CarKitBluetoothModule Model:BT-MQ38-JK1,BT-MQ38-1A,BT-MQ38-JK1A,BT-MQ38-JK1B,BT-MQ38-JK1C FCCID:ZWY3008X Accordingto996369D01ModuleEquipAuthGuidev01r04and15.212requirement: 1)Theradioelementsmusthavetheradiofrequencycircuitryshielded.Physical componentsandtuningcapacitor(s)maybelocatedexternaltotheshield,butmust beonthemoduleassembly; Answer ： Yes ； bothsideshielded 2)Themodulemusthavebufferedmodulation/datainputstoensurethatthedevicewill complywithPart15requirementswithanytypeofinputsignal; Answer ： Yes ； Allinputstothemodulesarebufferedthroughlogicormicroprocessorinputs. 3)Themodulartransmittermusthaveitsownpowersupplyregulation. Answer ： Yes ； Alowdropoutregulatorisusedformodularpowersupplyregulation. 4)Themodulemustcontainapermanentlyattachedantenna,orcontainauniqueantenna connector,andbemarketedandoperatedonlywithspecificantenna(s),perSections 15.203,15.204(b),15.204(c),15.212(a),2.929(b); Answer ： Yes ； DeviceisequippedwithPCBantenna. (5)Themodulemustdemonstratecomplianceinastand-aloneconfiguration; Answer ： Yes ； distancebetweenmodularandallAEsarelongerthan10cm ， refertosetup photo. (6)ThemodulemustbelabelledwithitspermanentlyaffixedFCCIDlabel,orusean electronicdisplay(SeeKDBPublication784748aboutlabellingrequirements); Answer ： Yes ； Themodularhasapermanentfixedlabel,andbelowstatementwaslistedin theUserManual;ThehostdevicemustbelabeledtodisplaytheFCCIDofthemodule “ContainsTransmitterModuleFCCID:ZWY3008XOrContainsFCCID:ZWY3008X” (7)Themodulemustcomplywithallspecificrulesapplicabletothetransmitterincluding alltheconditionsprovidedintheintegrationinstructionsbythegrantee; Answer ： Yes ； Themodulecomplywithallspecificrulesapplicabletothetransmitter includingalltheconditionsprovidedintheintegrationinstructionsbythegrantee,Refertotest reportandusermanual. (8)ThemodulemustcomplywithRFexposurerequirements Answer ： Yes ； TransmittermeetsMPEcalculationof47CFR1.1307.RefertoMPEReports andRefertomodularinstallationmanual <Signature> Name:PenghuiZuo Title:PM Company:Shinwaindustries(China)ltd.

Oct 27，2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__ZWY3008X Product Name: Car Kit Bluetooth Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operationdescription Thesematerialscontaintradesecretsand proprietaryinformationand are not customarilyreleasedto the public.The publicdisclosureof this informationmight be harmfulto the companyand provideunjustifiedbenefitsto our competitors. <Signature> NamePenghuiZuo TitlePM CompanyShinwaindustries(Chinwa)ltd.

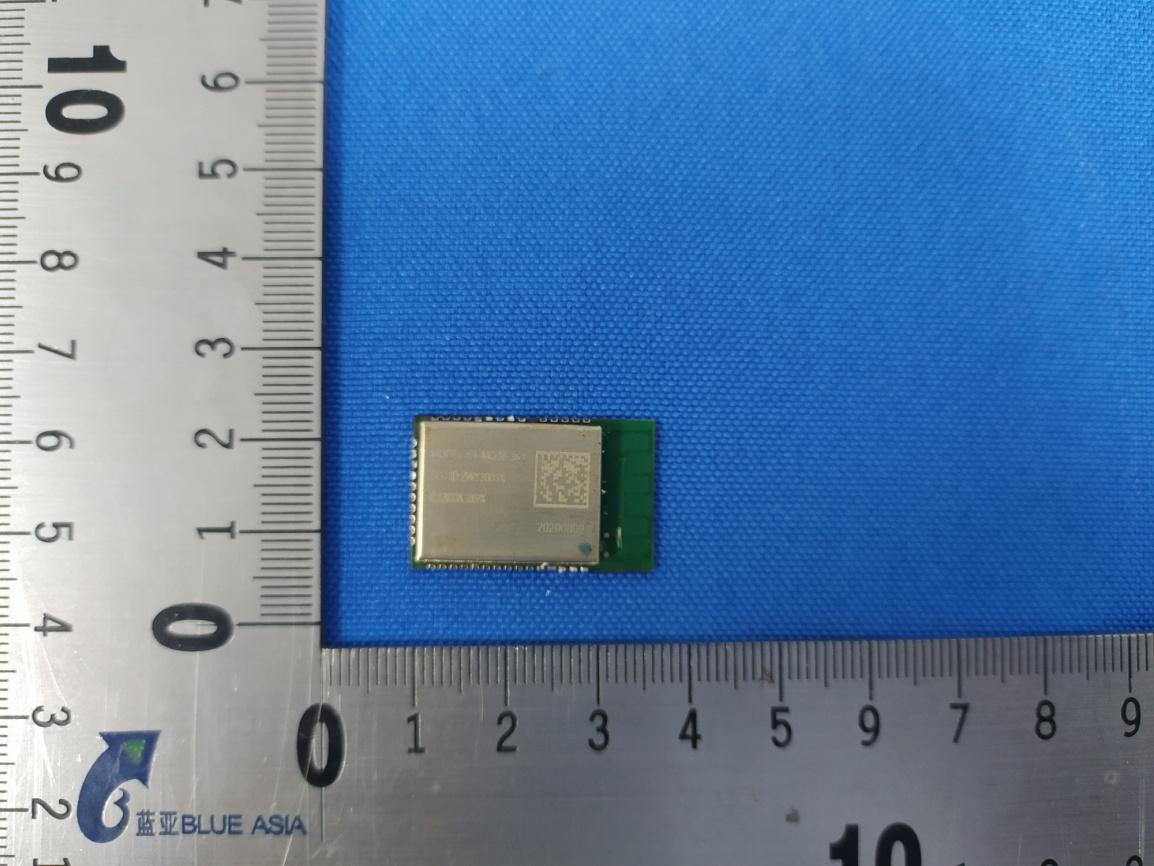

Model No.: BT-MQ38-JK1

Model No.: BT-MQ38-JK1

RF Exposure Evaluation Statement Product Name: Car Kit Bluetooth Module Model No.：BT-MQ38-JK1, BT-MQ38-1A, BT-MQ38-JK1A, BT-MQ38-JK1B BT-MQ38-JK1C FCC ID：ZWY3008X 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: EDR （8-DPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHZ 3.11 ±1 4.11 2.58 0.80 3.0 2441MHz 2.79 ±1 3.79 2.39 0.75 2480MHz 2.18 ±1 3.18 2.08 0.66 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Car Kit Bluetooth Module Brand Mark : Shinwa Model No. : BT-MQ38-JK1, BT-MQ38-1A BT-MQ38-JK1A,BT-MQ38-JK1B BT-MQ38-JK1C FCC ID : ZWY3008X Report Number : BLA-EMC-202010-A0401 Date of Sample Receipt : 2020/10/10 Date of Test : 2020/10/13 to 2020/10/30 Date of Issue : 2020/12/08 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Shinwa industries(China)ltd. No.26,HuiFeng West 2 Road,Zhongkai High-Tech Park,Huizhou, Guangdong,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2020/12/08 Report No.: BLA-EMC-202010-A0401 Page 2 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2020/12/08 Original Report No.: BLA-EMC-202010-A0401 Page 3 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 ANTENNA REQUIREMENT ..................................................................................................................... 13 1.1 CONCLUSION ............................................................................................................................................................ 13 2 DWELL TIME ............................................................................................................................................ 14 2.1 LIMITS ................................................................................................................................................................... 14 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 14 2.3 EST DATA ................................................................................................................................................................ 14 3 HOPPING CHANNEL NUMBER .............................................................................................................. 15 3.1 LIMITS ................................................................................................................................................................... 15 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 3.3 TEST DATA .............................................................................................................................................................. 15 4 CARRIER FREQUENCIES SEPARATION .............................................................................................. 16 4.1 LIMITS ................................................................................................................................................................... 16 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 16 4.3 TEST DATA .............................................................................................................................................................. 16 5 20DB BANDWIDTH .................................................................................................................................. 17 5.1 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 17 5.2 TEST DATA .............................................................................................................................................................. 17 6 CONDUCTED PEAK OUTPUT POWER ................................................................................................. 18 6.1 LIMITS ................................................................................................................................................................... 18 6.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 18 Report No.: BLA-EMC-202010-A0401 Page 4 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202010-A0401 Page 44 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10 APPENDIX 10.1 APPENDIX: 20DBEMISSION BANDWIDTH Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.122 2401.409 2402.531 --- PASS 2441 1.125 2440.406 2441.531 --- PASS 2480 1.122 2479.406 2480.528 --- PASS 2DH1 Ant1 2402 1.401 2401.271 2402.672 --- PASS 2441 1.401 2440.271 2441.672 --- PASS 2480 1.404 2479.268 2480.672 --- PASS 3DH1 Ant1 2402 1.410 2401.277 2402.687 --- PASS 2441 1.407 2440.277 2441.684 --- PASS 2480 1.410 2479.274 2480.684 --- PASS Report No.: BLA-EMC-202010-A0401 Page 45 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 Report No.: BLA-EMC-202010-A0401 Page 46 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 Report No.: BLA-EMC-202010-A0401 Page 47 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202010-A0401 Page 48 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.2 APPENDIX: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 0.76 <=21 PASS 2441 0.51 <=21 PASS 2480 -0.14 <=21 PASS 2DH1 Ant1 2402 2.77 <=21 PASS 2441 2.61 <=21 PASS 2480 1.93 <=21 PASS 3DH1 Ant1 2402 3.11 <=21 PASS 2441 2.79 <=21 PASS 2480 2.18 <=21 PASS Report No.: BLA-EMC-202010-A0401 Page 49 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 Report No.: BLA-EMC-202010-A0401 Page 50 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 Report No.: BLA-EMC-202010-A0401 Page 51 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202010-A0401 Page 52 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.3 APPENDIX: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 Hop 0.988 >=0.750 PASS 2DH1 Ant1 Hop 0.998 >=0.936 PASS 3DH1 Ant1 Hop 1.004 >=0.940 PASS Report No.: BLA-EMC-202010-A0401 Page 53 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202010-A0401 Page 54 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.4 APPENDIXE: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.39 380 0.148 <=0.4 PASS DH3Ant1Hop1.641700.279<=0.4PASS DH5 Ant1 Hop 2.93 110 0.323 <=0.4 PASS Report No.: BLA-EMC-202010-A0401 Page 55 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Report No.: BLA-EMC-202010-A0401 Page 56 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com DH5_Ant1_Hop Report No.: BLA-EMC-202010-A0401 Page 57 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.5 APPENDIX: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202010-A0401 Page 58 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202010-A0401 Page 59 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.6 APPENDIX:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 0.29 -43.24 <=-19.71 PASS High 2480 -0.60 -51.25 <=-20.6 PASS Low Hop_2402 -0.32 -46.68 -20.32 PASS High Hop_2480 -0.32 -41.71 -20.32 PASS 2DH1 Ant1 Low 2402 -1.22 -44.41 <=-21.22 PASS High 2480 -2.12 -52.44 <=-22.12 PASS Low Hop_2402 -2.67 -47.05 -22.67 PASS High Hop_2480 -2.15 -43.89 -22.15 PASS 3DH1 Ant1 Low 2402 -1.50 -48.21 <=-21.5 PASS High 2480 -2.25 -52.89 <=-22.25 PASS Low Hop_2402 -1.59 -48.16 -21.59 PASS High Hop_2480 -2.17 -42.92 -22.17 PASS Report No.: BLA-EMC-202010-A0401 Page 60 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202010-A0401 Page 61 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202010-A0401 Page 62 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 Report No.: BLA-EMC-202010-A0401 Page 63 of77 BlueAsia of Technical Services(Shenzhen) …

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202010-A0401 Page 64 of77 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.7 APPENDIX:CONDUCTED SPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 0.29 0.29 --- PASS 30~1000 30~1000 -50.178 <=-19.711 PASS 1000~26500 1000~26500 -32.994 <=-19.711 PASS 2441 Reference -0.49 -0.49 --- PASS 30~1000 30~1000 -51.394 <=-20.49 PASS 1000~26500 1000~26500 -37.002 <=-20.49 PASS 2480 Reference -0.76 -0.76 --- PASS 30~1000 30~1000 -50.835 <=-20.76 PASS 1000~26500 1000~26500 -37.774 <=-20.76 PASS 2DH1 Ant1 2402 Reference -1.26 -1.26 --- PASS 30~1000 30~1000 -51.024 <=-21.26 PASS 1000~26500 1000~26500 -37.686 <=-21.26 PASS 2441 Reference -1.63 -1.63 --- PASS 30~1000 30~1000 -51.091 <=-21.628 PASS 1000~26500 1000~26500 -35.289 <=-21.628 PASS 2480 Reference -2.21 -2.21 --- PASS 30~1000 30~1000 -50.686 <=-22.211 PASS 1000~26500 1000~26500 -37.414 <=-22.211 PASS 3D…
