ZWY52810BLE Bluetooth module

产 品 规 格 书 PRODUCT SPECIFICATION 产品名称： 蓝牙BLE模块 APPELLATION: Bluetooth Low Energy Module 产品型号： BT-MN10-1 MODEL: BT-MN10-1 客户名称： CUSTOMER: 版 本： V1.0 VERSION: V1.0 客户承认 CUSTOMER APPROVED 签名： Signature: 职务： Duty: 日期： Date: 信华精机有限公司 Shinwa Industries(China)Ltd. 制作部门 Executed Dept. 市场发展部 Marking Developemt Dept. 批准 Approved By 制作 Executed By 审核 Checked By 审批 Examine and Approve 黄文轩 Wenxuan Huang 日期： Date: 2023/9/25 日期： Date: 日期： Date: 日期： Date: 日期： Date: 1 变更履历表 Revision History 序号 No 版本 Version 变更日期 Date 变更内容 Change Description 备注 Remark 制作 Executed by 审核 Checked by 1 V1.0 2023/11/28 首次发行. First Issue. \ 黄文轩 Huang wenxuan 2 目录Table of contents 1. 介绍Introduction ............................................................................................................................................................. 3 1.1 简要Overview ............................................................................................................................................................ 3 1.2 特征Features .............................................................................................................................................................. 3 1.3 应用 Applications ...................................................................................................................................................... 3 1.4 框图Block Diagram ................................................................................................................................................... 4 2. 规格Specification ............................................................................................................................................................. 4 2.1 通用规格General Specification ................................................................................................................................. 4 2.2 温度和湿度规格Temperature and Humidity specification ....................................................................................... 5 2.3 蓝牙低功耗射频规格BLE Radio Specification ...................................................................................................... 5 3. 设计应用Design Application ........................................................................................................................................... 6 3.1 管脚配置Pin Assignment .......................................................................................................................................... 6 3.2 管脚描述Pin Description .......................................................................................................................................... 6 3.3 芯片烧录方式Burning Software..............................................................................................................................................6 3.4 推荐模块封装Recommended Module Mounting Pattern ......................................................................................... 8 3.5 参考应用原理图Reference Application Schematic .................................................................................................. 9 3.6 模块放置指引Module Placement Guidelines ......................................................................................................... 10 4. 可靠性测试 Reliability Test ............................................................................................................................................ 10 4.1 可靠性测试规格Reliability Test Specification ........................................................................................................ 10 5. 包装信息 Package Information ...................................................................................................................................... 12 5.1 卷带包装 Taping Package ........................................................................................................................................ 12 5.2 包装规格 Packing Specifications ............................................................................................................................ 13 5.3 外箱标签 Label of the outer box ............................................................................................................................. 13 6. 回流焊温度参考曲线Recommended Reflow Temperature Profile .............................................................................. 14 7. 模块的手工焊接事项The Hand-soldering Information ................................................................................................ 14 8. 储存条件Storage Condition ........................................................................................................................................... 15 9. 备注 Remark ................................................................................................................................................................... 15 10.附录 Appendix ................................................................................................................................................................ 16 3 1. 介绍Introduction 1.1 简要Overview ★ BT-MN10-1 模 块 是 采 用 蓝 牙 v5.0低 功 耗 芯 片 设 计 。 BT-MN10-1 module is designed with BT v5.0 BLE chip. ★ BT-MN10-1模 组 集 成 有 高 性 能 射 频 收 发 器 、 基 带 及 32位Cortex-M4处 理 器 ; 最大 24kB Data SRAM 存储, 最大 192kB Data Flash 存储 BT-MN10-1 module integrates a high-performance RF transceiver, bansband and 32bit Cortex-M4 microprocessor; 24kB Data SRAM Max, 192kB Data Flash Max. 1.2 特征 Features ★ 蓝牙 MESH, 支持 Bluetooth SIG Mesh Bluetooth SIG Mesh ★ 支持蓝牙主/从模式。 Support Bluetooth Master/Slave. ★ 支持带中断功能输入输出端口。 Support GPIO with interrupt function. ★ 外置高速晶体振荡器: 32MHz和预留外置低速 RC 振荡器: 32.768KHz 32MHZ Crystal oscillator and reserve low speed RC 32.768KHZ Crystal oscillator outside ★ 可支持UART(CTS/RTS)串口端口在DMA。 UART (CTS/RTS) with EasyDMA. ★ I2C 接口支持主从关系 I 2 C compatible master/slave ★ 模组尺寸20 X 12mm,邮票孔,41个脚位。 Module size: 20 X 12mm, Stamp-41pin. ★ 模组内置PCB天线 Antenna inside the module. ★ 电压供电范围：1.8V ~ 3.6V Supply voltage range: 1.8V~3.6V ★ 满足ROHS2.0环保 Satisfy the ROHS2.0 enviro…

Text truncated - open the document above for the full version.

Shinwa Industries (China) Ltd. equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibite [Liprous (date)2024/3/11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCCID:ZWY52810) Limited] (“the applicant”) certifies that the d from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, <Signature> NamePenghui.Zuo_ TitlePM Shinwa Industries (China) Ltd. (date)2024/3/8 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCCID:ZWY52810) [Liprous Limited.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is notidentified on the Covered List as an entity producing “covered” equipment. Sincerely, <Signature> NamePenghui.Zuo_ TitlePM

C5266091_X23_Ed.1 1/1 USAGENTLETTEROFATTESTATION USAgent: CompanyName:BaihetianInnovativeSolutions ContactName:KennethYoung Address:6837ChaseRd City/Province/Zip:Dearborn,M48126 TelephoneNo:313-395-3113 Email:Email:[email protected] FRN:0033401605 TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ThisletteristoconfirmthatwehaveacceptedtheresponsibilitytoactasUSagent representativeonbehalfofthe(ShinwaIndustries(China)Ltd.）notedbelowforallfutureFCC certification/registrationsobtainedduringtheperiodofthisagreement,whichendsatthe specifieddatebelow. AsperUSagent,weareawareoftherequirementsinvolvedasoutlinedinFCCEquipment AuthorizationProgramintheirReportandOrderFCC22-84andtheclause§2.911Application requirements. Applicant Companyname:ShinwaIndustries(China)Ltd. FCCID:ZWY52810 ContactName:Penghui.Zuo Address: No.26,HuifengWest2Road,ZhongkaiHigh-techPar,Huizhou,Guangdong,China TelephoneNo: +86-0752-2602373 FaxNo: +86-0752-2602401 Email:[email protected] TheApplicantacknowledgetheacceptanceofitsobligationtomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthe granteehaspermanentlyterminatedallmarketingandimportationoftheapplicable equipmentwithintheU.S.,ortheconclusionofanyCommission-related administrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Date:2024.3.11 Applicant’sName: Penghui.Zuo USAgent’sName:KennethYoung Title:PM Title:Manager Signature Signature

Single Modular approval Declaration letter We, Shinwa Industries (China) Ltd. applies single modular approval for Product Name: BLE Bluetooth module Model: BT-MN10-1 FCC ID: ZWY52810 According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; 2) The module must have buffered modulation/data inputs to ensure that the device willcomply with Part 15 requirements with any type of input signal; Answer: inputs. 3)The modular transmitter must have its own power supply regulation. Answer:Yes; A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antennaconnector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer:Yes; Device is equipped with PCB antenna. (5) The module must demonstrate compliance in a stand-alone configuration; Answer:Yes ， distance between modular and all AEs are bigger than 10cm, refer to setup photo. (6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements); Answer:Yes; The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCCID of the module “Contains FCC ID: ZWY52810 ” (7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer:Yes; The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . Yes; All inputs to the modules are buffered through logic or microprocessor Answer:Yes;Shielded. (8) The module must comply with RF exposure requirements Answer:Yes; Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual. Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> Title:PM Company: Shinwa Industries (China) Ltd.

2024.3.11 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,Iappoint BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd./BuildingC,No.107, ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China (NameofAgentcompanynameandaddress)toactasouragentinthepreparationofthis applicationforequipmentcertification.Icertifythatsubmitteddocumentsproperlydescribe thedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythateach unitmanufactured,importedormarketed,asdefinedintheFederalCommunications Commission’sregulationswillhaveaffixedtoitalabelidenticaltothatsubmittedfor approvalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditions forcertification,stillresideswithShinwaIndustries(China)Ltd.andNo.26,HuiFengWest2 Road,ZhongkaiHigh-TechPark,Huizhou,Guangdong,China (ApplicantNameandaddress) <Signature> Name：Penghui.Zuo_ Title：PM Company:ShinwaIndustries(China)Ltd.

2024.3.11 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:ZWY52810 ProductName:BLEBluetoothmodule RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics  Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Sincerely, <Signature> Name ： Penghui.Zuo_ Title ： PM and Bom

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Device is equipped with PCB antenna , Antenna gain 0.25dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and f) Production test procedures for ensuring N/A Not applicable compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part of the information to the host product manufacturer. The antenna list shall also identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-directional antenna” is not consi…

Text truncated - open the document above for the full version.

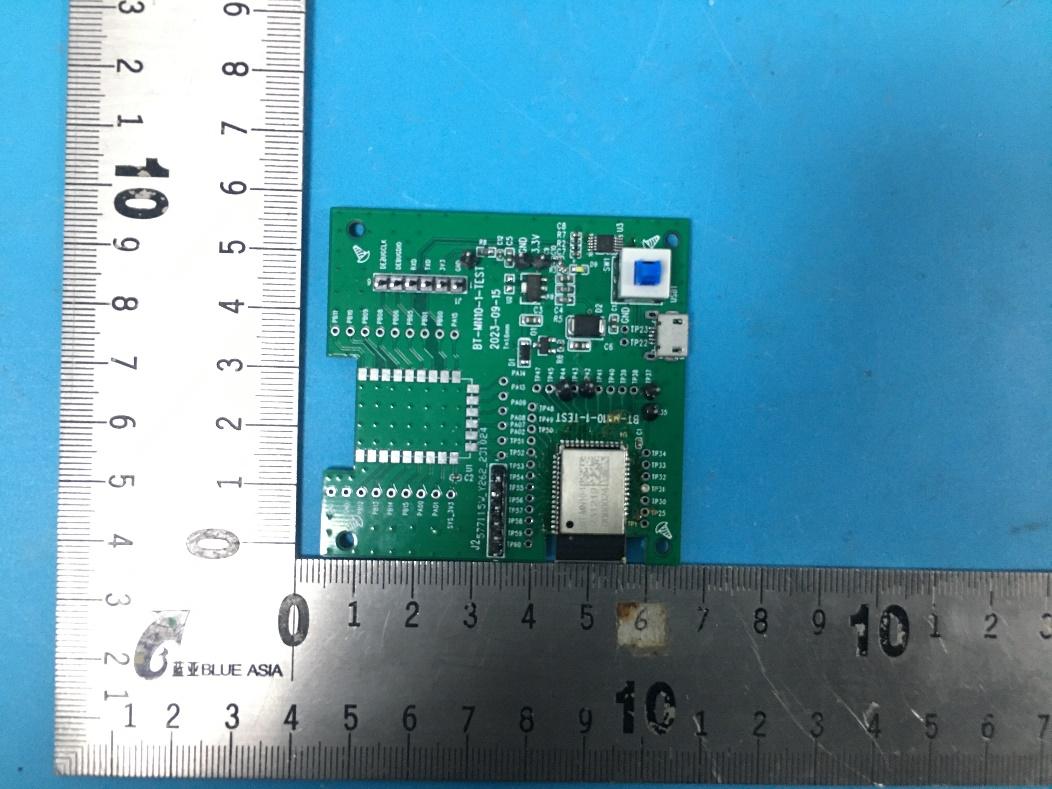

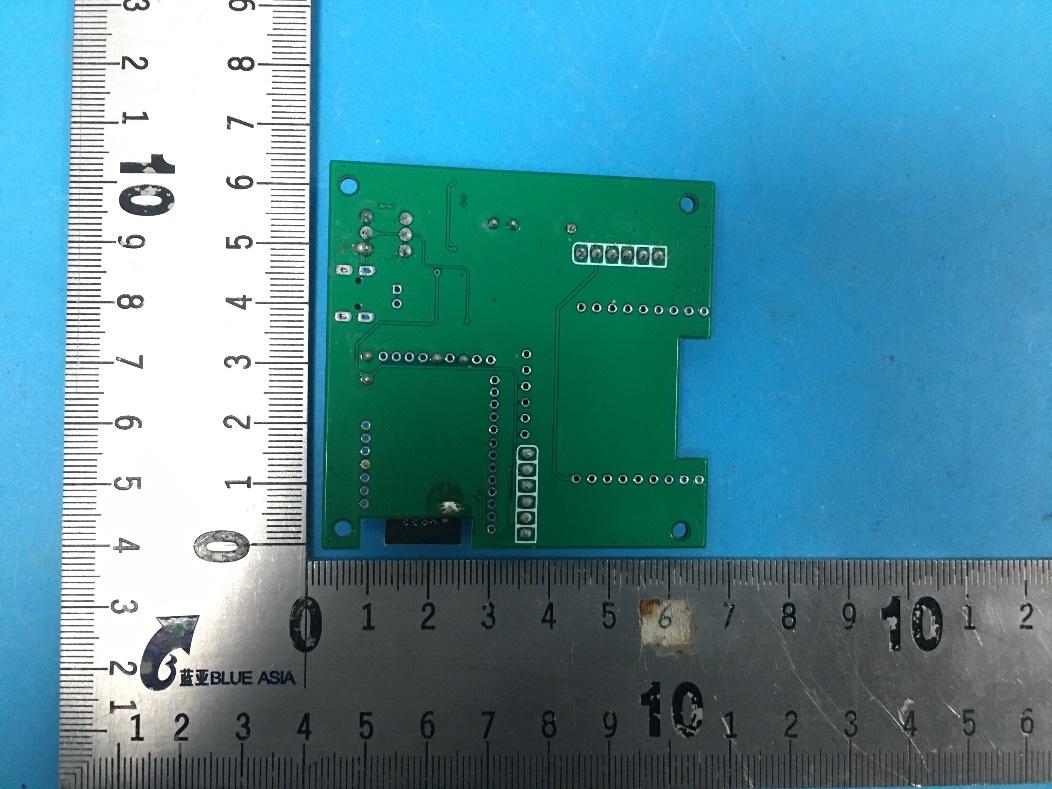

ProductName: BLEBluetoothmodule APPENDIXB:PHOTOGRAPHSOFEUT Developmentboard EUT

FCCID:ZWY52810

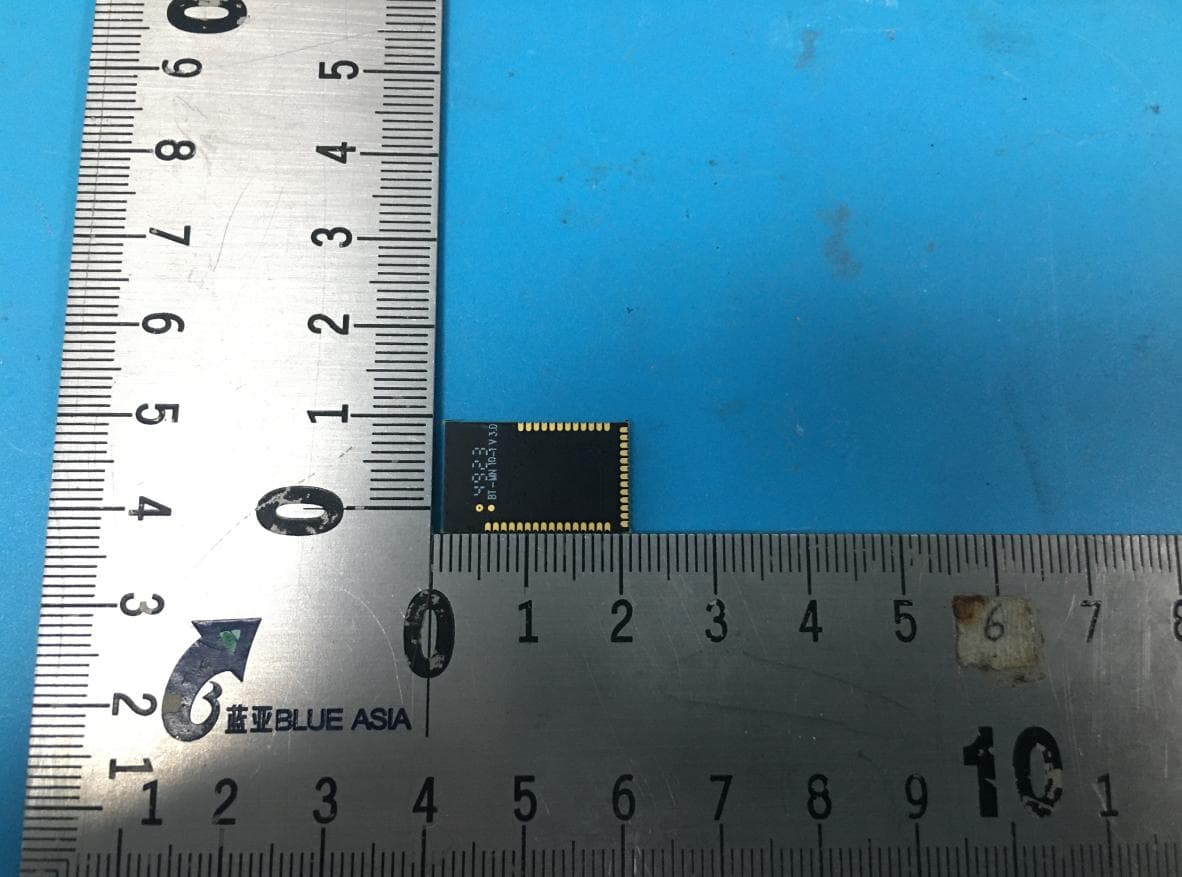

ProductName: BLEBluetoothmodule APPENDIXB:PHOTOGRAPHSOFEUT

RFExposureevaluation ProductName: BLEBluetoothmodule FCCID: ZWY52810 TestStandard: KDB447498D04GeneralRFExposureGuidance v01 Accordingto447498D04InterimGeneralRFExposureGuidancev01 ThenSARevaluationisnotrequired Ant gain =0.8dBi MAX output power：-0.467dBm@2402MHz ERP=-0.467+0.8-2.15=-1.817dBm WORSE CASE:10^-0.0467=0.898mW < 2.715 mW

Page 1 of 60 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: BLEBluetoothmodule BrandMark: N/A ModelNo.: BT-MN10-1 ReportNumber: BLA-EMC-202401-A5302 FCCID: ZWY52810 DateofSampleReceipt: 2024/1/22 DateofTest: 2024/1/24to2024/2/26 DateofIssue: 2024/2/26 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: Shinwaindustries(China)ltd No.1,HuifengWestNo.4Road,ZhongkaiHigh-techZone, HuizhouCity,GuangdongProvince,China Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2024/2/26 ReportNo.:BLA-EMC-202401-A5302 Page 2 of 60 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002024/2/26Original ReportNo.:BLA-EMC-202401-A5302 Page 3 of 60 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................8 5TESTMODE................................................................................................................................................8 6MEASUREMENTUNCERTAINTY..............................................................................................................8 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................9 8TESTFACILITY...........................................................................................................................................9 9LABORATORYLOCATION.........................................................................................................................9 10TESTINSTRUMENTSLIST......................................................................................................................10 11CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).....................................................12 11.1LIMITS................................................................................................................................................................12 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................12 11.3PROCEDURE.......................................................................................................................................................12 11.4TESTDATA...........................................................................................................................................................14 12CONDUCTEDBANDEDGESMEASUREMENT.....................................................................................17 12.1LIMITS................................................................................................................................................................17 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................17 12.3TESTDATA...........................................................................................................................................................17 13RADIATEDSPURIOUSEMISSIONS........................................................................................................18 13.1LIMITS................................................................................................................................................................18 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................19 13.3PROCEDURE.......................................................................................................................................................19 13.4TESTDATA...........................................................................................................................................................21 14RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................30 14.1LIMITS................................................................................................................................................................30 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................31 14.3PROCEDURE.......................................................................................................................................................31 14.4TESTDATA...........................................................................................................................................................33 15CONDUCTEDSPURIOUSEMISSIONS...................................................................................................38 ReportNo.:BLA-EMC-202401-A5302 Page 4 of 60 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.1LIMITS.................................................................................................................…

Text truncated - open the document above for the full version.

Antenna Study  Project Name ： BT-MN10-1  Debugging frequency band: 2400 ‐ 2500HMz  Valuation date ： 2024.3.8 8  Client Name: Shinwa industries(China) ltd. 1 PCB Antenna 2 Testing 3D microwave darkroom(6m*6m*6m) Testing environment PCB Antenna 3 Antenna • Antenna name: 2.4G • Antenna Type ： PCB • Covers ： 2.4G 4 S Parameter_Return Loss&VSWR 5 Efficiency and Gain‐Smith Frequency ID 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2400.0 2410.0 2420.0 2430. 0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi) 0.15 0.25 0.23 -0.10 -0.37 -0.20 -0.08 -0.06 -0.07 -0.44 -0.57 Efficiency (%) 20.36 19.73 19.33 18.78 18.50 18.86 19.04 19.02 18.25 16.99 16.75 2400.0MHz H+V, Eff: 20.4%Back View2400.0MHz Total(E1-XZ), Max= -0.62dBi2400.0MHz Total(E2-YZ), Max= -0.03dBiTotal(H-XY), Max= -4.38dBi, CirD=11.49 0.15 -1.69 -3.54 -5.38 -7.22 -9.06 -10.9 -12.75 -14.59 -16.43 -18.27 -20.12 -21.96 -23.8 -25.64 -27.48 -29.33 -31.17 2410.0MHz H+V, Eff: 19.7%Back View2410.0MHz Total(E1-XZ), Max= -0.63dBi2410.0MHz Total(E2-YZ), Max= 0.10dBiTotal(H-XY), Max= -4.54dBi, CirD=11.17 0.25 -1.59 -3.44 -5.28 -7.12 -8.96 -10.8 -12.65 -14.49 -16.33 -18.17 -20.02 -21.86 -23.7 -25.54 -27.38 -29.23 -31.07 2420.0MHz H+V, Eff: 19.3%Back View2420.0MHz Total(E1-XZ), Max= -0.82dBi2420.0MHz Total(E2-YZ), Max= 0.05dBiTotal(H-XY), Max= -4.93dBi, CirD=10.75 0.23 -1.61 -3.46 -5.3 -7.14 -8.98 -10.82 -12.67 -14.51 -16.35 -18.19 -20.04 -21.88 -23.72 -25.56 -27.4 -29.25 -31.09 2430.0MHz H+V, Eff: 18.8%Back View2430.0MHz Total(E1-XZ), Max= -1.19dBi2430.0MHz Total(E2-YZ), Max= -0.30dBiTotal(H-XY), Max= -5.22dBi, CirD=11.08 -0.1 -1.94 -3.78 -5.62 -7.47 -9.31 -11.15 -12.99 -14.83 -16.68 -18.52 -20.36 -22.2 -24.04 -25.89 -27.73 -29.57 -31.41 2440.0MHz H+V, Eff: 18.5%Back View2440.0MHz Total(E1-XZ), Max= -1.45dBi2440.0MHz Total(E2-YZ), Max= -0.55dBiTotal(H-XY), Max= -5.47dBi, CirD=11.40 -0.37 -2.21 -4.05 -5.9 -7.74 -9.58 -11.42 -13.26 -15.11 -16.95 -18.79 -20.63 -22.48 -24.32 -26.16 -28 -29.84 -31.69 2450.0MHz H+V, Eff: 18.9%Back View2450.0MHz Total(E1-XZ), Max= -1.38dBi2450.0MHz Total(E2-YZ), Max= -0.39dBiTotal(H-XY), Max= -5.62dBi, CirD=10.83 -0.2 -2.04 -3.88 -5.72 -7.57 -9.41 -11.25 -13.09 -14.93 -16.78 -18.62 -20.46 -22.3 -24.14 -25.99 -27.83 -29.67 -31.51 2460.0MHz H+V, Eff: 19.0%Back View2460.0MHz Total(E1-XZ), Max= -1.43dBi2460.0MHz Total(E2-YZ), Max= -0.20dBiTotal(H-XY), Max= -5.72dBi, CirD=9.43 -0.08 -1.92 -3.76 -5.61 -7.45 -9.29 -11.13 -12.97 -14.82 -16.66 -18.5 -20.34 -22.19 -24.03 -25.87 -27.71 -29.55 -31.4 2470.0MHz H+V, Eff: 19.0%Back View2470.0MHz Total(E1-XZ), Max= -1.25dBi2470.0MHz Total(E2-YZ), Max= -0.16dBiTotal(H-XY), Max= -5.59dBi, CirD=9.62 -0.06 -1.91 -3.75 -5.59 -7.43 -9.27 -11.12 -12.96 -14.8 -16.64 -18.48 -20.33 -22.17 -24.01 -25.85 -27.69 -29.54 -31.38 2480.0MHz H+V, Eff: 18.2%Back View2480.0MHz Total(E1-XZ), Max= -1.34dBi2480.0MHz Total(E2-YZ), Max= -0.15dBiTotal(H-XY), Max= -5.65dBi, CirD=10.48 -0.07 -1.91 -3.76 -5.6 -7.44 -9.28 -11.12 -12.97 -14.81 -16.65 -18.49 -20.33 -22.18 -24.02 -25.86 -27.7 -29.54 -31.39 2490.0MHz H+V, Eff: 17.0%Back View2490.0MHz Total(E1-XZ), Max= -1.76dBi2490.0MHz Total(E2-YZ), Max= -0.53dBiTotal(H-XY), Max= -6.26dBi, CirD=10.03 -0.44 -2.28 -4.13 -5.97 -7.81 -9.65 -11.49 -13.34 -15.18 -17.02 -18.86 -20.7 -22.55 -24.39 -26.23 -28.07 -29.92 -31.76 2500.0MHz H+V, Eff: 16.7%Back View2500.0MHz Total(E1-XZ), Max= -1.94dBi2500.0MHz Total(E2-YZ), Max= -0.71dBiTotal(H-XY), Max= -6.37dBi, CirD=9.77 -0.57 -2.41 -4.25 -6.09 -7.93 -9.78 -11.62 -13.46 -15.3 -17.14 -18.99 -20.83 -22.67 -24.51 -26.36 -28.2 -30.04 -31.88

ReportNo.:BLA-EMC-202401-A5302 Page 31 of 60 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14.2BLOCKDIAGRAMOFTESTSETUP 14.3PROCEDURE a.Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundata3 or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthe highestradiation. b.Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundata3 meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthehighest radiation. c.TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmountedon thetopofavariable-heightantennatower. d.Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaaresetto makethemeasurement. e.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawastuned toheightsfrom1meterto4meters(forthetestfrequencyofbelow30MHz,theantennawastunedto heights1meter)andtherotatabletablewasturnedfrom0degreesto360degreestofindthemaximum reading. f.Thetest-receiversystemwassettoPeakDetectFunctionandSpecifiedBandwidthwithMaximumHold Mode. g.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthelimitspecified,thentestin…
