ZWY89072Car Kit Bluetooth Module

产品 说明书 PRODUCT USER GUIDE 1.概述Ov erview B T- M C 8 9 - J K 1是一款基于赛普拉斯C Y W 8 9 0 7 2单芯片蓝牙模组，该芯片是个集成了2 . 4 G H z收 发器的独立基带处理器,为汽车无线电应用带来了最新的移动连接技术，提供了汽车3级的温度性能， 芯片已过A E C - Q 1 0 0认证测试。 BT-MC89-JK1 is a single-chip Bluetooth module based on CYW89072 of CYPRESS. The chip is a stand-alone baseband processor with an integrated 2.4GHz transceiver, It brings the latest mobile connectivity technology to autom otive radio applications, Offering automotive Grade3 temperature performance, CYW89072 chip can met the AEC -Q100 certification. 1.1特征Features ◆ 蓝牙5.2 Blu etooth 5.2 ◆ 支持蓝牙Class1 或Class2功率等级 Sup port class1 or class2 Bluetooth power level. ◆ 支持高速UART通讯 Sup port high speed UART communication ◆ 支持标准HCI接口 Support s tandard HCI interface. ◆ 支持PCM/I2S数字音频接口 Sup port PCM/I2S digital audio interface ◆ 表面贴装类型23*16*3.2mm Surf ace mount type 23*16*3.2mm ◆ 模组内置PCB天线 Bui lt-in pattern antenna on the module ◆ 符合RoHS 2.0环保 RoHS 2.0 com pliant 1.2 应用 Applications ◆ 汽车无线免提 Automotive Hands-Free radios 1 1.3框图Block Diagram 2.模组规格Module Specification 2.1通用规格General Specification 1 产品名称Product name 车载蓝牙模组 Car kit Bluetooth module 2 芯片类型 Chip set CYW89072BRFB5GT, 49-ball rFCFBGA 3 频率范围Frequency band 2402MHz～2480MHz 4 功率等级Power class level Class 2 (-6dBm < P AV < 4dBm) 5 通讯接口Communication interface UART、PCM 6 波特率Baud rate 115200bps(Default) 7 额定电压 Rated voltage 3.3V DC（<50mVp-p纹波电压） 8 工作电压范围 Operating voltage range 2.8V～3.6V DC 9 尺寸Dimension 23*16*3.2mm (L*W*H) 10 抗静电ESD H1C(HBM) 11 湿敏等级MSL 3 12 平整度Co-planarity ≤0.1mm 13 测试和认证Test & certification BQB\FCC\CE\IC\MIC 2 2.2绝对最大额定值Absolute maximum rating 2.3推荐工作环境Recommended operating conditions 2.4数字I/O特性Digital I/O characteristics 参数Parameter 最小Min. 最大Max. 单位Unit 储存温度Storage temperature -40 +90 °C 供电电压Supply voltage *Ripple voltage＜ 45mVp-p VDD - 3.6 V VIO - 3.6 V 输入输出脚最小电压Minimum voltage on I/O pins -0.3 - V 输入输出脚最大电压Maximum voltage on I/O pins VIO+0.3 V 参数Parameter 最小Min. 典型Typ. 最大Max. 单位Unit 工作温度Operating temperature -40 25 +85 °C 工作湿度Operating humidity 10 - +90 % 供电电压Supply voltage *Ripple voltage＜ 45mVp-p VDD 3.1 3.3 3.5 V VIO 3.1 3.3 3.5 V 特性Characteristics 符号Sym. 最小Min. 最大Max. 单位Unit 输入低电压Input low voltage(VIO=3.3V) V IL - 0.8 V 输入高电压Input high voltage(VIO=3.3V) V IH 2.0 - V 输出低电压Output low voltage V OL - 0.4 V 输出高电压Output high voltage V OH VIO-0.4 - V 输入低电流Input low current I IL - 1.0 mA 输入高电流Input high current I IH - 1.0 mA 输出低电流Output low current I OL - 3.0 mA 输出高电流Output high current I OH - 3.0 mA 3 2.5电源功耗Power consumption 2.6射频特性RF characteristics BDR BLE 参数Parameter 最小Min. 典型Typ. 最大Max. 单位Unit 供电电压Supply voltage VDD - - 41 mA VIO - - 10 mA 参数Parameter 最小Min. 典型Typ. 最大Max. 单位Unit 发射Transmitter 输出功率Output power -6 0 4 dBm 初始载波容限Initial carrier-frequency tolerance -75 - +75 kHz 调制特性 Modulation characteristics Δf1avg 140 - 175 kHz Δf2max 115 - kHz Δf2avg /Δf1avg 0.8 - - - 载波频率漂移 Carrier frequency drift 1slot -25 - +25 kHz 3slot / 5slot -40 - +40 kHz Max. drift rate -20 - +20 kHz/50us 接收Receiver 单/多时隙灵敏度 Single/Multiple sensitivity P=-70dBm - - <0.1 % 最大输入电平 Maximum input level P=-20dBm - -- <0.1 % 参数Parameter 最小Min. 典型Typ. 最大Max. 单位Unit 输出功率Output power -6 0 4 dBm 调制特性 Modulation characteristics Δf1avg 225 - 275 kHz Δf2max(at 99.9%) 185 - kHz Ratio 0.8 - - - 载波频率漂移 Carrier frequency drift Frequency Offset - - 150 kHz Frequency Drift - - 50 kHz Drift Rate - - 20 kHz/50us 接收灵敏度 Receiver sensitivity (PER<30.8%) GFSK, 1Mbps - -90 - dBm 4 3.设计应用Design Application 3.1管脚配置Pin Assignment Top view 3.2管脚描述Pin Description * All digital I/O has internal pull-up or pull-down values which are around 60Kohm. No. Pin Name Type Description 1 GND GND Ground connection 2 PCM_SYNC I/O PCM sync signal 3 PCM_OUT O PCM data output 4 PCM_CLK I/O PCM clock 5 PCM_IN I PCM data input 6 OTP_ON I If OTP is used, pull this pin high. If OTP is not used, pull this pin low. 7 RST_N I Active-low reset input. 8 VDD_3V3 I Main power voltage source input 9 VIO_3V3 I I/O voltage supply input 10 GND GND Ground connection 11 NC - NC 12 NC - NC 13 NC - NC 14 NC - NC 15 GND GND Ground connection 16 UART_CTS I UART clear to send input 17 UART_RTS O UART request to send output 18 UART_RXD I UART receive data 19 UART_TXD O UART transmit data 20 GND GND Ground connection 21 NC - NC 22 BT_DEV_WAKE I/O DEV_WAKE of general -purpose I/O signal 23 BT_HOST_WAKE I/O HOST_WAKE of general -purpose I/O signal 24 GND GND Ground connection 5 3.3外形尺寸图 Dimensional Outline Drawing Weight: 1.73G ±0.1 3.4封装尺寸图Dimensional Package Drawing 公差: ±0.1mm Tolerance: ±0.1mm 6 4.包装信息Package Information 4.1卷盘包装Tape Package 7 4.2卷盘尺寸Reel Dimensions \ 4.3载带尺寸Tape Dimensions 8 4.4包装规格Packing Specification 模块出货采用真空包装出货，包装示意图如下： Module shipments by vacuum packaging, packing diagram as follows: Note: 本产品基于JEDEC标准J-STD-020适用于温敏等级MSL3 This product is applicable to moisture sensitivity level MSL3 (Based on JEDEC Standard J-STD-020) FCC Statement FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Integral antenna with antenna gain 0dBi This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does causeharmful…

Text truncated - open the document above for the full version.

Product Name : Car Kit Bluetooth Module Model No. : BT-MC89-JK1,BT-MC89-1A, BT-MC89-JK1A,BT-MC89-JK1B, BT-MC89-JK1C FCC ID:ZWY89072 All models are electrically identical ,only model no is different. <Signature> Name： Penghui Zuo Applicant Company：Shinwa industries ( China ) ltd.

DATE:2021-8-30 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointBlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. IOTTestCentreofBlueAsia，BuildingC,No.107,ShihuanRoad,ShiyanSub-District,Baoan District,Shenzhen,GuangdongProvince,China(NameofAgentcompanynameandaddress)toactasour agentinthepreparationofthisapplicationforequipmentcertification.Icertifythatsubmitteddocuments properlydescribethedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythateachunit manufactured,importedormarketed,asdefinedintheFederalCommunicationsCommission’sregulations willhaveaffixedtoitalabelidenticaltothatsubmittedforapprovalwiththisapplication.Forinstanceswhere ourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iacknowledgethatallresponsibility forcomplyingwiththetermsandconditionsforcertification,stillresideswithShinwaindustries(China)ltd.， No.26,HuiFengWest2Road,ZhongkaiHigh-TechPark,Huizhou,Guangdong,China (ApplicantNameandaddress) <Signature> Name ： PenghuiZuo Title ： / ApplicantCompany：Shinwaindustries(China)ltd.

DATE ： 2021-8-30 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:ZWY89072 ProductName:CarKitBluetoothModule RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature>Name：PenghuiZuo Title ： / ApplicantCompany：Shinwaindustries(China)ltd.

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Integral antenna with antenna gain 0dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and f) Production test procedures for ensuring N/A Not applicable compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part of the information to the host product manufacturer. The antenna list shall also identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-directional antenna” is not considered to be a speci…

Text truncated - open the document above for the full version.

SingleModularapprovalDeclarationletter We ， Shinwaindustries(China)ltd..applySinglemodularapprovalfor ProductName:CarKitBluetoothModule Model:BT-MC89-JK1,BT-MC89-1A,BT-MC89-JK1A,BT-MC89-JK1B, BT-MC89-JK1C FCCID:ZWY89072 Accordingto996369D01ModuleEquipAuthGuidev01r04and15.212requirement: 1)Theradioelementsmusthavetheradiofrequencycircuitryshielded.Physical componentsandtuningcapacitor(s)maybelocatedexternaltotheshield,butmustbe onthemoduleassembly; Answer ： Yes ， Shieldedforbothside. 2)Themodulemusthavebufferedmodulation/datainputstoensurethatthedevice willcomplywithPart15requirementswithanytypeofinputsignal; Answer ： Yes ； Allinputstothemodulesarebufferedthroughlogicormicroprocessor inputs. 3)Themodulartransmittermusthaveitsownpowersupplyregulation. Answer ： Yes ； Alowdropoutregulatorisusedformodularpowersupplyregulation. 4)Themodulemustcontainapermanentlyattachedantenna,orcontainaunique antennaconnector,andbemarketedandoperatedonlywithspecificantenna(s),per Sections15.203,15.204(b),15.204(c),15.212(a),2.929(b); Answer ： Yes ； DeviceisequippedwithPCBantenna. (5)Themodulemustdemonstratecomplianceinastand-aloneconfiguration; Answer ： Yes ； distancebetweenmodularandallAEsarebiggerthan10cm ， referto setupphoto. (6)ThemodulemustbelabeledwithitspermanentlyaffixedFCCIDlabel,orusean electronicdisplay(SeeKDBPublication784748aboutlabellingrequirements); Answer ： Yes ； Themodularhasapermanentfixedlabel,andbelowstatementwas listedintheUserManual;ThehostdevicemustbelabeledtodisplaytheFCCIDof themodule“ContainsFCCID:ZWY89072” (7)Themodulemustcomplywithallspecificrulesapplicabletothetransmitter includingalltheconditionsprovidedintheintegrationinstructionsbythegrantee; Answer ： Yes ； Themodulecomplywithallspecificrulesapplicabletothe transmitterincludingalltheconditionsprovidedintheintegrationinstructionsby thegrantee,Refertotestreportandusermanual. (8)ThemodulemustcomplywithRFexposurerequirements Answer ： Yes ； TransmittermeetsMPEcalculationof47CFR1.1307.Referto MPEReportsandRefertomodularinstallationmanual Pleasecontactmeifyouhaveanyfurtherquestions.Thanksforyourattention. BestRegards, <Signature> Name ： PenghuiZuo ApplicantCompany ： Shinwaindustries(China)ltd.

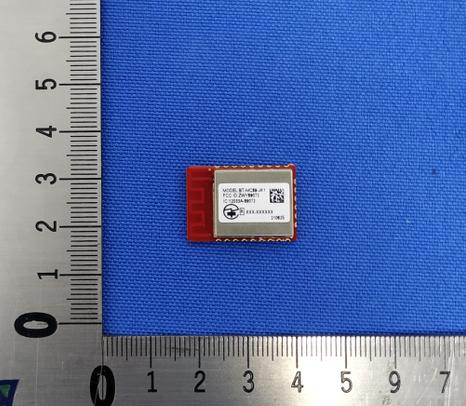

ModelNo:BT-MC89-JK1

Car Kit Bluetooth Module Model：BT-MC89-1A FCC ID:ZWY89072 IC:12033A-89072

ModelNo:BT-MC89-JK1

RF Exposure Evaluation Statement Product Name: Car Kit Bluetooth Module Model No.：BT-MC89-JK1, BT-MC89-1A, BT-MC89-JK1A, BT-MC89-JK1B, BT-MC89-JK1C FCC ID：ZWY89072 1.1 RF Exposure Compliance Requirement 1.1.1Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3EUT RF Exposure Operational Mode: EDR（8-DPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tuneup tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm)(mW) 2402MHz 0.02 ±1 1.021.260.39 3.02441MHz 0.27 ±1 1.271.340.42 2480MHz 0.11 ±1 1.111.290.41 Operational Mode: BLE（worst case） 3.0 2402MHz 0.92 ±1 1.921.560.48 2442MHz 1.22 ±1 2.221.670.52 2480MHz 0.98 ±1 1.981.580.50 Conclusion: the calculated value≤3.0, SAR is exempted.

Page 1 of 92 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: CarKitBluetoothModule BrandMark: Shinwa ModelNo.: BT-MC89-JK1 ExtensionModel: BT-MC89-1A,BT-MC89-JK1A BT-MC89-JK1B,BT-MC89-JK1C FCCID: ZWY89072 ReportNumber: BLA-EMC-202108-A0202 DateofSampleReceipt: 2021/8/3 DateofTest: 2021/8/3to2021/8/20 DateofIssue: 2021/8/20 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: Shinwaindustries(China)ltd. No.26,HuiFengWest2Road,ZhongkaiHigh-TechPark,Huizhou, Guangdong,China Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2021/8/20 ReportNo.:BLA-EMC-202108-A0202 Page 2 of 92 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002021/8/20Original ReportNo.:BLA-EMC-202108-A0202 Page 3 of 92 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY ....................................................................................................................................................... 5 2GENERALINFORMATION ...................................................................................................................................... 6 3GENERALDESCRIPTIONOFE.U.T. .................................................................................................................... 6 4TESTENVIRONMENT .............................................................................................................................................. 7 5TESTMODE ............................................................................................................................................................... 7 6MEASUREMENTUNCERTAINTY .......................................................................................................................... 7 7DESCRIPTIONOFSUPPORTUNIT ...................................................................................................................... 8 8LABORATORYLOCATION ..................................................................................................................................... 8 9TESTINSTRUMENTSLIST ..................................................................................................................................... 9 10ANTENNAREQUIREMENT .................................................................................................................................. 13 10.1CONCLUSION ......................................................................................................................................................... 13 11CONDUCTEDSPURIOUSEMISSIONS ............................................................................................................. 14 11.1LIMITS ................................................................................................................................................................ 14 11.2BLOCKDIAGRAMOFTESTSETUP ...................................................................................................................... 14 11.3TESTDATA ............................................................................................................................................................ 15 12RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS ....................................................... 16 12.1LIMITS ................................................................................................................................................................ 16 12.2BLOCKDIAGRAMOFTESTSETUP ...................................................................................................................... 17 12.3PROCEDURE ....................................................................................................................................................... 17 12.4TESTDATA ............................................................................................................................................................ 19 13CONDUCTEDBANDEDGESMEASUREMENT ............................................................................................... 23 13.1LIMITS ................................................................................................................................................................ 23 13.2BLOCKDIAGRAMOFTESTSETUP ...................................................................................................................... 23 13.3TESTDATA ............................................................................................................................................................ 24 14CONDUCTEDPEAKOUTPUTPOWER ............................................................................................................. 25 14.1LIMITS ................................................................................................................................................................ 25 14.2BLOCKDIAGRAMOFTESTSETUP ...................................................................................................................... 25 14.3TESTDATA ............................................................................................................................................................ 26 15DWELLTIME ........................................................................................................................................................... 27 ReportNo.:BLA-EMC-202108-A0202 Page 4 of 92 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481E…

Text truncated - open the document above for the full version.
