ZX3-KB8706Wireless Keyboard

PID # 121390-109327 Rev. 121224 2.4 GHz Wireless Desktop & Optical Mouse User’s Manual 2 All brand name and trademarks are the property of their respective owners USER’S RECORD: To provide quality customer service and technical support, it is suggested that you keep the following information as well as your store receipt and this user’s manual. Date of Purchase: ________________________________ Model Number: ________________________________ Product Rev Number (located below the UPC on the package): ____________________ FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION! The Federal Communications Commission warns the user that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3 PACKAGE CONTENTS: Your new wireless keyboard & mouse will ship with the following items. - 2.4GHz Wireless Desktop with Optical Mouse - Nano USB Receiver - User’s Manual & Warranty Information - 2AAA Batteries For the Mouse - 2AAA Batteries For the Keyboard SYSTEM REQUIREMENTS: Please be sure that you meet all of the system requirements below to avoid difficulties during installation. - PCs & Mac ® Compatibles - Windows ® XP, Vista, 7 and 8 - Mac ® OS 10.3 and Above - An Available USB Port SYSTEM SPECIFICATIONS: Your new wireless keyboard & mouse complies with the following specifications. - USB Interface - 2.4 GHz Wireless Technology 4 INSTALLING THE BATTERIES: 1. Remove the Battery Compartment Cover on the back of your mouse. 2. Install two AAA batteries into your mouse following the battery orientation guide in the battery bay. 3. Replace the Battery Compartment Cover back onto your mouse until it securely locks. 4. Release the latch at the bottom of your keyboard and remove the Battery Compartment Cover from your keyboard. 5 5. Install two AAA batteries into your keyboard following the battery orientation guide in the battery bay. 6. Replace the Battery Compartment Cover back onto your keyboard until it securely locks. The LED indicator on your keyboard will light up for 2 seconds after the batteries are installed successfully. (Note: The LED indicator on the keyboard will blink when the battery is low.) 6 CONNECTING TO A COMPUTER: 1. Turn on your computer. 2. Make sure batteries for your keyboard and mouse have been properly installed, refer to the Installing the batteries section in this manual if necessary. Switch on your mouse, the red LED indicator at the bottom of the mouse will light on. 3. Insert the enclosed receiver into an available USB port on your computer. 4. Your computer will detect and install the necessary drivers automatically 5. Your wireless keyboard and mouse are now ready to be used. Switch 7 KEYBOARD SPECIAL FUNCTION KEYS: E-mail Open Default Mail Software. Home Open Internet Explorer’s default home page. Favorite Open “My Favorite”. Play/Pause Play/pause currently playing multimedia file Volume up Turn volume up. Volume down Turn volume down. Mute Mute volume. Media Open default media software. Computer Open “My Computer” Calculator Open the Calculator 8 WARRANTY INFORMATION: Gear Head, LLC warrants that this product shall be free from defects in materials and workmanship for the reasonable lifetime of the product. If the product is defective, Gear Head, LLC’s sole obligation under this warranty shall be at its election, subject to the terms of this warranty, to repair or replace any parts deemed defective. This warranty is for the exclusive benefit of the original purchaser and is not assignable or transferable. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TERMS OF THIS WARRANTY, UNLESS OTHERWISE PROHIBITED BY LAW. Exclusions To the fullest extent permitted by law, Gear Head, LLC expressly disclaims and excludes from this warranty any liability for damages, including but not limited to general, special, indirect, incidental, consequential, aggravated, punitive or exemplary damages, and economic loss (even if Gear Head™ is informed of their possibility), third party claims against you, including for any loss or damages, and claims or damages related to loss of, or, damage to, your records or data. This warranty does not apply to any product the exterior of which has been damaged or defaced. This warranty will be voided by misuse, improper physical environment, improper repair, acts of God, war or terror, commercial use, and improper service, operation or handling. Technical Support Please access Techni…

Text truncated - open the document above for the full version.

Shenzhen Kingree Electronic Co., Ltd Date: 05.03.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Wireless Keyboard Model Name KB8706 Brand Name N/A Yours sincerely, Signatory Name Huang Tian Liang Position Manager Company Name Shenzhen Kingree Electronic Co., Ltd Address 3-6F, 70 Building,Bohua Tech Park, Shangwei Industrial Area, Zhangkeng jing,Guanlan Street,Shenzhen,China. Tel 0755-29570180 Fax 0755-29570160 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Shenzhen Kingree Electronic Co., Ltd Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Shenzhen Kingree Electronic Co., Ltd FCC ID : ZX3-KB8706 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Huang Tian Liang Position Manager Company Name Shenzhen Kingree Electronic Co., Ltd Address 3-6F, 70 Building,Bohua Tech Park, Shangwei Industrial Area, Zhangkeng jing,Guanlan Street,Shenzhen,China. Tel 0755-29570180 Fax 0755-29570160 Email [email protected]

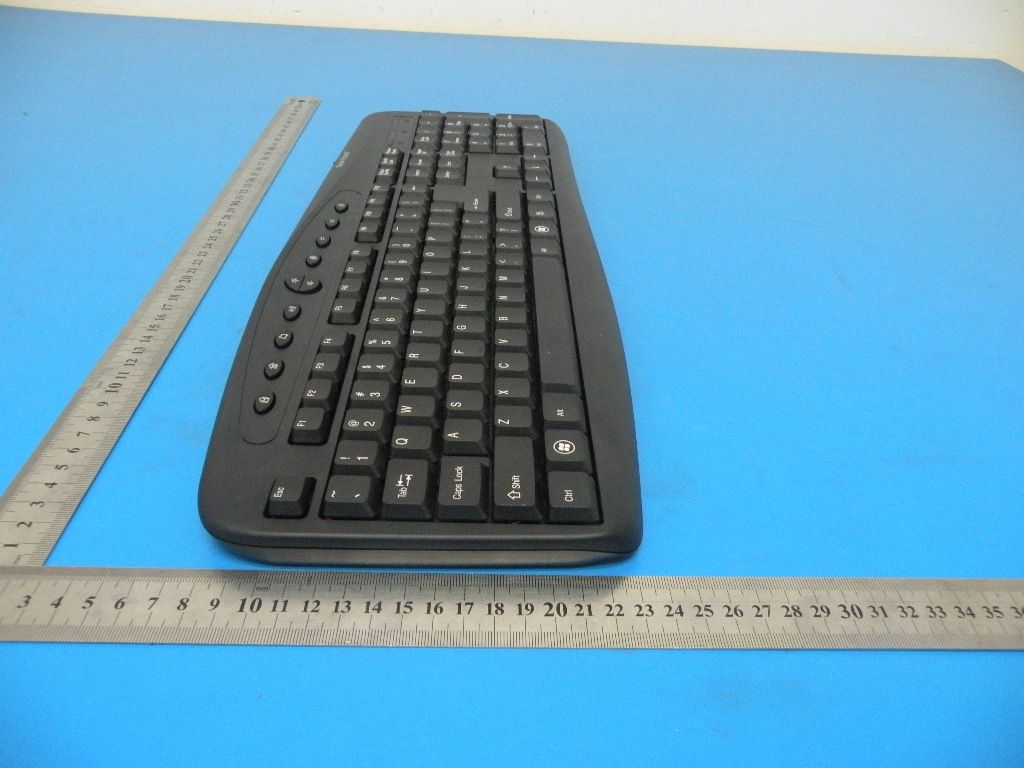

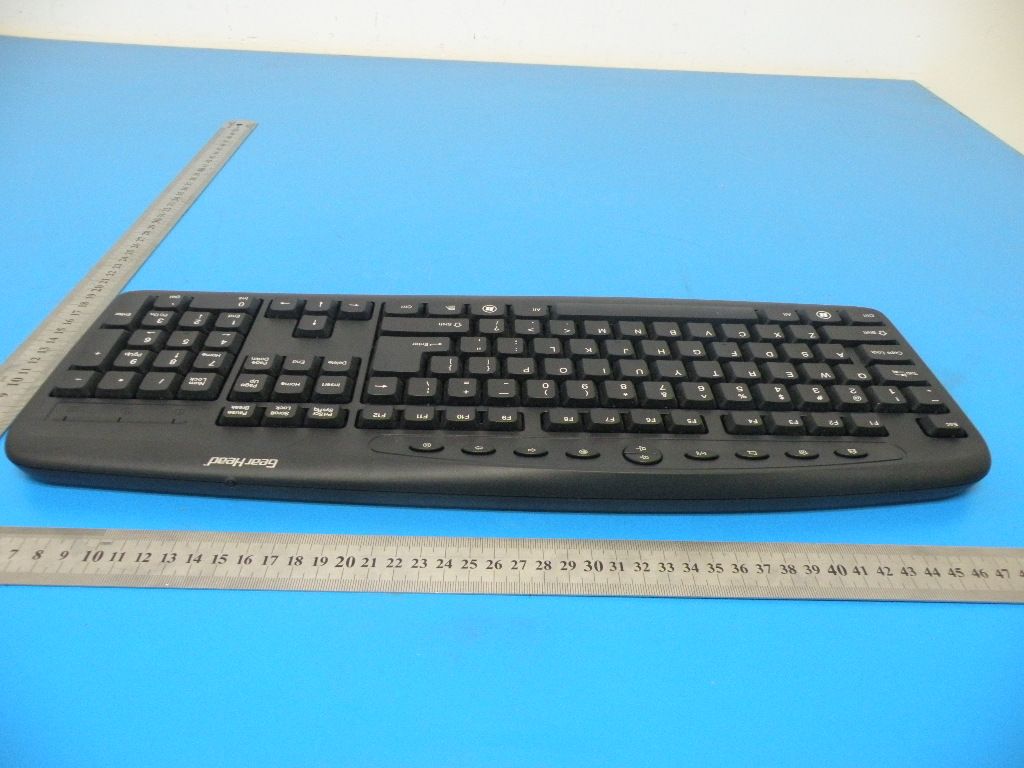

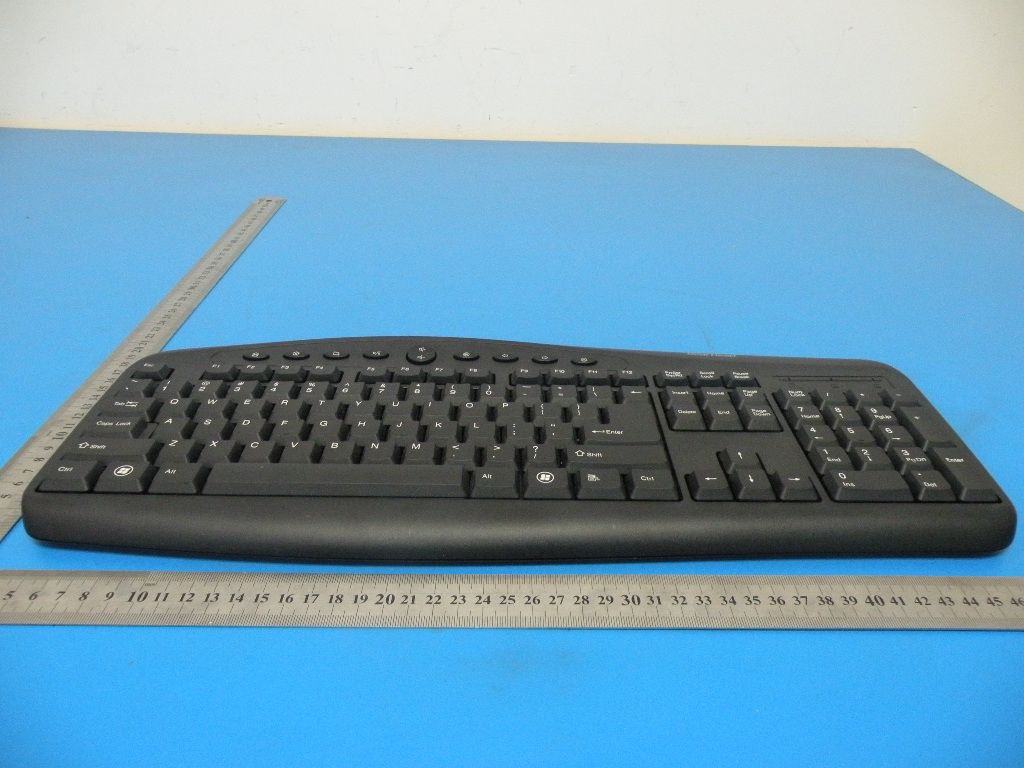

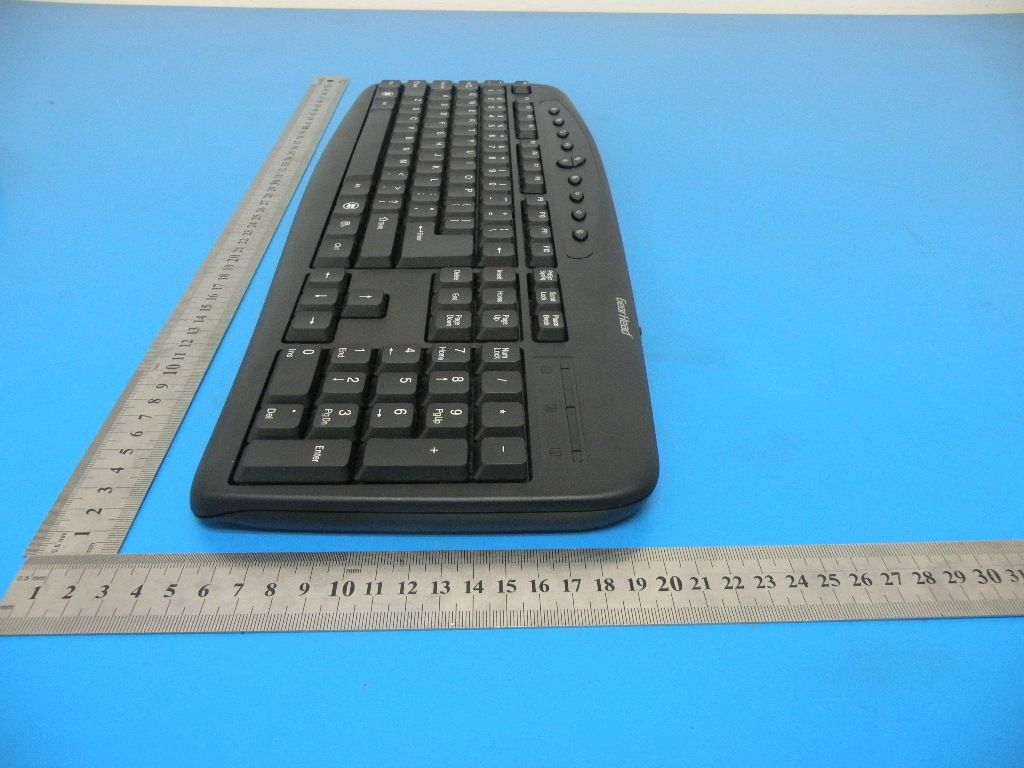

Top View Bottom View Front View Left View Rear View Right View

40mm 25mm FCC ID: ZX3-KB8706 Model No.: KB8706 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Lable: 40mm 25mm Label Location FCC ID: ZX3-KB8706 Model No.: KB8706 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Top View Top View Antenna Bottom View

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China. FCC ID: ZX3-KB8706 Page 1 of 36 TEST REPORT FCC ID: ZX3-KB8706 Applicant : Shenzhen Kingree Electronic Co., Ltd Address : Bohua Tech Park, Shangwei Industrial Area, Zhangken jing, Guanlan Street, Shenzhen, China Equipment under Test (EUT): Name : Wireless Keyboard Model : KB8706 Standards : FCC PART 15, SUBPART C : 2012 (Section 15.249) Report No. : STI130121022 Date of Test : February 19-22, 2013 Date of Issue : February 23, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STI130121022 FCCID: ZX3-KB8706 Page 2 of 36 TABLE OF CONTENT Description Page 1 General Information--------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Accessories of device (EUT)---------------------------------------------------------------------4 1.3 Description of Test Facility-----------------------------------------------------------------------4 2 EMC Equipment List-----------------------------------------------------------------------------------5 2.1 Assistant equipment used for test----------------------------------------------------------------5 2.2 Block Diagram--------------------------------------------------------------------------------------5 2.3 Test mode--------------------------------------------------------------------------------------------5 2.4 Test Conditions-------------------------------------------------------------------------------------5 2.5 Measurement Uncertainty (95% confidence levels, k=2)-------------------------------------6 2.6 Test Equipment-------------------------------------------------------------------------------------7 3 Test Procedure-------------------------------------------------------------------------------------------8 4 Summary of Measurement---------------------------------------------------------------------------9 5 POWER LINE CONDUCTED EMISSION-------------------------------------------------------10 5.1 Conducted Emission Limits(15.209&249)-------------------------------------------------10 5.2 Test Setup-----------------------------------------------------------------------------------------10 5.3 Test Procedure-----------------------------------------------------------------------------------11 5.4 Test Results---------------------------------------------------------------------------------------11 6 Radiation Emission----------------------------------------------------------------------------------12 6.1 Radiation Emission Limits(15.209&249 (a))----------------------------------------------12 6.2 Test Setup-----------------------------------------------------------------------------------------13 6.3 Test Procedure-----------------------------------------------------------------------------------14 6.4 Test Equipment Setting For emission test.-----------------------------------------------15 6.5 Test Condition------------------------------------------------------------------------------------15 6.6 Test Result----------------------------------------------------------------------------------------15 7 Occupied bandwidth---------------------------------------------------------------------------------21 7.1 Test limit-------------------------------------------------------------------------------------------21 7.2 Method of measurement-----------------------------------------------------------------------21 7.3 Test Setup-----------------------------------------------------------------------------------------21 7.4 Test Results---------------------------------------------------------------------------------------21 8 Band Edge Check-------------------------------------------------------------------------------------24 8.1 Test limit-------------------------------------------------------------------------------------------24 8.2 Test Procedure-----------------------------------------------------------------------------------24 8.3 Test Setup-----------------------------------------------------------------------------------------24 8.4 Test Result----------------------------------------------------------------------------------------24 9 Antenna Requirement-------------------------------------------------------------------------------29 9.1 Standard Requirement-------------------------------------------------------------------------29 9.2 Antenna Connected Construction-----------------------------------------------------------29 9.3 Result-----------------------------------------------------------------------------------------------29 10 Photographs of Test Setup------------------------------------------------------------------------30 11 Photographs of EUT---------------------------------------------------------------------------------32 Report No.: STI130121022 FCCID: ZX3-KB8706 Page 3 of 36 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : Wireless Keyboard Model No. : KB8706 Type of Antenna : PCB Antenna Antenna Specification : 0 dBi Operation Frequency : 2402-2480MHz Channel n…

Text truncated - open the document above for the full version.

Photographs-Radiated Emission Test Setup in Chamber Below 1G Above 1G
