ZXX-MODELMBTClock Radio

English 1 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this device near water. 6. Only clean with a dry cloth. 7. Do not block any vents. Install in accordance with the manufac- turer’s instructions. 8. Do not install near any heat sources such as radiators, heaters, stoves, or other devices ( including amplifiers ) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particu- larly at the plugs, convenience receptacles, and the point where they exit from the device. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device. When a cart is used, use caution when moving the cart/device combination to avoid injury from tip-over. 13. Unplug this device during lightning storms or during long periods of disuse. 14. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug damages, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Do not install this equipment in a confined or built-in space such as a book case or similar unit, and maintain well-ventilated conditions. The ventilation should not be impeded by covering the vents with items such as newspaper, table-cloths, curtains etc. 16. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the device. 17. WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device should not be exposed to dripping or splashing and objects filled with liquids, such as vases, should not be placed on the apparatus. 18. CAUTION: Danger of explosion if battery is incorrectly replaced. Only replace with the same or equivalent type. 19. WARNING: The battery ( battery or batteries or battery pack ) should not be exposed to excessive heat such as sunshine, fire or the like. 20. WARNING: The mains plug/appliance coupler is used as a cut- off device, the cut-off device should remain readily operable. 21. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of mate- rial resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Batteries in the remote control: Keep the remote control battery away from children. It may cause a fire or chemical burn if mis- handled. Do not recharge, disassemble, heat above 212ºF ( 100ºC ). Replace only with a battery of the correct type and model number ( CR2025 lithium coin cell battery, 3 V ). WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Operating Temperatures: 5 – 40 deg ºC / 41 – 104 deg ºF CAUTION: RISK OF ELECTRIC SHOCK, DO NOT OPEN ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte- nance instructions in the literature accompanying the appliance.  Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection. FCC Regulations Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equ…

Text truncated - open the document above for the full version.

G-Lab GmbH Schiffbaustrasse 10 8005 Zürich Switzerland 24 th May 2013 To whom it may concern, I, an officer of G-Lab GmbH do hereby authorize Intertek Testing Services (Mr. Shawn Xing / Billy Li) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Yours sincerely, Frank Joosten Electronics engineer

Applicant: G-Lab GmbH FCC ID: ZXXMODELMBT To whom it may concern, Permanent Confidentiality Request is hereby submitted by G-Lab GmbH to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: •Schematics •Detailed Block diagrams •Detailed Operational/Functional Description Rationale for request for confidentiality: G-Lab GmbH has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Frank Joosten Electronics engineer G-Lab GmbH Schiffbaustrasse 10 8005 Zürich Switzerland -

Label

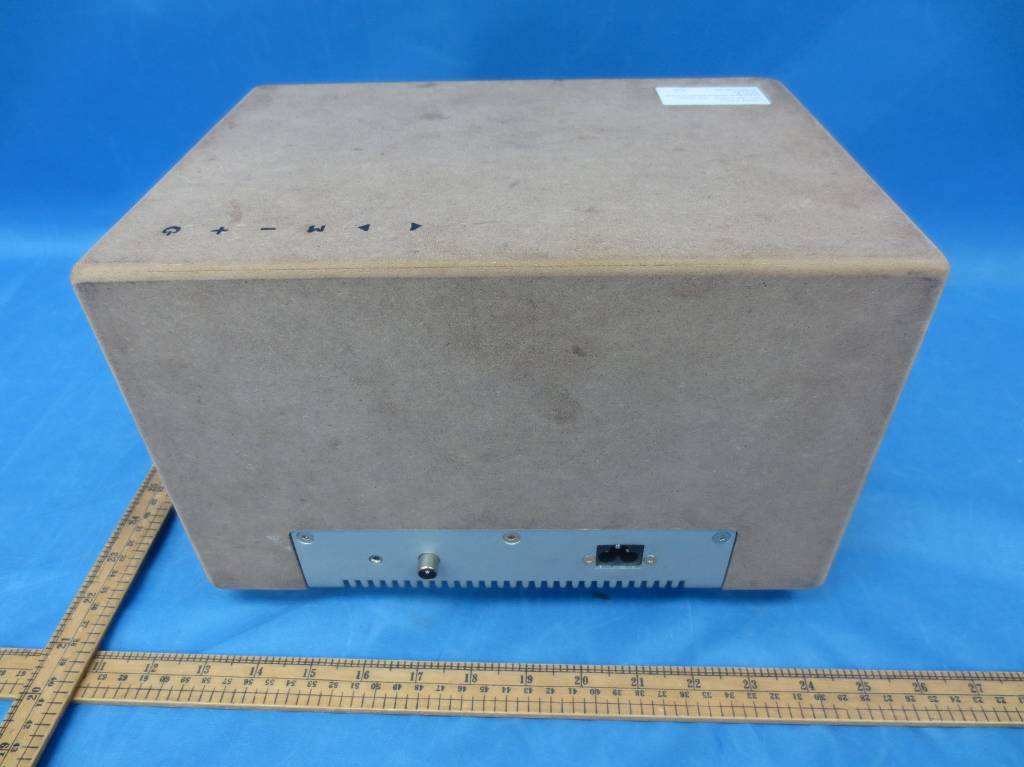

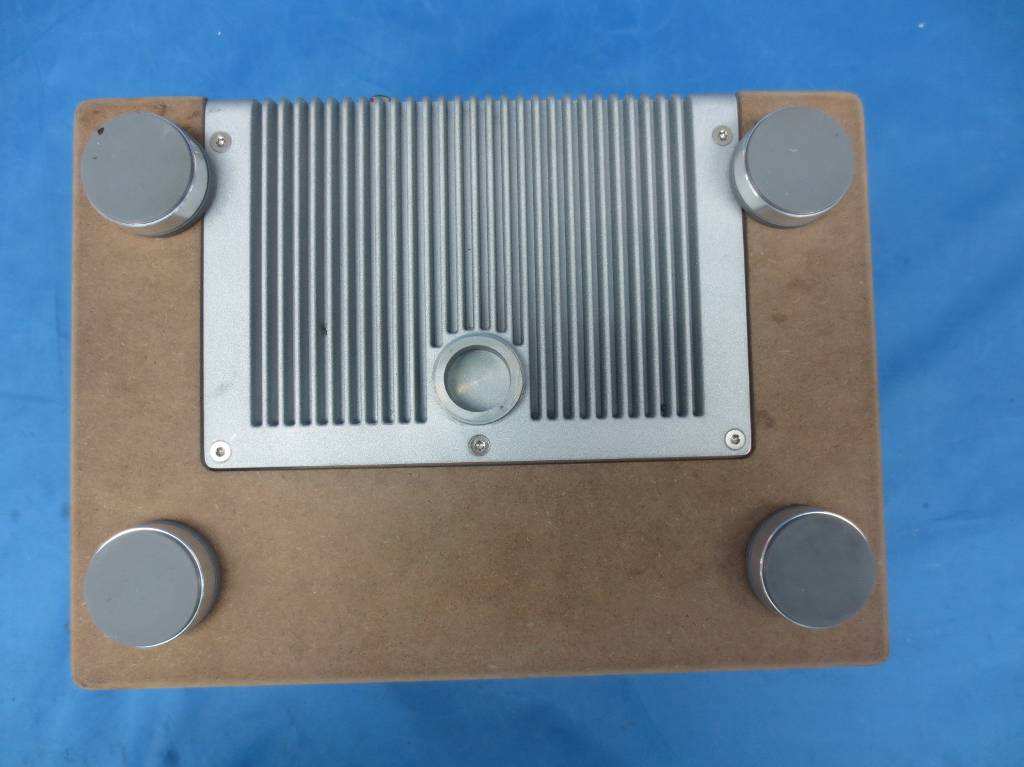

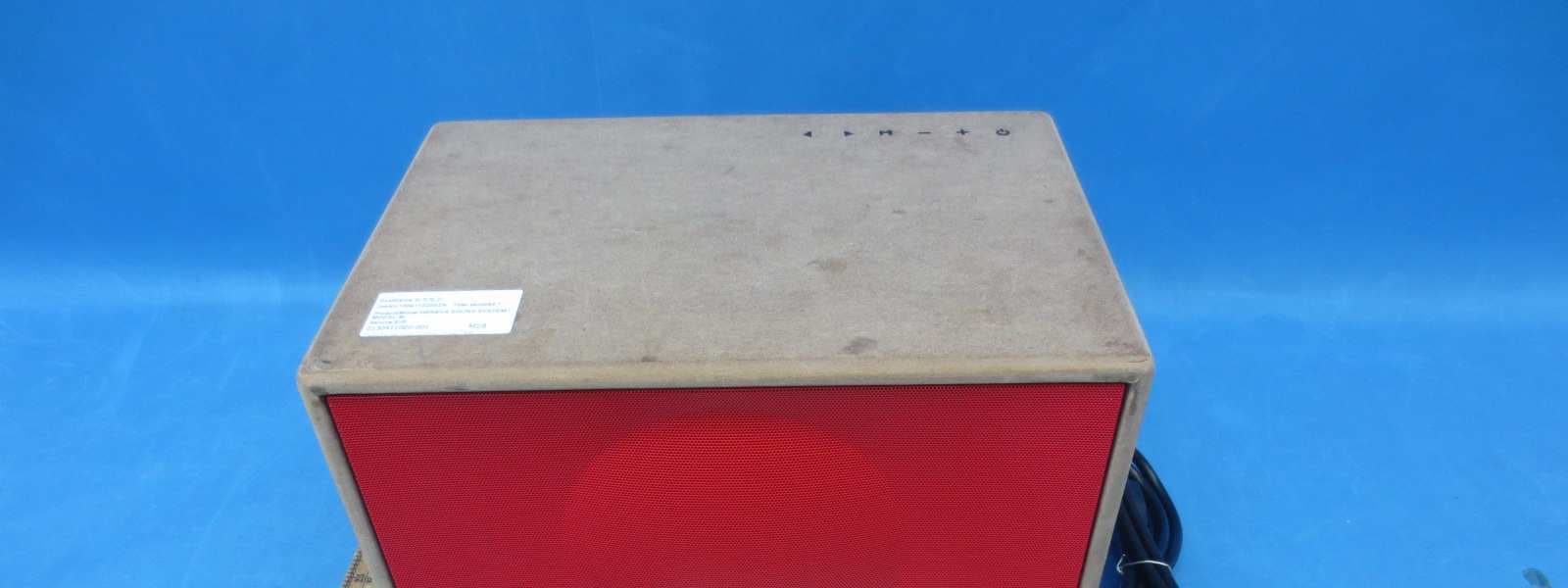

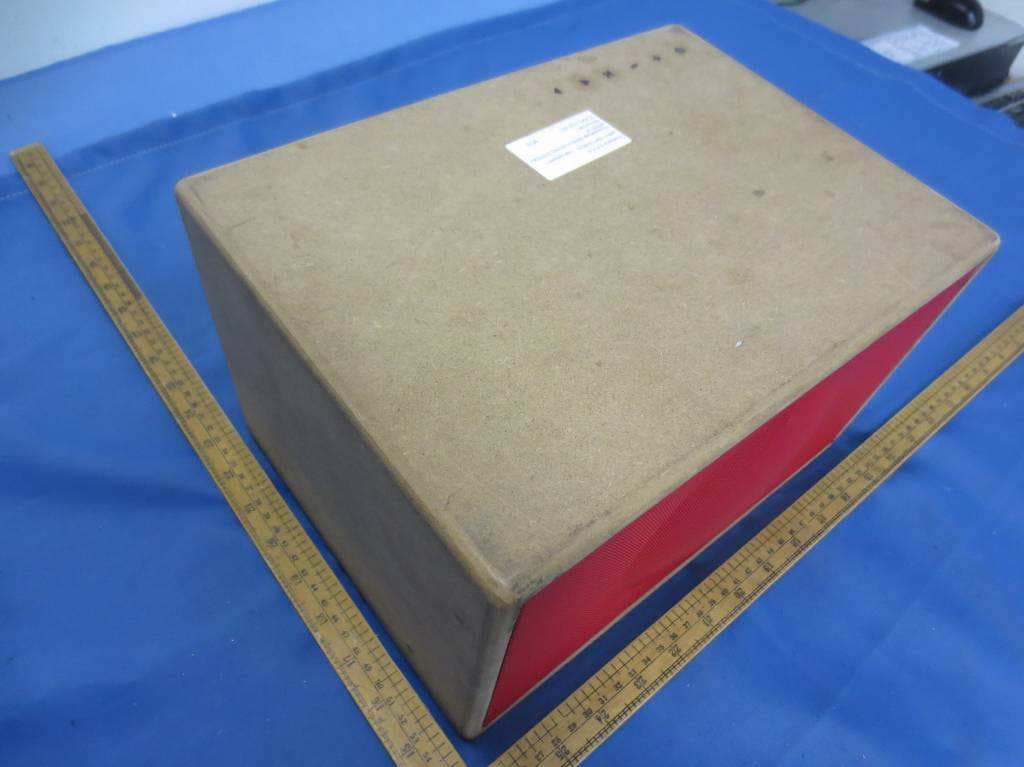

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Clock Radio with Bluetooth function. The EUT was powered by AC 100-240V, 50/60Hz. For more detail information pls. refer to the user manual. Modulation Type: GFSK, π/4 –DQPSK and 8-DPSK. Bluetooth Version: 2.1 with EDR function. Antenna Type: Integral antenna. Antenna Gain: 2dBi. The nominal conducted output power specified: 2d Bm +/-3dB. Th e nominal radiated output power (e.i.r.p) specified: 4d Bm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 97.8dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 2.57dBm which is within the production variation. The minimum peak radiated emission for the EUT is 97. 1dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 1.87dBm which is within the production variation. The maximun conducted output power specified is 5dBm = 3.2mW The source- based time-averaging conducted output power = 3.2 * Duty Cycle mW= 2.7 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1 + EDR), the duty factor is dependent of packet type (DH1, DH3 and DH5).For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hop set consists of 5 TX slot and 1 RX slot. Duty factor = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: ZXX-MODELMBT

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com G-Lab GmbH Application For Certification FCC ID: ZXX-MODELMBT Clock Radio Model: Model M DAB+ (with Bluetooth) Additional Model: Model M (with Bluetooth) 2.4GHz Transceiver Report No.: 130427001SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Leo Lai Project Engineer Andy Yan Project Engineer Date: July 12, 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXX-MODELMBT i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXX-MODELMBT ii MEASUREMENT/TECHNICAL REPORT FCC ID: ZXX-MODELMBT Model: Model M DAB+ (with Bluetooth) Additional Model: Model M (with Bluetooth) July 12, 2013 This report concerns (check one :) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Leo Lai Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0661 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXX-MODELMBT iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation ................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions ......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs ................................................................................... 19 5.0 Product Labelling ...................................…

Text truncated - open the document above for the full version.
