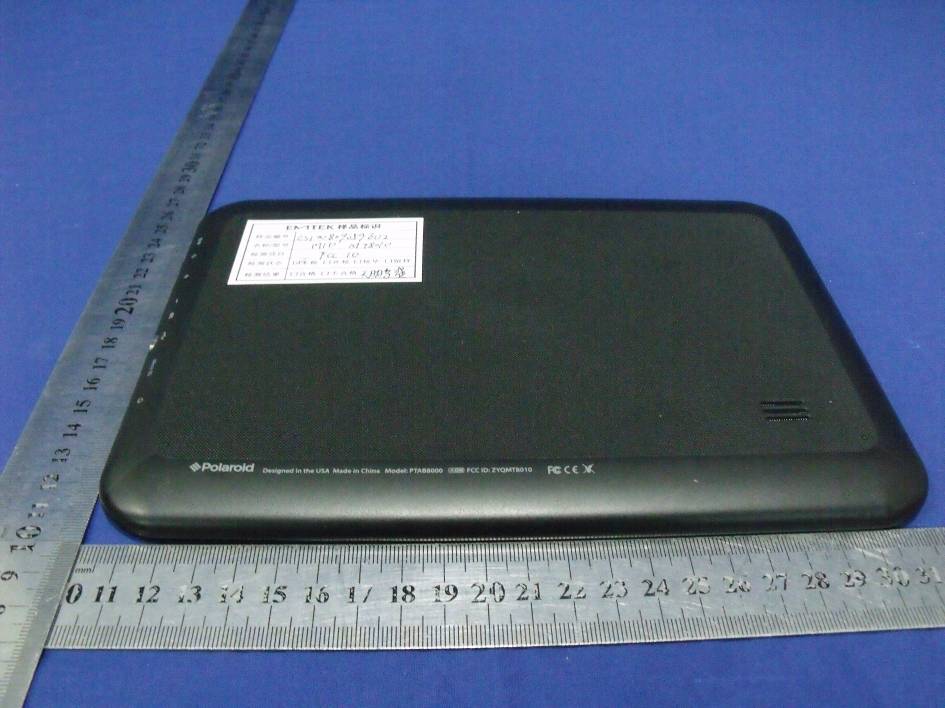

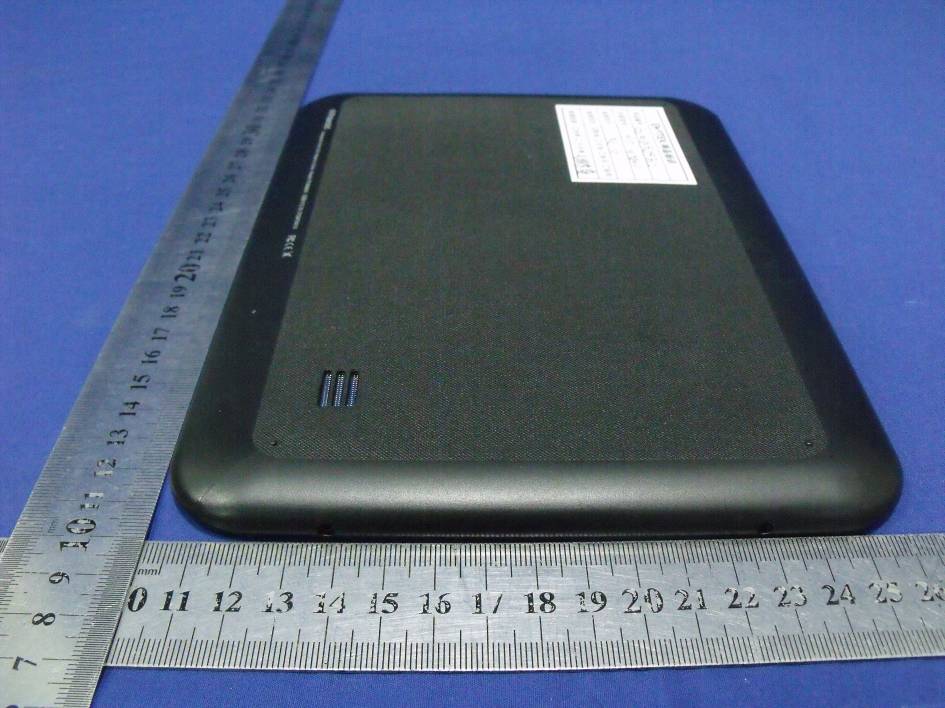

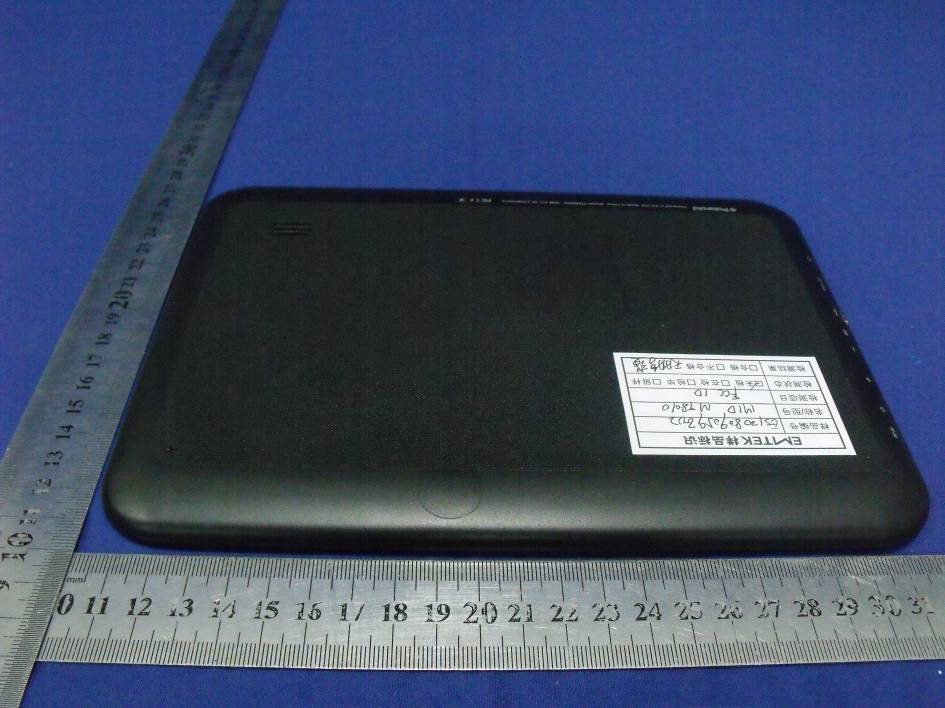

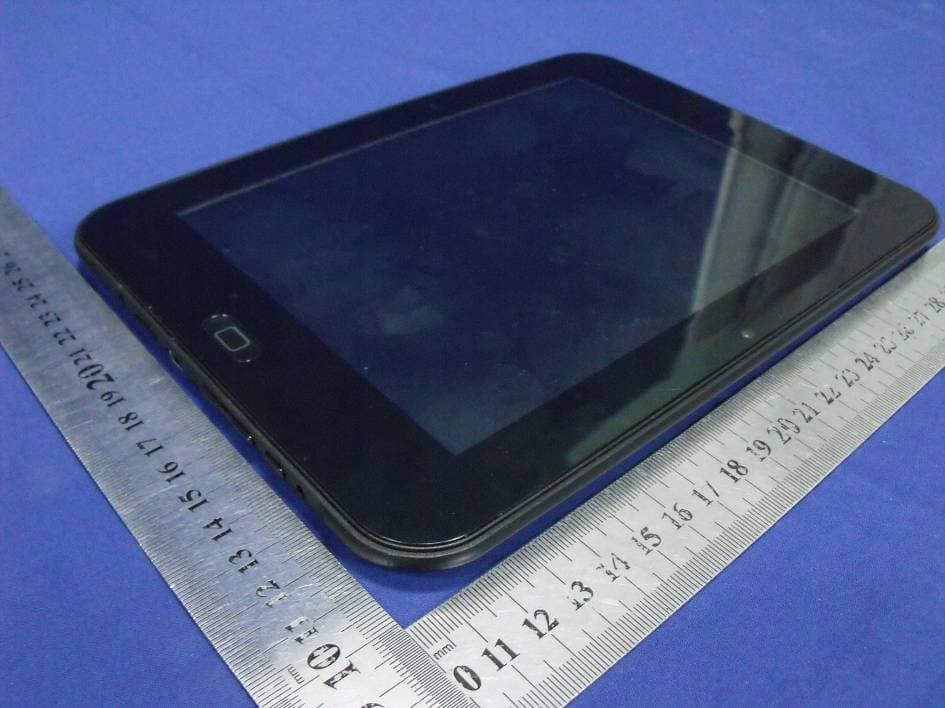

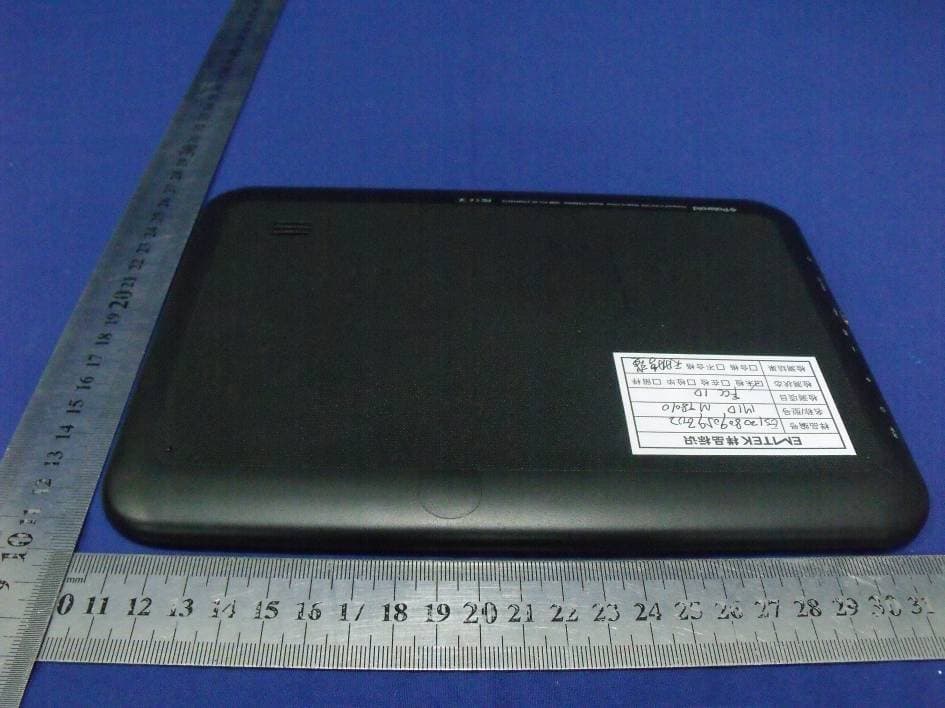

ZYQMT8010Mobile Internet Device

Mobile Internet Device MT8010 User’s Manual i TABLE OF CONTENTS Introduction.............................................................................................................................................................................................1 Regulatory Information: FCC Part 15 ...................................................................................................................................................2 Important Safety Precautions................................................................................................................................................................3 Controls and Connections ....................................................................................................................................................................4 Main Features .........................................................................................................................................................................................5 Basic operation.......................................................................................................................................................................................5 Charging ...............................................................................................................................................................................................5 Turning on/off the tablet........................................................................................................................................................................6 Unlock (enter) / Lock (standby) the tablet ............................................................................................................................................6 Transferring and managing files...........................................................................................................................................................6 Conserve Internal Memory ...................................................................................................................................................................6 Inserting Micro SD card........................................................................................................................................................................7 Unmount & remove the Micro SD card.................................................................................................................................................7 Connecting the device to a computer...................................................................................................................................................7 Home screen ...........................................................................................................................................................................................8 Applications screen ..............................................................................................................................................................................9 Recent screen ....................................................................................................................................................................................10 Changing the wallpaper......................................................................................................................................................................10 Creating and using folders ................................................................................................................................................................. 11 Using widgets ..................................................................................................................................................................................... 11 Notifications ........................................................................................................................................................................................12 Using the On-screen Keyboard...........................................................................................................................................................12 Connecting to Wi-Fi..............................................................................................................................................................................13 Setting up Wi-Fi ..................................................................................................................................................................................13 Browsing ...............................................................................................................................................................................................14 ii Email ......................................................................................................................................................................................................15 Camera ..................................................................................................................................................................................................15 Taking Photos and Recording Videos ................................................................................................................................................16 Gallery ...................................................................................................................................................................................................17 Viewing pictures .................................................................................................................................................................................17 Share pictures to Email .................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 FCC ID: ZYQMT8010 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0

FCC ID: ZYQMT8010 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 30mm 16mm 8mm

WIFI Module Antenna

FCC ID : ZYQMT8010 WLAN (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2412 2462 2437 25 Maximum measured transmitter power: 802.11b Conducted Power (dBm) Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 9.61 9.14 4.02 23.07 Maximum measured transmitter power: 802.11g Conducted Power (dBm) Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 7.95 6.24 4.02 15.74 Maximum measured transmitter power: 802.11n HT20 Conducted Power (dBm) Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 7.84 6.08 4.02 15.35 Maximum measured transmitter power: 802.11n HT40 Conducted Power (dBm) Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 7.46 5.57 4.02 14.06 Threshold at which no SAR required is 25 mw. Maximum Tx power is 21.48 mw EIRP Conclusion: No SAR is required. Sincerely, Signature Michael Chang E-mail: : [email protected] Phone: +86(0)755 8830 9222 Fax: +86(0)755 8347 9175 Address : Unit 13, 7/F Technology Park, 18 On Lai Street Shati, Hongkong

SHENZHEN EMTEK CO., LTD. REPORT NO: ES120809059E FCC ID: ZYQMT8010 DATE: 08/22/12 Page 1 of 86 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Mobile Internet Device MODEL No.: MT8000, MT8001, MT8002, MT8003, MT8004, MT8005, MT8006, MT8007, MT8008, MT8009, MT8010, MT8011, MT8012, MT8013, MT7014, MT8015, MT8016, MT8017, MT8018, MT8019, MT8020, MT8100, MT8110, MT8111, MT8112, MT8113, MT8114, MT8115, MT8116, MT8117, MT8118, MT8119, MT8120, MT8200, MT8210, MT8211, MT8212, MT8213, MT8214, MT8215, MT8216, MT8217, MT8218, MT8219, MT8220, MT8300, MT8310, MT8311, MT8312, MT8313, MT8314, MT8315, MT8316, MT8317, MT8318, MT8319, MT8320, PTAB8XC, PMID801, PMID800CA, PMID8300, PTAB8000. FCC ID: ZYQMT8010 REPORT NO: ES120809059E ISSUE DATE: August 22, 2012 Prepared for KEEN HIGH HOLDING (HK) LIMITED Unit 13, 7/F Technology Park, 18 On Lai street Shatin New Territories HK Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120809059E FCC ID: ZYQMT8010 DATE: 08/22/12 Page 3 of 86 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................................................ 5 1.1 PRODUCT DESCRIPTION.................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................. 5 1.3 TEST METHODOLOGY....................................................................................................................................... 6 1.4 SPECIAL ACCESSORIES...................................................................................................................................... 6 1.5 EQUIPMENT MODIFICATIONS............................................................................................................................ 6 1.6 TEST FACILITY.................................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ................................................................................................................... 7 2.1 EUT CONFIGURATION....................................................................................................................................... 7 2.2 EUT EXERCISE................................................................................................................................................. 7 2.3 TEST PROCEDURE............................................................................................................................................. 7 2.4 CONFIGURATION OF TESTED SYSTEM............................................................................................................... 7 3. DESCRIPTION OF TEST MODES ..................................................................................................................... 9 4. SUMMARY OF TEST RESULTS....................................................................................................................... 10 5. CONDUCTED EMISSIONS TEST .................................................................................................................... 11 5.1 MEASUREMENT PROCEDURE.......................................................................................................................... 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 11 5.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 11 5.4 CONDUCTED EMISSION LIMIT......................................................................................................................... 11 5.5 MEASUREMENT RESULT.................................................................................................................................. 12 5.6 CONDUCTED MEASUREMENT PHOTO.............................................................................................................. 13 6. RADIATED EMISSION TEST ........................................................................................................................... 14 6.1 MEASUREMENT PROCEDURE.......................................................................................................................... 14 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 14 6.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 15 6.4 RADIATED EMISSION LIMIT............................................................................................................................. 15 6.5 MEASUREMENT RESULT.................................................................................................................................. 17 6.6 RADIATED MEASUREMENT PHOTOS................................................................................................................ 41 7. OCCUPIED BANDWIDTH TEST ..................................................................................................................... 43 7.1 MEASUREMENT PROCEDURE.......................................................................................................................... 43 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 43 7.3 MEASUREMENT EQUIPMENT USED.......................................................…

Text truncated - open the document above for the full version.

Conducted Measurement Photo 6.1 Radiated Measurement Photos
