ZZ6-AR5BXB112802.11agn 3x3 MIMO PCIe Mini Card

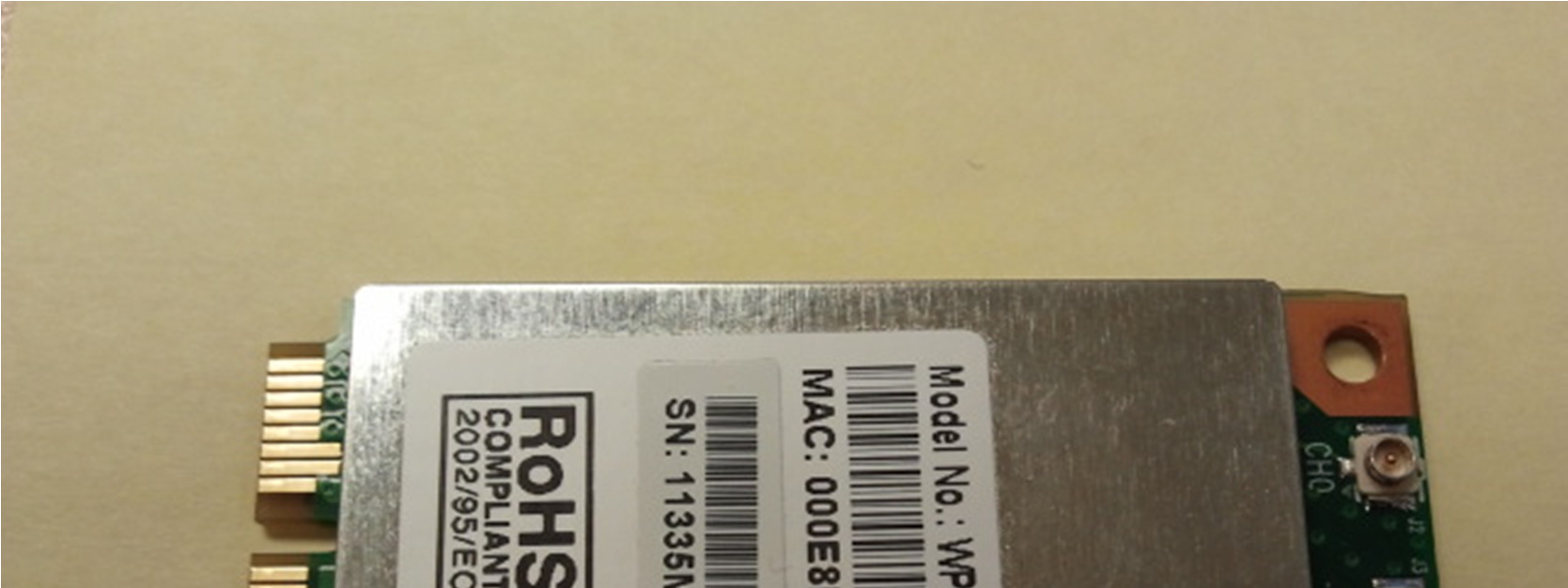

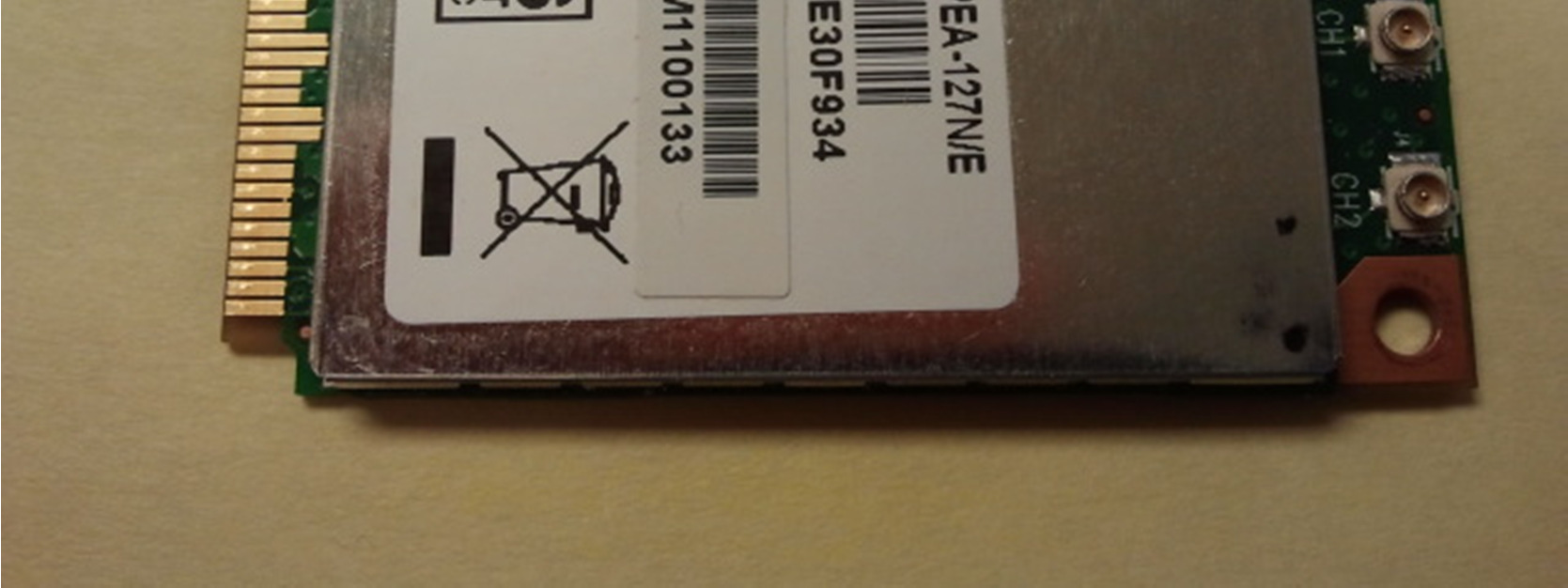

Applicant/Grantee Varian Medical Systems, Inc. X-Ray Products FCC ID: ZZ6-AR5BXB112 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Device is equipped with Metal shielding to cover RF section. Refer to external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation. The transmitter has its own power supply regulator. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna (U.FL(v)-LP-040) connector. Refer to external photos. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Device was tested outside the laptop for modular approval. Refer to setup photos. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Two proposed FCC ID label formats are included in the filing. One label is to be placed on the module and the other label is to be placed on the outside of the host system. Refer to the FCC ID label format and location file. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Transmitter meets MPE calculations of 47 CFR 1.1307( b)(1). And SAR test requirements. Refer to MPE & SAR sections of the test reports. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

PROPOSED FCC/IC ID LABEL AND LOCATION Printed Color： Black 地色：White 材質：一般合成紙 粘著材：樹脂系糊 VARIAN MEDICAL SYSTEMS, INC. X-RAY PRODUCTS FCC ID: ZZ6-AR5BXB112 IC: 9909A-AR5BXB112 MODEL: WPEA-127N This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Bottom of Module FCC /IC Label Location

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 802.11agn 3x3 MIMO PCIe Mini Card MODEL NUMBER: WPEA-127N FCC ID: ZZ6-AR5BXB112 IC: 9909A-AR5BXB112 REPORT NUMBER: 11U13957-1, Revision C ISSUE DATE: December 20, 2011 Prepared for VARIAN MEDICAL SYSTEMS, INC. X-RAY PRODUCTS 1678 SOUTH PIONEER ROAD SALT LAKE CITY, UT 84104 Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11U13957-1C DATE: December 20, 2011 FCC ID: ZZ6-AR5BXB112 IC: 9909A-AR5BXB112 Page 2 of 628 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 11/08/11 Initial Issue F. Ibrahim A 12/15/11 Revised section 8.2.2 F. Ibrahim B 12/19/11 Added MPE section F. Ibrahim C 12/20/11 Updated effective antenna gain in the output power sections for MCS0 data rates. F. Ibrahim REPORT NO: 11U13957-1C DATE: December 20, 2011 FCC ID: ZZ6-AR5BXB112 IC: 9909A-AR5BXB112 Page 3 of 628 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 7 2. TEST METHODOLOGY ........................................................................................................ 8 3. FACILITIES AND ACCREDITATION .................................................................................... 8 4. CALIBRATION AND UNCERTAINTY .................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 8 4.2. SAMPLE CALCULATION ............................................................................................... 8 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 8 5. EQUIPMENT UNDER TEST ................................................................................................. 9 5.1. DESCRIPTION OF EUT ................................................................................................. 9 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 9 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 10 5.4. SOFTWARE AND FIRMWARE .................................................................................... 10 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 11 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 12 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 14 7. ANTENNA PORT TEST RESULTS .................................................................................... 15 7.1. 802.11g 3TX MODE IN THE 2.4 GHz BAND ............................................................... 15 7.1.1. 6 dB BANDWIDTH ................................................................................................ 15 7.1.2. 99% BANDWIDTH ................................................................................................ 22 7.1.3. OUTPUT POWER ................................................................................................. 29 7.1.4. AVERAGE POWER .............................................................................................. 36 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 37 7.1.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 44 7.2. 802.11n HT20 MCS0 3TX MODE IN THE 2.4 GHz BAND........................................... 54 7.2.1. 6 dB BANDWIDTH ................................................................................................ 54 7.2.2. 99% BANDWIDTH ................................................................................................ 61 7.2.3. OUTPUT POWER ................................................................................................. 68 7.2.4. AVERAGE POWER .............................................................................................. 75 7.2.5. POWER SPECTRAL DENSITY ............................................................................ 76 7.2.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 83 7.3. 802.11n HT20 MCS8 3TX MODE IN THE 2.4 GHz BAND........................................... 93 7.3.1. 6 dB BANDWIDTH ................................................................................................ 93 7.3.2. 99% BANDWIDTH .............................................................................................. 100 7.3.3. OUTPUT POWER ............................................................................................... 107 7.3.4. AVERAGE POWER ............................................................................................ 114 7.3.5. POWER SPECTRAL DENSITY .......................................................................... 115 7.3.6. CONDUCTED SPURIOUS EMISSIONS ............................................................. 122 7.4. 802.11n HT20 MCS16 3TX MODE IN THE 2.4 GHz BAND....................................... 132 REPORT NO: 11U13957-1C DATE: December 20, 2011 FCC ID: ZZ6-AR5BXB112 IC: 9909A-AR5BXB112 Page 4 of 628 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA S…
