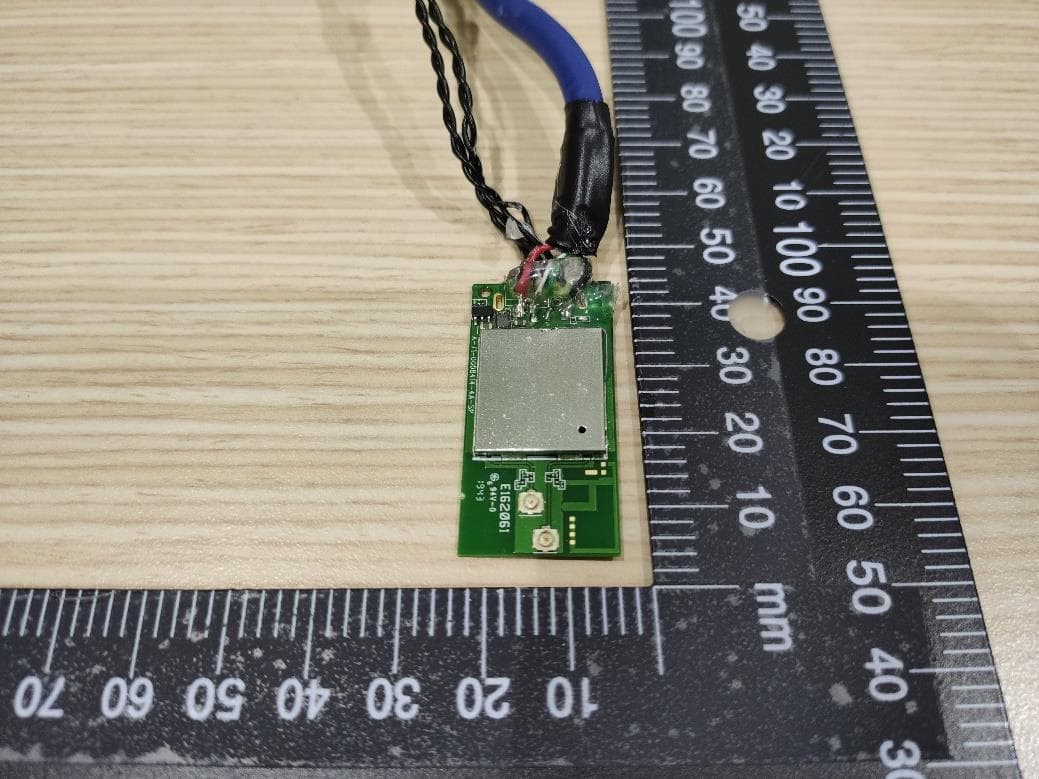

ZZ6-WUBT236ACNBT802.11ac/a/b/g/n 2T2R Wifi + Bluetooth 4.2 USB Module

100097489 Series Brand name: Varex Imaging Corporation Model name: WUBT-236ACN(BT)[MN] 802.11ac/a/n 2T2R Wifi USB Module Varex Imaging Corporation WUBT-236ACN(BT)[MN] is a highly integrated single-chip Wireless LAN (WLAN). It is integrated 2T2R WLAN MAC, baseband, and dual band RF in a single chip. WUBT-236ACN(BT)[MN] provides a cost effective solution for M2M (machine to machine) connectivity product/device by one USB port, it can be easily integrated into the most familiar operation system (Android/Linux/Windows). . 802.11ac/a/n 2T2R Wifi USB Module with various USB input format & internal printing or external RF antenna connector for high performance wireless LAN device. It is designed to provide completely M2M connection & excellent cost performance with low power consumption and enhance the advantages of robust system & applications. Support Multiple Operation Systems (Android/Linux/Windows) Key Feature ● 802.11ac/a/an Wi-F ● Support 802.11ac 2x2, compliant with MU-MIMO ● Maximum data rates: 300Mbps in 802.11n, 866.7Mbps in 802.11ac. Embedded Application Applications include portable handheld devices, thin client computer, medical devices, network security & monitoring, 3D printer, TV, STB, POS, digital signs, gaming machine, robotic machinery, industrial tablets, etc. 100097489 Series Specification Standards IEEE 802.11ac/a /an(2T2R) Chipset Realtek RTL8822BU-CG Data Rate 802.11a:54Mbps 802.11n:MCS0~15 802.11ac: MCS0~9 Operating Frequency FCC & IC: 5.15-5.25 GHz, 5.725-5.85 GHz Japan: 5.15-5.25 GHz *Subject to local regulations Interface WLAN: USB Antenna ANT0 for WLAN 11a only, ANT0+ ANT1 for WLAN 11 an/ac Modulation Wi-Fi : 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) Power Consumption TX mode: 450Ma(Max.) RX mode: 2 50mA(Max.) Operating Voltage DC 5V Operating Temperature Range -20°C~70°C Storage Temperature Range -40°C~80°C Humidity (Non-Condensing) 5%~95% (Operating) 5%~90% (Storing) Security 64/128-bits WEP, WPA, WPA2, 802.1x 100097489 Series Block Diagram Pin Description Pin_1 USB 5V Pin_2 USB D- Pin_3 USB D+ Pin_4 USB GND LED WiFi LED Ant_0 RF Antenna for WLAN 11a Ant_0 + Ant_1 RF Antenna for WLAN 11 an/ac 100097489 Series Federal Communication Commission Interference Statement: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any changes or modifications not expressly approved by the pa rty responsible for compliance could void your authority to operate the equipment. This module limit can be used to install in the host below: Product name: Digital Image Receptor Model: 4336W-G5 RF exposure statements The product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 1.319 W/kg. CFR 47 FCC PART 15 SUBPART B and SUBPART E has been investigated. It is applicable t o the modular transmitter. Any company of the host device which install this modular with limit modular approval should perform the test of radiated & conducted emission and spurious emission,etc. according to FCC part 15E : 15.407 and 15B Class A requirement, Only if the test result comply with FCC part 15E : 15.407 and 15B Class A requirement，then the host can be sold legally. The devices must be installed and used in strict accordance with the manufacturer's instructions as 100097489 Series described in the user documentation that comes with the product. We will retain control over the final installation of the modular such that compliance of the end product is assured. In such cases, an operating condition on the limit modular approval for the module must be only approved for use when installed in devices produced by a specific manufacturer. If any hardware modify or RF control software modify will be made by host manufacturer,C2PC or new certificate should be apply to get approval, if those change and modification made by host manufacturer not expressly approved by the party responsible for compliance ,then it is illegal. This radio transmitter ZZ6-WUBT236ACNBT has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Unique antenna connector (Hirose U.FL) must be used on the Part 15 authorized transmitters used in the host product. Antenna Type Antenna Model Maximum Gain (dBi) Remark 5GHz PCB Antenna XRpad CBSA P/N: 45524302 5.9 dBi If the FCC identification number is not visible when the module is installed inside a nother device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: ZZ6-WUBT236ACNBT” Or “Contai…
