ZZH-ZW2PWIRELESS SWITCH

WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Sep 19, 2011
Application Purpose: Original Equipment
Date of Application: Sep 19, 2011
Equipment Note: WIRELESS SWITCH
Frequency Range: 908.42000000 - 908.42000000
Company: WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

INSTALLATION INSTRUCTIONS -01- DESCRIPTION FEATURES ZW2P Plug-in Appliance Voltage................................................................................ 120VAC, 60Hz Maximum Load requirements:Incandescent......................................................................................600WFrequency................................................................................ 908.42 MHzOperating Temperature............................................................... 32-104° FRange.................................................................Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module. Wireless Lighting Control SPECIFICATIONS Module Resistive...........................................................................................1800W In a Z-Wave network, each device is designed to act as a wireless repeater. WARNINGS AND CAUTIONS -02- OPERATIONS Basic OperationThe connected light can be turned ON in two ways:1. With a Z-wave remote.2. Manually with the program button on the Z-Wave module. Remote Control Z-Wave remotes provide control of an Individual device, Groups of devices and Scenes. Please refer to your remote control's instructions for detail on its capabilities and instructions for adding and controlling devices. Manual Control The Program Button on the ZW2P appliance module allows the user to: Provides manual and remote control Blue LED show feedback from the controller Ease of installation(no new wiring) Compatible with other Z-Wave enabled devices This appliance module is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer. Repeaters will retransmit the RF signal from one device to another until the intended device is reached. This ensures that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. INSTALLATION 1. Plug the ZW2P Appliance Module into a 120VAC,60HZ outlet. 2 2. Plug the appliance or other electric device into the ZW2P Appliance does not exceed 600 Watts. 3. Turn the knob or switch on the appliance or electric device to the ON 3 1.To manually turn ON the ZW2P Appliance Module, press and release the program button.The blue indicator LED will turn ON, and the appliance or device plugged into the ZW2P Appliance Module will also turn ON.2.To manually turn OFF the ZW2P Appliance Module, simply press andrelease the program button. The blue indicator will turn OFF and the appliance or device plugged into the ZW2P Appliance Module will also turn OFF. 1 The four possible responses are: - It will respond to ALL-ON and the ALL-OFF command (default). - It will not respond to ALL-ON or ALL-OFF commands.- It will respond to the ALL-OFF command but will not respond to the ALL-ON command. - It will respond to the ALL-ON command but will not respond to the ALL-OFF command All On/All Off Depending upon your primary controller, the ZW2P appliance module can be set to respond to ALL ON and ALL OFF commands in up to four different ways. Some controllers may not be able to change the response from its default setting. Please refer to your controller’s instructions for information on whether or not it supports the configuration function and if so, how to advanced controller. However, basic remotes do not have this capability. ADVANCED OPERATIONThe following Advanced Operation parameters require that you have an Blue LED indicator change this setting. WIRELESS RANGE This device complies with the Z-Wave standard of open-air, line of sight transmission distances of 65 feet. Actual performance in a home dependson the numbers of walls between the remote controller and the destination device, the type of construction and the number of Z-Wave enabled devices installed in the control network. Things to consider regarding RF range: - Each wall or obstacle (i.e.:refrigerator, big screen TV, etc.)between the remote or a Z-Wave device and the destination device will reduce the maximum range by approximately 25-30%. -03- Motor.................................................................................................1/2 HP Z-Wave controled AC outlet Ground 3-wire power connection for safety Module. Make sure the appliance or electric device to be controlled position. Z-Wave Outlet Program Button To reduce the risk of electric shock, this product has a grounding type plug that has a third (grounding) pin. This plug will only fit into a grounding type power outlet. If the plug does not fit into the outlet, connect a qualified electrician to install the proper outlet . Do not change the plug in any way. To be installed and/or used in accordance with approprite electrical codes please consult a qualified electrician. and regulations. Exercise extreme caution when using Z-Wave devices to control appliances. Operation of the Z-Wave device may be in a differentroom than the controlled appliance, also an unintentional activation may occur if the wrong button on the remote is pressed. Z-Wave devices mayautomatically be powered on due to timed event programming.Depending upon the appliance, these unattended or unintentional operation could If you are unsure or uncomfortable about performing the installation, possibly result in a hazardous condition. 3. Refer to the instruction for your primary controller to access the setup function and include or exclude devices. By default setting , the led state is as same as relay state. For example, if relay If configuration variable value "0" is set to 255 /0xFF (by Configuration details a. valid variable value, 0 (other variable value will be ignored) b. valid configuration value, 0 /0xFF (other configuration value will be ignored) c. valid configuration value bytes, 1 byte (other configuration value will be ignored) is drived<00FF>led will be turned on.We use command_class_configuratio…

Text truncated - open the document above for the full version.

Block Diagram

RF U1 120V 60Hz Switching Power Supply LNK304PN U1 Antenna 908.42MHz Crystal 12VDC Regulator HT7133 3.3V 100mA Drive Relay888H 3.3V

External Photos

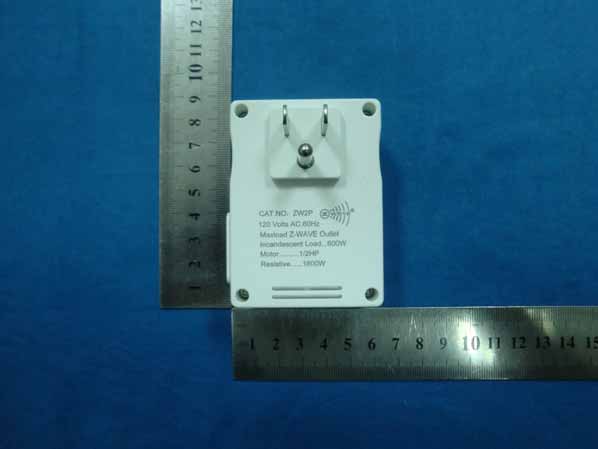

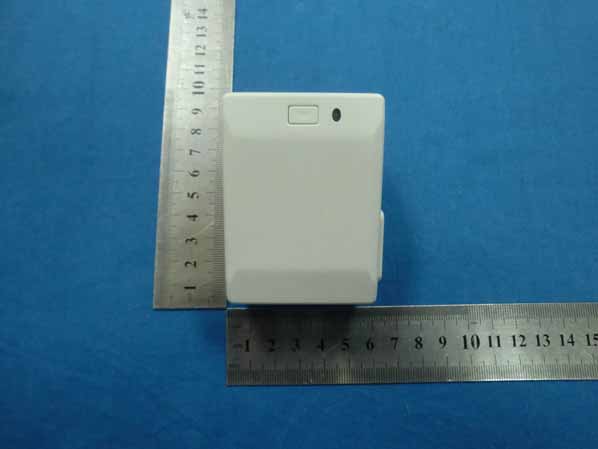

External Photo

ID Label/Location Info

FCC Certification Label FCC ID: ZZH-ZW2P This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Label Location on EUT EUT View/ FCC ID Label Location

Internal Photos

Internal Photo Antenna

Operational Description

Operational Description Power section Input stage is made of 4 parts : the fuse F1 , diode D1, capacitor C1C4C5 and inductor L1. Fuse's function is to limit the inrush current of rectifier D1 in a safe range, attenuation of differential-mode noise , fault occurs in anywhere else, bring the protection of circuit. The function of capacitance and inductance is filtering, insure the output waveform is smooth. The power processing stage consists of the LNK3047PN, L2, D3, and C8. Diode D3 adopts a reverse recovery time (Trr = 35ns) of the quick reply diode. Inductor L2 with appropriate RMS current rating (to meet the temperature rise requirements), capacitor C8 is the output filtering capacitance, the main function is to limit the output voltage ripple. The output is a steady 5V DC voltage. Diodes D3 and D4's forward voltage drop is the same, both sides of the C7 voltage tracks the output voltage. The resistance divider which is made of R2 and R3 will proceed detection and regulation of C3 voltage. Using of switch cycles to maintain a steady output voltage. When the output voltage rises, the current into the FB pin increases. if the current checks IFB value, then the cycle will not lose, when the current is less than IFB value, it will perform the switching operation cycle , so as to reduce the load, there will be more cycle will be lost, and when the load increased, only a few cycles to be lost. And then go through the step-down regulator U2, The RC filter circuit consists of R4, C10, C3 will proceed filtering of output voltage. RF control part In the case of power supply, manual signal input, press SW1 switch and give a voltage signal to RF control board U1, after signal is processing by U1, recognition, sent to the execution section to proceed load adjustment. Execution section After sending the signal to TRIAC through RF control part , relay turns on and then by the RF control ZeroX zero signal detection to off, control the load. Among which electricity into the R6, R7, BAT54S, R8, R9, C11 form a zero-crossing detection circuit gives feedback of RF control section.

Schematics

顶层走线顶层丝印底层走线 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn 顶层走线顶层丝印底层走线底层丝印 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Test Report

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD. Tiancheng Industrial Zone,Yueqing, Zhejiang 325608, China FCC ID: ZZH-ZW2P September 13, 2011 This Report Concerns: Original Report Equipment Type: Wireless Switch Test Engineer: Eric Li Report No.: SHBST2011083107Y-1ER-3 Receive EUT Date/Test Date: September 7, 2011/ September 8-12, 2011 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD. FCC ID: ZZH-ZW2P FCC ID REPORT: SHBST2011083107Y-1ER-3 Page 2/19 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. ANTENNA REQUIREMENT ...................................................................................................8 6.1. STANDARD APPLICABLE............................................................................................8 6.2. ANTENNA CONNECTED CONSTRUCTION ..............................................................8 6.3. Result ................................................................................................................................8 7. CONDUCTED POWER LINE TEST .......................................................................................9 7.1. Test Equipment .................................................................................................................9 7.2. Test Procedure ..................................................................................................................9 7.3. Test Setup..........................................................................................................................9 7.4. Conducted Power line Emission Limits............................................................................9 7.5. Conducted Power Line Test Result.................................................................................10 8. RADIATED EMISSION TEST ...............................................................................................12 8.1. Test Equipment ...............................................................................................................12 8.2. Test Procedure ................................................................................................................12 8.3. Radiated Test Setup ........................................................................................................12 8.4. Radiated Emission Limit.................................................................................................13 8.5. Radiated Emission Test Result .......................................................................................14 9. BAND EDGE .............................................................................................................................17 9.1. Test Equipment ...............................................................................................................17 9.2. Test Procedure ................................................................................................................17 9.3. Band Edge FCC 15.249(d) Limit ....................................................................................17 9.4. Band Edge Test Result ....................................................................................................17 WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD. FCC ID: ZZH-ZW2P FCC ID REPORT: SHBST2011083107Y-1ER-3 Page 3/19 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s ment…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated emissions test Conducted emissions test
