ZZHZWN-SC7Scene Controller

INSTALLATION INSTRUCTIONS -02--03--01-
DESCRIPTION
FEATURES ZWN-SC7 7-Button Scene Controller Voltage........................................................................ 120/277VAC, 50/60Hz Z-Wave Frequency...................................................................... 908.42 MHz Operating Temperature................................................................ 32°F-104°F Range....................................................................Up to 100 feet line of sight
SPECIFICATIONS between the Wireless Controller and the closest Z-Wave receiver module. Ease of installation Easily create up to 7 different scenes for Z-Wave enabled device as well Blue LED indicates the current status of scene Interoperable with other Z-Wave enabled devices The 7-Button Scene Controller (ZWN-SC7) is a Z-Wave scene controller that A master controller is required to create and transfer scenes into the ZWN-SC7. Note: This 7-Button Scene Controller can not be a master controller. It can be provides user the ability to control up to 7 scenes with the touch of a single button. Setting up it requires specific advanced controller functionalities. ZWN-SC7 can be placed at entranceways, or in a convenient location where control of multiple desired. This device not only provides dramatic scene used to activate up to 7 scenes in a master controller, such as a smart gateway. WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF THE POWER Wiring Diagram:. 1. Connect the 7-button scene controller as shown in the wiring diagram: Black 2. Check connections to be sure they are tight and no bare conductors are exposed. 3. Put the controller into the outlet box carefully. 4. Use the supplied screws to mount the controller into wall box. 5. Attach the wall plate. 6. Restore power to the circuit breaker and test the system. AT THE CIRCUIT BREAKER BEFORE YOU INSTALL THIS CONTROLLER. lead to hot wire, white lead to neutral wire, green lead to ground wire. Factory default The scene controller supports factory default setting. It will clear the memory and Press and hold the BIGGEST(7) button of scene controller for 3 seconds, the TOP 2 LEDs will be lit up. Press and release the TOP-RIGHT(2) button, LED will drop down to the MIDDLE-RIGHT(4). the Z-Wave network ID.
INSTALLATION Manual Learning (Adding/Deleting) The ZWN-SC7 7-Button Scene Controller can be added/deleted from any Z-Wave network manually. The ZWN-SC7 has blue LEDs which will all blink when the Press and hold the BIGGEST(7) button of scene controller for 3 seconds, the TOP 2 LEDs will be turned on. Press and release the TOP-LEFT(1) button, LED will drop down to the MIDDLE LEFT(3). Press and release the MIDDLE-LEFT(3) button, LED will drop down to the BOTTOM-LEFT(5). After you press the BUTTOM-LEFT(5) button, it will run into manual learning for about 5 seconds. All LEDs will blink slowly, it means scene controller is ready to be added/deleted from Z-Wave network. If the controller has successfully added/deleted, all LEDs will flash 3 times slowly and stay on. LED will flash 5 times quickly when it was failed. Press and release the MIDDLE-RIGHT(4) button, LED will drop down to the BUTTOM -RIGHT(6). After you press the BUTTOM-RIGHT(6) button, it will run into factory default. Once the controller is reset successfully, all LEDs will flash 3 times and stay on. Scene Activation After ZWN-SC7 is added to a master controller and assigned the scene number, it can activate scenes of the master controller. Refer to master controller manual to implement scene assignment. e.g, with Vera3, programming this device Press and release the specific button which has been assigned a scene of master controller. The LED of selected button will blink 3 times during transferring data. If successfully activate a scene, specified LED will stay on. All LEDs will flash 5 times and stay on if transferring was failed or button has not been assigned.
OPERATIONS
WARRANTY INFORMATION Our company warranties its products to be free of defects in materials and workmanship for a period of two(2) years. There are no obligations or liabilities connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation on the part of our company for consequential damages arising out of or in Feb, 2014 HOT(BLACK) NEUTRAL(WHITE) GROUND(GREEN) 11022A




      or reinstallation. Ideal retrofit solution, neutral wire is required as on/off function of a single pole application transitions and unique experience, but also enhances the value to your home. Your 7-Button Scene Controller includes a label, which provides several scene
BUTTON INFORMATION options. User can select the desired label and label them on the button. device is not added in a Z-Wave network. While the LEDs will not blink when the device is in a Z-Wave network. is to add a trigger. Scene Button 1 Scene Status LED Scene Button 3 Scene Button 5 Scene Button 7 Scene Button 2 Scene Button 4 Scene Button 6 FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of th…

Text truncated - open the document above for the full version.

WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD. Tiancheng Industrial Zone,Yueqing ,Zhejiang Confidentiality Request Letter Page 1 of 1 Rev 2.0 07 16, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: ZZHZWN-SC7 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Borui Zhao/ Manager Contact information / address: Tiancheng Industrial Zone,Yueqing ,Zhejiang Telephone:(86) 577-62305066 Fax:(86) 577-62305066 E-Mail:[email protected]

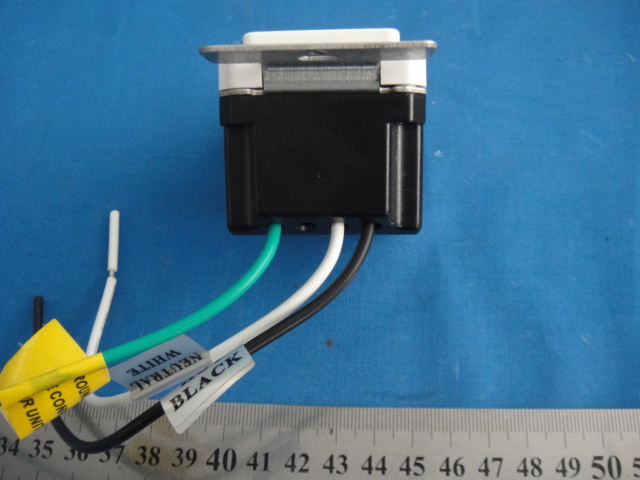

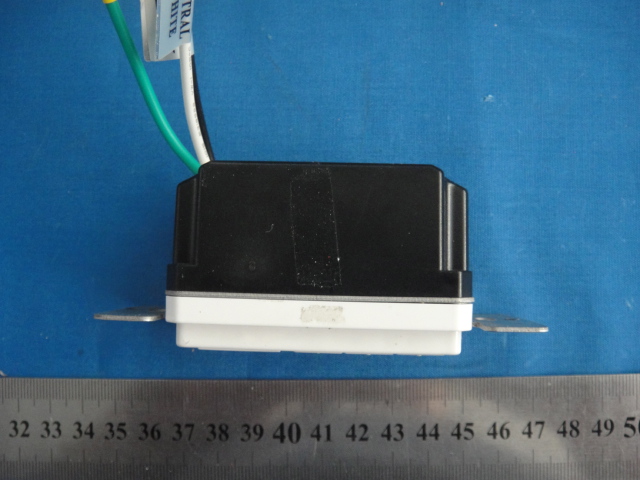

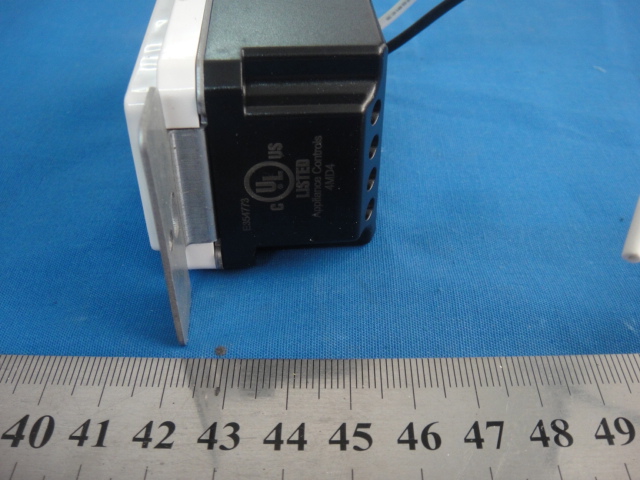

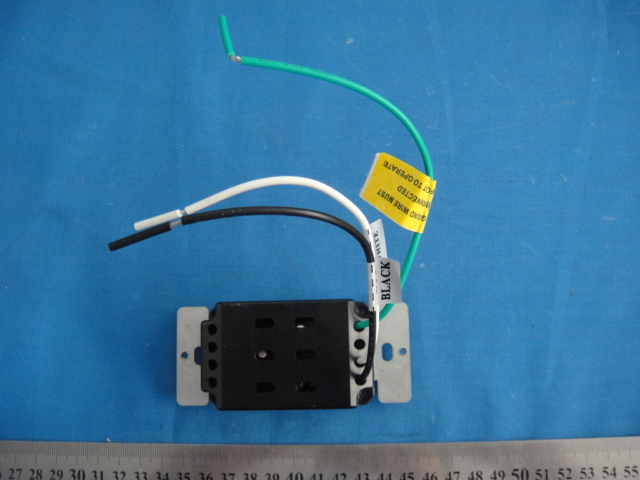

External Photo

FCC Certification Label FCC ID: ZZHZWN-SC7 Label Location on EUT label size:high 1cm, Wide:2 cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For WENZHOU MTLC ELECTRIC APPLIANCES CO., LTD Tiancheng Industrial Zone,Yueqing ,Zhejiang FCC ID: ZZHZWN-SC7 July 16, 2014 This Report Concerns: Original Report Equipment Type: Scene Controller Test Engineer: Lisa Chen Report No.: BSL14071011Y-20 Receive EUT Date/Test Date: July 12,2014 / July 12 - July 16, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: ZZHZWN-SC7 BSL14071011Y-20 Page 2/23 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID: ZZHZWN-SC7 BSL14071011Y-20 Page 3/23 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not use…

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
