2A22V-MICS114LED bulb bluetooth speaker

Product name: LED bulb bluetooth speaker Model number: MIC‐S114 Product Parameters Voltage:100‐240V/ 50‐60Hz Power:3W LED power:1.5W RGB power:1.5W Speaker power:3W Frequency response:135Hz ‐15KHz Wireless version:4.2 Support configuration:A2DP Radio range:10m(33ft) LED light color: White or warm white The steps to use this led music bulb 1.Applicd this bulb to the E27(B22)basic, and then power the bulb. 2.The bulb is lit up. then you can use the remote control to adjust the light color. 3.Turn on your Bluetooth device (your phone ).search and connect to the bulb. 4.Connected successfully. now you can play the music you like with the bulb. Product Notes: 1.please confirm the voltage first. 2.please check the specifications of the product carefully before ordering to insure a proper fit. 3.Do not disassemble any bulbs by yourself. 4.Be sure to cut the power off before beginning installation to avoid personal injury. 5.The bulb can be turned off by the remote control. and you can still use the it as a speaker 6.One remote controller can control multi bulbs(the light).but one bulb can only be connected to one Bluetooth device (output sound). Application: Suitable for the bedroom.closet,cabinet.corridor,workshop,basement,garage,stairwell,oil depots, roof, door and other places. Package Includes: 1X 12W Bluetooth speaker LED bulb 1 X User manual 1 X Remote controller(Battery is included) NOTE:PLEASE DON'T INSTALL THE BULBS IN HUMID ENVIRONMENT! Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different. from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help. NOTE: This device and its antenna(s) must not be co‐located or operation in conjunction with any other antenna or transmitter RF Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co‐located or operation in conjunction with any other antenna or transmitter

Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Agent Authorization Company: Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Address: 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Product Name: LED bulb bluetooth speaker Model Number(s): MIC-S114 Product Description: LED bulb bluetooth speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 08, 2022 Name: Winnie He Title: Sales Company: Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch)

Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 08, 2022 Subject; Request for Confidentiality FCC ID: 2A22V-MICS114 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Winnie He Title: Sales

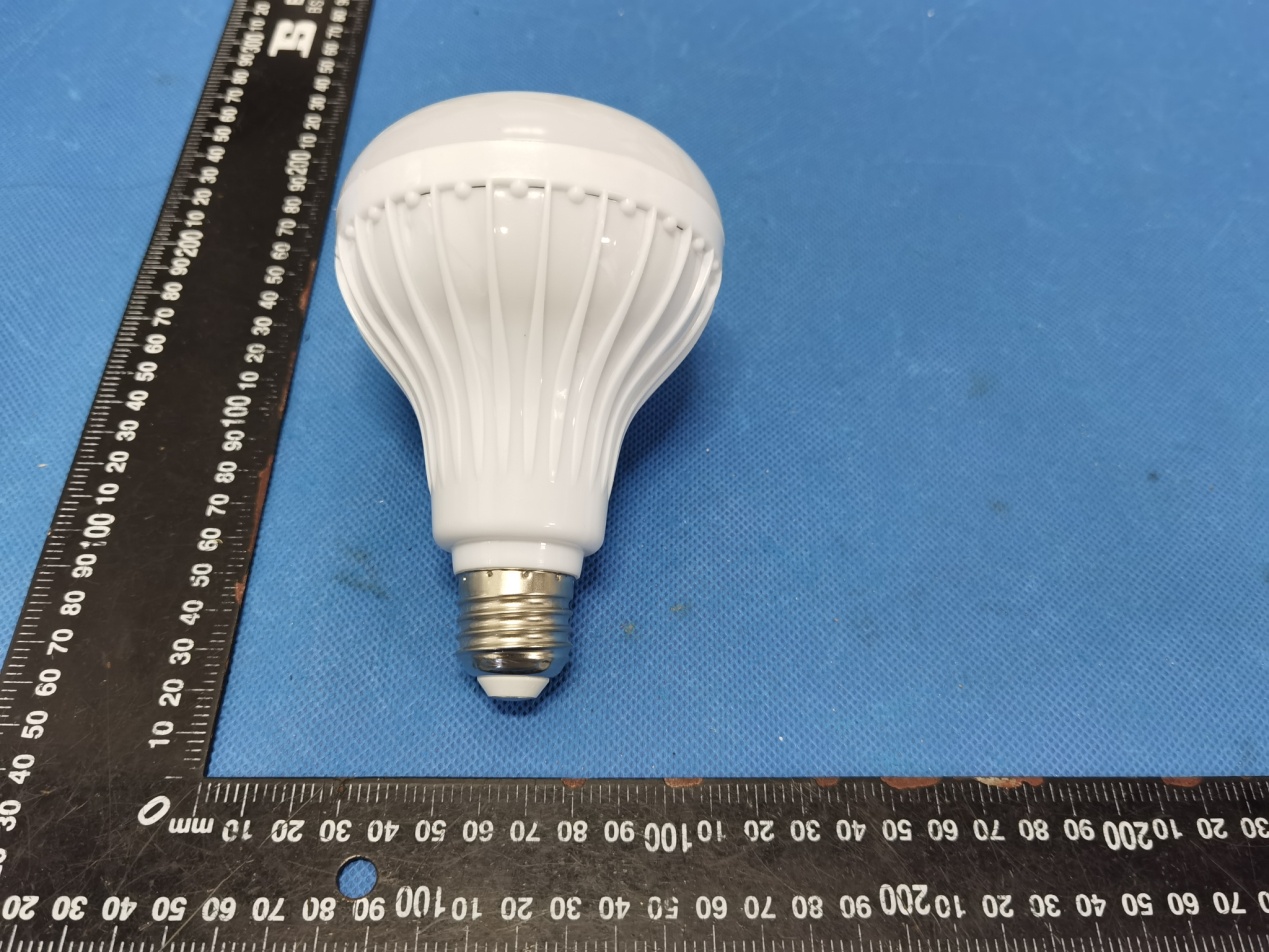

Annex A External Photos Report No.: HK2206202655‐E Page 1 of 4 Report No.: HK2206202655‐E Page 2 of 4 Report No.: HK2206202655‐E Page 3 of 4 Report No.: HK2206202655‐E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 40mm label location FCC ID: 2A22V‐MICS114

Annex B Internal Photos Report No.: HK2206202655‐E Page 1 of 4 Report No.: HK2206202655‐E Page 2 of 4 Report No.: HK2206202655‐E Page 3 of 4 Report No.: HK2206202655‐E Page 4 of 4 Antenna

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

MPE ESTIMATION FCC ID: 2A22V-MICS114 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) BLE 2480 2.59 2±1(3) 1.995 -0.58 0.875 0.00035 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2206202655-E, antenna gain=-0.58dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00035 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 50 Report No.: HK2206202655-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) For LED bulb bluetooth speaker Model No.: MIC-S114 FCC ID: 2A22V-MICS114 Prepared for : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jun. 28, 2022 ~ Jul. 05, 2022 Date of Report: Jul. 05, 2022 Report Number: HK2206202655-E Page 2 of 50 Report No.: HK2206202655-E TEST RESULT CERTIFICATION Applicant’s name.................... : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Address .................................... : 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Manufacture's Name .............. : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Address .................................... : 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Product description Trade Mark: Product name ............................. : LED bulb bluetooth speaker Model and/or type reference ... : MIC-S114 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247, C63.10:2013, KDB 558074 D01 15.247 Meas Guidance v05r02 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ............... : Jun. 28, 2022 ~ Jul. 05, 2022 Date of Issue ............................................. : Jul. 05, 2022 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 50 Report No.: HK2206202655-E Contents Page CONTENTS .............................................................................................................................................................. 3 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ...................................................................................................................................... 6 1.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 7 1.3 INFORMATION OF THE TEST LABORATORY .................................................................................................... 8 2 GENERAL INFORMATION ............................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................. 8 2.2 DESCRIPTION OF TEST CONDITIONS ............................................................................................................ 10 2.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 4 TEST RESULT .............................................................................................................................................. 13 4.1 ANTENNA REQUIREMENT ............................................................................................................................ 13 4.1.1 Standard requirement ...................................................................................................................... 13 4.1.2 EUT Antenna ................................................................................................................................... 13 4.2 CONDUCTION EMISSIONS MEASUREMENT ................................................................................................... 14 4.2.1 Applied procedures / Limit ............................................................................................................... 14 4.2.2 Test procedure ................................................................................................................................. 14 4.2.3 Test setup ........................................................................................................................................ 15 4.2.4 Test results ...................................................................................................................................... 16 4.3 RADIATED EMISSIONS MEASUREMENT ........................................................................................................ 18 4.3.1 Applied procedures / Limit ............................................................................................................... 18 4.3.2 Test setup ........................................................................................................................................ 18 4.3.3 Test Result ....................................................................................................................................... 20 4.4 MAXIMUM OUTPUT POWER MEASUREMENT .......................................................................................…

Text truncated - open the document above for the full version.

Radiated Emissions Conducted Emission
