2A22V-MWP01Power Bank - Magnetic Wireless Charger

Model: MIC‐MWP01 Battery Capacity:3.7V 5000mAh Micro USB input: DC 5V 2A USB‐A output: DC 5V 2.1A USB‐C output: DC 5V 2.1A Wireless Output: 5W Total output :5V 2.1A Product size (LxWxH mm):133*83*26MM Weight of product:128g LED Charging Indicator (Yes or No):Yes What does the LED Light show when the powerbank is connected with charger cable: Blue What does the LED Ligh t show when the powerbank is charging for mobile phone: Green LED light flashes, then Blue LED on What does the LED Light show when the wireless charger is charging for mobile phone: Green LED on FOD for mobilephone charging area: Red LED flashing Accessories included with product Micro USB Charging cable This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Agent Authorization Company: Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Address: 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Product Name: Power Bank – Magnetic Wireless Charger Model Number(s): MIC-MWP01 Product Description: Power Bank – Magnetic Wireless Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 11, 2022 Name: Winnie He Title: Sales Company: Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch)

< Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Jul. 11, 2022 Subject; Request for Long Term Confidentiality FCC ID: 2A22V-MWP01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Name: Winnie He Date: Jul. 11, 2022 Title: Sales Signature of applicant:

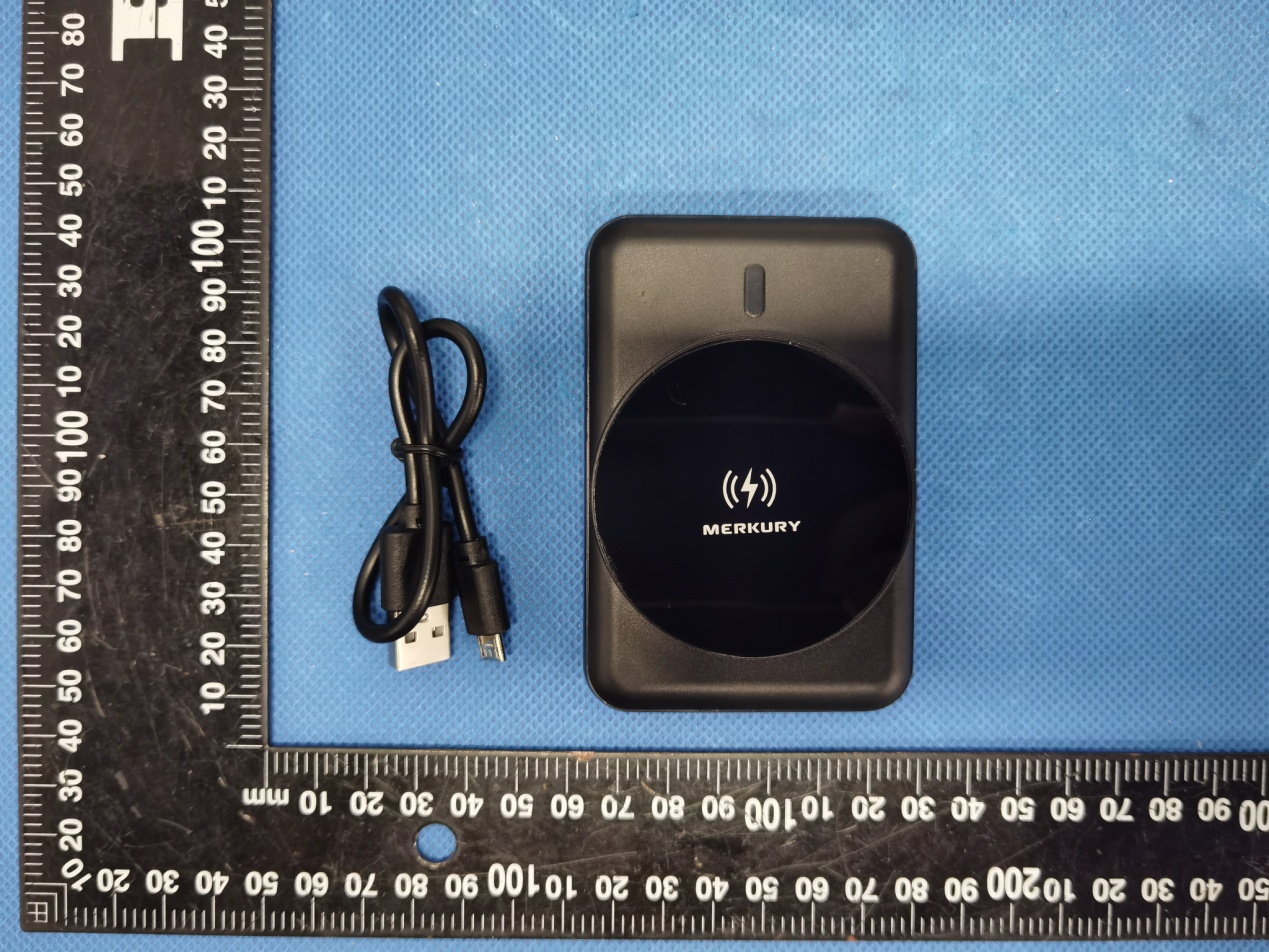

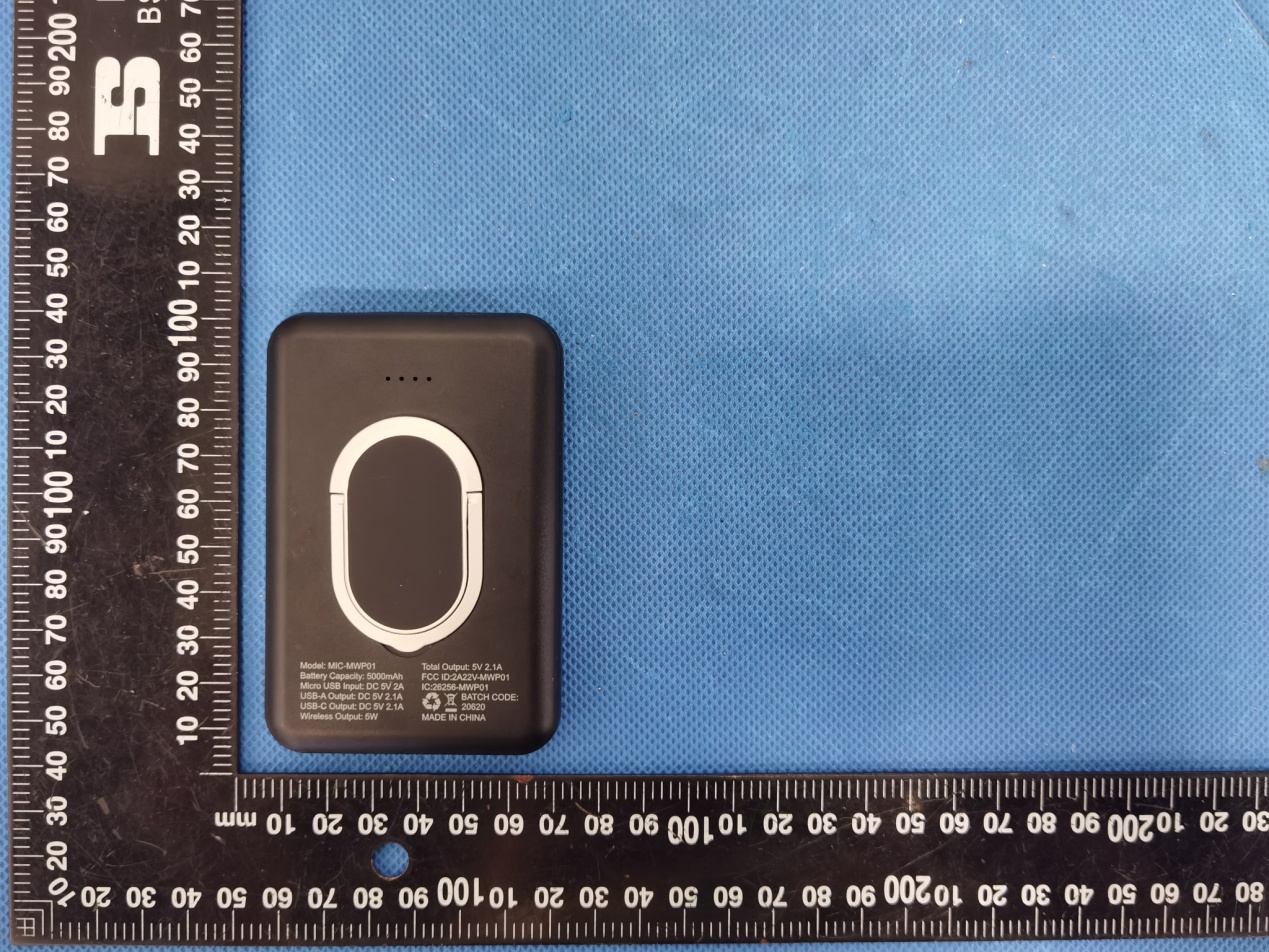

Annex A External Photos Model No.: MIC‐MWP01 Page 1 of 4 Model No.: MIC‐MWP01 Page 2 of 4 Model No.: MIC‐MWP01 Page 3 of 4 Model No.: MIC‐MWP01 Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A22V-MWP01

Annex B Internal Photos Model No.: MIC‐MWP01 Page 1 of 3 Antenna Model No.: MIC‐MWP01 Page 2 of 3 Model No.: MIC‐MWP01 Page 3 of 3

Page 1 of 12 Report No.: HK2203221082-2E FCC TEST REPORT Test report On Behalf of Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) For Power Bank – Magnetic Wireless Charger Model No.: MIC-MWP01 FCC ID: 2A22V-MWP01 Prepared For : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 20, 2022 ~ May. 27, 2022 Date of Report: May. 27, 2022 Report Number: HK2203221082-2E Page 2 of 12 Report No.: HK2203221082-2E Note: 1. For a more detailed features description, please refer to the manu facturer’s specifications or the User's Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 121 The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. 2. SUMMARY OF TEST RESULTS 2.1. Test procedures according to the technical standards: FCC KDB680106 D01 RF Exposure Wireless Charging Apps v03r01 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03r01 (3)(3) Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 2.2. Measurement Uncertainty The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 All emissions, radiated(<30M)(9KHz-30MHz) ±3.90dB 2 Temperature ±0.5°C 3 Humidity ±2% Page 3 of 12 Report No.: HK2203221082-2E 2.3. Test Instruments Description Brand Model No. Frequency Range Calibrated Date Calibrated Until Exposure Level Te s t e r narda ELT-400 N-0231 Feb. 18, 2022 Feb. 17, 2023 Magnetic field probe 100cm 2 narda ELT probe 100cm2 M0675 Feb. 18, 2022 Feb. 17, 2023 NOTE: 1. The calibration interval of the above test instruments is 12 months. Page 4 of 12 Report No.: HK2203221082-2E 3. MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density. Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03r01. Note 3: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Page 5 of 12 Report No.: HK2203221082-2E 4. TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance 20cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 20 cm measured from the center of the probe(s) to the edge of the device. 4.1 Test Setup 4.2 Result Of Maximum Permissible Exposure Page 6 of 12 Report No.: HK2203221082-2E For Full load mode: H-Field Strength at 20 cm from the edges surrounding the EUT (A/m) Measuring distance (cm) Field strength Test Position A Test Position B Test Position C Test Positio n D Test Position E Test Position F Limits (A/m) 0 uT 0.819 0.860 0.841 0.886 0.866 0.868 / A/m 0.655 0.688 0.673 0.709 0.693 0.694 1.63 2 uT 0.713 0.701 0.757 0.759 0.735 0.716 / A/m 0.571 0.561 0.605 0.607 0.588 0.573 1.63 4 uT 0.720 0.671 0.686 0.698 0.726 0.684 / A/m 0.576 0.537 0.549 0.558 0.581 0.547 1.63 6 uT 0.632 0.616 0.686 0.669 0.687 0.641 / A/m 0.505 0.493 0.549 0.536 0.550 0.513 1.63 8 uT 0.585 0.558 0.571 0.543 0.508 0.523 / A/m 0.468 0.446 0.457 0.435 0.406 0.418 1.63 10 uT 0.404 0.452 0.481 0.467 0.470 0.471 / A/m 0.323 0.362 0.385 0.374 0.376 0.377 1.63 12 uT 0.426 0.418 0.403 0.402 0.408 0.439 / A/m 0.341 0.334 0.322 0.321 0.326 0.351 1.63 14 uT 0.307 0.311 0.330 0.306 0.310 0.330 / A/m 0.246 0.249 0.264 0.245 0.248 0.264 1.63 16 uT 0.355 0.325 0.305 0.355 0.337 0.341 / A/m 0.284 0.260 0.244 0.284 0.270 0.272 1.63 18 uT 0.318 0.370 0.312 0.361 0.312 0.320 / A/m 0.254 0.296 0.249 0.289 0.249 0.256 1.63 20 uT 0.365 0.339 0.316 0.351 0.329 0.324 / A/m 0.292 0.272 0.253 0.280 0.264 0.259 1.63 Note. Calculation: A/m=uT/1.25 Page 7 of 12 Report No.: HK2203221082-2E For Half Load mode: H-Field Strength at 20 cm from the edges surrounding the EUT (A/m) Measuring distance (cm) Field strength Test Position A Test Position B Test Position C Test Position D Test Position E Test Position F Limits (A/m) 0 uT 0.820 0.844 0.827 0.811 0.857 0.834 / A/m 0.656 0.676 0.662 0.649 0.686 0.667 1.63 2 uT 0.808 0.803 0.836 0.816 0.889 0.816 / A/m 0.647 0.643 0.669 0.653 0.711 0.653 1.63 4 uT 0.721 0.715 0.738 0.742 0.720 0.746 / A/m 0.577 0.572 0.590 0.594 0.576 0.597 1.63 6 uT 0.710 0.774 0.778 0.735 0.708 0.736 / A/m 0.568 0.619 0.623 0.588 0.567 0.589 1.63 8 uT 0.630 0.662 0.631 0.674 0.680 0.618 / A/m 0.504 0.530 0.505 0.539 0.544 0.494 1.63 10 uT 0.608 0.605 0.612 0.684 0.635 0.672 / A/m 0.487 0.484 0.489 0.547 0.508 0.538 1.63 12 uT 0.507 0.572 0.579 …

Text truncated - open the document above for the full version.

Page 1 of 20 Report No.: HK2203221082-1E FCC TEST REPORT Test report On Behalf of Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) For Power Bank – Magnetic Wireless Charger Model No.: MIC-MWP01 FCC ID: 2A22V-MWP01 Prepared For : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 20, 2022 ~ May. 27, 2022 Date of Report: May. 27, 2022 Report Number: HK2203221082-1E Page 2 of 20 Report No.: HK2203221082-1E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Address.................................. : 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Manufacture's Name ............ : Shenzhen DXR Electronic Technology Co., Limited (Dongguan Branch) Address.................................. : 4th Floor, #5 Building, #189, Yongji Industrial, Zhuweitian, Fenggang Town, Dongguan, China Product description Trade Mark: MERKURY Product name ............................ : Power Bank – Magnetic Wireless Charger Model and/or type reference : MIC-MWP01 Standards ............................. : FCC CFR 47 PART 18 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : May. 20, 2022 ~ May. 27, 2022 Date of Issue ........................................... : May. 27, 2022 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 20 Report No.: HK2203221082-1E Table of Contents Page 1 . TEST SUMMARY 5 1.1 . Test Procedures And Results 5 1.2 . Information of the Test Laboratory 5 1.3 . Measurement Uncertainty 5 2. GENERAL INFORMATION 6 2.1. General Description of EUT 6 2.2. Carrier Frequency of Channels 7 2.3. Operation of EUT during testing 7 2.4. Description of Test Setup 7 2.5. Measurement Instruments List 8 3. CONDUCTED EMISSION TEST 9 3.1. Block Diagram of Test Setup 9 3.2. Conducted Power Line Emission Limit 9 3.3. Test Procedure 9 4. RADIATED EMISSIONS 12 4.1. Block Diagram of Test Setup 12 4.2. Rules and specifications 12 4.3. Test Procedure 13 5. ANTENNA REQUIREMENT 17 6. PHOTOGRAPH OF TEST 18 7. PHOTOS OF THE EUT 20 Page 4 of 20 Report No.: HK2203221082-1E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release May. 27, 2022 Jason Zhou Page 5 of 20 Report No.: HK2203221082-1E 1. TEST SUMMARY 1.1. Test Procedures And Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 18.307 COMPLIANT RADIATED EMISSION TEST 18.305 COMPLIANT Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.90dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 20 Report No.: HK2203221082-1E 2. GENERAL INFORMATION 2.1. General Description of EUT Equipment: Power Bank – Magnetic Wireless Charger Model Name: MIC-MWP01 Series Models: N/A Model Difference: N/A Trade Mark: MERKURY FCC ID: 2A22V-MWP01 Antenna Type: Coil Antenna Antenna Gain: 0dBi Operation frequency: 111.5KHz~205KHz Test frequency: 121KHz Number of Channels: 1 Modulation Type: ASK Power Source: Battery Capacity: 5000mAh Micro USB Input: DC 5V 2A USB-A Output: DC 5V 2.1A USB-C Output: DC 5V 2.1A Wireless Output: 5W Total Output: 5V 2.1A Power Rating: Battery Capacity: 5000mAh Micro USB Input: DC 5V 2A USB-A Output: DC 5V 2.1A USB-C Output: DC 5V 2.1A Wireless Output: 5W Total Output: 5V 2.1A Page 7 of 20 Report No.: HK2203221082-1E 2.2. Carrier Frequency of Channels Operation Frequency each of channel Channel Frequency 1 121KHz 2.3. Operation of EUT during testing Operating Mode The mode is used: Transmitting mode 2.4. Description of Test Setup Operation of EUT during testing: AC Plug Adapter information Model: HW-059200CHQ Input: 100-240V, 50/60Hz, 0.5A Output: 5VDC, 2A The sample was placed (0.8m (30MHz~1GHz), 0.8m (9KHz~30MHz) ) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The wor…

Text truncated - open the document above for the full version.

MIC-MWP01 Radiated Emission Conducted Emission
