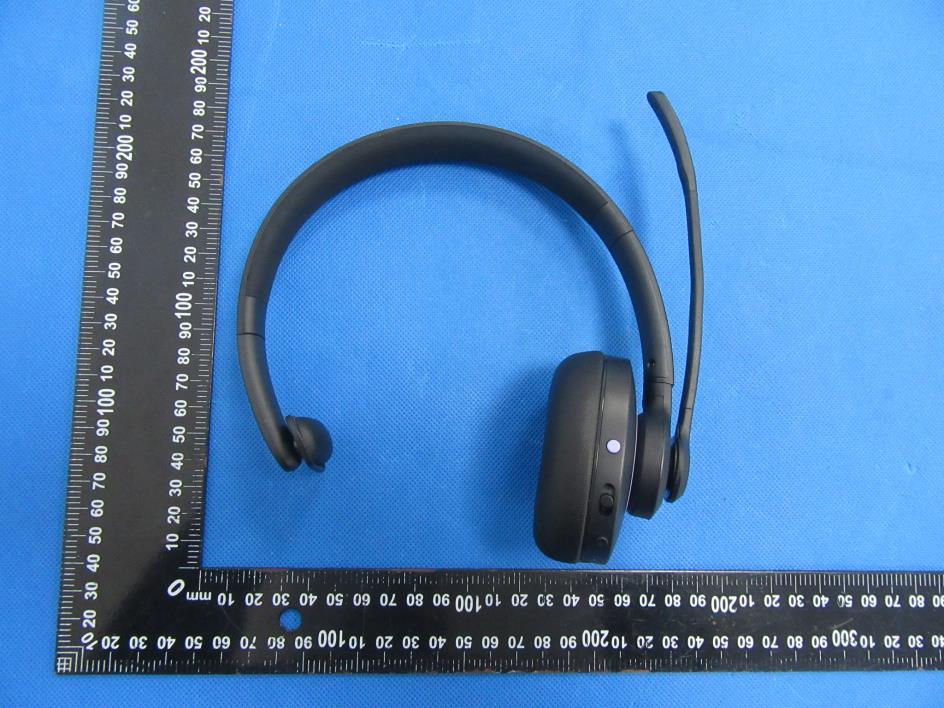

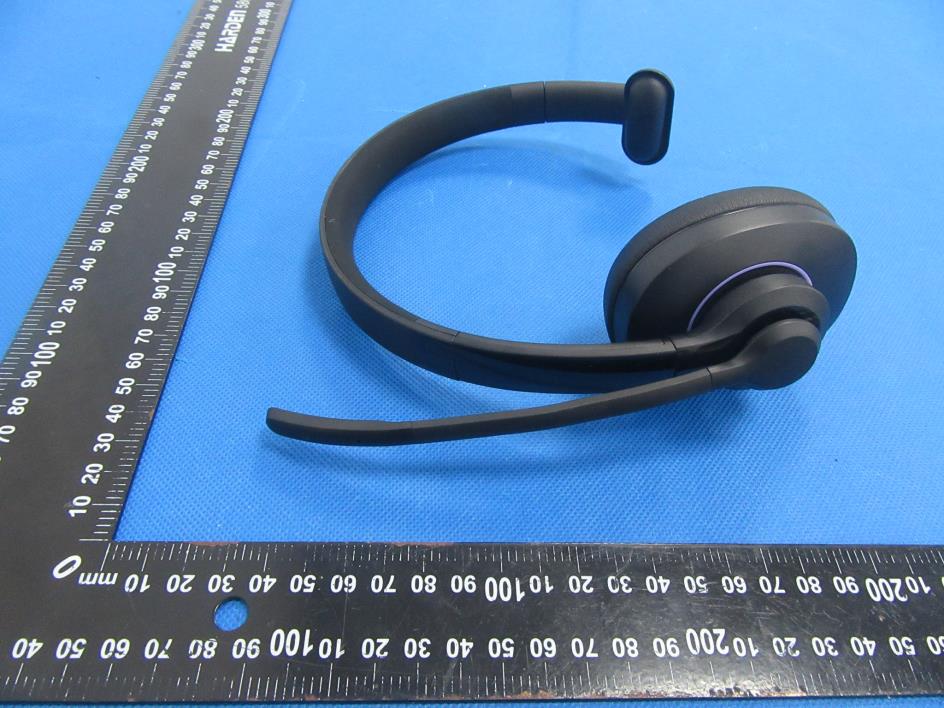

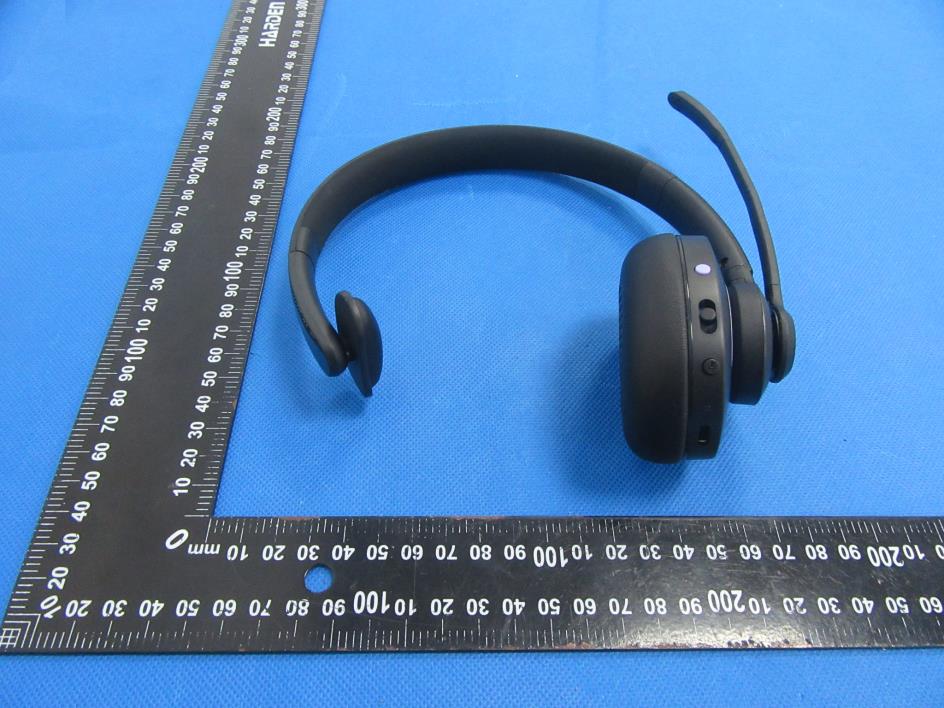

External Photos

Size:10*5mm Label Location FCC ID: 2A2F7HST-180

Internal Photos Antenna

FCC ID: 2A2F7HST-180 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK 2.402 -0.14 0.97 0±1 1.00 1.26 <5 0.39023 3.00 YES Pi/4 DQPSK 2.402 2.64 1.84 2±1 3.00 2.00 <5 0.61847 3.00 YES 8DPSK 2.402 3.67 2.33 3±1 4.00 2.51 <5 0.77860 3.00 YES Conclusion: For the max result : 0.77860＜3.0, the SAR testing is not required.

深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page1 of 8 SPECIFICATION Ceramic Antenna 3216 Size 2400-2500 MHz P/N: HM3216ANT2450-HM02 深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page2 of 8 1. Frequency 2400-2500 MHz 2. Applications For Miniaturized Bluetooth System 3. Dimensions (Unit : mm) 1). Over View : 2). PCB Layout (Unit : mm) : 深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page3 of 8 4. Evaluation Board Size and Matching Circuits 5. Electrical Characteristics Part Number HM3216ANT2450-HM02 Central Frequency 2450 MHz Bandwidth 100(typ.) MHz V.S.W.R ≤2.0 Peak Gain 4.34 dBi Impedance 50 Ohm Polarization Linear Azimuth Beamwidth Omni-directional 4.7 nH 0.5 pF 深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page4 of 8 6. Return Loss (S11) 7. Radiation Pattern & Efficiency Frequency (MHz) 2400 2450 2500 Efficiency (dB) -1.87 -1.67 -1.94 Efficiency (%) 65 68 64 Gain (dBi) 3.12 4.34 3.45 深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page5 of 8 8. Reflow Soldering Standard Condition 9. Packaging and Dimensions
Plastic Tape HM3216ANT2450-HM02_V1.0
Remarks for Package Reserve a length of 150~200mm for the trailer of the carrier and 250~300 mm for the leader of the carrier and further 250mm of cover tape at the leading part of the carrier.
Reel (6000 pcs/Reel)
Storage Period Oxidizable Material, 12 months in vacuum sealed bag, please repack within 168 hours by re-seal the package treatment after using. Storage Temperature Range : <30 degree C, Humidity : <60%RH 深圳市和鸣微科技有限公司 Shenzhen HamyWe Reserve a length of 150~200mm for the trailer of the carrier and 250~300 mm for the leader of the carrier and further 250mm of cover tape at the leading part of the Oxidizable Material, 12 months in vacuum sealed bag, please repack within 168 seal the package treatment after using. Storage Temperature Range : <30 degree C, Humidity : <60%RH 深圳市和鸣微科技有限公司 Technology Co., Ltd. Page6 of 8 Reserve a length of 150~200mm for the trailer of the carrier and 250~300 mm for the leader of the carrier and further 250mm of cover tape at the leading part of the Oxidizable Material, 12 months in vacuum sealed bag, please repack within 168 深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page7 of 8 10. Dependability Test Test item Test condition / Test method Specification Solderability IEC 60068-2-58 GB/T2423.28 *Solder bath temperature：240±5°C *Immersion time：2±0.5 sec Solder：Sn96.5Ag3.0Gu0.5 for lead-free. At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) JIS C5101 *Solder bath temperature：260±5°C *Leaching immersion time：10±1 sec Solder : Sn96.5 Ag3.0 Gu0.5 for lead-free. Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat IEC 60068-2-58 GB/T2423.28 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：260±5°C *Immersion time：10±1 sec Solder：Sn96.5Ag3.0Gu0.5 for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics at the room temperature. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test IEC 60068-2-32 GB/T2423.8 Customer’s specification. *Height：50 cm *Test Surface: Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics at the room temperature. Vibration IEC 60068-2-6 GB/T 2423.10 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics at the room temperature. Adhesive Strength of Termination IEC60068-2-21 GB/T 2423.6 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time:10±1 sec No remarkable damage or removal of the termination. 深圳市和鸣微科技有限公司 Shenzhen HamyWe Technology Co., Ltd. HM3216ANT2450-HM02_V1.0 Page8 of 8 Bending test IEC 60068-2-21 GB/T 2423.29 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 2mm and then pressure shall be maintained for 10±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics at the room temperature. Temperature cycle IEC60068-2-14 GB/T 2423.22 30 minutes at-40°C±2°C. 10~15 minutes at room temperature. 30minutes at +85°C±2°C. 10~15 minutes at room temperature. Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24±2 hrs. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics at the room temperature. High temperature IEC 60068-2-2 GB/T2423.2 *Temperature：85±2°C. *Test duration：500+24/-0 hours. Measurement to be made after keeping at room temperature for 24±2 hrs. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics. Humidity (steady conditions) IEC60068-2-3 GB/T 2423.3 *Humidity：85±5%R.H. *Temperature：85±2°C. *Time：500+24/-0 hrs. Measurement to be made after keeping at room temperature for 24±2 hrs ※ 200hrs measuring the first data then 300hrs data. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics at the room temperature. Low temperature IEC 60068-2-1 GB/T2423.1 *Temperature：-40±2°C. *Test duration：500+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs. No mechanical damage. Electrical specification shall satisfy the descrip…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-007 Page: 1 of 75 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2212673931E Applicant: Shenzhen Xingman Smart Technology Co., Ltd. Product Name: HST-18X Model/Type reference: HST-180 Tested Date: 2022-12-16 to 2022-12-20 Issued Date: 2022-12-28 Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 2 of 75 Edition：A.5 FCC ID: 2A2F7HST-180 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: HST-18X Trademark: N/A Model/Type Reference: HST-180 HST-181, HST-182, HST-183, HST-184, HST-185, HST-187, HST-188, HST-189 Prepared For: Shenzhen Xingman Smart Technology Co., Ltd. Address: 3F, Building E , No.2 Lixin Road, Fu yong , Bao’an District, Shen Zhen China Manufacturer: Shenzhen Xingman Smart Technology Co., Ltd. Address: 3F, Building E , No.2 Lixin Road, Fu yong , Bao’an District, Shen Zhen China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-12-16 Sample tested Date: 2022-12-16 to 2022-12-20 Issue Date: 2022-12-28 Report No.: BCTC2212673931E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 3 of 75 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 Test Result ..............................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 60 of 75 Edition：A.5 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 61 of 75 Edition：A.5 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 62 of 75 Edition：A.5 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 63 of 75 Edition：A.5 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 64 of 75 Edition：A.5 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 65 of 75 Edition：A.5 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 66 of 75 Edition：A.5 Modulation Channel Data Packet pulse time(ms) Dwell Time(s) Limits(s) GFSK Middle 1DH1 0.376 0.120 0.4 1DH3 1.632 0.261 0.4 1DH5 2.870 0.306 0.4 π/ 4 DQPSK Middle 2DH1 0.386 0.124 0.4 2DH3 1.638 0.262 0.4 2DH5 2.880 0.307 0.4 8DPSK Middle 3DH1 0.386 0.124 0.4 3DH3 1.632 0.261 0.4 3DH5 2.880 0.307 0.4 Test Plots GFSK DH1 Middle Channel Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 67 of 75 Edition：A.5 GFSK DH3 Middle Channel GFSK DH5 High Middle Channel Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 68 of 75 Edition：A.5 π/ 4 DQPSK DH1 Middle Channel π/ 4 DQPSK DH3 Middle Channel Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 69 of 75 Edition：A.5 π/ 4 DQPSK DH5 Middle Channel 8DPSK DH1 Middle Channel Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 70 of 75 Edition：A.5 8DPSK DH3 Middle Channel 8DPSK DH5 Middle Channel Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 71 of 75 Edition：A.5 15. Antenna Requirement 15.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is Ceramic Antenna, fulfill the requirement of this section. Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 72 of 75 Edition：A.5 16. EUT Photographs EUT Photo NOTE: Appendix-Photographs Of EUT Constructional Details Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 73 of 75 Edition：A.5 17. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 74 of 75 Edition：A.5 Report No.:BCTC2212673931E No.：BCTC/RF-EMC-007 Page: 75 of 75 Edition：A.5 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The test report without CMA mark is only used for scientific research, teaching, enterprise product development and internal quality control purposes. 8. The quality system of our laboratory is in accordance with ISO/IEC17025. 9. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL：400-788-9558 P. C.: 518103 FAX：0755-332293…
