Outdoor Access Point ACCESS POINTS FÜR AUßENBEREICHE POINTS D'ACCÈS EXTÉRIEURS Quick Start Guide Quick-Start Anleitung Guide de Démarrage Rapide V1.0 Introduction Accessories Thank you for choosing the enterprise Wi-Fi 6 access point. This guide is designed to familiarize you with the layout of the access point and describes how to deploy the access point in your network. AP-T565/AP-T567 1 AP-T565 Anchor ears x2Anchor x1Transverse bracket& Bottom plate x1 Dust cover x3Waterproof Joint for PoE&Power ports x2 Waterproof Joint for LC ber optic cable x1 EN Grounding Cable x1 M6 screw bolts x4 Anchor ears x2Bracket components x1Bracket x1 Dust cover x3Waterproof Joint for PoE&Power ports x2 M5 Screws x4 M6 Screws x2 2 AP-T567 Waterproof Joint for LC ber optic cable x1 Grounding Cable x1 M6 screw bolts x4 M5 Screws x4 M8 Screws x2 EN Hardware Overview AP-T565/AP-T567 Ports Button Ports ETH/PoE Console SFP Power Ethernet cable power supply An RJ45 console port for serial management SFP ports for 1/2.5G connection 48V DC power port Description 3 Reset EN 1 2 3 4 console power ETH/POE SFP Installation Requirements LEDs Install the AP indoors. Make sure the oor of the installation site is dry and at. Place the AP in a dry area and avoid liquid intrusion. Keep the AP and installation tools away from walkways. Do not power the AP during installation. Install the AP in a well-ventilated location. Keep away from high voltage cables. Keep the AP clean and dust-free. 4 Button Reset Restart: Press the Reset button for less than 2 seconds. Restore to Factory Default Settings: Press the Reset button for more than 3 seconds. Description Signal strength: -70dBm~ -50dBm LEDs SYS Signal strength indicator (3 lights only light up while bridging) Blinking Green Solid Green Solid Orange Blinking Red 1 Light On 2 Lights On 3 Lights On In progress of initialization. Normal operation. Initialization is complete without a CAPWAP connection. Initialization is complete, but the Ethernet link is down. Signal strength: ≤-70dBm Signal strength: ≥-50dBm StateDescription EN SYS Signal strength indicator Mounting the Access Point 1. Fix the anchor on the ceiling with four M6 screws. 2. Remove screws of the bottom plate and vertically insert the transverse bracket into the bottom plate, then screw it with two M6 screws. Ceiling Mount 5 transverse bracket bottom plate AP-T565 anchor EN 3. Fix the bottom plate and transverse bracket on the back of the access point with four M5 screws. 4. Fix the anchor on the ceiling with the transverse bracket with two M8 screws. 6 EN 1. Fix the bottom plate and transverse bracket on the back of the access point with M5 screws. 2. Fix the anchor onto a mast with 2 anchor ears. Masting Mount 7 NOTE: The logo “TOP” should be on the upper part of the anchor. anchor mast TOP anchor ear EN 1. Fix the host bracket components on the back of the access point with four M5 screws. AP-T567 3. Fix the anchor on the rod with the transverse bracket with M8 screws 8 EN 2. Masting Mount: Fix the bracket on a rod with two anchor ears. Wall Mount: Fix the bracket on the wall with four M6 screws. 9 EN Grounding the Access Point 3. Insert the host bracket components into the bracket and screw it with four M6 screws. (This step in wall mounting is the same as below. ) Connect one end of the grounding cable to the grounding hole on the access point and the other end to a proper ground site. 10 NOTE: 1. After installation, check that the AP is securely fastened. 2. Carefully choose matched screws in dierent steps. AP-T565/AP-T567 EN Connecting the Ethernet cable 1. Thread the Ethernet cable without crystal head through the waterproof joints in sequence as shown in the following gure. 2. Fix a crystal head on the Ethernet cable and bind waterproof materials between B and C. 3. Insert the crystal head into the ETH/PoE port and screw up A, B, C, and D in sequence. 11 A B C D A B C D EN Conguring the Access Point Conguring the AP via the Web-based Interface Step 1: Connect a computer to the business port of the AP using the network cable. Step 2: Set the IP address of the computer to “192.168.1.x” (“x” is any number from2 to 254). Step 3: Open a browser, type “http://192.168.1.1” and enter the default username and password(both are “admin”). 12 ? x OKC a n c e l General I P a d d r e s s : S u b n e t ma s k : D efau l t g a t e wa y : Y o u can get IP s e t t i ngs assigned a u t o maticall y i f y o u r networ k s u ppor t s this capability . Otherwise, y o u need t o ask y o u r net work admi n istrato r for t he a p prop r iate I P set tings. I n ternet Protoco l V e r s i on 4 (TCP/IPv4) Prope r ties U s e t h e f o l l o w i n g IP a d d r e s s : O b t a i n a n IP a d d r e s s a u t o ma t i c a l l y Pref er red DNS server : Alt er nate DNS server : Validate settings upon exit A d v a n c e d . . . . . . 21168192 0255 255255 . . . . . . . . . . . . O b t a i n D N S s e r v e r a d d r e s s a u t o ma t i c a l l y U s e t h e f o l l o w i n g D N S s e r v e r a d d r e s ses: admin ***** Access Point Login EN Conguring the AP via the Console Port (FAT AP Mode) Step 1: Connect a computer to the AP’s console port using the console cable. Step 2: Start the terminal simulation software such as “HyperTerminal” on the computer. Step 3: Set the parameters of the “HyperTerminal”: 9600 bits per second, 8 data bits, no parity, 1 stop bit and no ow control. Step 4: Click “Login” to display the web-based conguration page. Step 5: Click “System Mode Switch” to switch the FIT/FAP working mode. 13 System Mode NOTE: The device restarts after mode switch. Plese wait for a minute. Current Mode: Fit AP Mode AC AP AP ROUTER AP POSE SW Fit AP Mode Fit AP Mode POSE SW CLLENT CLLENT InternetInternet NOTE: The AP works in Fit AP Mode by default. EN Step 4: After setting the parameters, click “Connect” to enter. And then enter the password(“admin” by default). 14 NOTE: For more details, please refer to the Conguration …

Text truncated - open the document above for the full version.

Anschließen des Ethernet-Kabels 1. Fädeln Sie das Ethernet-Kabel ohne Modularstecker nacheinander durch die wasserdichten Verbindungen, wie in der folgenden Abbildung gezeigt. 2. Befestigen Sie einen Modularstecker auf dem Ethernet-Kabel und verbinden Sie wasserfeste Materialien zwischen B und C. 3. Führen Sie den Modularstecker in den ETH/PoE-Port ein und verschrauben Sie nacheinander A, B, C und D. 27 A B C D A B C D DE Kongurieren des Access Points Kongurieren des APs über die webbasierte Schnittstelle Schritt 1: Schließen Sie einen Computer über das Netzwerkkabel an den Business-Port des APs an. Schritt 2: Stellen Sie die IP-Adresse des Computers auf "192.168.1.x" ein ("x" ist eine beliebige Zahl von 2 bis 254) Schritt 3: Önen Sie einen Browser, tragen Sie "http://192.168.1.1" ein und geben Sie den Standard-Benutzernamen und das Standard-Passwort ein (beide sind "admin"). ? x OKC a n c e l General I P a d d r e s s : S u b n e t ma s k : D efau l t g a t e wa y : Y o u can get IP s e t t i ngs assigned a u t o maticall y i f y o u r networ k s u ppor t s this capability . Otherwise, y o u need t o ask y o u r net work admi n istrato r for t he a p prop r iate I P set tings. I n ternet Protoco l V e r s i on 4 (TCP/IPv4) Prope r ties U s e t h e f o l l o w i n g IP a d d r e s s : O b t a i n a n IP a d d r e s s a u t o ma t i c a l l y Pref er red DNS server : Alt er nate DNS server : Validate settings upon exit A d v a n c e d . . . . . . 21168192 0255 255255 . . . . . . . . . . . . O b t a i n D N S s e r v e r a d d r e s s a u t o ma t i c a l l y U s e t h e f o l l o w i n g D N S s e r v e r a d d r e s ses: admin ***** Access Point Login 28 DE Kongurieren des APs über den Konsolen-Port (FAT AP Modus) Schritt 1: Verbinden Sie einen Computer über das Konsolenkabel mit dem Konsolen-Port des APs. Schritt 2: Starten Sie die Terminal-Simulationssoftware wie z.B. "HyperTerminal" auf dem Computer. Schritt 3: Stellen Sie die Parameter von "HyperTerminal" ein: 9600 Bits pro Sekunde, 8 Datenbits, keine Parität, 1 Stoppbit und keine Flusskontrolle. Schritt 4: Klicken Sie auf "Login", um die webbasierte Kongurationsseite anzuzeigen. Schritt 5: Klicken Sie auf "System Mode Switch", um den FIT/FAP-Arbeitsmodus zu wechseln. HINWEIS: Der AP arbeitet standardmäßig im Fit-AP-Modus. 29 DE System Mode NOTE: The device restarts after mode switch. Plese wait for a minute. Current Mode: Fit AP Mode AC AP AP ROUTER AP POSE SW Fit AP Mode Fit AP Mode POSE SW CLLENT CLLENT InternetInternet Schritt 4: Nachdem Sie die Parameter eingestellt haben, klicken Sie auf "Connect", um die Verbindung herzustellen. Geben Sie dann das Passwort ein ("admin" als Standard). HINWEIS: Weitere Einzelheiten entnehmen Sie bitte dem Kongurationshandbuch auf der Website. 30 DE x Quick Connect Protocol:Serial Flow Control DTR/DSR RTS/CTS XON/XOFF Save sessionShow quick connect on startup The port may be manually entered or selected from the list. Open in a tab Cancel COM3 9600 8 None 1 Port: Baud rate: Data bits: Parity: Stop bits: Name of pipe: Connect Fehlersuche Der Bildschirm zeigt an, dass die Anfrage zeitlich abgelaufen ist Das LED ist nach dem Einschalten des APs aus Der Ethernet-Port funktioniert nach dem Anschließen nicht Der Wireless-Client kann den AP nicht nden 1. Überprüfen Sie, ob das Netzwerkkabel intakt ist. 2. Prüfen Sie, ob die Hardwareverbindung korrekt ist. 3. Prüfen Sie, ob die Anzeigen des APs und des Computers normal sind. 4. Prüfen Sie, ob die IP-Adresse des Computers richtig eingestellt ist. 1. Prüfen Sie bei PoE-Stromversorgung, ob die Stromquelle IEEE 802.11af/at-konform ist oder ob das Ethernet-Kabel richtig angeschlossen ist. 2. Prüfen Sie bei der Stromversorgung über den Gleichstromadapter, ob der Adapter an eine aktive Steckdose angeschlossen ist oder ob der Adapter ordnungsgemäß funktioniert. Prüfen Sie, ob das Gerät am anderen Ende des Ethernet-Kabels ordnungsgemäß funktioniert, ob das Ethernet-Kabel die erforderliche Datenrate liefern kann oder ob es richtig angeschlossen ist. 1. Prüfen Sie, ob die Stromversorgung ordnungsgemäß funktioniert. 2. Prüfen Sie, ob der Ethernet-Port richtig angeschlossen ist. 3. Prüfen Sie, ob der AP richtig konguriert ist. 4. Bewegen Sie das Client-Gerät, um den Abstand zwischen dem Client und dem AP anzupassen. 31 DE FS garantiert seinen Kunden, dass im Falle von Schäden oder fehlerhaften Artikeln, die auf unsere Verarbeitung zurückzuführen sind, eine kostenlose Rücksendung innerhalb von 30 Tagen ab dem Tag des Erhalts der Ware angeboten wird. Dies gilt nicht für Sonderanfertigungen oder maßgeschneiderte Lösungen. Online-Ressourcen Download Hilfecenter Kontakt Produktgarantie Garantie: Für dieses Produkt gilt eine beschränkte Garantie von 3 Jahren auf Material- und Verarbeitungsfehler. Weitere Einzelheiten zur Garantie nden Sie unter https://www.fs.com/de/policies/warranty.html Rückgabe: Wenn Sie einen oder mehrere Artikel zurückgeben möchten, nden Sie Informationen zur Rückgabe unter https://www.fs.com/de/policies/day_return_policy.html 3 https://www.fs.com/de/products_support.html https://www.fs.com/de/service/fs_support.html https://www.fs.com/de/contact_us.html 32 DE Introduction Accessoires Merci d'avoir choisi le point d'accès Wi-Fi 6 pour entreprise. Ce guide est conçu pour que vous puissiez vous familiariser avec la conguration du point d'accès et décrit comment procéder à son déploie- ment. AP-T565/AP-T567 AP-T565 Joint étanche pour les ports PoE & Power x2 Support transversal et plaque de base x1 Ancre x1 Joint étanche pour câble à bre optique LCx1 Couverture anti-poussière x3 Anneaux d'ancrage x2 33 FR Composants du support x1Support x1 Joint étanche pour les ports PoE & Power x2 Câble de mise à la terre x1 x1 AP-T567 Joint étanche pour câble à bre optique LCx1 Couverture anti-poussière x3 Boulons à vis M6 x4 Vis M5 x4 Anneaux d'ancrage x2 Câble de mise à la terre x1 Boulons à vis M6 x4 Vis M5 x4 Vis M8 x2 Vis M6 x2 34 FR Aperçu du Matéri…

Text truncated - open the document above for the full version.

FS.COM Inc. 2024-03-30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A2PW149657 ) [FS.COM Inc. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Tao Zhang General.Manager.of.North.America FS.COM Inc. 380 Centerpoint Blvd. New Castle DE 19720, United States FS.COM Inc. 2024-03-30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2A2PW149657) [FS.COM Inc. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Tao Zhang General.Manager.of.North.America FS.COM Inc. 380 Centerpoint Blvd. New Castle DE 19720, United States

AttestationStatements (2024-01-23) TO:FederalCommunicationsCommission Authorizationand EvaluationDivision 7435OaklandMillsRoad Columbia,MD 21046, USA RE: AttestationStatementsPart 2.911(d)(7)requestfor(GC:2A2PW) (FS.COMInc.),the undersigned,herebyauthorize(FS.COMInc.) to act as our designated U.S. agentfor serviceof process,(FS.COMInc.) acceptsto maintainan agentfor no less thanone year afterthe granteehas terminatedall marketingand importationor the conclusionof any Commission-relatedproceedinginvolvingthe equipment. (FS.COMInc.) acceptsthe responsibilityto act as designatedU.S. agentfor serviceof process. ApplicantInformation： Companyname:FS.COMInc. ContactName:Tao Zhang Address:380 CenterpointBlvd,NewCastle,DE19720,UnitedStates FRN:0028912681 TelephoneNo: 206-775-1516 Email:[email protected] Signature [Tao Zhang] U.S. AgentInformation: CompanyName:FS.COMInc. Address:380 CenterpointBlvd,NewCastle,DE19720,UnitedStates FRN:0028912681 ContactName:Tao Zhang TelephoneNo: 206-775-1516 Email:[email protected] Signature [Tao Zhang]

FS.COMInc. 2024-03 -30 EurofinsElectricaland ElectronicTestingNA, Inc. 914 West PatapscoAvenue Baltimore,MD 21230 RE: LETTEROF AGENTAUTHORIZATION To WhomIt May Concern: We, the undersigned,herebyauthorizeGuangdongGlobalTestingTechnologyCo., Ltd.to act on our behalf in all mattersrelatingto applicationfor equipmentauthorization,includingthe signingof all documentsrelatingto these matters. We also herebycertify that no party to the applicationauthorizedhereunderis subjectto the denial of benefits,includingFCC benefits,pursuantto Section5301 of the Anti-DrugAbuse Act of 1988, 21 U.S.C.853(a). This agreementexpiresone year from the currentdate. Sincerely, Tao Zhang General.Manager.of.North.America FS.COMInc. 380 CenterpointBlvd. New CastleDE 19720,UnitedStates

FS.COMInc. 2024-03-30 EurofinsElectricaland ElectronicTestingNA, Inc. 914 West PatapscoAvenue Baltimore,MD 21230 RE: CONFIDENTIALITYREQUESTFOR (EUT Name:OutdoorAccessPoint /Model: AP-T565/FCC ID: 2A2PW149657) To WhomIt May Concern: This letter serves as an officialrequestfor confidentialityunder sections0.457 and 0.459 of CFR 47. We have requestedthat the( Block Diagram,OperationalDescription,Schematics, FCC SW SECURITYDESCRIPTION)requiredto be submittedwith this applicationbe permanently withheldfrom public review. The abovematerialscontaintrade secretsand proprietaryinformationnot customarilyreleasedto the public.The publicdisclosureof these materialsmay be harmfulto the applicantand provideunjustifiedbenefitsto its competitors. Please contactme if there is any informationyou may need. Sincerely, Tao Zhang General.Manager.of.North.America FS.COMInc. 380 CenterpointBlvd. New CastleDE 19720,UnitedStates

APPENDIX: PHOTOGRAPHS OF EUT External Page 2 of 11 Page 3 of 11 Page 4 of 11 Page 5 of 11 Page 6 of 11 Internal Page 7 of 11 Page 8 of 11 Page 9 of 11 Page 10 of 11 Page 11 of 11 END OF REPORT 2.4G WIFI Antenna 2 Bluetooth Antenna 2.4G WIFI Antenna 1 5G WIFI Antenna 1 5G WIFI Antenna 2

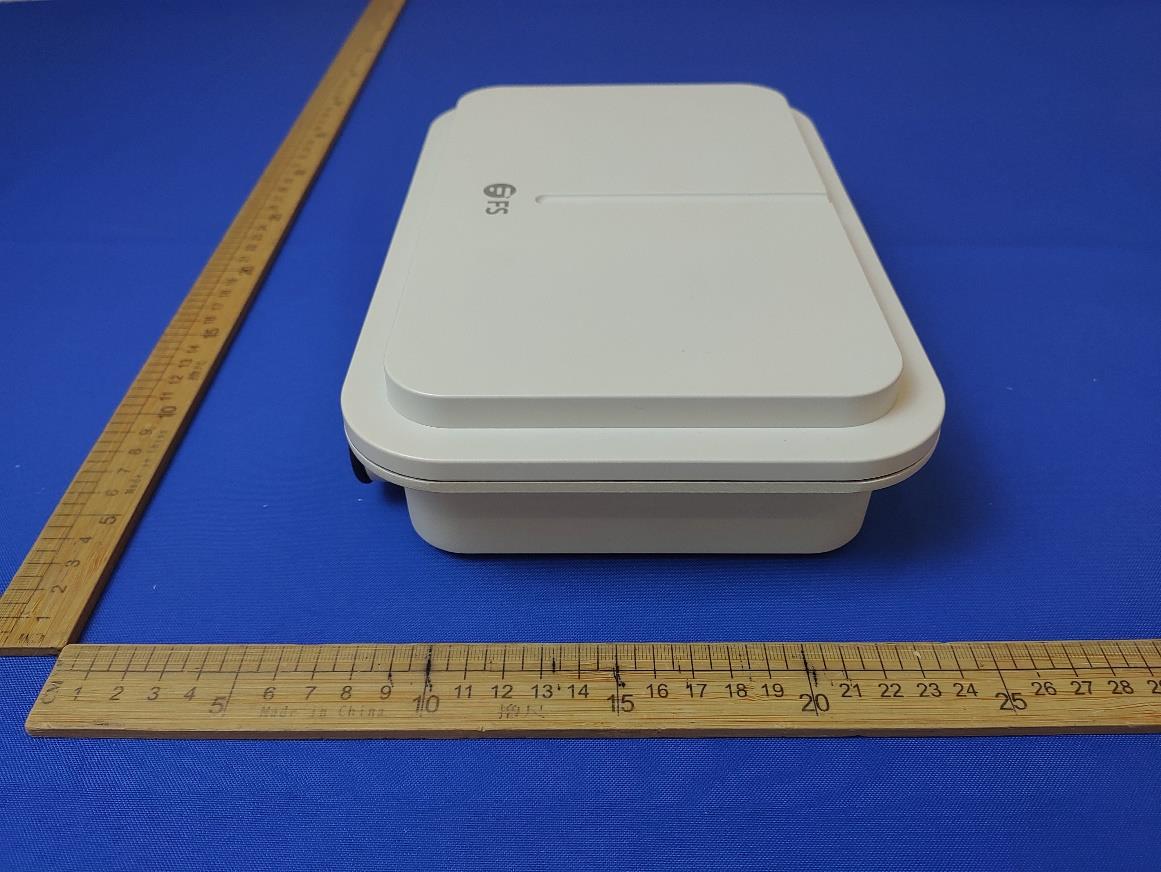

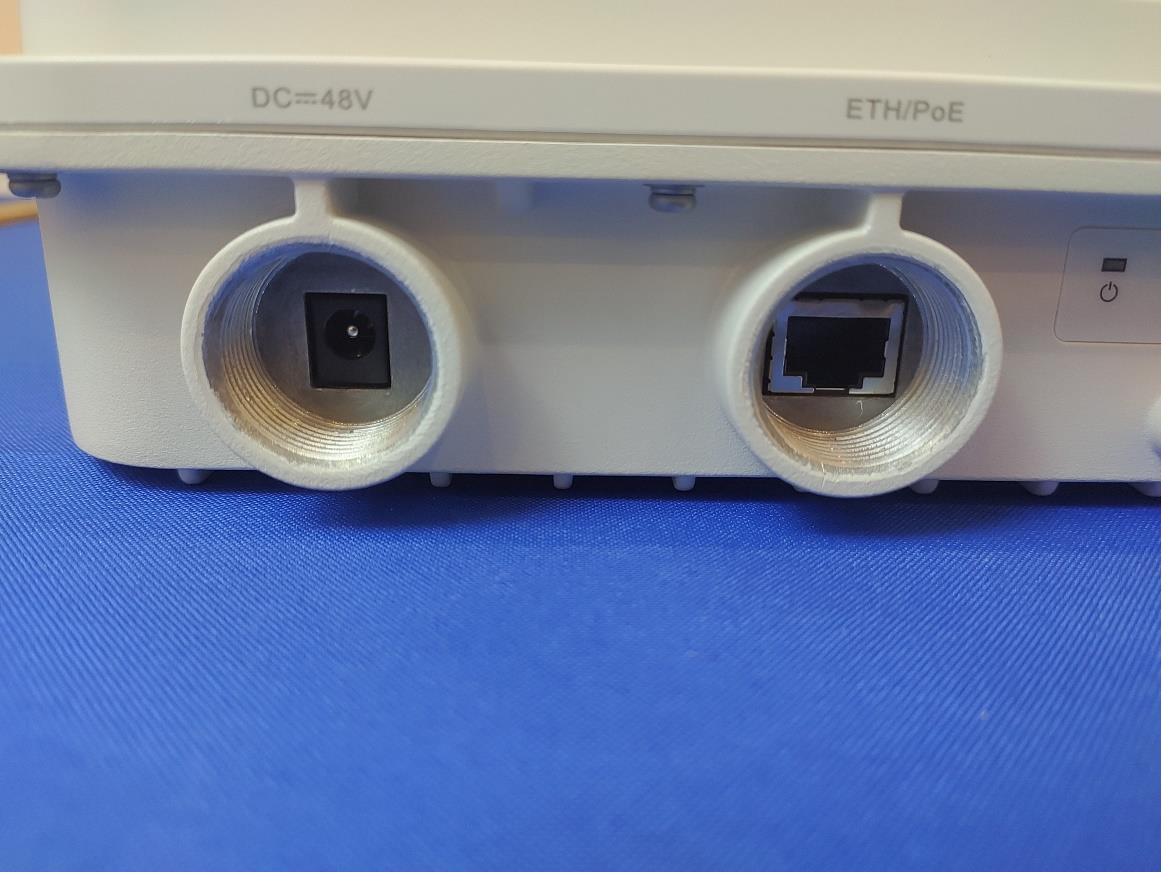

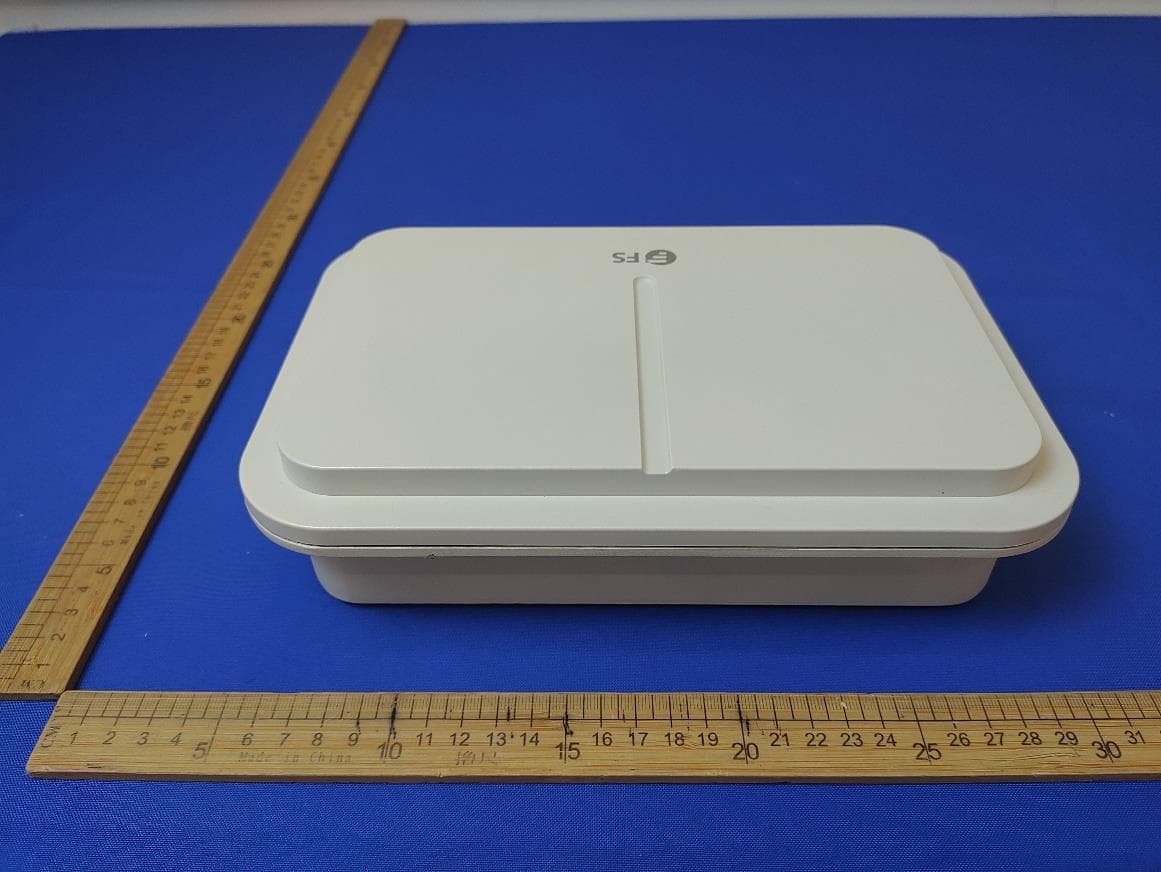

External

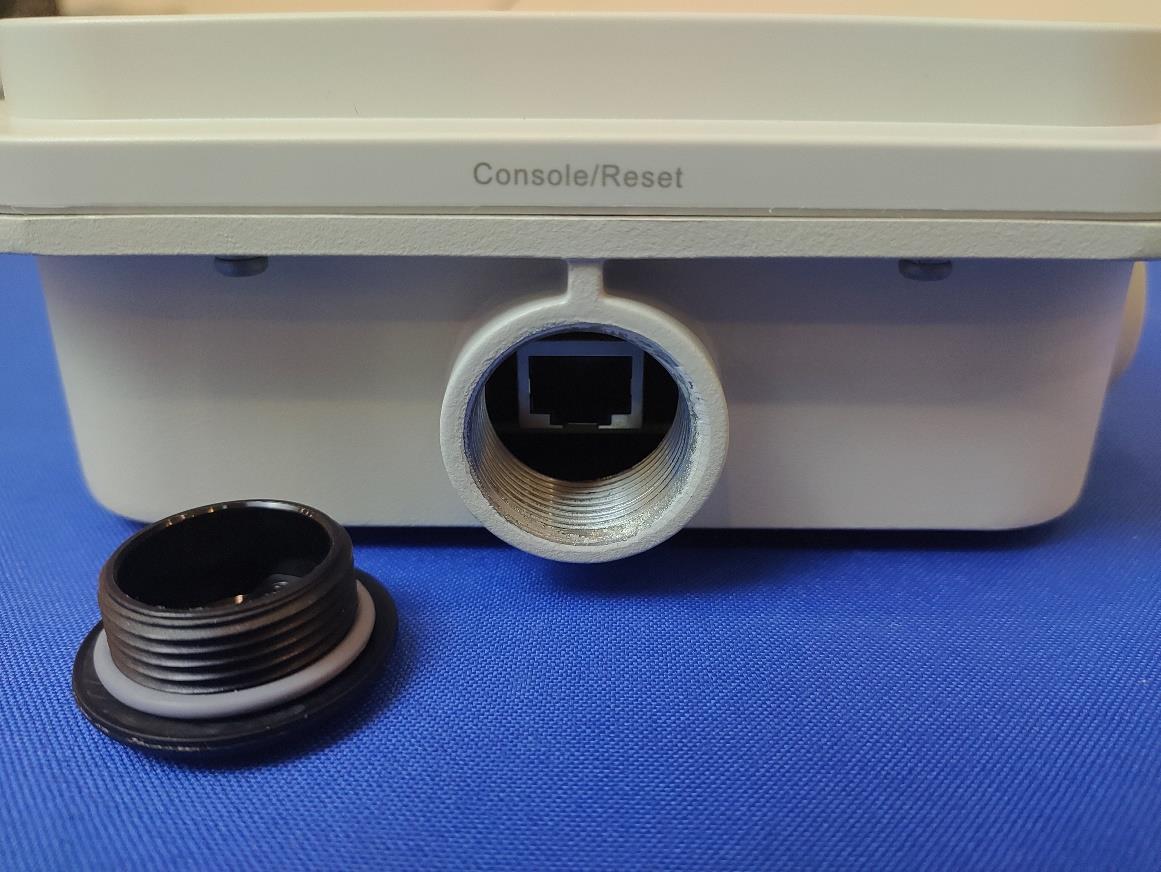

Internal 2.4G WIFI Antenna 2 Bluetooth Antenna 2.4G WIFI Antenna 1 5G WIFI Antenna 1 5G WIFI Antenna 2

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2A2PW149657 EUT Specification EUT Outdoor Access Point Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WIFI: 2.412GHz ~ 2.462GHz WIFI: 5.180GHz ~ 5.240GHz WIFI: 5.260GHz ~ 5.320GHz WIFI: 5.500GHz ~ 5.700GHz WIFI: 5.745GHz ~ 5.825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power（peak power ） BLE BLE 1M: 3.76 dBm 2.4G WIFI IEEE 802.11b: 10.79 dBm IEEE 802.11g: 9.74 dBm IEEE 802.11n HT20: 12.24 dBm IEEE 802.11n HT40: 11.48 dBm IEEE 802.11ax HE20: 12.73 dBm IEEE 802.11ax HE40: 12.26 dBm 5G WIFI U-NII-1 IEEE 802.11a: 13.2 dBm IEEE 802.11n HT20: 11.03 dBm IEEE 802.11n HT40: 11.8 dBm IEEE 802.11ac VHT20: 11.06 dBm IEEE 802.11ac VHT40: 11.51 dBm IEEE 802.11ac VHT80: 11.57 dBm IEEE 802.11ax HE20: 11.37 dBm IEEE 802.11ax HE40: 11.84 dBm IEEE 802.11ax HE80: 11.74 dBm U-NII-2A IEEE 802.11a: 13.22 dBm IEEE 802.11n HT20: 10.98 dBm IEEE 802.11n HT40: 10.55 dBm IEEE 802.11ac VHT20: 10.91 dBm IEEE 802.11ac VHT40: 10.31 dBm IEEE 802.11ac VHT80: 10.48 dBm IEEE 802.11ax HE20: 11.13 dBm IEEE 802.11ax HE40: 10.51 dBm IEEE 802.11ax HE80: 10.69 dBm U-NII-2C IEEE 802.11a: 12.75 dBm IEEE 802.11n HT20: 10.74 dBm IEEE 802.11n HT40: 10.58 dBm IEEE 802.11ac VHT20: 10.88 dBm IEEE 802.11ac VHT40: 10.28 dBm IEEE 802.11ac VHT80: 10.16 dBm IEEE 802.11ax HE20: 10.97 dBm IEEE 802.11ax HE40: 10.62 dBm IEEE 802.11ax HE80: 10.64 dBm U-NII-3 IEEE 802.11a: 8.5 dBm IEEE 802.11n HT20: 10.99 dBm IEEE 802.11n HT40: 10.74 dBm IEEE 802.11ac VHT20: 10.88 dBm IEEE 802.11ac VHT40: 10.64 dBm IEEE 802.11ac VHT80: 10.84 dBm IEEE 802.11ax HE20: 11.23 dBm IEEE 802.11ax HE40: 10.76 dBm IEEE 802.11ax HE80: 11.16 dBm Antenna gain (Max) BLE: 5dBi 2.4G WIFI 4 dBi for antenna 1 4 dBi for antenna 2 5G WIFI 6 dBi for antenna 1 6 dBi for antenna 2 Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Measurement Result BLE: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M 3.76 3±1 4 2.512 5 3.162 0.00158 1 2.4G WIFI: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11b 10.79 10±1 11 12.589 4 2.512 0.00629 1 802.11g 9.74 9±1 10 10.000 4 2.512 0.00500 1 802.11n HT20 12.24 12±1 13 19.953 4 2.512 0.00997 1 802.11n HT40 11.48 11±1 12 15.849 4 2.512 0.00792 1 802.11ax HE20 12.73 12±1 13 19.953 4 2.512 0.00997 1 802.11ax HE40 12.26 12±1 13 19.953 4 2.512 0.00997 1 5G WIFI: U-NII-1 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11a 13.2 13±1 14 25.119 6 3.981 0.01989 1 802.11n HT20 11.03 11±1 12 15.849 6 3.981 0.01255 1 802.11n HT40 11.8 11±1 12 15.849 6 3.981 0.01255 1 802.11ac VHT20 11.06 11±1 12 15.849 6 3.981 0.01255 1 802.11ac VHT40 11.51 11±1 12 15.849 6 3.981 0.01255 1 802.11ac VHT80 11.57 11±1 12 15.849 6 3.981 0.01255 1 802.11ax HE20 11.37 11±1 12 15.849 6 3.981 0.01255 1 802.11ax HE40 11.84 11±1 12 15.849 6 3.981 0.01255 1 802.11ax HE80 11.74 11±1 12 15.849 6 3.981 0.01255 1 U-NII-2A Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11a 13.22 13±1 14 25.119 6 3.981 0.01989 1 802.11n HT20 10.98 10±1 11 12.589 6 3.981 0.00997 1 802.11n HT40 10.55 10±1 11 12.589 6 3.981 0.00997 1 802.11ac VHT20 10.91 10±1 11 12.589 6 3.981 0.00997 1 802.11ac VHT40 10.31 10±1 11 12.589 6 3.981 0.00997 1 802.11ac VHT80 10.48 10±1 11 12.589 6 3.981 0.00997 1 802.11ax HE20 11.13 11±1 12 15.849 6 3.981 0.01255 1 802.11ax HE40 10.51 10±1 11 12.589 6 3.981 0.00997 1 802.11ax H…
