2A3VP-Q37PAWireless Gaming Controller

蓝牙连接 1. 拨动开关：拨到 D 档为 HID APP 模式。 2. 首次使用（开机配对）： a) 按 Pair 配对键开机配对，LED 快闪。 b） 到系统蓝牙设备内，搜索蓝牙名为 GamepadSpace-Q37P 的设备进行配 对连接。 c）连接成功 LED 黄色常亮。 3. 再次使用（开机回 连 ）： a）按 键开机回连，LED 慢闪。 b）回连成功 LED 黄色常亮。 4. 按Pair配对键关机 注：连接成功后，应用市场下载GamepadSpace App 进行手柄自定义设置。 摇杆设置 摇杆校准 关机状态摇几圈摇杆后再开机，开机时请不要碰摇杆，摇杆 会自动校准。 摇杆画方圆切换： R3 + （默认为画圆） 注： R3 键为右摇杆下压按键。 摇杆死区切换： L3 + （默认为无死区） 注： L3 键为左摇杆下压按键。 Q37 Pro 功能示意图 方向键 X/Y/A/B 键 开机回连键 View 键 Menu 键 左摇杆/L3 键 右摇杆/R3 键 O 键 L1/L2 键 R1/R2 键 Type-C 充电口 拨动开关： 模式切换 LED 灯 Pair 开机配对键 复位孔 1 2 3 4 5 3 6 1 8 9 10 11 12 13 14 15 7 2 45 6 7 8 9 10 11 12 13 14 15 安卓/苹果/电脑NS-Switch 1/2 模式 键盘鼠标多媒体 上下左右 静音 Enter 播放 鼠标左键 下一曲 音量加 上一曲 音量减 返回 切换 iOS软键盘 主页 快鼠标光标 慢鼠标光标 蓝牙连接 1. 拨动开关：拨到 K 档为 HID 键鼠模式。 2. 首次使用（开机配对）： a) 按 Pair 配对键开机配对，LED 快闪。 b）到系统蓝牙设备内，搜索蓝牙名为 Q37 Pro for KM 的设备进行配对连接。 c）连接成功 LED 青色常亮。 3. 再次使用（开机回 连 ）： a）按 键开机回连，LED 慢闪。 b）回连成功 LED 青色常亮。 4. 默认按键如下： 5. 按 Pair 配对键关机。 6. 键盘鼠标按键，可以通过 D 档连接的 GamepadSpace App进行自定义。 QQ 售后群 1007622819 固件升级 安卓或苹果手机，D 档连接 GamepadSpace-Q37P 蓝牙 设备，手机应用市场下载 GamepadSpace App 进行固件 升级。 附加功能 在关机状态下，按 R1键 与 X键 不放开，再按 ，连接 安卓 ShanWan Q37 Pro 蓝牙设备，手机应用市场下 载安装 ShootingPlus App 映射玩触屏游戏。 O 键功能 X档： 无 S档： 截屏键 K档： iOS呼出软键盘 D档： 无 电性参数 工 作 电 压： 工 作 电 流： 休 眠 电 流： 规 格： 蓝牙传输距离： 电 池 容 量： 待 机 时 间： DC3.7V 10-80 mA < 5uA DC5V/500mA <= 8M 300mAh 满电放置90天 接收器连接（接收器为选配） 1. 接收器插入电脑，识别为 XBOX(即X-Input) 模式。 2. 关机状态，按住 O键 不放开，再按 连接。 3. 连接成功 LED 常亮。 4. 按 Pair 配对键关机。 手柄充电 / 休眠 / 唤醒功能 1. 手柄在充电时， LED 指示灯慢闪， 充饱后常亮。 2. 睡眠 / 唤醒功能： 配对状态： 2分钟内没有配对成功会进入休眠。 回连状态： 1分钟内没有回连成功会进入休眠。 已连接蓝牙： 15分钟内不使用会进入休眠。 按 Pair 配对键关机。 短按 键直接回连。 3. 电池电量不足时， LED 指示灯快闪提示。 陀螺仪校准 关机状态下，放平手柄，按 + A + 。 HID 与 GamepadSpace App *注： 键可切换摇杆和按键模式 L3默认为：鼠标左键； R3默认为：鼠标右键 教程 / Tutorial shanwan.cc/Q37Pro.html 官网 / Website shanwan.cc 蓝牙连接 1. 拨动开关：拨到 X 档为 X-Input 模式。 2. 首次使用（开机配对）： a) 按 Pair 配对键开机配对，LED 快闪。 b）到系统蓝牙设备内，搜索蓝牙名为 XBOX Wireless Controller 的设备 进行配对连接。 c）连接成功 LED 蓝色常亮。 3. 再次使用（开机回连）： a）按 键开机回连，LED 蓝色慢闪。 b）回连成功 LED 蓝色常亮。 4. 按 Pair 配对键关机。 蓝牙连接 1. 拨动开关: 拨到 S 档为 Switch 模式。 2. 首次使用（开机配对）： a) 按 Pair 配对键开机配对，LED 快闪。 b) 在 Switch 主机,选择手柄 Controllers → 更改握把/顺序 Change Grip/order, 进入到 Switch 主机配对界面进行配对。 c) 连接成功 LED 绿色常亮。 3. 再次使用（开机回连）： a) 按 键开机回连， LED 绿色慢闪。 b) 回连成功 LED 绿色常亮。 4. 按 Pair 配对键关机。 作用：玩Steam、原生手柄游戏、XBOX串流、模拟器等。 （安卓9.0 / iOS13.0 / Win 10 及以上） 含 陀螺仪体感 功能，没有 NFC 功能 作用：1. 连接 NS-Switch 玩主机游戏 2. 电脑玩 Steam 游戏 作用： 连接 GamepadSpace App 对手柄进行设置拓 展更多玩法、OTA 固件升级等， GamepadSpace App 直接从手机应用市场下载。 iOS 11.4.1/ 安卓 8.0 / Win10 / Mac 10 及以上 ShanWan 服务号 Q37 Pro Wireless Gaming Controller L1/L2 Button R1/R2 Button Type-C Charging Port Pair/Power Button LED Mode Switch Reset Hole D-pad Button X/Y/B/A Button Reconnect/Power Button View Button Menu Button Left Joystick/L3 Button Right Joystick/R3 Button O Button 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 FCC ID: 2A3VP-Q37PA Up,Down, Left,Right Mute Enter Play Mouse click Next song Volume Up Previous song Volume down iOS Soft keyboard Fast mouse cursor Slow mouse cursor Android / iOS / Windows NS-Switch 1/2 Mode Bluetooth connection 1. Flip the switch: Switch to K to enter the Keyboard and mouse mode. 2. First use (Power-on pairing): a) Press the Pair button to start the pair, and the LED will blink. b) Turn on your device's Bluetooth search and connect the Bluetooth device "Q37 Pro for KM" c) The LED is always cyan when reconnection is successful. 3. Use again (Reconnection): a) Press the button to power on and the LED will blink slowly. b) The LED is always cyan when reconnection is successful. 4. The default buttons layout are as follows: 5. Press the Pair key to shut down the device. 6. Keyboard and mouse buttons can be customized through the GamepadSpace App connected to D mode. Keyboard Mouse Multimedia BackSwitchHomePage Charging / Sleep / Wake-up When charging, the LED will blink slowly; When the battery is full, the LED will keep bright. Sleep / Wake-up function: In pairing state: the controller will sleep if it’s not paired successfully within 2 minutes. Connect back state: The controller will sleep if it is not connect back within 1 minutes. Bluetooth is connected state: The controller will sleep if the controller is not used within 15 minutes. Wake-up function: Press the to connect back when you need to wake-up it. Joystick Settings Rocker calibration Shake the joystick several times in the off state and then turn on the machine. Please do not touch the joystick when turning on the machine. The joystick will be automatically calibrated. Joysticks draw square or circle R3 + (default is circle). Note: The R3 Button is press the Right Joystick. Joystick dead zone switch L3 + (default no dead zone). Note: L3 is the left joystick down button. *Note: can switch between joystick and button modes L3 defaults to: left mouse button; R3 defaults to: right mouse button 3 6 1 8 9 10 11 12 13 14 15 7 2 45 Bluetooth connection 1. Flip the switch: Switch to D to enter the HID APP mode. 2. First use (Power-on pairing): a) Press the Pair button to start the pair, and the LED will blink. b) Turn on your device's Bluetooth search and connect the Bluetooth device "GamepadSpace-Q37P". c) The LED is always yellow when reconnection is successful. 3. Use again (Reconnection): a) Press the button to power on and the LED will blink slowly. b) The LED is always yellow when reconnection is successful. 4. Press the Pair button to power off the device. Note: After the connection is successful, download the GamepadSpace App to customize the gamepadspace. HID and GamepadSpace App Bluetooth connection 1. Flip the switch: Switch to X to enter the X-INPUT mode. 2. First use (Power-on pairing): a) Press the Pair button to start the pair, and the LED will blink. b) Turn on your device's Bluetooth search and connect the Bluetooth device "XBOX Wireless Controller". c) The LED is always blue when reconnetion is successful. 3. Use again (Reconnection): a) Press the button to power on and the LED will blink blue slowly. b) The LED is always blue when reconnection is successful. 4. Press the Pair button to power off the device. Bluetooth connection 1.…

Text truncated - open the document above for the full version.

CoveredEquipmentAttestationLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(5)(i)-(ii)oftheCommission’sRules(47C.F.R.)weattestas followsfortheproductlistedbelow: FCCIDModelname 2A3VP-Q37PAQ37Pro,Q37P We, Applicant CompanyName:ShenZhenShanWanTechnologyCo.,Ltd Address:5/F,building33,chentianindustrialZone, chentiancommunity,Xixiangstreet, Bao'anDistrict,Shenzhen,GuangdongChina Phone:N/A certifythattheequipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCC rules.Thisincludesthecybersecurityandanti-virussoftwareproducedorprovidedby KasperskyLab,Inc.oranyofistsuccessorsandassignees. Wecertifythat,asofthedateofthefilingoftheapplication,theapplicantisnotidentified ontheCoveredListasanentityproducing“covered”equipment. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, 2026-3-27 SignatureDate PrintedNameofSignee:XiaoChenHu Company:ShenZhenShanWanTechnology Co.,Ltd Phone:N/A Email:[email protected] Address:5/F,building33,chentianindustrial Zone,chentiancommunity,Xixiangstreet, Bao'anDistrict,Shenzhen,GuangdongChina Fax:N/A

ShenZhen ShanWan Technology Co., Ltd 5/F,building 33,chentian industrial Zone, chentian community,Xixiang street, Bao'anDistrict, Shenzhen, Guangdong China Date: 2026-3-27 FCC ID: 2A3VP-Q37PA Model Number: Q37Pro,Q37P To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ShenZhen ShanWan Technology Co., Ltd hereby declare that our product (Wireless Gaming Controller) Model Number: Q37Pro,Q37P are electrical identical, the Schematic, PCB layout, structure and software are same, the only difference between these models is the color of the housing for market purpose. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: XiaoChen Hu/ Manager Company: ShenZhen ShanWan Technology Co., Ltd Address: 5/F,building 33,chentian industrial Zone, chentian community,Xixiang street, Bao'anDistrict, Shenzhen, Guangdong China Phone: N/A Fax Number: N/A E-Mail: [email protected]

ConfidentialityRequestLetter ForCertificationServiceintheUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: FCCIDModelname 2A3VP-Q37PAQ37Pro,Q37P Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare:  theOperationalDescription  theBlockDiagram theSchematics Theabovelistedexhibitscontaintradesecretsandproprietaryinformationthatcouldbeof benefittoourcompetitors. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, 2026-3-27 SignatureDate PrintedNameofSignee/Title:XiaoChenHu/Manager Company:ShenZhenShanWanTechnologyCo.,Ltd Address:5/F,building33,chentianindustrialZone,chentian community,Xixiangstreet,Bao'anDistrict,Shenzhen, GuangdongChina Phone:-- Fax:-- Email:[email protected]

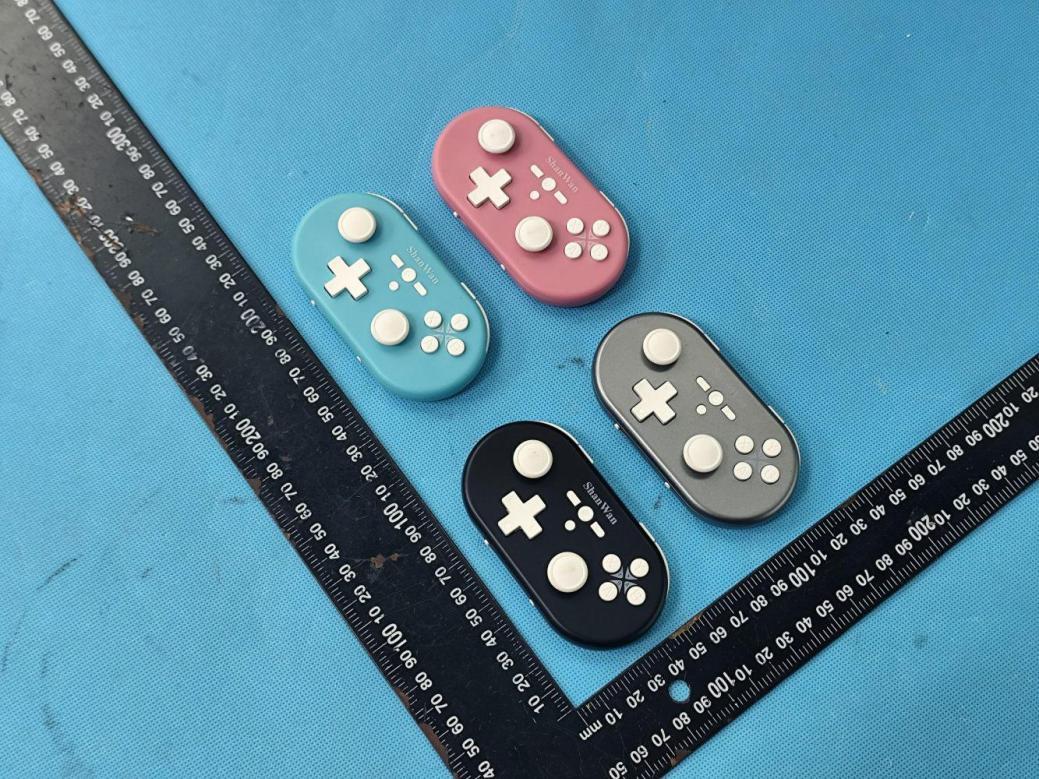

ReportNo.:CISRR26031714201 Page 59 of 62 9.EXTERNALANDINTERNALPHOTOS 9.1.ExternalPhotos ReportNo.:CISRR26031714201 Page 60 of 62

ReportNo.:CISRR26031714201 Page 61 of 62 9.2.InternalPhotos ANT ReportNo.:CISRR26031714201 Page 62 of 62 ------Endofthereport-----

ReportNo.:CISRR26031714203 Reporttemplateversion:CISE-TR-001-A0Page:1of5 TESTREPORT RFExposureEvaluation ReportNo.CISRR26031714203 ProjectNo.CISR260317142 FCCID2A3VP-Q37PA ApplicantShenZhenShanWanTechnologyCo.,Ltd Address 5/F,building33,chentianIndustrialZone,chentiancommunity,Xixiang street,Bao'anDistrict,Shenzhen,Guangdong,China ManufacturerShenZhenShanWanTechnologyCo.,Ltd Address 5/F,building33,chentianIndustrialZone,chentiancommunity,Xixiang street,Bao'anDistrict,Shenzhen,Guangdong,China ProductNameWirelessGamingController Trademark- Model/TypereferenceQ37Pro ListedModel(s)Q37P Standard 47CFRPart2.1093 DateofsamplereceiptMarch18,2026 TestdateMarch18,2026toMarch24,2026 IssuedateMarch24,2026 TestresultComplied Reviewedby:LucasHuang Approvedby:HansHu Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangceTesting TechnologyCo.,Ltd. ReportNo.:CISRR26031714203 Reporttemplateversion:CISE-TR-001-A0Page:2of5 1.APPLICABLESTANDARD 47CFRPart2.1093:Radiofrequencyradiationexposureevaluation:portabledevices ANSIC95.1–3999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. 47CFRPart1.1307:Actionsthatmayhaveasignificantenvironmentaleffect,forwhichEnvironmental Assessments(EAs)mustbeprepared. 2.REPORTVERSION VersionNo.IssuedateDescription 00March24,2026Original ReportNo.:CISRR26031714203 Reporttemplateversion:CISE-TR-001-A0Page:3of5 3.RADIOSPECIFICATIONDESCRIPTION Bluetooth Supportedtype:BREDRLE-1Mbps LE-2Mbps Note:PleaserefertoRFreportfordetailedtechnicalspecifications 4.SIMULTANEOUSTRANSMISSIONANALYSIS ThedeviceuseasingletransmittermoduleandantennaforBluetooth,cannottransmitsimultaneously. ReportNo.:CISRR26031714203 Reporttemplateversion:CISE-TR-001-A0Page:4of5 5.TESTRESULT 5.1.Standalonetransmission Limit: KDB447498D01v06,Clause4.3.1a) For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-g SARtestexclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]*[√f(GHz)]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation31The resultisroundedtoonedecimalplaceforcomparison Thevalues3.0and7.5arereferredtoasnumericthresholdsinstepb)below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm, andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingto4.1f)isappliedtodetermine SARtestexclusion. Result: Passed TestData Radiotype Frequency (GHz) Maximum output power #1 (dBm) Antenna gain #2 (dBi) Maximum EIRP #3 (dBm) Maximum tune-up #4 EIRP(dBm) Minimum distance (mm) Evaluated value LimitResult BLE2.4022.23-0.3471.882.005.000.49133.00PASS BT2.4023.61-0.3473.264.005.000.77863.00PASS Note #1:ThisvaluecomesfromtheRFtestreport. #2:Thisvalueisdeclaredbytheapplicant. #3:EIRP=Maximumoutputpower+Antennagain. #4:Thisvalueisdeclaredbytheapplicant. ReportNo.:CISRR26031714203 Reporttemplateversion:CISE-TR-001-A0Page:5of5 5.2.Simultaneoustransmission Limit: KDB447498D01v06,Clause4.3.2,47CFRPart1.1307 InthecaseofxedRFsourcesoperatinginthesametime-averagingperiod,orof multiplemobileorportableRFsourceswithinadeviceoperatinginthesametime averagingperiod,ifthesumofthefractionalcontributionstotheapplicablethresholds islessthanorequalto1asindicatedinthefollowingequation. Where a=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(B)ofthissectionforP,includingexistingexempttransmittersandthosebeing added. b=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(C)ofthissectionforThresholdERP,includingexistingexempttransmittersand thosebeingadded. c=numberofexistingfixed,mobile,orportableRFsourceswithknownevaluationforthespeci edminimumdistanceincludingexistingevaluatedtransmitters. P j =theavailablemaximumtime-averagedpowerortheERP,whicheverisgreater,forxed, mobile,orportableRFsourceiatadistancebetween0.5cmand40cm(inclusive). P th,j =theexemptionthresholdpower(P)accordingtoparagraph(b)(3)(i)(B)ofthissectionfor xed,mobile,orportableRFsourcei. ERP j =theERPoffixed,mobile,orportableRFsourcej. ERP th,j =exemptionthresholdERPforfixed,mobile,orportableRFsourcej,atadistanceofat leastλ/2πaccordingtotheapplicableformulaofparagraph(b)(3)(i)(C)ofthissection. Evaluated k =themaximumreportedSARorMPEoffixed,mobile,orportableRFsourcekeither inthedeviceoratthetransmittersitefromanexistingevaluationatthelocationofexposure. ExposureLimit k =eitherthegeneralpopulation/uncontrolledmaximumpermissibleexposure (MPE)orspecicabsorptionrate(SAR)limitforeachxed,mobile,orportableRFsourcek, asapplicablefrom§1.1310ofthischapter. Result:NotApplicable --------EndofReport--------

蓝牙天线规格书 BT Antenna Product Approval Address:5/F,building 33,chentian industrial Zone, chentian community,Xixiang street, Manufacturer:ShenZhen ShanWan Technology Co., Ltd 一、Antenna Introduction PCB printed antenna, suitable for single-sided and multi-layer PCB boards. Bao'anDistrict, Shenzhen, Guangdong China 二、Antenna Outline 1、Dimension Drawing：14.5mm * 5.4mm 三、Antenna Parameters Frequency(MHz Bluetooth Built-in The Bluetooth operating frequency is 2402-2480MHz, and resonance occurs in this frequency band. The main parameters of the antenna are shown in the table below: Antenna )2402~2500MHz VSWR≤1.92 Impedance50OhmNominal ReturnLoss-10dBMax RadiationOmni-directional Gain(Peak)-0.347dBi PolarizationLinear,Vertical AdmittedPower2W ConnectorTin SpectrumDetector:PKTestDate:June8,201 四、Antenna Gain Test Report 3 TestBy:AndyTemperature:28°C TestResult:PASSHumidity:55% Modulation:GFSK PCB ANT BT ANT Antenna Name Antenna Model FrequencyVNA： (MHz Maximum Gain: ) 2400MH E Total. dB(dBi) z-0.347483 2410MHz-0.502625 2420MHz-0.772879 2430MHz-0.955555 2440MHz-1.23072 2450MHz-1.94066 2460MHz-1.90725 2470MHz-2.01968 2480MHz-2.30721 2490MHz-2.28333 2500MHz-2.8728 五、TestSetup： 六、2DRadiationPattern PHI0度 PHI90度 THETA90度 七、3DRadiationPattern：

ReportNo.:CISRR26031714202 Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangce TestingTechnologyCo.,Ltd. Page1of41 TESTREPORT ReportNo.CISRR26031714202 ProjectNo.CISR260317142 FCCID2A3VP-Q37PA ApplicantShenZhenShanWanTechnologyCo.,Ltd Address 5/F,building33,chentianIndustrialZone,chentiancommunity,Xixiang street,Bao'anDistrict,Shenzhen,Guangdong,China ManufacturerShenZhenShanWanTechnologyCo.,Ltd Address 5/F,building33,chentianIndustrialZone,chentiancommunity,Xixiang street,Bao'anDistrict,Shenzhen,Guangdong,China ProductNameWirelessGamingController Trademark- Model/TypereferenceQ37Pro ListedModel(s)Q37P Standard 47CFRPart15.247 DateofsamplereceiptMarch18,2026 TestdateMarch18,2026toMarch24,2026 IssuedateMarch24,2026 TestresultComplied Reviewedby:LucasHuang Approvedby:HansHu ReportNo.:CISRR26031714202 Page 2 of 41 Contents 1.STANDARDANDAPPLICABLETESTMETHODS........................................................................................3 2.REPORTVERSION..........................................................................................................................................3 3.TESTDESCRIPTION.......................................................................................................................................4 4.SUMMARY........................................................................................................................................................5 4.1.ProductDescription*..................................................................................................................................5 4.2.RadioSpecificationDescription*..............................................................................................................5 4.3.ModificationofEUT.....................................................................................................................................6 4.4.Deviationfromstandards...........................................................................................................................6 4.5.TestingSite...................................................................................................................................................6 5.TESTCONFIGURATION.................................................................................................................................7 5.1.Testfrequencylist.......................................................................................................................................7 5.2.Descriptionsoftestmode...........................................................................................................................7 5.3.Testsampleinformation.............................................................................................................................7 5.4.Environmentalconditions...........................................................................................................................7 5.5.Statementofthemeasurementuncertainty.............................................................................................7 5.6.EquipmentUsedduringtheTest................................................................................................................8 6.TESTRESULTS.............................................................................................................................................10 6.1.EvaluationResults(Evaluation)...............................................................................................................10 6.1.1.AntennaRequirement............................................................................................................................10 6.2.RadioSpectrumMatterTestResults(RF)...............................................................................................11 6.2.1.ConductedEmissionatACpowerline.................................................................................................11 6.2.2.6dBBandwidth........................................................................................................................................14 6.2.3.MaximumConductedOutputPower.....................................................................................................15 6.2.4.PowerSpectralDensity..........................................................................................................................16 6.2.5.Conductedbandedgeandspuriousemission...................................................................................17 6.2.6.Radiatedbandedgeemission...............................................................................................................18 6.2.7.RadiatedSpuriousEmission(below1GHz).........................................................................................24 6.2.8.RadiatedSpuriousEmission(Above1GHz)........................................................................................28 7.APPENDIXREPORT......................................................................................................................................36 7.1.ConductedOutputPower.........................................................................................................................36 7.2.6dBBandwidth...........................................................................................................................................37 7.3.PowerSpectralDensity.............................................................................................................................38 7.4.DutyCycle..................................................................................................................................................39 7.5.ConductedSpurious&BandEdgeEmission.........................................................................................40 ReportNo.:CISRR26031714202 Page 3 of 41 1.STANDARDANDAPPLICABLETES…

Text truncated - open the document above for the full version.

ReportNo.:CISRR26031714201 Page 57 of 62 8.TESTSETUPPHOTOS ConductedEmissionatACpowerline Radiatedbandedgeemission RadiatedSpuriousEmission(Above1GHz) ReportNo.:CISRR26031714201 Page 58 of 62 RadiatedSpuriousEmission(below1GHz)
