2A3VP-Q41Wireless Gaming Controller

How to put the mobile phone ？ Note: Please keep the controller is placed horizontally and make sure the phone's camera is on the left. Electrical parameters 1. Working voltage: DC3.7V 2. Working current: < 60mA 3. Working time: > 8H 4. Sleep current: < 5uA 5. Charging voltaget/current: DC5V/500mA 6. Bluetooth transmission distance: ＜ = 8M 7. Battery capacity: 600mAh 8. Standby time: 30 days( fully charged) Compatible machine ● Compatible with P3、P4、P4 Slim、P4 Pro、P5 Console . ● Compatible with smartphone both iOS systems （13.0 and later）and Android systems （10.0 and later). ● Compatible with Steam. Features ● Dual Vibration ● 6-axis Motion Sensor ● 3.5mm Headset Jack ● Gyroscope detect the motion, ● Clickable touch pad on the face ● Two back button -M1 and M2 ● There are Bluetooth and wired connections. Connection How to Connection P3, P4, P5 Slim、P4 Pro、P5 Console? 1.First connection: P3, P4, P5 console is connected to the controller with the type-C USB cable, and then press the button to check the code, when the LED keep bright of button is successfully. 2.Second connection: You can press the button directly to connect automatically. (If you connected to the same console last time and now, you can connect back this way, If you connected to another device last time, you need to connect from step 1) Note： 1. There is not speaker function. 2 .Only compatible with P4 games when your connect the P5 console. Extended function While connecting to the P3/P4/P5 game console, the function can be expanded through the GamepadSpace APP on the mobile phone. STEP 1 Install the phone holder on controller. STEP 2 Pull up on the phone holder. STEP 3 Put in your phone. ﾠ Wireless Mobile Game Controller Q41 Function buttons guide Left joystick/L3 Button Right joystick/R3 Button D-pad Button X/Y/B/A Button Power switch LED SHARE Button OPTIONS Button Start Button Headphone jack R1/R2 Button L1/L2 Button M2/M1 Button USB interface Notice 1. Don't store in a wet or high temperature place. 2. Don't throw it hard to avoid unnecessary damage. 3. Pay attention to garbage sorting. This product built-in battery. 4. Stay away from a fire and high temperature when it charging. What's in the box? Q & A Q: Why the phone can't search the controller ? A: Forget some device name before you connected and then press button and keep 2 seconds reconnect. Q: Why the controller can't power on? A: Because Battery died during transportation, please charge it first, connect the 5V charger with the USB cable in the packing box, untill fully charged. How to connection PC? Connect the controller to the PC with the type-C USB cable. Identified as the X-input function. After the connection is successful, the LED keep bright. M1/M2 button function A/B/X/Y/R1/R2/L1/L2 can be mapped to M1 /M2 buttons. For example, how to map A button to M1 button ? 1. Press the A + OPTIONS buttons at the same time, the LED will flashes; 2. And then press the M1 button, the LED will Always mode. （You need to press the M1 or M2 key within a minute） How to unmap on M1 button ? Press the M1 + OPTIONS buttons at the same time. 3. By default, M1 is the L2 buttons，M2 is the R2 buttons. Controller charging/sleep/wake-up function When do you need to charge it ? When the battery is low, the LED on the will flash, When full, the LED keep bright. How to turn off ? When run, press and hold the for 5 seconds, the controller will turn off and LED indicators will be off. Sleep function Without Bluetooth connection, the controller will turn off after 1 minute; Wake-up function Connected to Bluetooth, press the button to connect back when you need to use it again. Please scan the QR code above to download App How to connection mobile phone via Bluetooth? 1.Hold SHARE button then press keep 2 seconds. the LED is green and flashes. 2.Bluetooth name iOSAndroid Search and connect the Bluetooth device " DUALSHOCK 4 Wireless Controller ". Search and connect the Bluetooth device " Wireless Controller ". After the connection is successful, the LED keep bright. If you want to check of the available games you can play with controller you can scan the QR code to download ShanWan Controller APP. Q: Joystick drift constantly. A: When the controller is turned off, press and hold the joystick vertically, and rotate 5 turns left and right. Q: How to turn off the controller? A: Press and hold the button for 5 seconds. Q: Why can't reconnect when you press prower button? A: Forget this device name before you connected, and then, reconnect. Q: Doesn't connect phone. A: Power off the controller and then Repeat press button to power it up. Q: The buttons don't work. A: Power off the controller and then Repeat press button to power it up. Q: Bluetooth connection keep dropping and requires reconnect. A: 1) Reboot by long pressing the power button. 2) If step 1) don't work, you can use a small pin to insert the small hole next to the charging port of the controller and press it once to reset the controller, then press and hold the power button again to turn it on. Q: LED indicator is keep on when power on and cannot connect to mobile phone. A: Check if the controller is connected to other mobile phones, You need to turn off the connected device and restart the connection. Product warning This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of ProcessLETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: THREE STONES MEDIA LLC FRN: 0033401761 Contact Name: Sijie Zhang Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Telephone No: +1 267 909 3692 Email: [email protected] Applicant: Company name: ShenZhen ShanWan Technology Co., Ltd Product Description: Wireless Gaming Controller Grantee code: 2A3VP FCC ID: 2A3VP-Q41 Contact Name: XiaoChen Hu Address: 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong Telephone No: 0755-27941994 Email: [email protected] [ShenZhen ShanWan Technology Co., Ltd] certifies that, as of the date of this filing of the application with the TCB, [THREE STONES MEDIA LLC] is our designated US agent for service of process for the above referenced FCC ID. [ShenZhen ShanWan Technology Co., Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [THREE STONES MEDIA LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicantis aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. 1/1 Date: 20/06/2023 Applicant’s Name: XiaoChen Hu US Agent’s Name: Sijie Zhang Title:manager Title: President Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: ShenZhen ShanWan Technology Co., Ltd Grantee code: 2A3VP FCC ID: 2A3VP-Q41 Contact Name: XiaoChen Hu Address: 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong China Telephone No: 0755-27941994 Fax No: 0755-27941994 Email: [email protected] i. [ShenZhen ShanWan Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [ShenZhen ShanWan Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. Theapplicantmustsignthiscertification. Date: ShenZhen ShanWan Technology Co., Ltd certifies that, as of the date of the filing of theapplication, the applicant is not identified on the Covered List as an entity producing “covered”equipment. 09/05/2023 Applicant’s Name: XiaoChen Hu Title:General Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

ShenZhen ShanWan Technology Co., Ltd Family models declaration letter. 6/20/2023 We Company: ShenZhen ShanWan Technology Co., Ltd Address: 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong China Product: Wireless Gaming Controller Model Name: Q41 Family Model: Q41P, Q41W, Q41A, Q41X, Q41S, Q42, Q42S, Q42SP, Q42A, Q43, Q43S, Q43A, Q44, Q45, P01, P02, P03, P04, P05, P06, P07, P08, P09, P10 All models are the same circuit and RF module, except the model name. We (ShenZhen ShanWan Technology Co., Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.), same mechanical structure and design (including product enclosure, materials, etc.), the only difference is theAll the model are the same circuit and RF module, except the name. Thanks Sincerely, Signature [Name] XiaoChen Hu [Title] Gernal manager [email protected]

C5266091_X8_Ed.1 1/1 Letter of Authorization < ShenZhen ShanWan Technology Co., Ltd > Company: ShenZhen ShanWan Technology Co., Ltd Address: 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong China Product Name: Wireless Gaming Controller Model Number: Q41, Q41P, Q41W, Q41A, Q41X, Q41S, Q42, Q42S, Q42SP, Q42A, Q43, Q43S, Q43A, Q44, Q45, P01, P02, P03, P04, P05, P06, P07, P08, P09, P10 FCC Identifier: 2A3VP-Q41 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: XiaoChen Hu Date: 20/06/2023 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 < ShenZhen ShanWan Technology Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 20/06/2023 Subject: Request for Confidentiality FCC ID: 2A3VP-Q41 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location Attestation Statement External Photos Block Diagram Schematics Test Report Test Setup Photos User’s Manual NOTE 1 Internal Photos NOTE 1 Parts List / Tune Up / BOM List RF Exposure Info Operational Description Cover Letter(s) FCC Software Security Requirements for UNII devices NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: XiaoChen Hu Title: Manager

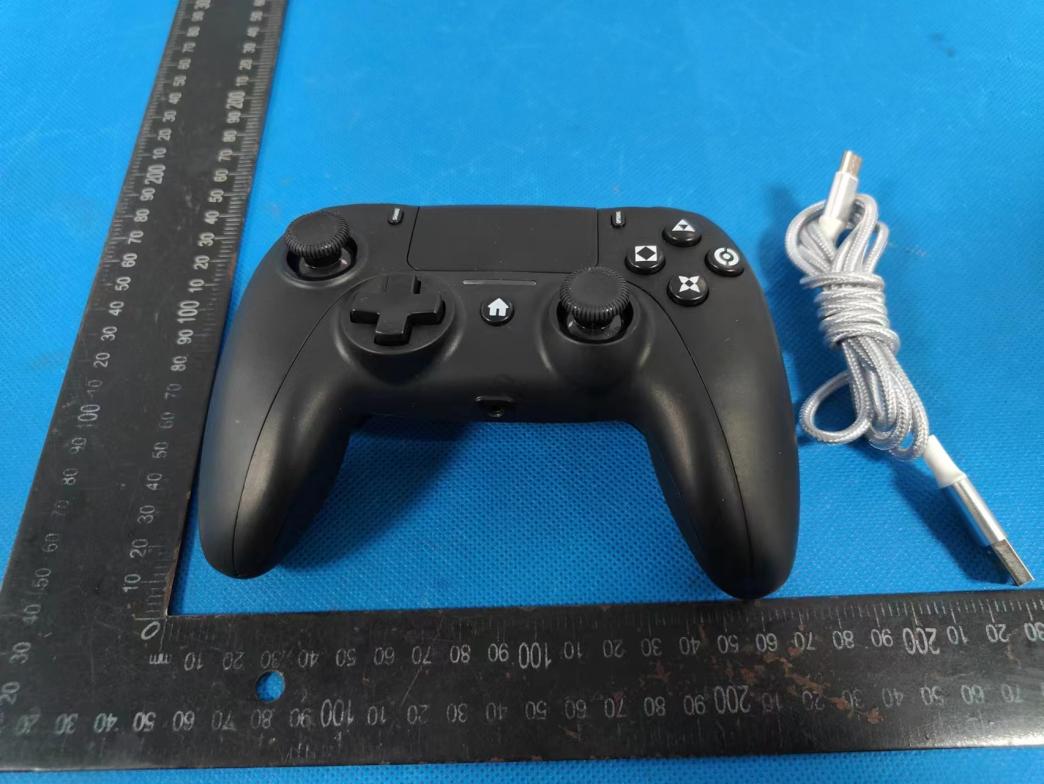

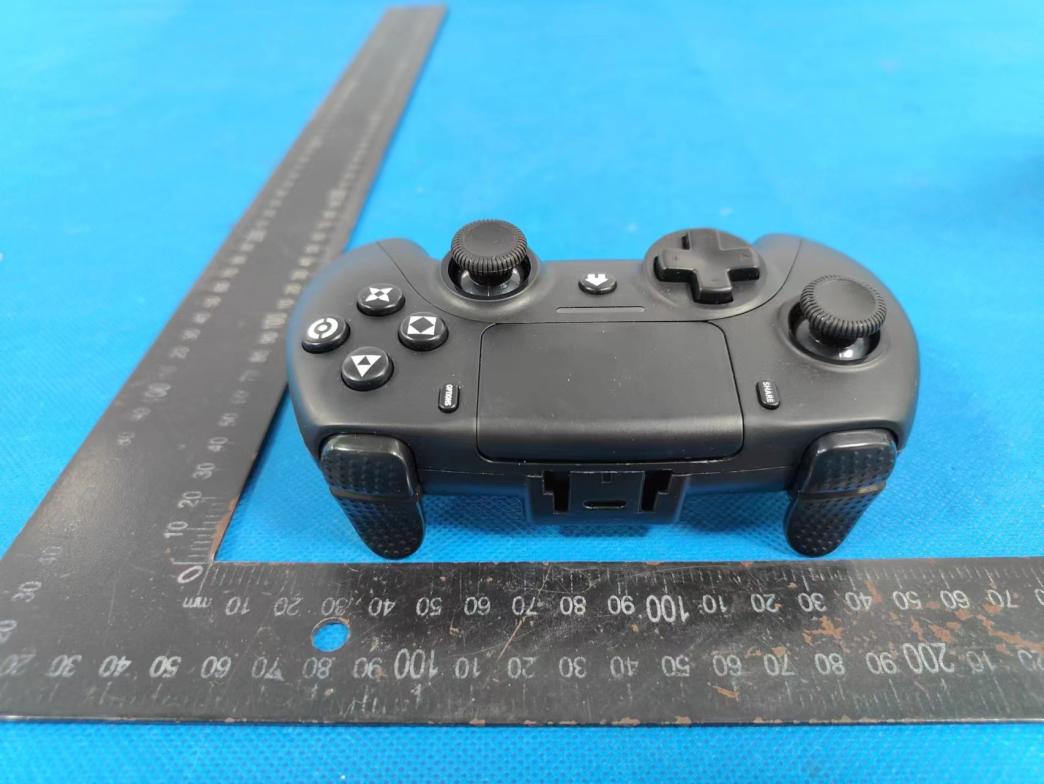

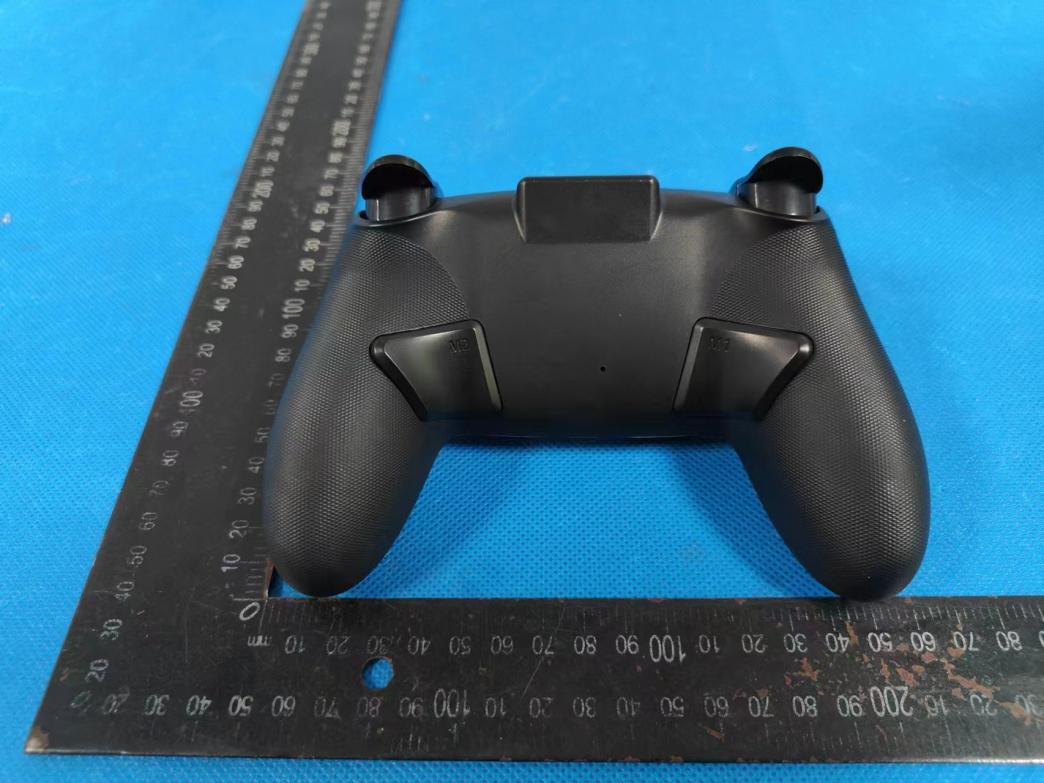

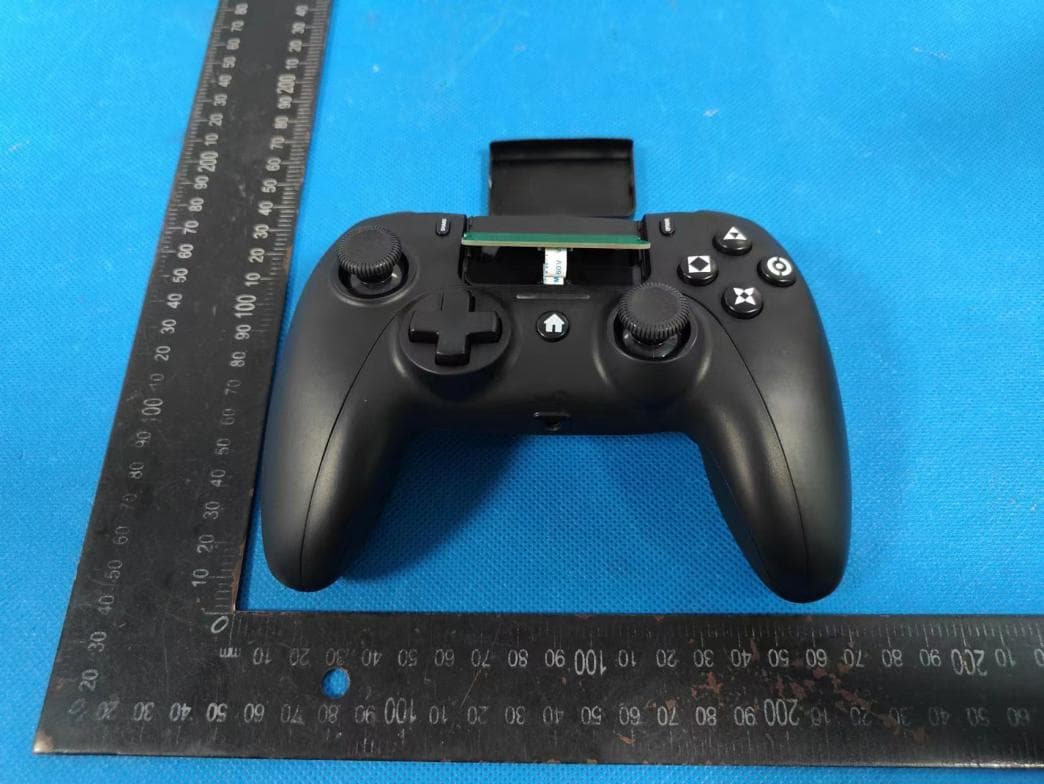

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

↑ label location

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 BLE ANT BT ANT Photo 15 Photo 16 Photo 17

FCC ID:2A3VP-Q41 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BR EDR Antenna Type: PCB Antenna Antenna Gain: 2.88dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402-1.820.658-2±1-1.00.794<50.246223.00YES 2.441-2.530.558-2±1-1.00.794<50.248213.00YES 2.480-2.770.528-2±1-1.00.794<50.250183.00YES 2.402-0.080.9820±11.01.259<50.390233.00YES 2.441-0.560.8790±11.01.259<50.393383.00YES 2.480-0.660.8590±11.01.259<50.396513.00YES 2.4020.231.0540±11.01.259<50.390233.00YES 2.441-0.240.9460±11.01.259<50.393383.00YES 2.480-0.310.9310±11.01.259<50.396513.00YES GFSK π/4- DQPSK 8DPSK BLE: Antenna Type: PCB Antenna Antenna Gain: 2.88dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402 -1.87 0.650-2±1-1.00.794<50.246223.00YES 2.44 -1.46 0.714-2±1-1.00.794<50.248163.00YES 2.480 -2.04 0.625-2±1-1.00.794<50.250183.00YES GFSK SIMULTANEOUS TRANSMISSIONS When a number of sources at different frequencies, and/or broadband sources, contribute to the total exposure, it becomes necessary to weigh each contribution relative to the MPE. To comply with the MPE, the fraction of the MPE in terms of E 2 , H 2 (or power density) incurred within each frequency interval should be determined and the sum of all such fractions should not exceed unity. In order to ensure compliance with the MPE for a controlled environment, the sum of the ratios of the power density to the corresponding MPE should not exceed unity. That is Transmitting Mode Result calculation 1g SAR Exclusion threshold Total S MPE Limit Conclusion BR EDR 0.396513 0.216 1.000 Pass BLE 0.250183 Conclusion: 0.39651/3+0.25018/3 0.216 For the max result : 0.216≤ 1, No SAR is required. Signature: Date: 6/26/2023 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

ShanWan  Antenna report 1、Basic Information 1.1 Test principle ShanWan 1.2 Test equipment Name RayZone- 5000 RFI-LAB-RF-D00 GTS 2021.3.22 Network analyzer Network analyzer E5071C E5071C RFI-LAB-RF-C02 RFI-LAB-RF-D01 KEYSIGHT KEYSIGHT 2022.5.13 2022.5.13 1.3 Test environment Ambient temperature Relative humidity Atmospheric pressure 23.7°C 58%RH 100.14kPa Mode number Equipment number Manufacturer Calibration date OTA Test system ShanWan 2. Sample Drawing 3. Sample Layout Diagram 主视图 ShanWan 3. Test Result 3.1 Detection basis Parameter name Radiation pattern Antenna gain GB/T 9410-2008 ANSI/IEEE Std 149-1979 Antenna 3.2 Test uncertainty Object name Mobile communication antenna Voltage standing wave ratio Roundness of the directional graph Generic specification for antennas used in the mobile communications Method name By standard number IEEE Standard procedure for antenna testing Gain and directivity Radiation efficiency Impedance The uncertainty was calculated on the basis of the GUM published by ISO, using the inclusion factor of K=2 and the 95% confidence level to express the extended uncertainty. Item Uncertainty VSWR ±0.3 Antenna gain ±0.72dB Radiation efficiency ±0.72dB ShanWan 3.3 Test data 3.3.1 Network analyzer test 3.3.2 Standing-wave ratio 2402 2440 2480 VSWR 1.3910 1.4662 2.0735 3.3.3 Gain and efficiency 2402 2.85 2410 2.88 2420 2.79 2430 2.77 2440 2.69 2450 2.52 2460 2.46 2470 2.41 2480 2.03 44.98 45.34 44.93 45.74 46.00 45.14 45.56 44.49 40.81 3.3.4 Roundness of the directional graph 2402 2410 2420 2430 2440 2450 2460 2470 2480 H Theta=90/dB 14.22 14.43 14.31 13.68 13.38 13.30 13.18 13.31 13.58 Frequency/MHz Frequency/MHz Peak Gain/dBi Efficiency/% Frequency/MHz ShanWan (1) X-Z Plane (Unit：dBi)： (2) Y-Z Plane (Unit：dBi)： 3.3.5 Directional diagram ShanWan (3) X-Y Plane (Unit：dBi)： (4) 2410MHz 3D direction map (Unit：dBi)： -------------------------------------------------END------------------------------------------------ （The following is blank）

Report No.: S23041201205002 Version.1.3 Page 1 of 46 RADIO TEST REPORT FCC ID: 2A3VP-Q41 Product: Wireless Gaming Controller Trade Mark: ShanWan Model No.: Q41 Family Model: Q41P, Q41W, Q41A, Q41X, Q41S, Q42, Q42S, Q42SP, Q42A, Q43, Q44, Q43S, Q43A, Q45, P01, P02, P03, P04, P05, P06, P07, P08, P09, P10 Report No.: S23041201205002 Issue Date: Jun 06. 2023 Prepared for ShenZhen ShanWan Technology Co., Ltd 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23041201205002 Version.1.3 Page 2 of 46 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 Report No.: S23041201205002 Version.1.3 Page 3 of 46 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : ShenZhen ShanWan Technology Co., Ltd Address ....................................... : 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong China Manufacturer's Name .................. : ShenZhen ShanWan Technology Co., Ltd Address ....................................... : 5 / F, building 33, chentian Industrial Zone, chentian community, Xixiang street, Bao'an District, Shenzhen, Guangdong China Product description Product name .............................. : Wireless Gaming Controller Model and/or type reference ...... : Q41 Family Model ............................... : Q41P, Q41W, Q41A, Q41X, Q41S, Q42, Q42S, Q42SP, Q42A, Q43, Q44, Q43S, Q43A, Q45, P01, P02, P03, P04, P05, P06, P07, P08, P09, P10 Test sample number ..................................... : S230412012001 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this rep…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
