2A45C-C01Wireless carplay adapter

AOGUERBE WIRELESS Carplay Adapter Model No C01 USER MANUAL  Important Instructions Notice 1. This Wireless Carplay Adapter is designed to work exclusively with iPhone and is not compatible with other smartphones or tablets. 2. This Wireless CarPlay Adapter is designed exclusively for cars that already have their own wired CarPlay function and do not support cars without CarPlay functionality. 3. Only iPhone 6 and later models are compatible with this Wireless CarPlay Adapter. Please note that your iPhone operating system must be iOS 10 or higher in order to use this Adapter. 4. If your car hasbeen customized with features (such as front-facing camera monitoring, car 360 surround monitoring, etc.), there will be a successful connection but there is a probability of a black screen appearing, This is not indicative of a product. issue. In such cases, we recommend reaching out to our customer service team promptly to help you find a solution. 5. When connecting Wireless Carplay, please ensure that is only connected to the Bluetooth and Wi-Fi signals Smart Dongle-xxxx of the Wireless Carplay Adapter (xxxx is the product serial number, the product serial number shall be based on the actual receipt of goods) do not connect to the Bluetooth and Wi-Fi signals of the vehicle system to avoid signal conflict. 6. During the connection process, please ensure that only the user's iphone is connected to the Bluetooth and Wi-Fi signal Smart Dongle-xxxx from the Wireless Carplay Adapter. Please read the manual carefully before use and we recommend keeping this manual for future reference. 11  Pay More Attention Notice: "Smart Dongle-xxxx"Bluetooth plays a pairing role in the operation of the Carplay. When the pairing is completed, it only needs Wi-Fi to keep working, so it doesn't matter if you turn off Bluetooth. Please note that when you use it next time, you still need to turn on the phone's Bluetooth, so that the Wireless Carplay Adapter,can be automatically paired and connected. 1. While using the Wireless CarPlay feature, your mobile phone's Wi-Fi will be connected to"Smart Dongle-xxxx" Wi-Fi which is broadcasted by the Wireless CarPlay Adapter. Please note that other Wi-Fi connections cannot be used during this time. If the other Wi-Fi conflicts with the Wi-Fi of the Wireless Carplay Adapter, it may be necessary to manually disconnect the other Wi-Fi to maintain the use of Wireless Carplay. 2. The automatic connection feature of the Wireless Carplay Adapter requires you to keep your phone's Wi-Fi and Bluetooth available. In addition, please set the Wireless Carplay Adapter's Smart Dongle-xxXX Wi-Fi signal network to "Auto Join": A. Settings>WLAN>Ask to Join Networks: select "Notify"; B. Settings>WLAN>Click the" " symbol on the far right of "Smart Dongle-xxxx">Turn on"Auto-Join". 3. The Wireless Carplay Adapter will disconnect the Bluetooth connection with your phone after pairing. If the phone's Bluetooth connects to other devices at this time, it may cause Carplay mic input or sound playing to be unavailable. You may need 2   to manually disconnect your phone from the other Bluetooth or switch off the Bluetooth directly to fix it. A. Settings > Bluetooth > Choose the Bluetooth that comes with the car like "Car model xxxx" > Click the exclamation mark: select "Forget This Device"; Specifications Wi-Fi signal name: Bluetooth signal name: Input interface: Smart Dongle-xxxx (xxxx is the product serial number, the product serial number depends on the actual receipt of goods) Smart Dongle-xxxx (xxxx is the product serial number, the product serial number depends on the actual receipt of goods) USB-A Male/Equipped with USB-A TYPE-C externall Adapter Input voltage: 5V Wi-Fi Bluetooth module frequency: Bluetooth 2.4GHz, Wi-Fi 2.4-5.8GHz Support Bluetooth version: Bluetooth 2.1+EDR/3.0/4.X/5 Wi-Fi format: WEP/WPA2/WPA3-SAE PERSONAL MFP Applicable system version: iOS10+ Support mobile phone: iPhone 6 & later iPhone models 3   What's in the Box 1× Wireless Carplay Adapter 1 x USB to USB C Adapter 1× Quick User Guide 1x User Manual Find Your Carplay and Use It Method 1: Plug your iPhone into the main USB port of the car. If the car has an Apple Carplay function, the app will pop up on the screen requesting permission on your phone. Method 2: If there is a Carplay icon in the car stereo menu, that your car has built-in Apple Carplay. Method 3: Contact your car dealer for help. 4

 Setup Step 1. Start the car and wait for the car engine system to load. Keep your phone's Bluetooth and Wi-Fi enabled and not connected to any other signals. 2. Connect the Wireless Carplay Adapter to your vehicle's USB or USB C port with apple Carplay functionality. Note that if your car has more than one port, make sure to plug the Wireless Carplay into the USB or USB C port of the wired Carplay (with a diagram of the data transfer ports, some of the ports will be wrapped in a white wire frame) 3. Once the Wireless Carplay Adapter is successfully connected to the car,(please note that some cars may require selecting the CarPlay option on the display screen to initiate it), you'll see the following message on your car's display screen, indicating a successful connection between the Wireless CarPlay Adapter and your vehicle. 5   4. Open the Bluetooth interface of the mobile phone, find the Bluetooth signal of the Wireless carplay Adapter"Smart Dongle-xxxx",Click pairing,the phone will prompt "Bluetooth pairing request", click all prompts "allow", wait a few seconds to connect successfully. (Most will automatically access whether the phone matches, no need to manually click) 5. The Wi-Fi of the iphone will automatically connect to the Wi-Fi signal"Smart Dongle-xxxx"of the Wireless carplay Adapter. Do not connect to it or any other Wi-Fi signals at this time. Please ensure that the Wi-Fi is not connected to other…

Text truncated - open the document above for the full version.

Shenzhen Zhilian Xintong electronics co.,Ltd Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-11 To whom it may concern: We, Shenzhen Zhilian Xintong electronics co.,Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2A45C-C01) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature feng shan Cui CEO Shenzhen Zhilian Xintong electronics co.,Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Zhilian Xintong electronics co.,Ltd Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/10 U.S. Agent Designation Shenzhen Zhilian Xintong electronics co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A45C-C01): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Zhilian Xintong electronics co.,Ltd Shenzhen Zhilian Xintong electronics co.,Ltd with the FRN [0032029126] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature feng shan Cui Manager Shenzhen Zhilian Xintong electronics co.,Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Zhilian Xintong electronics co.,Ltd Add: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Date: 2024-9-11 FCC ID: 2A45C-C01 Dear Sir/Madam, We, Shenzhen Zhilian Xintong electronics co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless carplay adapter Model no.: C01, C02, C03, C04, C05, C06, C07, C08, C09, C10, CXX (“XX” represent any number, XX=01~99) Sincerely, Name/Title： feng shan Cui/CEO Company: Shenzhen Zhilian Xintong electronics co.,Ltd Address: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Phone: 13266691818 Fax: 0755-27865657 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-11> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A45C-C01 C01 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： feng shan Cui/CEO Company: Shenzhen Zhilian Xintong electronics co.,Ltd Address: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Phone: 13266691818 Fax: 0755-27865657 E-Mail: [email protected]

Shenzhen Zhilian Xintong electronics co.,Ltd Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2A45C-C01 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： feng shan Cui/CEO Company: Shenzhen Zhilian Xintong electronics co.,Ltd Address: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Phone: 13266691818 Fax: 0755-27865657 E-Mail: [email protected]

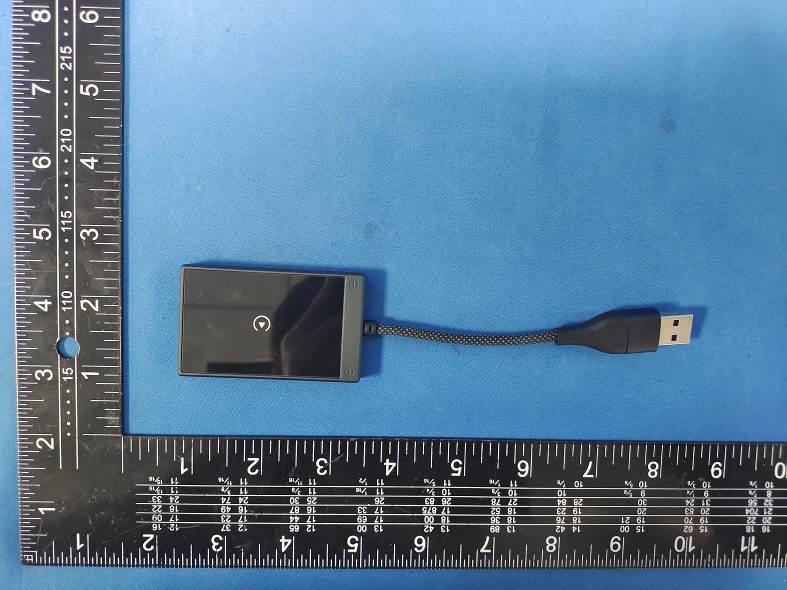

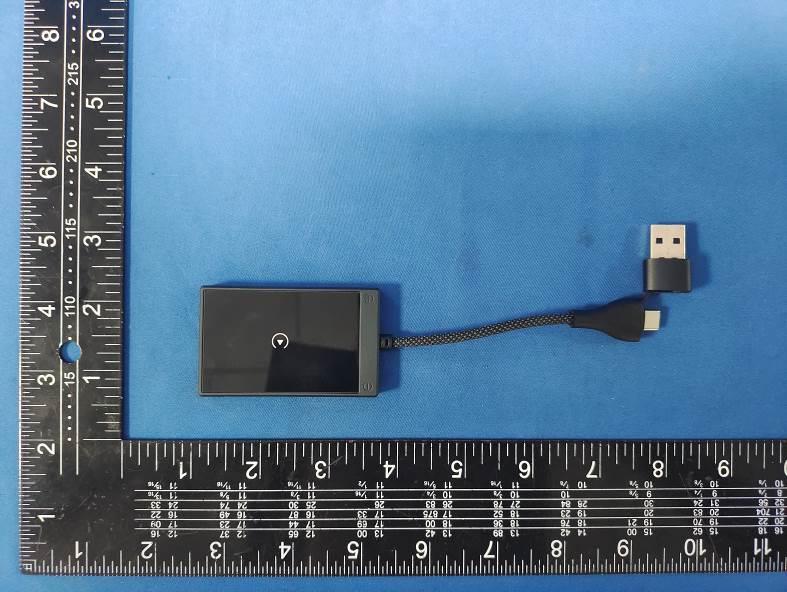

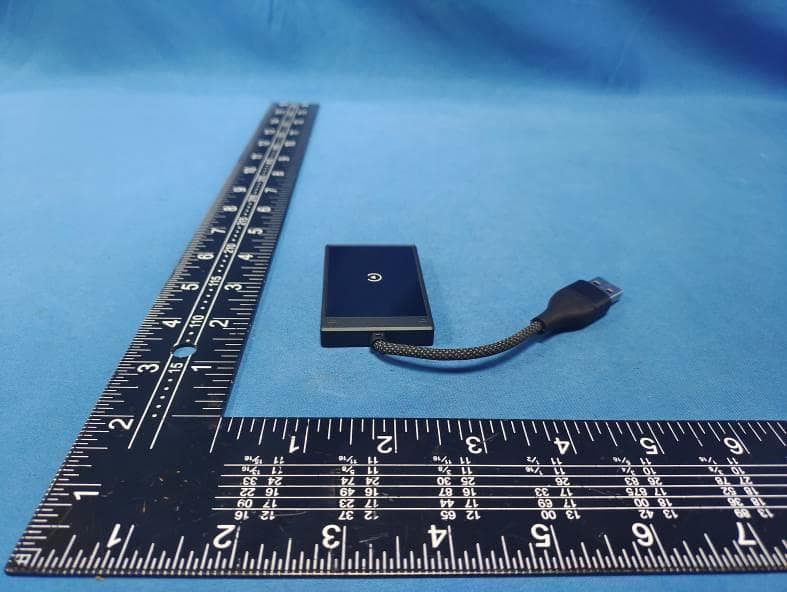

FCC ID: 2A45C-C01 External Photos of the EUT FCC ID: 2A45C-C01 FCC ID: 2A45C-C01

Label and Location Size: L: 2.0cm*W: 0.5cm Label and Location FCC ID : 2A45C-C01

FCC ID: 2A45C-C01 Internal Photos of the EUT FCC ID: 2A45C-C01 2.4GWIFI ANT 5GWIFI ANT BT ANT

RF Exposure evaluation FCC ID: 2A45C-C01 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information L4K1 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB antenna 0.72dBi for 2400-2500MHz; 2.4GWIFI / PCB antenna 0.85dBi for 2400-2500MHz 5.2GWIFI PCB antenna 1.01dBi for 5180-5240MHz 5.8GWIFI / PCB antenna 0.92dBi for 5745-5825MHz 5. Manufacturing Tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BT 6.08 6.0±1 2.4GWIFI 14.34 14.0±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up 5.2GWIFI 12.15 12.0±1 5.8GWIFI 12.06 12.0±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 7.0 5.0119 0.72 1.1803 0.0012 1.0000 2.4GWIFI 15.0 31.6228 0.85 1.2162 0.0077 1.0000 5.2GWIFI 13.0 19.9526 1.01 1.2618 0.0050 1.0000 5.8GWIFI 13.0 19.9526 0.92 1.2359 0.0049 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 5.2GWIFI MPE (Ratio) 2.4GWIFI MPE (Ratio) BT MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0050 0.0077 0.0012 0.0139 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model C01 Frequency range 5180-5240MHz, 5745-5825MHz Manufacturer Shenzhen Zhilian Xintong electronics co.,Ltd ANT Peak Gain 5180-5240MHz: 1.01 dBi 5745-5825MHz: 0.92 dBi 2. Antenna Photo: Length :10.86mm Width:5.94mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID............................................. : CTA24090600103 2A45C-C01 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 09, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zhilian Xintong electronics co.,Ltd Address ............................................ : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen China Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless carplay adapter Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Zhilian Xintong electronics co.,Ltd Model/Type reference ...................... : C01 Listed Models .................................. : C02, C03, C04, C05, C06, C07, C08, C09, C10, CXX (“XX” represent any number, XX=01~99) Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24090600103 Page 2 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless carplay adapter Model /Type : C01 Serial Models : C02, C03, C04, C05, C06, C07, C08, C09, C10, CXX (“XX” represent any number, XX=01~99) Applicant : Shenzhen Zhilian Xintong electronics co.,Ltd Address : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen China Manufacturer : Shenzhen Zhilian Xintong electronics co.,Ltd Address : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24090600103 Page 3 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions 14 4.3 Maximum Conducted Average Output Power 21 4.4 Power Spectral Density 24 4.5 Emission Bandwidth (26dB Bandwidth) 34 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 39 4.7 Frequency Stability 44 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 46 6 P H O T O S O F T H E E U T ........................................................... 47 Report No.: CTA24090600103 Page 4 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA24090600103 Page 5 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industri…

Text truncated - open the document above for the full version.

Report No.: CTA24090600103 Page 35 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48 Report No.: CTA24090600103 Page 36 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA24090600103 Page 37 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) CH38 CH46 Report No.: CTA24090600103 Page 38 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT20) 802.11ax(HT40) CH36 CH38 CH44 CH46 CH48 Report No.: CTA24090600103 Page 39 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Minimum Emission Bandwidth (6dB Bandwidth) Limit Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. Test Procedure 1. Set resolution bandwidth (RBW) = 100 kHz 2. Set the video bandwidth 3 x RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Configuration EUT SPECTRUM ANALYZER Test Results Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 16.320 ≥500KHz Pass 157 16.320 165 16.280 802.11n(HT20) U-NII 3 149 17.160 157 17.120 165 16.960 802.11n(HT40) U-NII 3 151 35.280 159 35.760 802.11ac(HT20) U-NII 3 149 17.120 157 17.000 165 17.120 802.11ac(HT40) U-NII 3 151 35.360 159 35.360 802.11ax(HT20) U-NII 3 149 17.160 157 17.280 165 16.960 802.11ax(HT40) U-NII 3 151 35.520 159 35.760 Test plot as follows: Report No.: CTA24090600103 Page 40 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA24090600103 Page 41 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA24090600103 Page 42 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) CH151 CH159 Report No.: CTA24090600103 Page 43 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ax(HT20) 802.11ax(HT40) CH149 CH151 CH157 CH159 CH156 Report No.: CTA24090600103 Page 44 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Frequency Stability LIMIT Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. TEST CONFIGURATION TEST PROCEDURE Frequency Stability under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. TEST RESULTS Record worst case as below: Report No.: CTA24090600103 Page 45 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Reference Frequency: 802.11ac channel=36 frequency=5180MHz Voltage ( V ) Temperature (°C) Fre…
