2A45C-KT-D003MINIWireless Power Bank

User Manual Please read this User Manual carefully before using the product and keep it property Name: Magnetic Wireless Power Bank Model Number: KT-D003MINI Battery model: polymer battery Material: Fireproof ABS + PC Battery capacity: 5000mAh Rated capacity: 3000mAh Energy conversion: ≥ 60% Type-C input: 5V 3A, 9V 2A Type-C output: 5V 3A, 9V 2.2A, 9V 2A Lightning input: 5V 2.4A Wireless charging output: 5W, 7.5W, 10W, 15W Product size: 95x65x14mm/3.74x2.55x0.55inch Net weight: 120g/4.23oz Note: Non Compatible with Non-Magnetic Phone Cases --- --- --- --- --- --- Made in China Wireless Charging Area Magnetic Attraction Position Power Switch Lightning Input PortType-C Output/Input Port Wireless Magnetic Model NO.: KT-D003MINI 5000 mAh Product parameter : Packing List Product description: This product is a portable charging device that can provide wired charging and wireless charging for mobile phones, tablets, e-books, game machines and other famous products. The product has the characteristics of wired charging and wireless charging in one, magnetic suction positioning, power indicator lights, ip20w PD fast charging, two output (including wireless output), 15W wireless fast charging, Lighting Interface, etc. Product built-in FOD, overcharge, over discharge, temperature protection and other safety protection circuit. Checking quantity of electricity : Press on/off button check the remaining electricity of the power bank, the four power indicator lights are on the left of the product. Wireless charging tips : Wireless charging mobile phone needs to place the wireless charging area of the product (see the illustration for the wireless charging coil emission area) for wireless charging. The charging distance of this product is within 2mm. If the wireless charging distance exceeds 2mm, the wireless charging cannot be carried out. Please adjust the wireless charging distance of the mobile phone within the wireless charging range. Wireless Charging the iPhone 12 Series or Later To activate wireless charging, press the power button or place your device on the charger as illustrated below and it will be held in place magnetically. Note: After the phone is placed correctly, there may be a delay of 3-5 seconds, the product will automatically turn on the charging mode. If there is no wireless load access within 30 seconds, the product will automatically turn off the wireless charging function. Wireless Power Bank*1User Manual*1Type-C to Type-C Cable*1 Charge the product Use the power adapter to charge the local wireless charging mobile power bank. The Type-C charging cable/Lighting charging cable can be used to plug into the Type-C input port/Lighting input port of the wireless charging power bank to charge the power bank. Connect the Type-C connector to the charger, and the power indicator lights will start to flash, indicating that the product is being charged. When it is fully charged, the power indicator lights will stop flashing. 1.Using Type-C to Lighting Cable Charging Your Phone or Earbuds Using a Charging Cable : Connect the Type-C charging cable to the corresponding output port of the power bank, and the power bank will automatically turn on the output. Due to compatibility, some smartphones need to press the button to turn on the power output function, which is a normal phenomenon and need not be ignored. Press the key once to supply power to the external equipment. Charge mobile phones or other digital devices 1.Check whether the charging voltage of the digital product matches the output voltage of the product. 2.Select the original charging cable of the digital product, one end is connected with the digital product, and the other end is connected with the output port of the product. The wired output terminal of the product automatically turn on to charge the mobile phone or other digital products, and the indicator lights will always be on. 3.Charge the mobile phone with a wireless charging function, press the button once, and the indicator lights will light up. At this time, the wireless charging function can be used. Put the mobile phone with wireless charging function in the center of wireless charging of mobile power bank, and the mobile phone can be charged at this time, and the indicator lights will be always on. Reminder: Please read all instructions and warnings before using this product. Improper use will damage the product or personal safety. 1.The charging contact surface on the back of the mobile phone does not contain metal substances, such as iron sheets, rings, metal protective cases, etc. 2.When the mobile phone is charging, if intermittent charging or serious heating is found, it is likely that the receiving coil of the mobile phone is not fully aligned with the wireless charging coil, and there are metal foreign bodies in the protective sleeve of the mobile phone. Please try to cool the mobile phone, remove the protective sleeve, and then align it in the normal position. 3.This product has an over-current protection function. If the product is used improperly, it will turn off or reduce the output power, reduce the charging speed and ensure safety. Please check whether the equipment is used improperly or not 4.Do not let children use alone under 12-year, especially the accessories. 5.Please use a dry soft cloth to clean the surface. Do not use chemicals, soap, or detergent. 6.Please don*t dismantle the machine by yourself. The user's abnormal use or improper placement of this product may reduce the service life or damage the product. Therefore, the responsibility does not belong to the warranty responsibility or the manufacturer's responsibility. Please understand. 7.There is a conversion rate in the power bank, so the battery capacity of the power bank is not equal to the rechargeable capacity. 8.Please charge your power bank regularly (at least 5 months is recommended) to maintain its long service life. 9.Improper use of the product may easily result in the product i…

Text truncated - open the document above for the full version.

Shenzhen Zhilian Xintong electronics co.,Ltd Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-5 To whom it may concern: We, Shenzhen Zhilian Xintong electronics co.,Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2A45C-KT-D003MINI) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature feng shan Cui CEO Shenzhen Zhilian Xintong electronics co.,Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Zhilian Xintong electronics co.,Ltd Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/08/29 U.S. Agent Designation Shenzhen Zhilian Xintong electronics co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A45C-KT-D003MINI): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Zhilian Xintong electronics co.,Ltd Shenzhen Zhilian Xintong electronics co.,Ltd with the FRN [0032029126] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature feng shan Cui Manager Shenzhen Zhilian Xintong electronics co.,Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Zhilian Xintong electronics co.,Ltd Add: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Date: 2024-9-5 FCC ID: 2A45C-KT-D003MINI Dear Sir/Madam, We, Shenzhen Zhilian Xintong electronics co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless Power Bank Model no.: KT-D003MINI, KT-D020, KT-D021, KT-D022, KT-D023, KT-D024, KT-D025, KT-D026, KT-D027, KT-D028, KT-DXXX, KT-DXXXMINI “XXX” represent any number, XXX=001~100 Sincerely, Name/Title： feng shan Cui/CEO Company: Shenzhen Zhilian Xintong electronics co.,Ltd Address: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Phone: 13266691818 Fax: 0755-27865657 E-Mail: [email protected]

Shenzhen Zhilian Xintong electronics co.,Ltd Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-5 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A45C-KT-D003MINI including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： feng shan Cui/CEO Company: Shenzhen Zhilian Xintong electronics co.,Ltd Address: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Phone: 13266691818 Fax: 0755-27865657 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-5> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A45C-KT-D003MINI KT-D003MINI For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： feng shan Cui/CEO Company: Shenzhen Zhilian Xintong electronics co.,Ltd Address: Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Phone: 13266691818 Fax: 0755-27865657 E-Mail: [email protected]

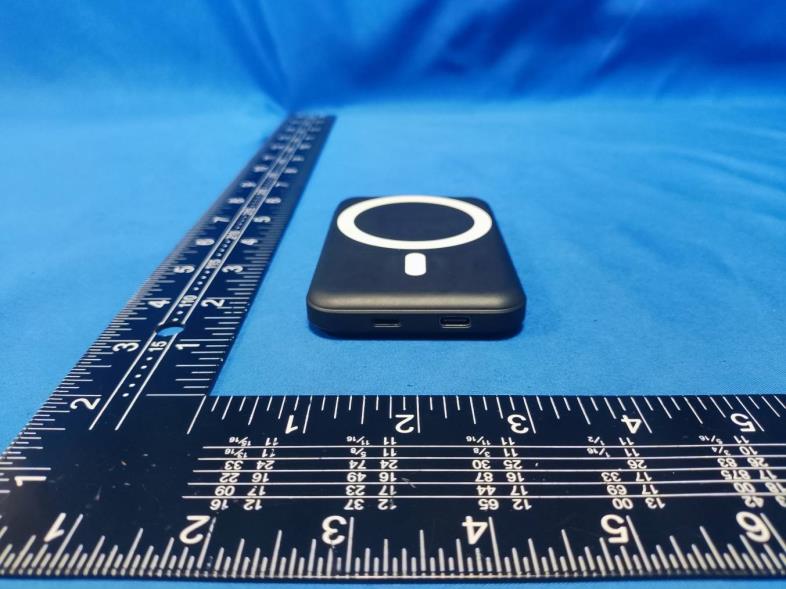

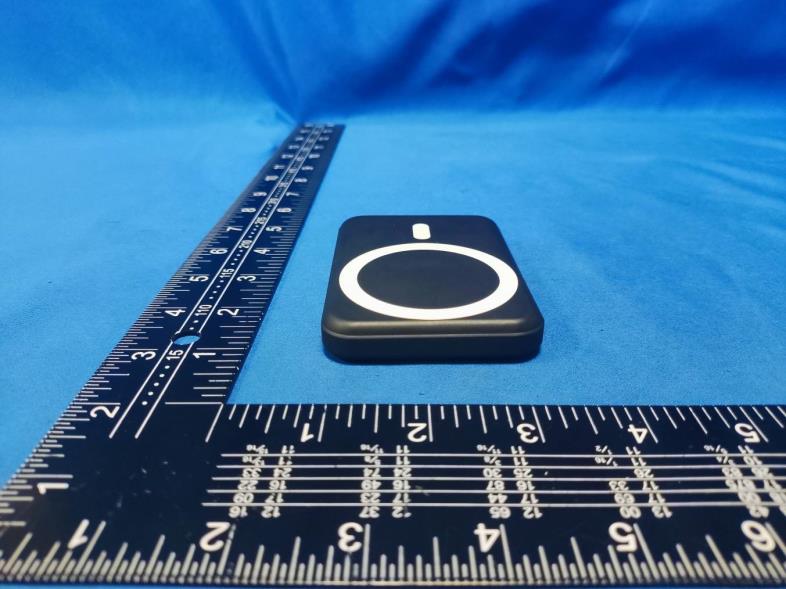

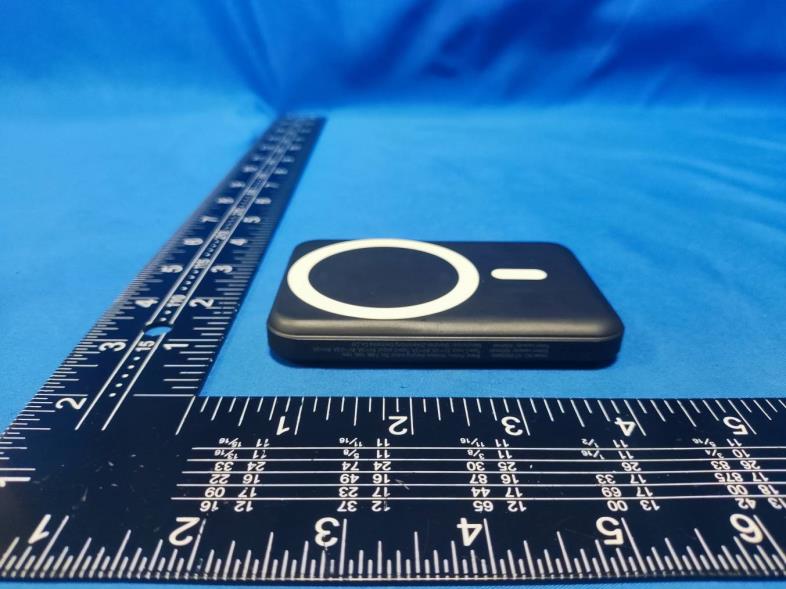

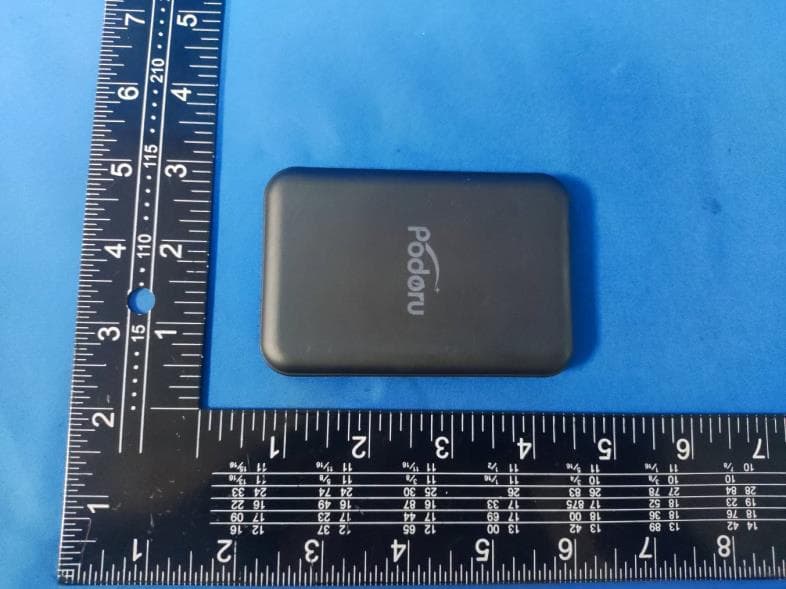

FCC ID: 2A45C-KT-D003MINI External Photos of the EUT FCC ID: 2A45C-KT-D003MINI FCC ID: 2A45C-KT-D003MINI

Label and Location Size: L: 3.0cm*W: 1.0cm Label and Location FCC ID : 2A45C-KT-D003MINI

FCC ID: 2A45C-KT-D003MINI Internal Photos of the EUT FCC ID: 2A45C-KT-D003MINI Loop coil antenna FCC ID: 2A45C-KT-D003MINI

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA24082300202 2A45C-KT-D003MINI Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 28, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zhilian Xintong electronics co.,Ltd Address............................................ : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Test specification ........................... : FCC CFR 47 PART 1, § 1.1310 Standard ........................................... : KDB 680106 D01 Wireless Power Transfer v04 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Power Bank Manufacturer .................................... : Shenzhen Zhilian Xintong electronics co.,Ltd Model/Type reference ...................... : KT-D003MINI Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : DC 3.7V From battery Input: Type-C: 5V 3A, 9V 2A Lightning: 5V 2.4A Output: Type-C: 5V 3A, 9V 2.2A, 9V 2A Wireless charging Output: 5W, 7.5W, 10W, 15W Result ............................................... : PASS Report No.: CTA24082300202 Page 2 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Power Bank Model /Type : KT-D003MINI Listed Models : KT-D020, KT-D021, KT-D022, KT-D023, KT-D024, KT-D025, KT-D026, KT-D027, KT-D028, KT-DXXX, KT-DXXXMINI “XXX” represent any number, XXX=001~100 Applicant : Shenzhen Zhilian Xintong electronics co.,Ltd Address : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street,Longgang District, Shenzhen, China Manufacturer : Shenzhen Zhilian Xintong electronics co.,Ltd Address : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street,Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24082300202 Page 3 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A RDS ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 6 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 3.4 Equipments Used during the Test 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Test setup 7 4.3 Test Procedures 9 4.4 Equipment Approval Considerations of KDB 680106 D01v04 9 4.5 Test results 10 4.6 Conclusion 11 5 P H O T O G R A P H S O F T H E T E S T S E T U P 12 Report No.: CTA24082300202 Page 4 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T AN D ARDS The tests were performed according to following standards: 680106 D01 Wireless Power Transfer v04: EQUIPMENT AUTHORIZATION OF WIRELESS POWER TRANSFER DEVICES. Report No.: CTA24082300202 Page 5 of 12 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 SUM M A R Y 2.1 General Remarks Date of receipt of test sample : Aug. 23, 2024 Testing commenced on : Aug. 23, 2024 Testing concluded on : Aug. 28, 2024 2.2 Product Description Product Name: Wireless Power Bank Model/Type reference: KT-D003MINI Power supply: DC 3.7V From battery Input: Type-C: 5V 3A, 9V 2A Lightning: 5V 2.4A Output: Type-C: 5V 3A, 9V 2.2A, 9V 2A Wireless charging Output: 5W, 7.5W, 10W, 15W Adapter information (Auxiliary test supplied by test Lab) : Model: MDY-11-EX Input: AC 100-240V 50/60Hz Output: DC 5V 3A, 9V 3A, 12V 2.25A, 20V 1.35, 11V 3A Test samples ID: CTA240823002-1# (Engineer sample) CTA240823002-2# (Normal sample) Ha…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Loop coil antenna Model KT-D003MINI Frequency range 110KHz - 205KHz Manufacturer Shenzhen Zhilian Xintong electronics co.,Ltd ANT Peak Gain 0.00 dBi 2. Antenna Photo: Length :38.75mm Width:10.86mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA24082300201 2A45C-KT-D003MINI Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 28, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zhilian Xintong electronics co.,Ltd Address............................................ : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Power Bank Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Zhilian Xintong electronics co.,Ltd Model/Type reference ...................... : KT-D003MINI Listed Models .................................. : Refer to page 2 Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : DC 3.7V From battery Input: Type-C: 5V 3A, 9V 2A Lightning: 5V 2.4A Output: Type-C: 5V 3A, 9V 2.2A, 9V 2A Wireless charging Output: 5W, 7.5W, 10W, 15W Result ............................................... : PASS Report No.: CTA24082300201 Page 2 of 24 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Power Bank Model /Type : KT-D003MINI Listed Models : KT-D020, KT-D021, KT-D022, KT-D023, KT-D024, KT-D025, KT-D026, KT-D027, KT-D028, KT-DXXX, KT-DXXXMINI “XXX” represent any number, XXX=001~100 Applicant : Shenzhen Zhilian Xintong electronics co.,Ltd Address : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Zhilian Xintong electronics co.,Ltd Address : Room201, NO.49 Xinhe Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24082300201 Page 3 of 24 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Environmental conditions 6 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 7 3.6 Equipments Used during the Test 7 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1 AC Power Conducted Emission 9 4.2 Radiated Emission 12 4.3 The 20dB bandwidth 16 4.4 Antenna Requirement 17 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 18 6 PH O T O S O F T H E E U T ............................................................. 19 Report No.: CTA24082300201 Page 4 of 24 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24082300201 Page 5 of 24 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M …

Text truncated - open the document above for the full version.

FCC ID: 2A45C-KT-D003MINI Test Setup Photos of the EUT
