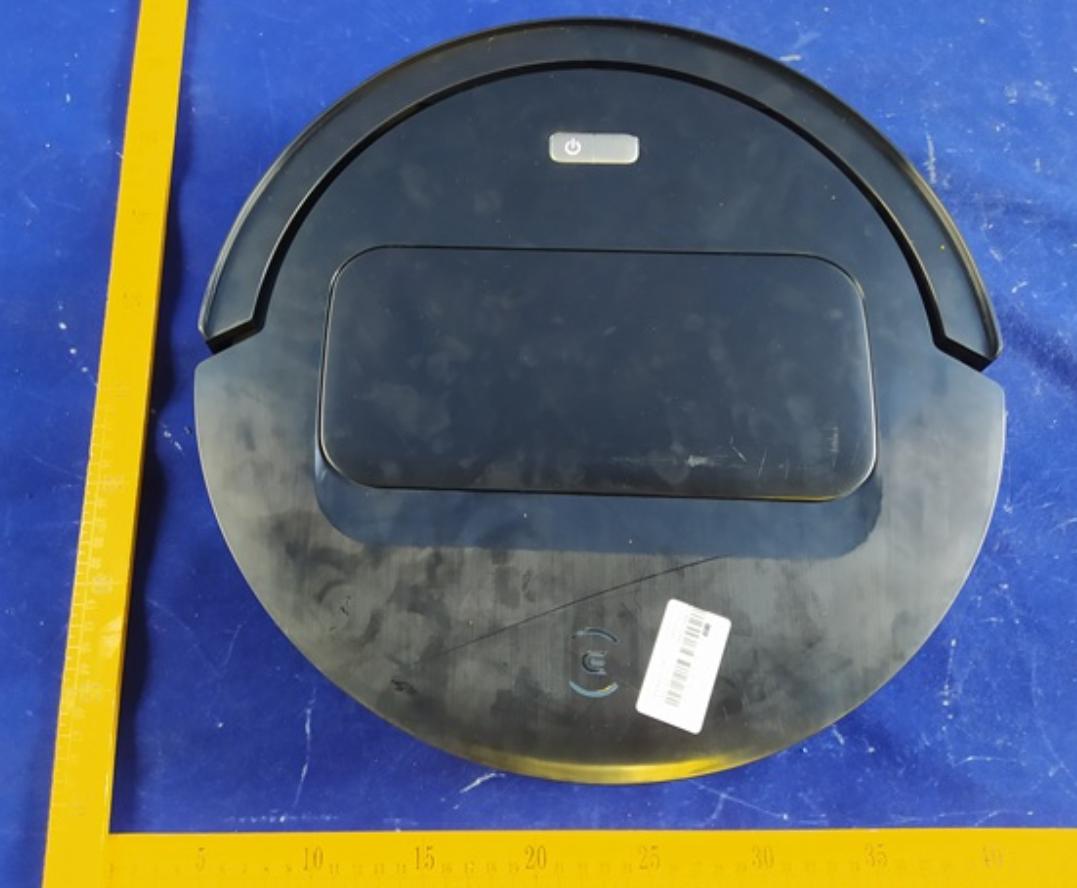

2A64B-ZJ2576Floor Cleaning Robot

平面印刷品基本技术要求 科沃斯机器人股份有限公司 物料名称帕斯卡 - 美国 - 水箱版高配 - 完整版说明书尺 寸 145*210mm 型 号 ZJ2576 印刷颜色单色 K 物料编码 451-2576-0506 装订方式骑马订 版 次 A 阶 段 A 材 质封面 157 哑粉纸 + 内页 80g 双胶纸页 数 88p 变更记录： 设计审核批准 ECOVACS ：机密图档 PLD 2026.06.22 赵娜 Instruction Manual 2EN Instruction Manual ���������������������������������������������������������������������������������������������EN I P03 Manuel d’instructions ����������������������������������������������������������������������������������FR-CA I P31 Manual de instrucciones �����������������������������������������������������������������������������ES-LA I P59 3EN IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using an electrical appliance, basic precautions should always be followed, including the following: WARNING: Read all safety warnings and instructions� Failure to follow the warnings and instructions may result in electric shock, fire, or serious injury� WARNING: To Reduce the Risk of Fire and Electric Shock – Use only ECOVACS cleaning products intended for use with this machine� See the Cleaning Fluid section of this manual� 1� Do not allow to be used as a toy� Close attention is necessary when used by or near children� 2� Clear the area to be cleaned� Remove power cords and small objects from the floor that could entangle the Appliance� Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor� 3� If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge� It may become necessary to place a physical barrier at the edge to keep the unit from falling� Make sure the physical barrier is not a trip hazard� 4� Only use as described in this manual� Only use attachments recommended or sold by the manufacturer� 5� Do not handle plug or appliance with wet hands� 6� Non-rechargeable batteries are prohibited� 7� Do not use without Dust Bin and/or Filters in place� 8� Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned� 9� Do not use and store in extremely hot or cold environments (below -5 ̊C /23 ̊F or above 40 ̊C/104 ̊F)� Please charge the robot in temperature above 0°C/32°F and below 40°C/104°F� 10� Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts� 11� Do not operate the Appliance in a room where an infant or child is sleeping� 12� For INDOOR use ONLY� Do not use the Appliance in outdoor, commercial or industrial environments� Do not use Appliance on wet surfaces or surfaces with standing water� 13� Do not allow the Appliance to pick up large 4EN objects like stones, large pieces of paper, or any item that may clog the Appliance� 14� Do not use to pick up flammable or combustible materials such as gasoline, printer, or copier toner, or use in areas where they may be present� 15� Do not pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire� 16� Do not put any object into openings� Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow� 17� Take care not to damage the power cord� Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners� Do not run Appliance and Docking Station over the power cord� Keep power cord away from hot surfaces� Do not unplug by pulling on cord� To unplug, grasp the plug, not the cord� 18� If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard� 19� Do not use with a damaged power cord or plug� Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water� It must be repaired by the manufacturer or its service agent in order to avoid a hazard� 20� Turn off the power before cleaning or maintaining the Appliance� Turn off all controls before unplugging� Always turn off this appliance before connecting or disconnecting motorized nozzle� 21� Turn off the Power before removing the Dust Bin� 22� Remove the Appliance from the Docking Station, and turn off the power to the Appliance before removing the battery for disposal of the Appliance� 23� The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance� 24� Please dispose of used batteries according to local laws and regulations� 25� Do not incinerate the Appliance even if it is severely damaged� The batteries can explode in a fire� 26� When not using the Docking Station, unplug from outlet when not in use and before servicing� 27� The Appliance must be used in accordance with the directions in this Instruction Manual�Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use� 5EN 28� Prevent unintentional starting� Ensure the power is off before connecting to battery pack, picking up or carrying the appliance� 29� When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another� Shorting the battery terminals together may cause burns or a fire� 30� Under abusive conditions, liquid may be ejected from the battery; avoid contact� If contact accidentally occurs, flush with water� If liquid contacts eyes, additionally seek medical help� Liquid ejected from the battery may cause irritation or burns� 31� Do not use a battery pack or appliance that is damaged or modified� Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury� 32� Do not expose a battery pack or appliance to fire or excessive temperat…

Text truncated - open the document above for the full version.

FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Internal Photos Fourth PV: HVIN: ZJ2633+ PMN: ZJ2633-Y FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Antenna FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Fan Fan Model: 27BLC5-TF01 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576

FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Test Setup FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576

Ecovacs Home Service Robotics Co., Ltd. RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report Model: ZJ2576, ZJ2576-Y, ZJ2633, ZJ2633-Y REPORT NUMBER: 2605B1819SHA-002 ISSUE DATE: July 8, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-03_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-03_V1 © 2018 Intertek Page 2 of 36 Report no.: 2605B1819SHA-002 Applicant: Ecovacs Home Service Robotics Co., Ltd. No.518 Songwei Road,Wusongjiang industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China. Manufacturer: Same as applicant Factory 1: Ecovacs Home Service Robotics Co., Ltd. No.518 Songwei Road, Wusongjiang industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China. Factory 2: Competition Team Technology (Vietnam) Co.Ltd. Lot CN-05, Dong Mai Industrial Zone, Dong Mai ward, Quang Ninh province, Vietnam FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) ANSI C63.10 (2020) +Cor.1(2023) +C63.10a (2024) +Errata to C63.10a(2024): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-247 Issue 4 (July 2025): Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence- Exempt Local Area Network (LE-LAN) Devices RSS-Gen Issue 5 (April 2018) +A1(March 2019) +A2(February 2021): General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Wakeyou Wang Report No.: 2605B1819SHA-002 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 3 of 36 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 ANTENNA INFORMATION....................................................................................................................................... 8 1.4 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 9 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 10 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 10 2.6 INSTRUMENT LIST .............................................................................................................................................. 11 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 12 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 13 3.1 LIMIT .............................................................................................................................................................. 13 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 13 3.3 TEST CONFIGURATION ........................................................................................................................................ 13 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ....................................................................................................... 13 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ...................................…

Text truncated - open the document above for the full version.

Ecovacs Home Service Robotics Co., Ltd. RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report Model: ZJ2576, ZJ2576-Y, ZJ2633, ZJ2633-Y REPORT NUMBER: 2605B1819SHA-001 ISSUE DATE: July 8, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-02_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-02_V1 © 2018 Intertek Page 2 of 33 Report no.: 2605B1819SHA-001 Applicant: Ecovacs Home Service Robotics Co., Ltd. No.518 Songwei Road,Wusongjiang industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China. Manufacturer: Same as applicant Factory 1: Ecovacs Home Service Robotics Co., Ltd. No.518 Songwei Road, Wusongjiang industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China. Factory 2: Competition Team Technology (Vietnam) Co.Ltd. Lot CN-05, Dong Mai Industrial Zone, Dong Mai ward, Quang Ninh province, Vietnam FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) ANSI C63.10 (2020) +Cor.1(2023) +C63.10a (2024) +Errata to C63.10a(2024): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-247 Issue 4 (July 2025): Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence- Exempt Local Area Network (LE-LAN) Devices RSS-Gen Issue 5 (April 2018) +A1(March 2019) +A2(February 2021): General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Wakeyou Wang Report No.: 2605B1819SHA-001 TEST REPORT TTRF15.247-02_V1 © 2018 Intertek Page 3 of 33 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 9 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 9 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 10 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 10 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 10 2.6 INSTRUMENT LIST .............................................................................................................................................. 11 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 12 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 13 3.1 LIMIT .............................................................................................................................................................. 13 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 13 3.3 TEST CONFIGURATION ........................................................................................................................................ 13 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ....................................................................................................... 13 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 14 4.1 LIMIT .........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2422-0~Reference-PASS 11N40SISO-Ant1-2422-30~1000-PASS 11N40SISO-Ant1-2422-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2437-0~Reference-PASS 11N40SISO-Ant1-2437-30~1000-PASS 11N40SISO-Ant1-2437-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2452-0~Reference-PASS 11N40SISO-Ant1-2452-30~1000-PASS 11N40SISO-Ant1-2452-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2412-0~Reference-PASS 11AX20SISO-Ant1-2412-30~1000-PASS 11AX20SISO-Ant1-2412-1000~26500-FAIL FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2437-0~Reference-PASS 11AX20SISO-Ant1-2437-30~1000-PASS 11AX20SISO-Ant1-2437-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2462-0~Reference-PASS 11AX20SISO-Ant1-2462-30~1000-PASS 11AX20SISO-Ant1-2462-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Factor 11B Ant1 2412 6.21 6.27 99.04 0.04 11B Ant1 2437 6.21 6.27 99.04 0.04 11B Ant1 2462 6.21 6.27 99.04 0.04 11G Ant1 2412 2.07 2.13 97.18 0.12 11G Ant1 2437 2.06 2.13 96.71 0.15 11G Ant1 2462 2.06 2.11 97.63 0.10 11N20SISO Ant1 2412 1.92 1.97 97.46 0.11 11N20SISO Ant1 2437 1.92 2.00 96.00 0.18 11N20SISO Ant1 2462 1.92 1.99 96.48 0.16 11N40SISO Ant1 2422 0.95 1.03 92.23 0.35 11N40SISO Ant1 2437 0.95 1.00 95.00 0.22 11N40SISO Ant1 2452 0.94 1.00 94.00 0.27 11AX20SISO Ant1 2412 1.73 1.79 96.65 0.15 11AX20SISO Ant1 2437 1.73 1.81 95.58 0.20 11AX20SISO Ant1 2462 1.73 1.81 95.58 0.20 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Test Graphs NTNV-11B-Ant1-2412 NTNV-11B-Ant1-2437 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 NTNV-11B-Ant1-2462 NTNV-11G-Ant1-2412 NTNV-11G-Ant1-2437 NTNV-11G-Ant1-2462 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 NTNV-11N20SISO-Ant1-2412 NTNV-11N20SISO-Ant1-2437 NTNV-11N20SISO-Ant1-2462 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 NTNV-11N40SISO-Ant1-2422 NTNV-11N40SISO-Ant1-2437 NTNV-11N40SISO-Ant1-2452 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 NTNV-11AX20SISO-Ant1-2412 NTNV-11AX20SISO-Ant1-2437 NTNV-11AX20SISO-Ant1-2462

FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2412-PASS 11AX20SISO-Ant1-2437-PASS 11AX20SISO-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 6.48 -39.66 ≤-23.52 PASS 11B Ant1 High 2462 6.53 -48.21 ≤-23.47 PASS 11G Ant1 Low 2412 1.03 -39.73 ≤-28.97 PASS 11G Ant1 High 2462 1.93 -45.77 ≤-28.07 PASS 11N20SISO Ant1 Low 2412 1.01 -39.86 ≤-28.99 PASS 11N20SISO Ant1 High 2462 1.98 -47.49 ≤-28.02 PASS 11N40SISO Ant1 Low 2422 -2.09 -39.37 ≤-32.09 PASS 11N40SISO Ant1 High 2452 -1.45 -45.07 ≤-31.45 PASS 11AX20SISO Ant1 Low 2412 1.08 -35.95 ≤-28.92 PASS 11AX20SISO Ant1 High 2462 1.97 -45.75 ≤-28.03 PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2452-PASS 11AX20SISO-Ant1-2412-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 0~Reference 6.53 6.53 --- PASS 11B Ant1 2412 30~1000 6.53 -63.04 ≤-23.47 PASS 11B Ant1 2412 1000~26500 6.53 -37.73 ≤-23.47 PASS 11B Ant1 2437 0~Reference 6.33 6.33 --- PASS 11B Ant1 2437 30~1000 6.33 -63.35 ≤-23.67 PASS 11B Ant1 2437 1000~26500 6.33 -35.71 ≤-23.67 PASS 11B Ant1 2462 0~Reference 6.55 6.55 --- PASS 11B Ant1 2462 30~1000 6.55 -63.05 ≤-23.45 PASS 11B Ant1 2462 1000~26500 6.55 -31.08 ≤-23.45 PASS 11G Ant1 2412 0~Reference 1.30 1.30 --- PASS 11G Ant1 2412 30~1000 1.30 -62.7 ≤-28.7 PASS 11G Ant1 2412 1000~26500 1.30 -38.86 ≤-28.7 PASS 11G Ant1 2437 0~Reference 3.80 3.80 --- PASS 11G Ant1 2437 30~1000 3.80 -62.87 ≤-26.2 PASS 11G Ant1 2437 1000~26500 3.80 -38.78 ≤-26.2 PASS 11G Ant1 2462 0~Reference 2.11 2.11 --- PASS 11G Ant1 2462 30~1000 2.11 -62.52 ≤-27.89 PASS 11G Ant1 2462 1000~26500 2.11 -38.25 ≤-27.89 PASS 11N20SISO Ant1 2412 0~Reference 0.77 0.77 --- PASS 11N20SISO Ant1 2412 30~1000 0.77 -63.35 ≤-29.23 PASS 11N20SISO Ant1 2412 1000~26500 0.77 -38.76 ≤-29.23 PASS 11N20SISO Ant1 2437 0~Reference 3.63 3.63 --- PASS 11N20SISO Ant1 2437 30~1000 3.63 -62.92 ≤-26.37 PASS 11N20SISO Ant1 2437 1000~26500 3.63 -37.85 ≤-26.37 PASS 11N20SISO Ant1 2462 0~Reference 1.63 1.63 --- PASS 11N20SISO Ant1 2462 30~1000 1.63 -62.45 ≤-28.37 PASS 11N20SISO Ant1 2462 1000~26500 1.63 -37.8 ≤-28.37 PASS 11N40SISO Ant1 2422 0~Reference -2.67 -2.67 --- PASS 11N40SISO Ant1 2422 30~1000 -2.67 -62.25 ≤-32.67 PASS 11N40SISO Ant1 2422 1000~26500 -2.67 -39.38 ≤-32.67 PASS 11N40SISO Ant1 2437 0~Reference 0.37 0.37 --- PASS 11N40SISO Ant1 2437 30~1000 0.37 -62 ≤-29.63 PASS 11N40SISO Ant1 2437 1000~26500 0.37 -38.63 ≤-29.63 PASS 11N40SISO Ant1 2452 0~Reference -1.17 -1.17 --- PASS 11N40SISO Ant1 2452 30~1000 -1.17 -62.71 ≤-31.17 PASS 11N40SISO Ant1 2452 1000~26500 -1.17 -39.32 ≤-31.17 PASS 11AX20SISO Ant1 2412 0~Reference 0.64 0.64 --- PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO Ant1 2412 30~1000 0.64 -63.03 ≤-29.36 PASS 11AX20SISO Ant1 2412 1000~26500 0.64 -36.51 ≤-29.36 PASS 11AX20SISO Ant1 2437 0~Reference 3.60 3.60 --- PASS 11AX20SISO Ant1 2437 30~1000 3.60 -62.28 ≤-26.4 PASS 11AX20SISO Ant1 2437 1000~26500 3.60 -38.86 ≤-26.4 PASS 11AX20SISO Ant1 2462 0~Reference 1.40 1.40 --- PASS 11AX20SISO Ant1 2462 30~1000 1.40 -63.53 ≤-28.6 PASS 11AX20SISO Ant1 2462 1000~26500 1.40 -38.47 ≤-28.6 PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Test Graphs 11B-Ant1-2412-0~Reference-PASS 11B-Ant1-2412-30~1000-PASS 11B-Ant1-2412-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11B-Ant1-2437-0~Reference-PASS 11B-Ant1-2437-30~1000-PASS 11B-Ant1-2437-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11B-Ant1-2462-0~Reference-PASS 11B-Ant1-2462-30~1000-PASS 11B-Ant1-2462-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11G-Ant1-2412-0~Reference-PASS 11G-Ant1-2412-30~1000-PASS 11G-Ant1-2412-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11G-Ant1-2437-0~Reference-PASS 11G-Ant1-2437-30~1000-PASS 11G-Ant1-2437-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11G-Ant1-2462-0~Reference-PASS 11G-Ant1-2462-30~1000-PASS 11G-Ant1-2462-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N20SISO-Ant1-2412-0~Reference-PASS 11N20SISO-Ant1-2412-30~1000-PASS 11N20SISO-Ant1-2412-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N20SISO-Ant1-2437-0~Reference-PASS 11N20SISO-Ant1-2437-30~1000-PASS 11N20SISO-Ant1-2437-1000~26500-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N20SISO-Ant1-2462-0~Reference-PASS 11N20SISO-Ant1-2462-30~1000-PASS 11N20SISO-Ant1-2462-1000~26500-PASS

FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Appendix B of 2605B1819SHA-002 the results of WIFI DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.720 2407.080 2416.800 0.5 PASS 11B Ant1 2437 9.720 2432.120 2441.840 0.5 PASS 11B Ant1 2462 9.760 2457.080 2466.840 0.5 PASS 11G Ant1 2412 16.360 2403.800 2420.160 0.5 PASS 11G Ant1 2437 16.360 2428.800 2445.160 0.5 PASS 11G Ant1 2462 16.360 2453.800 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.560 2403.200 2420.760 0.5 PASS 11N20SISO Ant1 2437 17.560 2428.200 2445.760 0.5 PASS 11N20SISO Ant1 2462 17.560 2453.200 2470.760 0.5 PASS 11N40SISO Ant1 2422 33.760 2404.480 2438.240 0.5 PASS 11N40SISO Ant1 2437 33.840 2420.680 2454.520 0.5 PASS 11N40SISO Ant1 2452 33.840 2435.680 2469.520 0.5 PASS 11AX20SISO Ant1 2412 18.080 2402.800 2420.880 0.5 PASS 11AX20SISO Ant1 2437 18.440 2427.840 2446.280 0.5 PASS 11AX20SISO Ant1 2462 18.880 2452.560 2471.440 0.5 PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2412-PASS 11AX20SISO-Ant1-2437-PASS 11AX20SISO-Ant1-2462-PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 11.930 2405.9897 2417.9197 --- --- 11B Ant1 2437 11.956 2431.0099 2442.9659 --- --- 11B Ant1 2462 11.946 2455.9836 2467.9296 --- --- 11G Ant1 2412 16.983 2403.4023 2420.3853 --- --- 11G Ant1 2437 17.070 2428.3907 2445.4607 --- --- 11G Ant1 2462 16.925 2453.4783 2470.4033 --- --- 11N20SISO Ant1 2412 17.911 2403.0069 2420.9179 --- --- 11N20SISO Ant1 2437 17.935 2428.0168 2445.9518 --- --- 11N20SISO Ant1 2462 17.927 2453.0000 2470.9270 --- --- 11N40SISO Ant1 2422 35.993 2403.9417 2439.9347 --- --- 11N40SISO Ant1 2437 35.983 2418.9898 2454.9728 --- --- 11N40SISO Ant1 2452 35.893 2434.0339 2469.9269 --- --- 11AX20SISO Ant1 2412 18.919 2402.5087 2421.4277 --- --- 11AX20SISO Ant1 2437 18.958 2427.5127 2446.4707 --- --- 11AX20SISO Ant1 2462 18.950 2452.5089 2471.4589 --- --- FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 11B-Ant1-2462 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11G-Ant1-2412 11G-Ant1-2437 11G-Ant1-2462 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 11N20SISO-Ant1-2462 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11N40SISO-Ant1-2422 11N40SISO-Ant1-2437 11N40SISO-Ant1-2452 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 11AX20SISO-Ant1-2412 11AX20SISO-Ant1-2437 11AX20SISO-Ant1-2462 FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 Maximum conducted output power Test Result Average Test Mode Ant Freque ncy[MH z] Averag e power [dBm] Duty Cycle [%] DC Factor [dBm] Resul t [dBm] Limit [dBm] Gain [dBi] EIRP [dBm] EIRP Limit [dBm] Verdict 11B Ant1 2412 17.43 99.04 0.04 17.47 ≤30.00 1.10 18.57 ≤36.00 PASS 11B Ant1 2437 17.25 99.04 0.04 17.29 ≤30.00 1.10 18.39 ≤36.00 PASS 11B Ant1 2462 17.29 99.04 0.04 17.33 ≤30.00 1.10 18.43 ≤36.00 PASS 11G Ant1 2412 12.86 97.18 0.12 12.98 ≤30.00 1.10 14.08 ≤36.00 PASS 11G Ant1 2437 15.03 96.71 0.15 15.18 ≤30.00 1.10 16.28 ≤36.00 PASS 11G Ant1 2462 13.65 97.63 0.10 13.75 ≤30.00 1.10 14.85 ≤36.00 PASS 11N20SISO Ant1 2412 12.71 97.46 0.11 12.82 ≤30.00 1.10 13.92 ≤36.00 PASS 11N20SISO Ant1 2437 15.04 96.00 0.18 15.22 ≤30.00 1.10 16.32 ≤36.00 PASS 11N20SISO Ant1 2462 13.56 96.48 0.16 13.72 ≤30.00 1.10 14.82 ≤36.00 PASS 11N40SISO Ant1 2422 10.92 92.23 0.35 11.27 ≤30.00 1.10 12.37 ≤36.00 PASS 11N40SISO Ant1 2437 14.18 95.00 0.22 14.40 ≤30.00 1.10 15.50 ≤36.00 PASS 11N40SISO Ant1 2452 12.66 94.00 0.27 12.93 ≤30.00 1.10 14.03 ≤36.00 PASS 11AX20SISO Ant1 2412 12.71 96.65 0.15 12.86 ≤30.00 1.10 13.96 ≤36.00 PASS 11AX20SISO Ant1 2437 14.86 95.58 0.20 15.06 ≤30.00 1.10 16.16 ≤36.00 PASS 11AX20SISO Ant1 2462 13.34 95.58 0.20 13.54 ≤30.00 1.10 14.64 ≤36.00 PASS FCC ID: 2A64B-ZJ2576 IC: 28593-ZJ2576 …

Text truncated - open the document above for the full version.
