2A95C-CG2Phone Holder

Product features 1 www.chigeetech.com Product description 4 Product description 5 Installation and Debugging 7 Auto-locking clamping arm Manual clamping arm Wireless charging coil winding area Working status Suspension shock absorber TYPE-C charging interface Object ball Fuse box Waterproof Dust plug Pipe clip adapter ring 22mm 25mm28.6mm Pipe clip fixing base •8Try to install and unistall cell phone Installation and Debugging 6 •1There are 2 ways to setup the pipe clip fixing base, choose the suitable way to your vehicle •5.Connecting the pipe clip base with cellphone mount and tightening the screw. Fill in the side hole with set scew keep tightening . + - Instructions for daily use 12 Product name CHIGEE cell phone stand charger Product modelCG2（Wireless and wired charging） Outlet dimension 86*76*43mm Weight165g Working voltage11.5 - 18V Working current2.5A Max (12V) standby current<20uA wireless charging power15W Max wireless charging support protocol Qi 15W/iPhone 7.5W Wired charging power25W Max Wired charging interfaceTYPE-C wired charging support protocol PD3.0/QC3.0/SCP/FCP/VOOC/Apple Fuse model 3Amini fuse protection level IP67 Installation and Debugging 8 9 Installation and Debugging 10 Installation and Debugging 11 Installation and Debugging • 2Choose the proper adapter ring set on handlebar • 3Moving pipe clip on adaptor ring of handlebar • 4 Adjusting the pipe clip to proper angel and fixed it with screw . • 6. Connecting red line of the power connector to battery positive and black line to negtive , then place the power connector below the power connection terminal of the original vehicle and locked with the torque of the vehicle Note 1.the product designed with low power consuption , it wouldn’t consuming any power when not charging 2.cell phone can keep charging even engine off and automatic stopped charging when low voltage is checked.， The indicator description working statusindicator status standby green wireless charging wired charging green（breathe） blue（breathe） ● low vottage/ faultred(twinkle) ● sleep modeturn off ● ● ● • 7After successful energizing, the indicator light of the charging bracket will always turn on green and last for 1 minute. If there is no charging, the system will turn off the light and automatically enter to sleep state 9 Test wireless charging (phone must fetured wireless charging function) and wired charging .• 10 Completed • Note: For more fixed accessories please look up on CHIGEE offcial website or CHIGEE online store . 14 Fault analysis and troubleshooting Fault symptomanalysis of causessolution object ball loosening The nut of objet ball not tightening Use 16MM wrench to tighten the nut to a proper swinging force Power is on product not working or the red light is flashing Connected wrong to The positive and negative poles, Power supply voltage is insufficient Check the power connection and battery voltage shall be higher than 11.5V wireless charging not workingWired charging priority Unplug the cable charging and restore the wireless charging function unable to enter standby modeReinstall and reconnect cable The others Circuit damageContact us for repair 15 Aftersale service If the product needs after-sales service, please contact the CHIGEE dealer, please fill in the problem description and contact address Notes: 13 technical parameters 1 CG cell phone Mount is ip67 in waterproof level, including Type-C interface, which is waterproof even if type-C interface is not fitted with dust coat. Fitting into the dust coat can avoid dust accumulation on Type-C interface and prolong its service life 2 During daily vehicle washing, do not use corrosive detergent to scrub products (which may cause damage to the waterproof structure). Try to avoid direct washing by high-pressure water gun. If necessary, please keep a washing distance of more than 1 meter. 3 Avoid wired charging when it rains, and avoid corrosion of charging interface due to current 4 Please cooperate with the use of plastic cell phone covers to increase the locking friction + - User manual*1 pipe clip fixing base*1pipe clip adapter ring*3 CG Mount *1Power cord*1tools*4 3 package parts 72mm~86mm Applicable cell phone model size Thanks for supporting CHIGEE！ CHIGEE TECHNOLOGY CO.,LIMITED 2 1 2 1 Welcome to use CHIGEE motorcycal cell phone mount This is a very innovative product in motorcycal area Please read the user manual before install and use the product, keep the manual for future use • Easy to use (within 1 second to Install and detach ) • Higher charging efficiency among a host of other cell phone wireless charger mount • cell phone clamping arm auto-locking and anti-detaching (over 200KM/H speed test) • Suspension shock absorbing design reduces the probability of vibration damage of cell phone • 15W high-power wireless fast charging • 25W PD protocol Type-C wired fast charging • IP67 dustproof and waterproof function • 360 degree rotate and swing • “0” power consumption design on standby mode • Low-voltage battery protection function • Suitable to all kinds of motorcycal Note : The designing of CHIGEE mobilelphone stand install-detach, charging coil automatic alignment functions are protected by the patent law “0” power consumption refers to negligible and extremely low current (in theroy the 12V /10AH battery could standby 50 years. ) cell phone Mount Suspension shock absorbing design is to reduces the probability of vibration damage of cell phone on maximum extent which do not means completely reduce the vibration. Note: The above size is the limit size. It is recommended to use the cell phone protective case to increase the locking friction. Please refer to the size with the protective case ≤11mm 1 2 1 2 installunistall 2 2 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2)this device must accept any interference received, including interference that may cause un…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： Weihua Zhong/Manager Company: CHIGEE TECHNOLOGY CO., LTD. Address: 2 Building 2F, Da er shan Sanlian Industrial District, Tangtou Community, Shiyan Street Bao'an District, Shenzhen City, Guangdong Province China Phone: +86-0755-29365261 Fax: N/A E-Mail: [email protected]

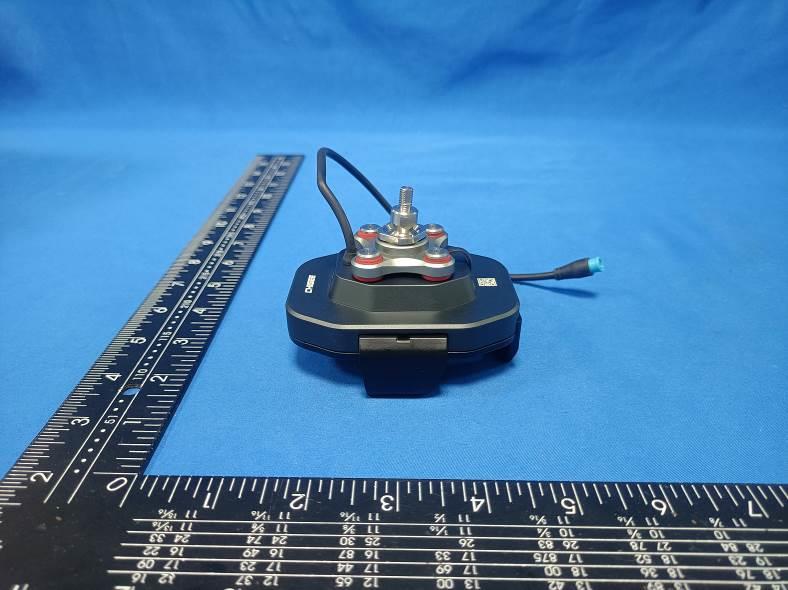

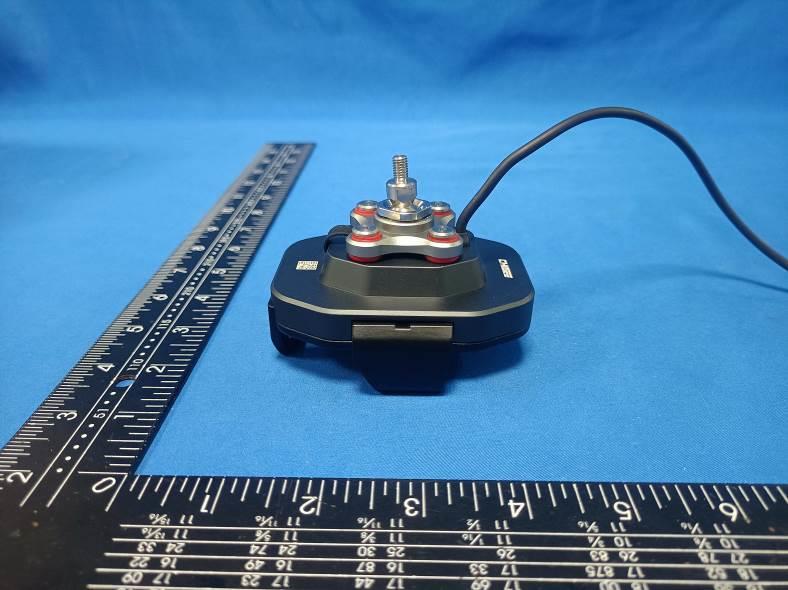

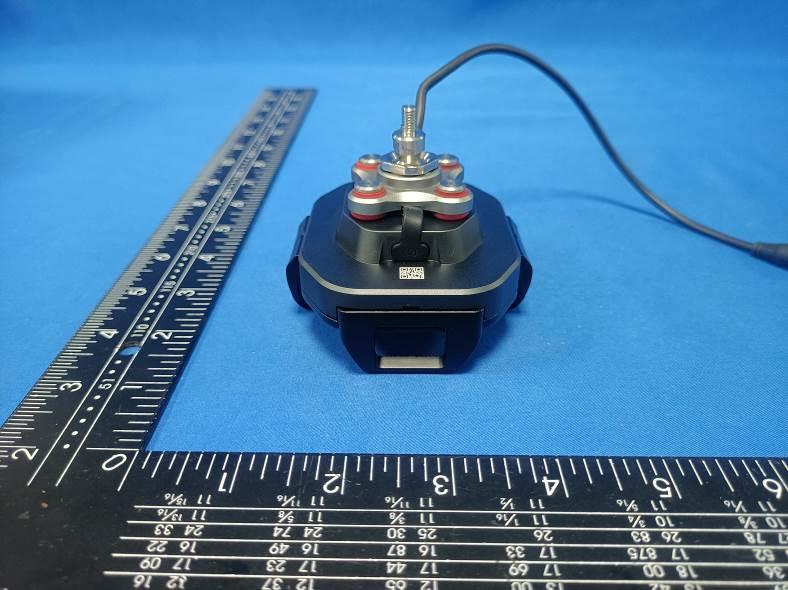

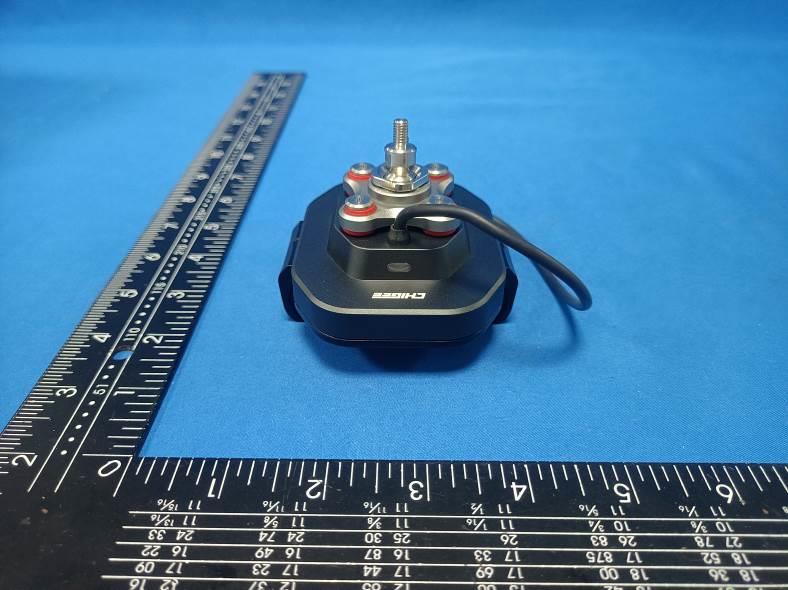

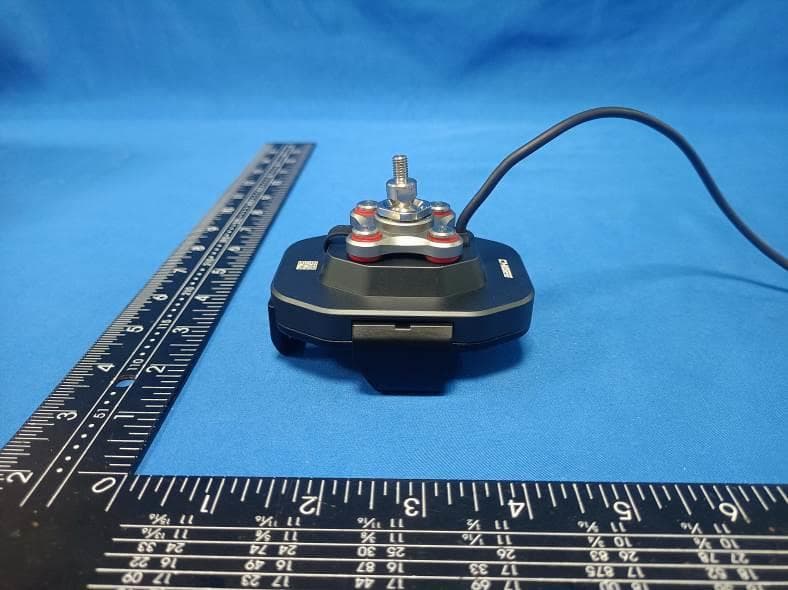

FCC ID: 2A95C-CG2 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A95C-CG2 Photo 4 Photo 5 Photo 6 FCC ID: 2A95C-CG2 Photo 7 Photo 8

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A95C-CG2

FCC ID: 2A95C-CG2 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 Loop coil antenna FCC ID: 2A95C-CG2 Photo 4 Photo 5 Photo 6 FCC ID: 2A95C-CG2 Photo 7 Photo 8 Photo 9 FCC ID: 2A95C-CG2 Photo 10

Page 1 of 5 RF Exposure Evaluation FCC ID: 2A95C-CG2 1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 5 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v04. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Mobile Device and Portable Device Configurations Yes Mobile Device Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz Yes The device operate in the frequency range 110KHz~205KHz RF Exposure compliance may be ensured only for a minimum separation distance that is greater than 20 cm, while use conditions at smaller distances can still be considered unlikely. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. Page 3 of 5 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Modes: TM1 DC Battery (12V) + EUT + Mobile Phone(QI 15W) +(Battery Status: <1%) Record TM2 DC Battery (12V) + EUT + Mobile Phone(QI 15W)+(Battery Status: <50%) Pre-tested TM3 DC Battery (12V) + EUT + Mobile Phone(QI 15W)+(Battery Status: <100%) Pre-tested TM4 DC Battery (12V) + EUT + Mobile Phone(Apple 7.5W)+(Battery Status: <1%) Pre-tested TM5 DC Battery (12V) + EUT + Mobile Phone(Apple 7.5W)+(Battery Status: <50%) Pre-tested TM6 DC Battery (12V) + EUT + Mobile Phone(Apple 7.5W) +(Battery Status: <100%) Pre-tested Note: All modes were tested, only recorded the worst case data(TM1,TM2,TM3,TM4,TM5,TM6,TM7) in the test report. 7 Description of Support Units Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by Mobile phone Xiaomi MIX 2S / FCC ID Lab 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June 25 2023 June 24 2024 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June 25 2023 June 24 2024 Page 4 of 5 9 Test Result E-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Test Mode Unit Chargi ng Battery Level Frequen cy Range (MHz) Measured E-Field Strength Values (V/m) FCC E-Field Strength 50% Limits (V/m) FCC E-Field Strength Limits (V/m) Test Position A Test Position B Test Position C Test Position D Test Position E TM1 V/m 1% 0.118 94.1369 91.1963 97.0021 92.7043 95.3056 307.0 614.0 Note: V/m= A/m *377 H-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm above the top surface Test Mode Unit Chargin g Battery Level Freque ncy Range (MHz) Measured H-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E TM1 uT 1% 0.118 0.312 0.302 0.322 0.307 0.316 -- -- A/m 1% 0.118 0.2497 0.2419 0.2573 0.2459 0.2528 0.815 1.63 H-Field Strength at 20cm from the top surface of the EUT Test Mode Unit Charging Battery Level Frequency Range (MHz) Measured H-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position E TM1 uT 1% 0.118 0.2520 -- -- A/m 1% 0.118 0.2012 0.815 1.63 Note:A/m=uT/1.25 10 Conclusion A minimum safety distance of 20 cm to the antenna is required when the device is charging a smart phone for mobile exposure. The detected emissions are below the limitations according FCC KDB 680106 and confirmed by the FCC according to KDB Inquire. Page 5 of 5 11 Test Set-up Photo ------End------

1. Antenna Description: Antenna type Loop coil antenna Model CG2 Frequency range 110KHz~205KHz Manufacturer CHIGEE TECHNOLOGY CO., LTD. Gain 0.00 dBi 2. Antenna Photo: Length: 38.90mm diameter: 12.62mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA23112201701 2A95C-CG2 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 04, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : CHIGEE TECHNOLOGY CO., LTD. Address............................................ : 2 Building 2F, Da er shan Sanlian Industrial District, Tangtou Community, Shiyan Street, Bao'an District, Shenzhen City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Phone Holder Trade Mark ....................................... : N/A Manufacturer .................................... : CHIGEE TECHNOLOGY CO., LTD. Model/Type reference ...................... : CG2 Listed Models .................................. : CG1, CG3 Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : Result ............................................... : DC 12.0V From battery Output: Wireless charging: Qi 15W / Apple 7.5W PASS Report No.: CTA23112201701 Page 2 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Phone Holder Model /Type : CG2 Listed Models : CG1, CG3 Applicant : CHIGEE TECHNOLOGY CO., LTD. Address : 2 Building 2F, Da er shan Sanlian Industrial District, Tangtou Community, Shiyan Street, Bao'an District, Shenzhen City, Guangdong Province, China Manufacturer : CHIGEE TECHNOLOGY CO., LTD. Address : 2 Building 2F, Da er shan Sanlian Industrial District, Tangtou Community, Shiyan Street, Bao'an District, Shenzhen City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23112201701 Page 3 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 5 3 T E S T E N V I R O N M E N T .............................................................. 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Environmental conditions 6 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 7 3.6 Equipments Used during the Test 7 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1 AC Power Conducted Emission 9 4.2 Radiated Emission 10 4.3 The 20dB bandwidth 14 4.4 Antenna Requirement 15 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 16 6 PH O T O S OF T H E E U T ........................................................... 17 Report No.: CTA23112201701 Page 4 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23112201701 Page 5 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Nov. 22, 2023 Testing commenced on : Nov. 22, 2023 Testing concluded on : Dec. 04, 2023 2.2 Product Description Product Name: Phone Holder…
