2A95C-TPS-LEExternal Tire Pressure Sensor (BLE)

Battery Life（电池寿命） Battery Replacement（电池更换） Name（名称）External Tire Pressure Sensor（BLE）/外置胎压传感器（蓝牙版） 1year/1 年 MPack0580 CR 1632 22.5 x 15 mm 0.01 Bar 0-8 Bar Size Parameters（尺寸参数） Measurement Accuracy（测量精度） Pressure Measurement Range （压力测量范围） Product Overview（产品概述） Package Contents（产品清单） Product Installation（产品安装） Product Specifications（产品规格） Install the tire pressure sensor onto the tire valve to complete the installation. Once connected to the onboard display unit, the tire pressure and tire temperature will be shown in real time, helping ensure safer driving. 将胎压传感器安装在轮胎阀上，即可完成安装。通过与车机连接，轮胎气压和轮胎温度实时显示车机上，有助于安全行驶。 External Sensors ×2 外置传感器 ×2 Anti-theft Nuts ×2 防盗螺母 ×2 Wrench ×1 扳手 ×1 ① Remove the valve caps from the front and rear wheels, then screw the included anti-theft nuts onto the front and rear tire valves. 将前后轮气嘴帽拆出，并将胎压传感器附赠防盗螺 母分别拧入前后轮气门。 进入胎压应用页，点击配对按钮进行配对。 ② Open the tire pressure app and tap the Pair button to start pairing. 当前轮数据窗口闪烁时，将任意一个胎压传感器拧入前轮气嘴，视窗出现数值即完成配对，并用附赠扳手逆时针拧 紧防盗螺母固定；当后轮数据窗口闪烁时，再将另一传感器拧入后轮气嘴，出现数值即完成配对。 ③ When the front wheel data window flashes, screw any one of the tire pressure sensors onto the front valve. Once a value appears on the display, pairing is complete—then use the included wrench to tighten the anti-theft nut counterclockwise. When the rear wheel data window flashes, screw the other sensor onto the rear valve; once a value appears, pairing is complete. 配对前请勿提前将传感器拧入气门嘴。 安装完成后请检查是否存在漏气情况。 传感器发射信号的逻辑为当感受到压力变化或、车辆车轮转动，配对时可能存在压力检测非实际压力的情况，以 30KM/H以上时速骑行一段距离即可读取准确胎压。 配对前传感器不区分，配对后需要区分前后轮，如重新进行配对无需区分前后轮。 4.Please check for air leaks after installation. 3.There may be situations where pressure detection does not accuratelyreflect the actual pressure when paired. Accurate tire pressure readingscan be obtained by riding a certain distance at a speed of 30 km/h orabove. 2.Before pairing, the sensors do not need to distinguish front from rearwheels; After pairing, the sensors need to distinguish front from rearwheels;If you pair again, the sensors do not need to distinguish frontfrom rear wheels. 1.Do not screw the sensor into the valve before pairing. Tips（注意事项） 外置胎压传感器（蓝牙版）外置胎压传感器（蓝牙版） 使用说明书使用说明书 External Tire Pressure Sensor（BLE） User Instruction FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

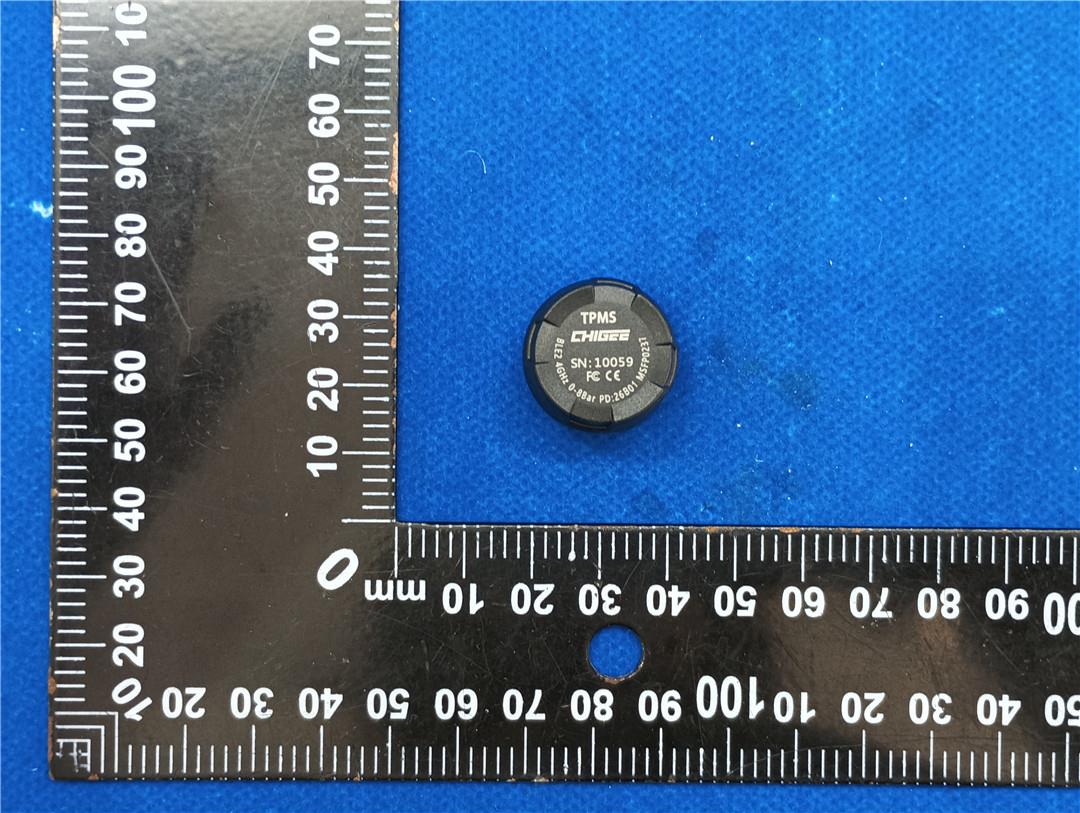

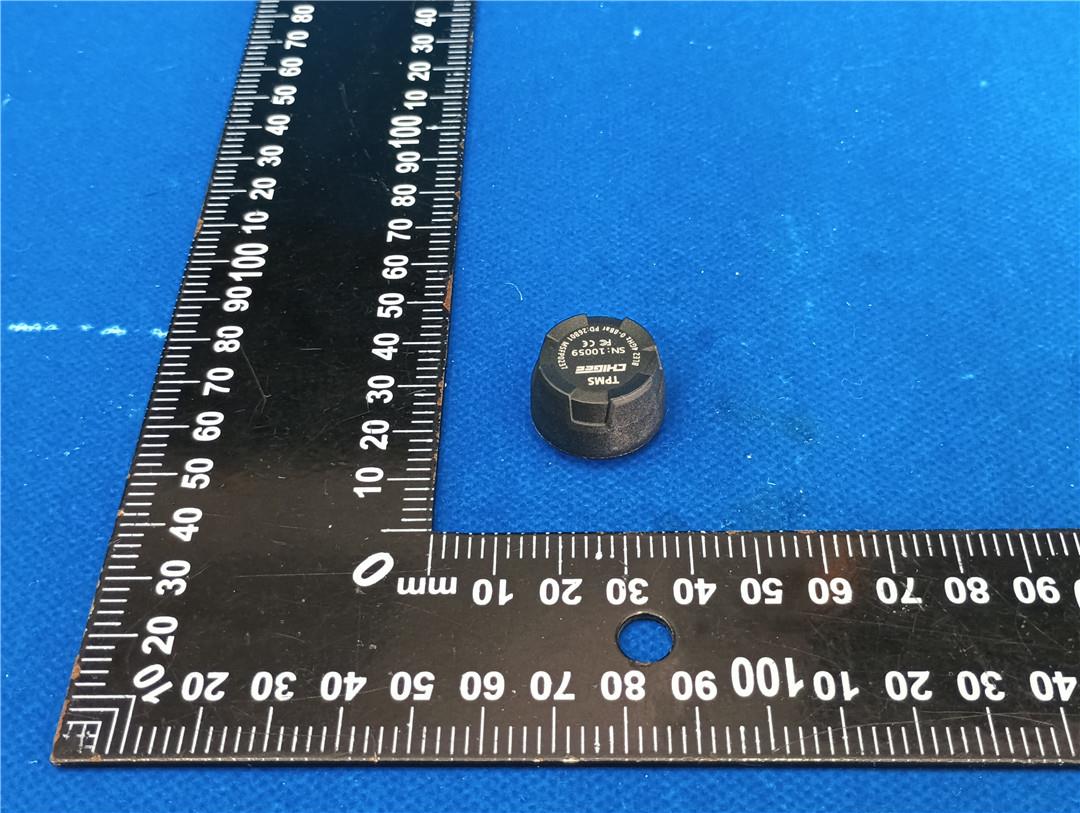

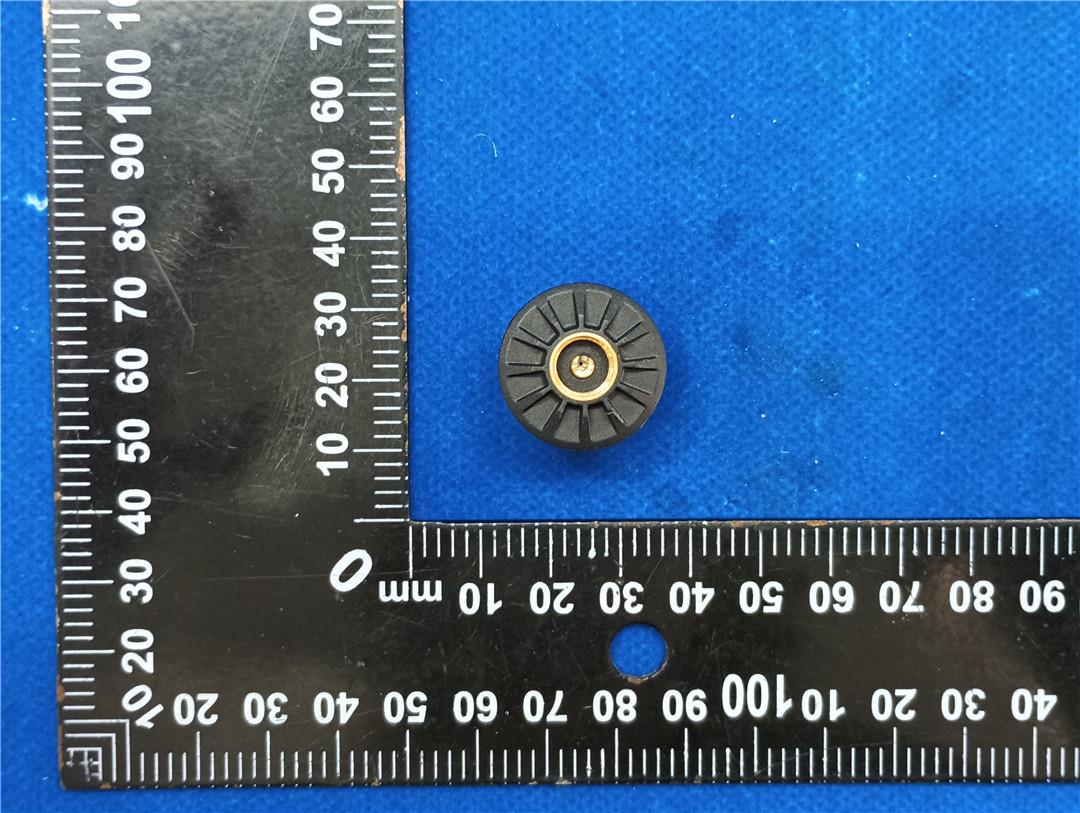

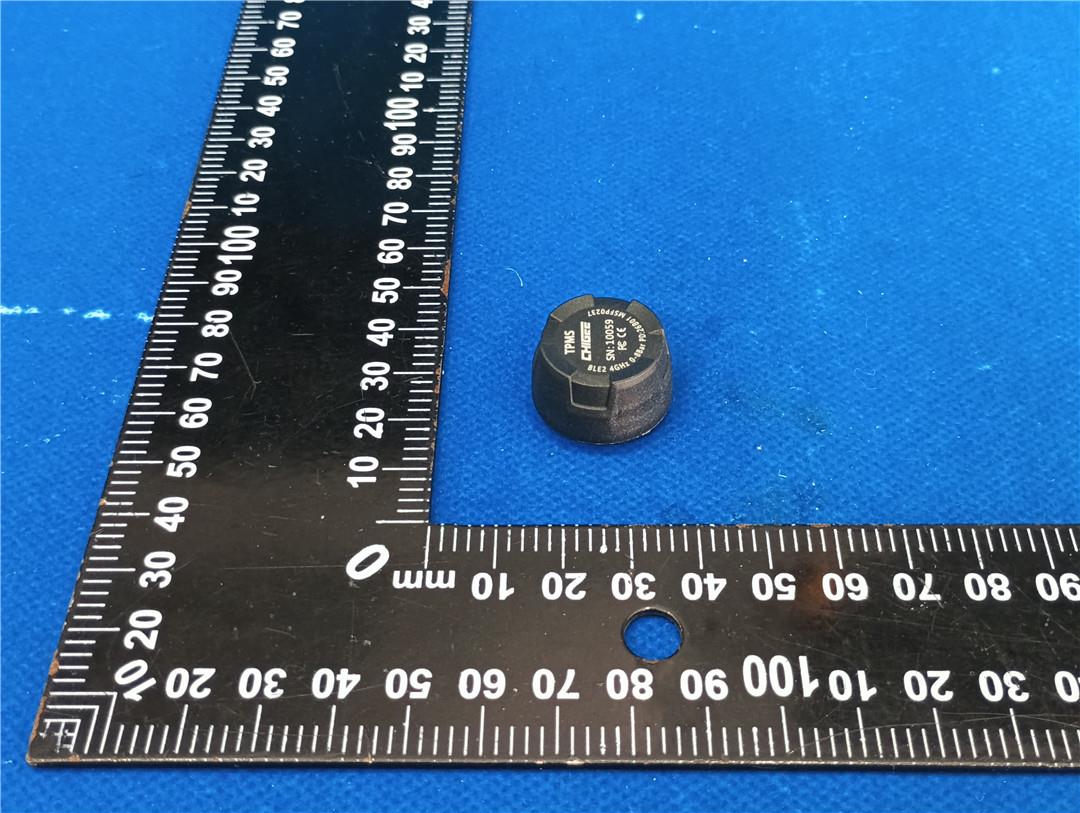

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: External Tire Pressure Sensor (BLE) Model No.: TPS-LE EUT Constructional Details External Photo Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 0.5cm*W: 0.5cm Label and Location FCC ID : 2A95C-TPS-LE

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: External Tire Pressure Sensor (BLE) Model No.: TPS-LE EUT Constructional Details Internal Photo Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 2.4G ANTENNA Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT2026041161F02 2A95C-TPS-LE Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : May. 12, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : CHIGEE TECHNOLOGY CO., LTD. Address............................................ : Lingya Industrial Park, No. 1 Tangtou Road, Bao'an District, Shenzhen, China. Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : External Tire Pressure Sensor (BLE) Manufacturer .................................... : CHIGEE TECHNOLOGY CO., LTD. Trade Mark ........................................ CHIGEE Model/Type reference ...................... : TPS-LE Rating ............................................... : DC 3.0V From Battery Result ............................................... : PASS Report No.: HTT2026041161F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : External Tire Pressure Sensor (BLE) Model /Type : TPS-LE Listed Models : MFP0234, MFP0239, SRS-056 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : CHIGEE TECHNOLOGY CO., LTD. Address : Lingya Industrial Park, No. 1 Tangtou Road, Bao'an District, Shenzhen, China. Manufacturer : CHIGEE TECHNOLOGY CO., LTD. Address : Lingya Industrial Park, No. 1 Tangtou Road, Bao'an District, Shenzhen, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2026041161F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 MPE Calculation Method 7 4.3 Conducted Power Results 7 4.4 Manufacturing tolerance 8 4.5 Standalone MPE Result 8 4.6 Simultaneous Transmission for MPE Result 8 5 C O N C L U S I O N .......................................................... 8 Report No.: HTT2026041161F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT2026041161F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Apr. 24, 2026 Testing commenced on : Apr. 24, 2026 Testing concluded on : May. 12, 2026 2.2 Product Description Product Description: External Tire Pressure Sensor (BLE) Model/Type reference: TPS-LE Power supply: DC 3.0V From Battery Testing sample ID： HTT2026041161-1# (Engineer sample) HTT2026041161-2# (Normal sample) Hardware version: / Software version: / Bluetooth BLE Supported type: Bluetooth low Energy Modulation: GFSK Operation frequency: 2402MHz to 2480MHz Channel number: 40 Channel separation: 2 MHz Bit Rate of Transmitter: 1Mbps Antenna type: 2.4G Antenna Antenna gain: -2.30 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provi…

Text truncated - open the document above for the full version.

1 Appendix RF Test Data for BLE Company: : CHIGEE TECHNOLOGY CO., LTD. EUT : External Tire Pressure Sensor (BLE) FCC ID: : 2A95C-TPS-LE Model Number : TPS-LE Report No. : HTT2026041161F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 100.000 100.000 100.00 0.00 0.00 2440 100.000 100.000 100.00 0.00 0.00 2480 100.000 100.000 100.00 0.00 0.00 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 5 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.032 / Pass 2440 1 1.041 / Pass 2480 1 1.040 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.707 >=0.5 Pass 2440 1 0.720 >=0.5 Pass 2480 1 0.721 >=0.5 Pass 6 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 7 1M_HCH_2480MHz_Ant1_NTNV 8 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 9 1M_HCH_2480MHz_Ant1_NTNV 10 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -5.29 <=30 Pass 2440 -5.41 <=30 Pass 2480 -5.57 <=30 Pass 11 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit(dBm/3kHz) 1M SISO 2402 -6.24dBm/100kHz <=8 Pass 2440 -6.36dBm/100kHz <=8 Pass 2480 -6.57dBm/100kHz <=8 Pass 12 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 13 1M_HCH_2480MHz_Ant1_NTNV 14 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -6.24 2440 1 -6.38 2480 1 -6.50 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -6.24 -26.24 Pass 2440 1 -6.38 -26.38 Pass 2480 1 -6.50 -26.50 Pass 15 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 17 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 18 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 19 1M_HCH_2480MHz_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................. : FCC ID. ......................................... : HTT2026041161F01 2A95C-TPS-LE Compiled by ( position+printed name+signature) : File administrators Supervised by ( position+printed name+signature) : Project Engineer Approved by ( position+printed name+signature) : RF Manager Date of issue ...................................: May. 12, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ..........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: CHIGEE TECHNOLOGY CO., LTD. Address ...........................................: Lingya Industrial Park, No. 1 Tangtou Road, Bao'an District, Shenzhen, China. Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : External Tire Pressure Sensor (BLE) Trade Mark ......................................: CHIGEE Manufacturer ...................................: CHIGEE TECHNOLOGY CO., LTD. Model/Type reference .....................: TPS-LE Listed Models ..................................: MFP0234, MFP0239, SRS-056 Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.0V From Battery Result ..............................................: PASS Report No.: HTT2026041161F01 Page 2 of 33 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : External Tire Pressure Sensor (BLE) Model /Type : TPS-LE Listed Models : MFP0234, MFP0239, SRS-056 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : CHIGEE TECHNOLOGY CO., LTD. Address : Lingya Industrial Park, No. 1 Tangtou Road, Bao'an District, Shenzhen, China. Manufacturer : CHIGEE TECHNOLOGY CO., LTD. Address : Lingya Industrial Park, No. 1 Tangtou Road, Bao'an District, Shenzhen, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2026041161F01 Page 3 of 33 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 5 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measurement results ......…

Text truncated - open the document above for the full version.

Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 1 - / 9 Customer Qideman Project 2.4G Project NO Date：2023/09/18 Shenzhen Xiangboyi Technology Co. Ltd Antenna Specification Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 2 - / 9 Customer confirmation Engineer PM Quality Approval Supplier confirmation ME RF Examine Approval Sample paste Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 3 - / 9 Catalogue 1 Test System and Equipment ......................................... - 4 - 2 Product Description ........................................................... - 5 - 3 Device Description ............................................................. - 6 - 5 Test Data ............................................................................... - 8 - 6 EngineeringDrawing .......................................................... - 8 - 4 Matching Circuits..................................................................-7-. Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 4 - / 9 1 Test System and Equipment Test items equipment 1：S parameter 1. Return loss 2. VSWR Network analyzer: A338/A333/HP8753D 2：Active test Comprehensive test instrument: Agilent 8960/ CMW500 3： Radiation mode and gain 1. Radiation mode 2. Gain 1. Shielding room： 7x4x3 m (ETS-3D) 2. Network analyzer： HP 8753D Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 5 - / 9 2 Product Description Technical requirements Technical index Remarks Band 2.4G Range Of Frequency 2.4G; VSWR <2.0 Center Frequency Impendance 50Ω Polarization Linear polarization operating temperature -30°C / +85°C storage temperature -55°C / +85°C Salt Fog 24h(24h alterning wet & dry) RoHS Compliant yes Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 6 - / 9 3 Device Description The whole machine photo Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 7 - / 9 4 Antenna location The matching circuit has been changed. Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 8 - / 9 5 Test Data 6 EngineeringDrawing Shenzhen Xiangboyi Technology Co. Ltd Tel: (+86)0755-29369912 Fax: (+86)0755-61624200 R & D Center: 101, floor 1, Wencheng building, Yousong Cultural Innovation Park, No. 95, Yousong Road, Longhua District, Shenzhen. Production Base: 5 / F, building B, Huazhi chuanggu, No. 7, Yuhua street, 138 Industrial Zone, Tangxia Town, Dongguan City. - 9 - / 9

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: External Tire Pressure Sensor (BLE) Model No.: TPS-LE Test Setup Photo Radiated Emission Report No.: HTT2026041161 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 RF Test ------End------
