Lixel L2 300 User Manual User Manual Contents Product Overview ........................................................................................................................................... 1 About Lixel L2 ............................................................................................................................................ 1 Operation .......................................................................................................................................................... 2 Batteries Installation .............................................................................................................................. 2 Tripod Installation ................................................................................................................................... 3 Function Button ....................................................................................................................................... 3 Indicator Description ............................................................................................................................. 4 Data Copy Description .......................................................................................................................... 4 Battery Charging ..................................................................................................................................... 5 Maintenance .................................................................................................................................................... 6 Storage ...................................................................................................................................................... 6 Note for Use ............................................................................................................................................. 6 The Appendix .................................................................................................................................................. 7 Specifications ........................................................................................................................................ 7-8 1 Product Overview Lixel L2, a highly integrated and lightweight handheld 3D reconstruction device. With the 3D real-time reconstruction algorithm, Lixel L2 can directly obtain the true color point cloud. The results are calculated in real time and can be viewed and used immediately. About Lixel L2 2 Operation Battery installation 1.Open the lever. 2.Insert the battery into the bottom of the device along the guide dovetail slot. Ensure that the battery is inserted into the correct position. 3.Press the lever back and lock the battery tightly. Note: An unsecured battery may cause the device to slip. 3 Tripod Installation The bottom of the battery has threaded holes. Screw the tripod in and place the device in a flat position. Function Button Function Operation State Open Long press 4 seconds The indicator light turns from slow blinking blue light to steady green light; Close Long press 4 seconds Indicator light off; Start Scanning Double Click When the device is in standby state, double-click the indicator. The indicator status changes from steady green to blinking green at short intervals and then to blinking green at long intervals. And the lidar starts to rotate, that is, the scan is started successfully. Stop Scanning Double Click When scanning, double click the button, the indicator state will change from green slow flashing to green quick flashing and then to steady green. Meanwhile, the lidar will stop rotating and the scanning will be stopped successfully. 4 Note: 1 Please put the device on the flat table before starting the scan. After starting the scan, the device can be moved for scanning only after the lidar rotates. 2 It takes about 10 seconds to start scanning. 3 During the scanning stop, if the indicator blinks green quickly, scanned files are being stored. If the power is off at this time, files may be lost or saved incompletely. 4 After the scan is stopped, the waiting time for stored files may be long, it’s depending on the size of the scene being scanned. Indicator Light Description Indicator blinking status Significance None The device is not started. The blue light blinking slowly The device is starting up. Blue light normally on USB disk mode Green light normally on The device is in standby state The green light blinking fast The scan is being started/stopped The green light blinking slowly Scaning Yellow light normally on The device is not activated Red light normally on Serious device failure Data Copy Description Use the USB cable that matches the device. Connect the device to the computer in standby mode and turn on the USB mode in the App. After identifying the device, the data can be copied. Note: 1 The USB mode is automatically disabled after a restart. 2 After turning on the USB mode, you need to manually turn off the USB mode if you want to continue scanning without shutting down or power off. 3 Using a non-standard USB cable may cause slow data copy. Or may cause forward insertion can be used, reverse insertion can not be used. 5 Battery Use the standard charging cable and connect the charging adapter to the battery to charge the battery. Charging time: about 2 hours. During the charging process, the indicator light will show the current electric quantity. Please refer to the following table for details. Indicator blinking status electricity Only one green light on 0-24% Two green lights on 25%-49% Three green lights on 50%-74% Four green lights on 75%-99% 6 Maintenance The storage status of the device is as shown in the figure below. After use, remove the battery and put it back into the storage box according to the figure. Note: It is a precision device, not storing as required may cause damage to the device. Matters needing attention 1.Lixel L2 is a precision…

Text truncated - open the document above for the full version.

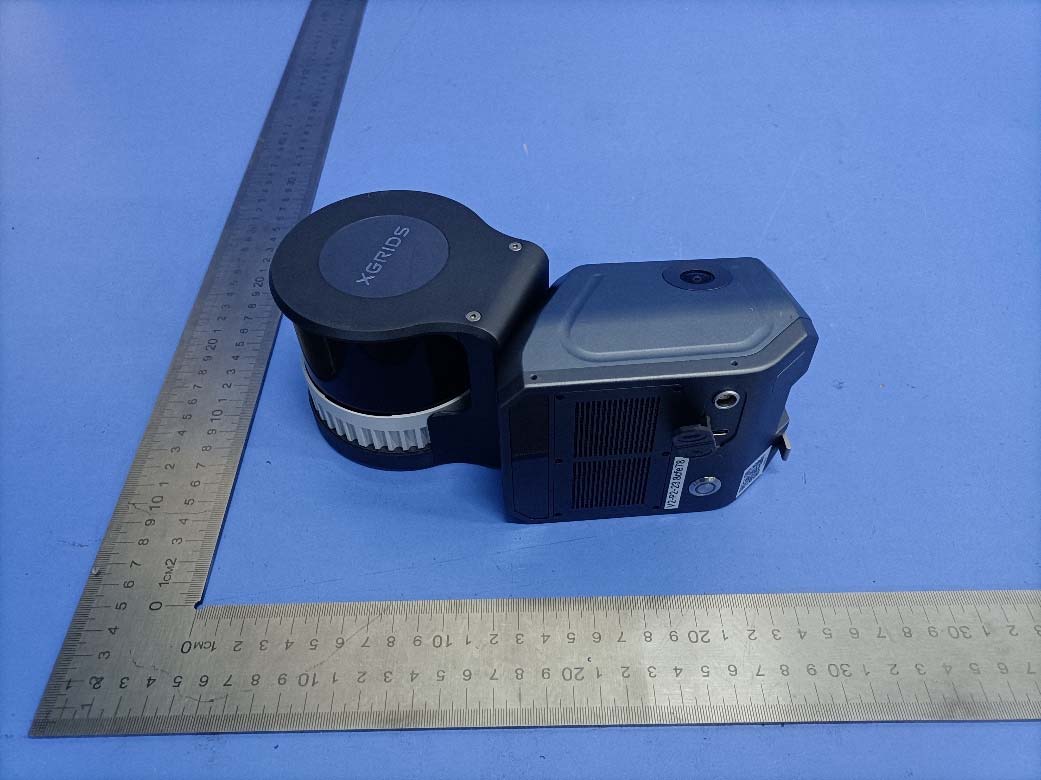

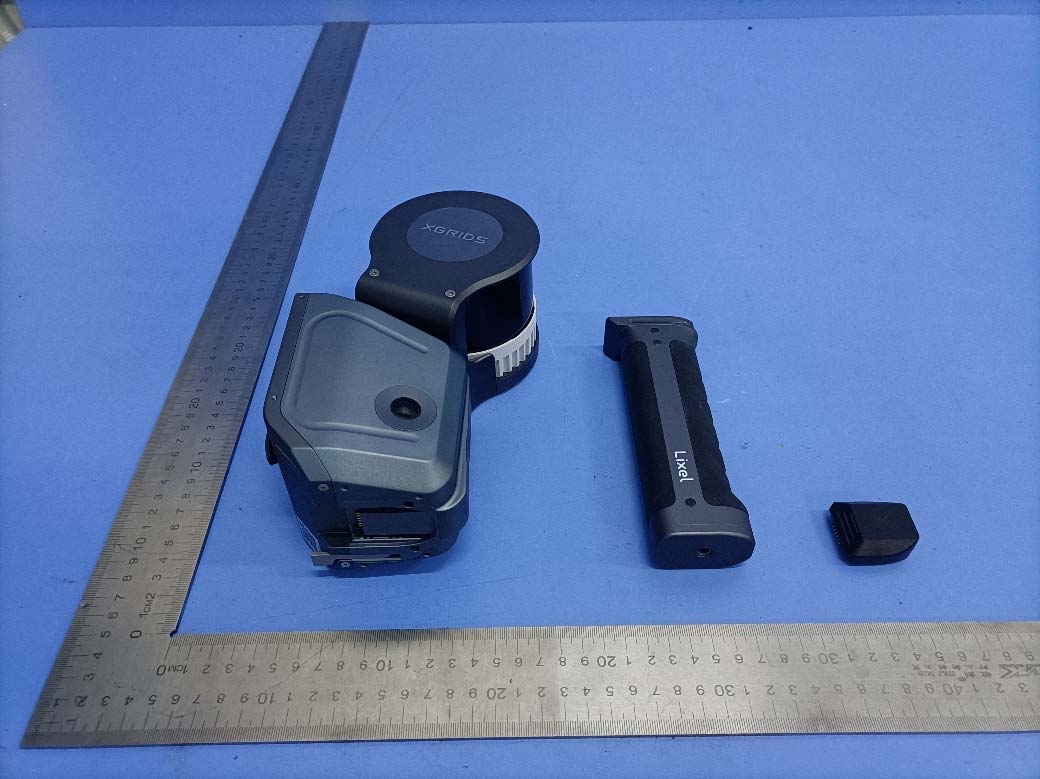

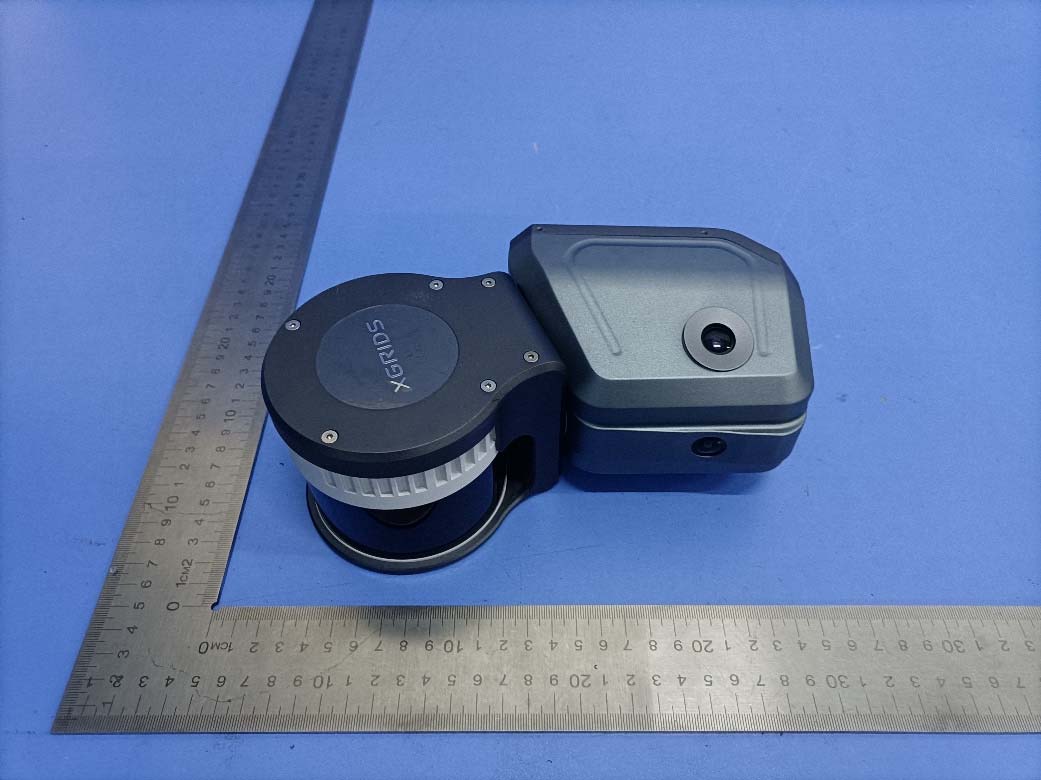

FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of Adapter FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Photo 9 Appearance of Battery

FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 AppendixI Label Lixel L2 300 V1 FCC ID: 2A9PI-L2300V1 Model: Lixel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Appendix II Label Location

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202309-0278-18 Page: 1 of 4 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A9PI-L2300V1 1. Client Information Applicant : SHENZHEN XGRIDS-INNOVATION CO., LTD Address : 2207, SHENZHEN OVERSEAS STUDENTS INCUBATOR PARK, BUILDING 1, SHENZHEN, CHINA Manufacturer : SHENZHEN XGRIDS-INNOVATION CO., LTD Address : 2207, SHENZHEN OVERSEAS STUDENTS INCUBATOR PARK, BUILDING 1, SHENZHEN, CHINA 2. General Description of EUT EUT Name : Lixel L2 300 V1 Model(s) No. : Lixel, L2 300 V1 Model Difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is the model names. Product Description : Operation Frequency: Bluetooth&LE:2402MHz~2480MHz 2.4GWiFi:2412MHz~2462MHz U-NII-1: 5180MHz~5240MHz U-NII-3: 5745MHz~5825MHz Antenna Gain: -0.69dBi FPC Antenna for 2400~2500MHz 0.75dBi FPC Antenna for U-NII-1 5180MHz~5240MHz 2.74dBi FPC Antenna for U-NII-3 5745MHz~5825MHz Modulation Type: GFSK, Pi/4-DQPSK, 8-DPSK(3Mbps) 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (QPSK, BPSK, 16QAM, 64QAM) 802.11a: OFDM (QPSK, BPSK, 16QAM) 802.11ac: OFDM (QPSK, BPSK, 16QAM, 64QAM, 256QAM) Bit Rate of Transmitter: Bluetooth:1/2/3Mbps 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11a: 6/9/12/18/24/36/48/54 Mbps 802.11n: up to 150Mbps 802.11ac: at most 433.3 Mbps Power Rating : For Adapter (Model: FY1682000) Input: 100-240V~ 50/60Hz 1.5A 80VA Output: 17.0V2.0A, 33.6W Li-ion Polymer Battery : DC 14.4V by 3.25Ah/46.8Wh Rechargeable Li-ion battery Software Version : 1.3.1 Hardware Version : P2 Report No.: TBR-C-202309-0278-18 Page: 2 of 4 TB-RF-074-1.0 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202309-0278-18 Page: 3 of 4 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202309-0278-18 Page: 4 of 4 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Worst MPE Result Test Mode Antenna Frequency (MHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value Bluetooth Ant2 2402 6.80 6±1 7 5.012 1.544 3.0 2.4G b Ant1 2462 7.57 7±1 8 6.310 1.980 3.0 Ant2 2437 7.52 7±1 8 6.310 1.970 3.0 2.4G g Ant1 2412 7.24 7±1 8 6.310 1.960 3.0 Ant2 2462 8.03 8±1 9 7.943 2.493 3.0 2.4G n20 Ant1 2437 6.08 6±1 7 5.012 1.565 3.0 Ant2 2437 7.55 7±1 8 6.310 1.970 3.0 2.4G n40 Ant1 2422 6.13 6±1 7 5.012 1.560 3.0 Ant2 2422 7.55 7±1 8 6.310 1.964 3.0 5G a Ant1 5240 7.99 7±1 8 6.310 2.889 3.0 Ant2 5180 7.29 7±1 8 6.310 2.872 3.0 5G n20 Ant1 5240 6.96 6±1 7 5.012 2.295 3.0 Ant2 5240 6.00 6±1 7 5.012 2.295 3.0 5G n40 Ant1 5230 6.57 6±1 7 5.012 2.292 3.0 Ant2 5230 6.05 6±1 7 5.012 2.292 3.0 5G ac20 Ant1 5200 6.94 6±1 7 5.012 2.286 3.0 Ant2 5200 5.89 5±1 6 3.981 1.816 3.0 5G ac40 Ant1 5230 6.92 6±1 7 5.012 2.292 3.0 Ant2 5230 5.98 5±1 6 3.981 1.821 3.0 5G ac80 Ant1 5210 7.32 7±1 8 6.310 2.880 3.0 Ant2 5210 6.38 6±1 7 5.012 2.288 3.0 Simultaneous Transmission for SAR Exclusion Simultaneous Transmission for SAR Exclusion Total Calculation Value Limit Ant1 Ant2 0.385 0.383 0.480 1.0 ∑ of (the highest measured or estimated SAR Ant1 +SAR Ant2 )/1.6 = (0.385 +0.383)/1.6 = 0.480 < 1.0; Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

QR/RD-P01-06B SPECIFICATION ShenzhenFeixinWirelessCommunicationCo.,Ltd. 2.4G/5.8FPCantenna Productspecification CustomerFrequency2400MHz——2500MHz RFdesign XIAOBIN VersionA1 Technical director ANDYdate2023-12-14 Customerconfirmation: Whethertheassemblymeetsyourcompany'srequirements ：□ OK □ NG Confidentialityrequirements Ourcompanyalreadypossessestheproprietarytechnologyprovided,andtheseproprietaryinformationshouldbestrictlykept confidential.WithoutthepriorwrittenconsentofShenzhenFeixinWirelessCommunicationCo.,Ltd.,itisnotallowedtobe disclosedtoanyoneorthecompany. http://www.flxant.comhttp://www.fly-core.com Page2 Directory Cover.......................................................................................................1 1、Directory...........................................................................2 2、Productpictures...............................................................................3 3、S11data.................................................................................4 4、Antennatestdata(gain,efficiency,applechart)...............4 5、Productstructuredrawing..........................................................7 Confidentialityrequirements Ourcompanyalreadypossessestheproprietarytechnologyprovided,andtheseproprietaryinformationshouldbestrictlykept confidential.WithoutthepriorwrittenconsentofShenzhenFeixinWirelessCommunicationCo.,Ltd.,itisnotallowedtobe disclosedtoanyoneorthecompany. http://www.flxant.comhttp://www.fly-core.com Page3 1、Productpictures 2、Productparameters Producttestingparameters 产品名称(Name) 2.4GWIFI 产品型号(ModelType) FX-2.4/5.8-QYCX-F PC-V1.2 电性能指标 (ElectricalSpecifications) 频率范围(FrenquencyRange) 2400-2500MHZ 5200-5800MHz 极化方式（Polarization） vertical 输入阻抗(Impedance) 50Ω 辐射方向 Omnidirectional 驻波比（VSWR）≦3.0功率容量(Power) 50W 增益(Gain) 2.74dBi 带宽(Bandwidth 100/600MHz 机械指标 (MechanicalSpecifications) 尺寸(Dimensions)29.6*10.4±0.15mm外壳颜色(ANTColor) black 连接器型号(Connector) IPEX4 引线长度(CableLength)110±3mm 外壳材料RadomeMaterial FPC 工作温度 (WorkingTemperature) -40°C-+85°C 存放温度 (LimitTemperature) -40°C-+85°C Confidentialityrequirements Ourcompanyalreadypossessestheproprietarytechnologyprovided,andtheseproprietaryinformationshouldbestrictlykept confidential.WithoutthepriorwrittenconsentofShenzhenFeixinWirelessCommunicationCo.,Ltd.,itisnotallowedtobe disclosedtoanyoneorthecompany. http://www.flxant.comhttp://www.fly-core.com Page4 3.VSWR,ReturnlossandSmithdata Confidentialityrequirements Ourcompanyalreadypossessestheproprietarytechnologyprovided,andtheseproprietaryinformationshouldbestrictlykept confidential.WithoutthepriorwrittenconsentofShenzhenFeixinWirelessCommunicationCo.,Ltd.,itisnotallowedtobe disclosedtoanyoneorthecompany. http://www.flxant.comhttp://www.fly-core.com Page5 4、Antennatestdata(gain,efficiency,applechart) Confidentialityrequirements Ourcompanyalreadypossessestheproprietarytechnologyprovided,andtheseproprietaryinformationshouldbestrictlykept confidential.WithoutthepriorwrittenconsentofShenzhenFeixinWirelessCommunicationCo.,Ltd.,itisnotallowedtobe disclosedtoanyoneorthecompany. http://www.flxant.comhttp://www.fly-core.com Page6 Confidentialityrequirements Ourcompanyalreadypossessestheproprietarytechnologyprovided,andtheseproprietaryinformationshouldbestrictlykept confidential.WithoutthepriorwrittenconsentofShenzhenFeixinWirelessCommunicationCo.,Ltd.,itisnotallowedtobe disclosedtoanyoneorthecompany. http://www.flxant.comhttp://www.fly-core.com Page7 5、Productstructuredrawing 1 1 0 ± 3 M M

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 1 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Lixel L2 300 V1 Test Model: Lixel Sample ID: HC-C-202309-0278-02-02-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: DC 14.4V Test Engineer: Liyingjing Note: For a more detailed features description, please refer to the report TBR-C-202309-0278-12 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 2 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 63.49 1.97 2.5 NVNT BLE 1Mbps 2440 Ant1 62.9 2.01 2.56 NVNT BLE 1Mbps 2480 Ant1 63.49 1.97 2.5 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 3 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 4 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 5 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 6.1 30 Pass NVNT BLE 1Mbps 2440 Ant1 5.69 30 Pass NVNT BLE 1Mbps 2480 Ant1 4.723 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 6 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 7 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 8 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 2402 Ant1 0.65 0.5 Pass NVNT BLE 1Mbps 2440 Ant1 0.65 0.5 Pass NVNT BLE 1Mbps 2480 Ant1 0.64 0.5 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 9 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT BLE 1Mbps 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 10 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 11 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1Mbps 2402 Ant1 1.029 NVNT BLE 1Mbps 2440 Ant1 1.025 NVNT BLE 1Mbps 2480 Ant1 1.032 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 12 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Test Graphs OBW NVNT BLE 1Mbps 2402MHz Ant1 OBW NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 13 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 OBW NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 14 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -8.299 8 Pass NVNT BLE 1Mbps 2440 Ant1 -8.764 8 Pass NVNT BLE 1Mbps 2480 Ant1 -11.349 8 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-12 Page: 15 of 26 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Test Graphs PSD NVNT BLE 1Mbps 2402MHz Ant1 PSD NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixia…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 1 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 RF Test Data for 2.4G Wi-Fi (Conducted Measurements) General Description of EUT Product Name: Lixel L2 300 V1 Test Model: Lixel Sample ID: HC-C-202309-0278-02-02-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: DC 14.4V Test Engineer: Liyingjing Note: For a more detailed features description, please refer to the report TBR-C-202309-0278-32 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 2 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 Contents 1. DTS Bandwidth ............................................................................................................................................... 3 1.1.Test Result ......................................................................................................................................... 3 1.2.Test Graphs ....................................................................................................................................... 4 2. Occupied Channel Bandwidth...................................................................................................................... 12 2.1.Test Result ....................................................................................................................................... 12 2.2.Test Graphs ..................................................................................................................................... 13 3. Maximum conducted output power ............................................................................................................ 21 3.1.Test Result ....................................................................................................................................... 21 4. Maximum power spectral density ............................................................................................................... 22 4.1.Test Result ....................................................................................................................................... 22 4.2.Test Graphs ..................................................................................................................................... 23 5. Band edge measurements ........................................................................................................................... 31 5.1.Test Result ....................................................................................................................................... 31 5.2.Test Graphs ..................................................................................................................................... 32 6. Conducted Spurious Emission ...................................................................................................................... 38 6.1.Test Result ....................................................................................................................................... 38 6.2.Test Graphs ..................................................................................................................................... 40 7. Duty Cycle .................................................................................................................................................... 64 7.1.Test Result ....................................................................................................................................... 64 7.2.Test Graphs ..................................................................................................................................... 65 8. Emissions in Restricted Bands ...................................................................................................................... 73 8.1.Test Result ....................................................................................................................................... 73 8.2.Test Graphs ..................................................................................................................................... 76 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 3 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 1. DTS Bandwidth 1.1.Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.12 2406.92 2417.04 0.5 PASS Ant2 2412 10.08 2406.96 2417.04 0.5 PASS Ant1 2437 10.08 2431.96 2442.04 0.5 PASS Ant2 2437 10.12 2431.92 2442.04 0.5 PASS Ant1 2462 10.08 2456.96 2467.04 0.5 PASS Ant2 2462 10.12 2456.92 2467.04 0.5 PASS 11G Ant1 2412 16.40 2403.80 2420.20 0.5 PASS Ant2 2412 16.32 2403.84 2420.16 0.5 PASS Ant1 2437 16.36 2428.80 2445.16 0.5 PASS Ant2 2437 16.36 2428.80 2445.16 0.5 PASS Ant1 2462 16.36 2453.80 2470.16 0.5 PASS Ant2 2462 15.80 2454.08 2469.88 0.5 PASS 11N20MIMO Ant1 2412 17.60 2403.20 2420.80 0.5 PASS Ant2 2412 17.60 2403.20 2420.80 0.5 PASS Ant1 2437 17.56 2428.20 2445.76 0.5 PASS Ant2 2437 14.84 2429.72 2444.56 0.5 PASS Ant1 2462 17.56 2453.20 2470.76 0.5 PASS Ant2 2462 17.60 2453.20 2470.80 0.5 PASS 11N40MIMO Ant1 2422 35.92 2404.08 2440.00 0.5 PASS Ant2 2422 35.52 2404.08 2439.60 0.5 PASS Ant1 2437 35.12 2419.40 2454.52 0.5 PASS Ant2 2437 35.04 2419.56 2454.60 0.5 PASS Ant1 2452 35.36 2434.40 2469.76 0.5 PASS Ant2 2452 36.32 2433.84 2470.16 0.5 PASS Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, S…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 43 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 11B_Ant2_2437_30~1000 11B_Ant2_2437_1000~26500 11B_Ant1_2462_0~Reference Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 44 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11B_Ant2_2462_0~Reference Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 45 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 11B_Ant2_2462_30~1000 11B_Ant2_2462_1000~26500 11G_Ant1_2412_0~Reference Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 46 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant2_2412_0~Reference Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 47 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant1_2437_0~Reference Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0278-32 Page: 48 of 86 FCC ID: 2A9PI-L2300V1 TB-RF-074-1.0 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant2_2437_0~Reference Shenzhen Toby Technolo…
