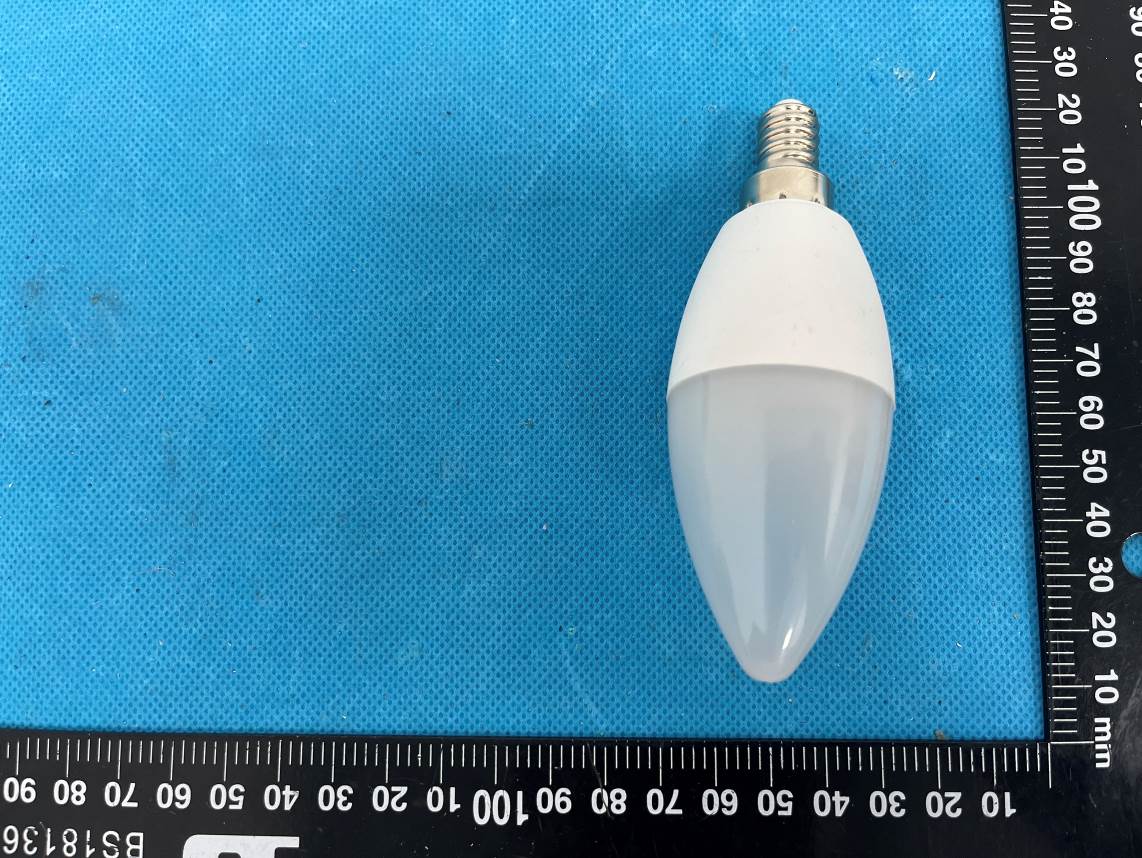

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230631940-00A Page 59 of 59 5. RF EXPOSURE EVALUATION 5.1 MPE-Based Exemption 5.1.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.1.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERP Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) MPE- Based Exemption (mW) (dBm) WLAN 2.4G 2412-2462 19.81 200 768 28.85 15.5 3.8 17.15 Compliant Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. Result: The device compliant the MPE-Based Exemption at 20cm distances. ===== END OF REPORT ====

嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -1- 产品技术规格书 SPECIFICATION 中国浙江省嘉兴市经济开发区正原路66号 No.66ZhengyuanRoad,EconomicDevelopmentZone,Jiaxing,Zhejiang,China TEL：0086-573-83651818FAX：0086-573-83651858 拟制 Preparedby ：审核 Checkedby ：批准 Approvedby ： 送样日期 FormedOn 产品版本 DocumentVersion (V1.3) 产品型号PARTNO：LA31H2450-A35 客户料号CUSTOMERPARTNO： 客户确认CUSTOMERAPPROVEDBY： 确认日期APPROVEDDATE： 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 2 - 目 录 Table of contents 1. 概述 Introduction.....................................................................3 2. 型号 Part Number.....................................................................3 3. 外型尺寸及测试板焊盘尺寸 D i m e n s i o n s ...........................3 ～ 4 4. 测试电路和匹配电路 Evaluation Board and Matching Circuits... ............4 5. 电气性能 Electrical Characteristics................................................5 6. 特性曲线 Characteristic curve......................................................5 7. 方向图 Radiation Pattern.........................................................6～7 8. 可靠性试验后允许误差 Post Dependability Tolerance .....................8 9. 可靠性试验 Dependability Test................................................8～ 9 10. 回流焊温度 Reflow Soldering Standard Condition......... .....................9 11. 包装尺寸 Packaging and Dimensions ..........................................10 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 3 - 产品尺寸/Size：3.2×1.6×1.2 1. 概述 INTRODUCTION " 佳利 " 微波多层陶瓷天线 LA 系列产品设计用于 WLAN 、 WiFi 、蓝牙、 PHS ，手机 多频天线 , FM 等小体积 SMD 片式设计。 "GLEAD" Microwave Multi-Layer Ceramic Antenna LA series are designed to be used in WLAN 、 WiFi 、 Bluetooth 、 PHS 、 Multiple-band Mobile phone antenna, FM, etc and compact size SMD chip design. 2. 型号 Part Number LA 31 H 2450 -A35 3. 外型尺寸 Dimensions （ Unit ： mm ） 天线频率/Antenna Frequency: 2450 MHz 产品设计结构H型/Via Design Series 多层结构天线/Multi-layerAntenna 产品名称，编号A35/Product Name:A35 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 4 - 4. 测试电路和匹配电路Evaluation Board and Matching Circuits 5. 电气性能Electrical Characteristics No. Item （项目） Specifications （特性） 5.1 (带匹配电路测试)After Matching 2450 MHz 5.2Band Width通带宽度100MHz typ. 5.3Peak Gain峰值增益3.8dBi 5.4V.S.W.R驻波比≤2.0 5.5 Polarization极化方式 Linear线性 5.6 Azimuth Beam width方位角 Omni-directional全向 5.7 Impedance阻抗 50 Ω 6.2n 1.8n Central Frequency 中心频率(No matching) 2412-2462MHz 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 5 - 6. 特性曲线 Characteristic curve 7. 方向图 Radiation Pattern coordinates： 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 6 - X-Z Plane Y-Z Plane X-Y Plane 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 7 - 3DRadiation Pattern Frequency (MHz) 240024502500 Avg. Gain (dBi) -0.23-0.36-0.51 Peck Gain (dBi) 3.78 3.8 3.7 Efficiency (%) 7071.269 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 8 - 8可靠性试验后允许误差Post Dependability Tolerance 经可靠性试验后允许比起始读数偏差见下表 Post Dependability Tolerance ( Refer to the table ) 9可靠性试验Dependability Test 基准条件：温度范围Temperature range25±5°C 相对湿度范围Relative Humidity range55~75%RH 工作温度Operating Temperature range -40°C~+125°C 9.1 耐振动Vibration Resist 在振动频率为10~55Hz振幅为1.5mm沿X.Y.Z方向各振动2小时后测试符合表8.1~8.4规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Yand Z directions. 9.2 耐跌落冲击Drop Shock 在100cm高度处按X，Y，Z三个面分别自由跌落在木制地板上共3次后测试符合表8.1~8.4规 定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after dropping onto the hard wooden board from the height of 100cm for 3 times each facet of the 3 dimensions of the device. 9.3 耐焊接热Solder Heat Proof 能承受经120~150°C的温度预热120秒后，在255°C+10°C的焊锡浸5±0.5秒，或300°C-10°C的 电烙铁焊接3±0.5秒，焊接面无损伤。 The device should be satisfied after preheating at 120°C~150°Cfor 120 seconds and dipping in soldering Sn at 255°C+10°Cfor 5±0.5 seconds，or electric iron 300°C-10°Cfor 3±0.5 seconds， without damnify. 9.4 推力试验Adhesive Strength of Termination 在产品电极端子上或表面上可承受5N(≦0603)；10N(>0603)水平推力10±1秒而无明显外观损坏 与电极移位。 The device have no remarkable damage or removal of the termination after horizontal force of 5N(≦0603)；10N(>0603)with 10±1 seconds. No.Item（项目） Post Dependability Tolerance (可靠性试验后允许附加误差) 8.1Central Frequency中心频率±5 MHz 8.2Band Width通带宽度±5 MHz 8.3Gain增益±0.1 dBi 8.4V.S.W.R (in BW)驻波比±0.1 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXING GLEAD ELECTRONICS CO., LTD - 9 - 9.5 耐弯曲试验Bending Resist Test 将产品按图焊在 1.6±0.2mm 的 PCB 板中间，由箭头方向施 力：1mm/S，弯曲距离：1.5mm，保持5±1S，产品金属层无脱落。 Weld the product to the center part of the PCB with the thickness 1.6±0.2mm as the illustration shows, and keep exerting force arrow-ward on it at speed of :1mm/S , and hold for 5±1S at the position of 1.5mm bending distance , so far , any peeling off of the product metal coating should not be detected . 9.6 耐湿热特性Moisture Proof 在温度为60±2°C，相对湿度90~95%的恒温湿箱中放置96小时，在常温中恢复1~2小时后测 试，符合表8.1~8.4规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the temperature 60±2°Cand the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition. 9.7 高温特性High Temperature Endurance 在温度为125±5°C的恒温箱中放置96±2小时，在常温中恢复1~2小时后测试。符合表8.1~8.4 规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to temperature 125±5°Cfor 96±2 hours and 1~2 hours recovery time under normal temperature. 9.8 低温特性Low Temperature Endurance 在温度为-40°C±5°C低温箱中放置96±2小时后恢复1~2小时测试符合表8.1~8.4规定。 The device should also satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the temperature -40°C±5°Cfor 96±…

Text truncated - open the document above for the full version.

TEST REPORT Applicant: Pure Edge Lighting LLC. Address: 1718 W. Fullerton Ave, Chicago, Illinois 60614 United States FCC ID: 2A9YKB114WRGBTW Product Name: LED LAMP Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230631940-00A Date Of Issue: 2023/6/16 Reviewed By: Julie Tan Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230631940-00A Page 2 of 59 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230631940-00A Page 3 of 59 CONTENTS TEST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB EMISSION BANDWIDTH ........................................................................................... 17 3.3.…
