2AA2X-15000242Connect Hub Repeater

MTI CONNECT ® PoE NETWORK EXTENDER PRODUCT MANUAL 1 MTI P/N 063-00312 rev A ©2020 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844 12 NOTE: This device requires professional installation to prevent tampering with or removal/replacement of the antenna by anyone other than qualified service professionals. Choose an appropriate location, preferably on the ceiling, within 70 ft of the MTI Connect ® Hub or another network extender. 70 ft Cable length not to exceed 100m (330ft). NOTE: PoE Network Extender must be powered by an ES1 (<60 VDC) and PS1 (<15W) PoE power source. Passive and Active PoE adapters are supported. Run a Cat5e cable to the chosen location. Cable must be terminated with an RJ-45 Connector following TIA-568 A/B standards. Connect one end of the cable to a PoE adapter. NOTE: Cat5e cables and PoE devices should be installed by certified professionals, following installation standards defined by local electrical code. Plug the Cat5e cable’s RJ-45 connector into the PoE Network Extender’s RJ-45 jack and route the cable as desired, using the provided cable channels if needed. Mount the extender using the 3.5 mm x 16 mm screws (or longer if needed) for the mounting surface (not included). PoE Adapter MOUNTING 34 MTI CONNECT ® PoE NETWORK EXTENDER PRODUCT MANUAL 2 MTI P/N 063-00312 rev A ©2020 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844 1 NETWORK PAIRING 3 Place the MTI Connect ® Hub in pairing mode by inserting an MTI Connect ® Unified IntelliKey into the USB Mini connector on the top of the MTI Connect ® Hub. After 10 seconds the System Status LED will begin flashing blue, indicating the Hub is in Pairing mode. Press the recessed Pairing Button (labeled) shown below for two seconds. The Network Extender Status LED will begin flashing blue, indicating it has entered pairing mode. System Status LED Pairing Button The MTI Connect ® Hub will automatically exit pairing mode after 15 minutes and it’s status LED will return to the previous state. When the Network Extender attaches to the mesh network, the blue flashing LED will become solid Green. If the Network Extender does not connect to a mesh network within 90 seconds, it will exit pairing mode and will return to its previous state. Connected 2 MTI CONNECT ® PoE NETWORK EXTENDER PRODUCT MANUAL 3 MTI P/N 063-00312 rev A ©2020 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844 FUNCTIONALITY Status LED Reserved for future use Debug port, for authorized technician use only 1.22” (31.10mm) 3.59” (88.90mm) 0.21” (5.4mm) 5.98” (151.9mm) 5.28” (134.00mm) Pairing PoE RJ-45 Input MTI CONNECT ® PoE NETWORK EXTENDER PRODUCT MANUAL 4 MTI P/N 063-00312 rev A ©2020 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844 LED STATUS INDICATORS Visual ReferenceSystem StatusCondition No Lights On Network Extender has no power and backup battery has been depleted. Reconnect Network Extender to power. Status LED Solid Green Network Extender is fully functional: – Mesh network communication is good Status LED Flashing BlueNetwork Extender is in mesh pairing mode. Status LED Flashing Green Currently communicating on mesh network, but has had communication issues within the last 24 hours. Status LED Solid Red No communication with mesh network; Either has never been paired or has lost communication with the mesh network. Status LED Flashing Green once every 10 seconds Network Extender is in battery backup mode and is communicating with the mesh network - connect to power. Status LED Flashing Red once every 10 seconds Network Extender is in battery backup mode and is not communicating with the mesh network - connect to power. MTI CONNECT ® PoE NETWORK EXTENDER PRODUCT MANUAL 5 MTI P/N 063-00312 rev A ©2020 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844 FCC ID: 2AA2X-15000242 Model: PoE Network Extender FCC Statement This device complies with Part 15 of the FCC Rules. Caution: If any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. The RF Exposure Compliance distance is 20 centimeters. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. ISED Certification Number: 24439-15000242 Model: PoE Network Extender ISED Statement This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesi…

Text truncated - open the document above for the full version.

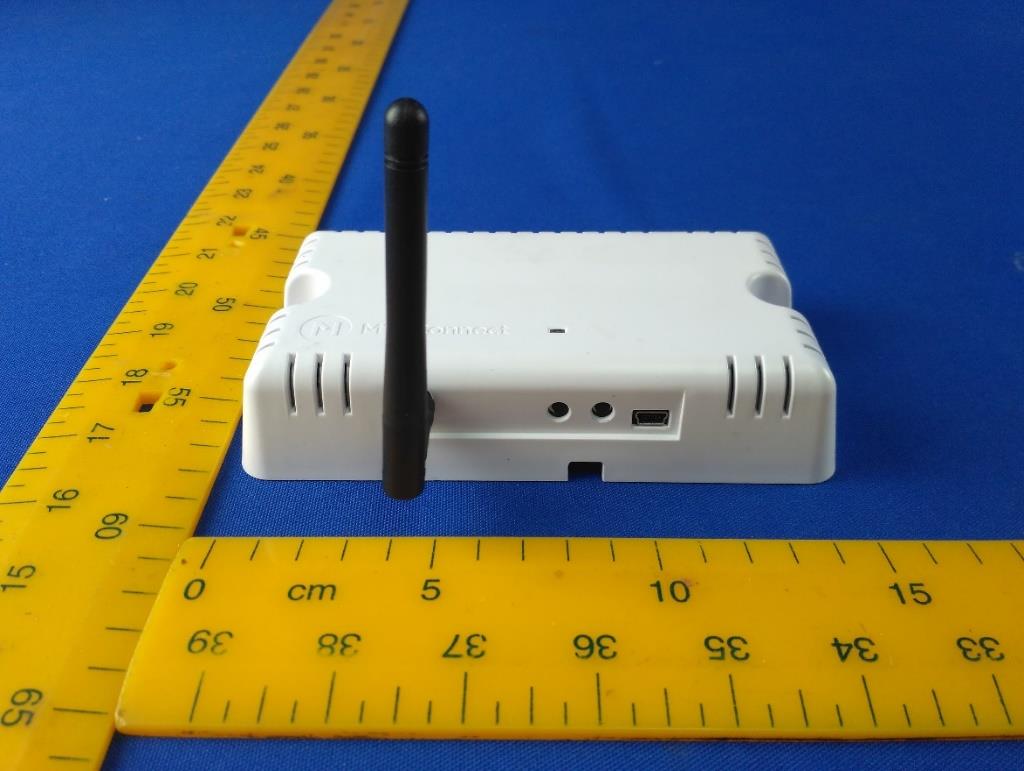

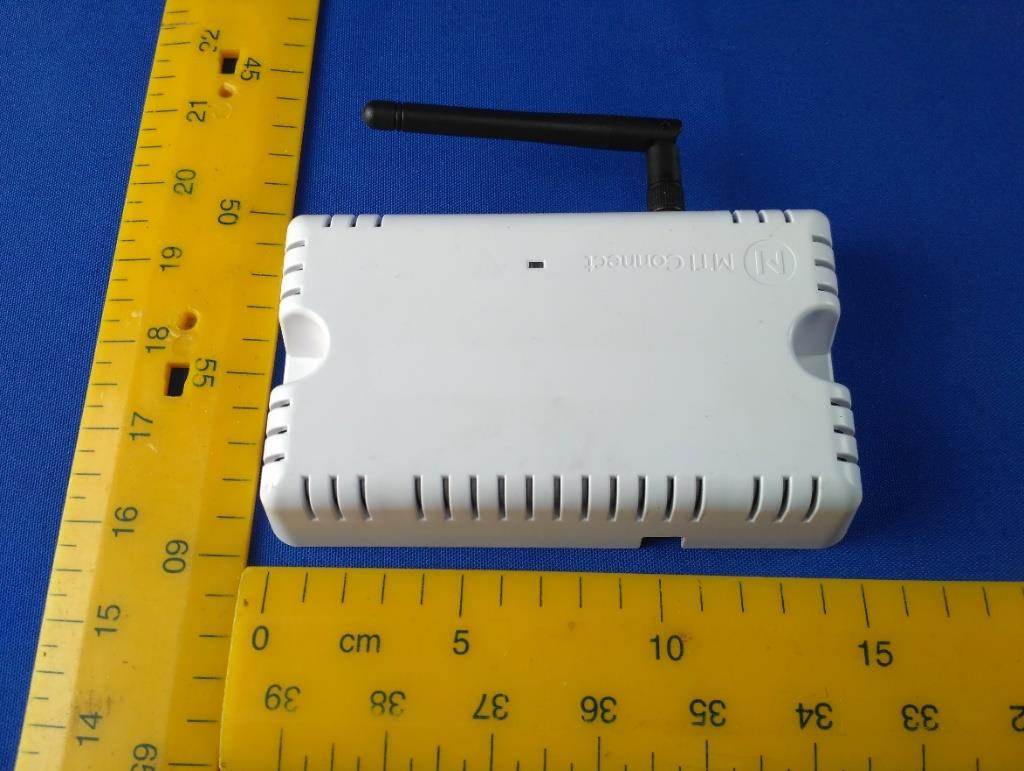

Appendix Model No.: PoE Network Extender

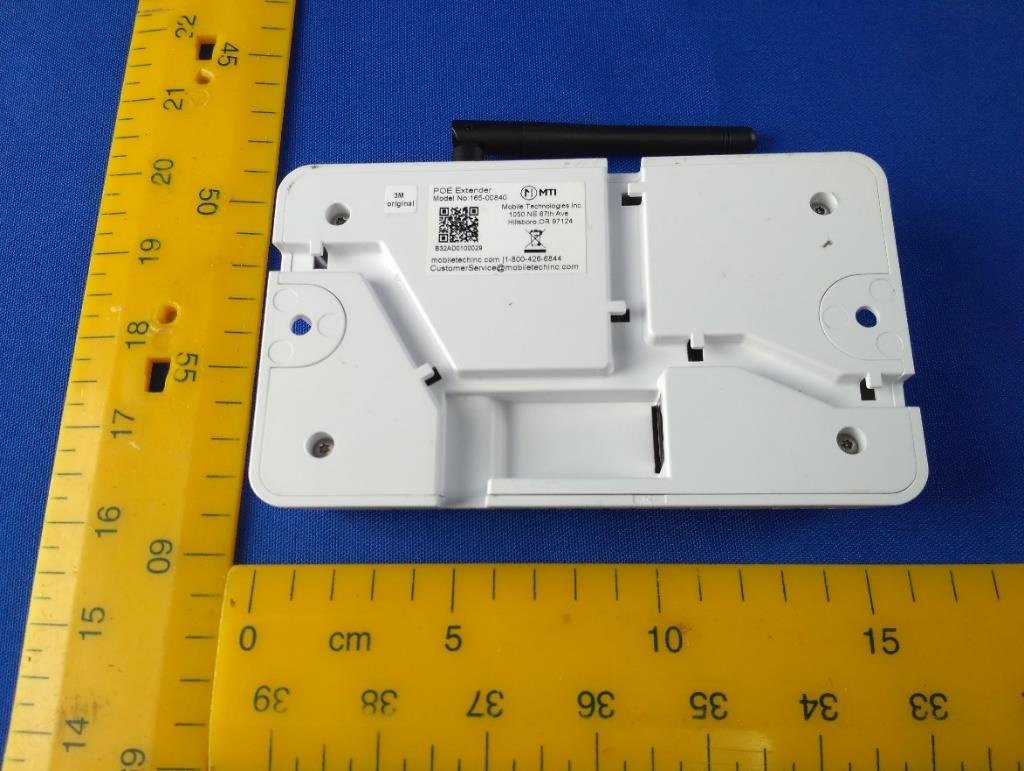

Rating label for POE Network Extender This label is 0.5” H x 2.0” wide (568-00640) Placement will be as shown below. QR label Per 568-00551 Placement will be as shown below.

Appendix Model No.: PoE Network Extender 2.4G Antenna 2.4G Antenna This Module disabled

Report Number: 60.790.19.028.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page36of36 Radiofrequency radiation exposure evaluation This exposure evaluation is intended forFCC ID: 2AA2X-15000242. According to FCC CFR 47 part1 1.1310, As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure Frequency range (MHz) Electric field str ength (V/m) Magnetic field strength (A/m) Pow er density (mW/cm 2 ) Averaging time (minutes) (B) Limits for General Population/ Uncontrolled Exposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1,500f/150030 1,500-100,0001.030 MPE calculation method: Pd = (P*G) / (4*Pi* R 2 ), where Pd = power density in mW/cm 2 P = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R= calculation distance in cm >> The antenna gain is 2dBi (=1.585 in linear scale). Manufacturer specified the separation distance is: 20cm The power of EUT measured (2405MHz) is: 4.45dBm = 2.786mW The power of EUT measured (2445MHz) is: 4.71dBm = 2.958mW The power of EUT measured (2480MHz) is: 4.59dBm = 2.877mW >> The Pd calculated of 2405MHz is 0.00088mW/cm 2 The Pd calculated of 2445MHz is 0.00093mW/cm 2 The Pd calculated of 2480MHz is 0.00091mW/cm 2 Which is smaller than the threshold of 1mW/cm 2 . Therefore, the device is exempt from stand-alone SAR test requirements. 9AppendixA-General Product Information

Report Number: 60.790.19.028.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 1 of 36 FCC - TEST REPORT Report Number:60.790.19.028.01R01Date of Issue:January 21, 2020 Model:PoE Network Extender Product Type:Connect Hub Repeater Applicant:Mobile Technologies Inc. Address:1050 NE 67th Ave, Hillsboro, OR 97124 Production Facility:HONG KONG ANDROIDS TECHNOLOGY CO.LTD Address:Yitoa Technology Industrial Park, Baihua Yuan Rd., The Second Industrial Area, Guangming Sub-district Office, Guangming New District, Shenzhen, China Test Result:PositiveNegative Total pages including Appendices : 36 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 60.790.19.028.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 2 of 36 1 Table of Contents 1 Table of Contents.............................................................................................................2 2 Description of Equipment Under Test...............................................................................3 3 Summary of Test Standards.............................................................................................4 4 Details about the Test Laboratory....................................................................................5 4.1 Test Equipment Site List.....................................................................................................6 4.2 Measurement System Uncertainty......................................................................................7 5 Summary of Test Results.................................................................................................8 6 General Remarks.............................................................................................................9 7 Test Setups....................................................................................................................10 7.1 Radiated test setups 9kHz-30MHz....................................................................................10 7.2 Radiated test setups Below 1GHz....................................................................................10 7.3 Radiated test setups Above 1GHz....................................................................................10 7.4 AC Power Line Conducted Emission test setups..............................................................11 7.5 Conducted RF test setups.................................................................................................11 8 Emission Test Results....................................................................................................12 8.1 Spurious Radiated Emission.............................................................................................12 8.2 Conducted Emission at AC Power line.............................................................................16 8.3 6dB & 99% Bandwidth......................................................................................................17 8.4 Peak Output Power...........................................................................................................20 8.5 Spurious Emissions at Antenna Terminals.......................................................................23 8.6 100kHz Bandwidth of band edges....................................................................................29 8.7 Power Spectral Density.....................................................................................................32 8.8 Antenna Requirement.......................................................................................................35 9 Appendix A - General Product Information.....................................................................36 Report Number: 60.790.19.028.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 3 of 36 2 Description of Equipment Under Test Description of the Equipment Under Test Product: Connect Hub Repeater Model no.: PoE Network Extender FCC ID: 2AA2X-15000242 Rating: POE 37-57V DC, 80 mA Max. (Typic 48V DC) Frequency: 2405MHz-2480MHz (Tx and Rx) Antenna gain: 2dBi Number of operated channel: 16 Modulation:O-QPSK Auxiliary Software Used during Test: DESCRIPTIONSOFTWARE NAMEVERSIONREMARK ///Provided by applicant Auxiliary Equipment and Software Used during Test: DESCRIPTIONMANUFACTURERMODEL NO.REMARK ComputerLenovoX220(S/N 0A72168)1 4 * 12V DC batteries Bosch/1 Power Cab…

Text truncated - open the document above for the full version.

Appendix Model: PoE Network Extender RE 30-1000MHz RE 1-25GHzGHz
