2AA2X-15000345SmartLock

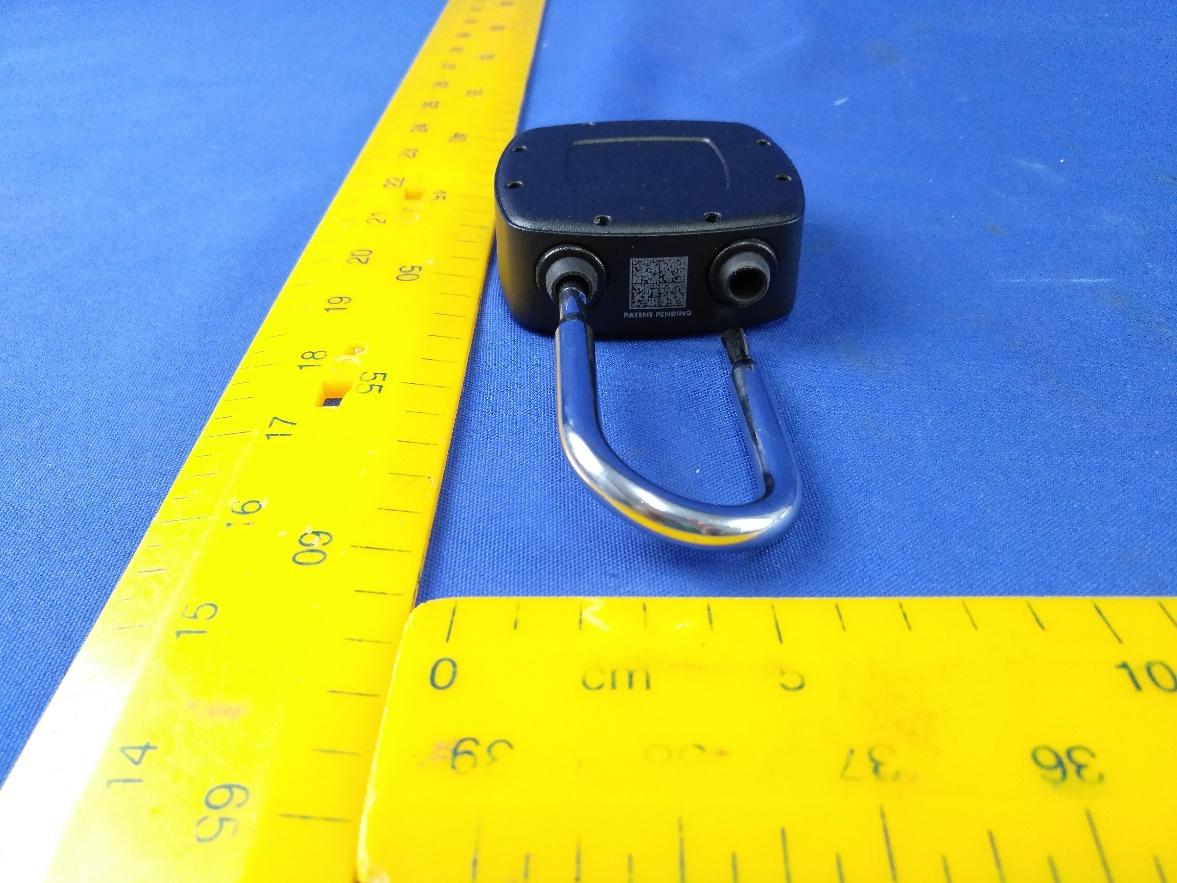

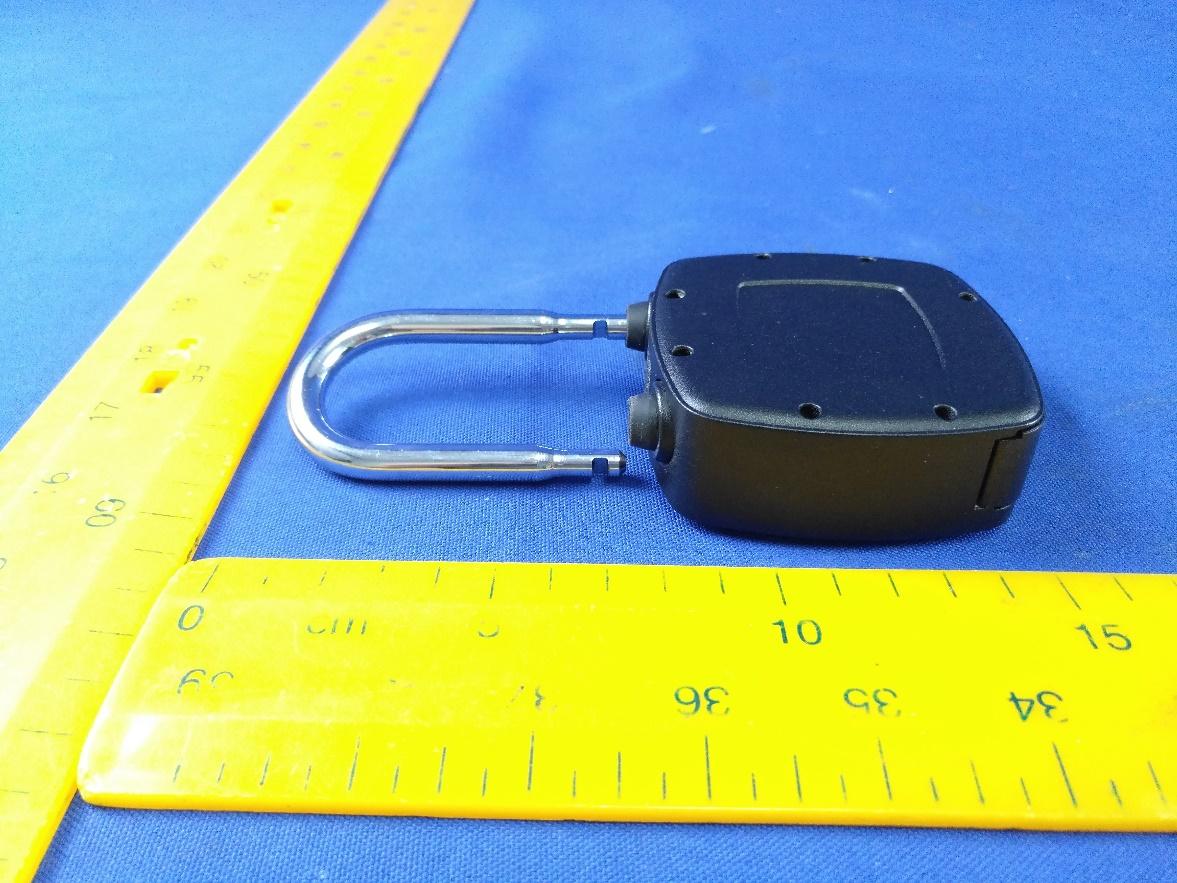

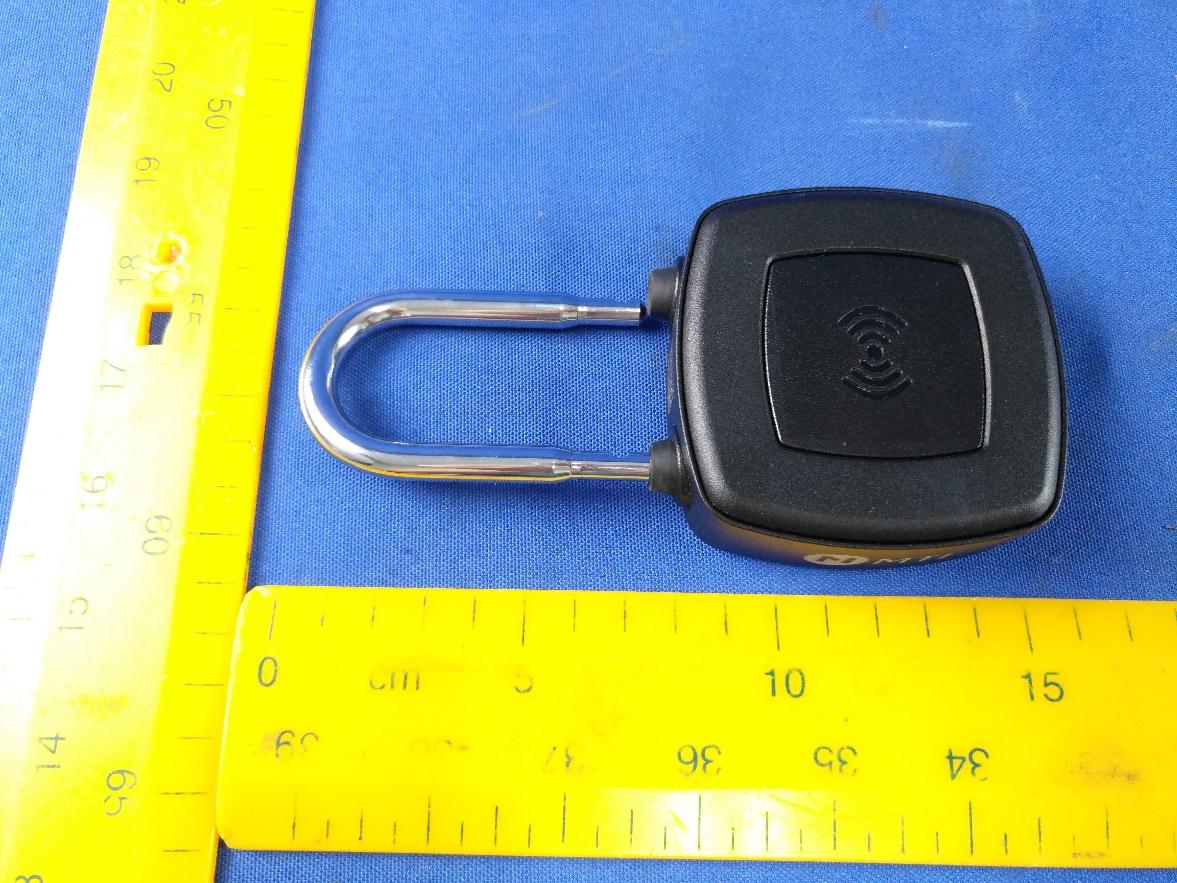

Model: PadLock Page 1 of 3 EUTExternalPhotos Model: PadLock Page 2 of 3 EUTExternalPhotos Model: PadLock Page 3 of 3 EUTExternalPhotos

Model: PadLock Page 1 of 4 EUTInternalPhotos Model: PadLock Page 2 of 4 EUTInternalPhotos Model: PadLock Page 3 of 4 EUTInternalPhotos Model: PadLock Page 4 of 4 RFID Antenna Zigbee Antenna EUTInternalPhotos

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 1 of 1 Radiofrequency Radiation Exposure Evaluation This exposure evaluation is intended forFCC ID: 2AA2X-15000345 According to KDB 447498 D01v06 section 4.3.1, For frequencies between 100 MHz to 6GHz and test separation distances ≤ 50 mm, the Numeric threshold is determined as: Step a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR >> The fundamental frequency of the EUT is 2405-2480MHz, the test separation distance is ≤ 50mm. (Manufacturer specified the separation distance is: 20 mm) (5mm is the worst case according to the KDB) Step b) >> Numeric threshold (2405MHz), mW / 5mm * √2.402GHz ≤ 3.0 Numeric threshold (2405MHz) ≤ 9.678mW >> Numeric threshold (2440MHz), mW / 5mm * √2.440GHz ≤ 3.0 Numeric threshold (2440MHz) ≤ 9.602mW >> Numeric threshold (2480MHz), mW / 5mm * √2.480GHz ≤ 3.0 Numeric threshold (2480MHz) ≤ 9.525mW The Power according to the RF Report No: 60.790.23.030.01R01 >> The power (measured + tune up tolerance) of EUT at 2405MHz is: -3.44dBm = 0.45mW The power (measured + tune up tolerance) of EUT at 2440MHz is: -3.09dBm = 0.49mW The power (measured + tune up tolerance) of EUT at 2480MHz is: -3.77dBm = 0.42mW Which is smaller than the Numeric threshold. Therefore, the device is exempt from stand-alone SAR test requirements. Reviewed by: Prepared by: ______________________ ___________________ Eric LIKevin DU SectionManagerEMC Project Engineer

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 1 of 4 RF Exposure Evaluation (Simultaneous Transmission) Model:PadLock Product Type:SmartLock Applicant:Mobile Technologies Inc. Address:1050 NE 67th Ave, Hillsboro, Oregon, 97124, United States Production Facility (1) :IBE Electronics Co., Ltd. Address:IBE Industry Mansion, TangTou No.1 Industry Estate, Shiyan Town, Bao’an District, Shenzhen, China. Production Facility (2) :VIETNAM IBE LASER TECHNOLOGY CO LTD. Address:Lot CN-34 and lot CN-39, Thuan Thanh II Industrial Park, An Binh & Mao Dien Commune, Thuan Thanh District, Bac Ninh Province, Vietnam. Test Result:nPositive Total pages including Appendices : 4 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 2 of 4 1.Product information Product:SmartLock Model no.:PadLock FCC ID:2AA2X-15000345 Rating:3.0 VDC (2 x 1.5 VDC “AAA” size battery) Frequency:2405MHz-2480MHz (Zigbee) 125 kHz (RFID) Antenna gain:3.5 dBi (Zigbee) 0 dBi (RFID) Antenna Type:Patch Antenna for 2.4GHz Zigbee Integrated coil antenna for 125kHz RFID Number of operated channel: 16 (Zigbee) 1 (RFID) Modulation:O-QPSK (Zigbee) AM (RFID) TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 3 of 4 2.General SAR Test Exclusion Guidance Simultaneous transmission SAR test exclusion considerations: According to KDB 447498 D01v06 section 4.3.2b, for frequencies between 100 MHz to 6GHz and test separation distances ≤ 50 mm, the Numeric threshold is determined as: 1. [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance ,mm)]·* [√f(GHz) /x] W/kg ≤ 0.4 W/kg for 1-g SAR wherex = 7.5 for 1-g SAR andx = 18.75 for 10-g SAR. 2. 0.4 W/kg for 1-g SAR and 1.0 W/kg for 10-g SAR, when thetest separation distanceis > 50 mm. For 2405 – 2480MHz and 125kHz Transmission Step a) >> The fundamental frequency of the EUT is 2405-2480MHz and 125kHz the test separation distance is ≤ 50mm. (Manufacturer specified the separation distance is: 20mm) (5mm is the worst case according to the KDB) Step b) >> Numeric threshold (2405MHz), mW / 5mm * (√2.405GHz / 7.5) ≤ 0.4 Numeric threshold (2405MHz) ≤ 3.532mW >> Numeric threshold (2440MHz), mW / 5mm * (√2.440GHz / 7.5) ≤ 0.4 Numeric threshold (2440MHz) ≤ 3.506mW >> Numeric threshold (2480MHz), mW / 5mm * (√2.480GHz / 7.5) ≤ 0.4 Numeric threshold (2480MHz) ≤ 3.478mW >> Numeric threshold (125kHz), mW / 5mm * (√0.1GHz / 7.5) ≤ 0.4 Numeric threshold (125kHz) ≤ 17.32mW TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 4 of 4 3.Conclusion for the Simultaneous Transmission The Power according to the RF Report No: 60.790.23.030.01R01 and 60.790.23.030.02R01 as below: >> The power (measured + tune up tolerance) of EUT at 2405MHz is: -3.44 dBm = 0.45mW The power (measured + tune up tolerance) of EUT at 2440MHz is: -3.09 dBm = 0.49mW The power (measured + tune up tolerance) of EUT at 2480MHz is: -3.77 dBm = 0.42mW The power (measured + tune up tolerance) of EUT at 125kHz is: -49.4 dBm = 0.00001mW Which is smaller than the Numeric threshold. Therefore, the device is exempt from simultaneous transmission SAR test requirements.

Report Number: 60.790.23.030.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 1 of 41 FCC – TEST REPORT Report Number:60.790.23.030.01R01Date of Issue :31 August, 2023 Model:PadLock Product Type:SmartLock Applicant:Mobile Technologies Inc. Address:1050 NE 67th Ave, Hillsboro, Oregon, 97124, United States Production Facility (1) :IBE Electronics Co., Ltd. Address:IBE Industry Mansion, TangTou No.1 Industry Estate, Shiyan Town, Bao’an District, Shenzhen, China. Production Facility (2) :VIETNAM IBE LASER TECHNOLOGY CO LTD. Address:Lot CN-34 and lot CN-39, Thuan Thanh II Industrial Park, An Binh & Mao Dien Commune, Thuan Thanh District, Bac Ninh Province, Vietnam. Test Result:nPositiveoNegative Total pages including Appendices : 41 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 60.790.23.030.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 2 of 41 1 Table of Contents 1 Table of Contents ............................................................................................................ 2 2 Description of Equipment Under Test ............................................................................. 3 3 Summary of Test Standards ........................................................................................... 4 4 Details about the Test Laboratory ................................................................................... 5 4.1 Test Equipment Site List ................................................................................................... 6 4.2 Measurement System Uncertainty .................................................................................... 7 5 Summary of Test Results ................................................................................................ 8 6 General Remarks ............................................................................................................ 9 7 Test Setups ................................................................................................................... 10 7.1 Radiated test setups Below 1GHz................................................................................... 10 7.2 Radiated test setups Above 1GHz .................................................................................. 10 7.3 AC Power Line Conducted Emission test setups ............................................................ 11 7.4 Conducted RF test setups............................................................................................... 11 8 Emission Test Results .................................................................................................. 12 8.1 Spurious Radiated Emission ........................................................................................... 12 8.2 6dB & 99% Bandwidth .................................................................................................... 16 8.3 Peak Output Power ......................................................................................................... 19 8.4 Spurious Emissions at Antenna Terminals ...................................................................... 22 8.5 100kHz Bandwidth of band edges................................................................................... 28 8.6 Power Spectral Density ................................................................................................... 30 8.7 Antenna Requirement ..................................................................................................... 33 9 Test setup procedure .................................................................................................... 34 Report Number: 60.790.23.030.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, 518052 Shenzhen, CHINA Page 3 of 41 2 Description of Equipment Under Test Description of the Equipment Under Test Product:SmartLock Model no.: PadLock FCC ID:2AA2X-15000345 Rating:3.0VDC(2 x 1.5 VDC “AAA” size battery) Frequency:2405MHz-2480MHz (Tx and Rx) Antenna gain:3.5 dBi (Patch Antenna, SMD) Number of operated channel: 16 Modulation:O-QPSK Auxiliary Equipment Used during Test: DESCRIPTIONMANUFACTURERMODEL NO.S/N ComputerLenovoX2200A72168 MTI Connect HUBMTI---System Monitoring Auxiliary Software Used during Test: DESCRIPTIONSOFTWARE NAMEVERSIONREMARK ------------ Report Number: 60.790.23.030.01R01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Z…

Text truncated - open the document above for the full version.

2.4GHz Mini Patch Antenna, SMD Detail Specification: Page 1 of 5 ±± ±± ±± ±± ±± ±± ±± https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 1.2 2019 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions Part Number 5/7/2019 Min. Radiated Efficiency Let us help you with the antenna design, optimization, and tuning! 2440AT62A0085 2.4 - 2.485 70% General Specifications Frequency (GHz) P/N 2440AT62A0085 600 Impedance (Ω) Input Power (W) Reel Quantity (pcs/reel) 50 2 max. (CW) Operating Temperature -40 to +85°C Recommended Storage Conditions and Period for unused T&R Product 18 months max. Broadly Linear+5 to +35°C Humidity 45 - 75% RH Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. e.g. 2440AT62A0085(E or S)100% Tin Packing Style Evaluation Board 2440AT62A0085-EB1SMA Bulk (loose) Reel Suffix = E or S Suffix = E P/N Suffix Mechanical Dimensions In L 0.4720.00812.000.2 W 0.4720.00812.000.2 T 0.1574.000.10.004 a 0.0790.0082.000.2 b 0.0792.000.20.008 d 0.1180.0083.000.2 c 0.0470.0081.200.2 Terminal Configuration Function FEED GND No. 1 2 mm e.g. 2440AT62A0085E e.g. 2440AT62A0085SSuffix = S Part Number Explanation Return Loss (dB) 6 min. Polarization Peak Gain (dBi) 3.5 typ. Average Gain (dBi) 1.3 typ. W L Top View T a Side view a c d b d Bottom View Bottom View ① ② ② ② ② ② ② ② ② -CONTROLLED DOCUMENT-400-00190A-1Status:ApprovedECO-115305 ECO-115305 2.4GHz Mini Patch Antenna, SMDP/N 2440AT62A0085 Detail Specification: Page 2 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 1.2 2019 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 5/7/2019 Mounting Considerations 1: Evaluation Board Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. To order a pre-tuned 50Ω EVB with a female SMA connector click here: https://www.johansontechnology.com/request-a-sample Reference p/n: 2440AT62A0085-EB1SMA Units in mm 50 50 12 12 3 1.5 3 3 1.5 50Ω Feed from bottom layer GND vias Solder Pads Top layer (GND) Would you like the layout file? Contact our engineers at the following: https://www.johansontechnology.com/ask-a-question -CONTROLLED DOCUMENT-400-00190A-1Status:ApprovedECO-115305 ECO-115305 2.4GHz Mini Patch Antenna, SMDP/N 2440AT62A0085 Detail Specification: Page 3 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 1.2 2019 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 5/7/2019 Mounting Considerations 1: Electrical Performance @25°C Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Measured Return Loss Would you like the antenna layout? Have antenna tuning issues? Please contact us if you have any questions regarding the implementation of this antenn a in your PCB's layout. We'll be happy to guide you to maximize the antenna's performance Contact our applications engineers at: https://www.johansontechnology.com/ask-a-question 2.25 2.30 2.35 2.40 2.45 2.50 2.55 2.60 2.652.202.70 -15 -10 -5 -20 0 freq, GHz dB(S(1,1)) m1 m2 m3 m1 freq= dB(S(1,1))=-8.382 2.400GHz m2 freq= dB(S(1,1))=-16.058 2.480GHz m3 freq= dB(S(1,1))=-7.535 2.440GHz -CONTROLLED DOCUMENT-400-00190A-1Status:ApprovedECO-115305 ECO-115305 2.4GHz Mini Patch Antenna, SMDP/N 2440AT62A0085 Detail Specification: Page 4 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 1.2 2019 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 5/7/2019 Mounting Considerations 1: Antenna Performance Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Typical 2D radiation patterns @ 2.44GHz YZ‐plane XZ‐plane XY‐plane θ φ +Z (θ= 0°) θ +Z +Z +X -Z +Y (θ= 90°) -Y -Z +Z (θ= 0°) +X (θ= 90°) -X -Z -Z +Y -Y +X -X +Y -Y -X +X (φ= 0°) -X +Y (φ= 90°) -Y -CONTROLLED DOCUMENT-400-00190A-1Status:ApprovedECO-115305 ECO-115305 2.4GHz Mini Patch Antenna, SMDP/N 2440AT62A0085 Detail Specification: Page 5 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 1.2 2019 Johanson Technology, Inc. All Rights Reserved Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. https://www.johansontechnology.com/antennas Soldering Information https://www.johansontechnology.com/ipcsoldering-profile MSL Info https://www.johansontechnology.com/msl-rating https://www.johansontechnology.com/rohs-compliance Packaging Information https://www.johansontechnology.com/tape-reel-packaging For layout review contact our applications team at: https://www.johansontechnology.com/ask-a-question RoHS Compliance "High Frequency Ceramic Solutions" Antenna tuning, optimization, and validation services: https://www.johansontechnology.com/ipc-antenna-services For more antennas and to download measured S-parameters, go to: 5/7/2019 Need help designing the antenna in? Use our antenna design services! https://www.johansontechnology.com/ipc-antenna-services We provide 2 free layout reviews and if you need us to tune and characterize the antenna on your product (inside anechoic chamber) we can do that too. Small lab fee may apply for the latter. -CONTROLLED DOCUMENT-400-00190A-1Status:ApprovedECO-115305 ECO-115305 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Johanson: 2440AT62A0085E -CONTROLLED D…

Text truncated - open the document above for the full version.

Model: PadLock Page 1 of 2 Radiated Emission Test below 30 MHz Radiated Emission Test below 1 GHz TestSet-upPhotos Model: PadLock Page 2 of 2 Radiated Emission Test above 1 GHz TestSet-upPhotos
