2AA3H-AM09NFC Bluetooth Speaker

AM09 NFC BLUETOOTH SPEAKER USER GUIDE Packing list: 1,AM09 NFC Bluetooth Speaker 2, Micro USB to USB charging cable 3, User Guide 1 Product ： ①LLed indicator ② Power button ③ Vol - button ④ Vol+ button ⑥ Paring/Tel button ⑥ Mic ⑦ Micro USB port Product specification: Power output: 3W RMS S/N: 70dB Frequency range: 65Hz-20KHz Wireless:Bluetooth3.0(A2DP,HFP), NFC Speaker driver: 4Ω Power Input: USB/DC 5V Dimension: 130mmX60mmX23mm Built-in Battery: 3.7v 750mAH Li-Polymer battery Charging： If the speaker cannot turn on or the red LED be flashed, the built-in battery may be drained, please connect to a power source to recharge the speaker. The Red LED indicator is on when the speaker is in charging, and turn off while fully charged. 2 Pair with Bluetooth device： 1. Press and hold on button。 2. The blue led be flashed 3. Search the new Bluetooth device on your smartphone 4. “HUAWEI AM09” be listed on the Smartphone 5. Select“HUAWEI AM09”, if prompt the passward, Pls input “0000”。 6. the Paring be successful if the blue led is on 7. Press and hold on to turn off . Tips： To pair with another bluetooth enabled device,please press and hold the button for 2 seconds to disconnect the current connection and re-peat the pairing process Pair with NFC Bluetooth device： 1, Make sure the speaker is power on. 2, Touch the NFC area on your phone with the NFC area located on the speaker. 3, after successful sensing,the phone beeps or a screen prompting appears for bluetooth connection. Tips: You can touch the NFC area again by your phone to disconnect the current connection. Make sure that your phone support NFC function and the NFC software is ins Handfree call： . When there is an incoming call, you can press the button on the speaker to answer the call or press and hold the button to reject the call. Press the button again to hang up after conversation. 3 IMPORTANT SAFETY INSTRUCTIONS 1. WARNING: Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc). 2. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus 3. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. 4. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. 5. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 4

[2014-01-10] To whom it may concern, Letter of Agency I, an officer of [ Shenzhen 3nod Digital Technology Co., Ltd. ] do hereby authorize Intertek Testing Services (Mr. Shawn Xing / Billy Li) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Jinag-jiangming Manager

Re: Request for confidentiality Applicant: Shenzhen 3nod Digital Technology Co., Ltd. FCC ID: 2AA3H-AM09 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Shenzhen 3nod Digital Technology Co., Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by Shenzhen 3nod Digital Technology Co., Ltd. to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization: • Test setup photos • External photos • Internal photos • User manual Rationale for request for confidentiality: Shenzhen 3nod Digital Technology Co., Ltd. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, Manager Shenzhen 3nod Digital Technology Co., Ltd.

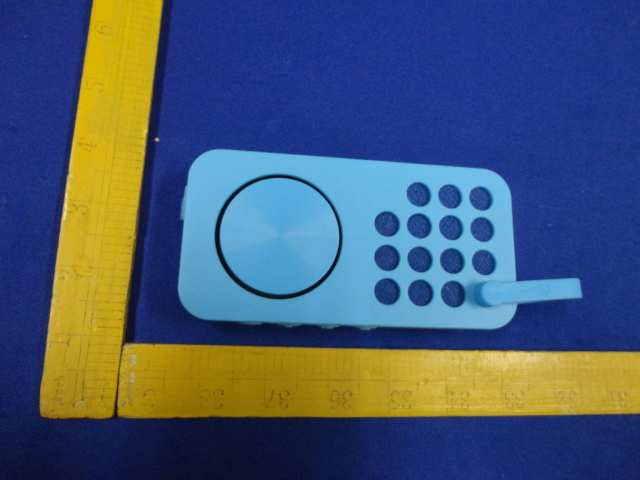

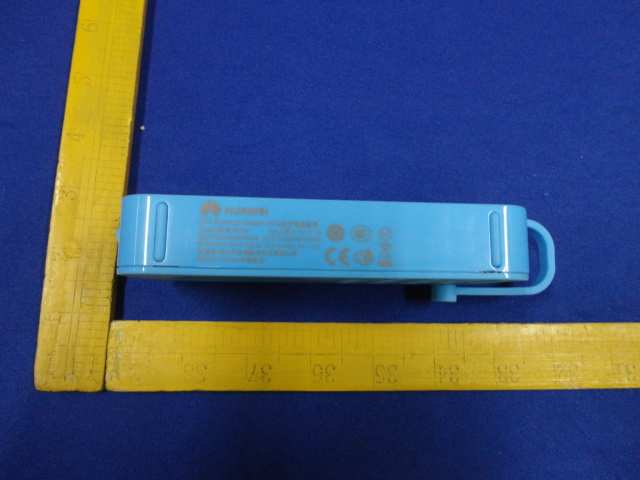

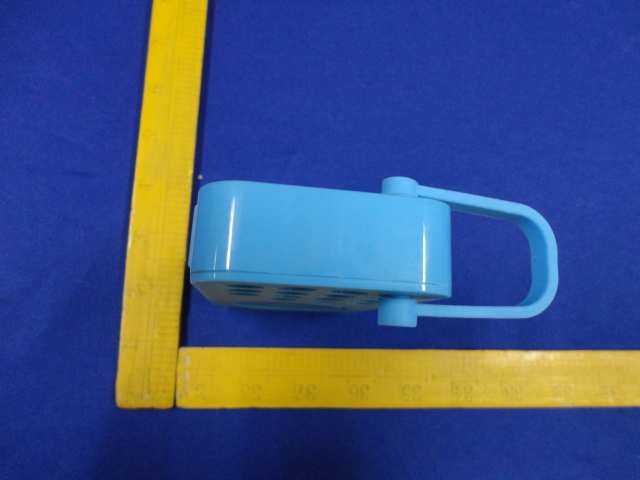

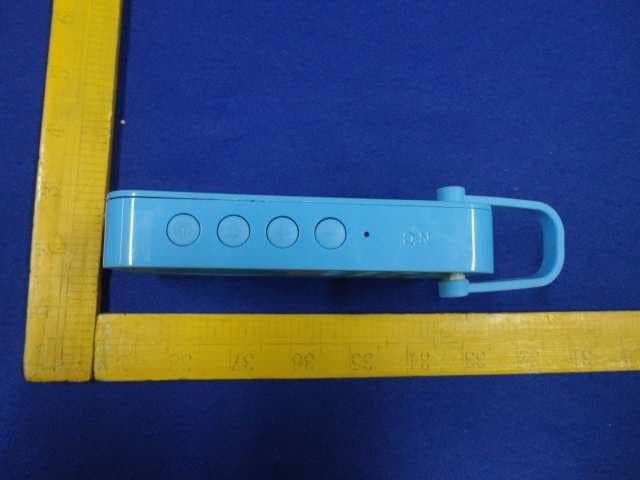

External Photo

丝印颜色：Pantone:5C 机种 名称 日期 页码 文件编号 绘图 核准 BT-1039 丝印 2013-11-20 1OF1 备注： 审核 版本 000 A.0 环保要求: 部门丝印部木箱部品管部工程部电子部 2102451315GD3C000001 SN贴纸 晴空蓝 尺寸：L25*W10mm 2102451335GD3C000001 Sn贴纸 胭脂红 尺寸：L25*W10mm 2102451336GD3C000001 Sn贴纸 暗夜黑 尺寸：L25*W10mm Model/型号:AM09 Input/输入:5V 1A CMIIT ID:XXXXXXXXXX FCC ID:2AA3H-AM09 制造商 : 深圳市三诺数字科技有限公司 Made in China/中国制造 /NFC蓝牙免提音箱 Speaker NFC Shenzhen 3nod Digital Technology Co., Ltd. SIZE：L36*W18mm

Internal Photo

1 INTERTEK TESTING SERVICES RF Exposure AM09 is an Audio System with built-in rechargeable lithium battery with two passive radiators to enhance the bass and with Bluetooth in. It has function of audio play through Bluetooth audio player. It has NFC function, so it very easy to connect Bluetooth devices which had NFC built-in. Antenna Type: Integral antenna Antenna Gain: -0.5dBi The nominal conducted output power specified: 5dBm +/-5dB. The nominal radiated output power (e.i.r.p) specified: 4.5dBm (Tolerance: +/- 5dB) Modulation Type: GFSK, π/4 –DQPSK and 8-DPSK. According to the KDB 447498: The maximun peak radiated emission for the EUT is 103.9dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 8.7dBm which is within the production variation. The minimum peak radiated emission for the EUT is 101.0dBμV/m at 3m in the frequency 2441MHz The EIRP = [(FS*D) ^2 / 30] mW = 5.8dBm which is within the production variation. The maximun conducted output power specified is 10dBm = 10mW The source- based time-averaging conducted output power = 10 * Duty Cycle mW= 8.3 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 3.0 + EDR), the duty cycle is dependent of packet type (DH1, DH3 and DH5).For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hop set consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: 2AA3H-AM09
