2AA3H-S6064Onn. 5.1.2 Atmos Soundbar, onn. 5.1.2 Atmos Soundbar

Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019 Ver.01 Rev.19/11/2019

(SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD) [December 20, 2019] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD) FCC ID: 2AA3H-S6064 To Whom It May Concern: We, (SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD), hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AA3H-S6064) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (December 20, 2019). The Limited Agency Agreement expires on (December 19, 2020), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] [Type Name]Peter Cheng [Type Title]Compliance engineer

1(2) [SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD] Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AA3H-S6064 To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure 2(2) Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ [Peter Cheng] [Compliance engineer] [December 20, 2019 ]

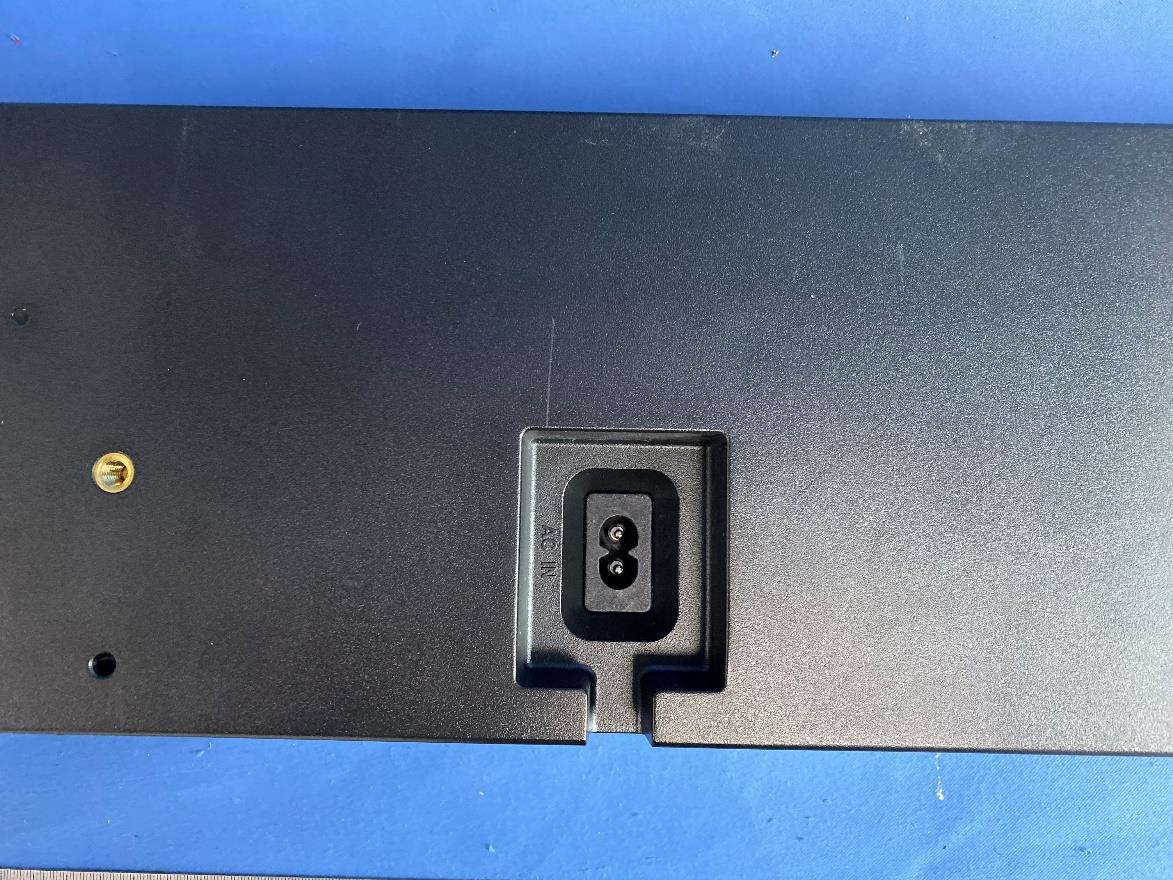

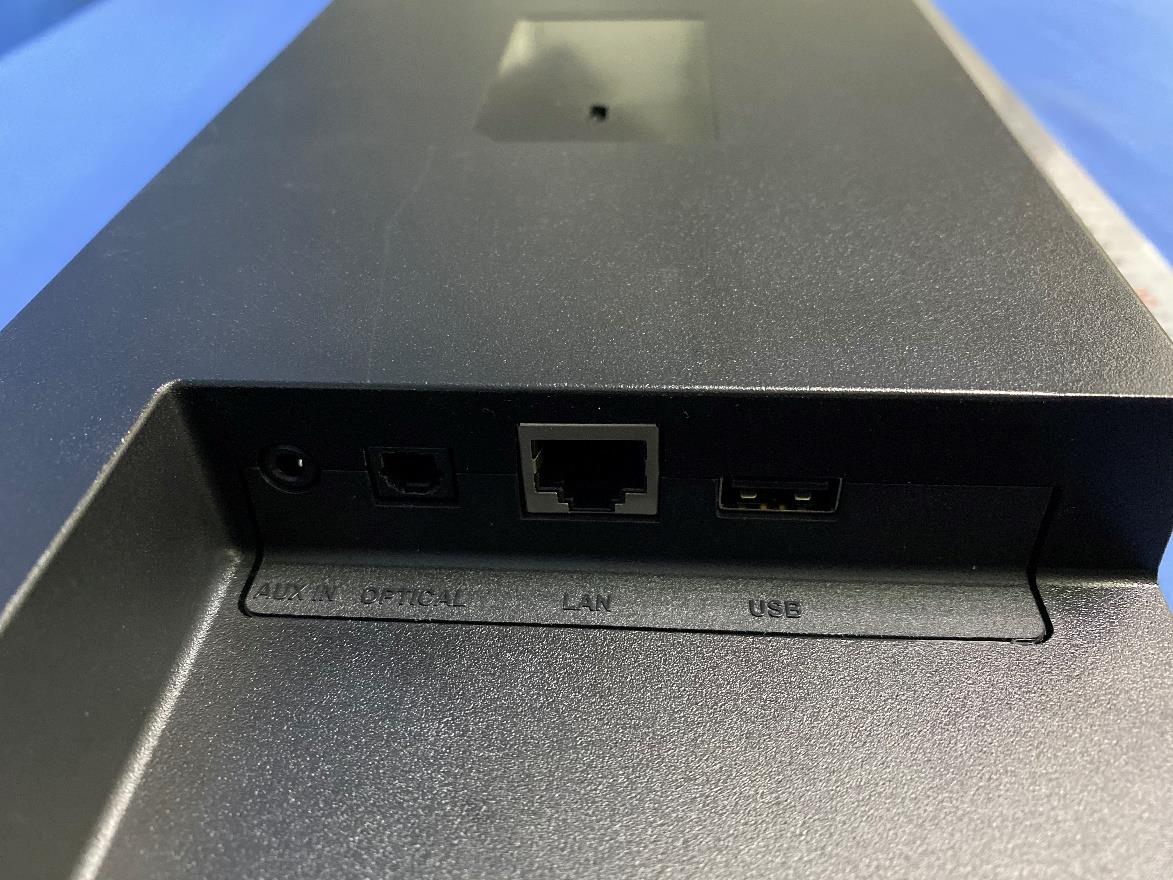

External Photos

机身贴纸 S-6064 沈远杭 沈远杭 S-6064 机身贴纸 1）尺寸：L69.5*W39.5mm 2）材质：50#消银龙，过哑膜 3）底色：黑色 4）字：消银龙本色 5）尺寸公差：±0.2mm 2019-11-20 刘良 季紫薇 2019-11-20 2019-11-20 2019-11-20 69.5mm 39.5mm S/N label:35*10mm 47405017 V0.3 100002634YYYYMMH00001 100002634YYYYMMH00001 100002634YYYYMMH00001

Internal Photos 2.4G& 5G WiFi Antenna Bluetooth&2.4G& 5G WiFi Antenna 2.4G SRD Antenna 2.4G SRD Antenna

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Soundbar with Bluetooth, 2.4G SRD, and WiFi functions. The 2.4G SRD module carry with double antennas, but they can`t transmit at the same time. Bluetooth and Wi-Fi transmitters are share one antenna while they cannot transmit simultaneously. The EUT is powered by AC 120V/60Hz. The device will automatically discontinue transmission in case of either absence of information to transmit or operational failure. When the soundbar is absence of information to transmit or operational failure, the power supply of WIFI transmitter module will shut off, so that the EUT can’t enter the work state, so as to stop transmitting the information. For more detailed features description, please refer to the user’s manual. Standalone SAR evaluation for BT function Bluetooth Version: 5.0 BDR/EDR Antenna Type: Integral antenna. Antenna Gain: 3.4dBi. Modulation Type: GFSK, π/4DQPSK, 8DPSK. The nominal conducted output power specified: 0dBm (+/-3dB) The nominal radiated output power (e.i.r.p) specified: 3.4dBm (+/- 3dB) The maximum peak radiated emission for the EUT is 100.4dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 5.17dBm which is within the production variation. The minimum peak radiated emission for the EUT is 98.5dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 3.27dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 6.4dBm = 4.4mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 4.4mW/ 4πR^2 = 0.0009 mW/cm^2 <1mW/cm^2 FCC ID: 2AA3H-S6064 INTERTEK TESTING SERVICES Bluetooth Version: 5.0 BLE mode Antenna Type: Integral antenna. Antenna Gain: 3.4dBi. Modulation Type: GFSK The nominal conducted output power specified: -3dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: 0.4dBm (+/- 3dB) The maximum peak radiated emission for the EUT is 93.2dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -2.03dBm which is within the production variation. The minimum peak radiated emission for the EUT is 93.1dBμV/m at 3m in the frequency 2440MHz The EIRP = [(FS*D) ^2 / 30] mW = -2.13dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 3.4dBm = 2.2mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 2.2mW/ 4πR^2 = 0.0004 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AA3H-S6064 INTERTEK TESTING SERVICES Standalone SAR evaluation for WIFI function 2.4GHz WiFi: Antenna Type: Integral Antenna. Antenna Gain: 3.4dBi. Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK and DSSS. The nominal conducted output power specified: 18dBm (Tolerance: +/-4dB). The maximun conducted output power for the EUT is 20.7dBm in the frequency 2412MHz(IEEE 802.11b) which is within the production variation. The minimum conducted output power for the EUT is 16.1dBm in the frequency 2437MHz(IEEE 802.11n-HT40) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 18+4+3.4= 25.4dBm = 346.7mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz WIFI band can be calculated according to OET 65 as follow: = 346.7/ 4πR^2 = 0.069 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AA3H-S6064 INTERTEK TESTING SERVICES 5GHz WiFi: Antenna Type: Integral Antenna. Antenna Gain: 3.3dBi. Modulation Type: BPSK, QPSK, 16QAM, 64QAM and OFDM. The nominal conducted output power specified: 12.5dBm (Tolerance: +/-4.5dB). The maximum conducted output power for the EUT is 16.9dBm in the frequency 5200MHz(IEEE 802.11n-HT20) which is within the production variation. The minimum conducted output power for the EUT is 8.27dBm in the frequency 5795MHz(IEEE 802.11ac-HT40) which is within the production variation. The source-based time averaged maximum radiated power = 12.5+4.5+3.3= 20.3dBm = 107.2mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 5GHz WIFI band can be calculated according to OET 65 as follow: = 107.2mW/ 4πR^2 = 0.021 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW…

Text truncated - open the document above for the full version.

SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD TEST REPORT SCOPE OF WORK FCC TESTING–100002634 REPORT NUMBER 191104028SZN-003 ISSUE DATE [REVISED DATE] December 5, 2019 [---------------------] PAGES 141 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 191104028SZN-003 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 141 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD Application For Certification FCC ID: 2AA3H-S6064 Onn. 5.1.2 Atmos Soundbar, onn. 5.1.2 Atmos Soundbar Model: 100002634 Brand Name: 2.4GHz Wi-Fi Transceiver Report No.: 191104028SZN-003 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Leo Li Kidd Yang Project Engineer Technical Supervisor Date: December 5, 2019 Intertek Report No.: 191104028SZN-003 Version: 01-November-2017 Page: 2 of 141 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-18] Edition] provision. Report prepared by: Leo Li Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6661 Intertek Report No.: 191104028SZN-003 Version: 01-November-2017 Page: 3 of 141 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test results ............................................................................................... 4 2.0 General Description ..................................................................................................... 5 2.1 Product Description .......................................................................................................... 5 2.2 Related Submittal(s) Grants .............................................................................................. 5 2.3 Test Methodology ............................................................................................................. 5 2.4 Test Facility ....................................................................................................................... 5 3.0 System Test Configuration ............................................................................................ 6 3.1 Justification ....................................................................................................................... 6 3.2 EUT Exercising Software .................................................................................................... 6 3.3 Special Accessories ........................................................................................................... 6 3.4 Equipment Modification ................................................................................................... 7 3.5 Measurement Uncertainty ............................................................................................... 7 3.6 Support Equipment List and Description ......................................................................... 7 4.0 Measurement Results .................................................................................................. 8 4.1 Maximum Conducted Output Power at Antenna Terminals ................................................. 8 4.2 Minimum 6 dB RF Bandwidth ......................................................................................... 11 4.3 Maximum Power Density Reading .................................................................................. 18 4.4 Out of Band Conducted Emissions .................................................................................. 38 4.5 Out of Band Radiated Emissions ..................................................................................... 99 4.6 Transmitter Radiated Emissions in Restricted Bands .................................................... 100 4.7 Field Strength Calculation ............................................................................................. 101 4.8 Radiated Spurious Emission ...............................................…

Text truncated - open the document above for the full version.

SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD TEST REPORT SCOPE OF WORK FCC TESTING–100002634 REPORT NUMBER 191104028SZN-005 ISSUE DATE [REVISED DATE] December 5, 2019 [---------------------] PAGES 42 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 191104028SZN-005 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 42 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com SHENZHEN 3NOD DIGITAL TECHNOLOGY CO., LTD Application For Certification FCC ID: 2AA3H-S6064 Onn. 5.1.2 Atmos Soundbar, onn. 5.1.2 Atmos Soundbar Model: 100002634 Brand Name: 2.4GHz Transceiver Report No.: 191104028SZN-005 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Leo Li Kidd Yang Project Engineer Technical Supervisor Date: December 5, 2019 Intertek Report No.: 191104028SZN-005 Version: 01-November-2017 Page: 2 of 42 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-18] Edition] provision. Report prepared by: Leo Li Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6751 Intertek Report No.: 191104028SZN-005 Version: 01-November-2017 Page: 3 of 42 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test results ...................................................................................................................... iv 2.0 General Description ............................................................................................................................. 5 2.1 Product Description .......................................................................................................................... 5 2.2 Related Submittal(s) Grants ............................................................................................................... 5 2.3 Test Methodology ............................................................................................................................ 5 2.4 Test Facility ...................................................................................................................................... 5 3.0 System Test Configuration .................................................................................................................... 6 3.1 Justification...................................................................................................................................... 6 3.2 EUT Exercising Software .................................................................................................................... 6 3.3 Special Accessories ........................................................................................................................... 6 3.4 Equipment Modification .................................................................................................................... 7 3.5 Measurement Uncertainty ................................................................................................................. 7 3.6 Support Equipment List and Description ............................................................................................ 7 4.0 Measurement Results .......................................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals ....................................................................... 8 4.2 Minimum 6 dB RF Bandwidth ............................................................................................................. 9 4.3 Maximum Power Density Reading .................................................................................................... 11 4.4 Out of Band Conducted Emissions .................................................................................................... 15 4.5 Out of Band Radiated Emissions ....................................................................................................... 24 4.6 T…

Text truncated - open the document above for the full version.

Radiated Emission (Up to 1GHz) Radiated Emission (Above 1GHz)

Conducted Emission
