2AA55120TO200Floodlight

FCC ID: 2AA55120TO200 For Model: SBF6130-YQL120，SBF6130-YQL150 SBF6130-YQL200， SBD1130-YQL120 SBD1130-YQL150，SBD1130-YQL200 User manual 1. USE Shanghai Senben Lighting Technology Incorporated Company’s floodlight, chose induction lamp light source, which is characterized by soft rays,instant start, and extra-long lifespan. The novel designed enclosure is featured by rational construction, reliable performance, good protect and corrosion proof performance as well as the advantage of energy-saving and so on. This flood light is applicable for factory, exhibition hall, big super market etc, especially for moist and dusty of indoor and outdoor places with the risk of gas or dust explosion. 2. Feature 1． The floodlight manufactured by Shanghai Senben Lighting Technology Incorporated Company can be used for the lighting electrical equipment in the factory with good protection and reliable performance. 2. The light source cavity and the electrical appliance cavity is made of aluminum alloy by die- casting.The enclosure of the luminaire is high tensile strength and the surface is painted with polyester powder and have a strong corrosion resistance. 3.The luminaire has apart design for the light source cavity and the electrical appliance cavity which is equipped with air convection between isolated space. That can effectively reduce the influence of the heat in the light source cavity to the electrical box. 4.The luminaire is equipped with toughened glass transparent plate which is high strength, shock resistance, high heat resisting and good light transmittance. 5.The luminaire has no electromagnetic pollution, and instant start and with short circuit ,open circuit protection function. 6. Induction lamp is selected to be the fixture's light source, and is equipped with high stable frequency and high stable power output ballast, has the advantages, such as, voltage can be widely used, high light efficacy, no visual fatigue, long lifespan etc 7.The luminaire is equipped with a type mounting bractket can make level downward biggest25 degrees or up to 60 degrees, a 5 degrees per shift angle adjustment. 3. Directions 1. Luminaire should be avoided to endure the impact of the external force, in order to avoid to affect the performance of explosion-proof and dust-proof 2. The luminaire has the Internal and external grounding screws, please ground according to the regulation when installation. 3. Please cut the power off firstly when change the ballast and light source to ensure the workers’ safety. 4.Before mounting, please check all the connecting bolt were screwed well, in case impact the luminaire protection performance and safety 5.User should regularly check the luminaire electric is in good conditions or not .Please keep the luminaire clean in order to ensure the luminaire safety,long life-span, and work efficiently. 6. In order to ensure the luminaire work regularly and safety , the serviceman should be trained professionally to install and maintenance. Not-professional person should not open the fixture, and do not demount any fastening parts. 4． Warnning： This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance Company Name: Shanghai Senben Lighting Technology Incorporated Company ADD: No.505 Shenyu Road,Malu Town,Jiading District Shanghai China

FCC ID: 2AA55120TO200 For Model: SBF6130-YQL120，SBF6130-YQL150 SBF6130-YQL200，SBD1130-YQL120 SBD1130-YQL150，SBD1130-YQL200

Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Tel:+86-21-59900576 Fax:+86-21-59900576 Power of Attorney To Whom It May Concern Date: Nov. 22 th 2013 Unilab (Shanghai) Co., Ltd Address: No.1350, Lianxi Road, Pudong, Shanghai, China is hereby authorized by Shanghai Senben Lighting Technology Incorporated Company to represent us in all matters related to FCC ID approval and certification for the following products, manufactured or released by Shanghai Senben Lighting Technology Incorporated Company. Yours sincerely, Name: nancan Title:Manager Signature:

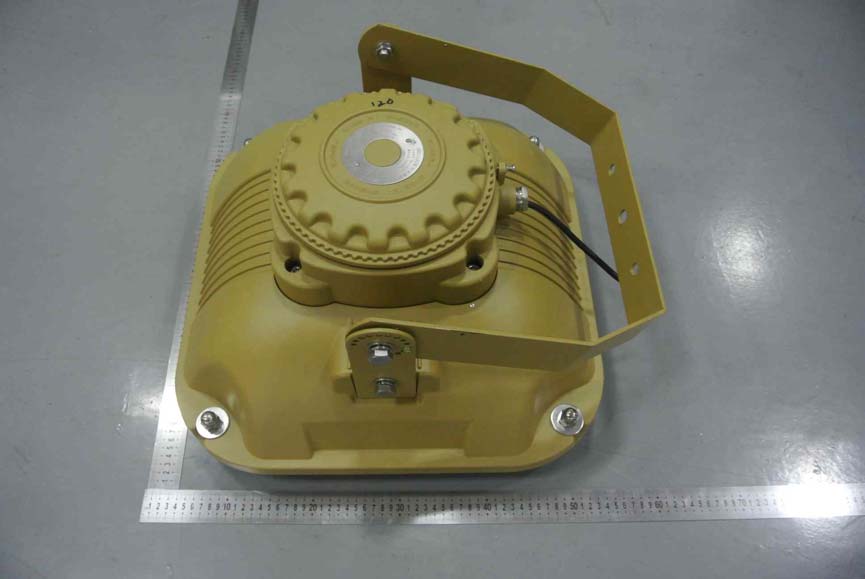

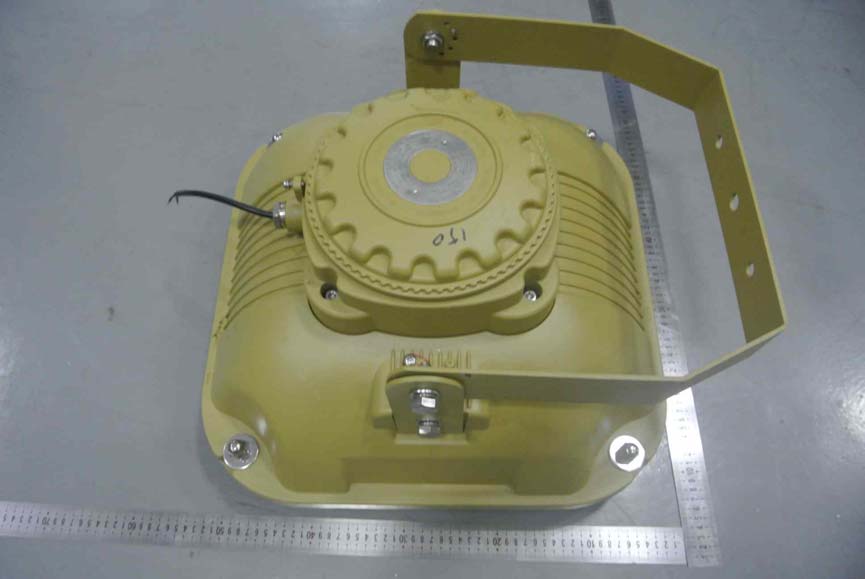

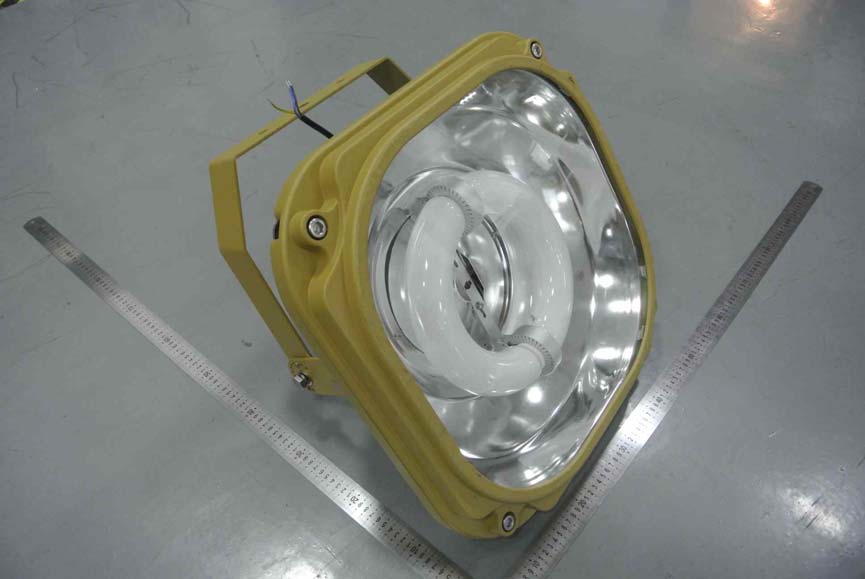

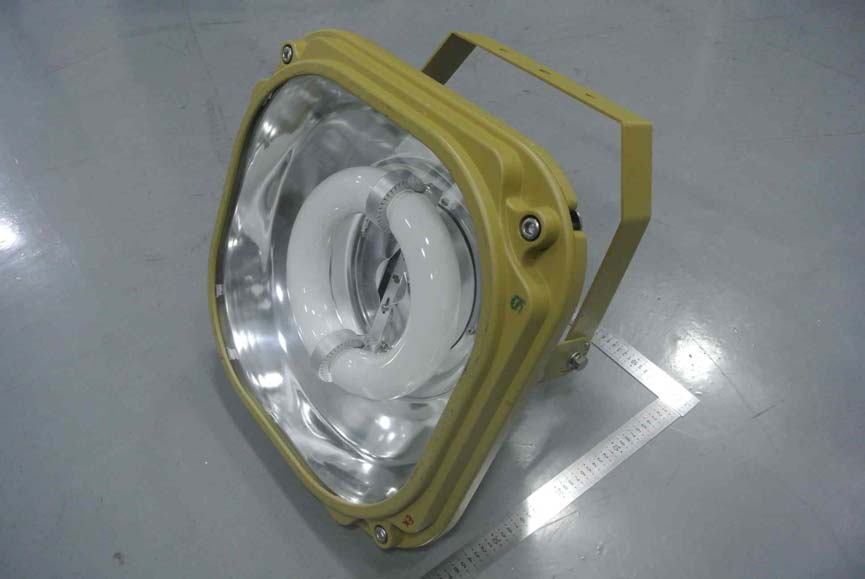

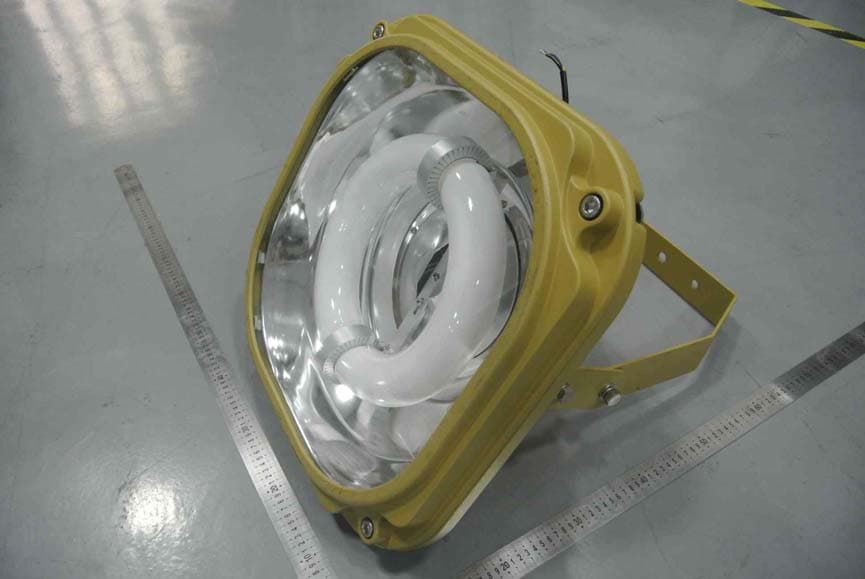

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 1 of 3 Model Name:SBF6130-YQL120 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 2 of 3 Model Name:SBF6130-YQL150 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 3 of 3 Model Name:SBF6130-YQL200 Figure 1 Figure 2

FCC ID: 2AA55120TO200 For Model: SBF6130-YQL120，SBF6130-YQL150 SBF6130-YQL200，SBD1130-YQL120 SBD1130-YQL150，SBD1130-YQL200 FCC ID Label Location FCC ID：2AA55120TO200

LABEL FCC ID: 2AA55120TO200 For Model: SBD1130‐YQL120 For Model: SBD1130‐YQL150 For Model: SBD1130‐YQL200 For Model: SBF6130‐YQL120 For Model: SBF6130‐YQL150 For Model: SBF6130‐YQL200

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 1 of 12 Model Name:SBF6130-YQL120 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 2 of 12 Figure 3 Figure 4 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 3 of 12 Figure 5 Figure 6 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 4 of 12 Figure 7 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 5 of 12 Model Name:SBF6130-YQL150 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 6 of 12 Figure 3 Figure 4 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 7 of 12 Figure 5 Figure 6 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 8 of 12 Figure 7 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 9 of 12 Model Name:SBF6130-YQL200 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 10 of 12 Figure 3 Figure 4 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 11 of 12 Figure 5 Figure 6 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 12 of 12 Figure 7

1 FCC ID: 2AA55120TO200 For Model: SBF6130-YQL120，SBF6130-YQL150 SBF6130-YQL200， SBD1130-YQL120 SBD1130-YQL150，SBD1130-YQL200 Maintenance- free,Energy-saving floodlight INSTRUCTION MANUAL Performance and structure 1.The fixture is compound explosion proof electrical equipment. Flameproof Contorols, Increased safety light source cavity and connection wire cavity are die-casted by aluminium alloy, and the surface is painted by polyester powder. 2.The tensile strength of shell's aluminum alloy material is more than 120MPa, Magnesium ratio is less than 6%, has strong corrosion resistance 3.The shell's structural strength of Flameproof Contorols can endure Specific gas explosion without damage, and once, Thread flame-proof structure run into explosion at the internal, can make internal combustion through the flame-proof path and rapid cooling, and serve to prevent propagation of explosion and reduce internal blast pressure 4.Fixture has independent light source cavity and electrical appliance cavity, there has air convection isolation space between light source cavity and electrical appliance cavity, can effectively reduce the quantity of heat of light source cavity to affect the Contorols. 5.Plane diaphanous glass has toughening treatment, high luminousness, good heat resistance and upheaval performance, and good impact resistance 6. There has the rubber seal ring at the joint surface of fixture's cavity, and ensure the fixture have good protection performance, and guarantee the fixture's water proof and dust proof performance 7.Induction lamp is selected to be the fixture's light source, and is equipped with high stable frequency and high stable power output ballast, has the advantages, such as, voltage can be widely used, high light efficacy, no visual fatigue, long lifespan etc 8. Fixture pass EMC test, no electromagnetic pollution, quick start, and also have short circuit, open circuit protection function 9.The fixture is equipped with external pressure type cable entry equipment, used for user entry line and cable seal. 10. Adopt straight cutting type user terminal, and connect lime expediently and reliably 11.Fixture's Holder type mounting bracket can adjust the irradiated angle horizontal downward biggest 25° or horizontal upward biggest 60°, and each grade 5° 12.Fixture is applicable to Ceiling, Bracket, Flange Stanchion, Holder etc mounting types, and the fixture's structure please see Picture 2, and mounting drawing please see Picture 3 Installation and Maintance 1. Before installation, user should confirm that whether the installation type is suit for the configuration of fixture. 2. Fixture should be avoided to endure the impact of the external force, in order to avoid to affect the performance of explosion-proof and dust-proof 3. The fixture's Contorols thread flame-proof surface was painted with rust-preventative oil before delivery, 2 user should protect it, and do not damage flame-proof surface 4. User should choose the different installation types to install the fixture correctly. 5. Installation 1) As picture show, make connection of fixture's mounting bracket fasten on the mounting base of the fixture. The screws of the mounting bracket should be more than 2 pcs 13212 114 314 16 17 10 9 8 6 7 5 18 19 1 15 Picture 2 1-Sub-reflector 2-Fixture cover 3-Light source 4-Main reflector 5-Mounting bracket 6-Contorols cover stop screw 7-Light source cavity binding post 8-Contorols seal ring 9-User terminal 10-Ballast components 11-Contorols cover 12-Contorols shell 13-Light source cavity shell 14-Front cover fastening screw 15-Ballast output incoming line 16-Glass 17-Glass seal gasket 18-Light source cavity seal ring 19-Cable incoming line 3 1 2 12 4 5 1 3 B - Ceiling C -Wall Z-Holder Picture 3 Picture 4 Picture5 2) Screw specifications and spacing, pls check pircture 1, before install the fixture on the soil base by flange stanchion type, user should precast concrete foundation base, base depth should be more than 0.8 metre 3) Remove the Contorols cover stop screw, (see the Picture 2), and open the Contorols cover 4) Before the cable is leaded into the Contorols, the cable scarfskin should be striped, the length of phase line and null line is 8 to 10 cm, and strip head 8mm, then wring conductors and bond tin, the lenght of ground wire is 18 to 20 cm, strip head 8mm, then stranded conductor, and cold-pressed (or weld ) soldering 1-lighting fixture 2-Wall holder 3-Seater holder 4-Draw Bar (Customer-provided himself) 5-Hook Nail (Customer-provided himself) 6-Flange Stanchion (Customer-provided himself) 2000～3000 4 - Φ 2 0 6 1 3 270 270200 200 E- Flange Stanchion 4 lug. 5) Unload the gland nut (horn mouth), flat washer and cable seal ring on the cable incoming line. And lead the power cable into the Contorols according to the Picture 4. Screw gland nut, fasten the cable, and seal. The cable with scarfskin should not be longer than 10mm in the Contorols. 6) Lead in the phase line and Zero line in the Contorols, and connect the terminal "L" and "N" separately, ground wire should be connected with screw according to the requirement (please see Picture 5 arrow signified). Wiring diagram, please see Picture 6. The fastened method for guide line and binding post, (please see Picture 7) Picture 6 Picture 7 5 horizontal downward 5° downward 10° downward 15° downward 20° downward 25° 7) Screw on the Contorols cover, reset the Contorols cover stop screw 8) Adjust the fixture irradiation angle. There has the round holes on the Fixture 's mounting bracket and the connection of the connecting plate, choose the different collocation, then can adjust the different irradiation angle (please see Picture 8), but must note the fixture with horizontal plane angle can not be greater than 90 degrees. Flange stanchion, Wall and Holder installation type can be adjusted biggest 25°horizontal downward, and 60°horizontal upward, and each adjusted grade is 5°. 6. Check the fixture installation 1) The fixture shou…

Text truncated - open the document above for the full version.

Item No. material code Specifica tions Certificate No. Remark s 1 SB1104-2 2 SB1104-5 3 SB1104-19 4 SB1104-3 5 GB/T818- 2000 6 GB/T93 - 1987 7 GB/T97 . 1 - 2002 9 GB / T93- 1987 10 GB/T96.2- 2002 11 GB/T70.1- 2000 M12*65 12 GB/T848- 2002 13 GB/T818- 2000 M5*16 14 SB1104-14 15 SB1104-7 16 SB1107-17 17 SB1104-9 QTY revised doc No. signature date 1 Manufacturer lampshade YL102 1 Pic No. Name Material&Parameter 1 Light source 200W 1 reflector L1 20 Cross recessed pan head screw Stainless steel M5*12 18 El ectr i ca l cavity YL102 12 plain washer 5 Stainless steel 20 Spring washer 5 Stainless steel 4 The big washer 12 Stainless steel 4 Spring washer 12 Stainless steel 2 Small washer 12 Stainless steel 4 Hexagon sockethead cap screws Stainless steel 1 Juntion plate 1 Cross recessed pan head screw Stainless steel 1 Tip Silicone rubber 8 Plate glass Toughened glass Glass gasket Silicone rubber 8 GB/T9170- 2000 M12 Raw Material List HY.W850/00CQ-2 SBD1130 Maintenance- free,Energy-saving and explosion proof floodlight Page 1 of 2 Hexagon Nut Stainless steel 4 FCC ID: 2AA55120TO200For Model: SBF6130-YQL120，SBF6130-YQL150 SBF6130-YQL200，SBD11 30-YQL120 SBD1130-YQL150，SBD1130-YQL200 18 SB1104-16 19 SB1104-8 20 SB0820-01 21 GB/T97.1- 2002 22 L20MM 23 GB/T818- 2000 M4*16 24 GB/T93- 1987 25 GB/T97.1- 2002 26 SB1104-10 27 SB1104-18 Standardize Approved Item N o material code Specifications Certificate number Remark s 28 GB/T827- 1986 ￠2.5*6 29 SB0621-04B ￠20/L15 30 SB0504-16 3132 GB/T818- 2000 M4*8 1 Presser foot Stainless steel 81 G3/4〞plug screw aluminum 2 hollow ring Silicone rubber 1 G3/4〞 Si ng l e- hole rubber sealing ring Silicone rubber 1 Plain washer 12 Stainless steel 1 Spring washer 4 Stainless steel 1 Cross recessedpan head screw Stainless steel 1 Box cover sealing ring Silicone rubber 1 Plain washer 4 Stainless steel Make form Shanghai Senben Lighting Technology Incorporated Co.,ltd Nameplate Stainless steel Examine Check revised doc No. signature date Manufacturer Nameplate Rivets Stainless steel 4 Pic No. Name Material&Parameter QTY Pressure parts YL102 1 Three hole sealing ring Silicone rubber 1 Cross recessed pan head screw Stainless steel 2 902 connection terminal 1 Raw Material List HY.W850/00CQ-2 SBD1130 Maintenance- free,Energy-saving and explosion proof floodlight Page 2 of 2 33 SB0905-8 34 SB1104-6 35 SB1104-1 36 SB1104-20 37 SB1104-4 38 GB/T97.1- 2002 39 GB/T5782- 2000 40 SB1104-13 41 SB1104-11 4243 GB/T818- 2000 M6*10 44 GB / T93- 1987 45 GB/T97.1- 2002 46 GB/T818- 2000 M8*25 47 GB/T93- 1987 48 GB/T97.1- 2002 49 GB/T9170- 2000 50 SB1104-15 51 GB/T5782- 2000 M12*30 Standardize Approved Deputy reflectors L1 1 fixed plate Q235 1 Electrical part 1 fixture YL102 1 Plain washer 12 Stainless steel 4 Box cover YL102 1 Dividing connection plate Q235 1 Hexagon Bolt Stainless steel 2 Grounding label (posted) 1 Timbering Q235 1 Spring washer 6 Stainless steel 2 Cross recessed pan head screw Stainless steel 2 Cross recessed pan head screw Stainless steel 4 Plain washer 6 Stainless steel 2 Small washer 8 Stainless steel 4 Spring washer 8 Stainless steel 4 Locating nails Q235 1 Hexagon Nut M4 Stainless steel 1 Make form inside hexagonal bolt Stainless steel 2 Examine Check Shanghai Senben Lighting Technology Incorporated Co.,ltd

FCC ID: 2AA55120TO200 For Model: SBF6130-YQL120 ， SBF6130-YQL150 SBF6130-YQL200 ， SBD1130-YQL120 SBD1130-YQL150 ， SBD1130-YQL200

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 1 of 27 FCC TEST REPORT Product Name : FLOODLIGHT Model Name : 1:SBD1130-YQL120,SBF6130-YQL120; 2:SBD1130-YQL150,SBF6130-YQL150; 3:SBD1130-YQL200,SBF6130-YQL200; Prepared for: Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China TEL: +86-21-59900576 FAX: +86-21-59900576 Prepared by: Unilab (Shanghai) Co., Ltd. FCC 2.948 register number is 714465 No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50277862 Report Number : UL22020130913FCC117-2 Date of Report : 2013-12-16 Date of Test : 2013-10-26~2013-10-27 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 2 of 27 Prepared by : (Technical Engineer: Flame Wang) Reviewed by : (Senior Engineer: Forest Cao) Approved by : (Supervisor: Eva Wang) Applicant: Shanghai Senben Lighting Technology Incorporated Company . Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China. Manufacturer: Shanghai Senben Lighting Technology Incorporated Company. Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Product Name: FLOODLIGHT Brand Name: N/A Model Name: 1:SBD1130-YQL120,SBF6130-YQL120; 2:SBD1130-YQL150,SBF6130-YQL150; 3:SBD1130-YQL200,SBF6130-YQL200; Operating frequency: 0.22MHz-0.28MHz Model difference: Every group of models are identical. They are marketed different countries,so they own different modle name.The model under test is SBF6130-YQL120 、 SBF6130-YQL150 、 SBF6130-YQL200 and the test results are applicable to the other model. SBD1130-YQL120/SBF6130-YQL120 power is 120 watts, SBD1130-YQL150/SBF6130-YQL150 power is 150 watts and SBD1130-YQL200/SBF6130-YQL200 power is 200 watts. FCC ID: 2AA55120TO200 EUT Voltage: AC input: AC 120V/60Hz Date of Receipt: 2013-10-26 Date of Test 2013-10-26~2013-10-27 Test Standard: FCC CFR Tile 47 Part 18 Subpart C Test Result: Complied Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 3 of 27 TABLE OF CONTENTS 1. TECHNIACL SUMMARY ...................................................................................... 4 1.1 SUMMARY OF STANDARDS AND TEST RESULTS ................................ 4 1.2 TEST UNCERTAINTY ................................................................................ 4 1.3 TEST EQUIPMENT LIST ........................................................................... 4 1.4 SUPPORT EQUIPMENT ............................................................................ 4 1.5 TEST FACILITY ......................................................................................... 5 1.6 TEST SETUP CONFIGURATION .............................................................. 5 2. CONDUCTED DISTURBANCE ............................................................................. 6 2.1 TEST SETUP ............................................................................................. 6 2.2 LIMITS ........................................................................................................ 6 2.3 TEST PROCEDURE .................................................................................. 6 2.4 TEST RESULT ........................................................................................... 7 3. RADIATED DISTURBANCE ............................................................................... 13 3.1 TEST SETUP ........................................................................................... 13 3.2 LIMITS ...................................................................................................... 13 3.3 TEST PROCEDURE ................................................................................ 13 3.4 TEST RESULT ......................................................................................... 14 4. MAGNETIC FIELD EMISSION ........................................................................... 20 4.1 TEST SETUP ........................................................................................... 20 4.2 LIMITS ...................................................................................................... 20 4.3 TEST PROCEDURE ................................................................................ 20 4.4 TEST RESULT ......................................................................................... 21 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .............................................. 27 APPENDIX 2 PHOTOGRAPHS OF EUT ............................................................. 27 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-2 Page 4 of 27 1. TECHNIACL SUMMARY 1.1 SUMMARY OF STANDARDS AND TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Test Item FCC Result Conducted disturbance FCC 18.307(c) P Radiated disturbance FCC 18.305(c) P Magnetic Field Emission FCC 18.305(b) P Note: P means pass, F means failure, N/A means not applicable 1.2 TEST UNCERTAINTY Where relevant, the following test uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted disturbance 3.4 Radiated disturbance 4.2 1.3 TEST EQUIPMENT LIST Shielding Room No. 3 - Conducted disturbance Test Equipment Manufacturer Model Serial No. Due Date Receiver Agilent N9038A MY51210142 2014/09/27 LISN R&S ENV216 100069 2014/06/23 3m Semi-anechoic Chamber - Radiated disturbance Test Equipment Manufacturer Model Serial No. Due Date 3m Chamber & Accessory Equipment ETS-LINDGRENFACT-3 CT-00…
