2AA556110TO300HighBay Factory Lamp

User manual FCC ID: 2AA556110TO300 For Model: SBF6110-YQL200，SBF6110-YQL300 1. use Shanghai Senben Lighting Technology Incorporated Company’s SBF6110-YQL200/300; Maintenance-free, Energy-saving, Waterproof, Dustproof and Corrosion-proof Factory Lamp, the light source is induction lamp, and has the high Luminous Efficiency, longer lifespan etc features, the luminaire adopts the integrated structure, aluminum alloy die-casted ballast box and incoming line cover with the surface painted with polyester powder, the luminarie has good protection and corrosion proof performances, is applicabe for factory, exhibition hall, big super market etc, special for mosit, dusty lighting of indoor and outdoor places 2. Feature 1. SBF6110-YQL200/300 Maintenance-free, Energy-saving, Waterproof, Dustproof and Corrosion- proof Factory Lamp manufactured by Shanghai Senben Lighting Technology Incorporated Company is device for factory lighting, have good protection, the performance is reliable. 2.The luminarie adopts the integrated structure, closed structure, and pendant mounting type, have the independent light source cavity, electrical appliance cavity and connection cavity 3.The luminarie's electrical appliance cavity and connection cavity shell is die-casted by aluminum alloy, the surface is sprayed by pure polyester powder. 4.The light source cavity is spined by pure Aluminium sheet. The reflector is undergone anodic oxidation treatment, High reflectivity, good Oxidation resistance, long life-span. The light source cavity is adopted anodic oxidation treatment or polyester powder spraying, have good corrosion proof performance. 5.The luminarie is equipped with toughened glass transparent plate, high luminousness, good high intensity and good impact resistance 6.The connection cavity and electrical appliance cavity connection is fast dismantling structure, and prevent the trouble operation in aloft work, and is convenient for luminarie installation and maintenance. 7. Induction lamp is selected to be the fixture's light source, and is equipped with high stable frequency and high stable power output ballast, has the advantages, such as, voltage can be widely used, high light efficacy, no visual fatigue, long lifespan etc 3. Directions 1. Luminarie should be avoided to endure the impact of the external force, in order to avoid to affect the performance of explosion-proof and dust-proof 2. Luminarie's inlet wire guide wire should be multistrand core wires. 3. The luminarie has the Internal and external grounding screws, pls ground according to the regulation when installation. 4. Pls close the power and operate first when change the ballast and light source, then ensure the workers’ safety. Before mount, user should check the all of connecting bolt were screwed well, in case impact the luminaire's protection performance and safety 6. User should check the luminaire's electric whether it is in good condition regularly. In order to ensure the luminaire's efficiency, safety and life-span, user should clean the luminaire's surface 7. In order to ensure explosion proof lamp work and safety regularly, the serviceman should be trained professionally, then can install and maintance. Not-professional person should not open the fixture, and do not demount any fastening parts. 4． Warnning： This equipment is fit for FCC 18th regulatin. Any change and modify have not been allowed will case the equipment’s using permission failure This product may cause radio interference, can not be mounted at the place near marine Safety communications equipment, and other navigation and communications equipment operating frequency between 0.45 -30 MHz. If this happen, pls change the output and move the luminaire, and away from other electrical appliances if this is happening. Company’s name: Shanghai Senben Lighting Technology Incorporated Company Add: No.505, Shenyu Road, Malu Town, Jiading Area, Shanghai. This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance

FCC ID: 2AA556110TO300 For Model: SBF6110-YQL200，SBF6110-YQL300

Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Tel:+86-21-59900576 Fax:+86-21-59900576 Power of Attorney To Whom It May Concern Date: Nov. 22 th 2013 Unilab (Shanghai) Co., Ltd Address: No.1350, Lianxi Road, Pudong, Shanghai, China is hereby authorized by Shanghai Senben Lighting Technology Incorporated Company to represent us in all matters related to FCC ID approval and certification for the following products, manufactured or released by Shanghai Senben Lighting Technology Incorporated Company. Yours sincerely, Name: nancan Title:Manager Signature:

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 1 of 2 Model Name:SBF6110-YQL200 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 2 of 2 Model Name:SBF6110-YQL300 Figure 1 Figure 2

FCC ID Label Location FCC ID: 2AA556110TO300 For Model: SBF6110-YQL200，SBF6110-YQL300 FCC ID：2AA556110TO300

LABEL FCC ID: 2AA556110TO300 For Model: SBF6110‐YQL200 CAUTION: RISK OF ELECTRIC SHOCK DO NOT USE WHERE DIRECTLY NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES FCC ID: 2AA556110TO300 SBF6110-YQL200 Factory Lamp Voltage:100～277V 50/60Hz Light source: Induction Lamp Wattage: 200W CCT: □2700K □3500K □4000K □5000K □6500K IP Grade: IP65 Manufacturing Date: Made in China Shanghai Senben Lighting Technology Incorporated Company For Model: SBF6110‐YQL300 CAUTION: RISK OF ELECTRIC SHOCK DO NOT USE WHERE DIRECTLY NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES FCC ID: 2AA556110TO300 SBF6110-YQL300 Factory Lamp Voltage:100～277V 50/60Hz Light source: Induction Lamp Wattage: 300W CCT: □2700K □3500K □4000K □5000K □6500K IP Grade: IP65 Manufacturing Date: Made in China Shanghai Senben Lighting Technology Incorporated Company

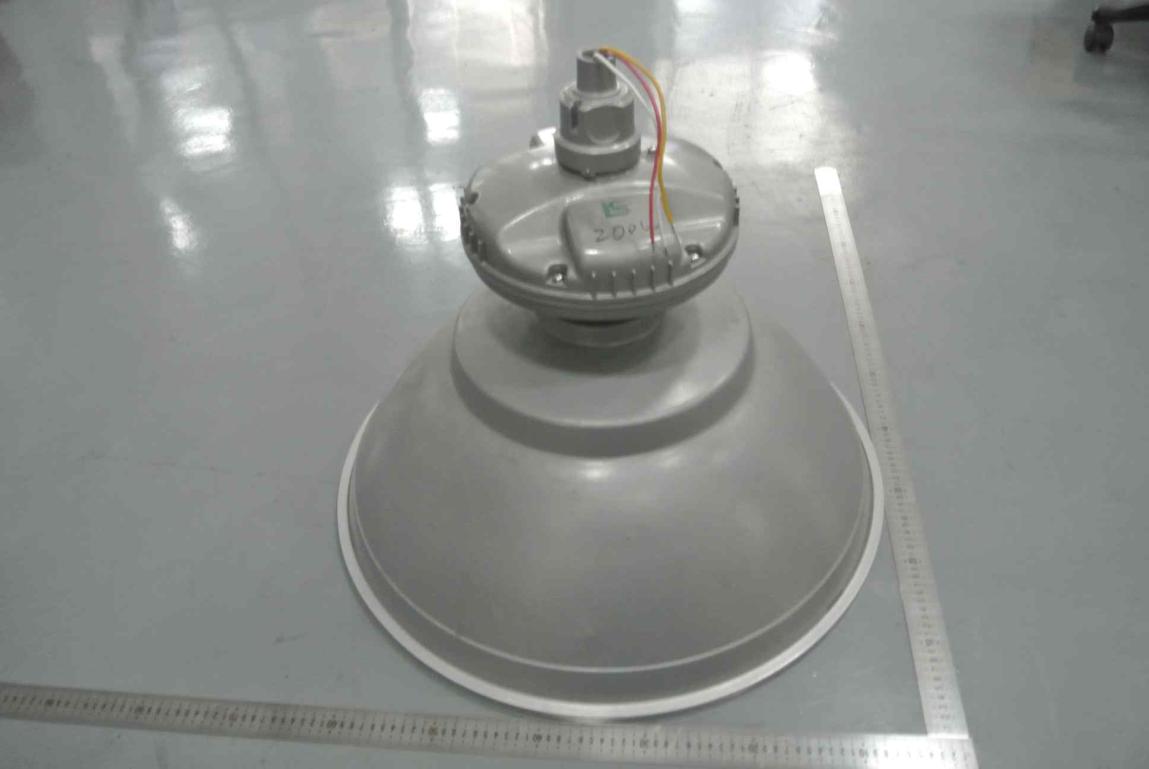

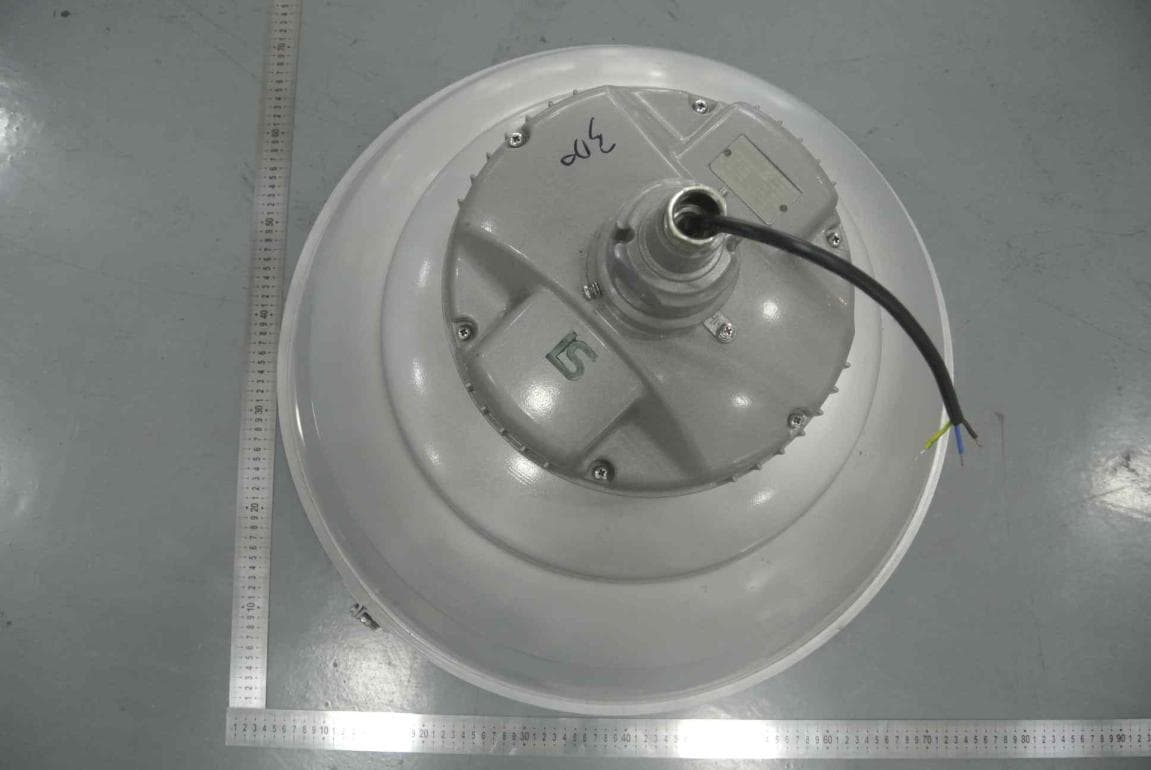

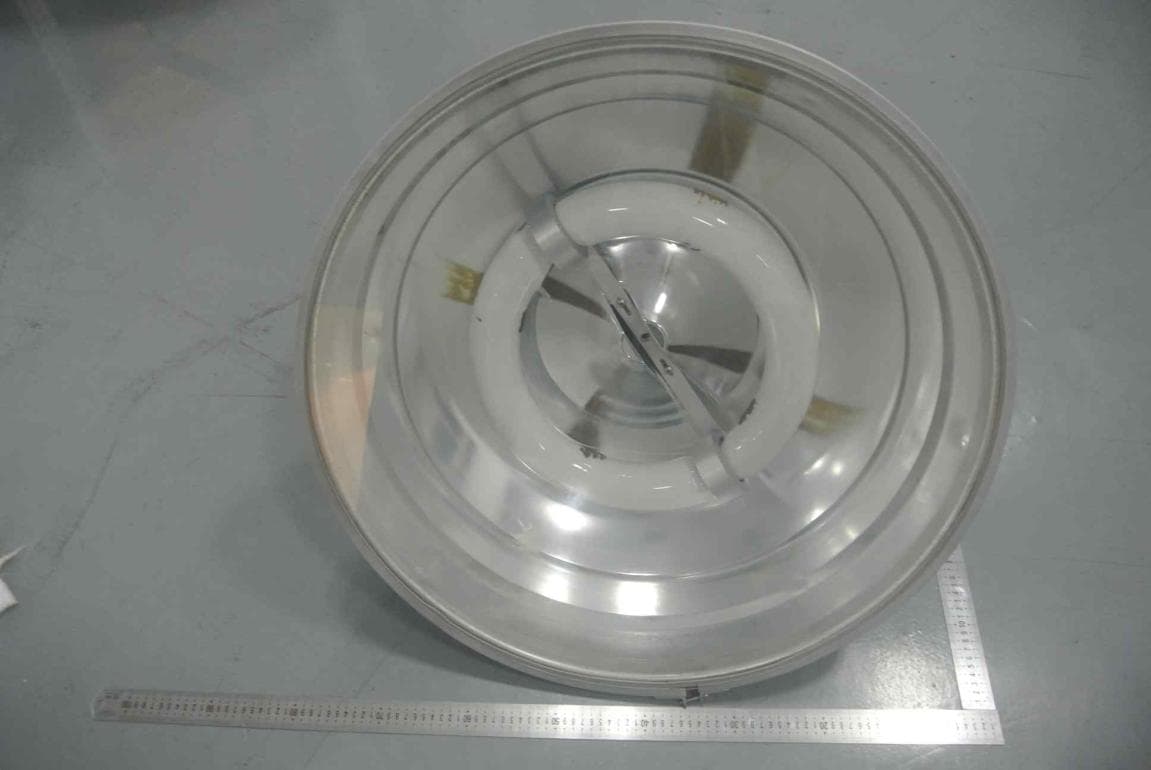

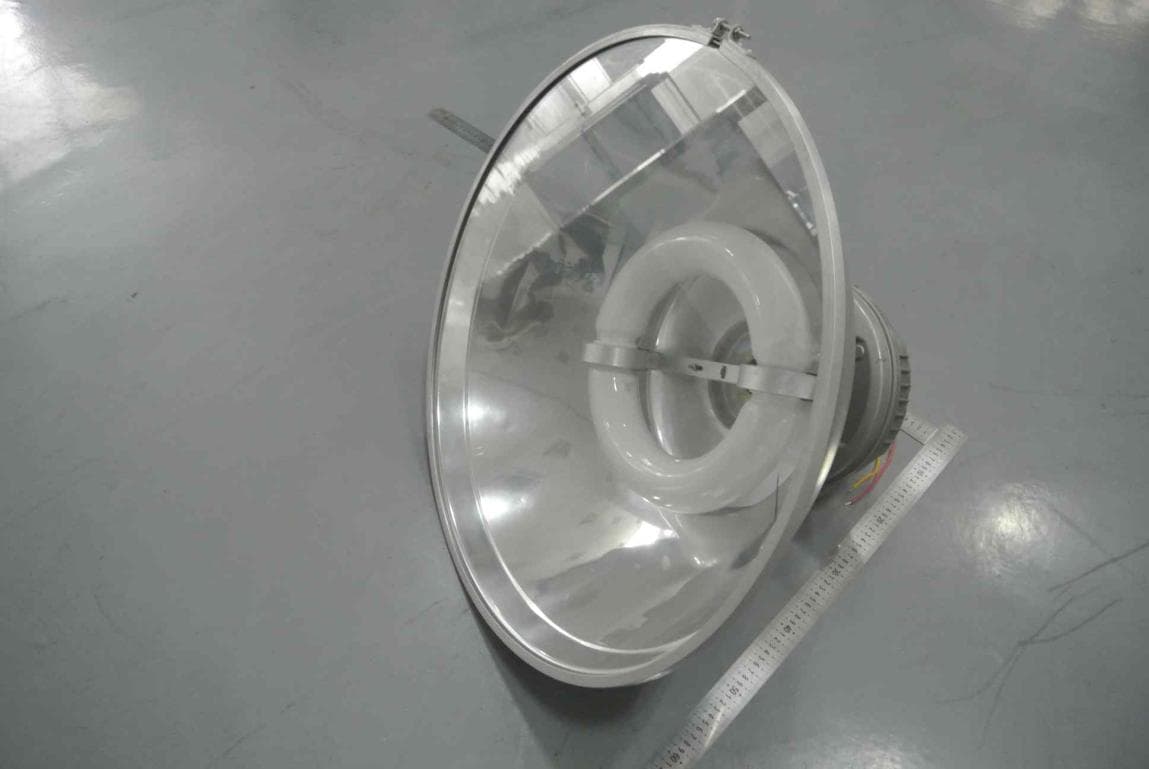

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 1 of 8 Model Name:SBF6110-YQL200 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 2 of 8 Figure 3 Figure 4 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 3 of 8 Figure 5 Figure 6 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 4 of 8 Figure 7 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 5 of 8 Model Name:SBF6110-YQL300 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 6 of 8 Figure 3 Figure 4 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 7 of 8 Figure 5 Figure 6 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 8 of 8 Figure 7

1 SBF6110 –YQL200/300 Operating Instruction FCC ID: 2AA556110TO300 For Model: SBF6110-YQL200，SBF6110-YQL300 Summary and usage SBF6110 series maintenance free, energy-saving, water proof, dust proof and corrosion proof factory lamp is designed and produced according to GB7000.1-2007 (Fixture's safety requirements and test), GB4208-93 (Electrical appliances shell protection test standard) etc regulations. This series luminaire's light source is induction lamp, and have the high luminous efficiency and long life-span etc characteristic. The luminaire is composed by Aluminum alloy ballast box and Aluminium plate spinning lampshade, the ballast box is sprayed by pure ployester powder, the surface of reflector in lampshade undergoes anodic oxidation treatment, the external surface adopt anodic oxidation treatment or polyester powder spraying. The luminarie had good protection and corrosion proof performance. It is applicable to plant, exhibition building, superstore etc, is special for moist and dusty indoor and outdoor places lighting Technical Specification 1. Rated Voltage: 220V/50Hz 2. Applicable Light Source: Induction lamp 3. Rated Power：120W to 300W 4. Applicable Ambient Temperature: -20 to +40°C°C 5. Protection class：IP65 6. Corrosion proof class：WF2 7. Cable diameter：G3/4′′(Pendant mounting) 8. Size: φ578×492mm （120W & 150W） φ635×510mm （200W & 300W） 9. Weight: 7 to 8.4 kgs Performance and structure 1.The luminarie is the waterproof, dustproof and corrosion proof lighting device for factory lighting, have good protection, the performance is reliable. The luminarie appearance and main structure, please see Picture 1 2.The luminarie adopts the integrated structure, closed structure, and pendant mounting type, have the independent light source cavity, electrical appliance cavity and connection cavity 3.The luminarie's electrical appliance cavity and connection cavity shell is die-casted by aluminum alloy, the surface is sprayed by pure polyester powder. Picture 1 2 Picture 3 Picture 2 4.The light source cavity is spined by pure Aluminium sheet. The reflector is undergone anodic oxidation treatment, High reflectivity, good Oxidation resistance, long life-span. The light source cavity is adopted anodic oxidation treatment or polyester powder spraying, have good corrosion proof performance. 5.The luminarie is equipped with toughened glass transparent plate, high luminousness, good high intensity and good impact resistance 6.The connection cavity and electrical appliance cavity connection is fast dismantling structure, and prevent the trouble operation in aloft work, and is convenient for luminarie installation and maintenance. 7. Induction lamp is selected to be the fixture's light source, and is equipped with high stable frequency and high stable power output ballast, has the advantages, such as, voltage can be widely used, high light efficacy, no visual fatigue, long lifespan etc Installation and Maintance 1. Before installation, user should read the manual carefully, and keep the manual well. 2. Luminarie should be avoided to endure the impact of the external force, in order to avoid to affect the performance of explosion-proof and dust-proof 3. The luminarie is entry wire into the tube (applicable to Pendant mounting type) or entry the wire into connection cavity side (applicable to Hook mounting type ). Applicable cable's diameter is Φ9～Φ12.5mm, and is three core rubber sheath cable inlet wire, guide wire's section is 1～ 1.5mm 2 . If user mount it by Pendant type and enter into by guide wire, need have three holes metallic gasket and three holes seal ring for replacing use. Luminarie's inlet wire guide wire should be multistrand core wires. 4. When the luminarie leave the factory, the connection cavity outlet is connected by power cable, user don't need dismount any parts, and just need mount the connection cavity parts first, then connect the luminarie by following 8. If user need connect the other wire, please operate by following procedures (example entry wire inside of tube) 1）Screw off two M4 screws, and dismount the Terminal board (See picture 2) 2）Strip the cable skin about 10cm, and the wire's stripping head is 10-12mm. Following picture 3, enter into the three water proof sets (thin nut, gasket, seal ring) on the swing pipe successively, and then enter the cable into the metallic gasket, cable seal ring and connection cavity line entrance successively. (If choose the hang type mounting without the three water proof sets, user just need to enter the cable into the cable entry device) 3 Picture 4 Picture 5 Picture 6 3）Screw the swing pipe into the entry wire cavity's interface thread (attention: the length of cylindrical G3/4′′pipe tooth should be larger than 30mm), (if choose the hang type mounting, user should screw the gland nut on the entry Device), and compress the cable tightly (the cable not twitch is qualified ). The cable (have the intact skin part) should be less than 5mm in cavity 4）Tighten the fasten screw in the entry wire cavity thread place. For the hang mounting type, the hook should be hanged on the solid and suitable components 5）See picture 4, scroll down the seal ring (see the arrow), then screw the thin nut and fasten— 6）Connect solidly the power line and zero line on the connection terminal board's two connection screw poles (please see the picture 2) 7）Fix the connection terminal board on the entry wire cavity. And check the Conductive pole connection's integrity. (The Conductive pole's elasticity is good, connection screw pole have no deactivation phenomenon, now the conductive pole and internal is disconnected ) 8）Follow the picture 5, aim the electrical appliance cavity (luminaire) to the related place, then push the luminaire into the entry wire cavity following the Arrow A, and then following Arrow B, screw the luminaire to the dead point (please see picture 6) place (now the Conductive pole is connecting with internal) 5. The luminaire is equipped wit…

Text truncated - open the document above for the full version.

Item No . material code Specifications Certificate number Remark s 123456 M4*10 78 M4*10 9 10111213 FCC ID: 2AA556110TO300 For Model: SBF6110-YQL200，SBF6110-YQL300 GB/T71-1985 Setting screw stainless steel M5*10 1 GB/T97.1-2002 plain washer12 stainless steel 1 Cable sealing EPDM ￠24*15 1 GB O type foam ring 1 4ZJ0.006.002 M20 introduce equipment stainless steel 1 GB/T818-2000 Cross recessed pan head screw stainless steel 2 SB0811-18 O type foam washer EPDM 1 GB/T818-2000 Cross recessed pan head screw stainless steel 2 SB0811-18 O type foam ring EPDM 1 GB/T818-2000 Cross recessed pan head screw stainless steel M4*10 2 SB0811-09 Insulation ring bakelite 1 SB0811-07 light source Q235 1 Manufacturer SB0811-06.2 Reflector L1 1 Pic No. Name Material&Parameter QTY Page 1 of 3 revised doc No. signature date SBF6110-YQL200-300 Maintenance- free,Energy-saving and water/dust/corrosion proof factorylamp HY.W850/00WG Outsoucing part list 141516171819202122 Standardi ze Agree Item No . material code Specifications Certificate number Remark s 2324252627282930 SB0811-08 Pressure Plate Q235 4 GB/T97.1-2002 plain washer 5 stainless steel 2 GB/T93-1987 spring washer 5 stainless steel 2 GB/T818-2000 Cross recessed pan head screw M5*45 2 GB/T818-2000 Cross recessed pan head screw M5*8 1 SB0811-14 productsnameplate stainless steel 1 GB/T97.1-2002 plain washer 5 stainless steel 4 Manufacturer GB/T93-1987 spring washer 5 stainless steel 4 Pic No. Name Material&Parameter QTY Page 2 of 3 revised doc No. signature date SBF6110-YQL200-300 Maintenance- free,Energy-saving and water/dust/corrosion proof factorylamp HY.W850/00WG Outsoucing part list Examine Shanghai Senben Lighting Technology Incorporated Company Check Make form GB/T818-2000 Cross recessed pan head screw stainless steelM5*25 4 GB/T97.1-2002 plain washer 4 stainless steel 2 GB/T93-1987 spring washer 4 stainless steel 2 GB/T818-2000 Cross recessed pan head screw M4*8 2 SB0811.05 Guide Wire plate Melamine 1 SB0811.04B Terminal board(assembly) Melamine 1 GB/T97.1-2002 plain washer 4 stainless steel 1 GB/T93-1987 spring washer 4 stainless steel 1 GB/T818-2000 Cross recessed pan head screw stainless steel M4*8 1 31323334353637383940414243444546474849 Standardi ze Agree Item No . material code Specifications Certificate number Remark s 50 GB/T6175- 2000 M5 Examine Shanghai Senben Lighting Technology Incorporated Company Check Make form GB/T97.1-2002 plain washer 5 stainless steel 1 GB/T93-1987 spring washer 5 stainless steel 1 GB/T818-2000 Cross recessed pan head screw stainless steel M5*30 1 SB0811-13.2 anchor ear Aluminum Profiles 1 GB/T97.1-2002 plain washer 4 stainless steel 2 GB/T93-1987 spring washer 4 stainless steel 2 GB/T818-2000 Cross recessed pan head screw stainless steelM4*12 2 SB0811-06.3.1 Deputy reflector L1 902 terminal blocks 2 GB/T97.1-2002 plain washer 5 stainless steel 4 GB/T93-1987 spring washer 5 stainless steel 4 GB/T818-2000 Cross recessed pan head screw stainless steel M5*40 4 SB0740-09 gland bush Q235 1 SB0740-18 sealing ring EPDM 1 SB0811-17 rubber ring EPDM 1 SB0811-12 sealing ring EPDM 1 GB/T97.1-2002 plain washer 5 stainless steel 5 GB/T93-1987 spring washer 5 stainless steel 5 GB/T818-2000 Cross recessed pan head screw stainless steel M5*10 5 HY.W850/00WG Outsoucing part list Page 3 of 3 revised doc No. signature date SBF6110-YQL200-300 Maintenance- free,Energy-saving and water/dust/corrosion proof factorylamp Manufacturer hexagon nut stainless steel 2 Pic No. Name Material&Parameter QTY 51 SB0811- 16.2 52 SB0811- 15.2 53 GB/T818- 2000 54 GB/T93- 1987 55 GB/T97.1- 2002 56 SB0811-1957 Standardi ze Agree seal strip EPDM Foaming 1 protected glass toughened glass 1 spring washer 4 stainless steel 2 Cross recessed pan head screw stainless steel M4*8 2 Bridge plate Q235 1 plain washer 4 stainless steel 2 grounding label 1 Examine Make form Check Shanghai Senben Lighting Technology Incorporated Company

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 1 of 21 FCC TEST REPORT Product Name : HIGHBAY FACTORY LAMP Model Name : SBF6110-YQL200 SBF6110-YQL300 Prepared for: Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China TEL: +86-21-59900576 FAX: +86-21-59900576 Prepared by: Unilab (Shanghai) Co., Ltd. FCC 2.948 register number is 714465 No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50277862 Report Number : UL22020130913FCC117-1 Date of Report : 2013-11-21 Date of Test : 2013-10-26~2013-10-27 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 2 of 21 Prepared by : (Technical Engineer: Flame Wang) Reviewed by : (Senior Engineer: Forest Cao) Approved by : (Supervisor: Eva Wang) Applicant: Shanghai Senben Lighting Technology Incorporated Company . Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China. Manufacturer: Shanghai Senben Lighting Technology Incorporated Company. Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Product Name: HIGHBAY FACTORY LAMP Brand Name: N/A Model Name: SBF6110-YQL200，SBF6110-YQL300 Operating frequency: 0.22MHz-0.28MHz Model difference: Power is the only difference for the two lamps,SBF6110-YQL200 power is 200 watts and SBF6110-YQL300 power is 300 watts. FCC ID: 2AA556110TO300 EUT Voltage: AC input: AC 120V/60Hz Date of Receipt: 2013-10-26 Test Standard: FCC CFR Tile 47 Part 18 Subpart C Test Result: Complied Date of Test 2013-11-21 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 3 of 21 TABLE OF CONTENTS 1. TECHNIACL SUMMARY ...................................................................................... 4 1.1 SUMMARY OF STANDARDS AND TEST RESULTS ................................ 4 1.2 TEST UNCERTAINTY ................................................................................ 4 1.3 TEST EQUIPMENT LIST ........................................................................... 4 1.4 SUPPORT EQUIPMENT ............................................................................ 4 1.5 TEST FACILITY ......................................................................................... 5 1.6 TEST SETUP CONFIGURATION .............................................................. 5 2. CONDUCTED DISTURBANCE ............................................................................. 6 2.1 TEST SETUP ............................................................................................. 6 2.2 LIMITS ........................................................................................................ 6 2.3 TEST PROCEDURE .................................................................................. 6 2.4 TEST RESULT ........................................................................................... 7 3. RADIATED DISTURBANCE ............................................................................... 11 3.1 TEST SETUP ........................................................................................... 11 3.2 LIMITS ...................................................................................................... 11 3.3 TEST PROCEDURE ................................................................................ 11 3.4 TEST RESULT ......................................................................................... 12 4. MAGNETIC FIELD EMISSION ........................................................................... 16 4.1 TEST SETUP ........................................................................................... 16 4.2 LIMITS ...................................................................................................... 16 4.3 TEST PROCEDURE ................................................................................ 16 4.4 TEST RESULT ......................................................................................... 17 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .............................................. 21 APPENDIX 2 PHOTOGRAPHS OF EUT ............................................................. 21 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 4 of 21 1. TECHNIACL SUMMARY 1.1 SUMMARY OF STANDARDS AND TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Test Item FCC Result Conducted disturbance FCC 18.307(c) P Radiated disturbance FCC 18.305(c) P Magnetic Field Emission FCC 18.305(b) P Note: P means pass, F means failure, N/A means not applicable 1.2 TEST UNCERTAINTY Where relevant, the following test uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted disturbance 3.4 Radiated disturbance 4.2 1.3 TEST EQUIPMENT LIST Shielding Room No. 3 - Conducted disturbance Test Equipment Manufacturer Model Serial No. Due Date Receiver Agilent N9038A MY51210142 2014/09/27 LISN R&S ENV216 100069 2014/06/23 3m Semi-anechoic Chamber - Radiated disturbance Test Equipment Manufacturer Model Serial No. Due Date 3m Chamber & Accessory Equipment ETS-LINDGRENFACT-3 CT-0000336 2013/11/27 Receiver Agilent N9038A MY51210142 2014/09/27 Biconilog Antenna SCHWARZBECKVULB 9160 3316 2014/10/19 Loop Antenna Schwarzbeck FMZB1519 1519-020 2014/03/27 The measuring equipment utilized to perform the tests documented in this report has been calibrated once a year or in accordance with the manufacturer's recommendations, and has been calibrated by accredited calibration labora…

Text truncated - open the document above for the full version.

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 1 of 4 Model Name:SBF6110-YQL200 CONDUCTED DISTURBANCE TEST SETUP RADIATED DISTURBANCE TEST SETUP Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 2 of 4 MAGNETIC FIELD EMISSION TEST SETUP Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 3 of 4 Model Name:SBF6110-YQL300 CONDUCTED DISTURBANCE TEST SETUP RADIATED DISTURBANCE TEST SETUP Unilab(Shanghai) Co.,Ltd. Report No. : UL22020130913FCC117-1 Page 4 of 4 MAGNETIC FIELD EMISSION TEST SETUP
