2AA7Y-MOSHIBT001Bluetooth Adapter

Model name: Orbito,Bluetooth TX audio adapter Brand Name : moshi Product designation: Orbito Pairing The adapter is paired to the closest Bluetooth device in paring mode. To pair the adapter, start paring mode on a Bluetooth headphone or speaker, then activate pairing mode on the flight adapter. To do this, start with the adapter Power OFF and press and hold the power button for 4 seconds. When pairing is started, 12 LEDs keep flashing, when you find the device and start to connect, it will display electronic marquee. Battery & Charging The adapter holds 24 hours battery on a full charge. Connect the charger or powerbank to the USB-C port via the included USB-C cable Single Socket Duo Socket USB-C port for charging NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Full Charged Status Half Charged Status -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement.

Aevoe Inc. 3F, No. 42, Sec. 2, Zhongshan N. Rd, Zhongshan Dist. Taipei City 104 104016 Taiwan Agent Authorization Company: Aevoe Inc. Address: 3F, No. 42, Sec. 2, Zhongshan N. Rd, Zhongshan Dist. Taipei City 104 104016 Taiwan Product Name: Orbito Model Number(s): Orbito, Bluetooth TX audio adapter Product Description: Bluetooth Adapter We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 28, 2021 Name: Kevin Kang Title: Project Manager Company: Aevoe Inc.

Aevoe Inc. 3F, No. 42, Sec. 2, Zhongshan N. Rd, Zhongshan Dist. Taipei City 104 104016 Taiwan Jan. 28, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AA7Y-MOSHIBT001 Models: Orbito, Bluetooth TX audio adapter To Whom It May Concern: We, The Aevoe Inc. hereby declare that the model : Bluetooth TX audio adapter is identical with the model : Orbito, except the model name. Except for the different above, no other modification is performed. Sincerely, Aevoe Inc. Signature: [Kevin Kang, Project Manager]

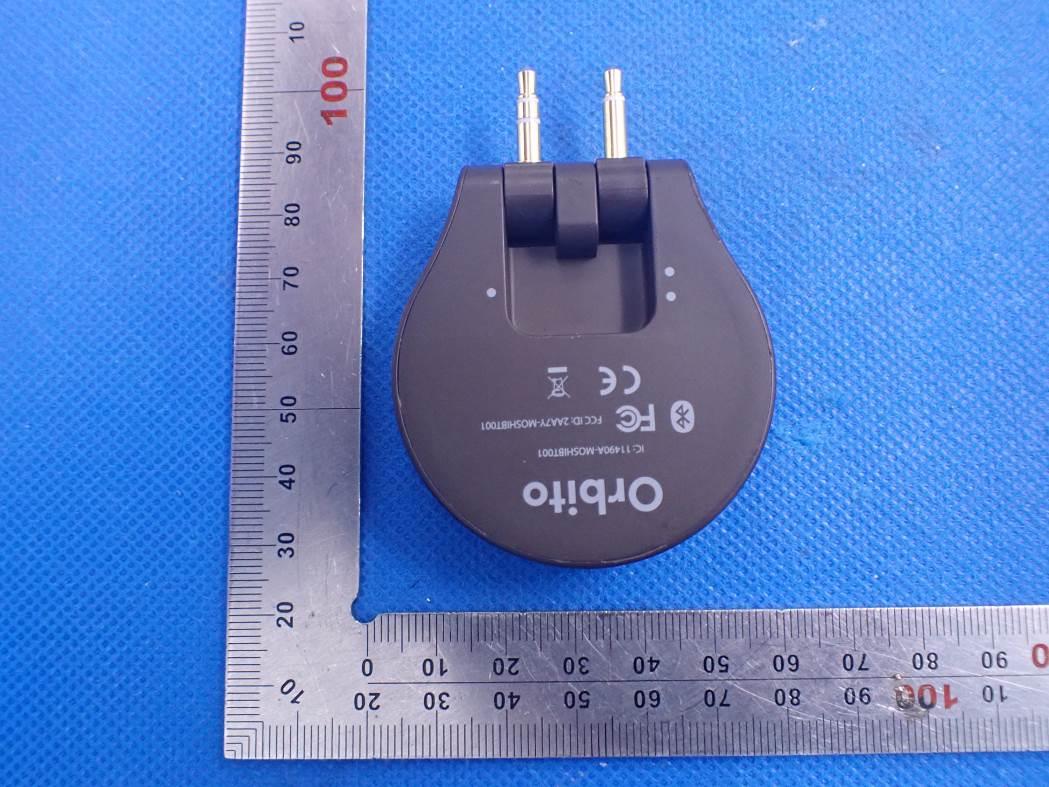

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID and IC Label Location 15mm*15mm FCC ID: 2AA7Y-MOSHIBT001 IC: 11490A-MOSHIBT001 Orbito 15mm*15mm FCC ID: 2AA7Y-MOSHIBT001 IC: 11490A-MOSHIBT001 Bluetooth TX audio adapter

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Orbito Model Name Orbito, Bluetooth TX audio adapter FCC ID 2AA7Y-MOSHIBT001 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =4.937dBm=3.12mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(3.12mW /5mm) .[√2.402GHz)]=0.97<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 67 FCC Test Report Report No.: AGC00213210101FE03 FCC ID : 2AA7Y-MOSHIBT001 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Orbito BRAND NAME : moshi MODEL NAME : Orbito, Bluetooth TX audio adapter APPLICANT : Aevoe Inc. DATE OF ISSUE : Jan. 28, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00213210101FE03 Page 2 of 67 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 28, 2021 Valid Initial Release Report No.: AGC00213210101FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 Report No.: AGC00213210101FE03 Page 4 of 67 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY ..........................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00213210101FE03 Page 41 of 67 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC00213210101FE03 Page 42 of 67 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC00213210101FE03 Page 43 of 67 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC00213210101FE03 Page 44 of 67 RADIATED EMISSION BELOW 1GHz EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 40.6700 23.81 11.91 40.00 16.19 200 2 Horizontal 2 52.3100 26.79 11.49 40.00 13.21 200 1 Horizontal 3 141.5500 23.83 14.88 43.50 19.67 100 93 Horizontal 4 215.2700 22.63 12.98 43.50 20.87 100 110 Horizontal 5 391.8100 34.70 19.48 46.00 11.30 100 360 Horizontal 6 427.7000 33.48 20.48 46.00 12.52 100 219 Horizontal RESULT: PASS Report No.: AGC00213210101FE03 Page 45 of 67 EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 48.4300 30.52 11.71 40.00 9.48 100 11 Vertical 2 70.7400 21.24 9.07 40.00 18.76 100 156 Vertical 3 110.5100 22.05 12.47 43.50 21.45 100 1 Vertical 4 218.1800 24.67 13.17 46.00 21.33 100 327 Vertical 5 317.1200 24.32 16.57 46.00 21.68 100 304 Vertical 6 627.5200 32.37 24.81 46.00 13.63 100 86 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin= Limit-Level. 2. All test modes had been pre-tested. The mode 1 is the worst case and recorded in the report. Report No.: AGC00213210101FE03 Page 46 of 67 RADIATED EMISSION ABOVE 1GHz EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00045.480.0845.5674-28.44 peak 4804.00037.360.0837.4454-16.56 AVG 7206.00040.522.2142.7374-31.27 peak 7206.00032.192.2134.454-19.6 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00044.960.0845.0474-28.96 peak 4804.00036.530.0836.6154-17.39 AVG 7206.00039.482.2141.6974-32.31 peak 7206.00030.622.2132.8354-21.17 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00213210101FE03 Page 47 of 67 EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.870.1446.0174-27.99 peak 4882.00038.640.1438.7854-15.22 AVG 7323.00041.322.3643.6874-30.32 peak 7323.00034.152.3636.5154-17.49 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.880.1446.0274-27.98 peak 4882.00037.420.1437.5654-16.44 AVG 7323.00040.652.3643.0174-30.99 peak 7323.00031.392.3633.7554-20.25 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00213210101FE03 Page 48 of 67 EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.940.2247.1674-26.84 peak 4960.00038.410.2238.6354-15.37 AVG 7440.00041.382.6444.0274-29.98 peak 7440.00032.652.6435.2954-18.71 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Orbito Model Name Orbito Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00045.670.2245.8974-28.11 peak 4960.00038.530.2238.7554-15.25 AVG 7440.00041.492.6444.1374-29.87 peak 7440.00033.342.6435.9854-18.02 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. Factor = Antenna Factor + Cable loss - Amplifier gain, Margin= Level-Limit. The “Facto…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
