2AA7Y-MOSHIQI010Sette Q dual wireless charging pad

Sette Q User Manual Model: 99MO022272 • Package Contents o 1 x Sette Q o 1 x USB-C to USB-C cable o 1 x 30W USB-C charger o 1 x User guide • Spec o Input：15V 2A o Wireless charging output (Single device)：9V/15W o Wireless charging output (Dual devices) : 9V/7.5W*2 o operating frequency：110~130kHz o USB-A charging output：5V 1A • How to charge your phone wirelessly with Sette Q o Plug the supplied USB-C to USB-C cable into Sette Q, then co nnect to supplied 30W USB-C wall charger. o Charging automatically begins after placing the wireless chargi ng device on one of the surface of the wireless charging pad. • LED behavior: o Off: Not charging o Breathing light: Charging o Steady on: Fully charged o Flashing: Foreign Object Detection error • Foreign Object Detection Troubleshooting: o Remove any metal objects like coins or keys between your de vice and Sette Q. o Unplug the power adapter for Sette Q then plug it in again. o If the problem still exists, please contact [email protected]. FCC Statement Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority t o operate the equipment. This device complies with Part 18 of the FCC Rules. This equipment complies with FCC radiation exposure limits set forth for a n uncontrolled environment. This equipment should be installed and opera ted with minimum distance 20CM between the radiator & your body. FCC Caution This transmitter must not be co-located or operating in conjunction with a ny other antenna or transmitter. IC Statement This device complies with Industry Canada licence-exempt RSS standar d(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicabl es aux appareils radioexempts de licence. L'exploitation est autorisée a ux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectriqu e subi, même si le brouillage est susceptible d'en compromettre le fon ctionnement. ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC / CNR-102 énoncée dans un autre environnement. This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment complies with IC RSS-102 radiation exposure limits set fort h for an uncontrolled environment. This equipment should be installed and operated with minimum distance 10cm between the radiator & your body. ce matériel est conforme aux limites de dose d'exposition aux rayonnemen ts, CNR-102 énoncée dans un autre environnement.cette eqipment devrait être installé et exploité avec distance minimale de 10 entre le radiateur et votre corps. CE Statement Hereby, Aevoe Inc. declares that the radio equipment type otto Q Wireless Charging Pad is in compliance with Directive 2014/53/EU.

郔 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name Aevoe Inc. Address 3F, No. 42, Sec.2, Zhong Shan N. Rd, Zhongshan Dist,Taipei City 104, Taiwan Grantee Code 2AA7Y FCCID 2AA7Y-MOSHIQIOIO Authorized Contact Name Kevin Kang Contact Email [email protected] Contact Phone 886225671555 EXT 101 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare ; a) in accordance with 47CFR2.911 (d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1)labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with 1S017065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1)the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant's expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 4 7CFR 1.2002(b) for the definition of a "party''for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, lnc.(TCB) terms and conditions. Link to CFRs: htt s://www.fcc. ov/wlreless/bureau-divisions/lechnolo les-s stems-and-Innovation-division/rules-re ulations-lille-47 Link to KDBs: https://apps.fcc.qov/oetcf/kdbflndex.cfm Link to RSP-100: htt s://www.ic. c.ca/eic/slte/smt-st.nsf/en /s101130.htrnl Applicant Signature: Print Name: Title: Kevin Kan Director Date: 2020.12.21 •NOTE: This declaration cannot be signed by an Agent, it shalf'be signed by an authorized person fisted in the FCC database Applicant Declaration Rev:0.0

Cover Letter-Wireless Charger Approval Date: 2021-02-05 Gentlemen: There’s a Wireless Charging Pad that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Wireless Charging Pad, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: AEVOE INC. Product Name: Sette Q dual wireless charging pad Model Number: 99MO022272, 99MO022273 FCC ID: 2AA7Y-MOSHIQI010 KDB 680106 D01 Section 5.2 Requirements Product Technical Specification Result a) Power transfer frequency is less that 1 MHz 110-130kHz Complied b) Output power from each primary coil is less than or equal to 15 watts. 15 watts Complied c) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Two source primary coils and can be powered on at the same time. Complied d) Client device is placed directly in contact with the transmitter. Complied e) Mobile exposure conditions only Complied f) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Please refer to RF exposure report Complied Sincerely, Print Name: Kevin Kang Title: Project Manager Signature: On behalf of Company: Aevoe Inc. Telephone:(02)87860516 Email:[email protected]

AEVOE INC. Current Date : 2021-02-05 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (AEVOE INC.) HEREBY DECLARED THAT Product Description Sette Q - dual wireless charging pad Model No. 99MO022273 Manufacturer’s Name AEVOE INC. Manufacturer’s Address 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan *Except that the model number and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. Model No. (型号): 99MO022272 Manufacturer’s Name (生产商名称): AEVOE INC. Manufacturer’s Address（生产商商地址): 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Sincerely, Signature (签字): Printed Name (姓名): Kevin Kang Position/Title (职位): Project Manager Contact Number (联系电话): 886287860516 EXT 101

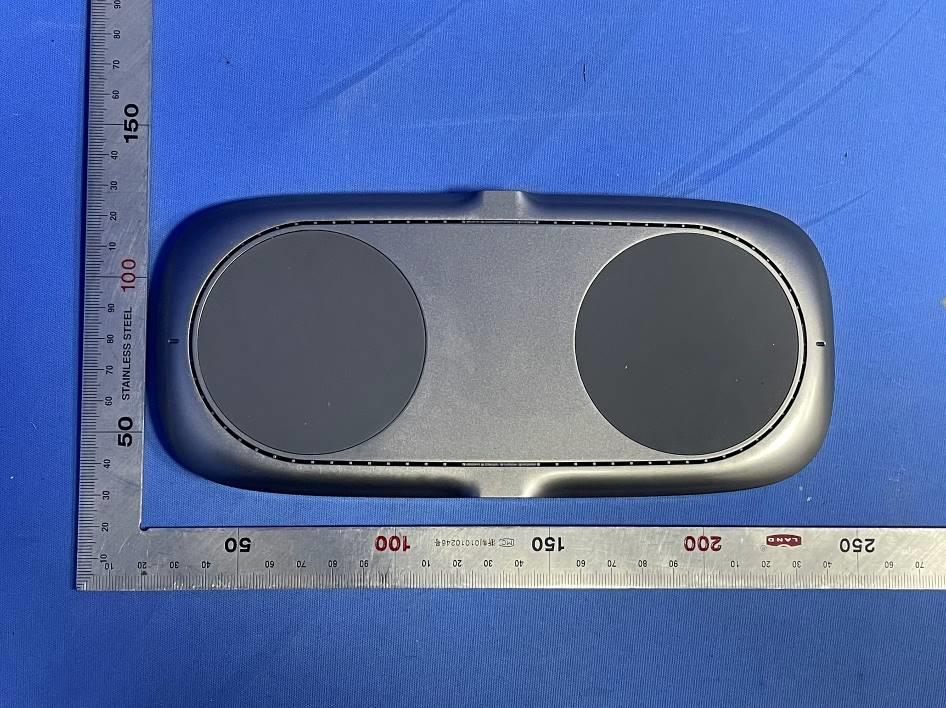

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: AEVOE INC. Address of Applicant: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Equipment Under Test (EUT): Product Name: Sette Q dual wireless charging pad Model No.: 99MO022272 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4 Page 4 of 4 End

SetteQdual wireless charging pad Model：99MO022272 Input：15V ⎓2A Output (USB)：5V ⎓1A (Max) Wireless charging(Single)：15W (9V⎓1.67A) Wireless charging(Dual)：7.5W (9V⎓0.83A) Made in Taiwan AevoeInc. FCC ID: 2AA7Y-MOSHIQI010 IC: 11490A-MOSHIQI010 7.43 5.29 SetteQdual wireless charging pad Model：99MO022273 Input：15V ⎓2A Output (USB)：5V ⎓1A (Max) Wireless charging(Single)：15W (9V⎓1.67A) Wireless charging(Dual)：7.5W (9V⎓0.83A) Made in Taiwan AevoeInc. FCC ID: 2AA7Y-MOSHIQI010 IC: 11490A-MOSHIQI010 7.43 5.29

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 Page 1 of 4 Internal Photos Applicant: AEVOE INC. Address of Applicant: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Equipment Under Test (EUT): Product Name: Sette Q dual wireless charging pad Model No.: 99MO022272 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4 Page 4 of 4 End

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 1 of 13 Keny Xu EMC Laboratory Manager Human Exposure Report Application No.: SZEM2012012765CR (SHEM2010009144CR) FCC ID: 2AA7Y-MOSHIQI010 Applicant: AEVOE INC. Address of Applicant: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Manufacturer: AEVOE INC. Address of Manufacturer: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Factory: 1.PEI YING INDUSTRIAL CO., LTD 2.Lanto Electronic Ltd. Address of Factory: 1.No. 7, Wuquan 1st Rd., Xinzhuang Dist., New Taipei City 242, Taiwan (R.O.C.) 2. No 399, Baisheng Rd. Jinxi Town, Kunshan City, Jiangsu Province, China 215324 Equipment Under Test (EUT): EUT Name: Sette Q dual wireless charging pad Model No.: 99MO022272 Add Model No.: 99MO022273 Trade Mark: Moshi Standards: 47 CFR PART 1, Subpart I, Section 1.1310 Date of Receipt: 2020-11-02 Date of Test: 2020-11-04 to 2020-12-03 Date of Issue: 2020-12-08 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 2 of 13 Revision Record Version Description Date Remark 00 Original 2020-12-08 / Authorized for issue by: Foray Chen /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 3 of 13 2 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 CONTENTS .............................................................................................................................................................. 3 3 GENERAL INFORMATION ................................................................................................................................... 4 3.1 DETAILS OF E.U.T. ..................................................................................................................................................... 4 3.2 DESCRIPTION OF SUPPORT UNITS ............................................................................................................................... 4 3.3 TEST LOCATION ......................................................................................................................................................... 5 3.4 TEST FACILITY ........................................................................................................................................................... 5 3.5 DEVIATION FROM STANDARDS ................................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................................ 5 4 EQUIPMENTS USED DURING TEST .................................................................................................................. 6 5 TEST RESULTS ...................................................................................................................................................... 7 5.1 RF EXPOSURE TEST .................................................................................................................................................... 7 E.U.T. Operation ...................................................................................................................................................... 8 Operating Environment: .......................................................................................................................................... 8 EUT Operation: ........................................................................................................................................................ 8 Measurement Data: ................................................................................................................................................. 9 6 PHOTOGRAPHS ................................................................................................................................................... 11 6.1 TEST PHOTOS ............................................................................................................................................................ 11 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 4 of 13 3 General Information 3.1 Details of E.U.T. Power supply: Input: DC15V 2A by adapter Output (USB): DC5V 1A (Max) Wireless charging (Single):15W (DC9V 1.67A) Wireless charging (Dual):7.5W*2 (DC9V 0.83A) Test voltage: AC 120V/60Hz Serial Number: 25WBP20BP000G Firmware Version: Moshi_Dual 10W_1208 Cable: USB Cable 100cm Antenna Type: Inductive Loop Coil Antenna Modulation Type: Load Modulation Operation Frequency: 110kHz to 130kHz 3.2 Description of Support Units Description Manufacturer Model No. Serial No. Adapter moshi 99MO022115 / Load Resistor / / / Mobile Phoe Apple iPnone 12 / Mobile Phoe HUAWEI Mate 20 Pro / Parameter of Adapter: Adapter Rated Input AC100V-240V 50/60Hz 1000mA Rated Output 5V,3A;9V,3A;15V,2A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 5 of 13 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Shenzhen, Guangdong, China. 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Cert…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 1 of 16 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2012012765CR (SHEM2010009144CR) FCC ID: 2AA7Y-MOSHIQI010 Applicant: AEVOE INC. Address of Applicant: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Manufacturer: AEVOE INC. Address of Manufacturer: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Factory: 1.PEI YING INDUSTRIAL CO., LTD 2.Lanto Electronic Ltd. Address of Factory: 1.No. 7, Wuquan 1st Rd., Xinzhuang Dist., New Taipei City 242, Taiwan (R.O.C.) 2. No 399, Baisheng Rd. Jinxi Town, Kunshan City, Jiangsu Province, China 215324 Equipment Under Test (EUT): EUT Name: Sette Q dual wireless charging pad Model No.: 99MO022272; 99MO022273¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: Moshi Standard(s) : 47 CFR Part 18 Date of Receipt: 2020-11-02 Date of Test: 2020-11-04 to 2020-12-03 Date of Issue: 2020-12-08 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 2 of 16 Revision Record Version Description Date Remark 00 Original 2020-12-08 / Authorized for issue by: Foray Chen /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 3 of 16 2 Test Summary Emission Part Item Standard Method Requirement Result Conducted Emissions at Mains Terminals (150kHz-30MHz) 47 CFR Part 18 FCC OST/MP-5:1986 Class B Pass Radiated Emissions (Magnetic field Strength) (9kHz- 30MHz) 47 CFR Part 18 FCC OST/MP-5:1986 Class B Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model 99MO022272 was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 4 of 16 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.3 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.4 TEST LOCATION ..................................................................................................................................... 6 4.5 TEST FACILITY ....................................................................................................................................... 6 4.6 DEVIATION FROM STANDARDS ................................................................................................................ 6 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 6 5 EQUIPMENT LIST ....................................................................................................................................... 7 6 EMISSION TEST RESULTS ........................................................................................................................ 8 6.1 CONDUCTED EMISSIONS AT MAINS TERMINALS (150KHZ-30MHZ) ........................................................... 8 6.2 RADIATED EMISSIONS (MAGNETIC FIELD STRENGTH) (9KHZ-30MHZ) ..................................................... 11 7 TEST SETUP PHOTOGRAPHS ................................................................................................................ 16 8 EUT CONSTRUCTIONAL DETAILS ......................................................................................................... 16 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 5 of 16 4 General Information 4.1 Details of E.U.T. Power supply: Input: DC15V 2A by adapter Output (USB): DC5V 1A (Max) Wireless charging (Single):15W (DC9V 1.67A) Wireless charging (Dual):7.5W*2 (DC9V 0.83A) Test voltage: AC 120V/60Hz Serial Number: 25WBP20BP000G Firmware Version: Moshi_Dual 10W_1208 Cable: USB Cable 100cm Antenna Type: Inductive Loop Coil Antenna Modulation Type: Load Modulation Operation Frequency: 110kHz to 130kHz 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Adapter moshi 99MO022115 / Mobile Phoe Apple iPnone 12 Mobile Phoe HUAWEI Mate 20 Pro Load Resistor / / / Parameter of Adapter: Adapter Rated Input AC100V-240V 50/60Hz 1000mA Rated Output 5V,3A;9V,3A;15V,2A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201201276501 Page: 6 of 16 4.3 Measurement Uncertainty No. Item Measurement Uncertainty 1 Conducted Emission at mains port using AMN 2.6dB (9kHz to 150kHz) 2.4dB (150kHz to 30MHz) 2 Radiated Emission 4.5dB (30MHz-1GHz) Note: The measurement uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 4.4 Test Location All tests were performed…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Page 1 of 3 Test Setup Photos-FCC Applicant: AEVOE INC. Address of Applicant: 3F, No. 42, Sec. 2, Zhongshan N. Rd., Zhongshan Dist., Taipei City 104, Taiwan Equipment Under Test (EUT): Product Name: Sette Q dual wireless charging pad Model No.: 99MO022272 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 Page 2 of 3 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................. 3 2.1 Conducted Emission Test Setup ....................................................................... 3 2.2 Spurious emissions ........................................................................................... 3 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3 Page 3 of 3 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emission Test Setup 2.2 Spurious emissions 9KHz-30MHz End
