2AA7Y-MOSHIQI013Luggage Finder Tag

www.moshi.com © 2024 Aevoe Corp. All rights reserved. (A) 128677 Luggage Finder Tag Quick st art guide The Apple Find My network provides an easy, secure way to locate compatible personal items using the Find My app on your iPhone, iPad, Mac, iPod touch, or the Find Items App on Apple Watch. To use the Find My app to locate this item, the latest version of iOS, iPadOS, or macOS is recommended. The Find Items app on Apple Watch requires the latest version of watchOS. Use of the Works with Apple badge means that a product has been designed to work specifically with the technology identified in the badge and has been certified by the product manufacturer to meet Apple Find My network product specifica- tions and requirements. Apple is not responsible for the operation of this device or use of this product or its compliance with safety and regulatory standards. Apple Find My, Apple Watch, Find My, iPhone, iPad, iPadOS, iPod touch, Mac, macOS and watchOS are trademarks of Apple Inc. IOS is a trademark of Cisco and is used under license. EN Quick Start Guide Please fully charge the Luggage Finder Tag to 100% before using it for the first time. Setting Up Your iPhone Compatibility The Luggage Finder Tag is only compatible with iOS 14.5 or later with Two-Factor Authentication turned on. If your Apple ID does not use two-factor authentication, you can turn on this feature with the following instructions: 1.Turn on Two-Factor Authentication for your Apple ID On your iPhone: Go to Settings > your name > Sign-In Security. Tap Turn On Two-Factor Authentication. Then tap Continue and follow the onscreen instructions. On your MAC: choose Apple menu > System Settings, then click on your name (or Apple ID). Click Sign-In Security. Next to Two-Factor Authentication, click Turn On and follow the onscreen instructions. On the web: Go to applied apple.com and sign in using your Apple ID. Answer your security questions, the tap Continue, Tap Continue when you see a prompt to update account security. Then tap Update Account Security and follow the onscreen instructions. 2.Turn on Find My A.Go to Settings. B.Tap your name, then tap Find My C.Tap Find My iPhone and turn on Find My iPhone. 3.Turn on Bluetooth 4.Connect to a stable Wi-Fi or cellular network. 5.Turn on Location Services Go to Settings > Privacy Security > Location Servies > turn on Location Services. Getting Started Turn on Short press the Luggage Finder Tag power button one time , and a beep sound will indicate that it has been turned on. the power button two times ; then long press it until you hear a beep. This will indicate that your Luggage Finder Tag has not been paired within 10 minutes, you will hear a beep indicating that it continue with the pairing of your tag. Factory reset To factory reset the Luggage Finder Tag , short press the power button 4 times , then long press until you hear a beep. This will indicate that the factory reset has been completed. Pairing Your Luggage Finder Tag 1.Ensure your iPhone is set up (see “Setting Up Your iPhone” above) and your Luggage Finder Tag is turned on. 2.Open the Find My app . 3.In the Items tab, tap Add New Item. 4.Tap Other Supported Item (your iPhone will search for your Luggage Finder Tag). 5.Once your Luggage Finder Tag is detected, tap Connect. 6.Follow the onscreen steps to name it and register it to your Apple ID. 7.Ensure your Luggage Finder Tag appears in Items. Ifnot, forget the device, perform a factory reset on the Luggage Finder Tag (see” Gettin g Started>Factory reset” above), and then reconnect. • Please do not leave the Find My app while pairing the Luggage Finder Tag. Locating Your Luggage Finder Tag Locate your Luggage Finder Tag via the Maps app 1.Open the Find My app. 2.Tap the Items tab. press the power button 4 times , then long press until you hear a beep. This will indicate that the factory reset has been completed. Pairing Your Luggage Finder Tag 1.Ensure your iPhone is set up (see “Setting Up Your iPhone” above) and your Luggage Finder Tag is turned on. 2.Open the Find My app . 3.In the Items tab, tap Add New Item. 4.Tap Other Supported Item (your iPhone will search for your Luggage Finder Tag). 5.Once your Luggage Finder Tag is detected, tap Connect. 6.Follow the onscreen steps to name it and register it to your Apple ID. 7.Ensure your Luggage Finder Tag appears in Items. Ifnot, forget the device, perform a factory reset on the Luggage Finder Tag (see” Gettin g Started>Factory reset” above), and then reconnect. • Please do not leave the Find My app while pairing the Luggage Finder Tag. Locating Your Luggage Finder Tag Locate your Luggage Finder Tag via the Maps app 1.Open the Find My app. 2.Tap the Items tab. press the power button 4 times , then long press until you hear a beep. This will indicate that the factory reset has been completed. Pairing Your Luggage Finder Tag 1.Ensure your iPhone is set up (see “Setting Up Your iPhone” above) and your Luggage Finder Tag is turned on. 2.Open the Find My app . 3.In the Items tab, tap Add New Item. 4.Tap Other Supported Item (your iPhone will search for your Luggage Finder Tag). 5.Once your Luggage Finder Tag is detected, tap Connect. 6.Follow the onscreen steps to name it and register it to your Apple ID. 7.Ensure your Luggage Finder Tag appears in Items. Ifnot, forget the device, perform a factory reset on the Luggage Finder Tag (see” Getting Started>Factory reset” above), and then reconnect. • Please do not leave the Find My app while pairing the Luggage Finder Tag. Locating Your Luggage Finder Tag Locate your Luggage Finder Tag via the Maps app 1.Open the Find My app. 2.Tap the Items tab. press the power button 4 times , then long press until you hear a beep. This will indicate that the factory reset has been completed. Pairing Your Luggage Finder Tag 1.Ensure your iPhone is set up (see “Setting Up Your iPhone” above) and your Luggage Finder Tag is turned on. 2.Open the Find My app . 3.In the Items tab, tap Add New Item. 4…

Text truncated - open the document above for the full version.

AevoeInc. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:AevoeInc. Address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104,TaiwanTaipeiCity Taiwan104 ProductName:LuggageFinderTag FCCID:2AA7Y-MOSHIQI013 Model(s):99MO244501,99MO244502,99MO244503 2.911(d)(5)(i)EquipmentType We,[AevoeInc.](“theapplicant”)certifythattheequipmentforwhichauthorizationissoughtthrough certificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:KevinKangDate:2024.6.20 TitleandCompanyname:Manager/AevoeInc. NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

AevoeInc. 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:AevoeInc. Address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104,TaiwanTaipeiCity Taiwan104 ProductName:LuggageFinderTag FCCID:2AA7Y-MOSHIQI013 Model(s):99MO244501,99MO244502,99MO244503 2.911(d)(5)(ii)Applicantfiling We,[AevoeInc.](“theapplicant”)certifythat,asofthedateofthefilingoftheapplication,the applicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto§1.50002of thischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:KevinKangDate:2024.6.20 TitleandCompanyname:Manager/AevoeInc. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Aevoe Inc. 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name:Aevoe Inc. Address: 3F, No.42, Sec.2, Zhongshan N.Rd,Zhogshan Dist., Taipei City 104, Taiwan Taipei City Taiwan 104 Product Name: Luggage Finder Tag FCCID:2AA7Y-MOSHIQI013 Model(s):99MO244501, 99MO244502, 99MO244503 2.911(d)(7) USA Designated Agent for Service of Process We, [Aevoe Inc.] (“the applicant”) designate [Stone Trading Limited] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Stone Trading Limited USA Address: 6547 N Academy Blvd #2266, Colorado Springs, CO 80918, United States FRN Number: 0033401936 Contact Name: Dongmei Fang Telephone No: +12134573118 Email: [email protected] Applicant Company name: Aevoe Inc. Address: 3F, No.42, Sec.2, Zhongshan N.Rd,Zhogshan Dist., Taipei City 104, Taiwan Taipei City Taiwan 104 Grantee FRN Number: 0023058852 FCC Grantee Code: 2AA7Y Contact Name: Kevin Kang Telephone No: 886225671555 Email: [email protected] Signature: Title: Manager Signature: Title: Project Manager Date: 2024-06-20 Date: 2024-06-20 Aevoe Inc. 2.911 (d)(7)USA Agent v1.5 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

AevoeInc. AgentAuthorization Company:AevoeInc. Address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104,Taiwan TaipeiCityTaiwan104 ProductName:LuggageFinderTag ModelNumber(s):99MO244501,99MO244502,99MO244503 ProductDescription:LuggageFinderTag WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.6.20 Name:KevinKang Title:Manager Company:AevoeInc.

AEVOE INC. Model Difference Product description: Luggage Finder Tag Model name: 99MO244501, 99MO244502, 99MO244503 Trade Name: MOSHI FCC ID:2AA7Y-MOSHIQI013 All the model are the same circuit and RF module, except model names and appearance color. Regards Sincerely Client’s signature: Client’s name / title: Kevin Kang / Manager Contact information / address: 3F, No.42, Sec.2, Zhongshan N.Rd,Zhogshan Dist., Taipei City 104, Taiwan

AevoeInc. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.6.20 Subject;RequestforConfidentiality FCCID:2AA7Y-MOSHIQI013 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:KevinKang Title:Manager

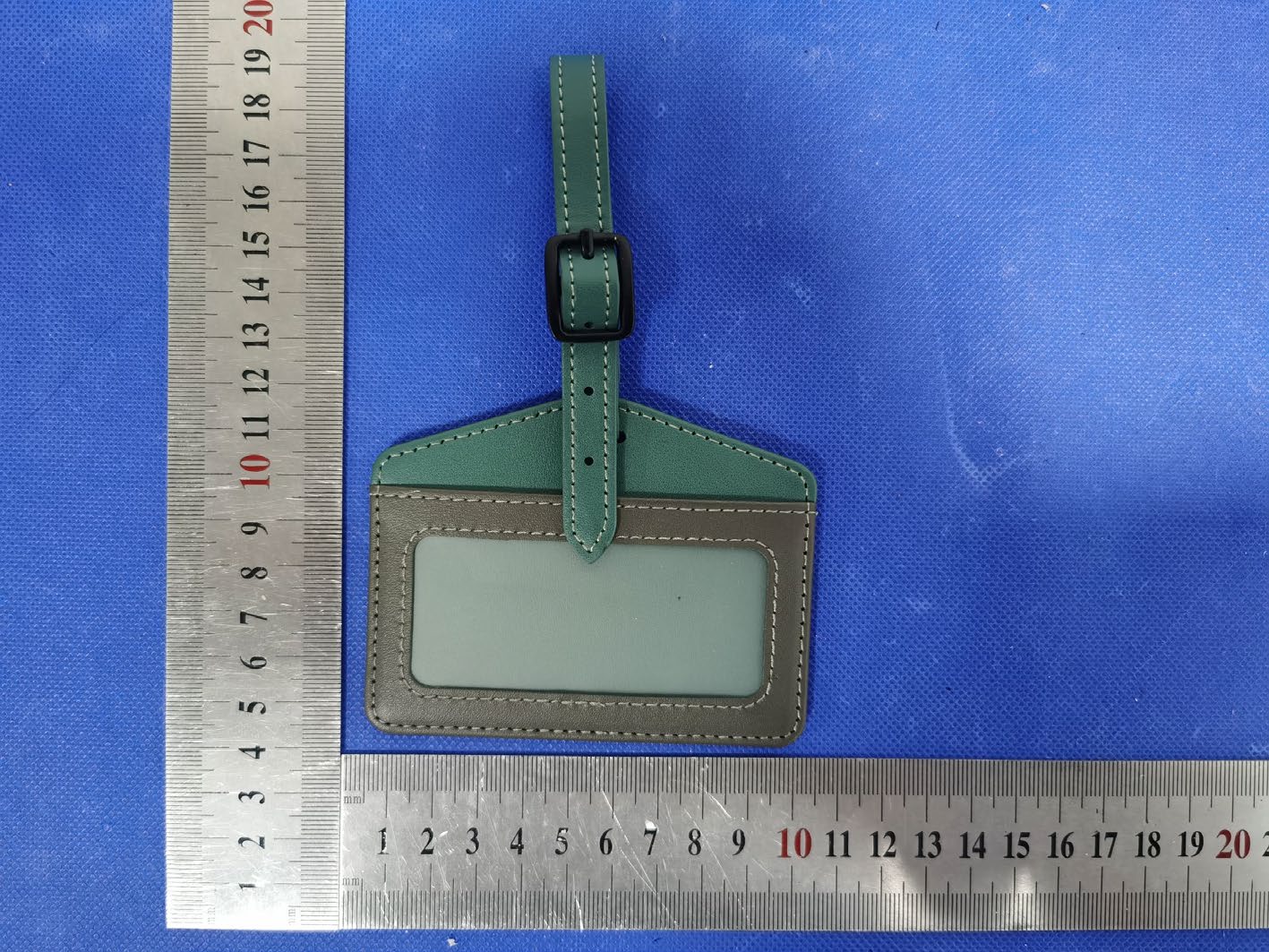

EUT PHOTO(External Photos)

Label & label location 20mm*10mm FCC ID:2AA7Y-MOSHIQI013 Label location

EUT PHOTO(Internal Photos) BLE ANT Receiving ANT

RF EXPOSURE EVALUATION METHOD FCC ID:2AA7Y-MOSHIQI013 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Mode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit GFSK 4.546 2.85 2402 5 0.88 3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China GENERAL INFORMATION 1.1 Test Environment Condition Ambient Temperature 19 to 25 °C Ambient Relative 45 to 55 % Humidity Ambient Pressure N/A (Not applicable) 1.2 Announce (1) The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. (2) The test report is invalid if there is any evidence and/or falsification. (3) The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. (4) This document may not be altered or revised in any way unless done so and all revisions are duly noted in the revisions section. (5) Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China PRODUCT INFORMATION 2.1 Applicant Applicant Lenze Technology Co.,LTD Address d.c., 26c newspaper west tower, 6008 shennan Avenue, Futian District , Contact Person Tony Telephone Number +86 0755-82031775;25332530 Fax Number +86 0755-82713604 E-mail Address [email protected] 2.2 Manufacturer Manufacturer Lenze Technology Co.,LTD Address d.c., 26c newspaper west tower, 6008 shennan Avenue, Futian District , Shenzhen City, Guangdong Province, China Contact Person N/A Telephone Number N/A Fax Number N/A E-mail Address N/A 2.3 General Description for Equipment under Test (EUT) EUT Type Bluetooth Antenna Model Name PCB Antenna Antenna Type PCB Antenna Hardware Version N/A Serial Number N/A Dimensions N/A 2.4 Technical Information Frequency Range 2400MHz~ 2500MHz Test Frequencies 2402MHz, 2441MHz, 2480MHz Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China SUMMARY OF TEST RESULTS 3.1 Test Standards No. Identity Document Title 1 IEEE149-1979 IEEE Standard Test Procedures for Antennas 3.2Test Verdict Report Section Description Remark ANNEX A.1 Gain And Efficiency -- ANNEX B Radiation Pattern -- 3.3Test Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Item Uncertainty VSWR(S11) 0.4 Gain -0.08dBi Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China GENERAL TEST CONFIGURATIONS 4.1 Test Condition Environment Parameter Selected Values During Tests Temperature Voltage Relative Humidity Normal Temperature, Normal Voltage 25°C N/A 51% (NTNV) 4.2 Test Equipment List Description Manufacturer Model Serial No. Cal. Date Cal. Due Vector Network Agilent E5071C MY46103472 2014.09.07 2015.09.06 Analyzer 5*5*5 Full Anechoic SATIMO 5*5*5 N/A 2014.09.05 2015.09.04 Chamber SG24 Multi-probe Antenna Measurement SATIMO SG24-L 1101855-0001 2014.10.25 2015.10.24 System 4.3 Test Setup Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China ANNEX A TEST RESULTS A.1 Gain and Efficiency Frequency Gain (dBi) Efficiency (%) 2402MHz -0.08 0.99 2441MHz -0.21 1.06 2480MHz -0.18 1.12 ANNEX B RADIATION PATTERN 3DPattern 2402MHZ Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China 2480MHZ 1D Radiation Pattern PHI =0 Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China PHI =90 THETA = 90 Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China ANNEX C TEST SETUP PHOTO ANNEX D EUT PHOTO Antenna shape

Project No.: ZKT-2406046210E Page 1 of 37 FCC TEST REPORT FCC ID:2AA7Y-MOSHIQI013 Report Number. .............................. : ZKT-2406046210E Date of Test ........................................ Jun. 04, 2024 to Jun. 12, 2024 Date of issue .................................... : Jun. 12, 2024 Total number of pages ...................... 37 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : AEVOE INC. Address .......................................... : 3F, No.42, Sec.2, Zhongshan N.Rd,Zhogshan Dist., Taipei City 104, Taiwan Manufacturer's name ................... : ShenZhen Future Charger Technology Co.,Ltd Address .......................................... : Yongfengtian Industrial park, 3rd Industrial zone, Fenghuang, Fuyong Town, Bao′an District, ShenZhen, China. 518103 Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : / Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Luggage Finder Tag Trademark ...................................... : MOSHI Model/Type reference......................: 99MO244501 99MO244502, 99MO244503 Project No.: ZKT-2406046210E Page 2 of 37 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jeff Fu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-2406046210E Page 3 of 37 Table of Contents Page 1.VERSION ............................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................ 6 2.1 TEST FACILITY ................................................................................................................................ 7 2.2 MEASUREMENT UNCERTAINTY .................................................................................................... 7 3. GENERAL INFORMATION ................................................................................................................ 8 3.1 GENERAL DESCRIPTION OF EUT ................................................................................................. 8 3.2 DESCRIPTION OF TEST MODES ................................................................................................... 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED ............................... 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) ........................................................ 9 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS .................................................................................. 10 4. EMC EMISSION TEST ..................................................................................................................... 12 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................................. 12 4.1.1 POWER LINE CONDUCTED EMISSION Limits ....................................................................... 12 4.1.2 TEST PROCEDURE .................................................................................................................. 12 4.1.3 DEVIATION FROM TEST STANDARD ..................................................................................... 12 4.1.4 TEST SETUP ............................................................................................................................. 13 4.1.5 EUT OPERATING CONDITIONS .............................................................................................. 13 4.2.1 Radiated Emission Limits ........................................................................................................... 14 4.2.2 TEST PROCEDURE .................................................................................................................. 15 4.2.3 DEVIATION FROM TEST STANDARD ..................................................................................... 15 4.2.4 TEST SETUP ............................................................................................................................. 15 4.2.5 EUT OPERATING CONDITIONS .............................................................................................. 16 5.RADIATED BAND EMISSION MEASUREMENT ............................................................................. 21 5.1 Test Requirement: ........................................................................................................................ 21 5.2 TEST PROCEDURE ...........................................................................................…

Text truncated - open the document above for the full version.

EUT TEST PHOTO
