2AA7Y-MOSHIQI012Taita M 3-in-1 Foldable Wireless Charging Station

www.moshi.com © 2024 Aevoe Corp. All rights reserved. (A) 128677 Taita M 3 in 1 Foldable Wireless Charging Station Quick st art guide EN Quick Start Guide How to charge wirelessly with Taita M • Plug the supplied USB-C to USB-C cable into Taita M, then connect it to the power adapter. • Place your smart device Taita M. The “-“mark indicates the center of each charging coil. • When using the power adapter, the maximum wireless charging output for smartphones is 15W Max, the earphone is 5W and the Apple watch is 2.5W. For maximum charging performance, please connect the USB-C charging cable to the USB-C of the 27W or above power adaptor. Wireless charging for Earphone Wireless charging for Apple Watch Wireless charging for Smart Phone Foreign Object Detection Troubleshooting 1. Remove any metal objects such as coins or keys between your device and Taita M. 2. Unplug the UCB-C cable from Taita M then plug it again. 3. If the problem still persists, please contact [email protected]. FCC Caution his transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CE Statement Herby, Aveoe Inc. declares that the radio equipment type Taita M 3 in 1 foldable w ireless charging station is in compliance with Directive 2013/53/EU. FCC Statement Please take attention that changes or modifica- tions not expressly approved by t he party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 18 of FCC Rules. FCC Warning Statement: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter.

AevoeInc. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:AevoeInc. Address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104,TaiwanTaipeiCity Taiwan104 ProductName:TaitaM3-in-1FoldableWirelessChargingStation FCCID:2AA7Y-MOSHIQI012 Model(s):99MO243001,99MO243002 2.911(d)(5)(i)EquipmentType We,[AevoeInc.](“theapplicant”)certifythattheequipmentforwhichauthorizationissoughtthrough certificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:KevinKangDate:2024.6.25 TitleandCompanyname:Manager/AevoeInc. NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

AevoeInc. 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:AevoeInc. Address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104,TaiwanTaipeiCity Taiwan104 ProductName:TaitaM3-in-1FoldableWirelessChargingStation FCCID:2AA7Y-MOSHIQI012 Model(s):99MO243001,99MO243002 2.911(d)(5)(ii)Applicantfiling We,[AevoeInc.](“theapplicant”)certifythat,asofthedateofthefilingoftheapplication,the applicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto§1.50002of thischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:KevinKangDate:2024.6.25 TitleandCompanyname:Manager/AevoeInc. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Aevoe Inc. 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Aevoe Inc. Address: 3F, No.42, Sec.2, Zhongshan N.Rd,Zhogshan Dist., Taipei City 104, Taiwan Taipei City Taiwan 104 Product Name: Taita M 3-in-1 Foldable Wireless Charging Station FCC ID:2AA7Y-MOSHIQI012 Model(s): 99MO243001, 99MO243002 2.911(d)(7) USA Designated Agent for Service of Process We, [Aevoe Inc.] (“the applicant”) designate [Stone Trading Limited] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Stone Trading Limited USA Address: 6547 N Academy Blvd #2266, Colorado Springs, CO 80918, United States FRN Number: 0033401936 Contact Name: Dongmei Fang Telephone No: +12134573118 Email: [email protected] Applicant Company name: Aevoe Inc. Address: 3F, No.42, Sec.2, Zhongshan N.Rd,Zhogshan Dist., Taipei City 104, Taiwan Taipei City Taiwan 104 Grantee FRN Number: 0023058852 FCC Grantee Code: 2AA7Y Contact Name: Kevin Kang Telephone No: 886225671555 Email: [email protected] Signature: Title: Manager Signature: Title: Project Manager Date: 2024.6.25 Date: 2024.6.25 Aevoe Inc. 2.911 (d)(7)USA Agent v1.5 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

AevoeInc. AgentAuthorization Company:AevoeInc. Address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104,Taiwan TaipeiCityTaiwan104 ProductName:TaitaM3-in-1FoldableWirelessChargingStation ModelNumber(s):99MO243001,99MO243002 ProductDescription:TaitaM3-in-1FoldableWirelessChargingStation WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.6.25 Name:KevinKang Title:Manager Company:AevoeInc.

AEVOEINC. ModelDifference Productdescription:TaitaM3-in-1FoldableWirelessChargingStation Modelname:99MO243001 99MO243002 TradeName:MOSHI AllthemodelarethesamecircuitandRFmodule,onlythemodelnameisdifferent. Regards Sincerely Client’ssignature: Client’sname/title: KevinKang/Manager Contactinformation/address:3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist., TaipeiCity104,Taiwan

AevoeInc. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.6.25 Subject;RequestforConfidentiality FCCID:2AA7Y-MOSHIQI012 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:KevinKang Title:Manager

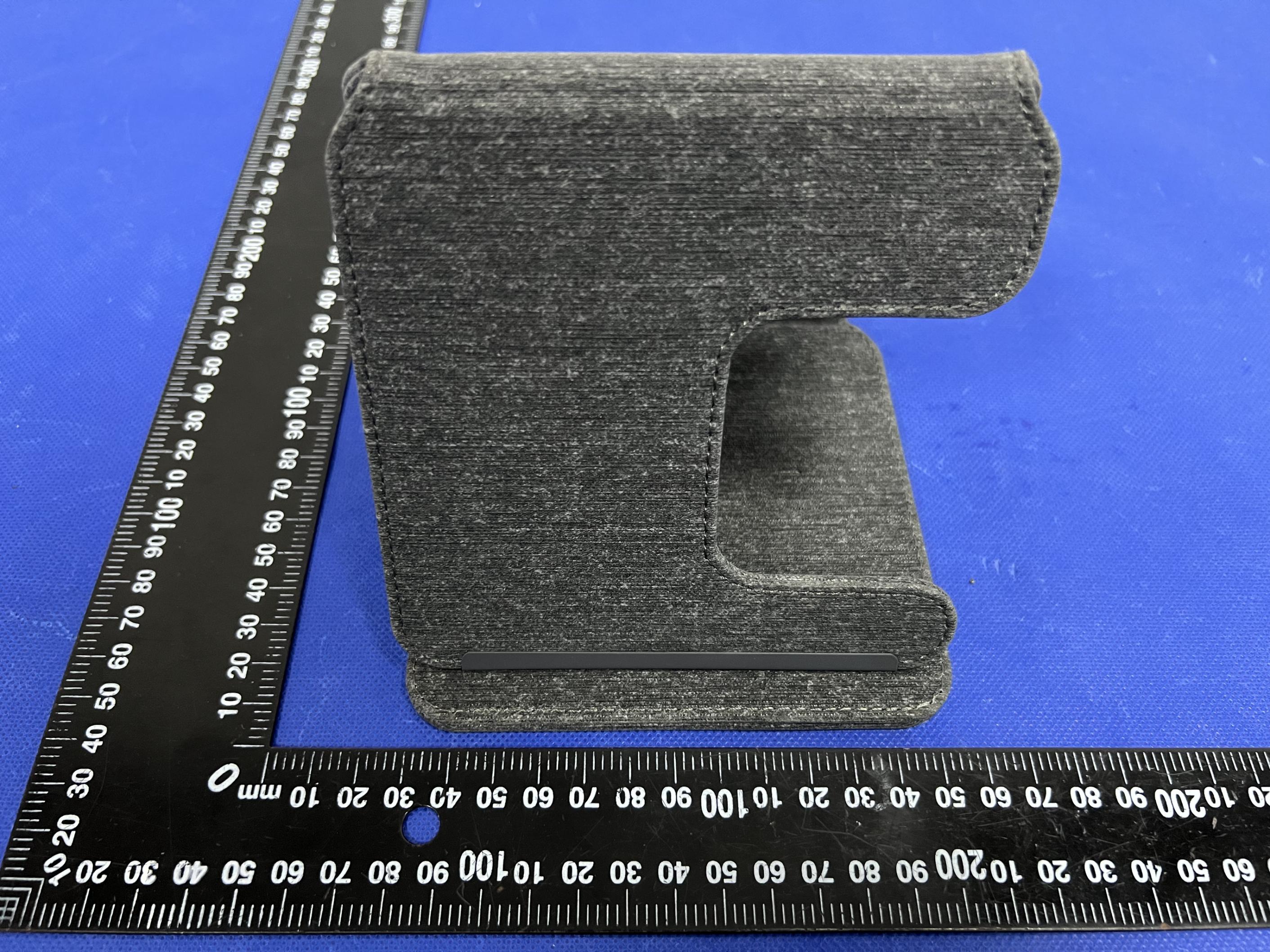

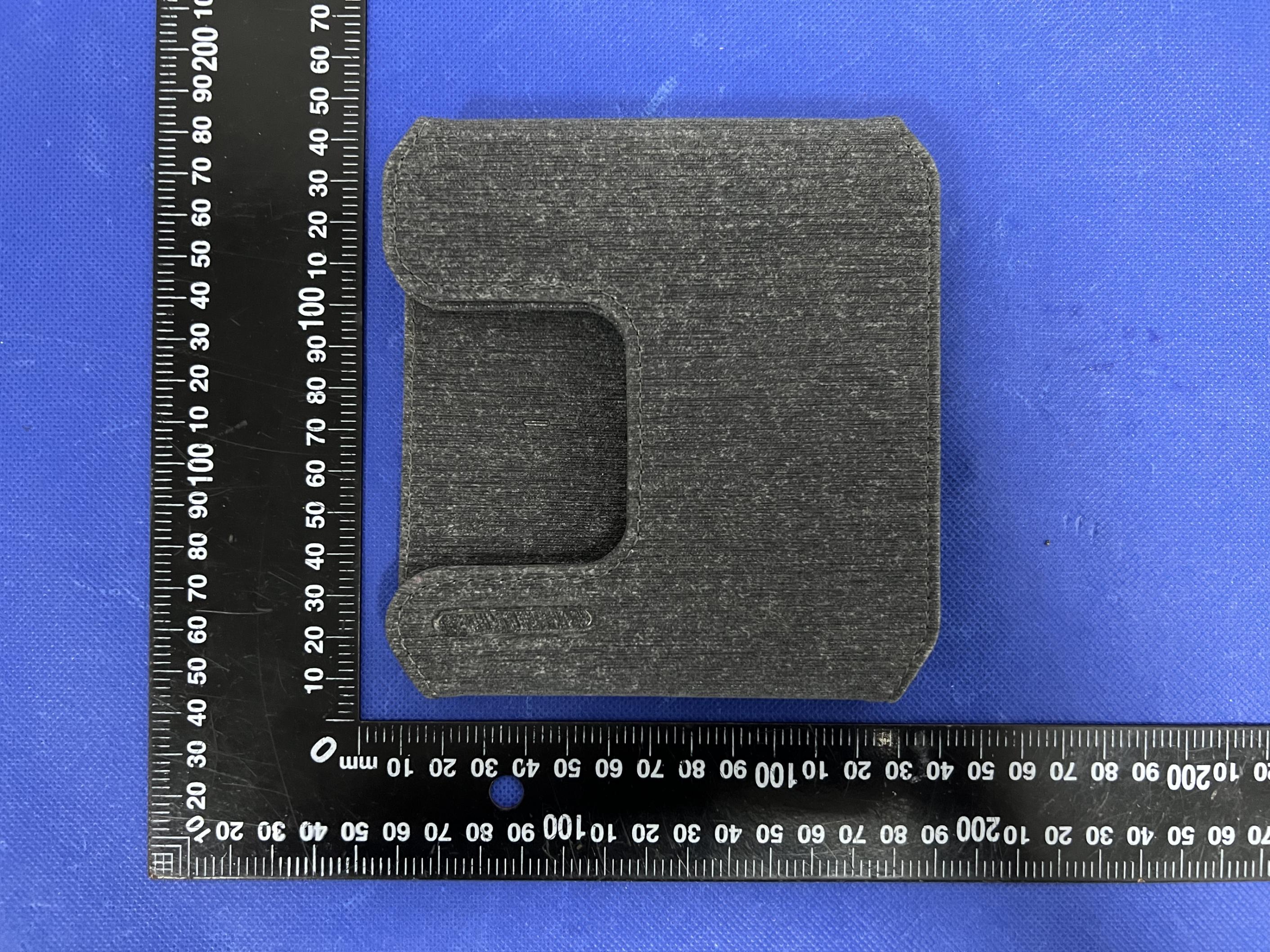

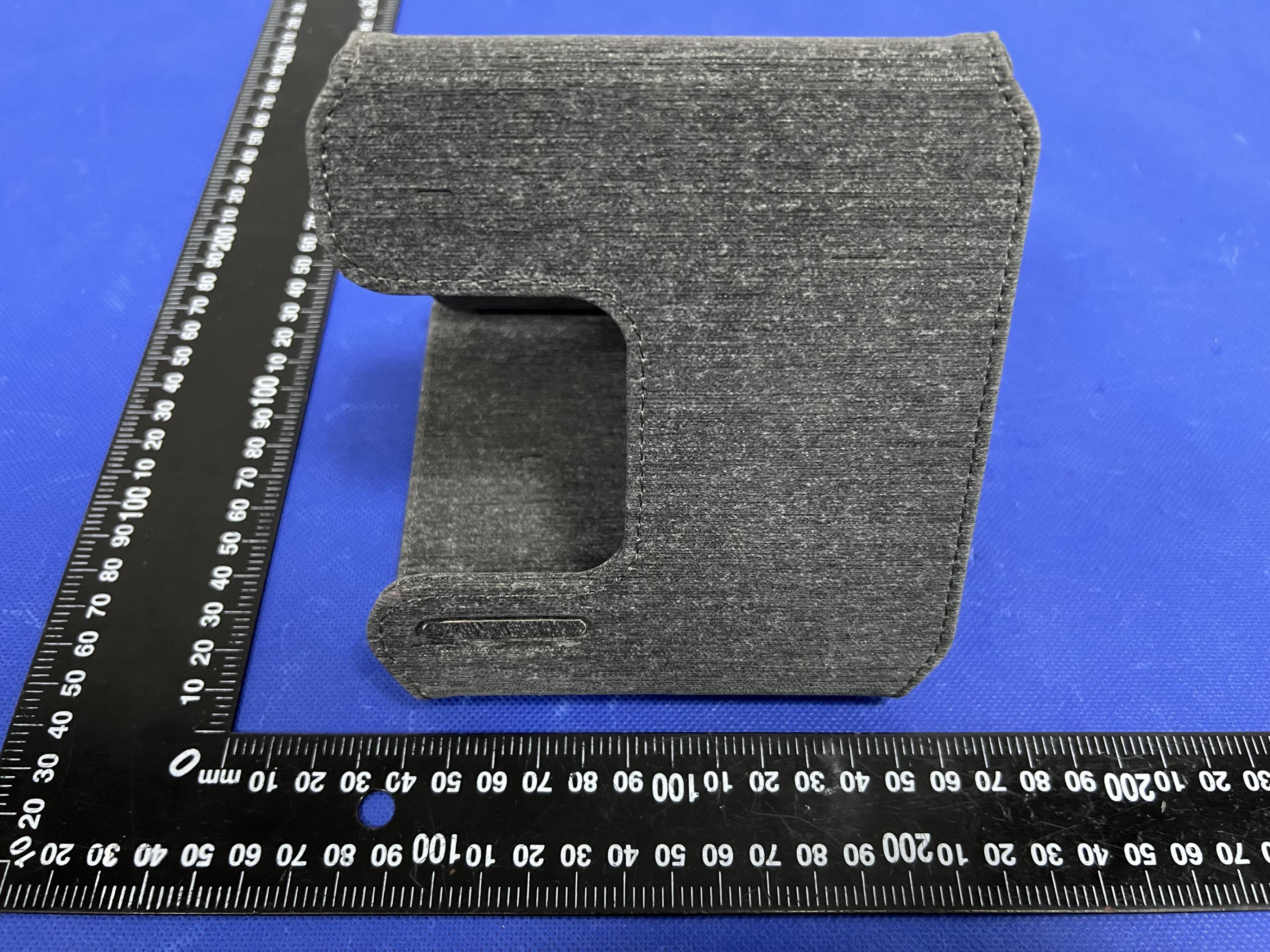

EUTPHOTO(ExternalPhotos) TestMode:99MO243001 ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation FCCIDLABEL: High:2cm Wide:3cm LabelLocation: Model:99MO243001 FCCID:2AA7Y-MOSHIQI012

EUTPHOTO(InternalPhotos) TestMode:99MO243001 ※※※※※ENDOFREPORT※※※※※ ANT1 ANT2 ANT3

RFExposureEvaluation FCCID:2AA7Y-MOSHIQI012 ProductName:TaitaM3-in-1FoldableWirelessChargingStation ProductModelNo.:99MO243001 TestAuxiliary:AC/DCAdapter,Phone,Earphone,Watch TestAuxiliaryModelNo.:HW-200200CP1,iPhone13,AirPods2,iWatchS2 OperationFrequency: ANT1&2:115kHz~205kHz ANT3:290kHz~326.6kHz Modulationtype:ASK AntennaType:ANT1&2&3:LoopCoilAntenna Antennagain:ANT1&2&3:0dBi Powersupply: Input:12V3A,9V2A,5V2A PhoneOutput:15W(Max) EarphoneOutput:5W(Max) WatchOutput:2.5W(Max) TransmittingmodeKeeptheEUTincontinuouslywirelesschargingmode a.EUTmodeofoperationbeforefolding: TestModes:TestCoilDescription: Mode1 ANT1 AC/DCAdapter+EUT+Phone(BatteryStatus:<1%) Mode2AC/DCAdapter+EUT+Phone(BatteryStatus:50%) Mode3AC/DCAdapter+EUT+Phone(BatteryStatus:>98%) Mode4 ANT2 AC/DCAdapter+EUT+Earphone(BatteryStatus:<1%) Mode5AC/DCAdapter+EUT+Earphone(BatteryStatus:50%) Mode6AC/DCAdapter+EUT+Earphone(BatteryStatus:>98%) Mode7 ANT3 AC/DCAdapter+EUT+Watch(BatteryStatus:<1%) Mode8AC/DCAdapter+EUT+Watch(BatteryStatus:50%) Mode9AC/DCAdapter+EUT+Watch(BatteryStatus:>98%) Mode10 ANT1+ANT2 +ANT3 AC/DCAdapter+EUT+Phone+Earphone+Watch(BatteryStatus:<1%) Mode11AC/DCAdapter+EUT+Phone+Earphone+Watch(BatteryStatus:50%) Mode12AC/DCAdapter+EUT+Phone+Earphone+Watch(BatteryStatus:>98%) b.EUTworksinfoldedmode: TestModes:TestCoilDescription: Mode1a ANT1 AC/DCAdapter+EUT+Phone(BatteryStatus:<1%) Mode2aAC/DCAdapter+EUT+Phone(BatteryStatus:50%) Mode3aAC/DCAdapter+EUT+Phone(BatteryStatus:>98%) Mode4a ANT2 AC/DCAdapter+EUT+Earphone(BatteryStatus:<1%) Mode5aAC/DCAdapter+EUT+Earphone(BatteryStatus:50%) Mode6aAC/DCAdapter+EUT+Earphone(BatteryStatus:>98%) Mode7a ANT3 AC/DCAdapter+EUT+Watch(BatteryStatus:<1%) Mode8aAC/DCAdapter+EUT+Watch(BatteryStatus:50%) Mode9aAC/DCAdapter+EUT+Watch(BatteryStatus:>98%) Mode10a ANT1+ANT2 +ANT3 AC/DCAdapter+EUT+Phone+Earphone+Watch(BatteryStatus:<1%) Mode11aAC/DCAdapter+EUT+Phone+Earphone+Watch(BatteryStatus:50%) Mode12aAC/DCAdapter+EUT+Phone+Earphone+Watch(BatteryStatus:>98%) Note:SincetheEUToperatesinthesamemodebeforeandafterfolding,thereportonlyreflectsthetestdata beforefolding. 1MeasuringStandard 1.1Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines.Accordingto§1.1310and§2.1091RFexposureiscalculated.According KDB680106D01WirelessPowerTransferv04. 1.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U,whereexpendeduncertaintyUisbasedona standarduncertaintymultipliedbyacoveragefactorofk=2,providingalevelofconfidenceof approximately95%. No.ItemUncertainly 1H-filed±0.93dB 2E-filed±0.51dB 2.1Requirements TheEUTdoescomplywithitem5.2ofKDB680106D01V04: 1)Thepowertransferfrequencyisbelow1MHz. Yes,thedeviceoperateinthefrequencyrangefromANT1/2is115kHzto205kHzandANT3is290kHzto 326.6kHz. 2)Theoutputpowerfromeachtransmittingelement(e.g.,coil)islessthanorequalto15watts. Yes,themaximumoutputpoweroftheprimarycoilis15W. 3)Aclientdeviceprovidingthemaximumpermittedloadisplacedinphysicalcontactwiththetransmitter(i.e., thesurfacesofthetransmitterandclientdeviceenclosuresneedtobeinphysicalcontact). Yes,thesurfacesofthetransmitterandclientdeviceenclosuresareinphysicalcontact. 4)Only§2.1091-Mobileexposureconditionsapply(i.e.,thisprovisiondoesnotcover§2.1093-Portable exposureconditions).. Yes,theEUTisaMobileWirelessCharger. 5)TheE-fieldandH-fieldstrengths,atandbeyond20cmsurroundingthedevicesurface,aredemonstrated tobelessthan50%oftheapplicableMPElimit,perKDB447498,Table1. Yes,theEUTfieldstrengthlevelsareless50%*MPElimit. 6)Forsystemswithmorethanoneradiatingstructure,theconditionsspecifiedin(5)mustbemetwhenthe systemisfullyloaded(i.e.,clientsabsorbingmaximumpoweravailable),andwithalltheradiatingstructures operatingatmaximumpoweratthesametime,asperdesignconditions. Yes,theEUThasthreecoil,alltestmodesmettheconditionsspecifiedin(5). 2.2Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE): 2.3TestSetup 3TestProcedure 1)TheRFexposuretestwasperformedon360degreeturntableinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(20cmandabovefromallsidesandTop)whichis betweentheedgeofthechargerandthegeometriccentreofprobe. 3)Theturntablewasrotated360ddegreetosearchofhigheststrength. 4)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints werecompleted. 5)TheEUTweremeasuredaccordingtothedictatesofKDB680106D01V04. 4TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) ExposureLevelTesterNardaELT-400180ZX10220Nov.16,2023Nov.15,2024 Magneticfieldprobe 100cm 2 NardaELTprobe100cm 2 M0675Nov.16,2023Nov.15,2024 5TestResult TestMode1~3: H-FiledStrengthat20cmfromtheedgessurroundingtheEUT(A/m): Battery Level: Frequency Range(MHz) Test PositionLeft (uT) Test PositionRight (uT) Test PositionRear (uT) Test PositionFront (uT) Test PositionTop (uT) <1% Battery 0.115-0.2050.210.220.260.210.27 50% Battery 0.115-0.2050.170.200.190.170.18 >98% Battery 0.115-0.205 0.140.180.160.150.16 Battery Level: Frequency Range (MHz) Test Position Left(A/m) Test Position Right(A/m) Test Position Rear(A/m) Test Position Front(A/m) Test Position Top(A/m) Limits 50% (A/m) Limits (A/m) <1% Battery 0.115-0.2050.170.180.210.170.220.8151.63 50% Battery 0.115-0.2050.140.160.150.140.140.8151.63 >98% Battery 0.115-0.2050.110.140.130.120.130.8151.63 TestMode4~6: H-FiledStrengthat20cmfromtheedgessurroundingtheEUT(A/m): Battery Level: Frequency Range (MHz) Test PositionLeft (uT) Test PositionRight (uT) Test PositionRear (uT) Test PositionFront (uT) Test PositionTop (uT) <1% Battery 0.115-0.205 0.240.260.290.240.29 50% Battery 0.115-0.205 0.170.240.260.200.25 >98% Battery 0.115-0.205 0.190.210.190.190.22 Battery Level: Frequency Range (MHz) Test Position Left(A/m) Test Position Right(A/m) Test Position Rear(A/…

Text truncated - open the document above for the full version.

深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 1 页 产品规格书 PRODUCTSPECIFICATIONFORAPPROVAL 客户名称： CUSTOMER 充向未来 产品名称： PRODUCTNAME A11 线圈 物料编码： PARTNo. 产品规格： PRODUCTSPEC 感量规格：7uH±10% 磁片规格：43.5*5.3*0.8双槽 线材规格：0.08*70*10Ts/出线70mm 贴背胶 日期： DATE 2024年06月03日 版本型号： VERSION REV1.0 版本 Revision 变更内容 ModifiedContent 责任人 Principle 日期 Date 备注 Note REV1.0首次发布薛磊2024-06-03 制定/PREPAREDBY审核/CHECKEDBY核准/APPROVEDBY 客户认可签名及盖章 Authorizedsignature& companychop 附上的是产品规格书，有任何疑问，请及时反馈给我们，谢谢 ! 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 2 页 产品规格 SPECIFICATION 一、产品尺寸 磁片直径 A 43.5±0.5mm 线圈外径B40±1mm 线圈内径C21.5±0.5mm 产品厚度D<2mm 出线长度E70mm±3mm 焊锡长度F3±1mm 磁片开孔直径G5±0.3mm 磁片厚度0.8±0.1mm 磁片形状圆形双槽 背胶厚度普通双面胶 防碎黑膜不 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 3 页 二、原理图 三、绕线参数 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection SF 丝包线 0.08*70P 10TsCCW 四、电气特性： 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS IND.S-F 7uH±10% 100KHz/1.0VLCZMETER1062B 五、产品图片

承 认 书 SPECIFICATION FOR APPROVAL 客户名称（CUSTOM 充 向 未 来 科 技 有 限 公 司 客户料号（CUSTOMER P/N）： 品名（ DESCRIPTION) : DATE:2021/4/28 规格（SPECIFICATION) ：A11开L槽+背胶引线长15mm REV.NO.:A0 鸿日昇威科技承认签 核、 盖 章 部门 确认/日期审核/日期批准/日期 (盖公司公 章) 品质 董晚红 2021-4-28 吕惠 2021-4-28 韦函满 2021-4-28 工程何伟华 2021-4-28 韦立红 2021-4-28 韦立红 2021-4-28 备注： 充向未来科技承认签核、盖章 部门 确认/日期审核/日期批准/日期 (盖公司公 章) 开发工 程 采购 品质 备注： 深 圳 市 鸿 日 昇 威 科 技 有 限 公 司 HRSW ELECTRONICS CO.,LTD ADD ：深圳市龙华新区观澜环观中路 48 号 1 栋 2 楼 TEL：+86-755-23461055 FAX：+86-0755-28015170 page:1/3 SPECIFICATION FOR APPROVAL 1.MECHANICAL DIMENSION (UNIT:mm) 2.SCHEMATICS: 1.线圈贴磁片，磁片尺寸 50±1mm, 开L线槽。 2.线圈出线位置 缠胶纸 1-2Ts; 3.隔磁片底部要贴胶 ABC D2EHI 50±1.020.5±0.50.9±0.0515±33±1.52.8MAX 3.WINDING： STE P START-FINISHWIRE TYPETURNSTAPE REMAR K N1S-F丝包线⌀0.08*105mm 2UEW10TS (Ref) 4.ELECTRICAL SPECIFICATION: ITEMLDCRLQ值HI-POT TES T CON 线圈加磁片 S-F 单独线圈 100KHz,0.25V AT 25°C 100KHz,0.25V SPEC6.5uH±10% 70mΩ Max3.8uH±15% 5.BILF OF MATERIAL： NO.ITEMMATERIAL SPECIFICATIONMANUFACTURER SGS NO. 1 丝包线0.08*105股丙酮丝包线0.08*105股NANJINGJINNINGCO,LTD 2 无铅锡条无铅锡条 QIAODO 3 磁片 ⌀50*锰锌硬磁片开L槽TAIYI CO.,LTD 4 胶水 黄胶9999LIANCHENG CO.,LTD 5 高温胶纸 8mm 宽高温胶纸 CUDAK CO.,LTD 6 背胶 ⌀49*0.1CUDAK CO.,LTD HRSW ELECTRONICS CO.,LTD PART NO TITLE A11开L槽+背胶引线长15mm DRAWN BYCHECKED BY APPROVED BY 何伟华韦立红韦立红 page:2/3 SPECIFICATION FOR APPROVAL 6.SAMPLE TEST DATA 6.1DIMENSION TEST(UNIT:mm) TEST ITEMABCDEH SPEC 50±1.0 20.5±0.50.90±0.0520±3 3±1.52.8MAX 149.820.650.93213.50 2.55 249.920.630.8922.53.60 2.56 349.520.650.92223.70 2.49 45020.0550.88203.80 2.52 549.8620.450.9254.00 2.50 6 7 8 9 10 MAX50.00 20.65 0.93 25.00 4.00 2.56 MIN49.50 20.06 0.88 20.00 3.50 2.49 AVERAGE49.81 20.49 0.90 22.10 3.72 2.52 6.2ELECTRICAL TEST TEST ITEM LDCRIDC QHI-POT S-FS-F TEST COND100KHz/0.25vAT 25°C SPEC 6.5uH ±10% 70mΩ(Max) 16.51 52.00 26.52 53.00 36.49 51.00 46.53 49.00 56.52 50.00 6 7 8 9 10 MAX6.53 53.00 MIN6.49 49.00 AVERAGE6.51 51.00 HRSW ELECTRONICS CO.,LTD PART NO TITLE A11开L槽+背胶引线15mm DRAWN BYCHECKED BYAPPROVED BY 何伟华韦立红韦立红 page:3/3

深圳市宸兴电子技术有限公司 ShenzhenChenxingElectronicTechnologyCo,Ltd. 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 1 页 产品规格书 PRODUCTSPECIFICATIONFORAPPROVAL 客户名称： CUSTOMER 充向未来 产品名称： PRODUCTNAME PowerTransmitterforAppleWatch 物料编码： PARTNo. 产品规格： PRODUCTSPEC InductanceSpec:5.2uH±10% Shieldingspec:KP24.5*2.6mmsoftshieldingwithrubber Copperwirespec:2UEW/1550.08*24*11Ts（14mm Internaldiameter） SegmentLength:7mm DoublesideType:3M9448A MagnetSpec:7.8*2.5N52ElectroplatingwithZinc 日期： DATE 2023年08月31日 版本型号： VERSION REV1.0 版本 Revision 变更内容 ModifiedContent 责任人 Principle 日期 Date 备注 Note REV1.0首次发布薛磊2023-08-31 制定/PREPAREDBY审核/CHECKEDBY核准/APPROVEDBY 客户认可签名及盖章 Authorizedsignature& companychop 附上的是产品规格书，有任何疑问，请及时反馈给我们，谢谢 ! 深圳市宸兴电子技术有限公司 ShenzhenChenxingElectronicTechnologyCo,Ltd. 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 2 页 产品规格 SPECIFICATION 一、产品尺寸 ShieldingOuter DiameterMax( A) 25±0.5mm Shielding Thickness(B) 2.6±0.2mm ShieldingOuter DiameterMin(C) 23.7±0.4mm ShieldingInner Diameter(D) 21±0.5mm InnerHole OuterDiameter(E) 13.5±0.2mm ShieldingCylinder Height(F) 2.3±0.25mm InnerHole InnerDiameter(H) 7.7±0.4mm PinLength(I)3.0±0.2mm SegmentLength(J)7mm±2mm MagnetSpec7.8*2.5±0.1mm AdhesiveTape3M9448A 深圳市宸兴电子技术有限公司 ShenzhenChenxingElectronicTechnologyCo,Ltd. 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 3 页 二、原理图 三、绕线参数 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection SF 0.08*24P 11TsCCW 四、电气特性： 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS IND.S-F 5.2uH±10% 100KHz/1.0VLCZMETER1062B

ProjectNo.:ZKT-2406046205E Page 1 of 28 FCCTESTREPORT FCCID:2AA7Y-MOSHIQI012 ReportNumber. .................................. :ZKT-2406046205E DateofTest ....................................................... : Jun.07,2024toJun.14,2024 Dateofissue.........................................: Jun.14,2024 Totalnumberofpages..........................28 TestResult .......................................... : PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: AEVOEINC. Address...............................................: 3F,No.42,Sec.2,ZhongshanN.Rd,ZhogshanDist.,TaipeiCity104, Taiwan Manufacturer'sname......................: ShenZhenFutureChargerTechnologyCo.,Ltd Address ............................................... : YongfengtianIndustrialpark,3rdIndustrialzone,Fenghuang, FuyongTown,Bao′anDistrict,ShenZhen,China,518103 Testspecification: Standard................................................:FCCCFRTitle47Part15SubpartC Testprocedure.....................................: / Non-standardtestmethod ................ :N/A TestReportFormNo. ....................... : TRF-EL-107_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................: TaitaM3-in-1FoldableWirelessChargingStation Trademark...........................................: MOSHI Model/Typereference ......................... : 99MO243001 99MO243002 Ratings..................................................: Input:12V3A,9V2A,5V2A PhoneOutput:15W(Max) EarphoneOutput:5W(Max) WatchOutput:2.5W(Max) ProjectNo.:ZKT-2406046205E Page 2 of 28 Testingprocedureandtestinglocation: TestingLaboratory.......................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature) ....................... : JacksonFang Reviewer(name+signature) ....................... : LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-2406046205E Page 3 of 28 TABLEOFCONTENTS 1.VERSION..................................................................................................................................................4 2.TESTSUMMARY......................................................................................................................................5 2.1TESTFACILITY..................................................................................................................................6 2.2MEASUREMENTUNCERTAINTY.....................................................................................................6 3.GENERALINFORMATION......................................................................................................................7 3.1GENERALDESCRIPTIONOFEUT...................................................................................................7 3.2Testmode...........................................................................................................................................8 3.3BlockDiagramofEUTConfiguration..................................................................................................9 3.4TestConditions...................................................................................................................................9 3.5DescriptionOfSupportUnits(ConductedMode)...............................................................................9 3.6EQUIPMENTSLISTFORALLTESTITEMS...................................................................................10 4.CONDUCTEDEMISSIONTEST............................................................................................................12 4.1CONDUCTEDEMISSIONMEASUREMENT...................................................................................12 4.1.1POWERLINECONDUCTEDEMISSIONLimits...........................................................................12 4.1.2TESTPROCEDURE......................................................................................................................12 4.1.3DEVIATIONFROMTESTSTANDARD.........................................................................................12 4.1.4TESTSETUP.................................................................................................................................13 4.1.5EUTOPERATINGCONDITIONS..................................................................................................13 4.1.6TestResult.....................................................................................................................................14 5.RADIATEDEMISSIONMEASUREMENT..............................................................................................16 5.1RadiatedEmissionLimits..................................................................................................................16 5.2AnechoicChamberTestSetupDiagram..........................................................................................17 5.3TestProcedure.................................................................................................................................17 5.4DEVIATIONFROMTESTSTANDARD............................................................................................17 5.5TestResul…

Text truncated - open the document above for the full version.

EUTTESTPHOTO TestMode:99MO243001
