2AA9WV360360 Degree HD Camera

VSN Technologies Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 23, 2014
Application Purpose: Original Equipment
Date of Application: Nov 23, 2014
Equipment Note: 360 Degree HD Camera
Frequency Range: 2422.00000000 - 2452.00000000
Company: VSN Technologies Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Certification Exhibit FCC ID: 2AA9WV360 IC: 11665A-V360 FCC Rule Part: 15.247, 15.407 IC Radio Standards Specification: RSS-210 ACS Project: 14-2101 Manufacturer: VSN Technologies, Inc. Model: V360 User Manual 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TYPE SPEED CAPACITY MICROSDHC CLASS 10, UHS-1 OR HIGHER UP TO 128 GB MICROSDXC CLASS 10, UHS-1 OR HIGHER UP TO 128 GB QUICKSTART GUIDE LEARN MORE TO LEARN MORE ABOUT YOUR V.360° FEATURES AND SAFETY INFORMATION, PLEASE VISIT WWW.V360LIFE.COM GETTING SUPPORT PLEASE VISIT WWW.V360LIFE.COM/SUPPORT FOR DEVICE SUPPORT. SOFTWARE UPDATES TO ENSURE YOUR CAMERA HAS THE LATEST FEATURES, VISIT WWW.V360LIFE.COM TO DOWNLOAD AND INSTALL SOFTWARE UPDATES. SD CARDS ALL SD CARDS ARE NOT COMPATIBLE WITH THE V.360° CAMERA. FOR BEST RESULTS, PLEASE USE THE FOLLOWING SD CARD TYPES: BASIC CARE THE V.360° IS DESIGNED FOR ACTIVE LIFESTYLES. PROPER USE AND CARE OF THE V.360° IS ESSENTIAL FOR OPTIMAL PERFORMANCE TO KEEP THE CAMERA IN PROPER WORKING ORDER, MAKE SURE THE BATTERY DOOR IS PROPERLY INSTALLED TO PROVIDE A WATER- TIGHT SEAL. FAILURE TO DO SO WILL RESULT IN DAMAGE TO THE CAMERA. CLEANING INSTRUCTIONS CLEAN CAMERA WITH THE INCLUDED MICROFIBER POUCH OR A SOFT CLOTH OR TOWEL. THE USE OF CLEANING AGENTS INCLUDING ISOPROPHYL ALCOHOL ARE NOT RECOMMENDED. STORAGE FOR BEST RESULTS, STORE YOUR CAMERA INSIDE THE INCLUDED MICROFIBER POUCH AT ROOM TEMPERATURE IN A CLEAN AND DRY AREA. WARRANTY FOR DETAILS REFER TO FULL WARRANTY TERMS AND CONDITIONS FOUND AT WWW.V360LIFE.COM/SUPPORT FOR A COPY OF THE WARRANTY TERMS & CONDITIONS, PLEASE SEND YOUR REQUEST TO: [email protected] TERMS AND CONDITIONS THE USE OF V360 ̊ IS SUBJECT TO THE TERMS AND CONDITIONS FOUND AT WWW.V360LIFE.COM/TERMSANDCONDITIONS TJ MARTELL FOUNDATION VSN MOBIL IS A PROUD SUPPORTER AND SPONSOR OF THE T.J. MARTELL FOUNDATION. THE T.J. MARTELL FOUNDATION IS THE MUSIC INDUSTRY'S LARGEST FOUNDATION THAT FUNDS INNOVATIVE MEDICAL RESEARCH FOCUSED ON FINDING CURES FOR LEUKEMIA, CANCER AND AIDS. THE FOUNDATION SOURCES AND SUPPORTS EARLY-STAGE RESEARCH PROJECTS AIMED AT DEVELOPING MORE EFFECTIVE CLINICAL TREATMENTS FOR PATIENTS WHICH OTHERWISE MIGHT NOT BE FUNDED. FOR MORE INFORMATION, PLEASE VISIT WWW.TJMARTELL.ORG. LEGAL V.360 ̊ AND VSN MOBIL ARE TRADEMARKS OF VSN TECHNOLOGIES, INC. IPHONE, IPAD AND APP STORE ARE REGISTERED TRADEMARKS OF APPLE INC. ANDROID AND GOOGLE PLAY ARE TRADEMARKS OF GOOGLE INC. © 2014 VSN MOBIL. ALL RIGHTS RESERVED. P/N: QV360001A 1 LED INDICATOR 2 USB 3.0 CHARGING PORT 3 SD CARD SLOT – A MICRO-SD CARD IS REQUIRED FOR OPERATION. INSERT SD CARD INTO SLOT. PRESS DOWN GENTLY TO LOCK INTO PLACE 4 HDMI PORT – CABLE NOT INCLUDED. USE OF FERRITE CORE HDMI CABLES IS HIGHLY RECOMMENDED 5 BATTERY: - INSERT BATTERY WITH THE PULL-TAB FACING DOWN - CHARGE FOR AT LEAST 2 HOURS PRIOR TO USE BY CONNECTING THE SUPPLIED USB 3.0 CABLE - YOUR CAMERA’S LED INDICATOR WILL TURN SOLID GREEN WHEN CHARGING IS COMPLETE 6 BATTERY DOOR: - TURN COUNTER CLOCKWISE TO UNLOCK - TO ATTACH, TURN CLOCKWISE TO LOCK IT INTO PLACE IMPORTANT: VERIFY THE BATTERY DOOR IS SEATED PROPERLY TO ENSURE THE CAMERA’S WATERTIGHT SEAL IS INTACT ASSEMBLYHOME SCREEN LAYOUTINITIAL SET UP V.360° COMPANION APPLICATION THE V.360° APPLICATION CONTROLS YOUR CAMERA VIA AN ANDROID™ OR IOS® SMART- PHONE OR TABLET. TO GET STARTED, DOWNLOAD THE FREE V.360° COMPANION APPLICATION FROM GOOGLE PLAY™ OR THE APPLE APP STORE® AND INSTALL IT ONTO YOUR DEVICE. IT IS RECOMMENDED THAT YOU PERSONALIZE YOUR CAMERA BY CHANGING THE DEFAULT CAMERA NAME AND PIN AFTER INITIAL SETUP. CAMERA ON/OFF THE CAMERA WILL TURN ON AUTOMATICALLY WHEN YOU CONNECT VIA THE V.360° APP. TO TURN YOUR CAMERA OFF, TOUCH THE GENERAL SETTINGS ICON ON YOUR APP AND SLIDE THE SWITCH NEXT TO POWER OFF CAMERA TO OFF. CONNECT TO CAMERA TO ESTABLISH A CONNECTION TO YOUR CAMERA USING A SMARTPHONE OR TABLET: (1) ENSURE THAT WIFI AND BLUETOOTH ARE ENABLED WITHIN THE SETTINGS MENU ON YOUR DEVICE. (2) LAUNCH THE V.360° COMPANION APPLICA- TION. YOUR DEVICE WILL AUTOMATICALLY SEARCH FOR AVAILABLE CAMERAS. (3) TOUCH THE CAMERA’S ICON TO ESTABLISH A CONNECTION VIA BLUETOOTH. THE CAMERA LED WILL RAPIDLY BLINK GREEN TO INDICATE THAT IT IS POWERING ON. (4) WHEN CAMERA IS ON AND IN READY MODE, THE LED WILL SLOWLY FLASH GREEN. (5) WHEN PROMPTED, ENTER THE DEFAULT PIN (0000) FOR YOUR CAMERA THE FIRST TIME YOU CONNECT TO YOUR CAMERA. (6) ONCE CONNECTED, THE APP WILL GUIDE YOU THROUGH INSTRUCTIONS TO ESTABLISH A CONNECTION TO YOUR CAMERA AS A WIFI HOST. (7) RE-LAUNCH THE V.360° APP AND TOUCH THE CAMERA ICON TO EASABLISH A CONNECTION VIA WIFI 1 BACK BUTTON – TOGGLE TO PREVIOUS SCREEN 2 SHOTGLASS VIEW FINDER – TOGGLE LEFT/RIGHT TO ROTATE, UP/DOWN TO SWITCH TO FLAT VIEW 8 SD CARD - REMAINING PHOTOS/VIDEO RECORD TIME 5 MODE SPECIFIC SETTINGS TAB 7 MEDIA GALLERY – DISPLAY STORED CONTENT (VIDEOS & PHOTOS) 9 SD CARD - STORED PHOTOS/VIDEO COUNTER 3 MODE CAROUSEL – SCROLL LEFT/RIGHT TO SWITCH BETWEEN VIDEO, PHOTO, BURST, TIME LAPSE, & SURVEILLANCE MODES 4 SHUTTER BUTTON – START/STOP RECORDING, CAPTURE PHOTOS 6 REMOTE CONTROL TAB – ACCESS TO CAMERA CONTROLS/FEATURES 1 2 3 4 5 7 8 9 11 PLEASE READ THIS GUIDE BEFORE YOU USE THIS PRODUCT. LIVE STREAM VIEWER – ON/OFF 10 10 CAMERA BATTERY LIFE INDICATOR 11 GENERAL CAMERA SETTINGS 12 * IMAGES ARE FOR REFERENCE ONLY. 12 1 3 5 6 6 2 4 FCC NOTICE V.360 FCC ID: 2AA9WV360 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FOR CLASS B DEVICES: “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates u…

Text truncated - open the document above for the full version.

Cover Letter(s)

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com Nov 6, 2014 FCC AGENCY AGREEMENT LETTER Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: 2AA9WV360 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Name: Amit Verma Signature: Title: Director of Test Engineering Date: Nov 6, 2014 VSN Technologies Inc. d/b/a VSN Mobil 1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304

Cover Letter(s)

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com Nov 6, 2014 CONFIDENTIALITY REQUEST Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: VSN Technologies Inc. respectfully requests confidentiality of certain materials provided with the submission of the Model No. V360, a 360 degree HD Camera under FCC ID: 2AA9WV360 in accordance with 47 CFR 0.457(d) and 47 CFR 0.459. The confidentiality request applies to the images, block diagram, schematics and theory of operation contained in this filing and included in the following files. 14-2101 – Block Diagram.pdf 14-2101 – Schematics.pdf 14-2101 – Theory of Operation.pdf The V.360 has been developed at considerable effort and expense by VSN Technologies Inc. d/b/a VSN Mobil. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Amit Verma Signature: Title: Director of Test Engineering Date: Nov 6, 2014 VSN Technologies Inc. d/b/a VSN Mobil 1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 November 13, 2014 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2AA9WV360 To Whom It May Concern: The following application is submitted on behalf of our client, VSN Technologies, Inc., for evaluation of their model V360 for certification under FCC Part 15.247 and FCC Part 15.407. The VSN Technologies model V360 is a high definition (HD) digital camera with two transceivers. The first transceiver includes of 2.4/5 GHz WLAN+Bluetooth 3.0/4.0 modes of operation. The second transceiver includes Bluetooth Low Energy (BLE) only. The BLE transceiver is capable of transmitting at the same time with the first transceiver for each mode of operation. The evaluation of these transceivers when operating at the same time was performed and the inter-modulation product emissions from the co-located radios were found to be in compliance. The FCC ID:2AA9WV360 was tested in full and was found to be in compliance with the aforementioned test requirements. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

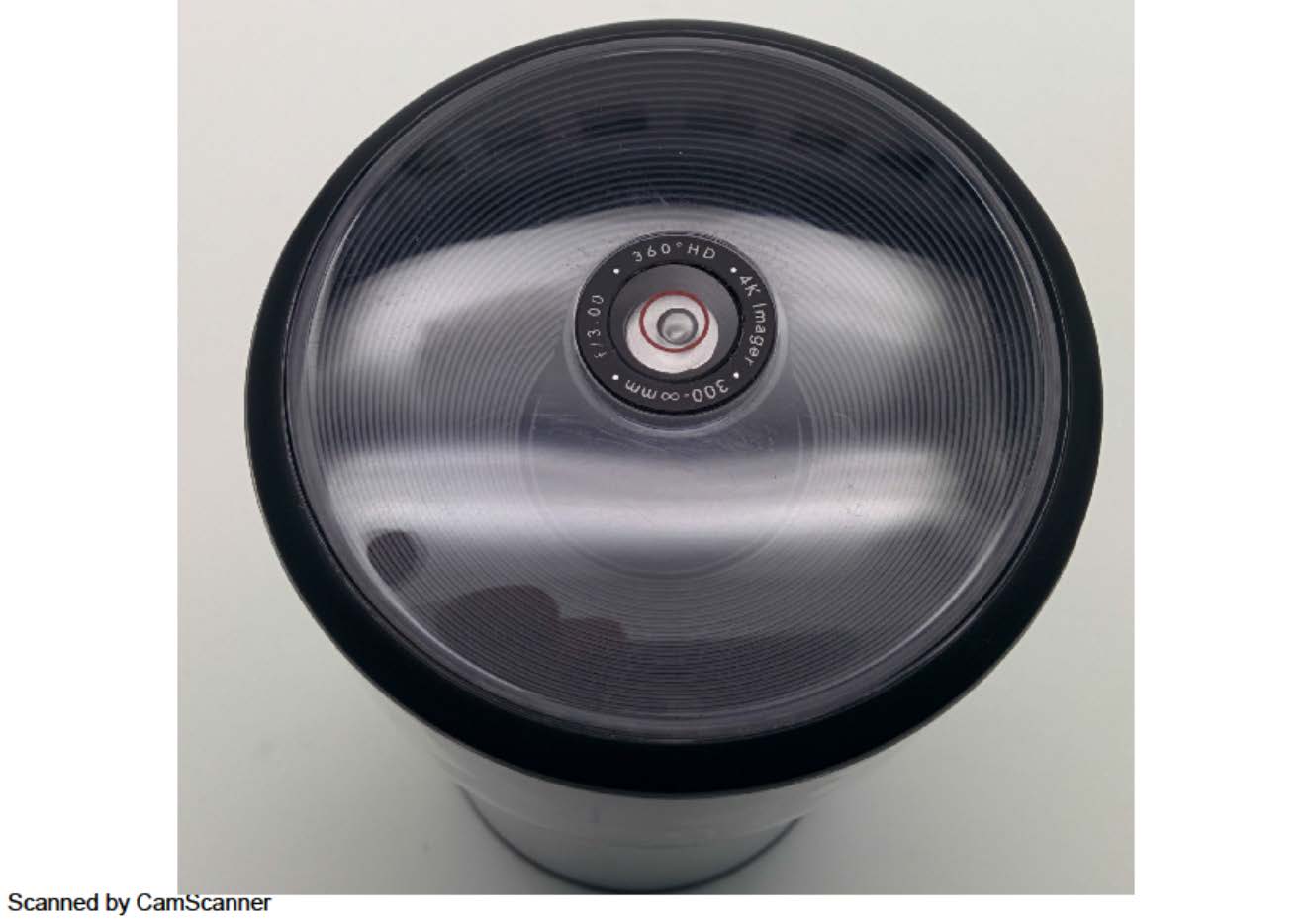

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Certification Exhibit FCC ID: 2AA9WV360 IC: 11665A-V360 FCC Rule Part: 15.247, 15.407 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-2101 Manufacturer: VSN Technologies, Inc. Model: V360 RF Exposure 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Model: V360 FCC ID: 2AA9WV360 IC: 11665A-V360 General Information: Applicant: VSN Technologies, Inc. ACS Project: 14-2101 Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Main Board Antenna Type: Monopole Parasitic Antenna Antenna Gain: 0.71 dBi (2.4 GHz), 2.93 dBi (5 GHz) Maximum Transmitter Conducted Power: 18.09 dBm, 64.4169 mW Maximum System EIRP: 18.8 dBm, 75.8578 mW Exposure Conditions: Greater than 20 centimeters Daughter Board Antenna Type: Meander Antenna Antenna Gain: -0.78 dBi Maximum Transmitter Conducted Power: 3.34 dBm, 2.1577 mW Maximum System EIRP: 2.56 dBm, 1.803 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Table 1: Maximum MPE on Main Board MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* BLE 2400-0.351.000.920.711.178 200.000 BT3.0240011.031.0012.68 0.711.178 200.003 2.4G WLAN2400 18.091.0064.420.711.178 200.015 5G WLAN510015.841.0038.372.93 1.963 200.015 Mode Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Table 2: Maximum MPE on Daughter Board MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* BLE24003.341.002.16-0.780.836 200.000 Mode Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) ACS Project: 14-2101 Advanced Compliance Solutions Page 2 Model: V360 FCC ID: 2AA9WV360 IC: 11665A-V360 Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: Summation of Power Densities The radio on the daughter board can transmit simultaneously with any of the configuration of the radio located the main board. Therefore, the maximum RF exposure condition is determined by the summation of the MPE ratios. The limit is such that the total MPE ratio is less or equal to 1.0. Daughter Board BLE and 2.4 GHz WLAN Operating Simultaneously BLE MPE ratio + 2.4 GHz WLAN MPE Ratio (0.000/1) + (0.015/1) = 0.015 < 1 Daughter Board BLE and 5 GHz WLAN Operating Simultaneously BLE MPE ratio + 5 GHz WLAN MPE Ratio (0.000/1) + (0.015/1) = 0.015 < 1 RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population. ACS Project: 14-2101 Advanced Compliance Solutions Page 3

Test Report

Certification Test Report FCC ID: 2AA9WV360 IC: 11665A-V360 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 14-2101.W06.1A Manufacturer: VSN Technologies, Inc. Model(s): V360 Test Begin Date: September 9, 2014 Test End Date: November 19, 2014 Report Issue Date: November 19, 2014 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Reviewed by: Thierry Jean-Charles EMC Engineer Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 19 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Manufacturer Information .............................................................................................................. 3 1.3 Product Description .......................................................................................................................... 3 1.4 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 5 2.1 Location ............................................................................................................................................. 5 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 5 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 6 3 APPLICABLE STANDARD REFERENCES................................................... 8 4 LIST OF TEST EQUIPMENT .......................................................................... 9 5 SUPPORT EQUIPMENT .............................................................................. 10 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ............................ 12 7 SUMMARY OF TESTS ................................................................................. 13 7.1 Antenna Requirement – FCC: Section 15.203 ..............................................................................13 7.2 Radiated Spurious Emissions into Restricted Frequency Bands - FCC 15.205, 15.209; IC: RSS-210 2.2, RSS-Gen 8.9, 8.10 ..................................................................................................................13 7.3 Power Line Conducted Emissions – FCC: Section 15.207 IC: RSS-Gen 8.8 ..............................16 8 CONCLUSION .............................................................................................. 19 Model: V360 FCC ID: 2AA9WV360 IC: 11665A-V360 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210 for the tests specified in this document. 1.2 Manufacturer Information VSN Technologies, Inc. 1975 E. Sunrise Blvd., Suite 400 Fort Lauderdale, FL 33304 1.3 Product Description The VSN Technologies model V360 is a high definition (HD) digital camera, with option for USB and HDMI connection. The product offers multiple wireless capabilities such as 2.4/5GHz 802.11b/g/n WLAN, Bluetooth 3.0 and Bluetooth Low Energy (BLE). There are two Bluetooth Low Energy sources on the product. One is located on the main board while the other is located on the daughter board. The BLE transceiver on the daughter board can transmit simultaneously with the transceiver on the main board for the WLAN, BLE and Bluetooth 3.0 modes of operation. Technical Details Mode of Operation: Bluetooth Low Energy (BLE) Frequency Range: 2402 MHz - 2480 MHz Number of Channels: 40 Channel Separation: 2 MHz Transmit Data Rates: 1 Mbps Modulations: GFSK Antenna Type/Gain: Monopole with Parasitic Antenna, 0.71 dBi (Main board) Meander Antenna, -0.78 dBi (Daughter board) Input Power: 3.7V (Lithium Ion Battery), 5 VDC USB Model Number: V360 Test Sample Serial Number(s): ACS#27, ACS#45 Test Sample Condition: The samples were in good conditions with no observable physical damages. 1.4 Test Methodology and Considerations The EUT was evaluated for radiated and power line conducted emissions for the Bluetooth Low Energy radio located on both the main board and the daughter board. The RF conducted emissions at the antenna port measurement results are documented in a separate test report. For the evaluation, the EUT was set in the orientation of typical use. The radiated emissions were investigated up to the 10 th harmonic for each of the BLE radios. The EUT was also assessed for radiated emissions of intermodulation products for the BLE radio on the daughter board transmitting simultaneously with the BLE, WLAN and Bluetooth 3.0. All intermodulation products generated by the co- transmission of the co-located radios were found compliant to the limits of FCC Section 15.209. For the power line conducted emissions evaluation, preliminary testing was performed for the EUT powered via the laptop and for the EUT powered via the AC power supply. The input voltage to the AC ACS Report: 14-2101.W06.1A Advanced Compliance Solutions Page 3 of 19 Model: V360 FCC ID: 2AA9WV360 IC: 11665A-V360 power supply was set to both 120V/60Hz and 230V/50Hz. The final measurements were performed on the worst case configuration. The unit w…

Text truncated - open the document above for the full version.

Test Report

BLE for APQ Measurements Test Report FCC ID: 2AA9WV360 IC: 11665A-V360 FCC Rule Part: FCC Part 15 Subpart C Manufacturer: VSN Technologies Inc. Model: V360 Test Facility: 12 Ang Mo Kio St 64 #03-01 UE BizHub Central (Blk A), 569088 Singapore. Test Begin Date: Oct 1, 2014 Test End Date: Oct 31, 2014 Report Issue Date: Nov 3, 2014 Test By: Reviewed By: Name: Christy Lim Name: Yu Xue Dong Signature: Christy Signature: Xue Dong 1 1. List of Test Equipment Manufactu rer Model Equipment Type Serial No. Last Calibration Date Calibration Due Date Agilent E4404B Spectrum Analyzer MY44220422 06 Jan 14 06 Jan 16 Advantest R3273 Spectrum Analyzer 95090358 06 Oct 14 06 Oct 15 Agilent N1911A Power Meter MY50150005 24 Apr 13 24 Apr 15 Agilent N1921A Power Sensor MY50150006 16 Jun 13 16 Jun 15 2. Applicable Standard References The following standards were used: FCC Rules Description of Test Result § 15.247 (a) (2) 6dB Bandwidth Pass § 15.247 (b) (3) Peak Output Power Pass § 15.247 (d) 100kHz Bandwidth of Frequency Band Edges Pass § 15.247 (e) Power Spectral Density Pass § 15.209 Spurious Emission Pass 2 3. Summary of Tests 3.1 6 dB Bandwidth – FCC Section 15.247 (a) (2) 3.1.1 Measurement Procedure The 6dB bandwidth was measured in accordance with the FCC KDB Publication No.558074 V03r02 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” DTS 6-dB Signal Bandwidth Option 1. The RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. Span was set large enough to capture the entire emissions and >> RBW. The 99% occupied bandwidth was measured using the spectrum analyzer span set to fully display the emission, including the emissions skirts. The RBW was set to 1% to 3% of the 99% bandwidth. The VBW was set to 3 times the RBW. The spectrum analyzer internal 99% bandwidth function is utilized. 3.1.2 Measurement Results Below table shows the summary of measurements. The measurements were performed using the standard described in section 2.1.1 Frequency (MHz) 6dB Bandwidth (kHz) 99% Bandwidth (MHz) 2402 800 1.1141 2442 800 1.1074 2480 800 1.1084 Table 1 Following are the plots from the spectrum Analyzer for 6dB bandwidth and 99% bandwidth. 3 6dB Bandwidth-Low Channel 6dB Bandwidth-Middle Channel 4 6dB Bandwidth-High Channel 99% Bandwidth-Low Channel 5 99% Bandwidth-Middle Channel 99% Bandwidth-High Channel 6 3.2 Peak Output Power – FCC Section 15.247 (b)(1) 3.2.1 Measurement Procedure The peak output power was measured in accordance with the FCC KDB Publication No.558074 V03r02 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” Section 9.1.3 Peak Power Meter Method. Measurement Result Below table shows the summary of measured power Frequency (MHz) RF Output Power (dBm) 2402 -0.41 2442 -0.44 2480 -0.35 Table 2 3.3 Band-Edge Compliance of RF Conducted Emissions – FCC Section 15.247(d) 3.3.1 Measurement Procedure The band-edge measurement was measured in accordance with the FCC KDB Publication No.558074 V03r02 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” Section 13.2 Marker-delta Method. The RF output of the equipment under test was directly connected to the input of the spectrum analyzer through suitable attenuation. The EUT was investigated at the lowest and highest channel available to determine band-edge compliance. The RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. The reference level was determined by measuring the Peak PSD level in any 100 kHz bandwidth within the DTS channel bandwidth. 3.3.2 Measurement Results 7 Lower Band Edge Upper Band Edge 8 3.4 Power Spectral Density – FCC Section 15.247(e) 3.4.1 Measurement Procedure The power spectral density was measured in accordance with the FCC KDB Publication No.558074 V03r02 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” Section 10.2 Peak PSD Method. The RBW of the spectrum analyzer was set to 3 kHz and VBW 10 kHz. The peak marker function was used to determine the maximum amplitude level within the RBW. 3.4.2 Measurement Result Frequency (MHz) PSD/3kHz (dBm) Limit (dBm) 2402 -12.81 8 2442 -12.79 8 2480 -12.62 8 PSD-Low Channel 9 PSD-Middle Channel PSD-High Channel 10 3.5 Conducted Spurious Emissions – FCC Section 15.247(d) 3.5.1 Measurement Procedure The RF conducted spurious emissions were measured in accordance with the FCC KDB Publication No.558074 V03r02 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)”. The RF output of the equipment under test was directly connected to the input of the spectrum analyzer. The EUT was investigated for conducted spurious emissions from 30MHz to 26GHz, 10 times the highest fundamental frequency. Measurements were made at the low, middle and high channels of the EUT. For each measurement, the RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. The reference level was determined by measuring the peak PSD level in any of the 100 kHz bandwidth within the DTS channel bandwidth. 3.5.2 Measurement Result Low Channel (30MHz to 3GHz) 11 Low Channel (2GHz to 13GHz) Low Channel (13GHz to 26GHz) 12 Middle Channel (30MHz to 3GHz) Middle Channel (2GHz to 13GHz) 13 Middle Channel (13GHz to 26GHz) High Channel (30MHz to 3GHz) 14 High Channel (2GHz to 13GHz) High Channel (13GHz to 26GHz) 15

Test Report

Bluetooth 4.0 Daughter Board Conducted Measurements Test Report FCC ID: 2AA9WV360 IC: 11665A-V360 FCC Rule Part: FCC Part 15 Subpart C Manufacturer: VSN Technologies Inc. Model: V360 Test Facility: 12 Ang Mo Kio St 64 #03-01 UE BizHub Central (Blk A), 569088 Singapore. Test Begin Date: Oct 1, 2014 Test End Date: Oct 31, 2014 Report Issue Date: Nov 3, 2014 Test By: Reviewed By: Name: Christy Lim Name: Yu Xue Dong Signature: Christy Signature: Xue Dong 1 1 List of Test Equipment Manufactu rer Model Equipment Type Serial No. Last Calibration Date Calibration Due Date Agilent E4404B Spectrum Analyzer MY44220422 06 Jan 14 06 Jan 16 Advantest R3273 Spectrum Analyzer 95090358 06 Oct 14 06 Oct 15 Agilent N1911A Power Meter MY50150005 24 Apr 13 24 Apr 15 Agilent N1921A Power Sensor MY50150006 16 Jun 13 16 Jun 15 2 Applicable Standard References The following standards were used: FCC Rules Description of Test Result § 15.247 (a) (2) 6dB Bandwidth Pass § 15.247 (b) (3) Peak Output Power Pass § 15.247 (d) 100kHz Bandwidth of Frequency Band Edges Pass § 15.247 (e) Power Spectral Density Pass § 15.209 Spurious Emission Pass 3 Summary of Tests 3.1 6 dB Bandwidth – FCC Section 15.247 (a) (2) 3.1.1 Measurement Procedure The 6dB bandwidth was measured in accordance with the FCC KDB Publication No.558074 v03r02“Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” DTS 6-dB Signal Bandwidth Option 1. The RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. Span was set large enough to capture the entire emissions and >> RBW. The 99% occupied bandwidth was meas…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Amit Verma(Director of Test Engineering)

[email protected]9546094912Fax: 9543068450

Test Firm

TUV SUD America, Inc.Sam Wismer

[email protected]678-341-5924Fax: 678-341-5924

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15C	2.42 GHz - 2.45 GHz	18.80 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. This device has 20 and 40 MHz BW modes.
