2AA9WV500Low Energy Bluetooth 4.0 Remote

VSN Technologies Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 17, 2014
Application Purpose: Original Equipment
Date of Application: Nov 17, 2014
Equipment Note: Low Energy Bluetooth 4.0 Remote
Frequency Range: 2402.00000000 - 2480.00000000
Company: VSN Technologies Inc.
Country: United States

Documents & Files

Select a file to view

ID Label/Location Info

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Certification Exhibit FCC ID: 2AA9WV500 IC: 11665A-V500 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project: 14-2094 Manufacturer: VSN Technologies, Inc. Model: V500 User Manual 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 REMOTE QUICKSTART GUIDE LEARN MORE TO LEARN MORE ABOUT YOUR V.360° REMOTE FEATURES AND SAFETY INFORMATION, PLEASE VISIT WWW.V360LIFE.COM GETTING SUPPORT PLEASE VISIT WWW.V360LIFE.COM/SUPPORT FOR DEVICE SUPPORT. WARRANTY FOR DETAILS REFER TO FULL WARRANTY TERMS AND CONDITIONS FOUND AT WWW.V360LIFE.COM/SUPPORT FOR A COPY OF THE WARRANTY TERMS & CONDITIONS, PLEASE SEND YOUR REQUEST TO: [email protected] LEGAL V.360° AND VSN MOBIL ARE TRADEMARKS OF VSN TECHNOLOGIES, INC. © 2014 VSN MOBIL. ALL RIGHTS RESERVED. AAA AAA ASSEMBLY * TO INSTALL THE BATTERY DOOR, ALIGN THE TAB ON THE BATTERY DOOR WITH THE UNLOCK ICON ON THE SIDE OF THE REMOTE. PRESS FIRMLY AND TURN CLOCKWISE TO LOCK IT. TO REMOVE TURN COUNTER-CLOCKWISE. NOTE: MAKE SURE THE BATTERY DOOR IS SEATED PROPERLY TO KEEP OUT DUST, DIRT, AND MOISTURE. LED INDICATOR POWER STATUS GREEN FLASHING SLOWLY: BATTERY STATUS NORMAL RED SOLID: POWERING OFF FLASHING: LOW BATTERY CAMERA OPERATION RED SOLID: RECORDING VIDEO SINGLE FLASH: CAPTURING IMAGE PAIR REMOTE TO CAMERA THE REMOTE WILL AUTOMATICALLY PAIR ITSELF WITH THE CAMERA THE FIRST TIME IT’S USED. JUST PRESS THE POWER BUTTON TWICE. UNPAIR BLUETOOTH REMOTE ONCE THE REMOTE HAS BEEN PAIRED TO A CAMERA, IT WILL ONLY WORK WITH THAT CAMERA. TO USE THE REMOTE WITH A DIFFERENT CAMERA, YOU MUST USE THE V.360 ° TM APPLICATION TO UNPAIR IT FROM ITS CURRENT CAMERA. (1) OPEN THE V.360° APP AND CONNECT TO YOUR CAMERA. (2) TOUCH THE GENERAL SETTINGS ICON > SELECT FORGET REMOTE LED INDICATOR CAMERA SHUTTER BUTTON POWER BUTTON BATTERY DOOR RECORD BUTTON AAA BATTERIES (INSTALL AS SHOWN) FCC NOTICE V.360r FCC ID: 2AA9WV500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FOR CLASS B DEVICES: “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.” RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment is in direct contact with the body of the user under normal operating conditions. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Warning: Changes or modifications to this device not expressly approved by VSN Mobil could void the user’s authority to operate the equipment. AVISO DE FCC ESTE DISPOSITIVO CUMPLE CON LA PARTE 15 DE LAS REGLAS FCC. LA OPERACIÓN ESTÁ SUJETA A LAS SIGUIENTES DOS CONDICIONES: 1) ESTE DISPOSITIVO NO PUEDE CAUSAR INTERFERENCIAS PERJUDICIALES; Y 2) ESTE DISPOSITIVO DEBE ACEPTAR CUALQUIER INTERFERENCIA RECIBIDA, INCLUYENDO INTERFERENCIA QUE PUEDA CAUSAR UN FUNCIONAMIENTO NO DESEADO. Este dispositivo ha sido probado y cumple con los límites para un dispositivo digital clase B, conforme a la parte 15 de las Reglas FCC. Ver 47 CFR Sec. 15.105(b). Estos límites están diseñados para proporcionar una protección razonable contra interferencias dañinas en las instalaciones residenciales. Este equipo genera, utiliza y puede irradiar energía de radiofrecuencia y si no se instala y utiliza de acuerdo con las instrucciones, puede causar interferencias perjudiciales a las comunicaciones por radiofrecuencia. Sin embargo, no hay ninguna garantía de que no habrá interferencias en una instalación determinada. Si el equipo causa interferencia dañina a la recepción de radio o televisión, lo cual puede determinarse encendiendo y apagando el aparato, se recomienda al usuario que intente corregir la interferencia por uno o más de las siguientes medidas: 1) Reorientar o reubicar la antena receptora; 2) Aumentar la separación entre el equipo y el receptor; 3) Conectar el equipo a un tomacorriente de un circuito distinto al que está conectado el receptor; o 4) Consulte al distribuidor o un técnico experimenta- do en radio/TV para obtener ayuda. EXPOSICIÓN RADIOELÉCTRICA Este equipo cumple con los límites de exposición a la radiación de la FCC determinados para sin supervisión un entorno. Este equipo está en contacto directo con el cuerpo del usuario en condiciones de funcionamiento normal.Este transmisor no se debe colocar ni operar con ninguna otra antena o transmisor. Advertencia: Este dispositivo no está diseñado para ser cambiado o modificado por el usuario. Cualquier cambio o modificación al dispositivo anulará la garantía y podría anular la autoridad del usuario para utilizar este dispositivo. FCC NOTICE V.360r FCC ID: 2AA9WV500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, A…

Text truncated - open the document above for the full version.

Cover Letter(s)

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com Sep 26, 2014 FCC AGENCY AGREEMENT LETTER Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: 2AA9WV500 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Name: Amit Verma Signature: Title: Director of Test Engineering Date: Sep 26, 2014 VSN Technologies Inc. d/b/a VSN Mobil 1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304

Cover Letter(s)

1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304 Phone: 9546094912 E-Mail: [email protected] Web: www.vsnmobil.com Sep 26, 2014 CONFIDENTIALITY REQUEST Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: VSN Technologies Inc. respectfully requests confidentiality of certain materials provided with the submission of the Model No. V500, a Bluetooth 4.0 Remote under FCC ID: 2AA9WV500 in accordance with 47 CFR 0.457(d) and 47 CFR 0.459. The confidentiality request applies to the images, block diagram, schematics and theory of operation contained in this filing and included in the following files. 14-2094 – Block Diagram.pdf 14-2094 – Schematics.pdf 14-2094 – Theory of Operation.pdf The V.360r has been developed at considerable effort and expense by VSN Technologies Inc. d/b/a VSN Mobil. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Amit Verma Signature: Title: Director of Test Engineering Date: Oct 23, 2014 VSN Technologies Inc. d/b/a VSN Mobil 1975 E. Sunrise Blvd., #400 Fort Lauderdale, FL 33304

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 November 7, 2014 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2AA9WV500 To Whom It May Concern: The following application is submitted on behalf of our client, VSN Technologies, Inc., for evaluation of their model V500 for certification under FCC Part 15.247. The model V500 is a remote control which operates in the 2.4 GHz ISM band using the Bluetooth Low Energy (BLE) technology. The unit allows control of the VSN Technology V360 camera. The FCC ID:2AA9WV500 was tested in full and was found to be in compliance with the aforementioned test requirements. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

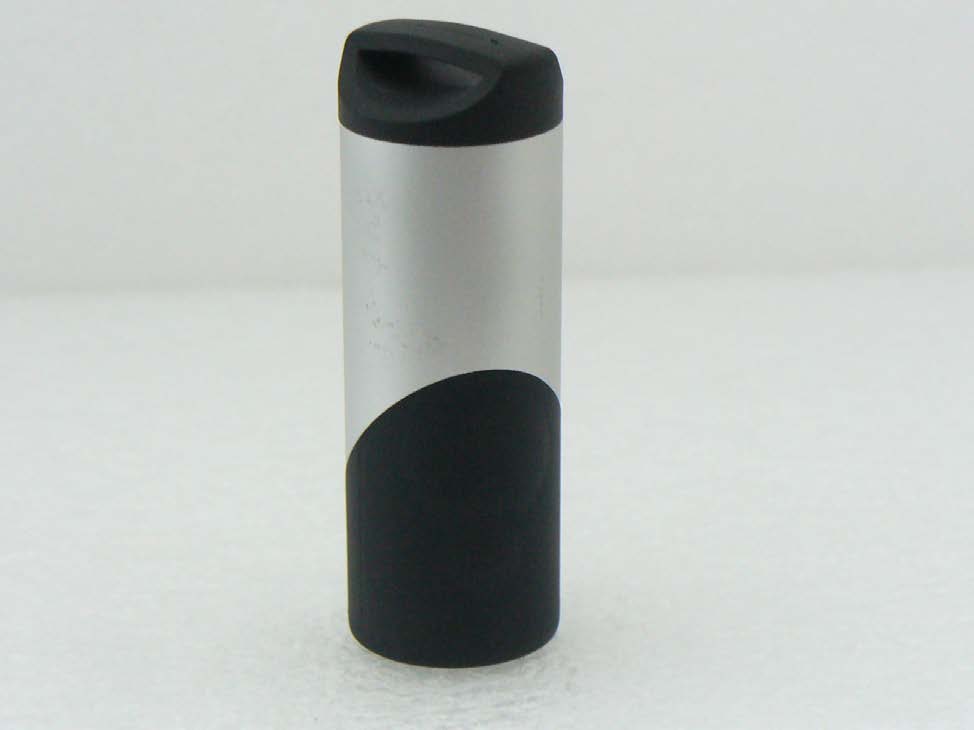

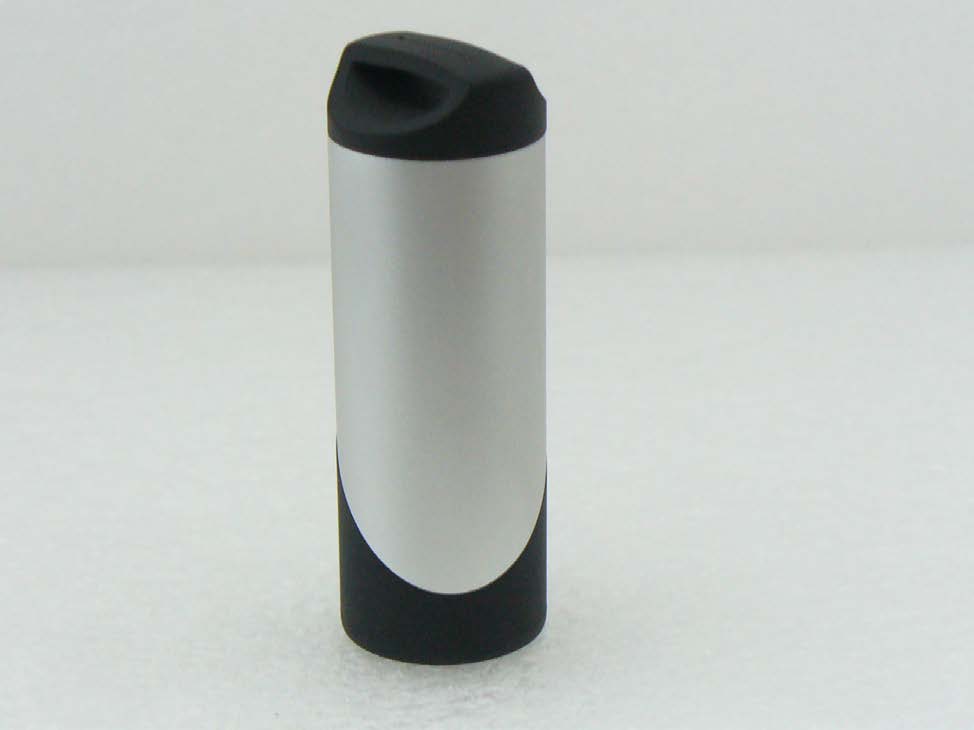

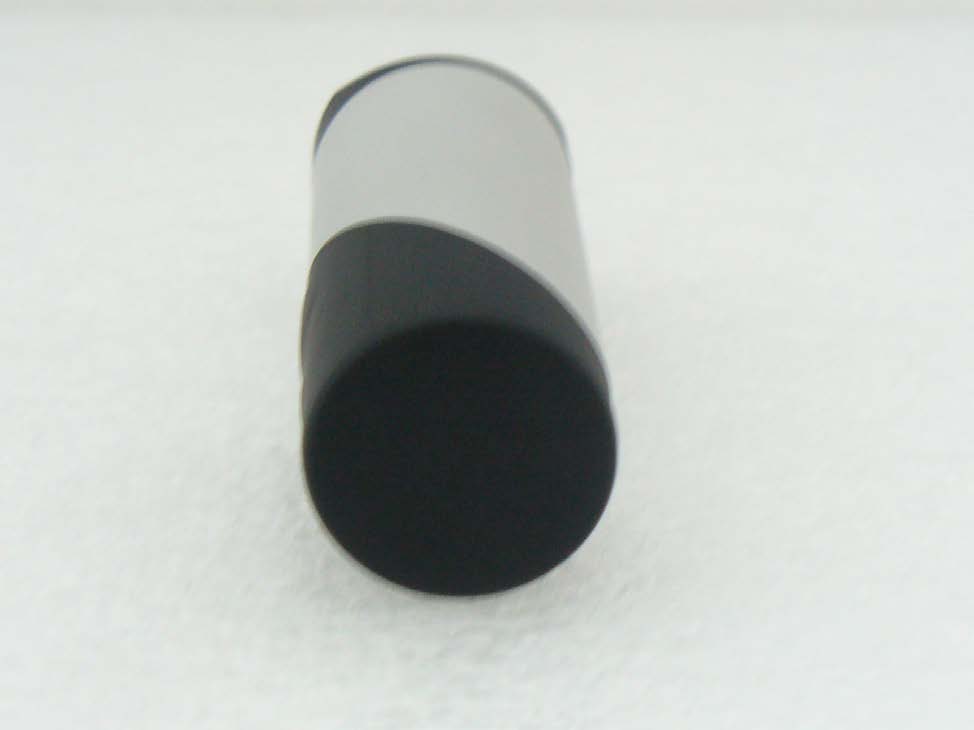

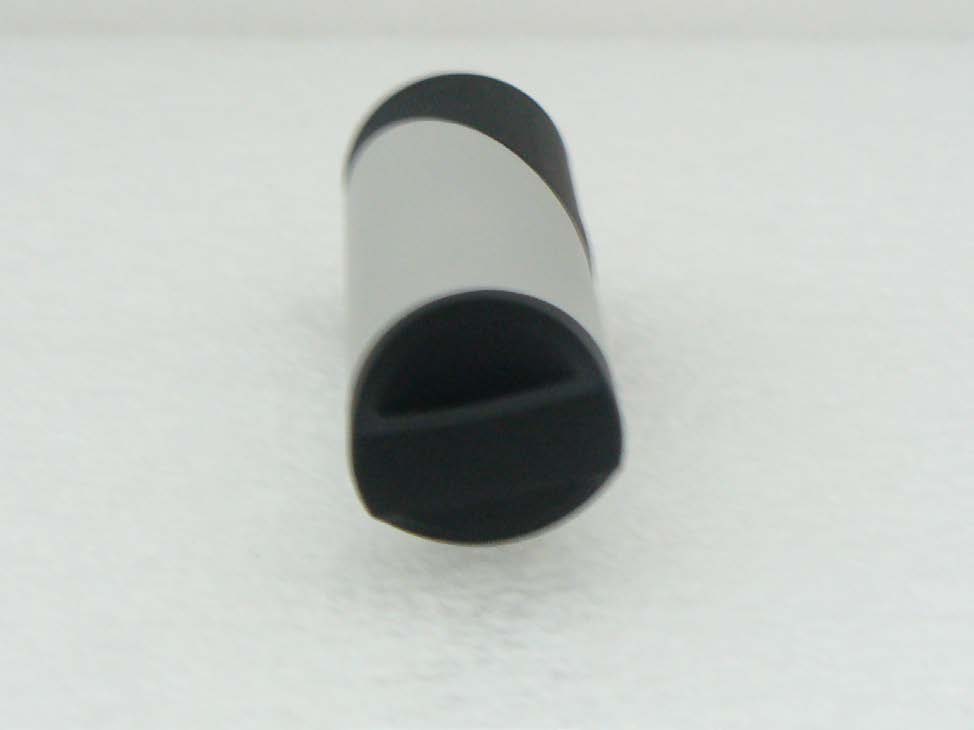

External Photos

Internal Photos

RF Exposure Info

Certification Exhibit FCC ID: 2AA9WV500 IC: 11665A-V500 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-2094 Manufacturer: VSN Technologies, Inc. Model: V500 RF Exposure 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Model: V500 FCC ID: 2AA9WV500 IC: 11665A-V500 General Information: Applicant: VSN Technologies, Inc. ACS Project: 14-2094 Device Category: Portable Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Printed Inverted-F Antenna (PIFA) Antenna Gain: -3.05 dBi Maximum Transmitter Conducted Power: 4.11 dBm, 2.5763 mW Maximum System EIRP: 1.06 dBm, 1.2764 mW Justification for Exclusion: The VSN Technologies model V500 is a remote control for the V360 camera which includes a Bluetooth Low Energy (BLE) transceiver. The unit is a hand-held device and operates from 2402 MHz to 2480 MHz. Based on the equipment’s typical mode of operation, the justification for SAR test exclusion is provided below: Minimum Distance: 5 mm Highest Operating Frequency: 2480 MHz Maximum System Power: 2.5673 mW Per KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min.test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. = (2.5763 / 5) * (√2.48) = 0.51526 * 1.575 = 0.8 Based on the results above, the unit meets both body and extremity SAR exclusion requirements. ACS Project: 14-2094 Advanced Compliance Solutions Page 2

Test Report

BLE for Remote Conducted Measurements Test Report FCC ID: 2AA9WV500 IC: 11665A-V500 FCC Rule Part: FCC Part 15 Subpart C Manufacturer: VSN Technologies Inc. Model: V500 Test Facility: 12 Ang Mo Kio St 64 #03-01 UE BizHub Central (Blk A), 569088 Singapore. Test Begin Date: Aug 1, 2014 Test End Date: Nov 6, 2014 Report Issue Date: Nov 6, 2014 Test By: Reviewed By: Name: Christy Lim Name: Yu Xue Dong Signature: Christy Signature: Xue Dong 1. List of Test Equipment Manufactu rer Model Equipment Type Serial No. Last Calibration Date Calibration Due Date Agilent E4404B Spectrum Analyzer MY44220422 06 Jan 14 06 Jan 16 Advantest R3273 Spectrum Analyzer 95090358 06 Oct 14 06 Oct 15 Agilent N1911A Power Meter MY50150005 24 Apr 13 24 Apr 15 2. Applicable Standard References The following standards were used: FCC Rules Description of Test Result § 15.247 (a) (2) 6dB Bandwidth Pass § 15.247 (b) (3) Peak Output Power Pass § 15.247 (d) 100kHz Bandwidth of Frequency Band Edges Pass § 15.247 (e) Power Spectral Density Pass § 15.209 Spurious Emission Pass 3. Summary of Tests 3.1 6 dB Bandwidth – FCC Section 15.247 (a) (2) 3.1.1 Measurement Procedure The 6dB bandwidth was measured in accordance with the FCC KDB Publication No.558074 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” DTS 6-dB Signal Bandwidth Option 1. The RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. Span was set large enough to capture the entire emissions and >> RBW. The 99% occupied bandwidth was measured using the spectrum analyzer span set to fully display the emission, including the emissions skirts. The RBW was set to 1% to 3% of the 99% bandwidth. The VBW was set to 3 times the RBW. The spectrum analyzer internal 99% bandwidth function is utilized. 3.1.2 Measurement Results Below table shows the summary of measurements. The measurements were performed using the standard described in section 2.1.1 Frequency (MHz) 6dB Bandwidth (kHz) 99% Bandwidth (MHz) 2402 850 1.1143 2442 850 1.0932 2480 850 1.0852 Table 1 Following are the plots from the spectrum Analyzer for 6dB bandwidth and 99% bandwidth. 6dB Bandwidth-Low Channel 6dB Bandwidth-Middle Channel 6dB Bandwidth-High Channel 99% Bandwidth-Low Channel 99% Bandwidth-Middle Channel 99% Bandwidth-High Channel 3.2 Peak Output Power – FCC Section 15.247 (b)(1) 3.2.1 Measurement Procedure The peak output power was measured in accordance with the FCC KDB Publication No.558074 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” Section 9.1.3 Peak Power Meter Method. Measurement Result Below table shows the summary of measured power Frequency (MHz) RF Output Power (dBm) 2402 4.11 2442 3.92 2480 3.74 Table 2 3.3 Band-Edge Compliance of RF Conducted Emissions – FCC Section 15.247(d) 3.3.1 Measurement Procedure The band-edge measurement was measured in accordance with the FCC KDB Publication No.558074 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” Section 13.2 Marker-delta Method. The RF output of the equipment under test was directly connected to the input of the spectrum analyzer through suitable attenuation. The EUT was investigated at the lowest and highest channel available to determine band-edge compliance. The RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. The reference level was determined by measuring the Peak PSD level in any 100 kHz bandwidth within the DTS channel bandwidth. 3.3.2 Measurement Results Lower Band Edge Upper Band Edge 3.4 Power Spectral Density – FCC Section 15.247(e) 3.4.1 Measurement Procedure The power spectral density was measured in accordance with the FCC KDB Publication No.558074 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)” Section 10.2 Peak PSD Method. The RBW of the spectrum analyzer was set to 3 kHz and VBW 10 kHz. The peak marker function was used to determine the maximum amplitude level within the RBW. 3.4.2 Measurement Result Frequency (MHz) PSD/3kHz (dBm) Limit (dBm) 2402 -3.94 8 2442 -4.809 8 2480 -3.61 8 PSD-Low Channel PSD-Middle Channel PSD-High Channel 3.5 Conducted Spurious Emissions – FCC Section 15.247(d) 3.5.1 Measurement Procedure The RF conducted spurious emissions were measured in accordance with the FCC KDB Publication No.558074 “Guidance for Performing Compliance Measurements on Digital Transmission Systems (47 CFR 15.247)”. The RF output of the equipment under test was directly connected to the input of the spectrum analyzer. The EUT was investigated for conducted spurious emissions from 30MHz to 26GHz, 10 times the highest fundamental frequency. Measurements were made at the low, middle and high channels of the EUT. For each measurement, the RBW of the spectrum analyzer was set to 100 kHz and VBW 300 kHz. The reference level was determined by measuring the peak PSD level in any of the 100 kHz bandwidth within the DTS channel bandwidth. 3.5.2 Measurement Result Low Channel (30MHz to 3GHz) Low Channel (2GHz to 13GHz) Low Channel (13GHz to 26GHz) Middle Channel (30MHz to 3GHz) Middle Channel (2GHz to 13GHz) Middle Channel (13GHz to 26GHz) High Channel (30MHz to 3GHz) High Channel (2GHz to 13GHz) High Channel (13GHz to 26GHz)

Test Report

Certification Test Report FCC ID: 2AA9WV500 IC: 11665A-V500 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 14-2094.W06.1A Manufacturer: VSN Technologies, Inc. Model(s): V500 Test Begin Date: August 23, 2014 Test End Date: September 3, 2014 Report Issue Date: November 5, 2014 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Reviewed by: Thierry Jean-Charles EMC Engineer Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 12 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Manufacturer Information .............................................................................................................. 3 1.3 Product Description .......................................................................................................................... 3 1.4 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES................................................... 7 4 LIST OF TEST EQUIPMENT .......................................................................... 8 5 SUPPORT EQUIPMENT ................................................................................ 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM .............................. 9 7 SUMMARY OF TESTS ................................................................................. 10 7.1 Antenna Requirement – FCC: Section 15.203 ..............................................................................10 7.2 Radiated Spurious Emissions into Restricted Frequency Bands - FCC 15.205, 15.209; IC: RSS-210 2.2, RSS-Gen 7.2.2, 7.2.5 ..............................................................................................................10 8 CONCLUSION .............................................................................................. 12 Models: V500 FCC ID: 2AA9WV500 IC: 11665A-V500 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210 for the tests specified in this document. 1.2 Manufacturer Information VSN Technologies Inc. 1975 E. Sunrise Blvd., Suite 762 Ft. Lauderdale, FL 33304 1.3 Product Description The V500 is a remote control for the VSN Technoloogies, Inc. V360 camera. The V500 uses Bluetooth 4.0 low energy technology to communicate with the camera. The remote has three buttons, which are power, photo and recording. Technical Details Mode of Operation: Bluetooth Low Energy (BLE) Frequency Range: 2402 MHz - 2480 MHz Number of Channels: 40 Channel Separation: 2 MHz Transmit Data Rates: 1 Mbps Modulations: GFSK Antenna Type/Gain: Printed Inverted-F Antenna, -3.05 dBi Input Power: 3V (AAA Batteries) Model Number: V500 Test Sample Serial Number(s): ACS#1 Test Sample Condition: The samples were in good conditions with no observable physical damages. 1.4 Test Methodology and Considerations The EUT was evaluated for radiated emissions. Preliminary measurements were performed for the EUT set in three orthogonal orientations. The final data was collected on the EUT set horizontally on the test table as the worst case configuration. The evaluation of the unit for compliance with the RF conducted emissions requirements is recorded in a separate test report. The unit was also evaluated for compliance to the unintentional emissions requirements. The results are documented separately in a verification report. ACS Report: 14-2094.W06.1A Advanced Compliance Solutions Page 3 of 12 Models: V500 FCC ID: 2AA9WV500 IC: 11665A-V500 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Test Firm Registration #: 475089 Industry Canada Lab Code: 4175C 2.2 Laboratory Accreditations/Recognitions/Certifications ACS is accredited to ISO/IEC 17025 by ANSI-ASQ National Accreditation Board under their ACLASS program and has been issued certificate number AT-1533 in recognition of this accreditation. Unless otherwise specified, all test methods described within this report are covered under the ISO/IEC 17025 scope of accreditation. ACS Report: 14-2094.W06.1A Advanced Compliance Solutions Page 4 of 12 Models: V500 FCC ID: 2AA9WV500 IC: 11665A-V500 2.3 Radiated & Conducted Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The EMC radiated test facility consists of an RF-shielded enclosure. The interior dimensions of the indoor semi-anechoic chamber are approximately 48 feet (14.6 m) long by 3…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Amit Verma(Director of Test Engineering)

[email protected]9546094912Fax: 9543068450

Test Firm

TUV SUD America, Inc.Sam Wismer

[email protected]678-341-5924Fax: 678-341-5924

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	2.60 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antennas must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this filing. End-users must be provided with operating instructions for satisfying RF exposure compliance requirements.
