2AAAL-T05111R0110Remote Control

User manual There are four keys on the product,and each key stand for a sole code with the carrier of 315MHZ. For example: If you press k1 button,the transmitter will transmit a serial code with the carrier of 315MHZ,and it is sole，we called it channel 1.and at the same time,the receiver which have the same code with the transmitter,received the code ,it will take some action,just for example,control the relay,led,beep,and so on. K2 stand for channel 2,and has the same usage with K1 which describe above. And so do k3,k4... FCC Statement： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFEREN CE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Dalian Seaside Door Controlling System Co. Ltd （No.23-7,Yaobei Road,Ganjingzi District,Dalian,Liaoning,China ） (June 19,2015) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Dalian Seaside Door Controlling System Co. Ltd (client’s company name) _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Remote Control,T05111R0100 FCC ID: 2AAAL-T05111R0110 Sincerely, Client’s signature: Client’s name / title: Wei Zhao / Technical Manager Contact information / address : E-mail: [email protected],Fax: 0411-86420044, Tel: 0411-86420073/ No. 23-7, Yaobei Road, Ganjingzi District, Dalian, Liaoning

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Dalian Seaside Door Controlling System Co. Ltd （No.23-7,Yaobei Road,Ganjingzi District,Dalian,Liaoning,China ） (June 19,2015) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAAL-T05111R0110 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Wei Zhao / Technical Manager Contact information / address : E-mail: [email protected],Fax: 0411-86420044, Tel: 0411-86420073/ No. 23-7, Yaobei Road, Ganjingzi District, Dalian, Liaoning

Date: 2015-6-19 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AAAL-T05111R0110 To Whom It May Concern: This letter is to ascertain that Dalian Seaside Door Controlling System Co. Ltd Product Remote Control has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title: Wei Zhao / Technical Manager Contact information / address Address: No. 23-7, Yaobei Road, Ganjingzi District, Dalian, Liaoning E-mail: [email protected] Fax: 0411-86420044 Tel: 0411-86420073

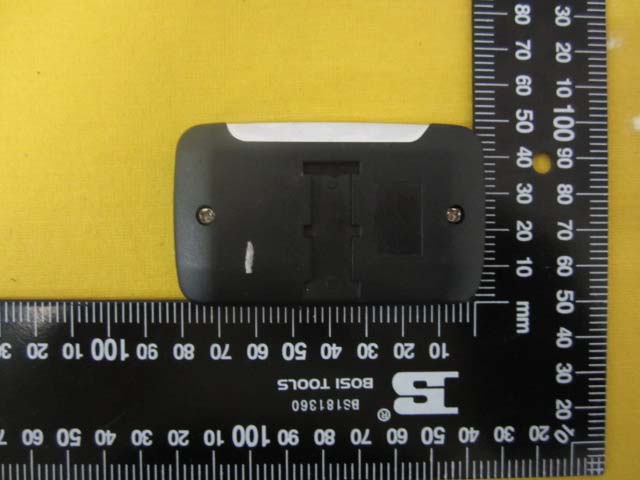

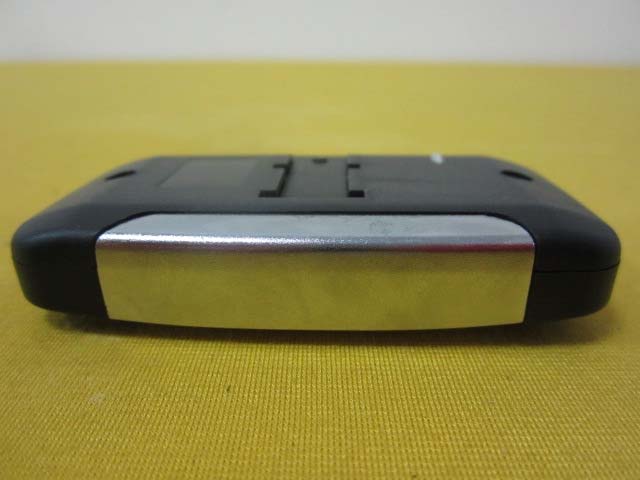

Report No: TRE15050085 Page: 18 of 20 Issued: 2015-06-10 6. External and Internal Photos of the EUT External Photos Report No: TRE15050085 Page: 19 of 20 Issued: 2015-06-10

Report No: TRE15050085 Page: 20 of 20 Issued: 2015-06-10 Internal Photos .......................End of Report.........................

TEST REPORT Report Reference No. .................... : TRE15050085 R/C..........:55039 FCC ID ............................................. : 2AAAL-T05111R0110 Applicant’s name ........................... : Dalian Seaside Door Controlling System Co. Ltd. Address ............................................. : No.23-7,Yaobei Road,Ganjingzi District,Dalian,Liaoning,China. Manufacturer......................................: Dalian Seaside Door Controlling System Co. Ltd. Address...............................................: No.23-7,Yaobei Road,Ganjingzi District,Dalian,Liaoning,China. Test item description .................... : Remote Control Trade Mark ....................................... : / Model/Type reference ....................... : T05111R0110 Listed Model(s) ................................. : / Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of receipt of test sample...........: May 18, 2015 Date of testing..............................: May 18, 2015- June 10, 2015 Date of issue.................................: June 10, 2015 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators Yingchun Shan Supervised by ( position+printed name+signature) .. : Project Engineer Yingchun Shan Approved by ( position+printed name+signature) .. : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No: TRE15050085 Page: 2 of 20 Issued: 2015-06-10 Contents 1. TEST STANDARDS AND TEST DESCRIPTION 3 1.1. Test Standards 3 1.2. Test Description 3 2. SUMMARY 4 2.1. Client Information 4 2.2. Product Description 4 2.3. EUT operation mode 4 2.4. EUT configuration 4 2.5. Modifications 4 3. TEST ENVIRONMENT 5 3.1. Address of the test laboratory 5 3.2. Test Facility 5 3.3. Environmental conditions 6 3.4. Statement of the measurement uncertainty 6 3.5. Equipments Used during the Test 7 4. TEST CONDITIONS AND RESULTS 8 4.1. Antenna requirement 8 4.2. AC Power Conducted Emission(Not Applicable) 9 4.3. Radiated Emission 10 4.4. Occpied Bandwidth 15 4.5. Deactivation Time 16 5. TEST SETUP PHOTOS OF THE EUT 17 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 18 Report No: TRE15050085 Page: 3 of 20 Issued: 2015-06-10 1. TEST STANDARDS AND TEST DESCRIPTION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.231: Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Test Description Test Item Section in CFR 47 Result Conducted Emissions 15.207 N/A Unintentional Radiated Emissions 15.109 PASS Radiated & Spurious Emissions 15.205/15.209(a)/15.231(b/15.35(c)PASS Deactivation Time 15.231(a)(1) PASS Duty Cycle 15.231 PASS Occpied Bandwidth 15.231(c) PASS Remark: The measurement uncertainty is not included in the test result. Report No: TRE15050085 Page: 4 of 20 Issued: 2015-06-10 2. SUMMARY 2.1. Client Information Applicant: Dalian Seaside Door Controlling System Co. Ltd. Address: No.23-7,Yaobei Road,Ganjingzi District,Dalian,Liaoning,China. Manufacturer: Dalian Seaside Door Controlling System Co. Ltd. Address: No.23-7,Yaobei Road,Ganjingzi District,Dalian,Liaoning,China. 2.2. Product Description Name of EUT Remote Control Trade Mark: / Model No.: T05111R0110 Listed Model(s): / Power supply: DC3.0V from battery Adapter information: / Operation frequency: 315.0MHz Channel number: 1 Antenna type: Intergral Antenna Antenna gain: 0dBi 2.3. EUT operation mode The EUT has been tested under typical operating condition. The Applicant provides software to control the EUT for staying in continous transmitting mode for testing. 2.4. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 2.5. Modifications No modifications were implemented to meet testing criteria. Report No: TRE15050085 Page: 5 of 20 Issued: 2015-06-10 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd. Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26748019 Fax: 86-755-26748089 3.2. Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L1225 Shenzhen Huatongwei International Inspection Co., Ltd. has been assessed and proved to be in compliance with CNAS-CL01 Accreditation Criteria for Testing and Calibration Laboratories (identical to ISO/IEC 17025: 2005 General Requirements) for the Competence of Testing and Calibration Laboratories, Date of Registration: February 28, 2015. Valid time is until February 27, 2018. A2LA-Lab Cert. No. 2243.01 Shenzhen Huatongwei International Inspection Co., Ltd. EMC Laboratory has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2005 General Requirements for the Competence of Testing …
