2AAFH-SPK90ABLUETOOTH SPEAKER

MODEL NO.: SPK-90A Bluetooth Speaker Operating Instructions Before operating this product, read, understand, and follow these instructions. Be sure to save these instructions for future reference. Table of Contents 1. Safeguards..............................................................Error! Bookmark not defined. 2. Parts..........................................................................................................................3 3. Controls.....................................................................................................................4 4. to Set Up:..................................................................................................................4 5. Usage:........................................................................................................................4 SAFETY INSTRUCTIONS The Lightning flash with arrowhead symbol, with an equilateral triangle is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. SAFETY INSTRUCTIONS CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

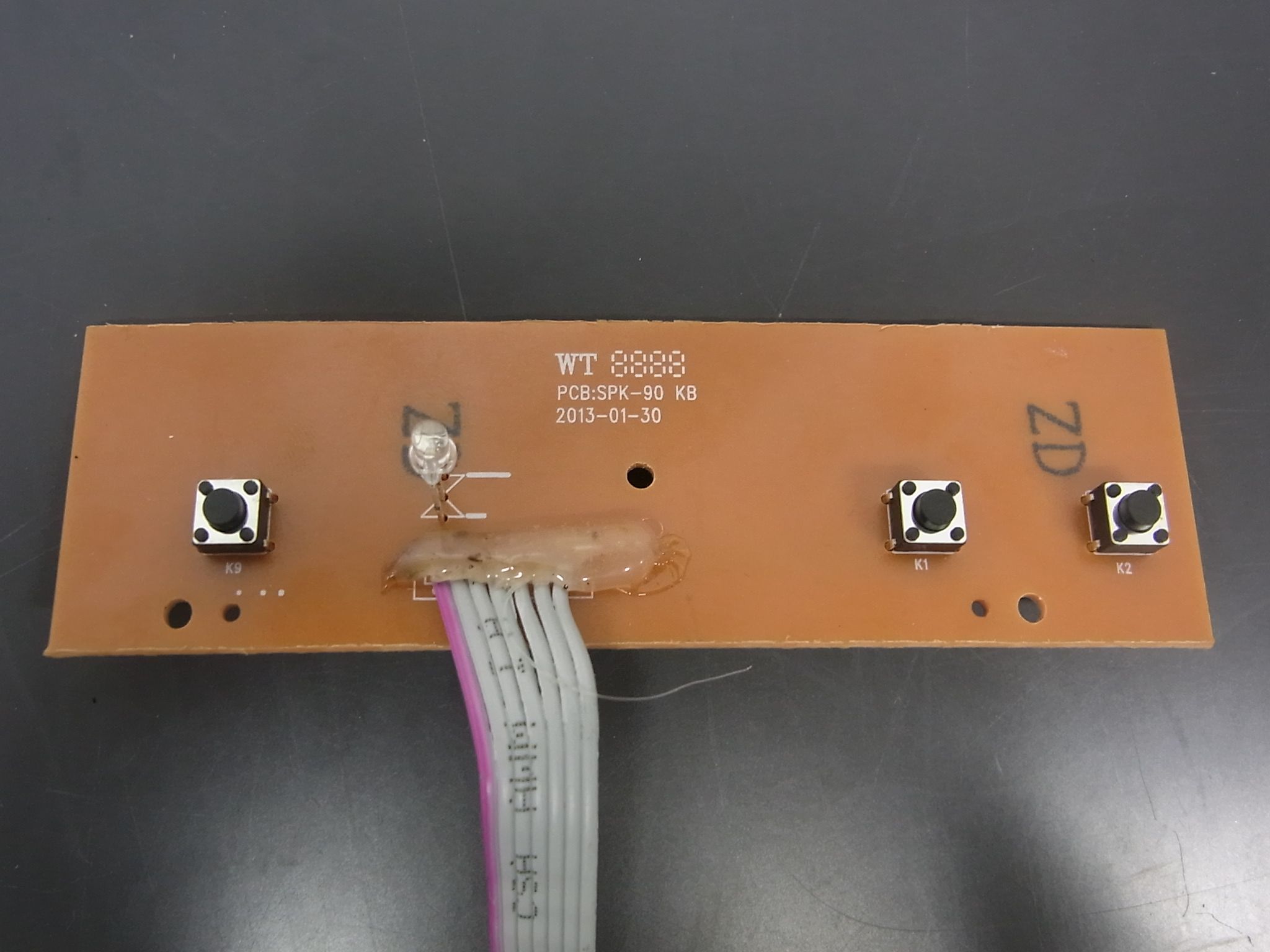

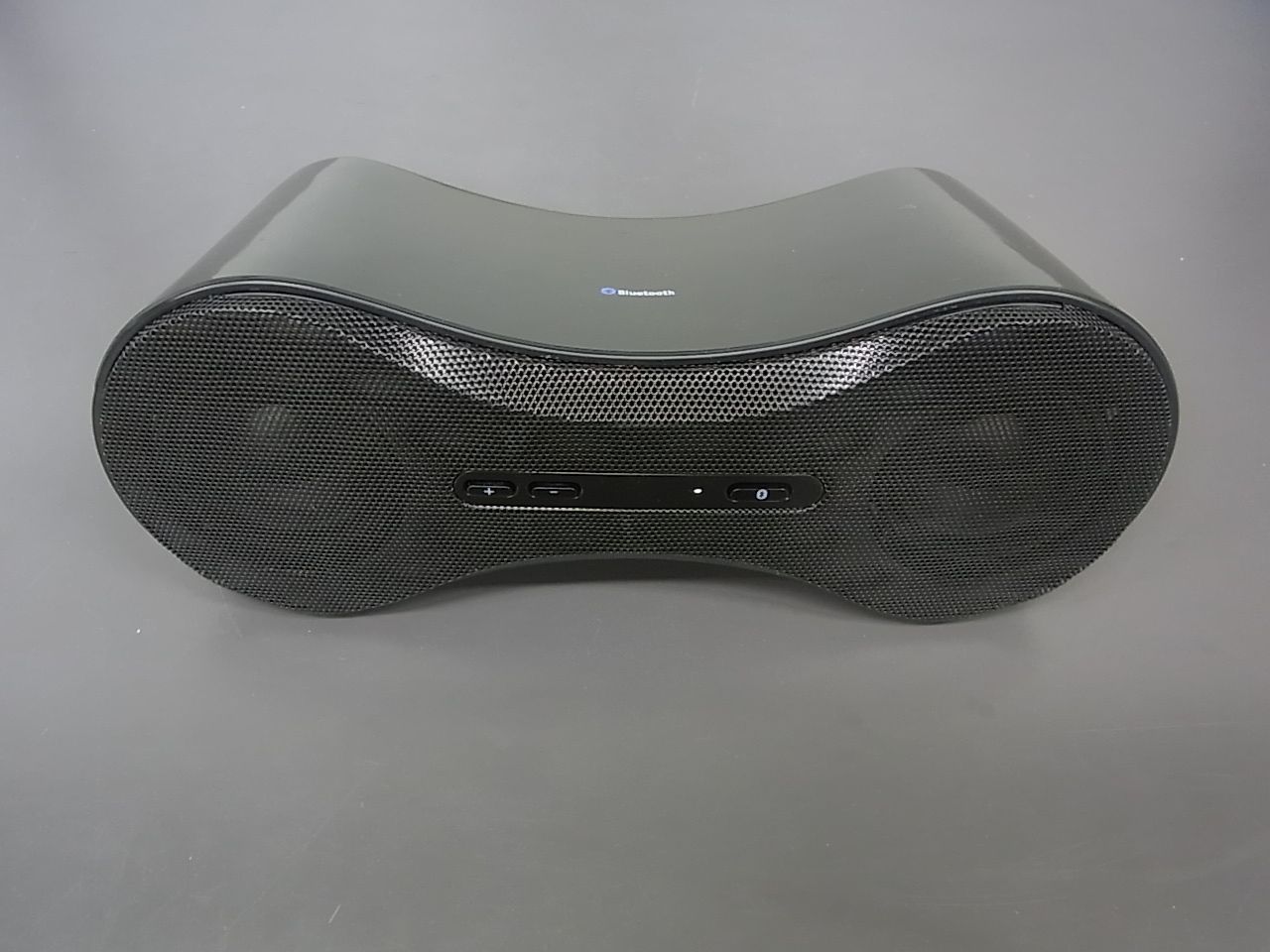

Consult the dealer or an experienced radio/TV technician for help. 2. Parts • AC Power Adapter • Speaker • Bluetooth Compatible Device (user’s) 3. Location of Controls 1. DC Jack 2. Aux in Jack 3. On/Off Button 4. Vol+/- Button 5. Battery compartment 6. Bluetooth indicator lamp 7. Bluetooth button 4. to Set Up: Battery Installation: NOTE: Batteries may be installed as a backup when AC adapter cannot be used. 1. Remove the Battery Compartment Cover by pushing the tab away from the speaker. 2. Insert 4 "AA" alkaline batteries (not included), observing the proper polarity (+/−) as indicated inside the Battery Compartment, and then replace the Cover. Power Adapter: Insert the small end of the AC Adapter into the Jack in the back of the unit and plug the other end into a standard 110-volt AC electrical outlet. 5. Usage: A. to Turn on: • Slide the ON/OFF Button to ON to turn the speaker on. B. Bluetooth Button • Not pressing any button and SPK-90A enters into Connecting Mode. It then starts to search for the last connected device/devices. • If SPK-90A could not search for the last connected device after 6 seconds, it enters Idle Mode • Press this button for more than 2 seconds, SPK-90A enters into Discoverable Mode NOTE: SPK-90A will stay in search mode when there is no previous connecting device. Discoverable Mode has to be manually switched to enter. C. Terms of Definition: • Connecting Mode: SPK-90A enters connecting mode automatically once it is turned on. SPK-90A connects actively to the last device in this mode. The LED light will be flashing in RED before connection. When connected, it will stay on in BLUE. • Discoverable Mode: SPK-90A will stay discoverable and is searchable by other Bluetooth compatible devices passively. The LED light will be flashing in RED before connection. When connected, it will stay on in BLUE. • Connected Mode: SPK-90A is connected with a Bluetooth Compatible Device and is read to stream music. The LED light stays on in BLUE under this mode. • Idle Mode; SPK-90A is not discoverable but still can be connected to the devices which are paired before. As it is not discoverable, the connection initialization is triggered from the Bluetooth Compatible Device. The LED light will be flashing in RED under this mode. D. Pairing • Press and Hold the Bluetooth Button for 3 seconds, then release when 2 beep tones are heard with the LED light flashing. SPK-90A enters into Discoverable Mode • Turn on the Bluetooth feature on your mobile compatible device. Search for SPK-90A. Pair and connect to SPK-90A. If prompted for passcode, enter 0000. If pairing is successful, the LED light will stay on in BLUE. NOTE: Above are general steps to pair to a Bluetooth device, for more specific instructions on Bluetooth connectivity for your device, please consult your Bluetooth Compatible Device’s manual. E. Volume: • To turn up the volume, press the Volume Up Button • To turn down the volume, press the Volume Down Button NOTE: Volume can also be adjusted on your Bluetooth Compatible Device, consult your Bluetooth Compatible Device’s manual for instruct…

Text truncated - open the document above for the full version.

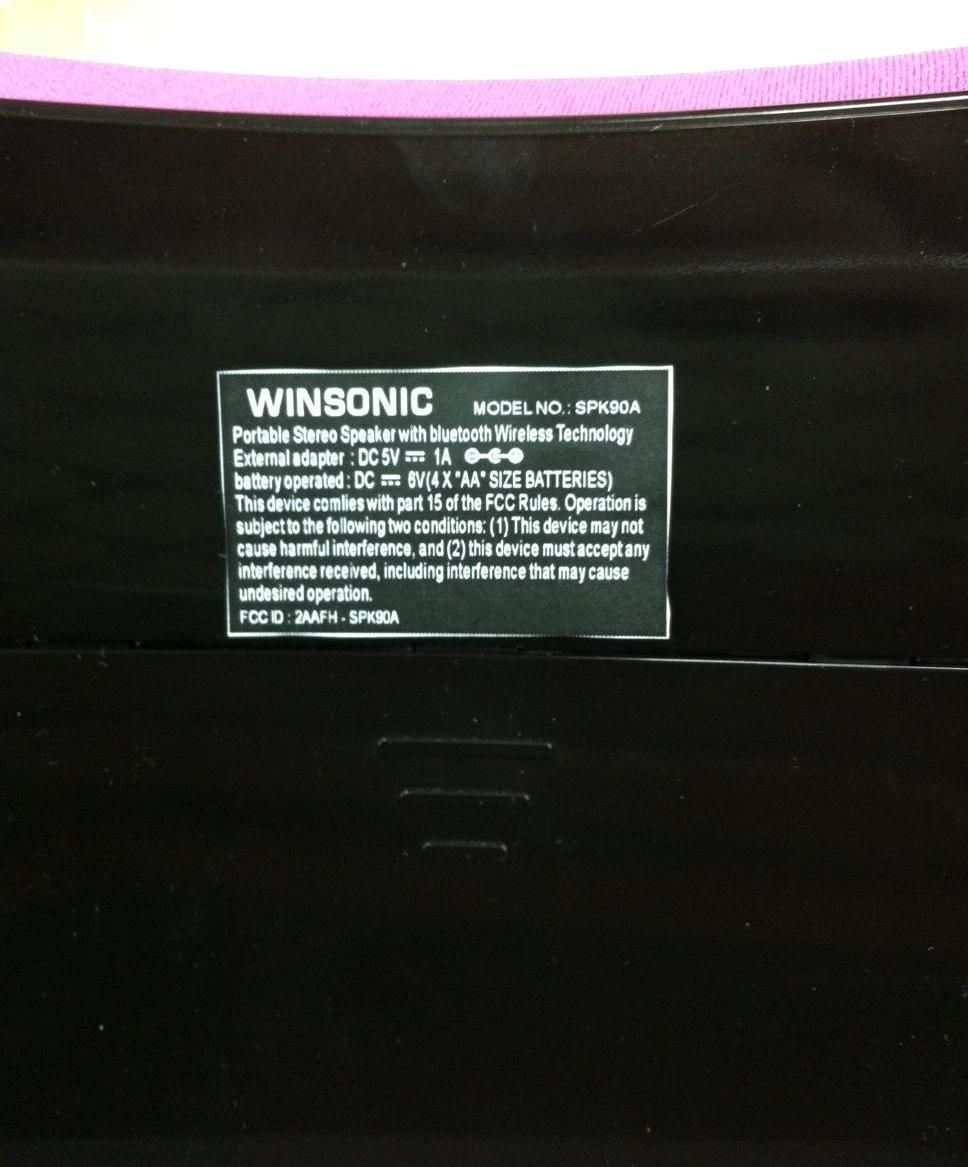

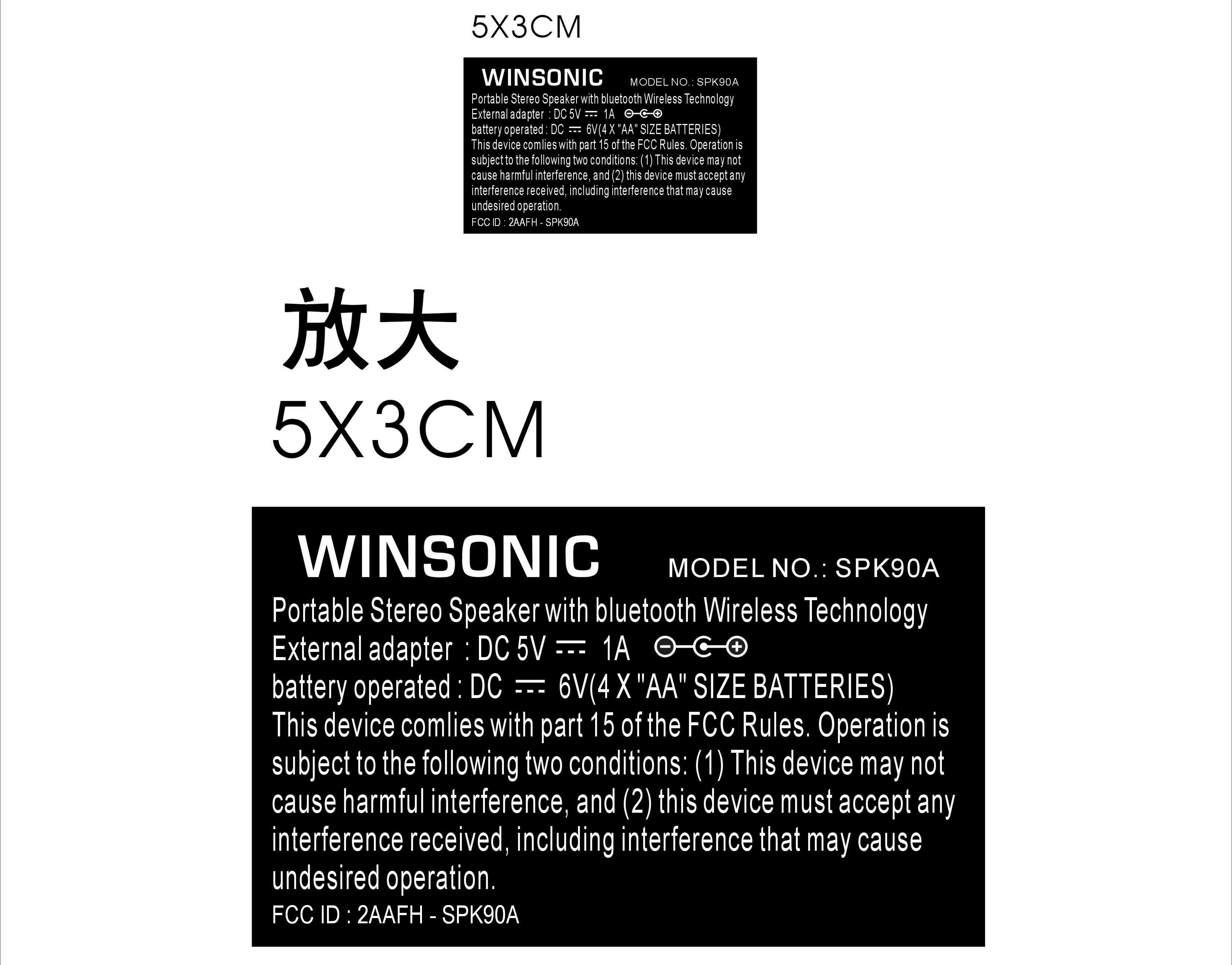

2AAFH-SPK90A

2AAFH-SPK90A BlkDia.pdf 2AAFH-SPK90A Schem.pdf 2AAFH-SPK90A OpDes.pdf 2AAFH-SPK90A

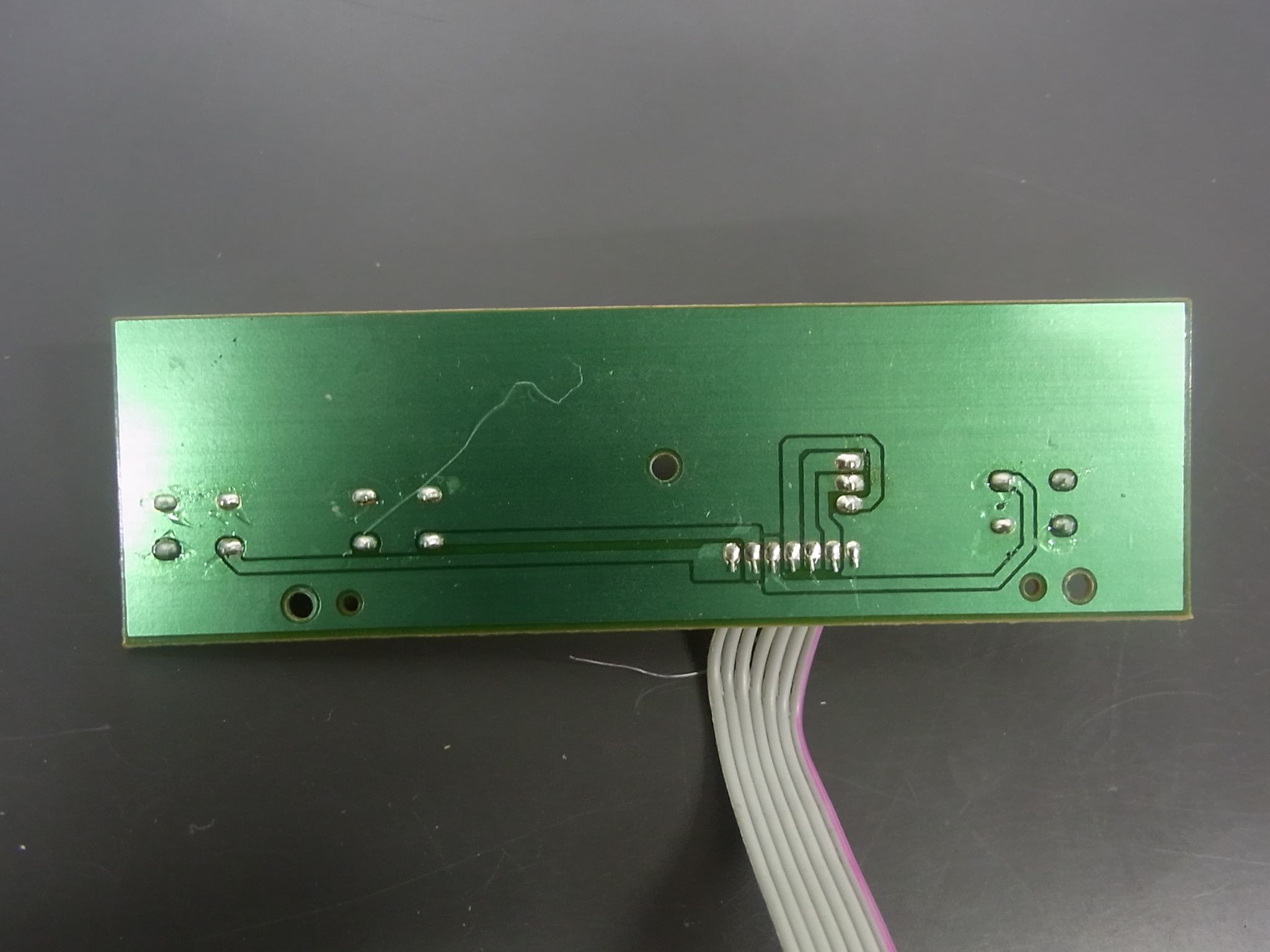

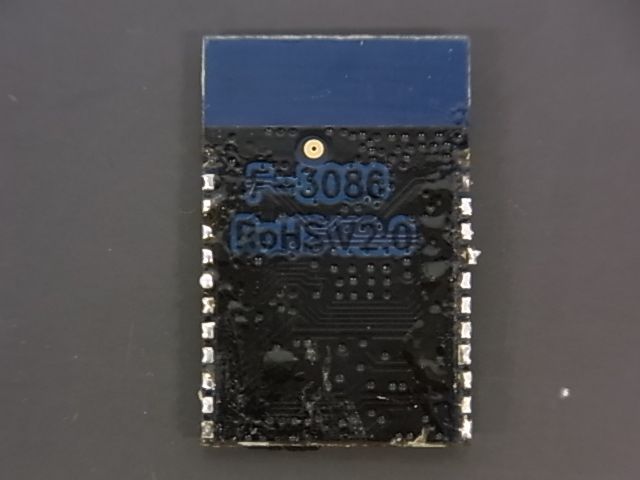

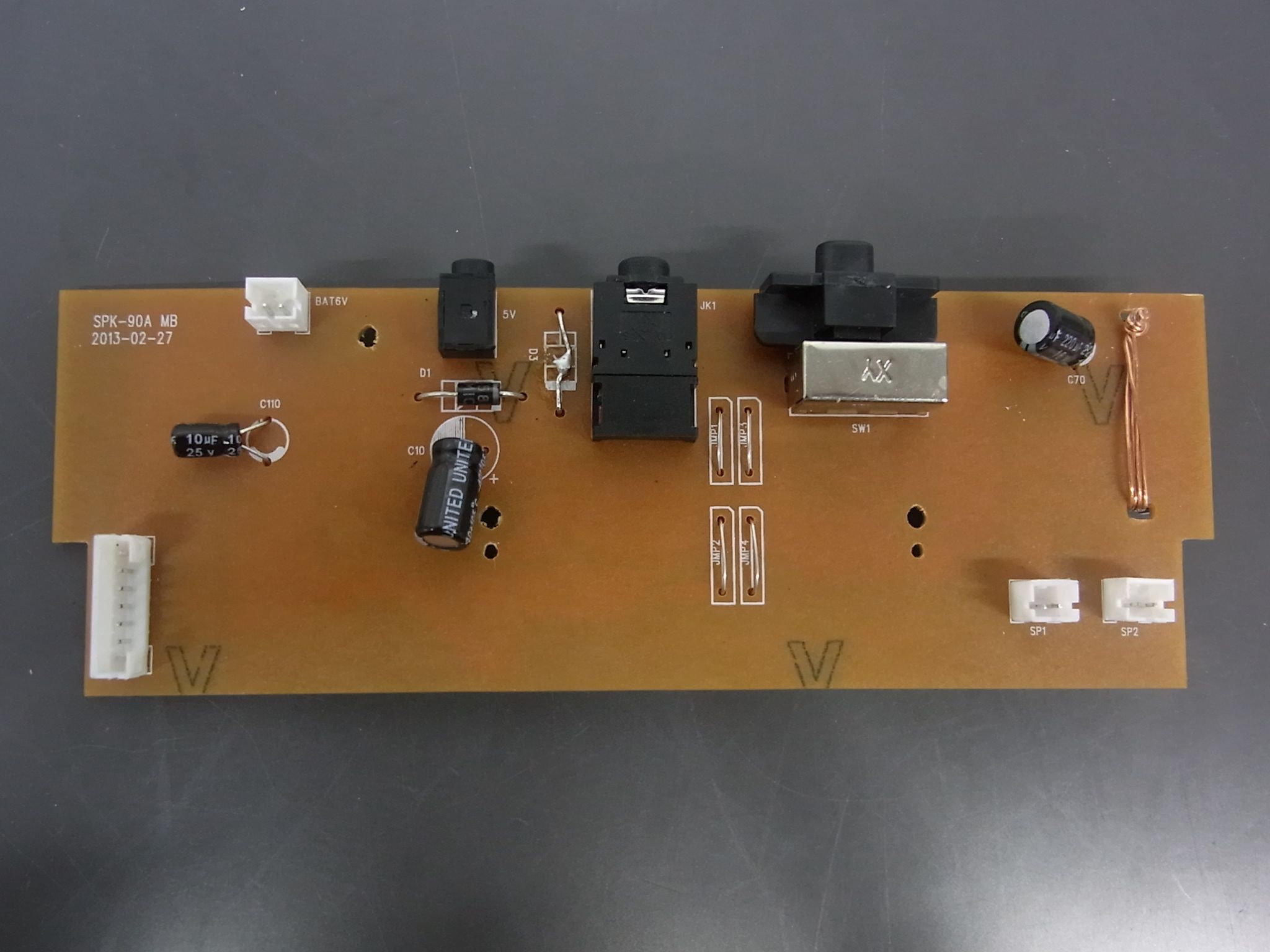

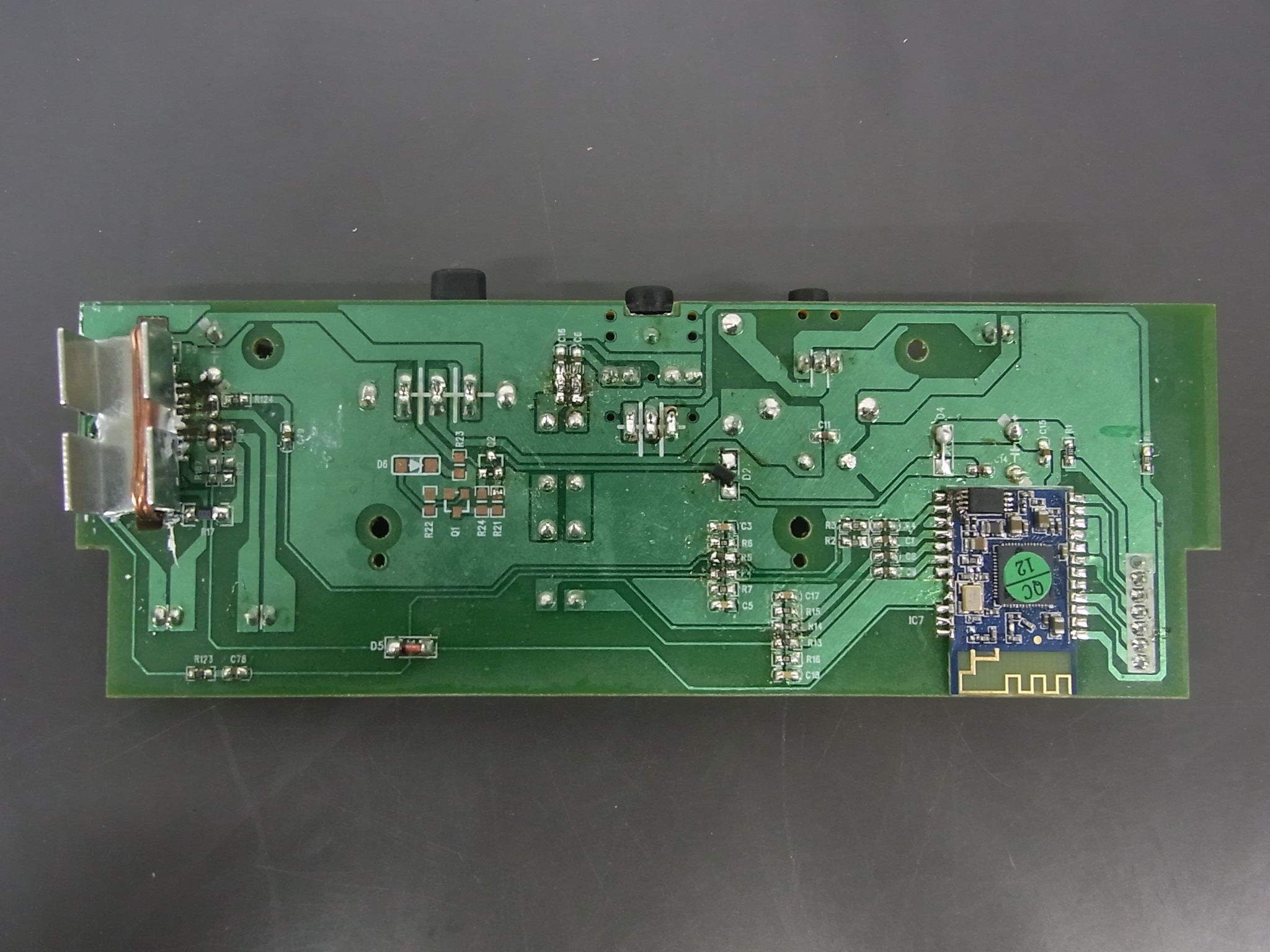

2AAFH-SPK90A

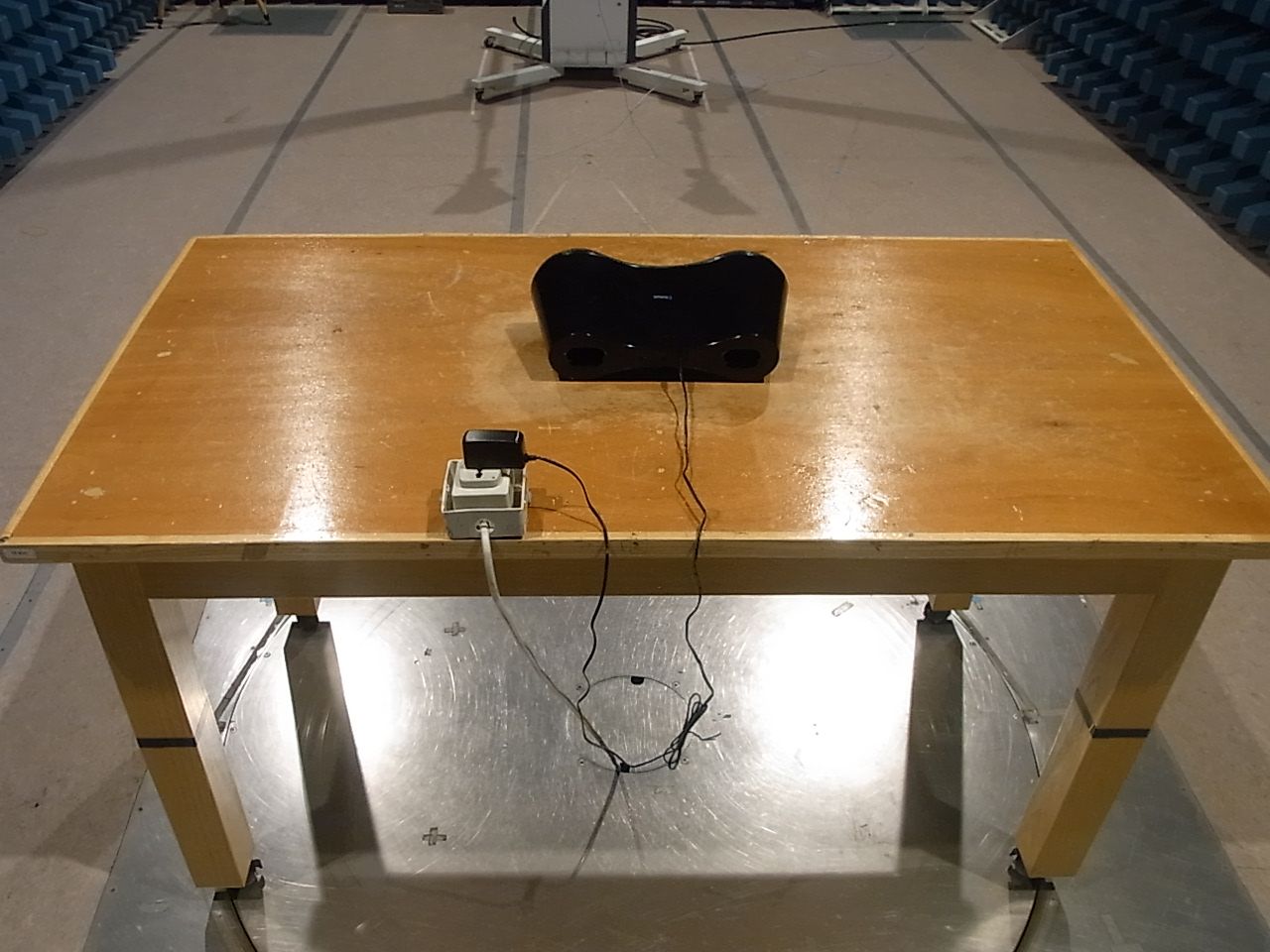

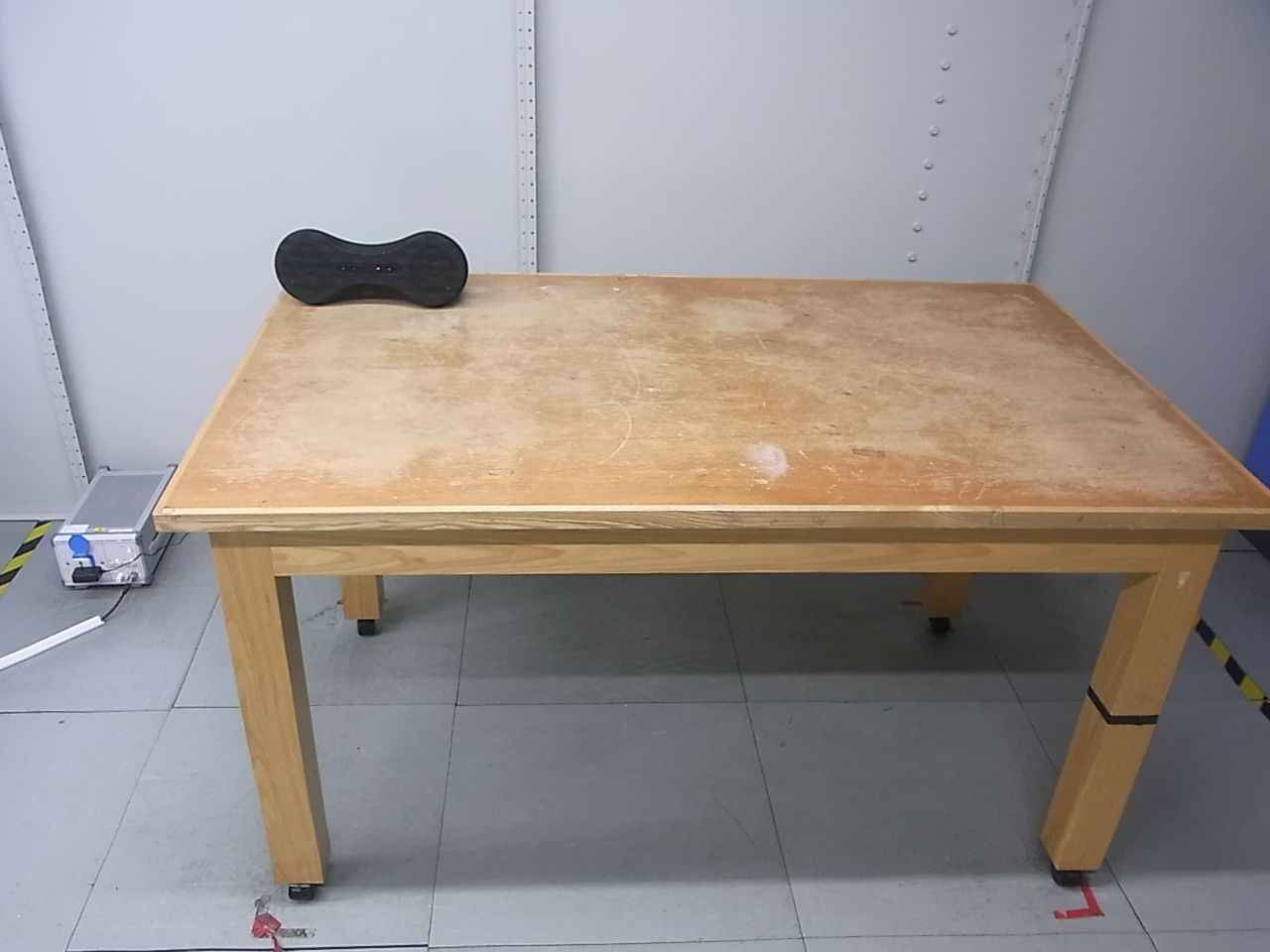

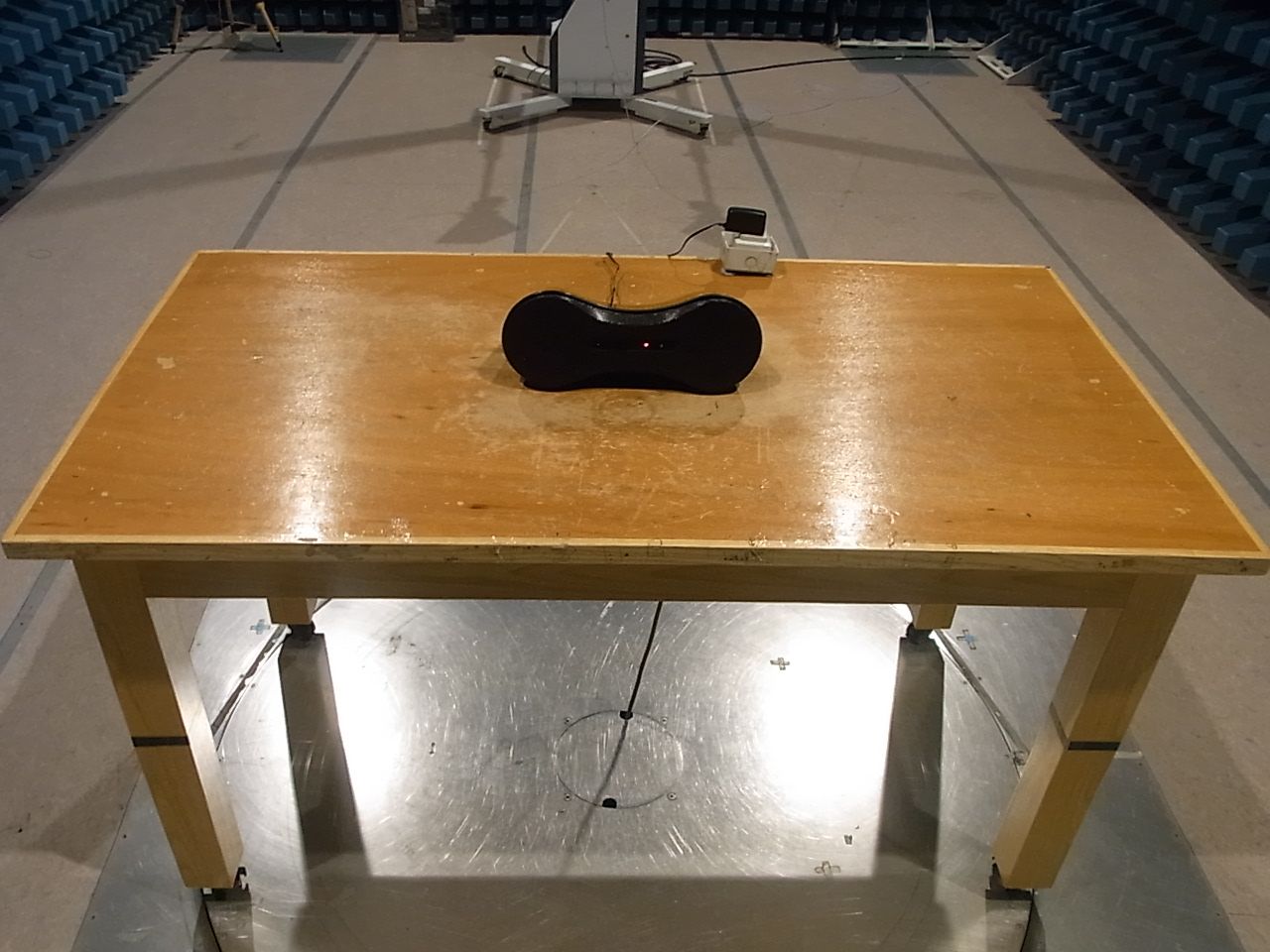

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 48 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: 2AAFH-SPK90A Application No. : LR006229(8) Applicant : Winsonic Electric Limited 17/F, Flat K, Universal Ind. Center, 19-25 Shan Mei St., Fo Tan, Shatin, N.T., Hong Kong Sample Description : One(1) item of submitted sample stated to be Boombox of Model No. SPK90A Sample registration No. : RR006771-001 Radio Frequency : 2402MHz ~ 2480MHz Transceiver Rating : 4 x 1.5V AA size batteries AC 100-240V to DC 5V adaptor No. of submitted sample : One (1) set (s) Date Received : 12 Mar 2013 Test Period : 13 Mar 2013 to 12 Apr 2013 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2009 FCC Public Notice DA 00-705 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 48. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Page 2 of 48 FCC ID: 2AAFH-SPK90A Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 5 1.3 List of measuring equipment............................................................................................................... 6 1.4 List of supporting equipment .............................................................................................................. 6 1.5 Measurement Uncertainty ................................................................................................................... 7 2 Description of the radiated emission test ................................................................................................... 8 2.1 Test Procedure .................................................................................................................................... 8 2.2 Test Result .......................................................................................................................................... 9 2.3 Maximum peak output power ........................................................................................................... 10 2.4 Radiated Emission Measurement Data ............................................................................................. 11 3 Description of the Line-conducted Test ................................................................................................... 14 3.1 Test Procedure .................................................................................................................................. 14 3.2 Test Result ........................................................................................................................................ 14 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 14 4 Photograph ...............................................................................................................................................15 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 15 4.2 Photographs of the External and Internal Configurations of the EUT.............................................. 15 5 Supplementary document ......................................................................................................................... 16 5.1 Bandwidth ......................................................................................................................................... 16 5.2 Duty cycle ......................................................................................................................................... 16 5.3 Transmission time ............................................................................................................................. 16 5.4 Power Spectral Density..................................................................................................................... 17 5.5 Hopping sequence ............................................................................................................................. 17 5.6 Average on time ................................................................................................................................ 17 6 Appendices...............................................................................................................................................19 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Page 3 of 48 FCC ID: 2AAFH-SPK90A 1 General Information 1.1 General Description The equipment under test (EUT) is a SPK90A Bluetooth Speaker. The EUT is powered by AC 100- 240V to DC 5V adaptor or 4 x 1.5V AA size batteries. The EUT has two operating models. The first operating mode is Bluetooth mode. It receives digital audio signal from other wireless device and play back the audio signal. The second mode is AUX mode. An AUX input terminal supports audio input by 3.5mm terminal. For the Bluetooth mode, it supports standard Bluetooth V3.0+EDR or below revision protocol for data synchronization. After paring with other standard Bluetooth device, it can play the music and control the operation in Play, Stop, Volume Up/Down, Forward and Backward. The Bluetooth module used in the speaker has been test and approved by official Bluetooth Special Interest Group (SIG) member. All technical requirements including hopping …

Text truncated - open the document above for the full version.

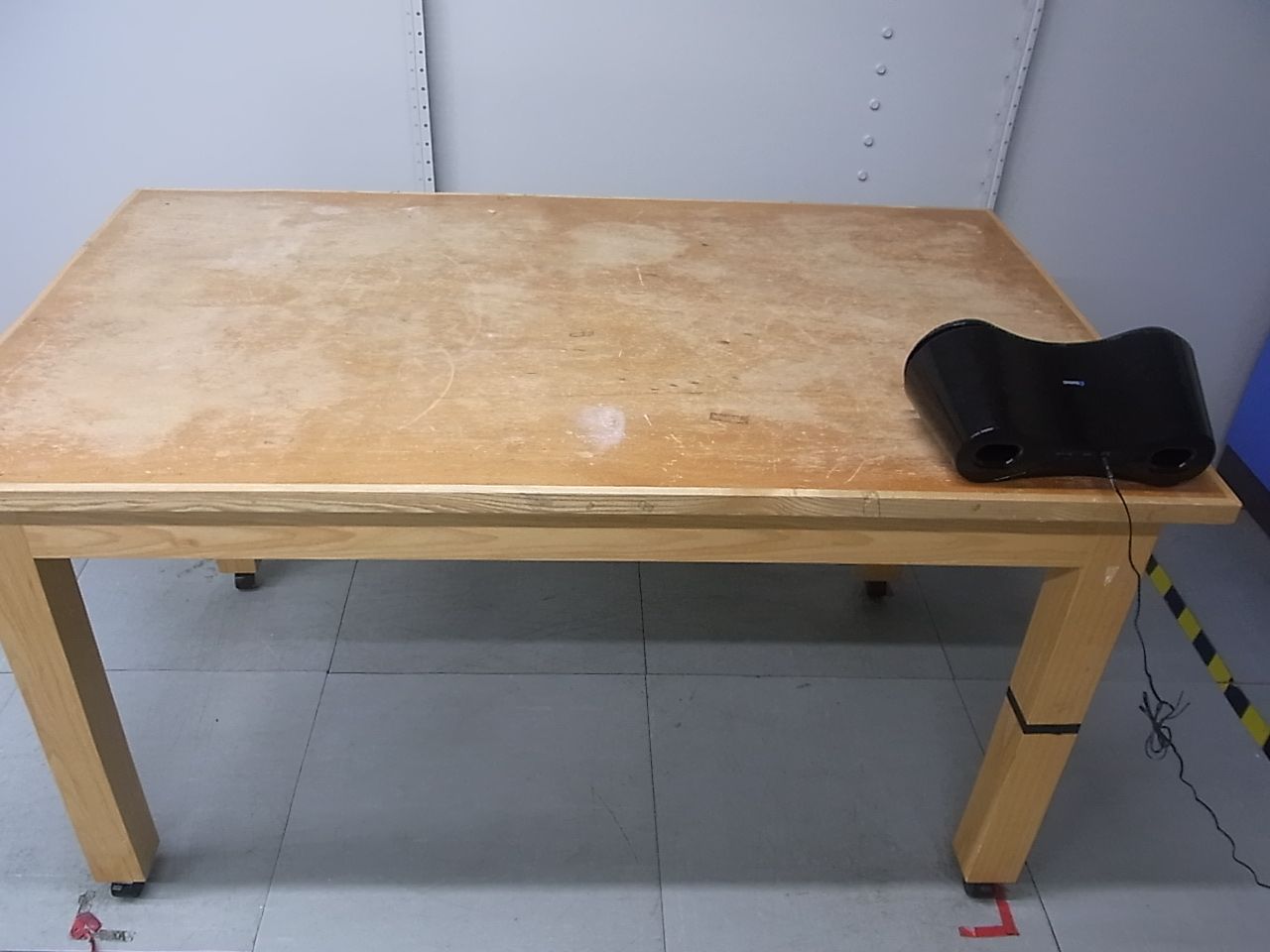

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 27 of 48 FCC ID: 2AAFH-SPK90A A6 Conducted Emission Measurement Date TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 28 of 48 FCC ID: 2AAFH-SPK90A A6 Conducted Emission Measurement Date

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 29 of 48 FCC ID: 2AAFH-SPK90A A7. Hopping sequence 1 st example of fundamental frequency 2 nd example of fundamental frequency TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 30 of 48 FCC ID: 2AAFH-SPK90A A7. Hopping sequence 3 rd example of fundamental frequency 4 th example of fundamental frequency

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 31 of 48 FCC ID: 2AAFH-SPK90A A8. 20 dB bandwidth and 99% bandwidth Channel: CH00 20 dB bandwidth 99% bandwidth TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 32 of 48 FCC ID: 2AAFH-SPK90A A8. 20 dB bandwidth and 99% bandwidth Channel: CH39 20 dB bandwidth 99% bandwidth TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 33 of 48 FCC ID: 2AAFH-SPK90A A8. 20 dB bandwidth and 99% bandwidth Channel: CH78 20 dB bandwidth 99% bandwidth

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 34 of 48 FCC ID: 2AAFH-SPK90A A9. Bluetooth Channel Spacing CH00-CH01 CH38-CH39 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 35 of 48 FCC ID: 2AAFH-SPK90A A9. Bluetooth Channel Spacing CH77-CH78

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 36 of 48 FCC ID: 2AAFH-SPK90A A10. Bluetooth Hopping Channel

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 37 of 48 FCC ID: 2AAFH-SPK90A A11. Bluetooth Band Edge Edge 1 Edge 2

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 38 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH1 Channel: CH00 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 39 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH3 Channel: CH00 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 40 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH5 Channel: CH00 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 41 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH1 Channel: CH39 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 42 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH3 Channel: CH39 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 43 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH5 Channel: CH39 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 44 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH1 Channel: CH78 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 45 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH3 Channel: CH78 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 46 of 48 FCC ID: 2AAFH-SPK90A A12. Bluetooth Average On Time Packet: DH5 Channel: CH78

TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 47 of 48 FCC ID: 2AAFH-SPK90A A13. Transmission Power Channel: CH01 Channel: CH39 TEST REPORT Report No. : AR0017092(8) Date : 12 Apr 2013 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 48 of 48 FCC ID: 2AAFH-SPK90A A13. Transmission Power Channel: CH78 ***** End of Report *****
