2AAJXQS-IQDWMDoor Sensor Alarm System

STEP 1 IQ MINI DW S-LINE QUICK INSTALL GUIDE ✓ Exterior Doors ✓ Sliding glass doors Windows ✓ CHOOSE INSTALLATION LOCATION Also great for: Medicine cabinets Gun safes Garage doors Interior doors SPECIFICATIONS SEE REVERSE FOR REMAINING STEPS Sensor: 2.25”H x 1”W x .5”D Wireless signal range: 600ft (200M), open air. Code outputs: tamper, tamper restore, alarm, alarm restore, low battery. Transmitter frequency: SECURE 319.5 MHz (S-Line) Unique code ID Supervisory keep-alive interval: 70 minutes. RF Peak field strength: typical 36000 uV/m at 3m Operating Temperature: -10C~50C Relative Humidity: 5-95% Non-Condensing Storage Temperature: -40-80C Replace battery with exact replacement every 5 years with 3V Lithium (x2). (2) -Panasonic CR2032 -Energizer CR2032 -Duracell DL2032 This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required) STEP 2 STEP 4 STEP 5 SECURE SENSOR & MAGNET STEP 6 Document#: IQS-MDW-SQG-05-23 Revision#: 5/11/23 Qolsys Product #: QS1135-840 (white) QS1136-840 (brown) APPLY ADHESIVE STEP 3 REMOVE BATTERY TABS 3/4” LEARN INTO PANEL Apply provided adhesive strips to the back of sensor and magnet. Magnet gap should not exceed 3/4” Place your panel in “autolearn" mode Customize name and settings as desired and and touch “ADD” ADD Open and close the case to “tamper” the device Magnet locator mark Magnet Sensor LINE UP SENSOR & MAGNET [email protected] Qolsys Inc. proprietary. Reproduction without permission is not permitted. FCC ID: 2AAJXQS-IQDWM IC: 11205A-QSIQDWM This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil. CONTACT TECH SUPPORT GOT QUESTIONS?

Letter of Authorization and Anti- Drug Statement Applicant Name: Qolsys Inc. Address: 1919 S. Bascom Ave., Suite 600, Campbell, CA, 95008, USA Product Name: Door Window Sensor Mini Model Number: IQ Mini-S FCC ID: 2AAJXQS-IQDWM We authorize: CETECOM Inc., to act on our behalf on all matters concerning the above named equipment. We declare that CETECOM Inc. is allowed to forward all information related to the approval project to the Federal Communications Commission and discuss any issues concerning the approval application. The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? ☒ Yes I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. Signature of Authorized Person Filing: Printed Name: Mark Skeen Title: Vice President Date: 06-01-2023

Qolsys Inc. 1919 S. Bascom Ave, Suite 600 Campbell, CA 95008 Federal Communication Commission 7435 Oakland Mills Road Columbia, MD 21046 07-28-2023 Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: 2AAJXQS-IQDWM TO WHOM IT MAY CONCERN: Hereby we certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Further we certify that, as of the date of the filing of the application, Qolsys Inc., with FCC Registration Number (FRN) 0022572226 is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (signature & company stamp) Qolsys Inc. 1919 S. Bascom Ave, Suite 600 Campbell, CA 95008 Mark Skeen 855-476-5797 [email protected] For information on Covered equipment, refer: • 986446 D01 Covered Equipment v01 • FCC 22-84 • List of Equipment and Services Covered By Section 2 of The Secure Networks Act | Federal Communications Commission (fcc.gov)

Qolsys Inc. 1919 S. Bascom Ave, Suite 600 Campbell, CA 95008 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA 06-02-2023 Attestation Statement according to 2.911(d)(7) FCC ID: 2AAJXQS-IQDWM TO WHOM IT MAY CONCERN: We, Qolsys Inc., 1919 S. Bascom Ave, Suite 600; Campbell, CA 95008 with FCC Registration Number (FRN) 0022572226 Certifies that, as of the date of this filing of the application with the TCB, Qolsys Inc. is our designated US agent for service of process for the above referenced FCC ID. We, Qolsys Inc., accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. We, Qolsys Inc., with FCC Registration Number (FRN) 0022572226 Accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above referenced FCC ID. Sincerely (signature & company stamp) Qolsys Inc. 1919 S. Bascom Ave, Suite 600 Campbell, CA 95008 Mark Skeen 855-476-5797 [email protected]

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: 06-01-2023 Subject: Request for Permanent Confidentiality FCC ID: 2AAJXQS-IQDWM To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, and KDB 726920, Qolsys Inc., hereby requests permanent confidentiality for documents filed under the following exhibit types: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational Description These items contain detailed system and equipment description and related information about the product which Qolsys Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Qolsys Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Best Regards, _______________________________ Signature Name: Mark Skeen Title: Vice-President Company Name: Qolsys Inc. Address: 1919 S. Bascom Ave, Suite 600, Campbell, CA 95008

Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21048 Date: 06-01-2023 Subject: Request for Short Term Confidentiality FCC-ID: 2AAJXQS-IQDWM To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, Qolsys Inc., hereby requests short term confidentiality for documents filed under the following exhibit types: 1. External Photographs 2. Internal Photographs 3. User / Instruction Manual 4. Test Set-up Photographs until the product will be publicly announced. Short term confidentiality release date / period: 180 days from grant issue date These items contain detailed system and equipment description and related information about the product which Qolsys Inc., considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Qolsys Inc., also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. We are informed and aware of our obligation that we have to inform the involved TCB in written and in due time if we intend to market the product prior to the above specified confidentiality release date so that the short term confidentiality classification can be reset prior to product launch. We are aware that exhibit types cover letters, attestations, label document, test reports, RF exposure information (SAR and MPE reports), cannot be requested to be classified confidential and are thus subject to publication, as will be documents of all other exhibits types for which we have not requested a confidentiality classification. Best Regards, _______________________________ Signature Name: Mark Skeen Title: Vice-President Company Name: Qolsys Inc. Address: 1919 S. Bascom Ave, Suite 600, Campbell, CA 95008

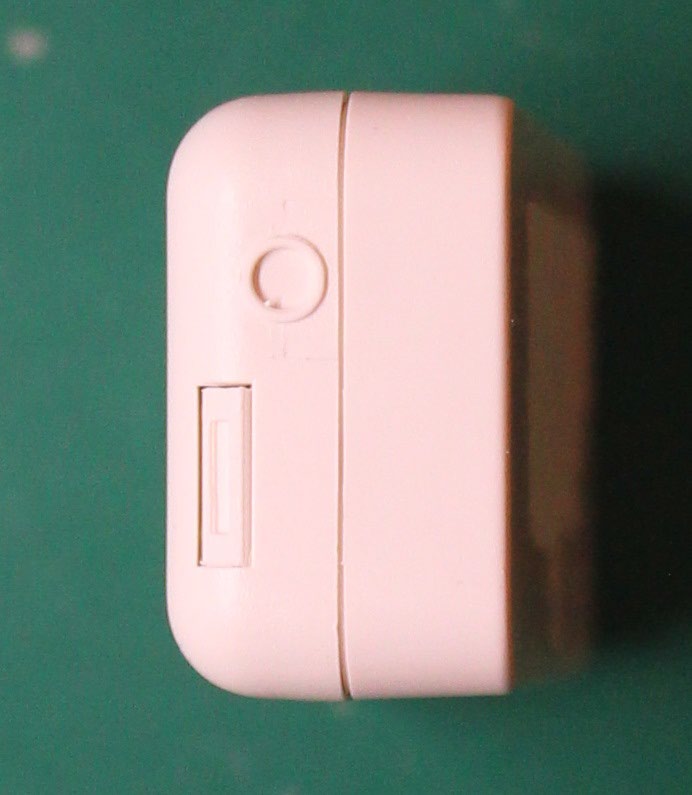

Front face 2AAXJQS-IQDWM1 Rear face 2AAJXQS-IQDWM2 Sides 2AAJXQS-IQDWM3 Top and Bottom faces 2AAJXQS-IQDWM4

QS-IQDWM LABEL FCC ID: 2AAJXQS-IQDWM IC : 11205A-QSIQDWM IQ Mini-S LABEL Requirements: Colour: Pantone Process Black Material: White UL approved self-adhesive Mylar type material - on a roll Lamination: Top gloss finish lamination (e.g. 1F9, or equivalent) Adhesive: Permanent adhesive backed with protective liner Location : Bottom Exterior Cutting: Tolerance +/- 0.010” Dashed line indicates cutting - will not print Font Size of FCC/IC Certification number, model name/number: 6 mm (minimum) Font Size of WEEE Mark: 7mm (minimum) Square label corners are acceptable. NOTES: 1. All items must be RoHS compliant. 2. Markings on label must be PERMANENT. 3. Indelible Ink. 4. Conductive inks may not be used. 5. Non-conductive label adhesive shall be used ONLY. NOTES: 1. All labels shall be printed on UL approved material. 2. All UL and ULC Labels shall be printed by a UL Listed printing facility. FCC: 2AAJXQS-IQDWM IC: 11205A-QSIQDWM IQ Mini-S

IQ Mini-S Internal Photos FCCID: 2AAJXQS-IQDWM Top View Side Views Reverse View Reverse View (No batteries)

Radio Frequency Exposure Evaluation Report FOR: Qolsys Inc. Model Number: IQ Mini-S Product Description: Door Sensor Alarm System FCC ID: 2AAJXQS-IQDWM IC: 11205A-QSIQDWM Per: CFR Part Part1 (1.1307 &1.1310), Part 2 (2.1091), FCC KDB 447498 D01 General RF Exposure Guidance v06 ISEDC RSS-102 Issue 5 Report number: EMC_QOLSY_012_23001_FCC_ISED_SAR_Exclusion_Rev1 DATE: 2023-07-27 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM Test Report #: EMC_QOLSY_012_23001_FCC_ISED_SAR_Exclusion_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-07-27 Page 2 of 10 IC: 11205A-QSIQDWM Page 2 of 10 TABLE OF CONTENTS 1 Assessment ................................................................................................................................... 3 2 Administrative Data ..................................................................................................................... 4 2.1 Identification of the Testing Laboratory Issuing the Test Report ..................................................... 4 2.2 Identification of the Client / Manufacturer .................................................................................... 4 Identification of the Manufacturer .......................................................................................................... 4 3 Equipment under Assessment ...................................................................................................... 5 4 FCC SAR test exclusions per KDB 447498................................................................................. 6 4.1 1-mW Test Exemption ............................................................................................................... 6 5 RF Exposure evaluation flow chart .............................................................................................. 7 6 ISEDC SAR test exclusions per IC RSS-102 Issue 5 .................................................................. 8 7 Evaluations ................................................................................................................................... 9 7.1 RF Exposure Exclusion results................................................................................................... 9 8 Revision History ......................................................................................................................... 10 Test Report #: EMC_QOLSY_012_23001_FCC_ISED_SAR_Exclusion_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-07-27 Page 3 of 10 IC: 11205A-QSIQDWM Page 3 of 10 1 Assessment The following device was evaluated against the limits for general population uncontrolled exposure specified in CFR 47 Part 2.1093 according to SAR evaluation exclusion requirements specified in FCC regulation as listed in KDB 447498, and ISEDC RSS-102 Issue 5. The device meets the requirements for SAR exclusion as stipulated by the above given FCC/ISEDC rules. Company Description Model # Qolsys Inc. The IQ Mini-S is an encrypted sensor with superior range specifically designed with multi-level vibration detection. It can alert you if a door is left open and provide security for anything that opens or closes. It is intended to work only with Qolsys Alarm panels. IQ Mini-S Responsible for Testing Laboratory: 2023-07-27 Compliance Arndt Stoecker (Director of Regulatory Services) Date Section Name Signature Responsible for the Report: 2023-07-27 Compliance Art Thammanavarat (Senior EMC Engineer) Date Section Name Signature Test Report #: EMC_QOLSY_012_23001_FCC_ISED_SAR_Exclusion_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-07-27 Page 4 of 10 IC: 11205A-QSIQDWM Page 4 of 10 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Street Address: 411 Dixon Landing Road City/Zip Code Milpitas, CA 95035 Country USA Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Compliance Manager: Arndt Stoecker Responsible Project Leader: Akanksha Baskaran 2.2 Identification of the Client / Manufacturer Client Firm/Name: Qolsys Inc. Street Address: 1919 S. Bascom Ave. Suite 600 City/Zip Code Campbell, California, 95008 Country USA Identification of the Manufacturer Manufacturer’s Name: Same as Client Manufacturers Address: City/Zip Code Country Test Report #: EMC_QOLSY_012_23001_FCC_ISED_SAR_Exclusion_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-07-27 Page 5 of 10 IC: 11205A-QSIQDWM Page 5 of 10 3 Equipment under Assessment Model No IQ Mini-S HW Version D SW Version 1.2.0 PMN IQ Mini-S Contains FCC-ID 2AAJXQS-IQDWM Contains IC: 11205A-QSIQDWM Operating Voltage Range 3VDC Operating Temperature Range Low : -10 ºC Norm 25 ºC High 50 ºC Radios included in the device Periodic radio SRF Frequency of operation: 319.5MHz Sample Revision ☐Production ☒ Pre-Production EUT Dimensions 57.15mm x 25.4mm x 12.7mm EUT Diameter  < 60 cm  Other __________ Test Report #: EMC_QOLSY_012_23001_FCC_ISED_SAR_Exclusion_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-07-27 Page 6 of 10 IC: 11205A-QSIQDWM Page 6 of 10 4 FCC SAR test exclusions per KDB 447498 KDB 447498 D04 General RF Exposure Guidance v01 Section 2.1; RF Exposure Test Exemptions for Single Source states: 4.1 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time- averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjuncti…

Text truncated - open the document above for the full version.

A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V4.0 2012-07-25 © Copyright by CETECOM FCC / IC Test Report FOR: Qolsys Inc. Model: IQ Mini-S Product Description: Door Sensor Alarm System FCC ID: 2AAJXQS-IQDWM IC: 11205A-QSIQDWM Applied Rules and Standards: 47 CFR Part: 15.231 RSS-210 Issue 10 & RSS-Gen Issue 5 REPORT #: EMC_QOLSY_012_23001_FCC_15_231_Rev1 DATE: 2023-08-02 Test Report #: EMC_QOLSY_012_23001_FCC_15_231_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-08-02 Page 2 of 26 IC: 11205A-QSIQDWM TABLE OF CONTENTS 1 ASSESSMENT .............................................................................................................................................................. 3 2 ADMINISTRATIVE DATA ............................................................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ........................................................................... 4 2.2 IDENTIFICATION OF THE CLIENT ............................................................................................................................................. 4 2.3 IDENTIFICATION OF THE MANUFACTURER ................................................................................................................................. 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................................................... 5 3.1 EUT SPECIFICATIONS ......................................................................................................................................................... 5 3.2 EUT SAMPLE DETAILS ......................................................................................................................................................... 5 3.3 ACCESSORY EQUIPMENT (AE) DETAILS ................................................................................................................................... 5 3.4 TEST SAMPLE CONFIGURATION ............................................................................................................................................. 6 3.5 MODE OF OPERATION.......................................................................................................................................................... 6 3.6 JUSTIFICATION FOR WORST CASE MODE OF OPERATION ............................................................................................................ 6 4 SUBJECT OF INVESTIGATION ...................................................................................................................................... 7 5 MEASUREMENT RESULTS SUMMARY .......................................................................................................................... 7 6 MEASUREMENT UNCERTAINTY .................................................................................................................................. 8 6.1 ENVIRONMENTAL CONDITIONS DURING TESTING: ...................................................................................................................... 8 6.2 DATES OF TESTING: ............................................................................................................................................................ 8 6.3 DECISION RULE: ................................................................................................................................................................. 8 7 MEASUREMENT PROCEDURES .................................................................................................................................... 9 7.1 RADIATED MEASUREMENT .................................................................................................................................................... 9 8 TEST RESULT DATA .................................................................................................................................................. 12 8.1 FIELD STRENGTH .............................................................................................................................................................. 12 8.2 EMISSION BANDWIDTH ....................................................................................................................................................... 14 8.3 RADIATED TRANSMITTER SPURIOUS EMISSIONS AND RESTRICTED BANDS ................................................................................... 16 8.4 PERIODIC OPERATION ....................................................................................................................................................... 22 9 TEST SETUP PHOTOS ................................................................................................................................................ 25 10 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTING ......................................................................................... 25 11 HISTORY ................................................................................................................................................................... 26 Test Report #: EMC_QOLSY_012_23001_FCC_15_231_Rev1 FCC ID: 2AAJXQS-IQDWM Date of Report 2023-08-02 Page 3 of 26 IC: 11205A-QSIQDWM 1 Assessment The following device was evaluated against the applicable criteria specified in FCC rules Parts 15.231 of Title 47 of the Code of Federal Regulations and the relevant ISED Canada standard RSS-210 Issue 10 & RSS-Gen Issue 5. No deviations were ascertained. Company Description Model # Qolsys Inc. The IQ Mini-S is an encrypted sensor with superior range spec…

Text truncated - open the document above for the full version.

Justification statement for Antenna To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: 2AAJXQS-IQDWM Only radiated measurements are used for EUT with FCC ID: 2AAJXQS-IQDWM to show compliance with FCC limits for fundamental end spurious emissions. All measurements were performed radiated and therefore additional antenna gain documentation is not required. The detailed information for antenna as below shows: Design Specifications Typical Antenna Type Phosphor Bronze Wire Antenna P/N : 1716 RF-MDWS-ANT Working Frequency 319.5 MHz Overall Dimensions 114mm x 1.27mm OD __________________________ Signature Name: Mark Skeen Title: VP Company: Qolsys Inc. Address: 1919 S. Bascom Ave., Campbell, CA 95008

CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected] http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 FCC/ISED Test Setup Photos For: Qolsys Inc. Model Name: IQ Mini-S Product Description: Door Sensor Alarm System FCC ID:2AAJXQS-IQDWM IC: 11205A-QSIQDWM Report #: EMC_QOLSY_012_23001_FCC_15_231 DATE: 7/18/2023 Page 2 of 6 Radiated Emission Measurements 9 kHz to 30 MHz Front View 9 kHz to 30 MHz Rear View Page 3 of 6 30 MHz to 1 GHz Front View 30 MHz to 1 GHz Rear View Page 4 of 6 1 GHz to 3 GHz Front View 1 GHz to 3 GHz Rear View Page 5 of 6 3 GHz to 4 GHz Front View 3 GHz to 4 GHz Rear View Page 6 of 6 Revision History DateReport NameChanges to reportPrepared by 7/18/2023EMC_QOLSY_012_23001_FCC_15_231_Setup_PhotosInitial VersionArt Thammanavarat <<< The End >>>
