IQ Keypad is a battery powered, capacitive touch keypad for use with compatible IQ4 NS, IQ4 Hub & IQ Panel 4 platforms via the PowerG protocol. It provides an easy and intuitive interface to control basic features of the system. This manual covers both IQ Keypad Prox-PG and IQ Keypad-PG models. Document: IQKP-UG Version: 1.0.0 Date: 06/05/2023 IQ KEYPAD USER GUIDE USING YOUR SYSTEM: OVERVIEW Prox Tag Reader (IQ Keypad Prox-P G only) Arm Stay Arm Away Arm Night Trouble LED Armed Status LED Disarmed Status LED Fire Emergency (1+3) Hold for 2 sec Police Emergency (7+9) Hold for 2 sec Aux Emergency (4+6) Hold for 2 sec USING YOUR SYSTEM: BASICS KEYPAD STATUS LIGHTS: Status lights help you understand the state of the system at a glance. USING YOUR IQ KEYPAD Status LightsLEDDescription OFFNot ready to Arm. ONReady to Arm. FLASHINGReady to Arm, bypass-able zones are open. OFFDisarmed ONArmed FLASHES TWICEMessage sent successfully FLASHINGAlarm occurred RAPID FLASHINGBell silenced for Fire Alarms OFFNo Trouble ONSystem Trouble FLASHINGKeypad Low Battery KeyDescription Arm Stay Arm Away Arm Night ARMING KEYS: Arming keys are the primary way of controlling the system from the IQ Keypad. NOTE: Press and hold arming keys for two seconds. If successful, the Armed Status LED will flash twice. If communication is not successful, the keypad flashes all keypad number LED’s (backlight) 0.5 seconds ON/OFF twice. Access code required for arming is off by default. If this is enabled in the panel (Secure Arming option), pressing each arm button shall be followed by a correct access code otherwise the system will not arm. Pressing * followed by Arm Away shall do a silent away arm Pressing * followed by Arm Stay shall do a silent stay arm Pressing * followed by Arm Night shall do a silent night arm If access code is required to arm (panel setting) an access code must be entered after the sequence. Example * > arm away > access code = silent away arm PROX TAG SUPPORT: For “IQ Keypad Prox-PG ” models that support Prox Tags, simply present your tag in front of the bullseye icon on the lower right hand side of the keypad and it will light up indicating the the tag has been read successfully. USING YOUR SYSTEM: BASICS PressAction [*] + [Arm/Disarm Button]Silent Arm/Disarm [*][1] + [Access Code]Bypass all open Zones [*][4] + [Access Code]Toggle Chime On/Off [*][6] + [Access Code]Toggle Keypress Buzzer On/Off [*][7] + [Output #] + [Access Code]Toggle Command Output [*][8] + [Access Code]Turn on Installer Programming Access (EN Grade 2 only) [*][9] + [Access Code]Arm System with No Entry Delay STAR MENU: The Star Menu on the IQ Keypad allows access to more advanced functionality such as silent arming, bypassing zones, turning on/off the chime, buzzer and more. See table below for a list of functions NOTE: All * menus will follow secure arming option whether an access code is needed or not KeyDescription Press and hold both the 1 & 3 keys simultaneously to generate a fire alarm. Press and hold both the 4 & 6 keys simultaneously to generate an auxiliary emergency alarm. Press and hold both the 7 & 9 keys simultaneously to generate a police panic alarm. EMERGENCY KEYS: Emergency keys allow you to trigger an emergency panic directly from the IQ Keypad. NOTE: Press and hold emergency keys for two seconds PARTITION ARMING: The Hash Menu on the IQ Keypad allows access to Partition Arming functionality. It may also act as a “Home” button to back out of any button press activity and start over. See table below for a list of functions. PressAction [#][1] + [Arm Stay] + [Access Code]Arm Partition 1 to Stay [#][2] + [Arm Stay] + [Access Code]Arm Partition 2 to Stay [#][3] + [Arm Stay] + [Access Code]Arm Partition 3 to Stay [#][4] + [Arm Stay] + [Access Code]Arm Partition 4 to Stay [#][1] + [Access Code]Disarm Partition 1 Hold [#] for 2 SecondsCancels any current IQ Keypad activity or button presses LEGAL FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.this device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF EXPOSURE STATMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, this equipment should be installed and operated with minimum distance …

Text truncated - open the document above for the full version.

Qolsys, Inc. 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA Covered Equipment Certification Attestation Letter June 2, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AAJXQS-IQKP Qolsys Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Qolsys Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Mark Skeen Title: VP Life Safety & Compliance Company Name: Qolsys Inc. Date: May 12, 2023

Qolsys, Inc. 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA U.S. Agent Designation for Service of Process - Certification Attestation Letter August 2, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AAJXQS-IQKP Per section 2.911(d)(7) of the FCC rules, Qolsys, Inc (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Qolsys, Inc Physical U.S. Company Address: 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA Agent name: Mark J Skeen Agent Email Address: [email protected] FRN: 0022572226 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Mark J Skeen Printed name: Click here to enter text. Title: VP Business Development Title: Click here to enter text. Company Name: Qolsys, Inc Company Name: Click here to enter text. Date: August 2, 2023 Date: Click here to enter a date.

Qolsys, Inc. 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA August 2, 2023 Nemko North America, Inc. 303 River Road, Ottawa, ON K1V 1H2 Canada Attn: Director of Certification FCC ID: 2AAJXQS-IQKP ISED certification number: 11205A-QSIQKP HVINs/Models: IQ Keypad Prox-PG, IQ Keypad-PG Family Certification request letter We hereby request Family Certification for the above mentioned HVINs/Models based on them being electrically, and physically identical apart from model name/number and the differences mentioned below: 1. Models IQ Keypad Prox-PG and IQ Keypad-PG are using the same PCB assembly/layout UA768 Rev. 02 and the only difference is that the model IQ Keypad-PG does not use the proximity tag access feature. 2. Models IQ Keypad Prox-PG and IQ Keypad-PG use the same integrated PowerG RF circuitry with the same antenna type and gain 3. Models IQ Keypad Prox-PG and IQ Keypad-PG have the same plastic enclosure The model IQ Keypad Prox-PG that is the fully populated variant in the family has been used for testing and the results are representative also for model IQ Keypad-PG. Sincerely, Signed by: Mark Skeen Signature Print name VP Life Safety & Compliance Title 408-857-8415 Phone On behalf of: Qolsys Inc. Company name

Qolsys, Inc. 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA June 2, 2023 Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Request for Confidentiality – FCC FCC ID: 2AAJXQS-IQKP Pursuant to FCC 47 CFR 0.457(d)(1)(ii) and 0.459 and FCC guidance published in KDB 726920, we hereby request confidential treatment of information accompanying this application as outlined below. We request the exhibits selected below as long term confidential be withheld from public view permanently: Selection of exhibits for LTC Exhibit name ☒ Permanent (Long Term) Block Diagrams ☒ Permanent (Long Term) Operation Description / Theory of Operation ☒ Permanent (Long Term) Parts List & Placement / BOM ☐ Permanent (Long Term) 1 Tune-Up Procedure ☒ Permanent (Long Term) Schematics ☐ Permanent (Long Term) * 2 User’s Manual ☐ Permanent (Long Term) * Internal Photos ☐ Permanent (Long Term) SDR Software / Security Info (for SDR only) Our company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Not protecting the details of the design will result in financial hardship. When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed by: Mark Skeen Signature Print name VP Life Safety & Compliance Title 1 - Applicable only for licensed equipment. 2 - The asterisked items (*) require further information to be provided to TCB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and review section II, 3) regarding specific information that must accompany these requests.

Qolsys, Inc. 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent for FCC application On our behalf, I appoint Spencer Zhong of Nemko Canada, Inc. at 303 River Road, Ottawa, Ontario, Canada K1V 1H2, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Qolsys Inc., having a business address at 1919 S. Bascom, Suite 600, Campbell, CA 95008, USA. Dated: June 2, 2023 Agency agreement expiration date: May 1, 2024 *Up to 12 months Signed by: Mark Skeen Signature Print name VP Life Safety & Compliance Title 408-857-8415 Phone On behalf of: Qolsys Inc. Company name Qolsys, Inc. 1919 S. Bascom Ave., Suite 600 Campbell, California 95008, USA

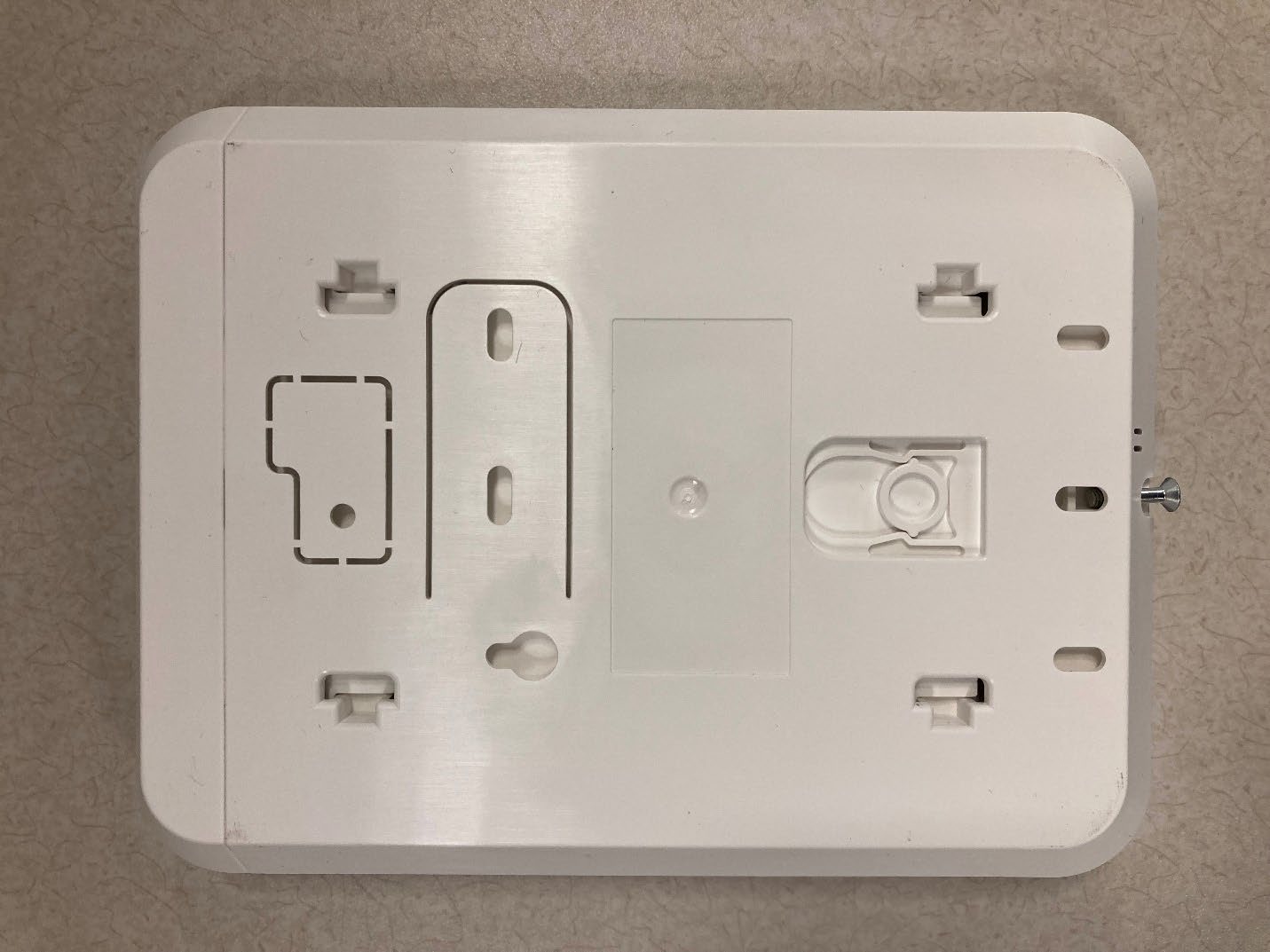

IQKeypad External photos Front side View IQKeypad External photos Back side View with mounting plate IQKeypad External photos Back side View with mounting plate removed

18011377R001 IQ Keypad Prox-P G Multi-Listing Label 915MHz FCC/IC June 9, 2023 8 mm 80 mm Top of the unit shows the label location (actual size) MADE IN XXXX YYY “XXXXX YYY” IS PLACEHOLDER ONLY. Please replace “XXXXX” with the country of origin and “YYY” with the UL factory ID (if applicable) before printing. Delete the “YYY” if there is no UL factory ID. Colour: Pantone Process Black Material: CLEAR/WHITE UL approved self-adhesive Mylar type material - on a roll Lamination: Top gloss finish lamination (e.g. 1F9, or equivalent) Adhesive: Permanent adhesive backed with protective liner Cutting: Tolerance +/- 0.010” Dashed line indicates cutting - will not print Square label corners are acceptable. NOTES: 1. All items must be RoHS compliant. 2. Markings on label must be PERMANENT. 3. Indelible Ink. 4. Conductive inks may not be used. 5. Non-conductive label adhesive shall be used ONLY. NOTES: 1. All UL and ULC Labels shall be printed on UL approved material. The first time the label is ordered, the artwork must be sent to UL Label Center [email: [email protected], fax: (847)509-6201] for approval. 2. All UL and ULC Labels shall be printed by a UL Listed printing facility. M/N: IQ Keypad Prox-PG RES FIRE, RES/COM BURGLARY ALARM KEYPAD FCC ID:2AAJXQS-IQKP IC: 11205A-QSIQKP; CAN RSS-Gen/CNR-Gen CAN ICES-3(B)/NMB-3(B)

18011375R001 IQ Keypad-PG Multi-Listing Label 915MHz FCC/IC June 9, 2023 8 mm 80 mm Top of the unit shows the label location (actual size) MADE IN XXXX YYY “XXXXX YYY” IS PLACEHOLDER ONLY. Please replace “XXXXX” with the country of origin and “YYY” with the UL factory ID (if applicable) before printing. Delete the “YYY” if there is no UL factory ID. Colour: Pantone Process Black Material: CLEAR/WHITE UL approved self-adhesive Mylar type material - on a roll Lamination: Top gloss finish lamination (e.g. 1F9, or equivalent) Adhesive: Permanent adhesive backed with protective liner Cutting: Tolerance +/- 0.010” Dashed line indicates cutting - will not print Square label corners are acceptable. NOTES: 1. All items must be RoHS compliant. 2. Markings on label must be PERMANENT. 3. Indelible Ink. 4. Conductive inks may not be used. 5. Non-conductive label adhesive shall be used ONLY. NOTES: 1. All UL and ULC Labels shall be printed on UL approved material. The first time the label is ordered, the artwork must be sent to UL Label Center [email: [email protected], fax: (847)509-6201] for approval. 2. All UL and ULC Labels shall be printed by a UL Listed printing facility. M/N: IQ Keypad-PG RES FIRE, RES/COM BURGLARY ALARM KEYPAD FCC ID:2AAJXQS-IQKP IC: 11205A-QSIQKP CAN ICES-3(B)/NMB-3(B)

IQ Keypad Prox-PG top side of PCB assembly (UA768 + RF module) IQ Keypad Prox-PG bottom side of PCB assembly (UA768 + RF module) IQ Keypad-PG top side of PCB assembly (UA768 + RF module) IQ Keypad-PG bottom side of PCB assembly (UA768 + RF module) IQ Keypad Prox-PG and IQ Keypad-PG - PowerG RF module PCB top side view IQ Keypad Prox-PG and IQ Keypad-PG - PowerG RF module PCB bottom side view

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by ANSI National Accreditation Board (ANAB). The tests included in this report are within the scope of this accreditation. The ANAB symbol is an official symbol of the ANSI National Accreditation Board, used under licence. ANAB File Number: AT-3195 (Ottawa/Almonte); AT-3193 (Pointe-Claire); AT-3194 (Cambridge) FCC and RSS-102 Annex C – MPE Calculation; Date: May 2021 C h o o s e S c a n d i n a v i a n t r u s t RADIO TEST REPORT – REP014457 Type of assessment: MPE Calculation report Manufacturer: Qolsys Inc. Product Marketing Name (PMN): Model(s)/HVIN(s): PowerG Wirefree Keypad with prox and PowerG Wirefree Keypad IQ Keypad Prox-PG and IQ Keypad-PG FCC identifier: ISED certification number: FCC ID: 2AAJXQS-IQKP IC: 11205A-QSIQKP Specification:  FCC 47 CFR Part 1 Subpart I, §§1.1307, 1.1310  FCC 47 CFR Part 2 Subpart J, §2.1091  FCC KDB 447498 D01 General RF Exposure Guidance v06  ISED Canada RSS-102 Issue 5 Amendment 1, (February 2021) RSS-102 Annex B - Declaration of RF Exposure Compliance ATTESTATION: I attest that the information provided in Annex A is correct; that the Technical Brief was prepared and the information contained therein is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of RSS-102. Date of issue: August 8, 2023 Fahar Abdul Sukkoor, EMC/RF Specialist Prepared by Signature Section 1.1 MPE calculation for standalone transmission www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by ANSI National Accreditation Board (ANAB). The tests included in this report are within the scope of this accreditation. The ANAB symbol is an official symbol of the ANSI National Accreditation Board, used under licence. ANAB File Number: AT-3195 (Ottawa/Almonte); AT-3193 (Pointe-Claire); AT-3194 (Cambridge) FCC and RSS-102 Annex C – MPE Calculation; Date: May 2021 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Section 1.1 MPE calculation for standalone transmission www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by ANSI National Accreditation Board (ANAB). The tests included in this report are within the scope of this accreditation. The ANAB symbol is an official symbol of the ANSI National Accreditation Board, used under licence. ANAB File Number: AT-3195 (Ottawa/Almonte); AT-3193 (Pointe-Claire); AT-3194 (Cambridge) FCC and RSS-102 Annex C – MPE Calculation; Date: May 2021 Evaluation summary 1.1 MPE calculation for standalone transmission 1.1.1 References, definitions and limits FCC §2.1091(d) (2) (2) For operations within the frequency range of 300 kHz and 6 GHz (inclusive), the limits for maximum permissible exposure (MPE), derived from whole-body SAR limits and listed in Table 1 in paragraph (e)(1) of this section, may be used instead of whole-body SAR limits as set forth in paragraphs (a) through (c) of this section to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b) of this part, except for portable devices as defined in §2.1093 of this chapter as these evaluations shall be performed according to the SAR provisions in §2.1093. Table 1.1-1: Table 1 to §1.1310(e)(1)—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3–3.0 614 1.63 *(100) ≤6 3.0–30 1842 / f 4.89 / f *(900 / f 2 ) <6 30–300 61.4 0.163 1.0 <6 300–1500 f / 300 <6 1500–100000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) <30 1.34–30 824 / f 2.19 / f *(180 / f 2 ) <30 30–300 27.5 0.073 0.2 <30 300–1500 f / 1500 <30 1500–100000 1.0 <30 Notes: f = frequency in MHz. * = Plane-wave equivalent power density. RSS-102, Section 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune- up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in …
