2AAJXQS-ZWAVE700Z- Wave 700 Card

1 Qolsys Z-wave-700 Card General Applications: The Qolsys Z-wave 700 card features the EFR32ZG14 modem, which is capable of providing an air interface to, and compatibility with Z-wave devices. Installation and Operation: It is recommended to secure the module to a large ground plane using the mounting hole and header pins. Do not place any large pieces of metal around or near the antenna, as it will inhibit performance. The Qolsys Z-wave 700 card operates at the 908.42MHz. Data and protocol specifications are beyond the scope of this document. Please contact Qolsys for the technical specifications. 2 FCC Compliance: FCCID: 2AAJXQS-Zwave700 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. IC Compliance: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux normes d’exemption de licence RSS d’Industry Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. CAN ICES-3 (B)/NMB-3(B) Warranty Information: IMPORTANT! Changes or modifications not expressly approved by Qolsys Inc. could void the user’s authority to operate the equipment, as well as warranty for the product.

To Whom This May Concern, The user manual for the Z-wave 700 card (FCC: 2AAJXQS-ZWAVE700) that is being submitted, is a draft version. The final version of the user manual will be available and supplied with the sale of the Z-wave 700 card. Sincerely, --------------------------- (Mark Skeen) (VP of Life Safety and Compliance)

Qolsys Inc. 1900 The Alameda Suite 420 San Jose, CA. 95126 Qolsys.com (855) 4-QOLSYS Federal Communications Commission Authorization and Evaluation Division DATE: 2020-20-1 Confidentiality Request regarding application for certification of FCC ID: 2AAJXQS- ZWAVE700 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request long term confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics 2AAJXQS-ZWAVE700_FCCID_Schematics.pdf Block Diagram 2AAJXQS-ZWAVE700_FCCID_BlockDiagram.pdf Operational Description 2AAJXQS-ZWAVE700_FCCID_OperationalDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------- (Mark Skeen) (VP Life Safety and Compliance)

FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 External Photos External rear External front FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 Side Views FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700

Vesta_ Z-Wave Card Label 1:1 1 : 13 : 1 See Note Vesta_ Z-Wave Card Label Note. 1. Material: White PET 50# 2. Adhesive: Acrylic adhesive(0.05) 3. Color: Background: White Text : Black 0.5R*4 24+0.2mm 15+0.2mm 3C0383800-600-G 3C0383800-600-G MODEL Number: QS-ZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 MODEL Number: QS-ZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 MODEL Number: QS-ZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700

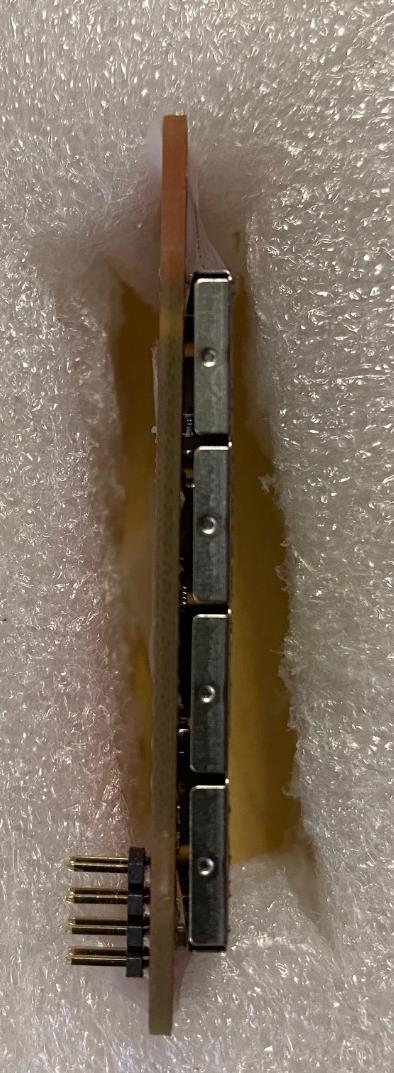

FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 Internal Photos Internal rear Internal front Internal front (close up) FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 Internal side views FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700 FCC ID: 2AAJXQS-ZWAVE700 IC ID: 11205A-QSZWAVE700
