Company Name: Qolsys, Inc. Address: 1900 The Alameda 4th Floor, San Jose, California 95126, United States Telephone: +1-408-709-2717 Email: [email protected] ATTESTATION LETTER Date: 2020/1/4 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Qolsys, Inc. hereby declare that: Product Name: IQ Hub Model Number: IQ Hub FCC ID: 2AAJXQS-IQHUB For WLAN mode: 5250-5350MHz, 5470-5725 MHz, 2422-2452MHz 802.11n- HT40 and Bluetooth (BDR,EDR) mode are disabled by software. Only below are activated. Bluetooth LE mode 2402-2480 MHz WLAN mode 2412-2462MHz 802.11b/g/n-HT20 5150-5250MHz 802.11a/n/ac (20/40/80MHz) 5725-5850MHz 802.11a/n/ac (20/40/80MHz) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Signature: Name/Title: Mark Skeen/ VP Life Safety & Compliance Phone: +1-408-709-2717 Email: [email protected]

Company Name: Qolsys, Inc. Address: 1900 The Alameda 4th Floor, San Jose, California 95126, United States Telephone: +1-408-709-2717 Email: [email protected] QA-FR-170-B FCC Authorization Current Date: 2020/1/4 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Qolsys, Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name/Title: Mark Skeen/ VP Life Safety & Compliance Phone: +1-408-709-2717 Email: [email protected]

Company Name: Qolsys, Inc. Address: 1900 The Alameda 4th Floor, San Jose, California 95126, United States Telephone: +1-408-709-2717 Email:[email protected] FCC ConfidentialAuthorization Current Date:2020/1/4 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID:2AAJXQS-IQHUB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Circuit Description --- (Long term)  Schematic --- (Long term)  Block Diagram --- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public.The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Printed Name/Title: Mark Skeen/ VP Life Safety & Compliance Phone: +1-408-709-2717 Email: [email protected]

Company Name: Qolsys, Inc. Address: 1900 The Alameda 4th Floor, San Jose, California 95126, United States Telephone: +1-408-709-2717 Email:[email protected] Statement Current Date:2020/1/4 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Product Name: IQ Hub Model: IQ Hub FCC ID: 2AAJXQS-IQHUB This device will be mounted on the holder and then mounted on the wall or other place. The installing method is listed in the user manual. Sincerely, Signature: Name/Title: Mark Skeen/ VP Life Safety & Compliance Phone: +1-408-709-2717 Email: [email protected]

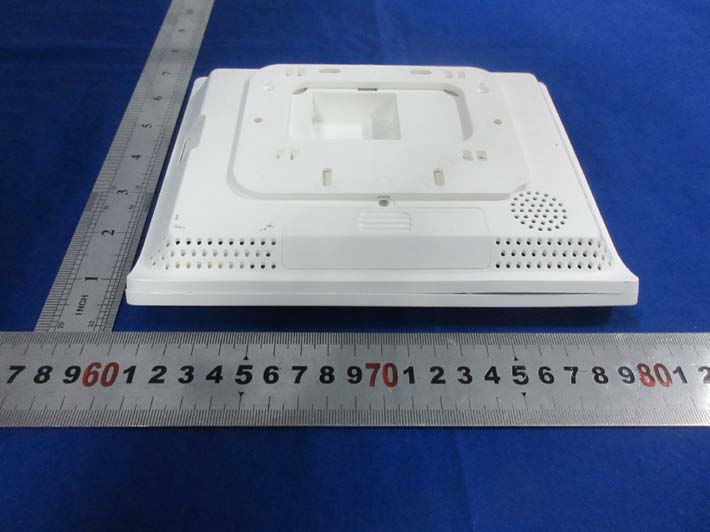

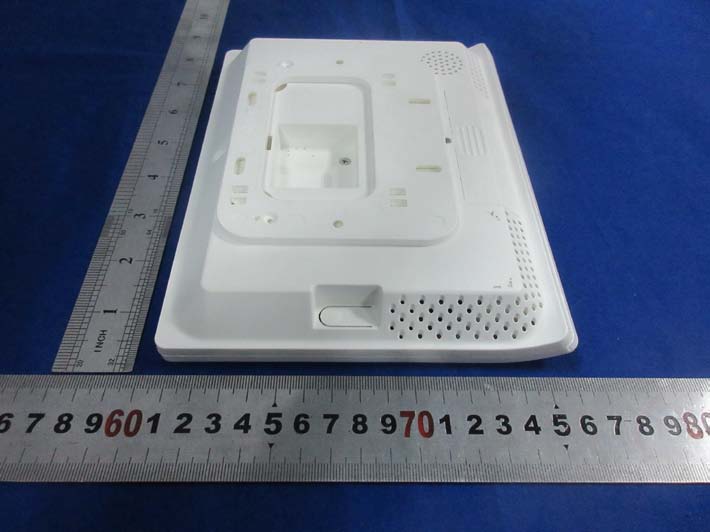

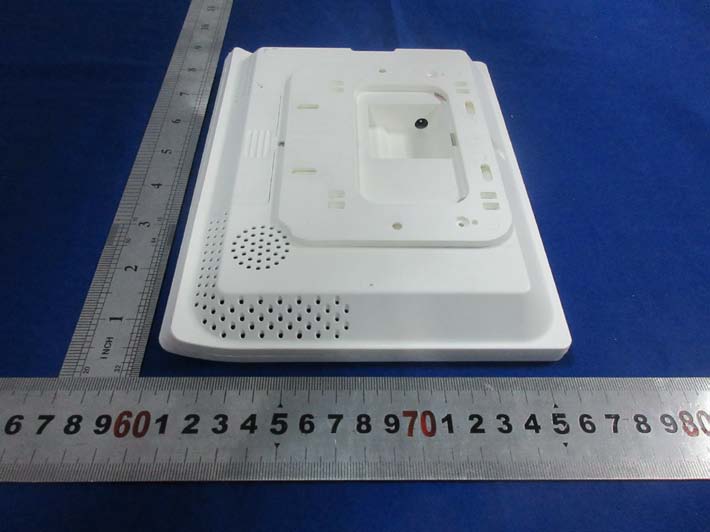

EXHIBIT B – EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Bracket off View EUT – Side 1 View EUT – Side 1 View EUT – Side 2 View EUT – Side 3 View EUT – Side 4 View EUT – DC Power Input Port View EUT – Wall Bracket View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A -LABELING AND LOCATION Label Label Location

EXHIBIT C – EUT INTERNAL PHOTOGRAPHS EUT – Uncovered 1 View EUT – Uncovered 2 View 2.4G/5G Wi-Fi & BLE Antenna Z-Wave Antenna LTE Antenna Power-G Antenna 2.4G/5G Wi-Fi & BLE Module LTE Module Power-G Module Z-Wave Module EUT – Mainboard Top View EUT – Mainboard Bottom View EUT – Power-G Module View EUT – 2.4G/5G Wi-Fi & BLE Module View EUT – LTE Module View EUT – Z-Wave Module View EUT – Power-G Antenna View EUT – 2.4G/5G Wi-Fi & BLE Antenna View EUT – LTE Antenna View EUT – Z-Wave Antenna View EUT – Battery off View EUT – Battery View

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ‘*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Qolsys, Inc. 1900 The Alameda 4th Floor, San Jose, California 95126, United States Report Type: Original Report Equipment Name: IQ Hub Report Number: RSC191224001-0D Date of Report Issue: 2019-12-31 Reviewed By: Sula Huang Prepared By: Bay Area Compliance Laboratories Corp. (Chengdu) No.5040, Huilongwan Plaza, No. 1, Shawan Road, Jinniu District, Chengdu, Sichuan, China Tel: +86-28-65525123 Fax: +86-28-65525125 www.baclcorp.com Tested Model: IQ Hub FCC ID: 2AAJXQS-IQHUB Bay Area Compliance Laboratories Corp. (Chengdu) Report No.: RSC191224001-0D Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ........................................................................................................................................ 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................ 3 OBJECTIVE .................................................................................................................................................................. 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 MEASUREMENT UNCERTAINTY ................................................................................................................................... 4 TEST METHODOLOGY ................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION ........................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ................................................................................................................... 5 EQUIPMENT MODIFICATIONS ...................................................................................................................................... 5 EUT EXERCISE SOFTWARE ........................................................................................................................................ 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 5 EXTERNAL I/O CABLE ................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 6 TEST EQUIPMENTS LIST .......................................................................................................................................... 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................ 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 EUT SETUP ............................................................................................................................................................... 10 EMI TEST RECEIVER SETUP .................................................................................................................................... 10 TEST PROCEDURE .................................................................................................................................................... 10 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 11 TEST DATA ................................................................................................................................................................ 11 FCC §15.205, §15.209 & §15.249 - SPURIOUS EMISSIONS ............................................................................ 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ............................................................................................................................................................... 14 EMI TEST RECEIVER SETUP ...................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Emission View (Below 1GHz) Radiated Emission View (Above 1GHz)
