1 SMD-5018AUser Manual Brand Name: DAEWOO Model Name: SMD-5018A FCC ID: 2AASJSMD-5018A 2 Basic Information 1. Safety Notice If your phone is lost or stolen, please immediately inform the telecom department or commission agents of forbidding the use of SIM card, so that avoid the economic loss caused by false calling of others. When you contact with telecom department or commission agents, they need to know your phone IMEI number (printed on the label on the back of the phone and can be found after taking down the battery). Please copy the number and keep it safe for future use. In order to use the phone more safely, please adopt preventive measures, for example: set up the PIN code of SIM card, PIN code can prevent your SIM card from being used by others without permission. When leaving the car, please don’t place the phone in a place easy to be seen, you had better to carry with you or lock in the suitcase. 2. Safety Alert and Cautions Before using the phone, please read these cautions carefully so that make sure to use the phone correctly. 3.1 Cautions of Using the Phone Don’t take down or modify the phone; otherwise it may cause the damage, leakage and circuit failure of the phone. Please don’t knock the LCD by force or use the LCD to knock other things; otherwise may cause the damage of liquid crystal plate and the leaking of liquid crystal. If liquid crystal enters the eyes, it may damage eyesight. At this time, please rinse the eyes immediately with clean water (don’t rub the eyes), and see a doctor immediately. 3.2 Cautions of Using the Battery Please don’t take down or modify the battery; otherwise it may cause liquid leaking, overheat, explosion or fire breakout of battery. Don’t throw the old battery into general life rubbish. Treat the battery according to the regulated indication in the place that definitely regulates the waste battery treatment. Please don’t throw the battery into the fire otherwise it may cause the fire breakout or explosion of the battery. 3 3.3 Security Password 3.3.1 PIN PIN (Personal Identification Number) is used to prevent your SIM card from being used illegally. PIN is usually provided with SIM card together. If you input wrong PIN for continuous three times, please input PUK to unlock it. 3.3.2 PIN 2 You need to input PIN2 when entering some functions (such as call charge); if you input wrong PIN2 for continuous three times, you need to input PUK2 to unlock it. Please contact with network Operations Company for more details. 3.3.3 PUK When changing the locked PIN, you need to input PUK (Personal Unlock Key). PUK is provided with SIM card together. If it is not provided, please contact with your service provider. Content 4 Safety Precautions ········································································································ 5 Before Use ·················································································································· 6 1. Install and Unload SIM Card ····················································································· 6 2. T-Flash Card ········································································································· 6 3. Install and Unload Battery ························································································· 7 4. Charging ············································································································· 7 Quick User Guide ········································································································· 8 Basic Functions ··········································································································· 14 Technical Information ·································································································· 26 5 Safety Precautions Before using a mobile phone, please read and observe the following rules. While driving or answering a call, please use an earphone or stop your car. Mobile phone interferes with aircraft communication, please ensure that mobile phone power off during the entire flight. All mobile phones may be disturbed, and affect their performance. Please don’t use mobile phone and turn off your phone where medical equipments exist. To ensure the best performance or avoid damage to mobile phone, please use the original accessories and batteries. At the gas station and close to the fuel and chemicals and other dangerous goods, please power off your mobile phone to avoid explosion. To avoid interference of the blasting operation, In the scene of the explosion or post "Turn off the radio" icon in the local, please power off your mobile phone. Please don't burn batteries as ordinary garbage, to avoid the risk of life and damage to the environments. Please abide by the local environmental policy, timely deal with or recycle the waste batteries. Before your mobile phone is connect with another equipment, please read carefully this manual to ensure safety. Some small articles (such as T-Flash card, etc.) should be placed out of children reach, to prevent children swallowing or other hazard. Please backup the important information or keep a written record, to prevent its loss. When sending an emergency call, please ensure your mobile phone power on and in a service area, inform your position, without permission, please don't end this call. 6 Before use 1 Install and Unload SIM Card 1.1 About SIM Card Before using the phone, you must insert valid SIM (Subscriber Identity Module) card in the phone. SIM card is provided by network supplier. All the information related to network connection are recorded in the chip of SIM card, also the names, telephone numbers and SMS that storing in the name card holder of SIM card. You can take out SIM card from your phone, and use it in any GSM mobile phone (new mobile phone can read SIM card automatically). In order to avoid losing or damaging the information saves in SIM card, please don’t touch the …

Text truncated - open the document above for the full version.

Aug. 20, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AASJSMD-5018A Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5: Turn Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Company: Daewoo International Corp. Contact Person: Young Kyoo Yoo Title: Manager

Daewoo International Corp. 84-11, Namdaemunno 5-ga, Jung-gu, Seoul 100-753 Korea Date: Aug. 20, 2014 Statement We, Daewoo International Corp. states that our device, FCC ID: 2AASJSMD-5018A, has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards Company: Daewoo International Corp. Contact person: Young Kyoo Yoo Title: Manager

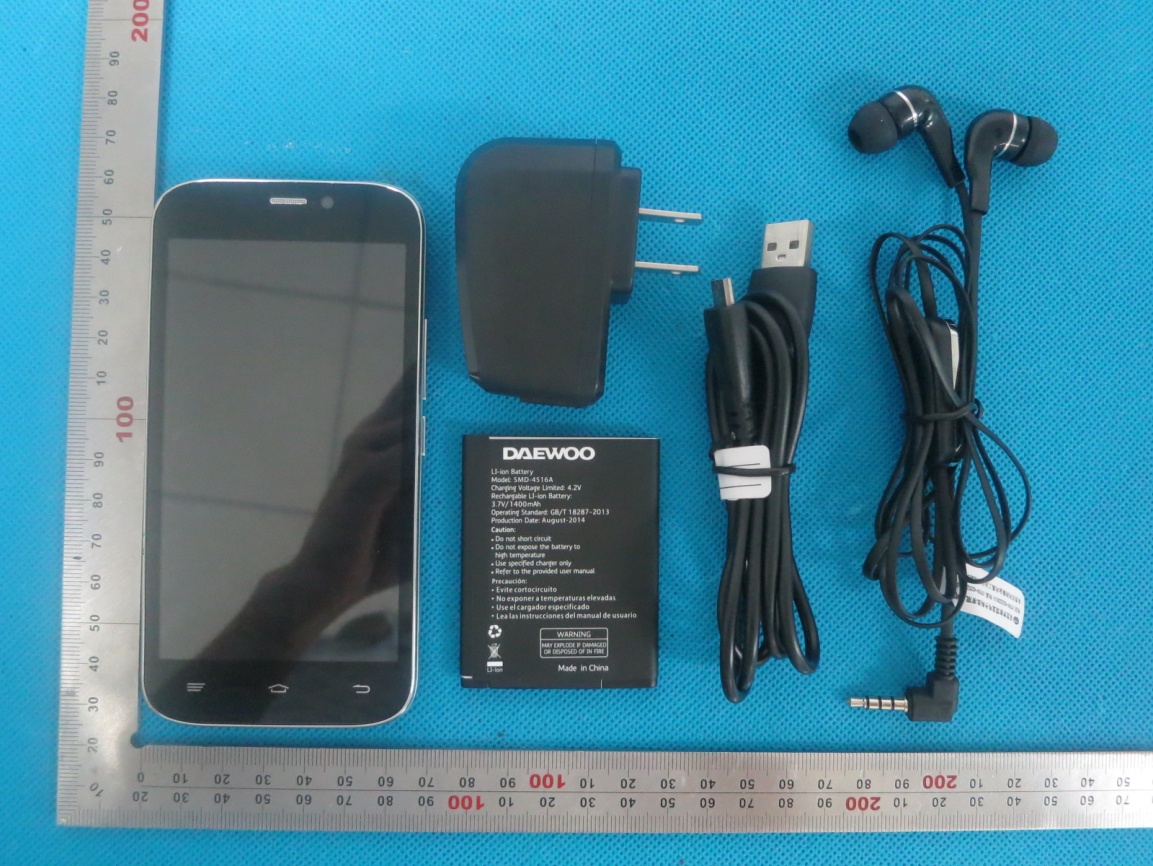

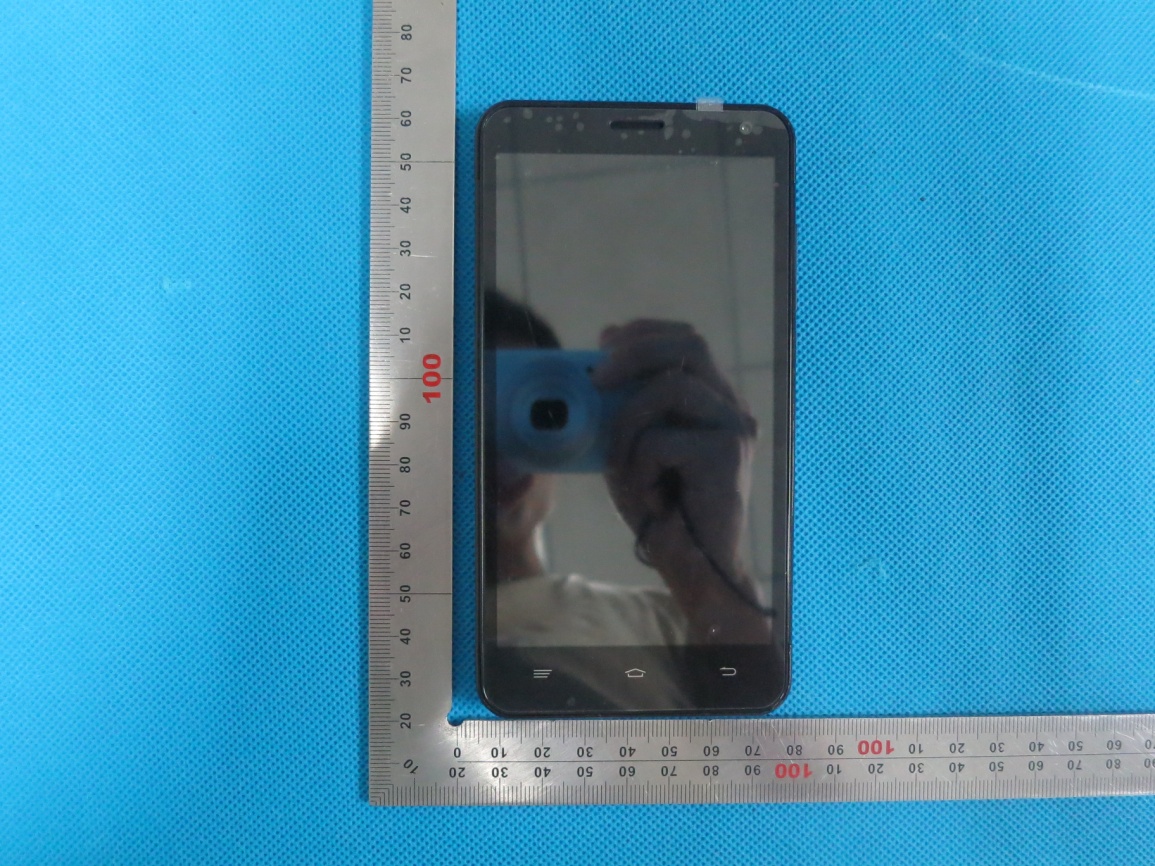

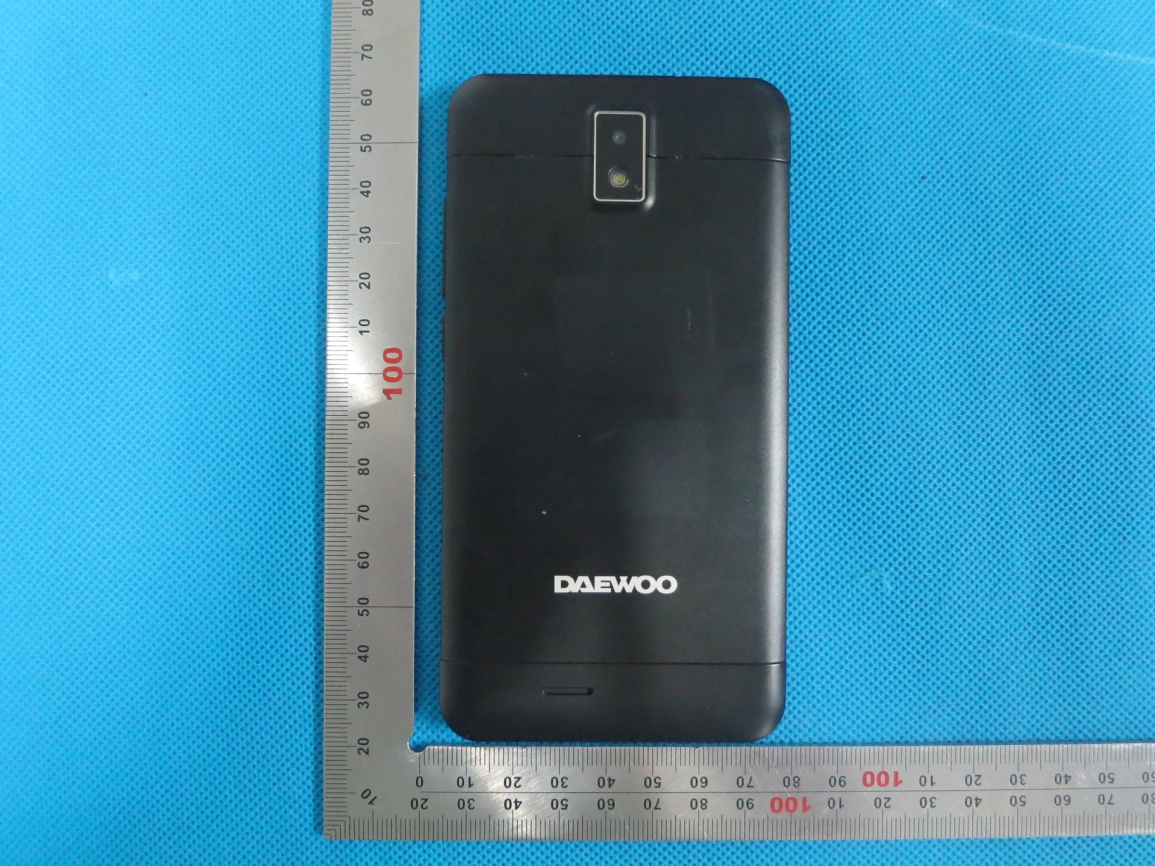

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT
