2AAUCMOLTMHYLOBK01Level 10M Wireless Mouse

Product Name: Level 10M Wireless Mouse

Report No.: FD3N0401 Page : 1 of 24 Report Version: Rev. 01 FCC DoC Test Report Equipment : Level 10M Wireless Mouse Model No. : MO-LTM-HYLO-1 Brand Name : Thermaltake Applicant : Thermaltake Technology Co., Ltd. Address : 5F., No.185, Sec. 2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan Standard : FCC Part 15, Subpart B, Class B ICES-003 Issue 5 ANSI C63.4:2009 Received Date : Nov. 04, 2013 Tested Date : Nov. 05 ~ Nov. 07, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Kent Chen / Assistant Manager Ty: XXX Report No.: FD3N0401 Page : 2 of 24 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 5 1.3 Test Equipment and Calibration Data .................................................................................................... 6 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Condition ................................................................................................................................... 8 2.2 Local Support Equipment List ................................................................................................................ 9 2.3 Test Setup Chart .................................................................................................................................... 9 2.4 Test Software and Operating Condition ................................................................................................. 9 3 EMISSION TESTS RESULTS ............................................................................................................. 10 3.1 Conducted Emissions ........................................................................................................................... 10 3.2 Radiated Emissions .............................................................................................................................. 14 4 PHOTOGRAPHS OF THE TEST CONFIGURATION ......................................................................... 21 5 TEST LABORATORY INFORMATION ............................................................................................... 24 Report No.: FD3N0401 Page : 3 of 24 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FD3N0401 Rev. 01 Initial issue Jan. 21, 2014 Report No.: FD3N0401 Page : 4 of 24 Report Version: Rev. 01 Summary of Test Results FCC Part 15, Subpart B Emission Tests Ref. Std. Clause Test Standard Test Items Measured Result 15.107 FCC Part 15, Subpart B, Class B Conducted Emissions -11.62dB QP@ 0.155MHz. Pass 15.109 FCC Part 15, Subpart B, Class B Radiated Emissions -3.40dB QP@ 335.98MHz. Pass Report No.: FD3N0401 Page : 5 of 24 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Feature of Equipment under Test (EUT) Power Supply Type 5Vdc from Host.. Highest Frequency of the Internal Sources 5.85GHz 1.2 Accessories Accessories No. Equipment Description 1 USB cable 1.8m shielded cable w/o core. NOTE：The EUT can be charged by USB cable. Report No.: FD3N0401 Page : 6 of 24 Report Version: Rev. 01 1.3 Test Equipment and Calibration Data Test Item Conducted Emission Test Site Conduction room 1 / (CO01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until EMC Receiver R&S ESCS 30 100169 Oct. 15, 2013 Oct. 14, 2014 LISN SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-667 Dec. 04, 2012 Dec. 03, 2013 LISN (Support Unit) SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-666 Dec. 04, 2012 Dec. 03, 2013 ISN TESEQ ISN T800 34406 Apr. 08, 2013 Apr. 07, 2014 ISN TESEQ ISN T200A 30494 Apr. 09, 2013 Apr. 08, 2014 ISN TESEQ ISN ST08 22589 Jan. 24, 2013 Jan. 23, 2014 RF Current Probe FCC F-33-4 121630 Dec. 04, 2012 Dec. 03, 2013 RF Cable-CON Woken CFD200-NL CFD200-NL-001 Dec. 25, 2012 Dec. 24, 2013 ESH3-Z6 V-Network(+) R&S ESH3-Z6 100920 Nov. 21, 2012 Nov. 20, 2013 ESH3-Z6 V-Network(-) R&S ESH3-Z6 100951 Jan. 30, 2013 Jan. 29, 2014 Two-Line V-Network R&S ENV216 101579 Jan. 07, 2013 Jan. 06, 2014 50 ohm terminal NA 50 01 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal NA 50 02 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal NA 50 03 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal (Support Unit) NA 50 04 Apr. 22, 2013 Apr. 21, 2014 Note: Calibration Interval of instruments listed above is one year. Test Item Radiated Emission below 1GHz Test Site Open Area Test Site 1 / (OS01-LK) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Open Area Test Site SPORTON OATS-10 OS01-LK Oct. 27, 2013 Oct. 26, 2014 Amplifier HP 8447D 2944A07523 Jun. 10, 2013 Jun. 09, 2014 EMI Test Receiver R&S ESR3 101659 Feb. 04, 2013 Feb. 03, 2014 Bilog Antenna Schaffner CBL6112B 2687 Oct. 14, 2013 Oct. 13, 2014 RF Cable-R03m BELDEN RG8/U CB015 Dec. 25, 2012 Dec. 24, 2013 RF Cable-R10m BELDEN RG8/U CB016 Dec. 25, 2012 Dec. 24, 2013 Note: Calibration Interval of instr…

Text truncated - open the document above for the full version.

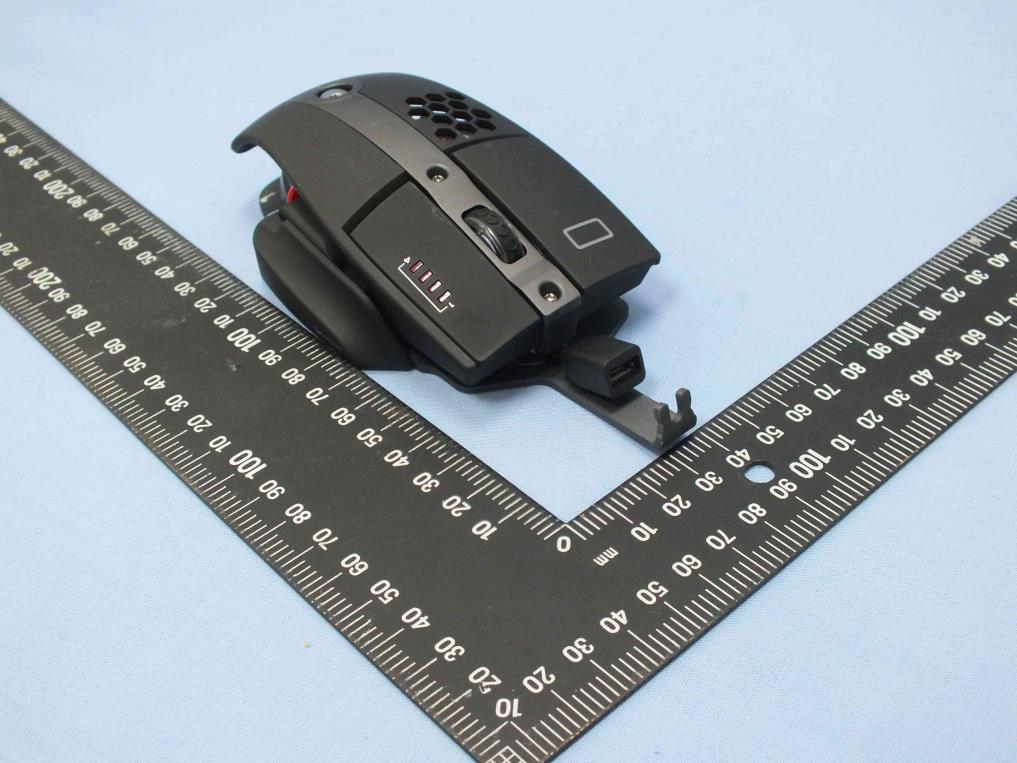

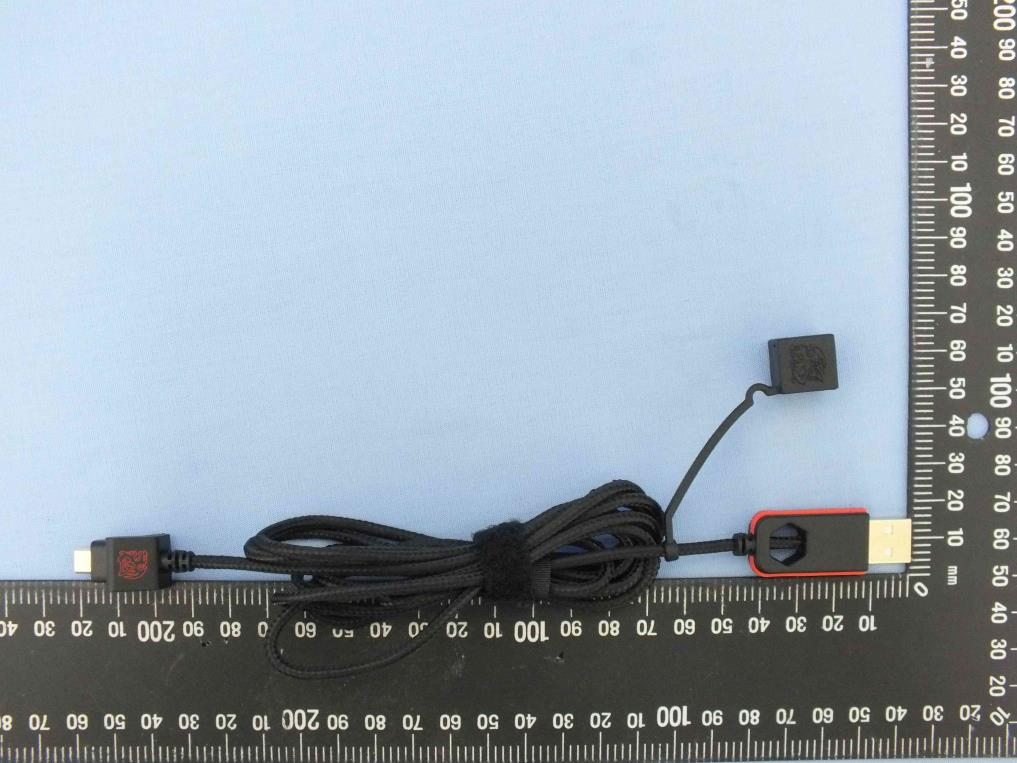

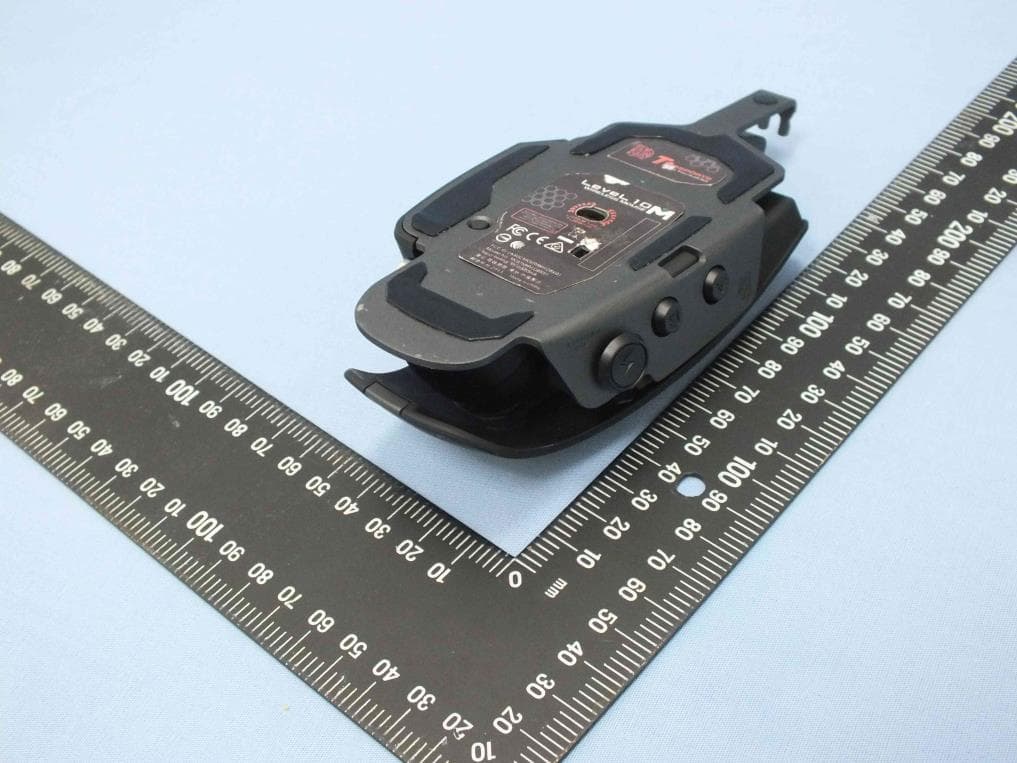

Project No.: EP3N0401 Page No. : 1 of 12 Photographs of EUT Project No.: EP3N0401 Page No. : 2 of 12 Project No.: EP3N0401 Page No. : 3 of 12 Project No.: EP3N0401 Page No. : 4 of 12

- - dzdzdzჹᔈ߄਱Ǻ ԃҽ жዸ Дҽ жዸ ԃ 3123 U Д 2 F 3124 I 3 T 3125 F 4 E 3126 S 5 L 3127 N 6 B 3128 B 7 H 3129 M 8 J 312: V 9 M 3131 Y : G 3132 B 21 S 3133 T 22 W 3134 Q 23 V 3135 P 3136 C 3137 Z 3138 O 3139 R 313: X 3141 [ - - dzdzdzჹᔈ߄਱Ǻ ԃҽ жዸ Дҽ жዸ ԃ 3123 U Д 2 F 3124 I 3 T 3125 F 4 E 3126 S 5 L 3127 N 6 B 3128 B 7 H 3129 M 8 J 312: V 9 M 3131 Y : G 3132 B 21 S 3133 T 22 W 3134 Q 23 V 3135 P 3136 C 3137 Z 3138 O 3139 R 313: X 3141 [ Label Location

Project No.: EP3N0401 Page No. : 5 of 12 Project No.: EP3N0401 Page No. : 6 of 12 Project No.: EP3N0401 Page No. : 7 of 12 Project No.: EP3N0401 Page No. : 8 of 12 Project No.: EP3N0401 Page No. : 9 of 12 Project No.: EP3N0401 Page No. : 10 of 12 Project No.: EP3N0401 Page No. : 11 of 12 Project No.: EP3N0401 Page No. : 12 of 12

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength =88.68dBuV/m @3m Ant gain =-2.65dBi ;so Ant numeric gain= 0.54 So pt={ [10 (88.68/20) /10 6 x3] 2 /30x0.54 }x1000 mW = 0.41 mW So ( 0.41 mW/5mm)x √5.837 = 0.198 <3 Then SAR evaluation is not required

Report No.: FR3N0401 Page : 1 of 23 Report Version: Rev. 02 FCC Test Report FCC ID : 2AAUCMOLTMHYLOBK01 Equipment : Level 10M Wireless Mouse Model No. : MO-LTM-HYLO Brand Name : Thermaltake Applicant : Thermaltake Technology Co., Ltd. Address : 5F., No.185, Sec. 2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan Standard : 47 CFR FCC Part 15.249 Received Date : Nov. 04, 2013 Tested Date : Dec. 04, 2013 ~ Jan. 24, 2014 We, International Certification Corp., w ould like to declare that the tested sample has been ev aluated and in compliance w ith the requirement of the abov e standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approv al of the applicant. It shall not be reproduced except in full w ithout the w ritten approv al of our laboratory. Approv ed & Rev iew ed by: Gary Chang / Manager Ty: XXX Report No.: FR3N0401 Page : 2 of 23 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .......................................................................................................... 5 1.2 Local Support Equipment List....................................................................................................... 6 1.3 T est Setup Chart ......................................................................................................................... 6 1.4 T he Equipment List...................................................................................................................... 7 1.5 T est Standards............................................................................................................................ 8 1.6 Measurement Uncertainty ............................................................................................................ 8 2 TES T CONFIGURATION............................................................................................................. 9 2.1 T esting Condition ........................................................................................................................ 9 2.2 T he Worst T est Modes and Channel Details.................................................................................. 9 3 TRANSMITTER TEST RESUL TS............................................................................................... 10 3.1 Radiated Emission..................................................................................................................... 10 4 TES T LABORATORY INFORMATION ....................................................................................... 23 Report No.: FR3N0401 Page : 3 of 23 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR3N0401 Rev. 01 Initial issue Jan. 06, 2014 FR3N0401 Rev. 02 Modified test result Jan. 27, 2014 Report No.: FR3N0401 Page : 4 of 23 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions N/A N/A 15.249(a) Field Strength of Fundamental Meet the requirement of limit Pass 15.249(a)(d) Field Strength of Harmonics and Emissions Radiated outside of the Specified Frequency Bands Meet the requirement of limit Pass 15.215(c) 20dB bandwidth Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Note: AC power line conducted emission test is not applicable since EUT consumes DC power from battery Report No.: FR3N0401 Page : 5 of 23 Report Version: Rev. 02 1 General Description 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Modulation Ch. Freq. (MHz) Channel Number 5725–5875 GFSK 5741-5837 1-8 [8] 1.1.2 Antenna Details Ant. No. Type Gain (dBi) Connector 1 Copper -2.65 N/A 1.1.3 EUT Operational Condition Pow er Supply Type 3.7Vdc from battery. Note: T he equipment tests are performed using a new battery. Report No.: FR3N0401 Page : 6 of 23 Report Version: Rev. 02 1.1.4 Channel List Frequency band (MHz) 5725~5875 Channel Frequency (MHz) Channel Frequency (MHz) 1 5748 5 5758 2 5789 6 5823 3 5741 7 5778 4 5837 8 5810 1.2 Local Support Equipme nt List Support Equipment List No. Equipment Brand Model S/N FCC ID Signal cable / Length (m) 1 --- --- --- --- --- --- 1.3 Te st Se tup Chart Test Setup Diagram Report No.: FR3N0401 Page : 7 of 23 Report Version: Rev. 02 1.4 The Equipme nt List Test Item Radiated Emission Test Site 966 chamber 2 / (03CH02-WS) Test date Dec.4 , 2013 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101499 Jan. 28, 2013 Jan. 27, 2014 Receiver R&S ESR3 101657 Jan. 30,2013 Jan. 29, 2014 Bilog Antenna ScHwarzbeck VULB9168 VULB9168-524 Jan. 11, 2013 Jan. 10, 2014 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120D BBHA 9120 D 1095 Jan. 29, 2013 Jan. 28,2014 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170517 Jan. 14, 2013 Jan. 13, 2014 Amplifier Burgeon BPA-530 100218 Dec. 14, 2012 Dec. 13, 2013 Amplifier Agilent 83017A MY39501309 Dec. 18, 2012 Dec. 17, 2013 RF Cable HUBER+SUHNER SUCOFLEX104 MY16140/4 Dec. 25, 2012 Dec. 24, 2013 RF Cable HUBER+SUHNER SUCOFLEX104 MY16018/4 Dec. 25, 2012 Dec. 24, 2013 RF Cable HUBER+SUHNER SUCOFLEX104 MY16015/4 Dec. 25, 2012 Dec. 24, 2013 RF Cable-R03m Woken CFD400NL-LW CFD400NL-003 Dec. 25, 2012 Dec. 24, 2013 RF Cable-R10m Woken CFD400NL-LW CFD400NL-004 Dec. 25, 2012 Dec. 24, 2013 control EM Electronics EM1000 060608 N/A N/A Note: Calibration Interval of instruments listed above is one year. Loop Antenna R&S HFH2-Z2 100330 Nov. 15, 2012 Nov. 14, 2014 Amplifier MITEQ AMF-6F-260400 9121372 Apr. 19, 2013 Apr. 18, 2015 Note: Calibration Interval of instruments listed above is two year. Test Item RF Conducted Test Site (TH01-WS) Test date Dec.4 ~ 12, 2013 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV 40 101063 Feb. 18, 2013 Feb. 17, 2014 Power Meter Anritsu ML2495A 1241002 Oct. 24, 2013 Oct. 23, …
