2AAUCMOLTMRXBK01Receiver for Level 10M Wireless Mouse

Thermaltake Technology Co., Ltd.
Receiver for Level 10M Wireless Mouse - FCC ID 2AAUCMOLTMRXBK01 - Thermaltake Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jan 27, 2014
Application Purpose
Original Equipment
Date of Application
Jan 27, 2014
Equipment Note
Receiver for Level 10M Wireless Mouse
Frequency Range
5741.00000000 - 5837.00000000
Company
Thermaltake Technology Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—
β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

FCC DoC Test Report Equipment : Receiver for Level 10M Wireless Mouse Model No. : MO-LTM-RX Brand Name : Thermaltake Applicant : Thermaltake Technology Co., Ltd. Address : 5F., No.185, Sec. 2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan Standard : FCC Part 15, Subpart B, Class B ICES-003 Issue 5 ANSI C63.4:2009 Received Date : Nov. 04, 2013 Tested Date : Nov. 05 ~ Nov. 07, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Kent Chen / Assistant Manager Ty: XXX Report No.: FD3N0402 Page : 1 of 25 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 5 1.3 Test Equipment and Calibration Data .................................................................................................... 6 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Condition ................................................................................................................................... 8 2.2 Local Support Equipment List ................................................................................................................ 9 2.3 Test Setup Chart .................................................................................................................................... 9 2.4 Test Software and Operating Condition ............................................................................................... 10 3 EMISSION TESTS RESULTS ............................................................................................................. 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 Radiated Emissions .............................................................................................................................. 15 4 PHOTOGRAPHS OF THE TEST CONFIGURATION ......................................................................... 22 5 TEST LABORATORY INFORMATION ............................................................................................... 25 Report No.: FD3N0402 Page : 2 of 25 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FD3N0402 Rev. 01 Initial issue Jan. 06, 2014 Report No.: FD3N0402 Page : 3 of 25 Report Version: Rev. 01 Summary of Test Results FCC Part 15, Subpart B Emission Tests Ref. Std. Clause Test Standard Test Items Measured Result 15.107 FCC Part 15, Subpart B, Class B Conducted Emissions -9.21dB AV@ 0.164MHz. Pass 15.109 FCC Part 15, Subpart B, Class B Radiated Emissions -4.10dB QP@ 166.27MHz. Pass Report No.: FD3N0402 Page : 4 of 25 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Feature of Equipment under Test (EUT) Power Supply Type 5Vdc from Host Highest Frequency of the Internal Sources 5.85GHz 1.2 Accessories N/A Report No.: FD3N0402 Page : 5 of 25 Report Version: Rev. 01 1.3 Test Equipment and Calibration Data Test Item Conducted Emission Test Site Conduction room 1 / (CO01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until EMC Receiver R&S ESCS 30 100169 Oct. 15, 2013 Oct. 14, 2014 LISN SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-667 Dec. 04, 2012 Dec. 03, 2013 LISN (Support Unit) SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-666 Dec. 04, 2012 Dec. 03, 2013 ISN TESEQ ISN T800 34406 Apr. 08, 2013 Apr. 07, 2014 ISN TESEQ ISN T200A 30494 Apr. 09, 2013 Apr. 08, 2014 ISN TESEQ ISN ST08 22589 Jan. 24, 2013 Jan. 23, 2014 RF Current Probe FCC F-33-4 121630 Dec. 04, 2012 Dec. 03, 2013 RF Cable-CON Woken CFD200-NL CFD200-NL-001 Dec. 25, 2012 Dec. 24, 2013 ESH3-Z6 V-Network(+) R&S ESH3-Z6 100920 Nov. 21, 2012 Nov. 20, 2013 ESH3-Z6 V-Network(-) R&S ESH3-Z6 100951 Jan. 30, 2013 Jan. 29, 2014 Two-Line V-Network R&S ENV216 101579 Jan. 07, 2013 Jan. 06, 2014 50 ohm terminal NA 50 01 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal NA 50 02 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal NA 50 03 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal (Support Unit) NA 50 04 Apr. 22, 2013 Apr. 21, 2014 Note: Calibration Interval of instruments listed above is one year. Test Item Radiated Emission below 1GHz Test Site Open Area Test Site 1 / (OS01-LK) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Open Area Test Site SPORTON OATS-10 OS01-LK Oct. 19, 2013 Oct. 18, 2014 Amplifier HP 8447D 2944A07523 Jun. 10, 2013 Jun. 09, 2014 EMI Test Receiver R&S ESR3 101659 Feb. 04, 2013 Feb. 03, 2014 Bilog Antenna Schaffner CBL6112B 2687 Oct. 14, 2013 Oct. 13, 2014 RF Cable-R03m BELDEN RG8/U CB015 Dec. 25, 2012 Dec. 24, 2013 RF Cable-R10m BELDEN RG8/U CB016 Dec. 25, 2012 Dec. 24, 2013 Note: Calibration Interval of instruments listed above is one year. Report No.: FD3N0402 Page : 6 of 25 Report Version: Rev. 01 Test Item Radiated Emission above 1GHz Test Site 966 chamber1 / (03CH01-WS) Inst…

Text truncated - open the document above for the full version.

External Photos

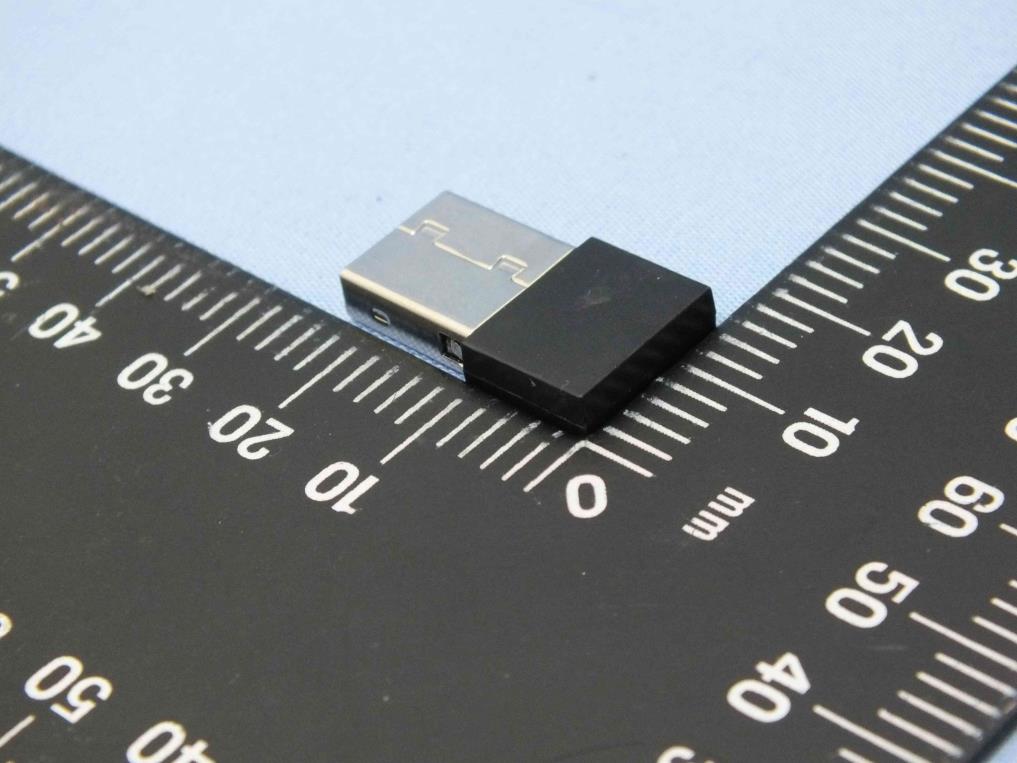

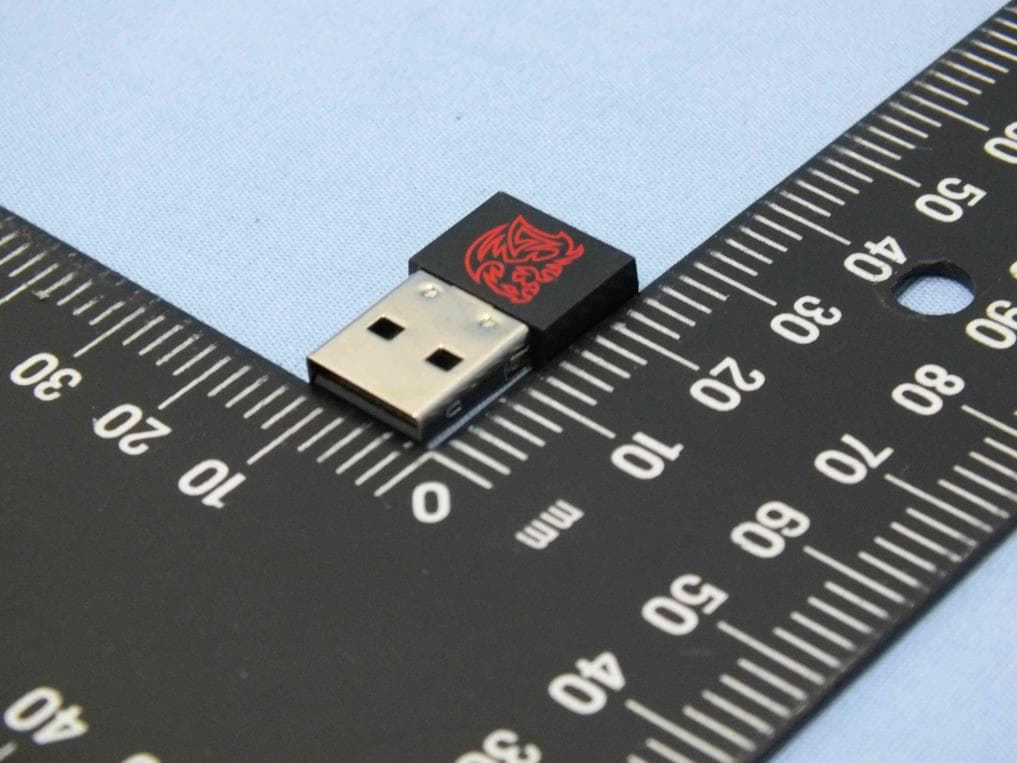

Project No.: EP3N0402 Page No. : 1 of 5 Photographs of EUT Project No.: EP3N0402 Page No. : 2 of 5

ID Label/Location Info

Label Location

Internal Photos

Project No.: EP3N0402 Page No. : 3 of 5 Project No.: EP3N0402 Page No. : 4 of 5 Project No.: EP3N0402 Page No. : 5 of 5

RF Exposure Info

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≀ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] Β·[√f(GHz)] ≀ 3.0 for 1-g SAR and ≀ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength =94.26dBuV/m @3m Ant gain =1.05dBi ;so Ant numeric gain=1.27 So pt={ [10 (94.26/20) /10 6 x3] 2 /30x1.27 }x1000 mW = 0.63 mW So ( 0.63 mW/5mm)x √5.837 = 0.3 <3 Then SAR evaluation is not required

Test Report

Report No.: FR3N0402 Page : 1 of 27 Report Version: Rev. 02 FCC Test Report FCC ID : 2AAUCMOLTMRXBK01 Equipment : Receiver for Level 10M Wireless Mouse Model No. : MO-LTM-RX Brand Name : Thermaltake Applicant : Thermaltake Technology Co., Ltd. Address : 5F., No.185, Sec. 2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan Standard : 47 CFR FCC Part 15.249 Received Date : Nov. 04, 2013 Tested Date : Dec. 04, 2013 ~ Jan. 24, 2014 We, International Certification Corp., w ould like to declare that the tested sample has been ev aluated and in compliance w ith the requirement of the abov e standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approv al of the applicant. It shall not be reproduced except in full w ithout the w ritten approv al of our laboratory. Approv ed & Rev iew ed by: Gary Chang / Manager Ty: XXX Report No.: FR3N0402 Page : 2 of 27 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .......................................................................................................... 5 1.2 Local Support Equipment List....................................................................................................... 6 1.3 T est Setup Chart ......................................................................................................................... 6 1.4 T he Equipment List...................................................................................................................... 7 1.5 T est Standards............................................................................................................................ 9 1.6 Measurement Uncertainty ............................................................................................................ 9 2 TES T CONFIGURATION........................................................................................................... 10 2.1 T esting Condition ...................................................................................................................... 10 2.2 T he Worst T est Modes and Channel Details................................................................................ 10 3 TRANSMITTER TEST RESUL TS............................................................................................... 11 3.1 Conducted Emissions ................................................................................................................ 11 3.2 Radiated Emission..................................................................................................................... 14 4 TES T LABORATORY INFORMATION ....................................................................................... 27 Report No.: FR3N0402 Page : 3 of 27 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR3N0402 Rev. 01 Initial issue Jan. 06, 2014 FR3N0402 Rev. 02 Modified test result Jan. 27, 2014 Report No.: FR3N0402 Page : 4 of 27 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC power Line Conducted Emissions [dBuV]: 0.175MHz 59.08 (Margin 5.64dB) - QP Pass 15.249(a) Field Strength of Fundamental Meet the requirement of limit Pass 15.249(a)(d) Field Strength of Harmonics and Emissions Radiated outside of the Specified Frequency Bands Meet the requirement of limit Pass 15.215(c) 20dB bandwidth Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR3N0402 Page : 5 of 27 Report Version: Rev. 02 1 General Description 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Modulation Ch. Freq. (MHz) Channel Number 5725–5875 GFSK 5741-5837 1-8 [8] 1.1.2 Antenna Details Ant. No. Type Gain (dBi) Connector 1 Copper 1.05 N/A 1.1.3 EUT Operational Condition Pow er Supply Type 5Vdc from Host 1.1.4 Accessories N/A 1.1.5 Channel List Frequency band (MHz) 5725~5875 Channel Frequency (MHz) Channel Frequency (MHz) 1 5748 5 5758 2 5789 6 5823 3 5741 7 5778 4 5837 8 5810 Report No.: FR3N0402 Page : 6 of 27 Report Version: Rev. 02 1.2 Local Support Equipme nt List Support Equipment List No. Equipment Brand Model S/N FCC ID Signal cable / Length (m) 1 Notebook DELL E6430 --- DoC --- 1.3 Te st Se tup Chart Test Setup Diagram Report No.: FR3N0402 Page : 7 of 27 Report Version: Rev. 02 1.4 The Equipme nt List Test Item Conducted Emission Test Site Conduction room 1 / (CO01-WS) Test date Dec.6 , 2013 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until EMC Receiver R&S ESCS 30 100169 Oct. 15, 2013 Oct. 14, 2014 LISN SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-667 Nov. 23, 2013 Nov. 22, 2014 LISN (Support Unit) SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-666 Dec. 04, 2013 Dec. 03, 2014 ISN TESEQ ISN T800 34406 Apr. 08, 2013 Apr. 07, 2014 ISN TESEQ ISN T200A 30494 Apr. 09, 2013 Apr. 08, 2014 ISN TESEQ ISN ST08 22589 Jan. 24, 2013 Jan. 23, 2014 RF Current Probe FCC F-33-4 121630 Nov. 29, 2013 Nov, 28, 2014 RF Cable-CON Woken CFD200-NL CFD200-NL-001 Apr. 24, 2013 Apr. 23, 2014 50 ohm terminal NA 50 01 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal NA 50 02 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal NA 50 03 Apr. 22, 2013 Apr. 21, 2014 50 ohm terminal (Support Unit) NA 50 04 Apr. 22, 2013 Apr. 21, 2014 Note: Calibration Interval of instruments listed above is one year. Test Item RF Conducted Test Site (TH01-WS) Test date Dec.4 , 2013 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV 40 101063 Feb. 18, 2013 Feb. 17, 2014 Power Meter Anritsu ML2495A 1241002 Oct. 24, 2013 Oct. 23, 2014 Power Sensor Anritsu MA2411B 1027366 Oct. 24, 2013 Oct. 23, 2014 Note: Calibration Interval of instruments listed above is one year. Report No.: FR3N0402 Page : 8 of 27 Report Version: Rev. 02 Test Item Radiated Emission Test Site 966 chamber 2 / (03CH02-WS) Test date …

Text truncated - open the document above for the full version.

Test Setup Photos

Photographs of the Test Configuration Conducted Emission Test Report No.: FR3N0402 Page: : 1 of 4 Report Version: Rev. 01 Report No.: FR3N0402 Page: : 2 of 4 Report Version: Rev. 01 Radiated Emission Test Report No.: FR3N0402 Page: : 3 of 4 Report Version: Rev. 01 Report No.: FR3N0402 Page: : 4 of 4 Report Version: Rev. 01
